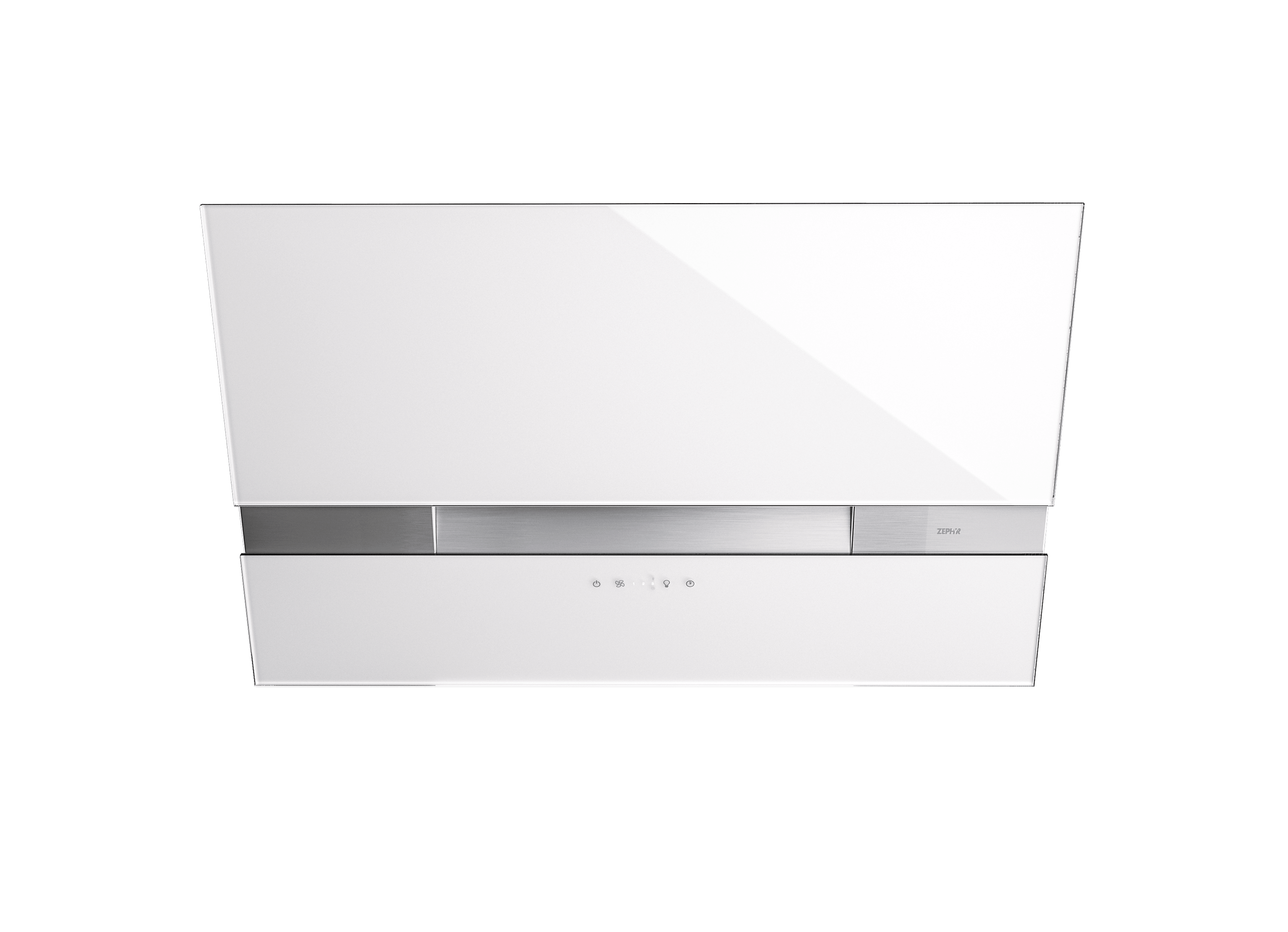

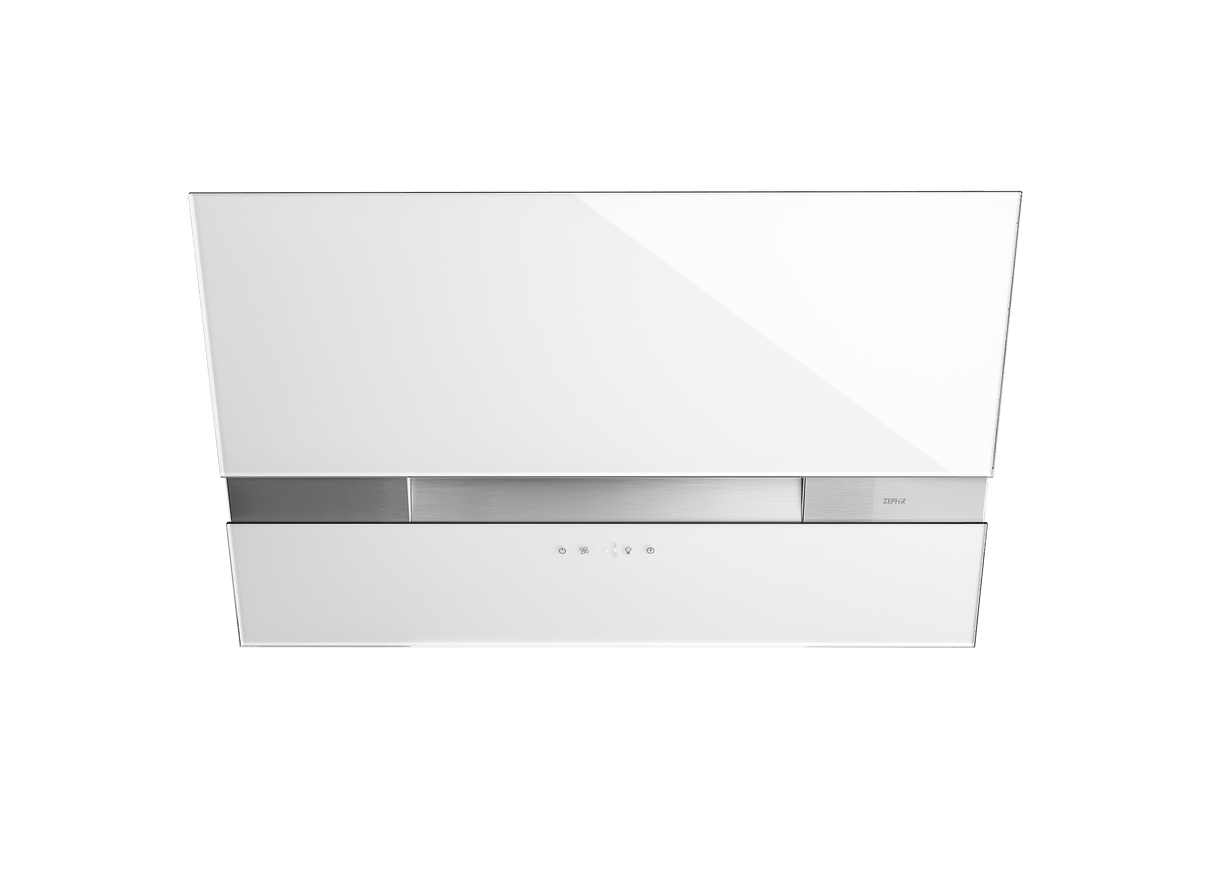

Wave, Wall, 90cm, White Glass, BODY ONLY
Model AWAM90AWX
Authorized Dealer
Loading...
Authorized Dealer
Wave, Wall, 90cm, White Glass, BODY ONLY
Model AWAM90AWXQuick Specs
RPM
-1.0
Energy
NO
Wave, Wall, 90cm, White Glass, BODY ONLY is backordered and will ship as soon as it is back in stock.
This item qualifies for free delivery
Ships Out Within: 2 - 4 Business Days
Shipping Date By: 06/29/2026
Regular price
$1,661.11
Unit price
/
Unavailable
SERVICES AVAILABLE
Selection will add
$0.00
to the price
Couldn't load pickup availability
Quick Specs
RPM
-1.0
Energy Star Rated
NO
- Includes wireless remote control
- Our wireless remote control places the hoods operations at your fingertips from anywhere in the kitchen.
- Dual capture zones
- Cooking contaminates are pulled in through two entry points to improve capture performance.
- Capacitive touch controls
- LED light strip
- This multi-level LED light strip ensures even, warm white lighting while fully illuminating the cooking area.
- Optional Ductless Recirculating Kit
- Ductless recirculating kit used when venting air outside your home is not possible. Smoke and odors pass through charcoal filters allowing purified air to be reintroduced into the kitchen.
- Optional extension duct cover kit
- Includes wireless remote control
- Dual capture zones
- Capacitive touch controls
- LED light strip
- Optional Ductless Recirculating Kit
- Optional extension duct cover kit
Wave, Wall, 90cm, White Glass, BODY ONLY
| Brand | Zephyr |
| Manufacturer | Zephyr |
| Category | Range Hood |
| Sub-Category | Wall |
| Vent Type | Convertible |
| UPC | 646328004346 |
| GTIN | 00646328004346 |
| Country of Origin | Italy |
| Model Group | AWA-A |
| Model Name | Wave |
| Collection | Designer Collection |
| Blower Included | No |
| Internal Blower 1 CFM | 290 |
| Internal Blower 1 Min. Sones | 1.4 |
| Internal Blower 1 Max Sones | 3 |
| Internal Blower 2 CFM | 600 |
| Internal Blower 2 Max Sones | 6 |
| In-Line Blower CFM | 1000 |
| External Blower CFM | 1000 |
| Installation Type | Wall |
| Installation Type | Wall |
| For Outdoor Use | No |
| Color | Stainless Steel + White |
| Controls Type | Capacitive Touch |
| Blower Speeds | 3 |
| Automatic Delay-Off | Yes |
| Clean Air Function | Yes |
| Lighting Type | LED |
| Lights Quantity | 1 |
| Watts Per Bulb | 8.5 |
| Lights Levels | 3 |
| Grease Filter Type | Mesh |
| Compatible Mesh or Baffle Filter Part Number | 50200057 |
| Duct Discharge | Vertical or Horizontal |
| Duct Size; Horizontal; IN | 6, 8 |
| Duct Size; Vertical; IN | 6, 8 |
| Mounting Height Above Cooktop; IN | 22 - 32 |
| Voltage | 120 |
| Maximum Amperage | 6.45 |
| ADA Compliant | Yes |
| Warranty Parts / Labor | 1 / 1 |
| Compatible Appliances | ZRC-00WA, Z1C-00IN, MUA006A, MUA008A, Z0F-01AC |
| Bluetooth Connected | No |
| Wi-Fi Connected | No |
| Remote Included | Yes |
| Remote Optional | No |
| Energy Star Certified | No |
| Alexa & Google Home Compatible | No |
| CEC Title 20 Compliant | Yes |
| Primary Material | Steel |
| Nominal Width; IN | 36 |
| Net Width; IN | 35.375 |
| Net Depth; IN | 16.25 |
| Net Height; IN | 18.875 |
| Weight; LBS | 58 |
| Ceiling Height Minimum | 8 ft. |
| Ceiling Height Maximum | 10 ft. |
| Shipping Length; IN | 26.37 |
| Shipping Width; IN | 37.8 |
| Shipping Height; IN | 22.04 |
| Shipping Weight; LBS | 64.7 |
| Shipping Method | LTL |
| Freight Class | 300 |
| Duct Type | Vertical |
| Duct Type | Vertical |
- Includes wireless remote control
- Dual capture zones
- Capacitive touch controls
- LED light strip
- Optional Ductless Recirculating Kit
- Optional extension duct cover kit
 | |
|---|---|
