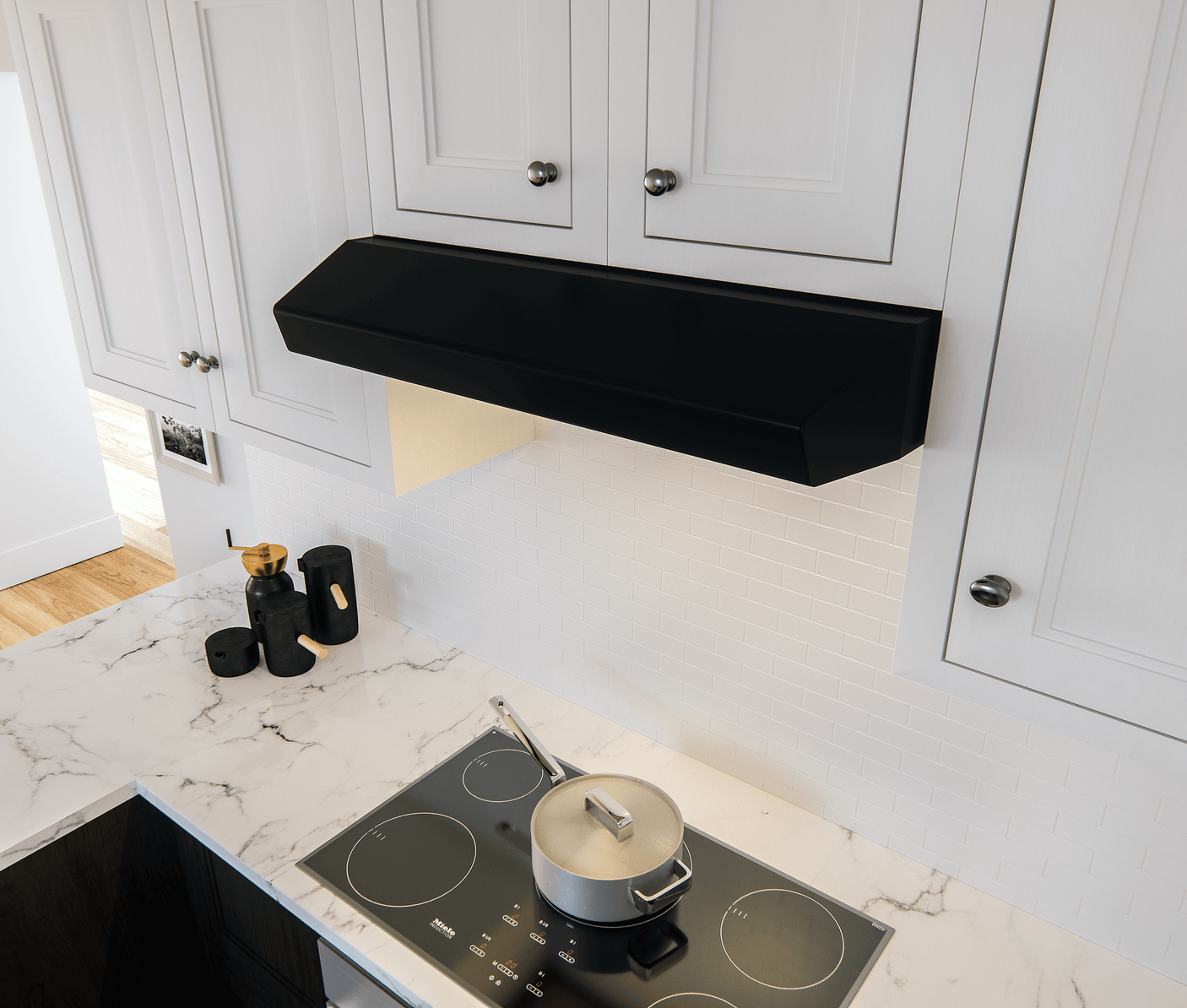

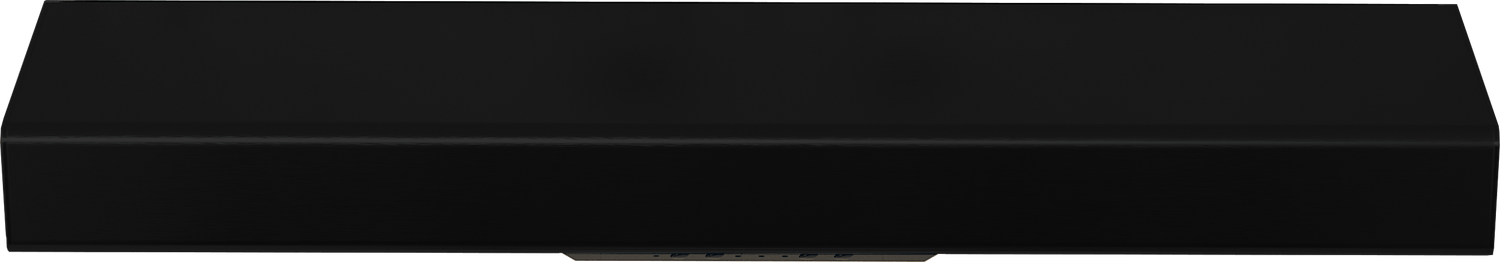

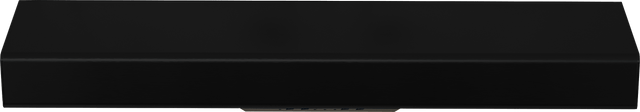

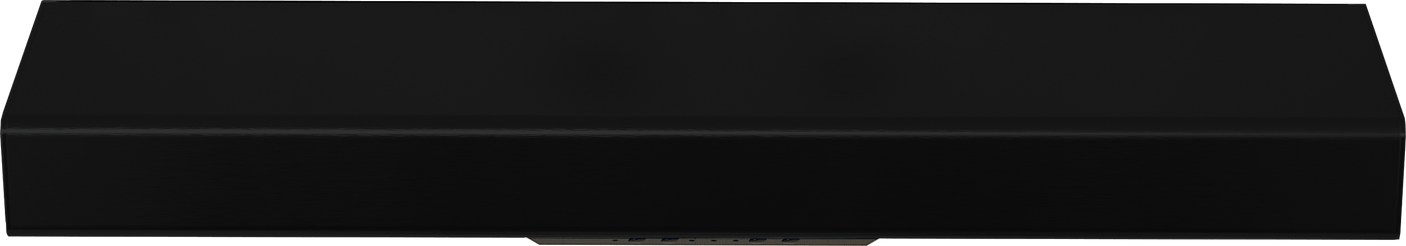

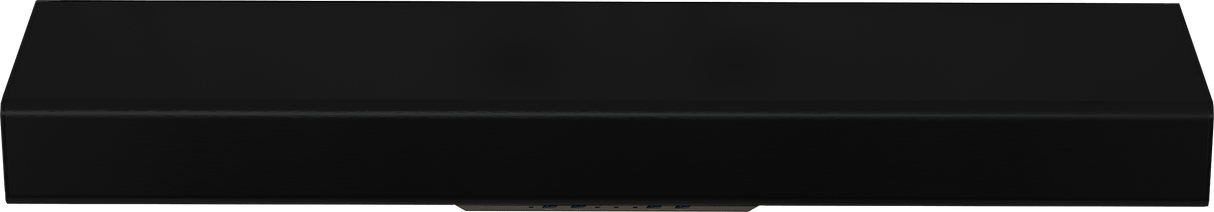

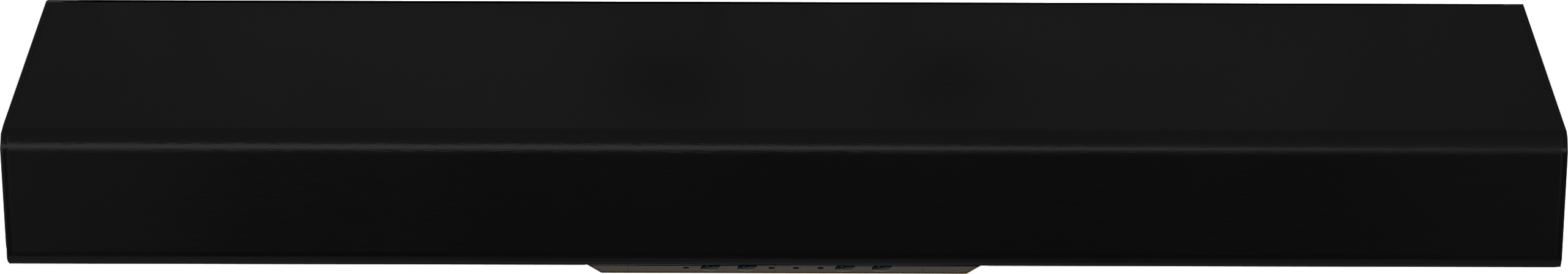

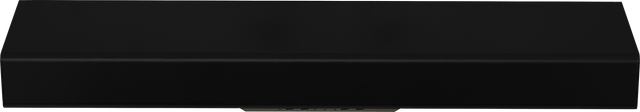

Breeze I, UC, 36", Blk, 250 CFM
Model: AK1136B
Authorized Dealer
1
of
5
Loading...
Authorized Dealer
Breeze I, UC, 36", Blk, 250 CFM
Model: AK1136BQuick Specs
Width
35.938"
Depth
20.25"
Height
5.5"
RPM
-1.0
Energy
NO
Breeze I, UC, 36", Blk, 250 CFM is backordered and will ship as soon as it is back in stock.
Message us for availability
Out of Stock
Regular price
$374.00
Unit price
/
Unavailable
SERVICES AVAILABLE
Selection will add
$0.00
to the price
Couldn't load pickup availability
Quick Specs
Width
35.938"
Depth
20.25"
Height
5.5"
RPM
-1.0
Energy Star Rated
NO
- Value driven
- Low-profile body
- Low-profile body for a minimalist appearance.
- Extra-wide mesh filters
- High quality mesh filters with an increased width for improved capture and performance.
- Optional Ductless Recirculating Kit
- Ductless recirculating kit used when venting air outside your home is not possible. Smoke and odors pass through charcoal filters allowing purified air to be reintroduced into the kitchen.
- Multiple color options
- Multiple colors available to match your kitchen decor.
- Value driven
- Low-profile body
- Extra-wide mesh filters
- Optional Ductless Recirculating Kit
- Multiple color options
Breeze I, UC, 36", Blk, 250 CFM
| Brand | Zephyr |
| Manufacturer | Zephyr |
| Category | Range Hood |
| Sub-Category | Under Cabinet |
| Vent Type | Convertible |
| UPC | 646328113628 |
| GTIN | 00646328113628 |
| Country of Origin | Taiwan |
| Model Group | AK11 |
| Model Name | Breeze I |
| Collection | Core Collection |
| Replacement Model | AK1136BB |
| Blower Included | Yes |
| Internal Blower 1 CFM | 250 |
| Internal Blower 1 Min. Sones | 1.8 |
| Internal Blower 1 Max Sones | 3.5 |
| Minimum CFM | 150 |
| Installation Type | Under Cabinet |
| Installation Type | Under Cabinet |
| For Outdoor Use | No |
| Color | Black |
| Controls Type | Mechanical Slide |
| Blower Speeds | 3 |
| Automatic Delay-Off | No |
| Clean Air Function | No |
| Lighting Type | Halogen |
| Lights Quantity | 2 |
| Watts Per Bulb | 35 |
| Lights Levels | 2 |
| Grease Filter Type | Mesh |
| Compatible Mesh or Baffle Filter Part Number | 50200012 |
| Duct Discharge | Vertical or Horizontal |
| Duct Size; Horizontal; IN | 3.25 x 10 |
| Duct Size; Vertical; IN | 3.25 x 10 |
| Mounting Height Above Cooktop; IN | 24 - 32 |
| Voltage | 120 |
| Maximum Amperage | 1.3 |
| ADA Compliant | No |
| Warranty Parts / Labor | 3 / 1 |
| Compatible Appliances | 0AK11-21001, Z0B0040, 0AK11-20001 |
| Bluetooth Connected | No |
| Wi-Fi Connected | No |
| Remote Included | No |
| Remote Optional | No |
| Energy Star Certified | No |
| Alexa & Google Home Compatible | No |
| CEC Title 20 Compliant | Yes |
| Primary Material | Steel |
| Wattage | 156 |
| Certification | UL |
| Nominal Width; IN | 36 |
| Net Width; IN | 35.9375 |
| Net Depth; IN | 20.25 |
| Net Height; IN | 5.5 |
| Weight; LBS | 21 |
| Ceiling Height Minimum | 8 ft. |
| Ceiling Height Maximum | 12 ft. |
| Shipping Length; IN | 39.57 |
| Shipping Width; IN | 9.45 |
| Shipping Height; IN | 24.61 |
| Shipping Weight; LBS | 27.3 |
| Shipping Method | Small Parcel |
| Freight Class | 175 |
| Duct Type | Vertical |
| Duct Type | Vertical |
- Value driven
- Low-profile body
- Extra-wide mesh filters
- Optional Ductless Recirculating Kit
- Multiple color options
 | |
|---|---|
