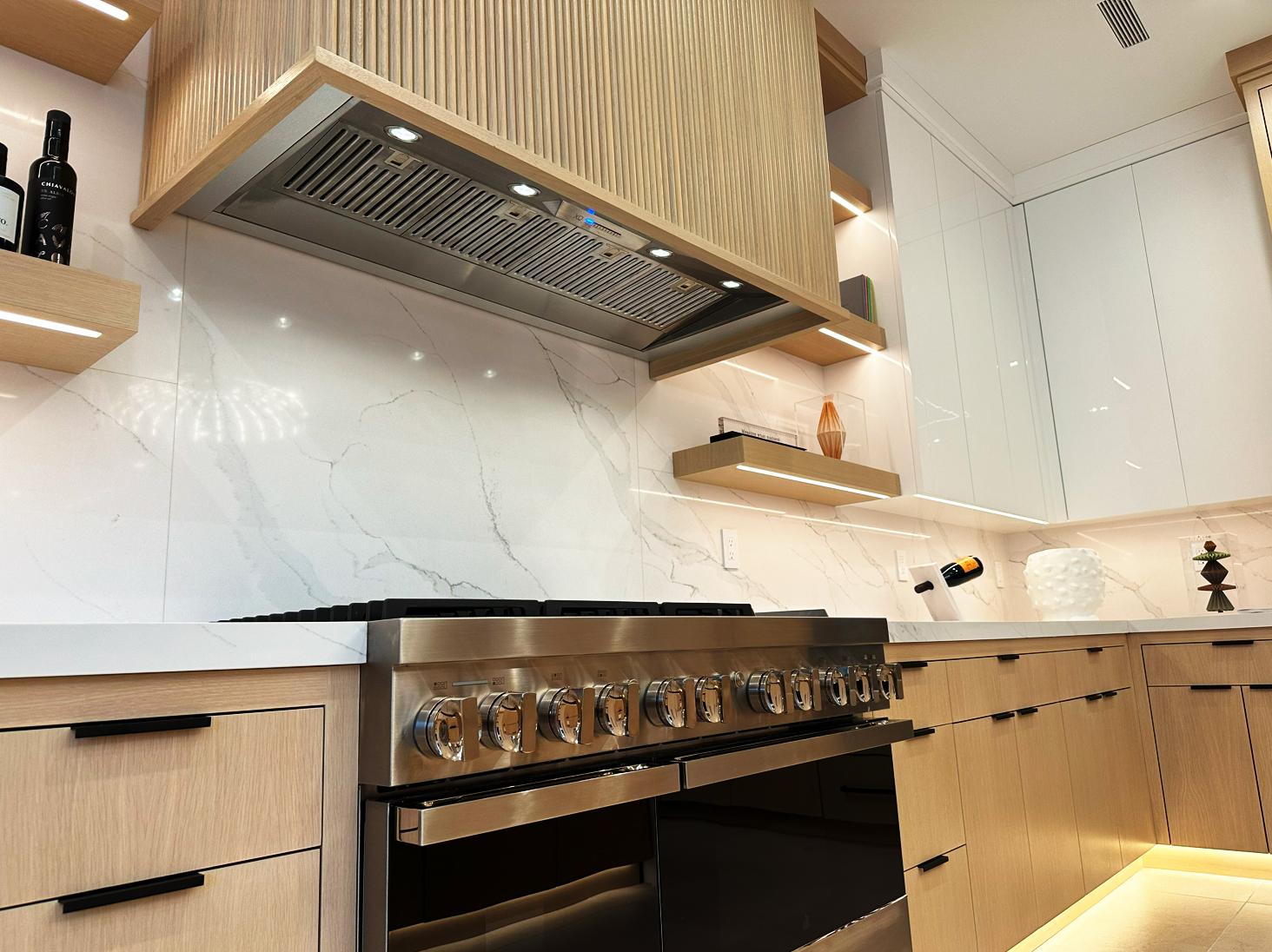

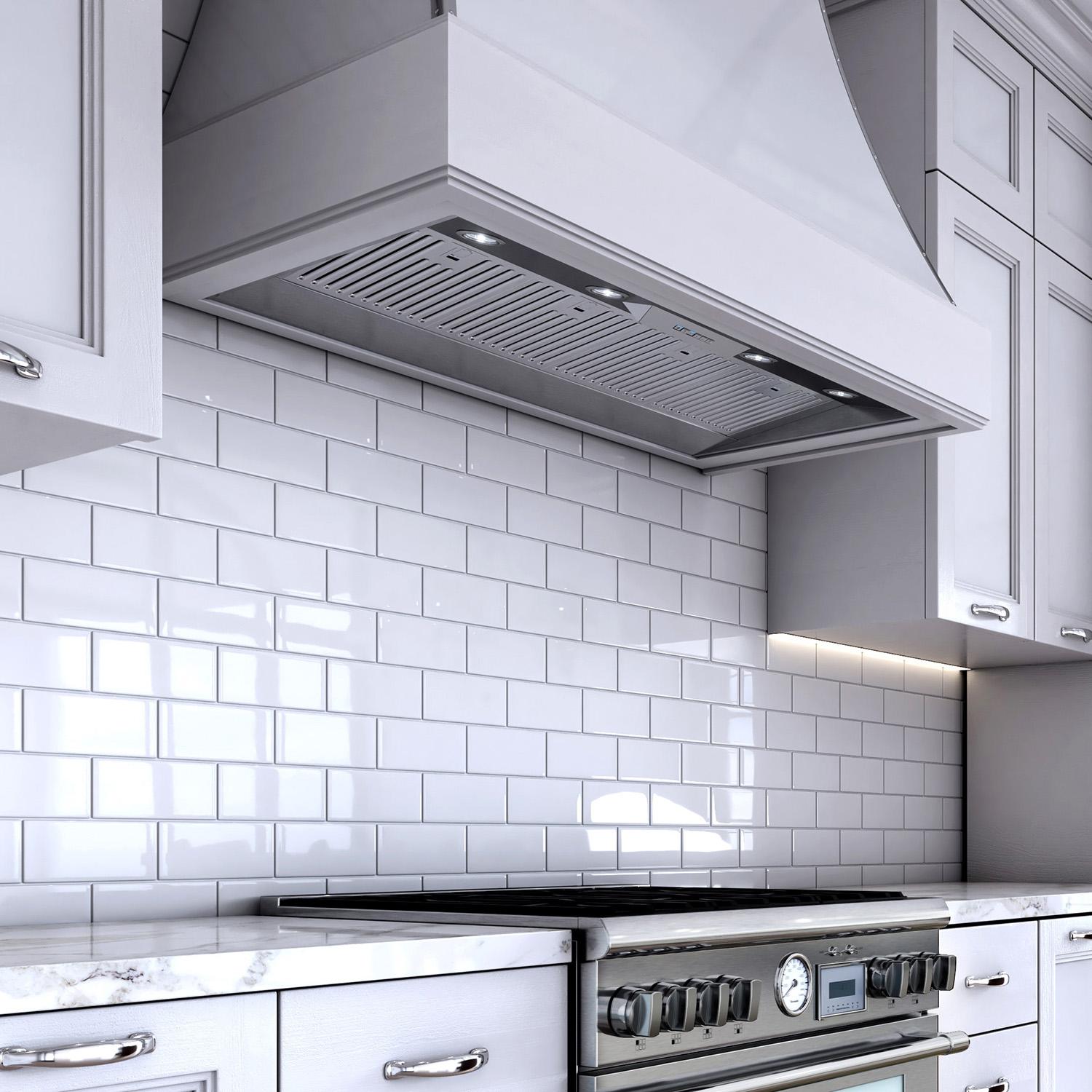

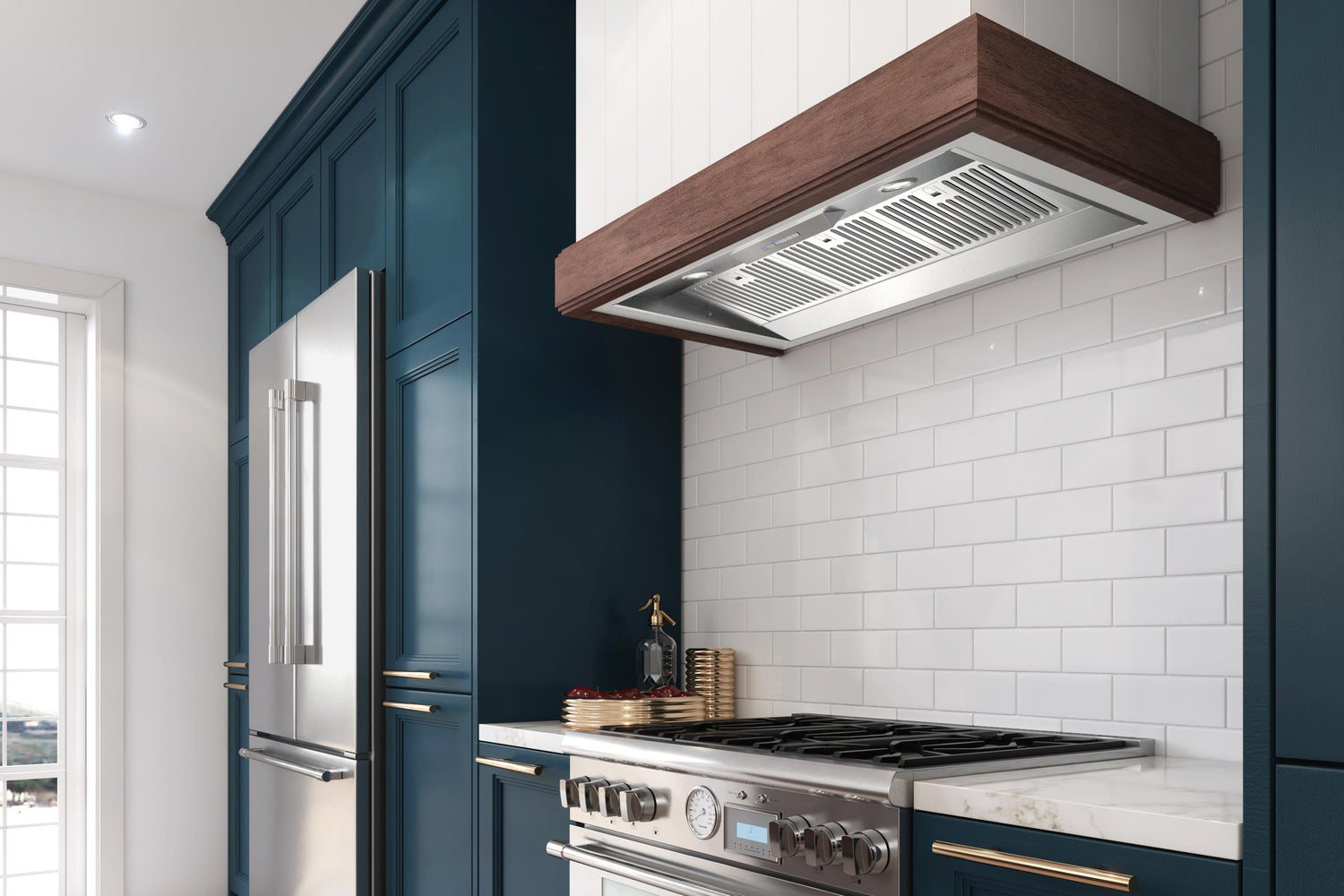

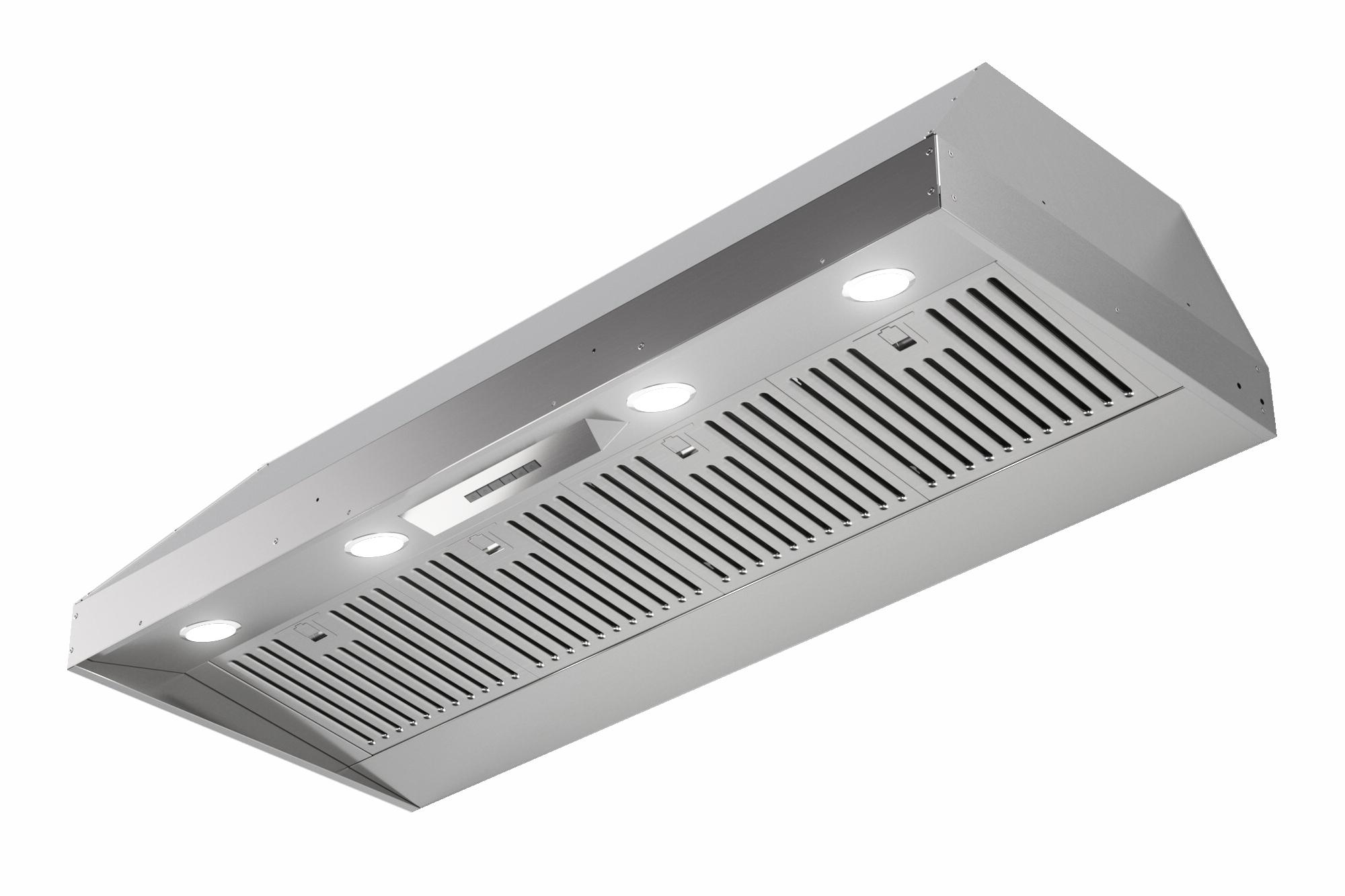

48" 1000 CFM liner insert hood 22in D
Model XOIL4822KSE
Authorized Dealer
1
of
9
Loading...
Authorized Dealer
48" 1000 CFM liner insert hood 22in D
Model XOIL4822KSEQuick Specs
Depth
22 1/2
Height
12
Energy
NO
48" 1000 CFM liner insert hood 22in D is backordered and will ship as soon as it is back in stock.
This item qualifies for free delivery
Ships Out Within: 2 - 4 Business Days
Shipping Date By: 06/29/2026
Sale Price
Sale price
$1,685.26
Regular price
$2,190.00
Unit price
/
Unavailable
You save 23%
SERVICES AVAILABLE
Selection will add
$0.00
to the price
Couldn't load pickup availability
Quick Specs
Depth
22 1/2
Height
12
Energy Star Rated
NO

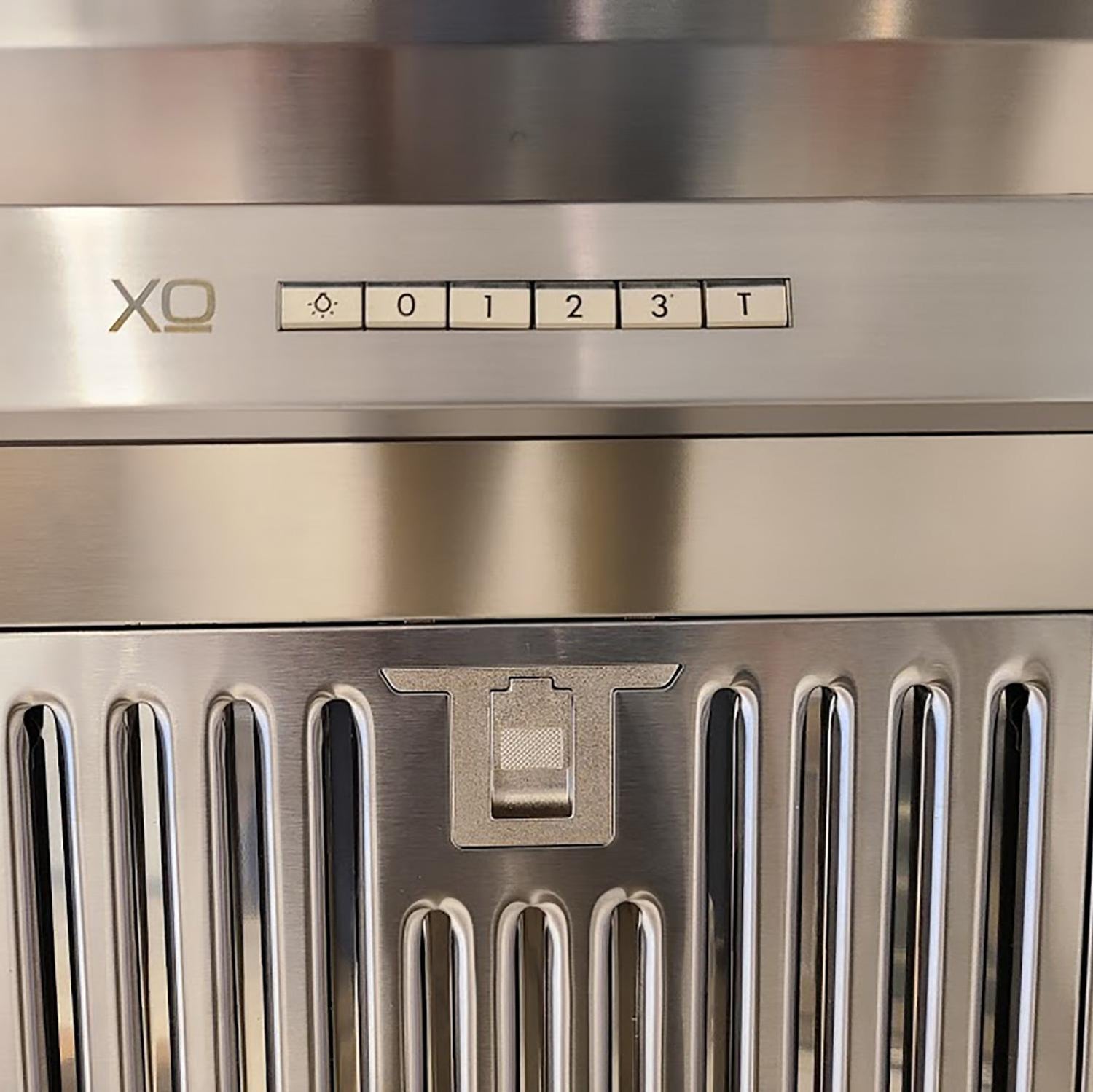

- Backlit Electronic 3 Speed Control
- Powerful 1000 CFM blower quickly and efficiently removes smoke and fumes

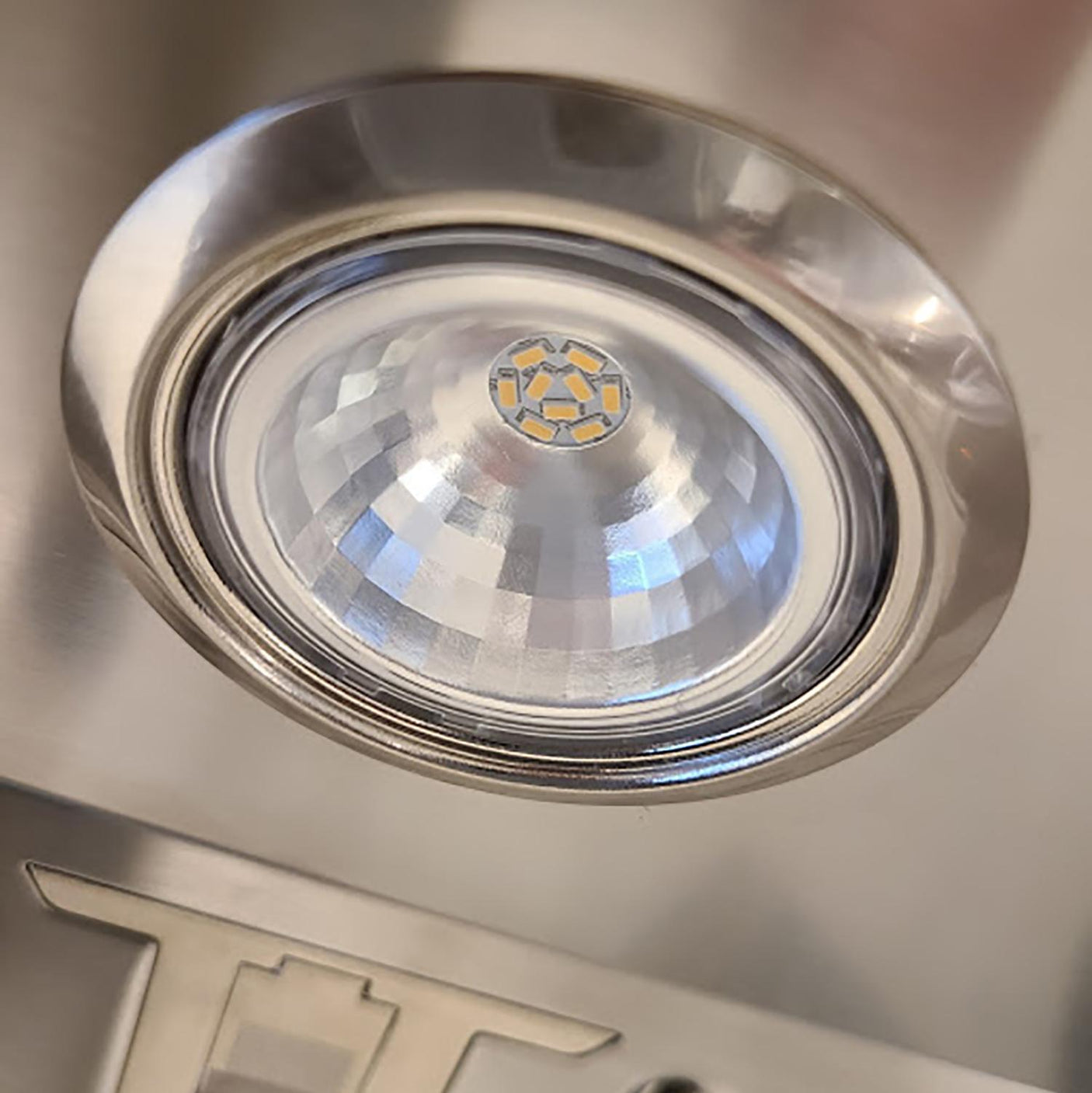

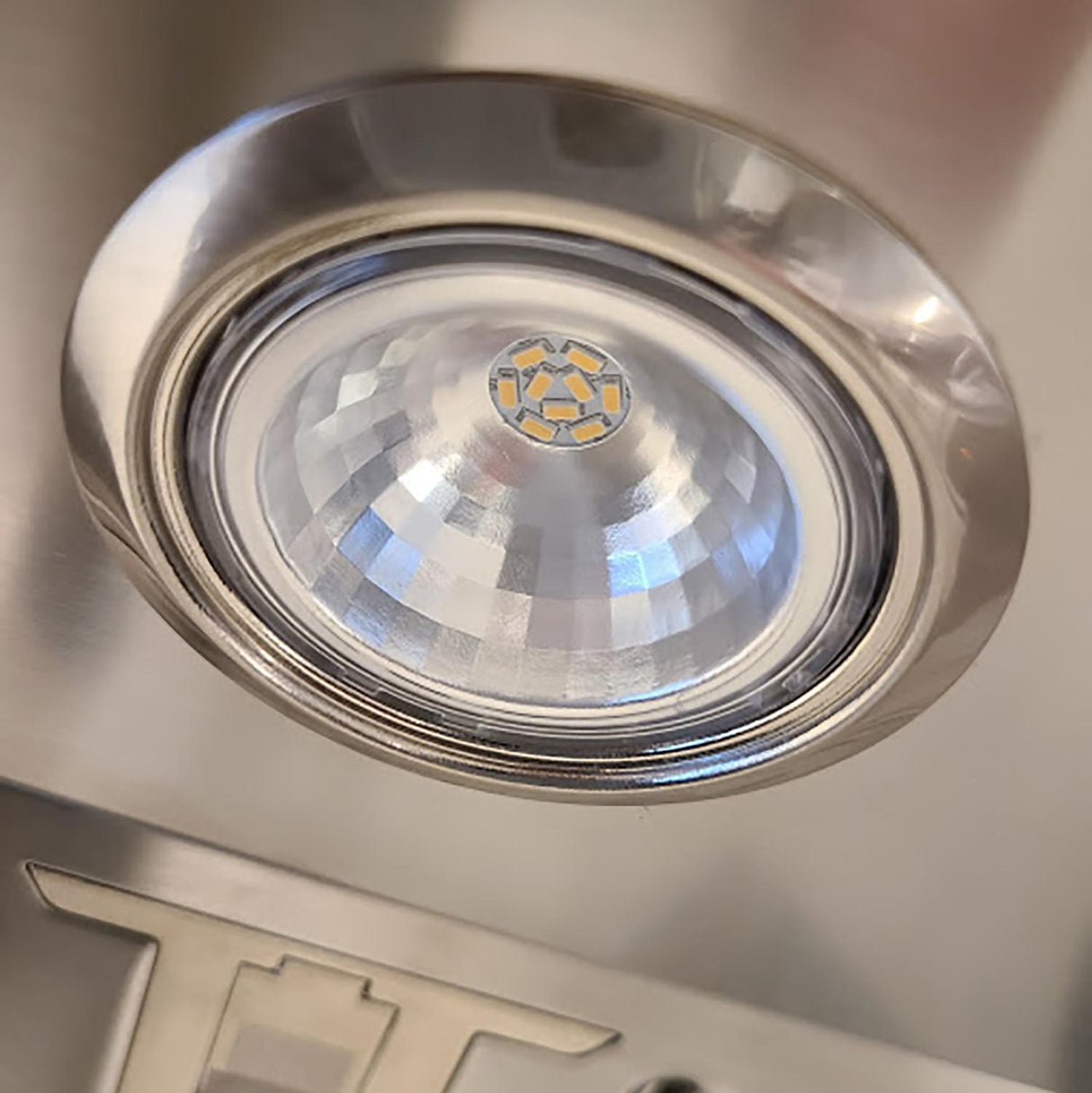

- High Efficiency 3000K LED lights brightly illuminate the cooktop

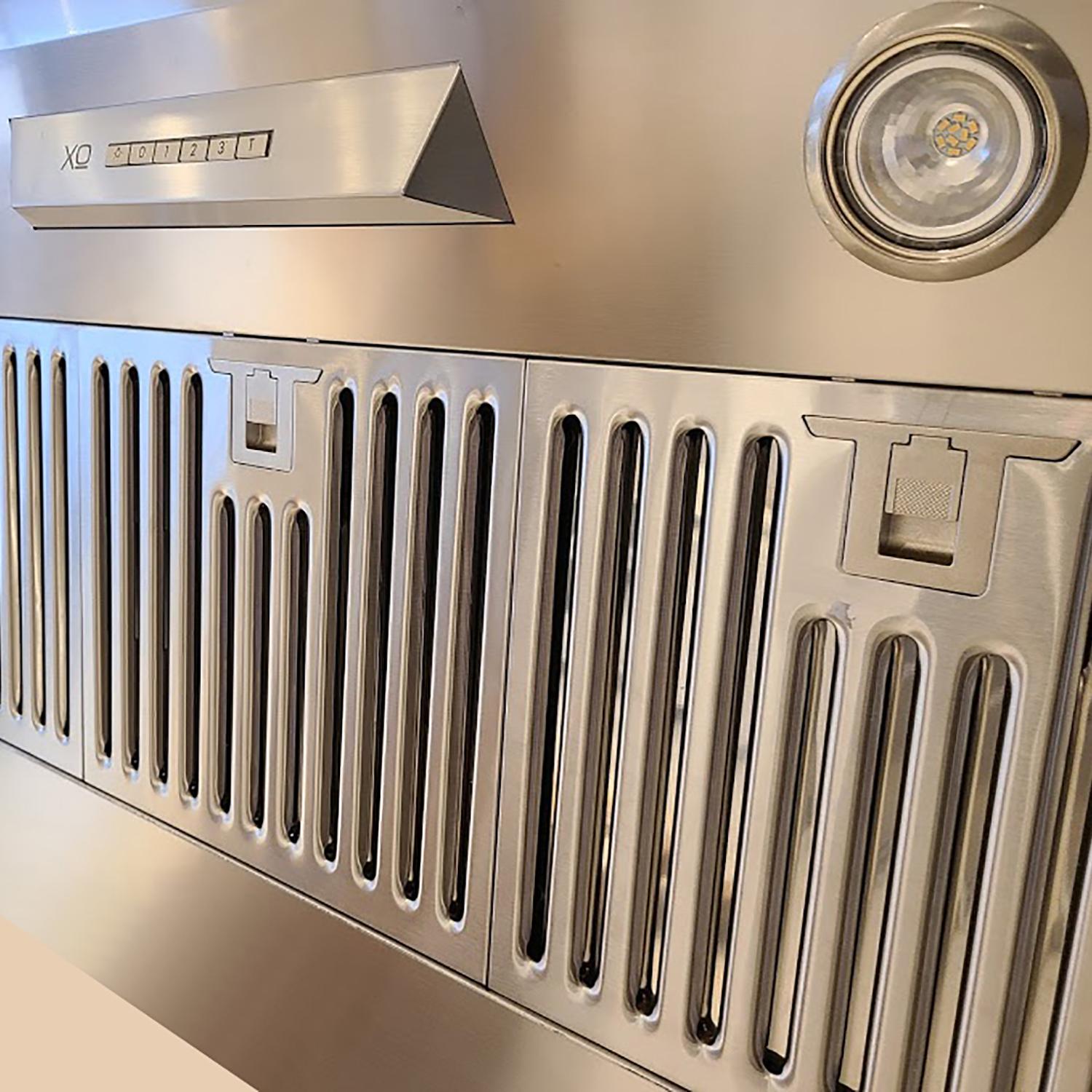

- Dishwasher Safe Pro Style Stainless Baffle Filters for efficient filtration
- 5 Minute Delay Shutoff Timer
- 8" Vertical Duct Exhaust
- XO quality and performance for your custom built-ins
- Made In Italy
- 2 year limited parts and labor warranty for the original owner
- Combination blower and liner saves time and money
48" wide, 22" Deep combination 1000 CFM Blower and Stainless Steel liner. The High-Velocity Blower quickly handles fumes and odors. Incomparable Handcrafted Italian Finish. Backlit 3 speed electronic controls. 5 Minute delay function. LED Lights
| Collection | Fabriano Collection |
| Origin | Italy |
| UPC | 814830013662 |
| Height | 12" |
| Width | 46 3/8" |
| Depth | 22 1/2" |
| Cut-Out Depth (in.) | 22 11/16" |
| Cut-Out Height (in.) | 12-1/4" |
| Cut-Out Width (in.) | 46 1/2" |
| Dimensions D x W x H | 22 1/2" x 46-3/8" x 12" |
| Product Weight | 68.2 |
| Warranty 1 Explained | 90 Day Love It Or Leave It |
| Warranty 2 Explained | 2 Year Limited Material And Workmanship for the original owner |
| ADA Compatible | No |
| Certification | UL |
| Prop 65 | Yes |
| Shipping Weight | 88 |
| Amperage | 6.2 Amps |
| Electrical | 120V - 60Hz - 6.2 Amps |
| Frequency (Hz) | 60 Hz |
| Voltage (volts) | 120 VAC |
| Wattage (watts) | 744 watts |
| Appliance Type | Range Hoods |
| CCC Code Compliance Control | No |
| CFM @ Speed 1 | 200 |
| CFM @ Speed 2 | 590 |
| CFM @ Speed 3 | 1000 |
| Color/Finish | Stainless |
| Commerical/Residential | Residential |
| Control Type | Backlit LED |
| Cooktop Lights | Twin LED Lights |
| Duct Size | 8" Dia. |
| Ductless Convertible | Ducted |
| Filter Type | Dishwasher Safe Pro Stainless Steel Baffles |
| Install Type | Insert - Liner combination |
| Installation Type | Insert - Liner combination |
| LIght Colors | White |
| Light Type | Twin LED Lights |
| Lighting Features | 3 Level Lighting |
| Maximum Air Flow Capacity CFM) | 1000 |
| Minimum Air Flow Capacity (CFM) | 200 |
| Mounting Height Above Cooktop | 27" - 32" |
| Number of Light Bulbs | 4 |
| Number of Speeds | 3 |
| Returnable | No |
| Sones @ Speed 1 | 2 |
| Sones @ Speed 2 | 6.4 |
| Sones @ Speed 3 | 8 |
| Vent Location | Top |
| Vent Material | Metal |
| Wireless Compatibility | No |
| Control Lighting | none |
| Controls | Electronic Controls |
| Location | Indoor |
| Sound Level | 2.0 -8.0 Sones |
| Assembled Depth (in.) | No |
| Force Multiples | 1 |
- Backlit Electronic 3 Speed Control
- Powerful 1000 CFM blower quickly and efficiently removes smoke and fumes
- High Efficiency 3000K LED lights brightly illuminate the cooktop
- Dishwasher Safe Pro Style Stainless Baffle Filters for efficient filtration
- 5 Minute Delay Shutoff Timer
- 8" Vertical Duct Exhaust
- XO quality and performance for your custom built-ins
- Made In Italy
- 2 year limited parts and labor warranty for the original owner
- Combination blower and liner saves time and money
 | |
|---|---|
