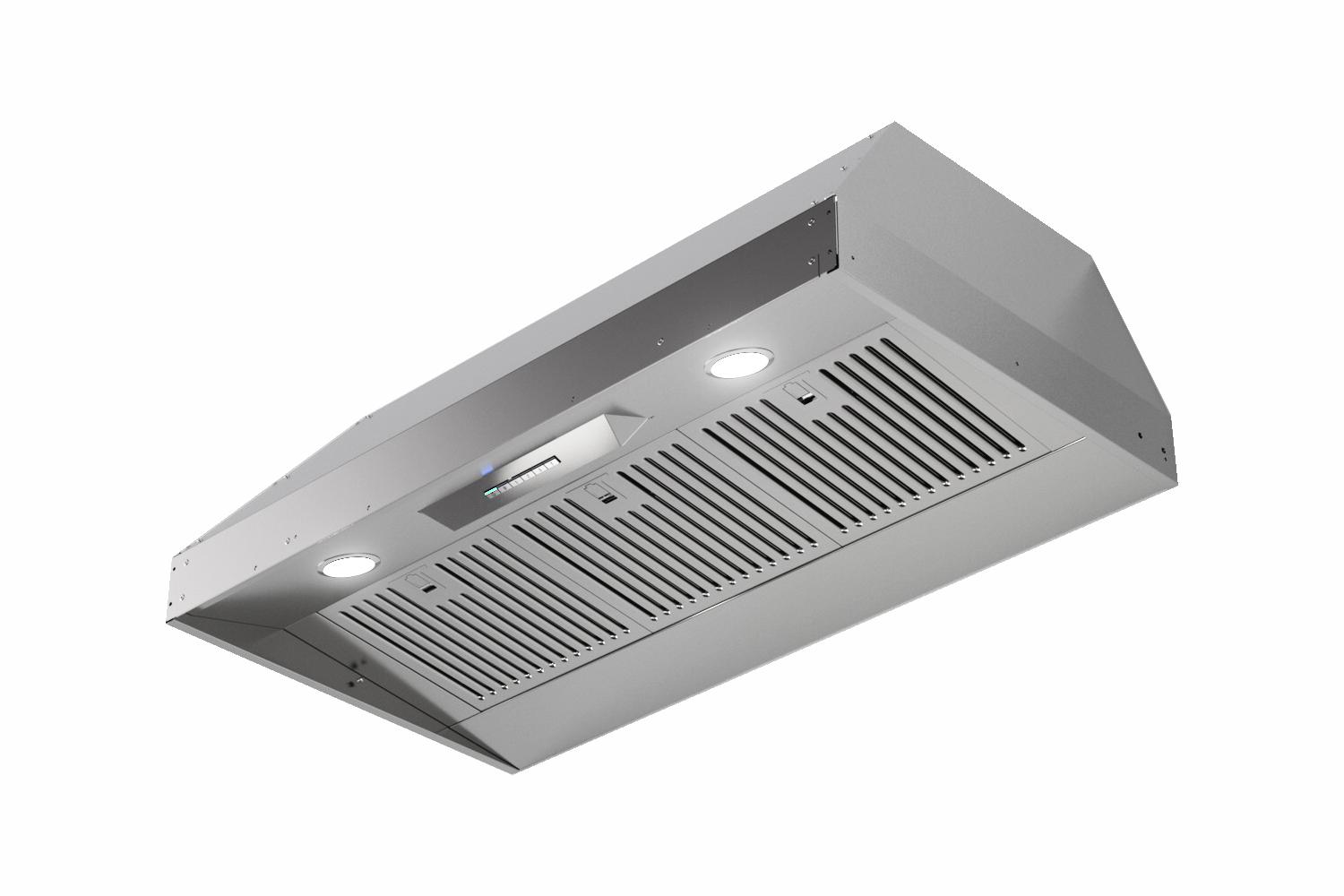

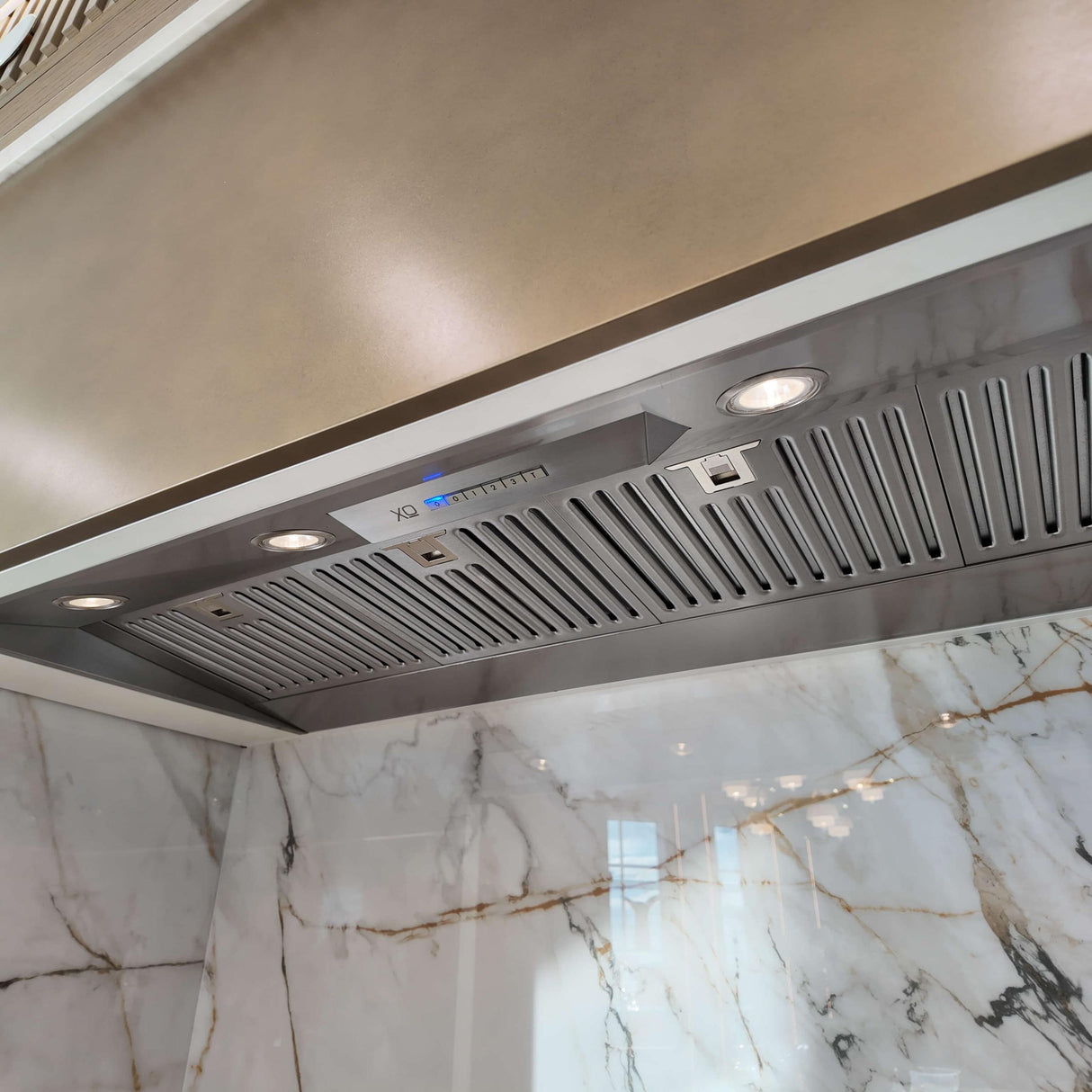

42" CCC 600/395 CFM Insert Hood Liner Stainless
Model XOIL4219SC
Authorized Dealer
1
of
13
Loading...
Authorized Dealer
42" CCC 600/395 CFM Insert Hood Liner Stainless
Model XOIL4219SCQuick Specs
Depth
19 1/4
Height
12
Energy
NO
42" CCC 600/395 CFM Insert Hood Liner Stainless is backordered and will ship as soon as it is back in stock.
Ships Out Within: 2 - 4 Business Days
Shipping Date By: 06/29/2026
Sale Price
Sale price
$1,131.64
Regular price
$1,565.00
Unit price
/
Unavailable
You save 27%
SERVICES AVAILABLE
Selection will add
$0.00
to the price
Couldn't load pickup availability
Quick Specs
Depth
19 1/4
Height
12
Energy Star Rated
NO

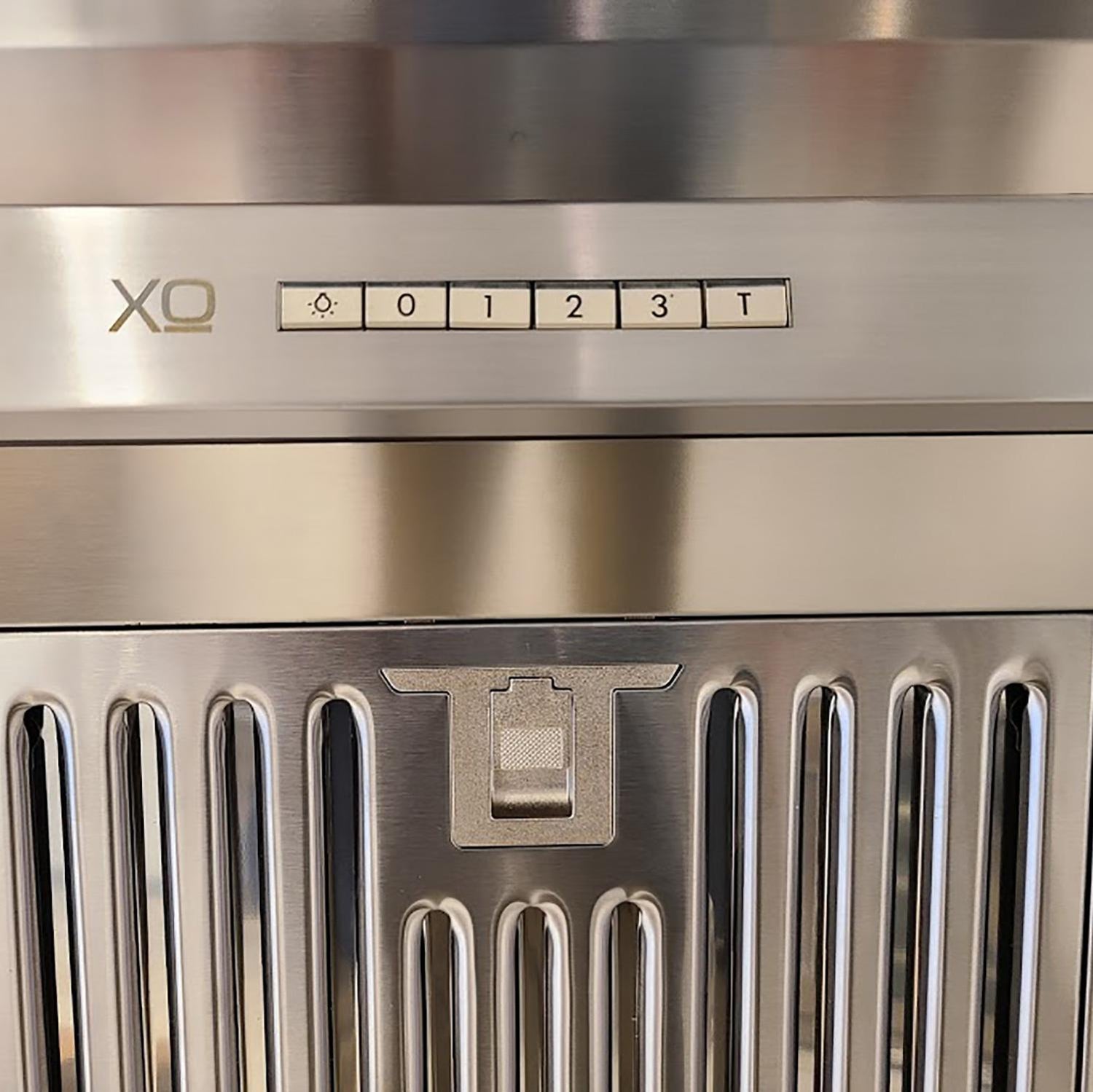

- Backlit Electronic 4 Speed Control with Power Boost
- CCC Code Compliance Control - permanently set blower to 395 or 600 CFM to meet local codes
- NOTE *When CCC(TM) is enabled the number of fan speeds will be reduced to maximum 3 speeds

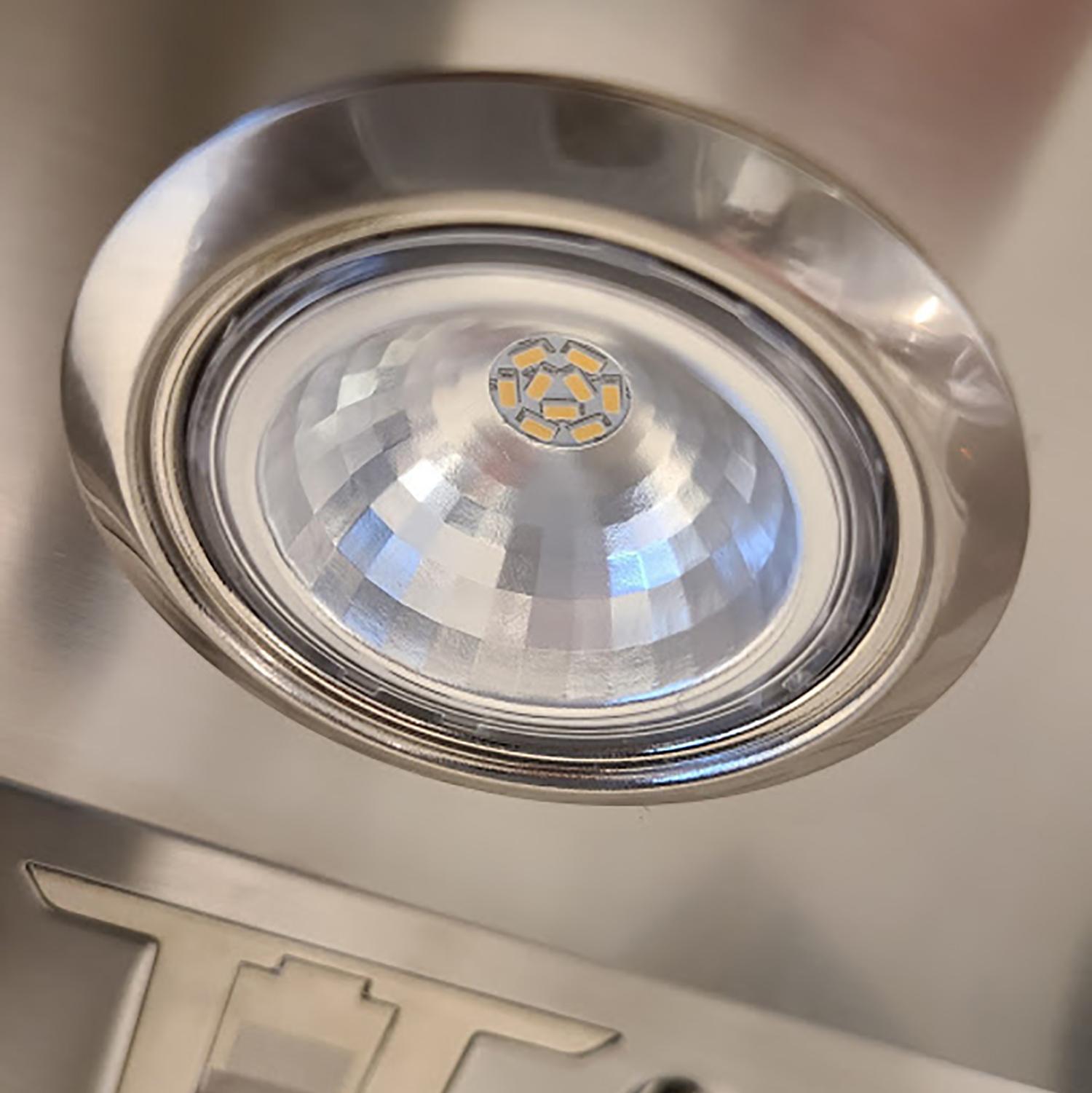

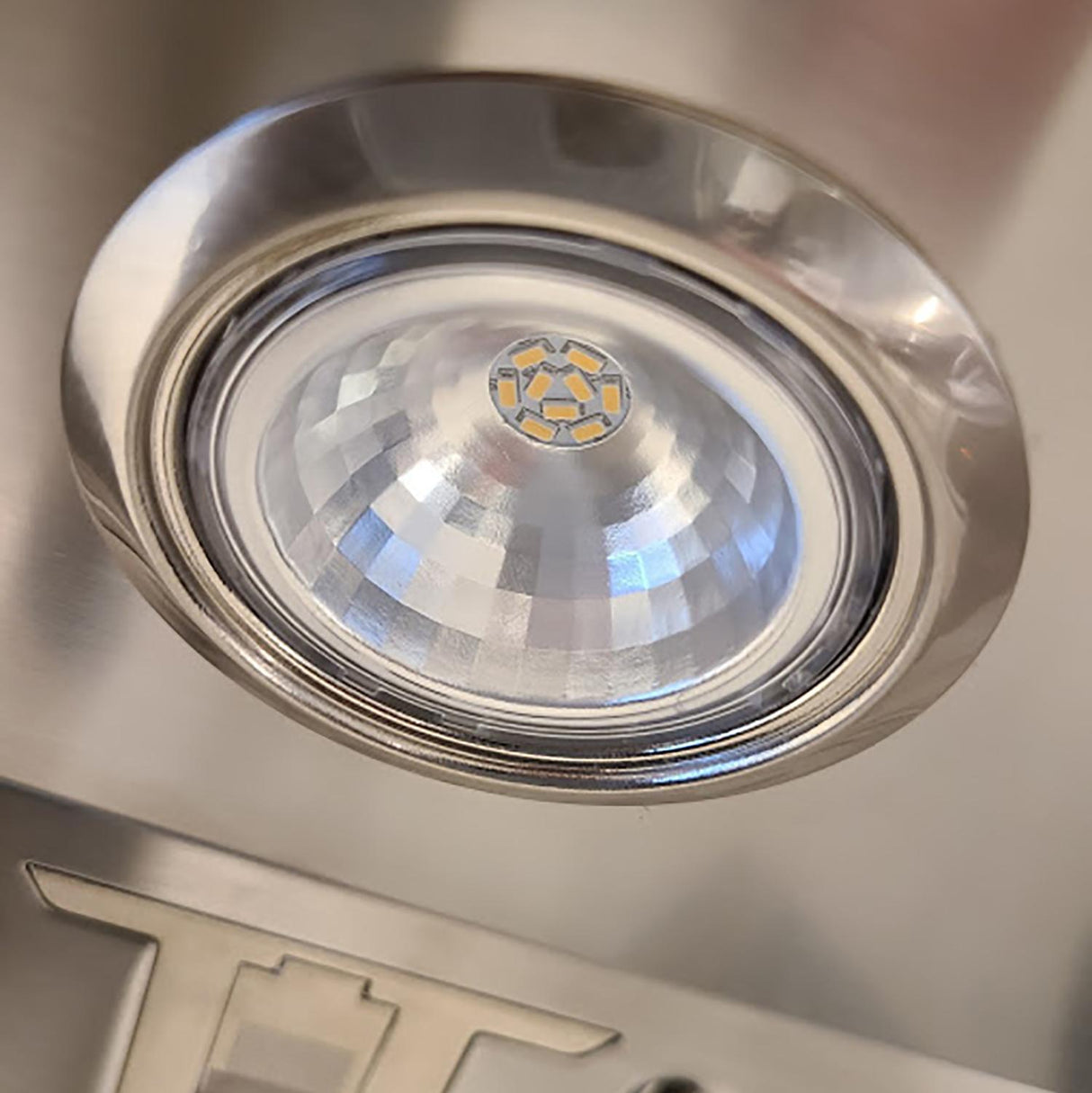

- High Efficiency 3000K LED lights brightly illuminate the cooktop

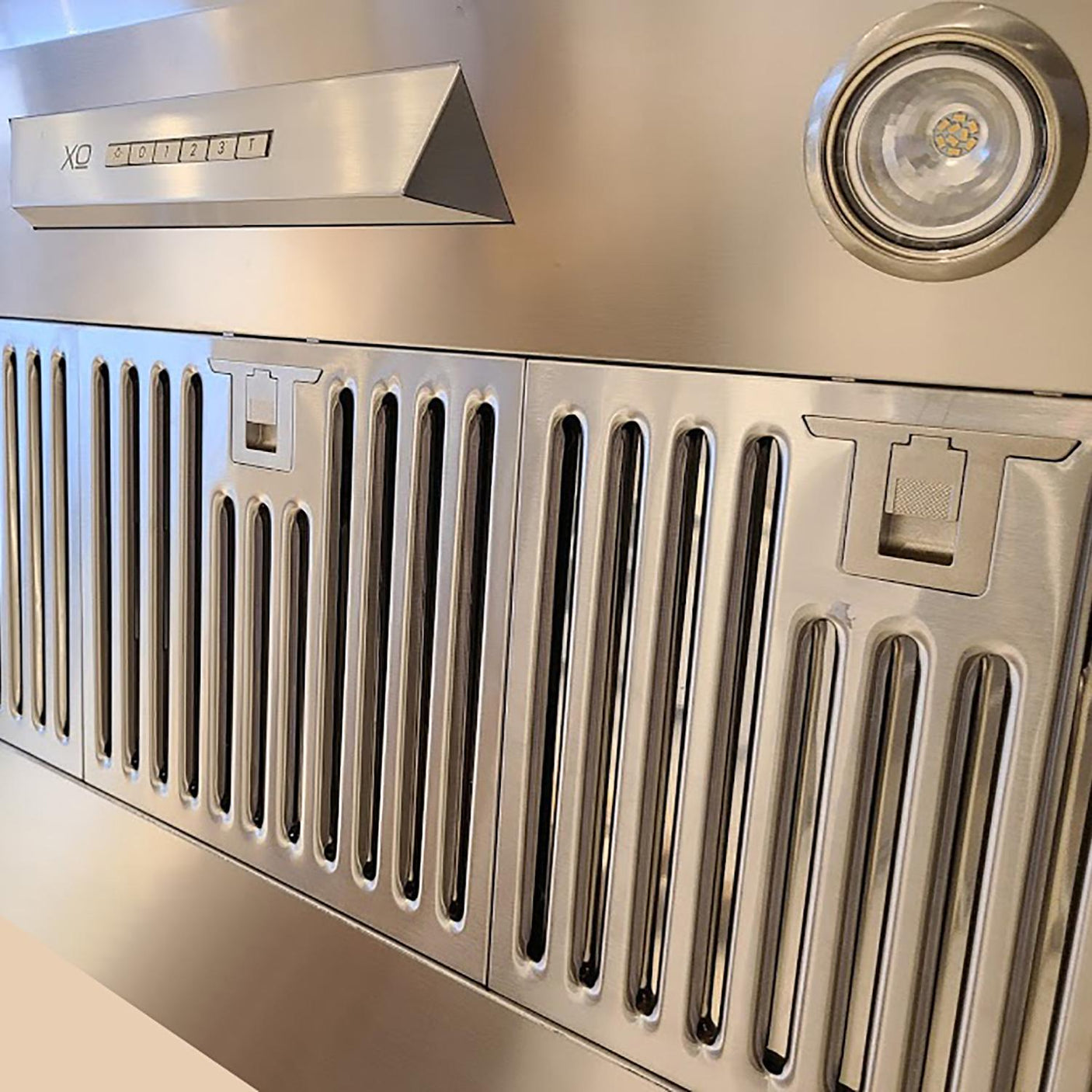

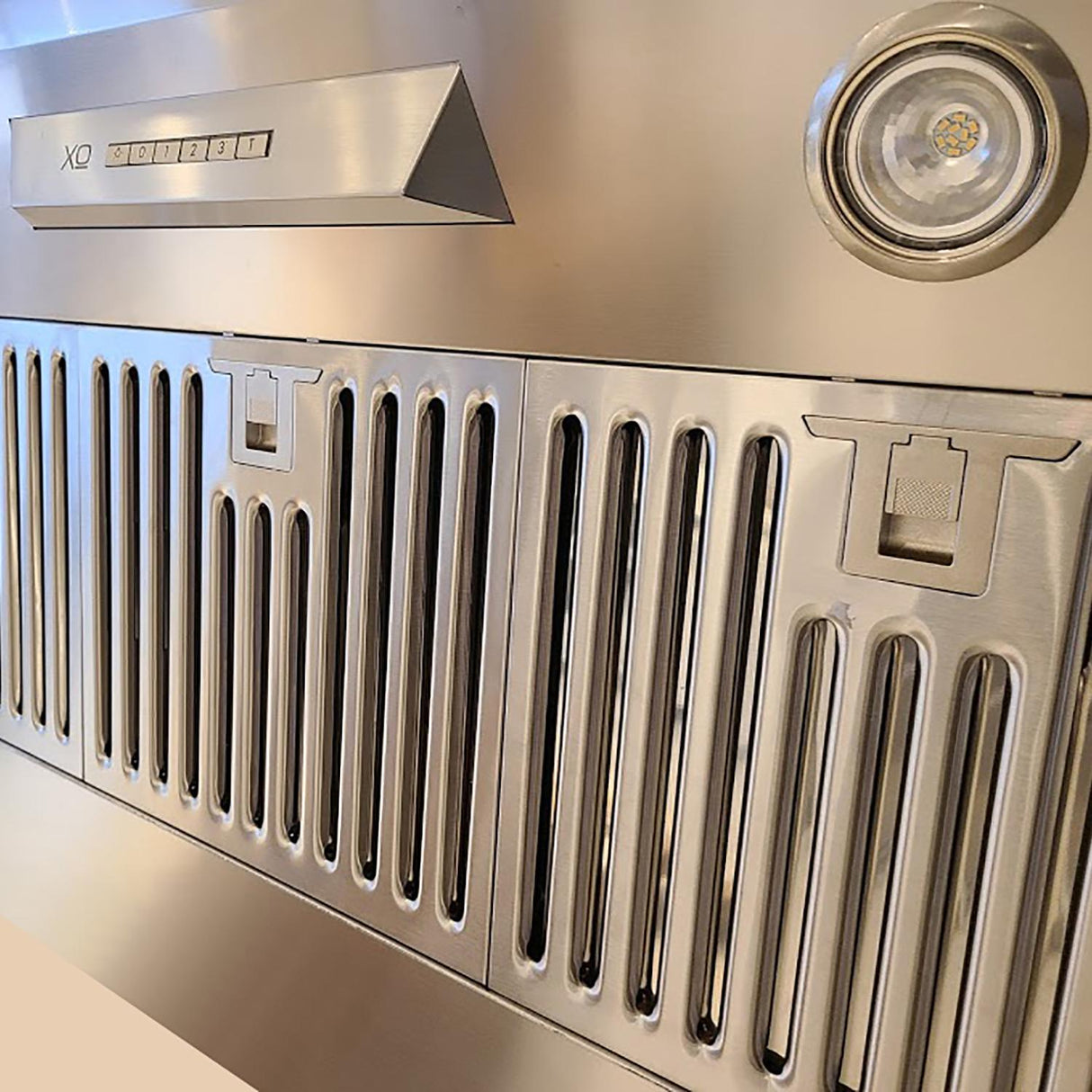

- Dishwasher Safe Pro Style Stainless Baffle Filters for efficient filtration
- 5 Minute Delay Shutoff Timer
- Convertible 6" Vertical Duct or Ductless Recirculating (Kit Sold Separately)
- XO quality and performance for your custom built-ins
- Made In Italy
- 2 year limited parts and labor warranty for the original owner
- Combination blower and liner saves time and money
The XOIL series integrates a powerful XO Blower with a factory prefabricated liner for quick easy assembly. Made in Italy, these units employ our advanced Code Compliance Control, multi-level LED lighting and have an optional remote.
| Collection | Fabriano Collection |
| Origin | Italy |
| UPC | 814830012832 |
| Height | 12" |
| Width | 40-3/8" |
| Depth | 19-1/4" |
| Cut-Out Depth (in.) | 19-7/16" |
| Cut-Out Height (in.) | 12 1/4" |
| Cut-Out Width (in.) | 40-1/2" |
| Dimensions D x W x H | 19-1/4" x 40-3/8" x 12" |
| Product Weight | 41.8 |
| Warranty 1 Explained | 90 Day Love It Or Leave It |
| Warranty 2 Explained | 2 Year Limited Material And Workmanship for the original owner |
| ADA Compatible | Yes |
| Certification | UL |
| Prop 65 | Yes |
| Freight Class | 85 |
| Shipping Weight | 59.84 |
| Carton Height | 18" |
| Carton Width | 45" |
| Carton Depth | 24" |
| Shipping Method | LTL |
| Amperage | 3.6 Amps |
| Electrical | 120V - 60Hz - 3.6 Amps |
| Frequency (Hz) | 60 Hz |
| Voltage (volts) | 120 VAC |
| Wattage (watts) | 430 watts |
| Appliance Type | Range Hoods |
| CCC Code Compliance Control | Yes |
| CFM @ Speed 1 | 160 |
| CFM @ Speed 2 | 250 |
| CFM @ Speed 3 | 395 |
| CFM @ Speed 4 | 600 |
| Color/Finish | Stainless |
| Commerical/Residential | Residential |
| Control Type | Backlit LED |
| Cooktop Lights | Twin LED Lights |
| Duct Size | 6" Dia. |
| Ductless Convertible | Ducted or Convertible |
| Filter Type | Dishwasher Safe Pro Stainless Steel Baffles |

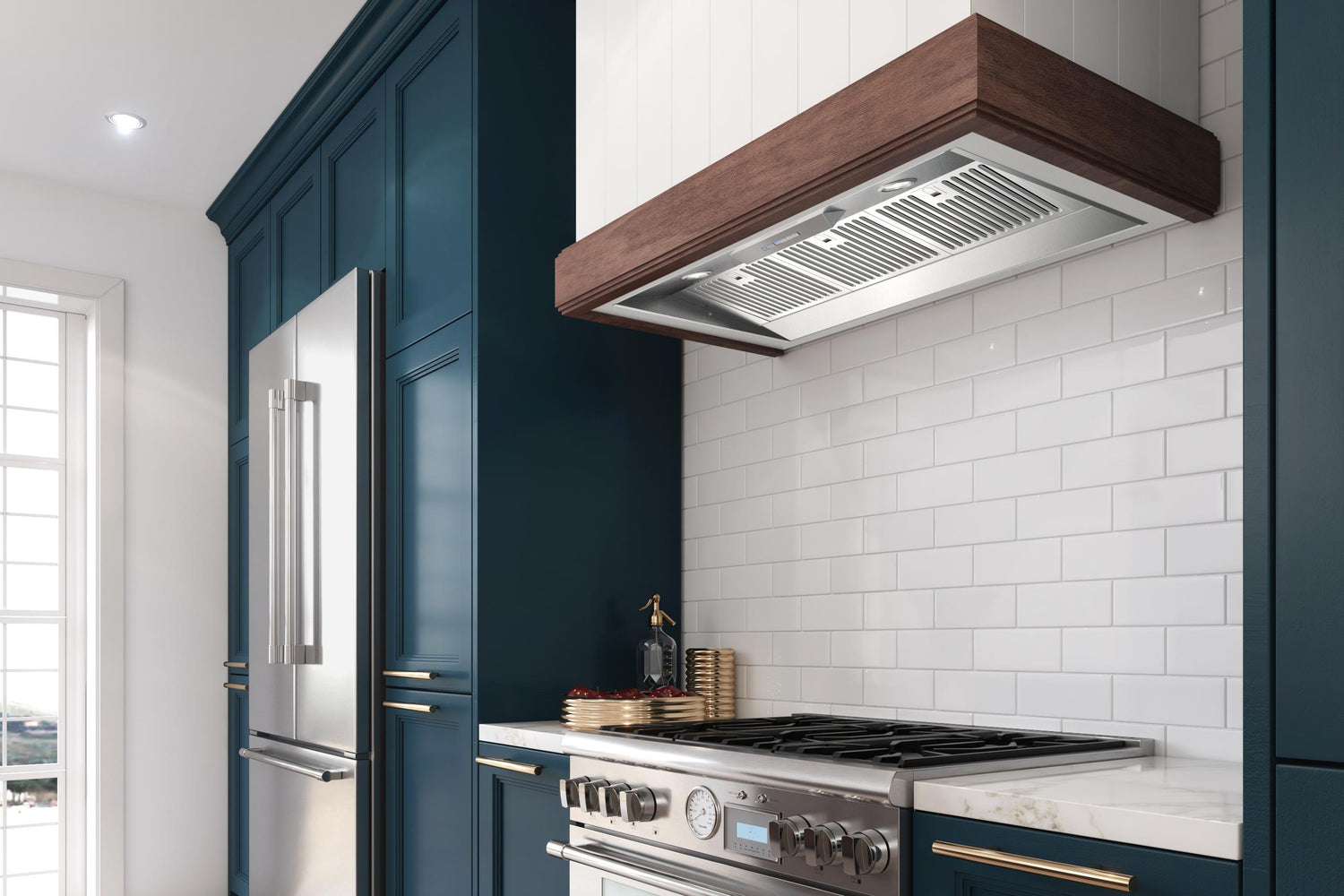

| Install Type | Insert - Liner combination |
| Installation Type | Insert - Liner combination |
| LIght Colors | White |
| Light Type | Twin LED Lights |
| Lighting Features | 3 Level Lighting |
| Maximum Air Flow Capacity CFM) | 600/395 |
| Minimum Air Flow Capacity (CFM) | 160 |
| Mounting Height Above Cooktop | 27" - 32" |
| Number of Light Bulbs | 2 |
| Number of Speeds | 4 |
| Returnable | No |
| Sones @ Speed 1 | 1 |
| Sones @ Speed 2 | 2.5 |
| Sones @ Speed 3 | 4 |
| Sones @ Speed 4 | 6.5 |
| Vent Location | Top |
| Vent Material | Metal |
| Wireless Compatibility | No |
| Control Lighting | Blue Backlit |
| Controls | Code Compliance Electronic Controls |
| Location | Indoor |
| Sound Level | 1.0-6.5 Sones |
| Assembled Depth (in.) | No |
- Backlit Electronic 4 Speed Control with Power Boost
- CCC Code Compliance Control - permanently set blower to 395 or 600 CFM to meet local codes
- NOTE *When CCC(TM) is enabled the number of fan speeds will be reduced to maximum 3 speeds
- High Efficiency 3000K LED lights brightly illuminate the cooktop
- Dishwasher Safe Pro Style Stainless Baffle Filters for efficient filtration
- 5 Minute Delay Shutoff Timer
- Convertible 6" Vertical Duct or Ductless Recirculating (Kit Sold Separately)
- XO quality and performance for your custom built-ins
- Made In Italy
- 2 year limited parts and labor warranty for the original owner
- Combination blower and liner saves time and money
 | |
|---|---|
