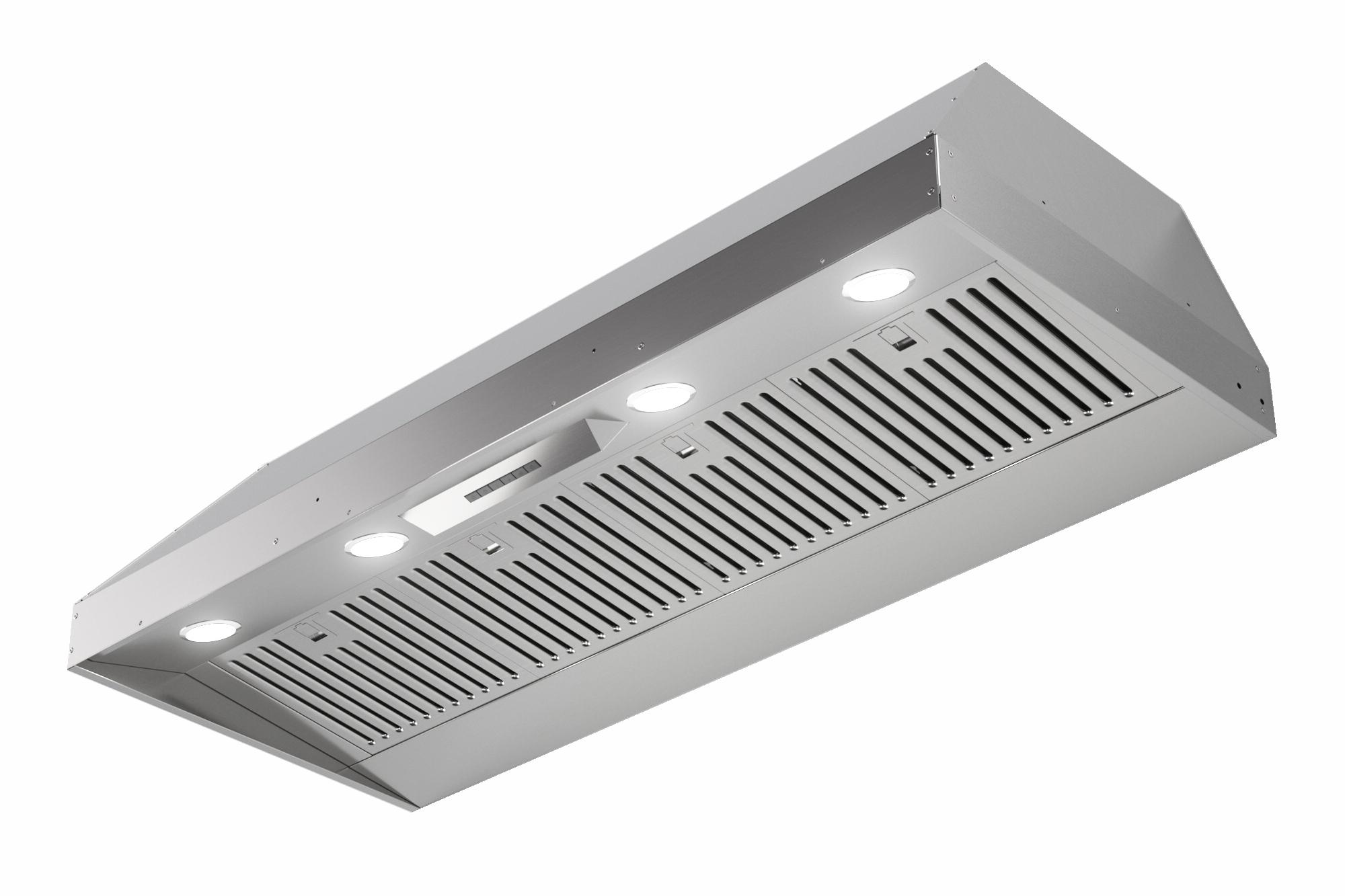

48" 1000 CFM Insert Hood Liner Stainless
Model XOIL4819KSE
Authorized Dealer
1
of
9
Loading...
Authorized Dealer
48" 1000 CFM Insert Hood Liner Stainless
Model XOIL4819KSEQuick Specs
Depth
19 1/4
Height
12
Energy
NO
48" 1000 CFM Insert Hood Liner Stainless is backordered and will ship as soon as it is back in stock.
This item qualifies for free delivery
Ships Out Within: 2 - 4 Business Days
Shipping Date By: 06/29/2026
Sale Price
Sale price
$1,640.59
Regular price
$2,125.00
Unit price
/
Unavailable
You save 22%
SERVICES AVAILABLE
Selection will add
$0.00
to the price
Couldn't load pickup availability
Quick Specs
Depth
19 1/4
Height
12
Energy Star Rated
NO

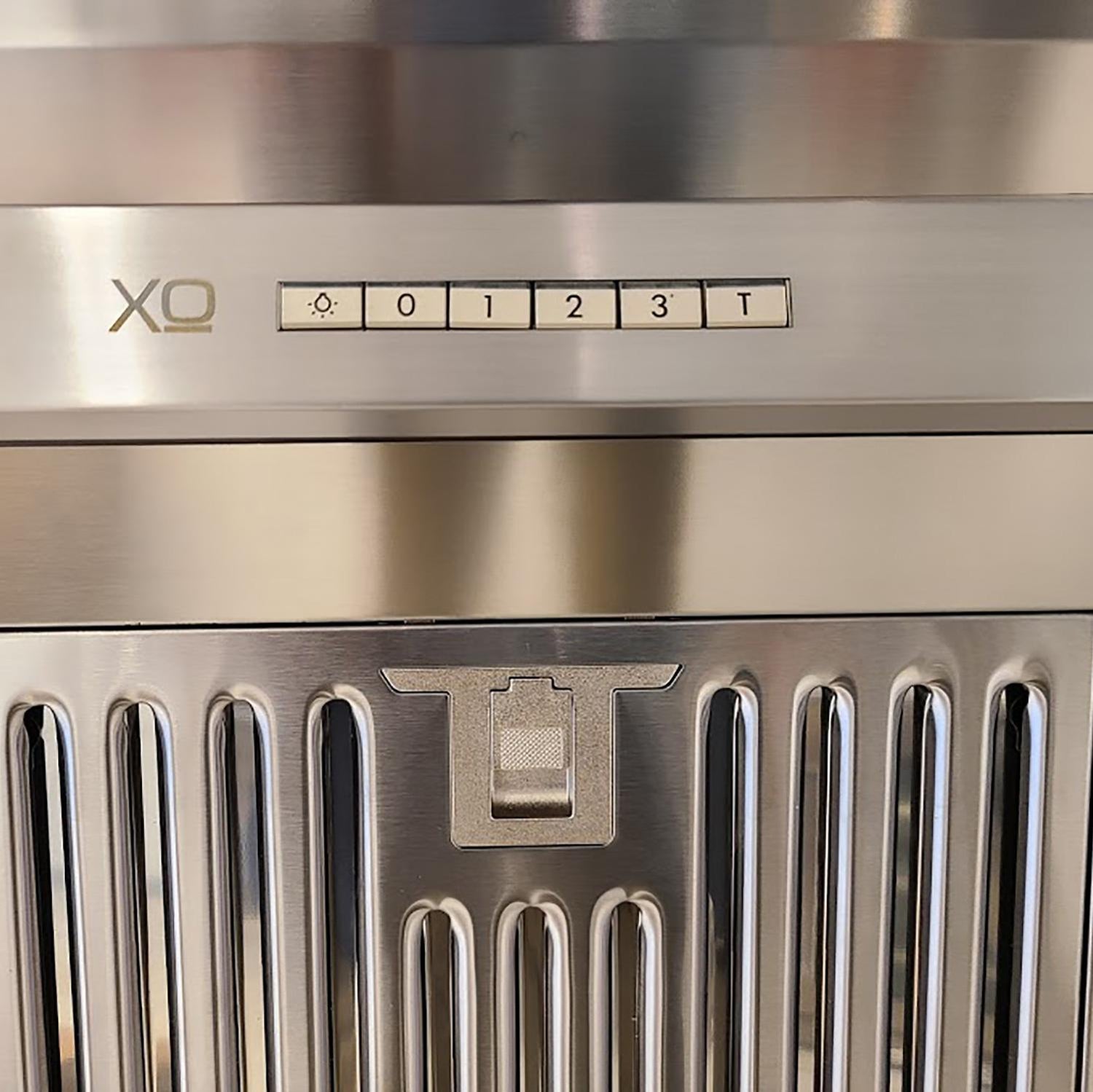

- Backlit Electronic 3 Speed Control
- Powerful 1000 CFM blower quickly and efficiently removes smoke and fumes

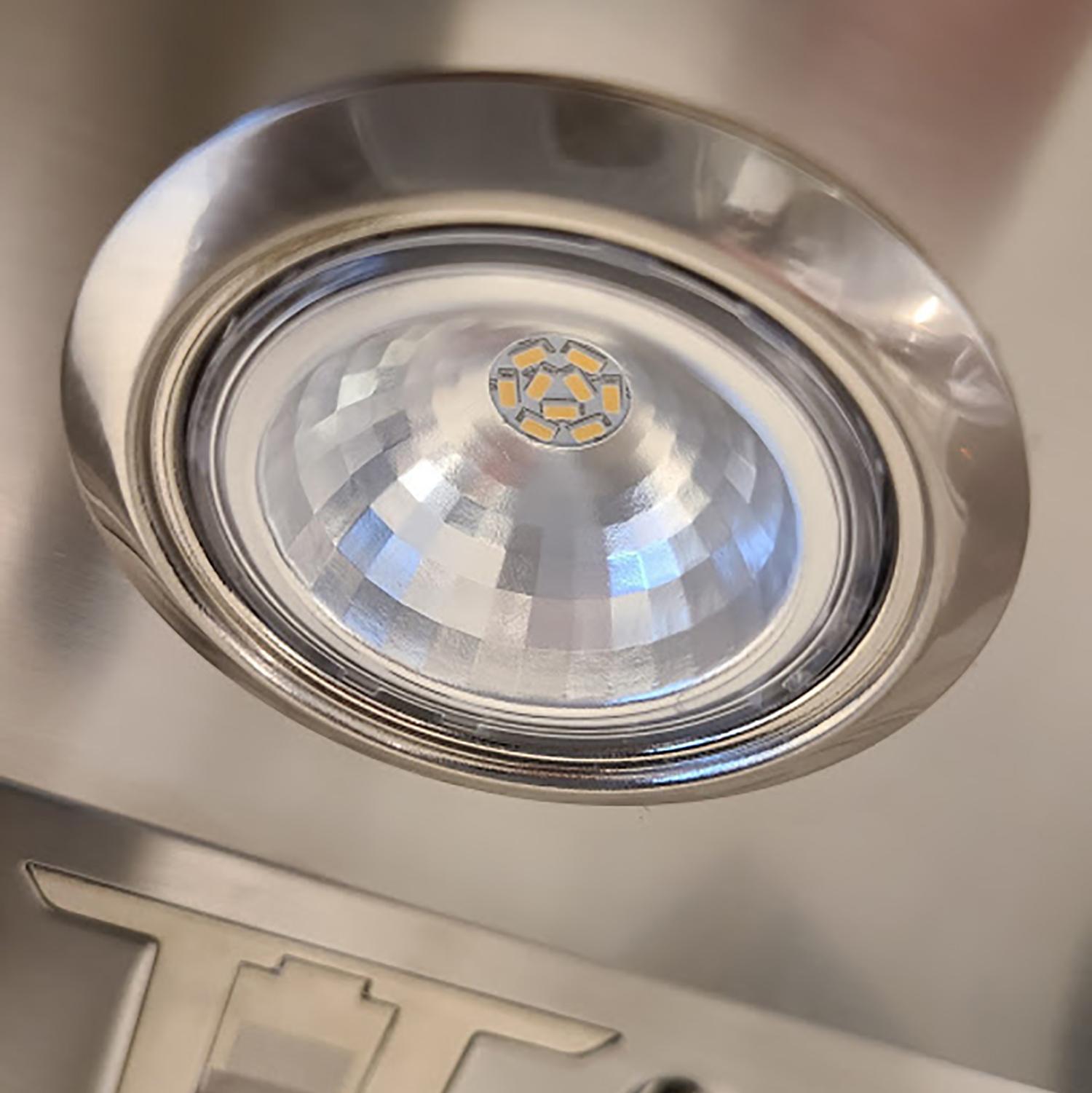

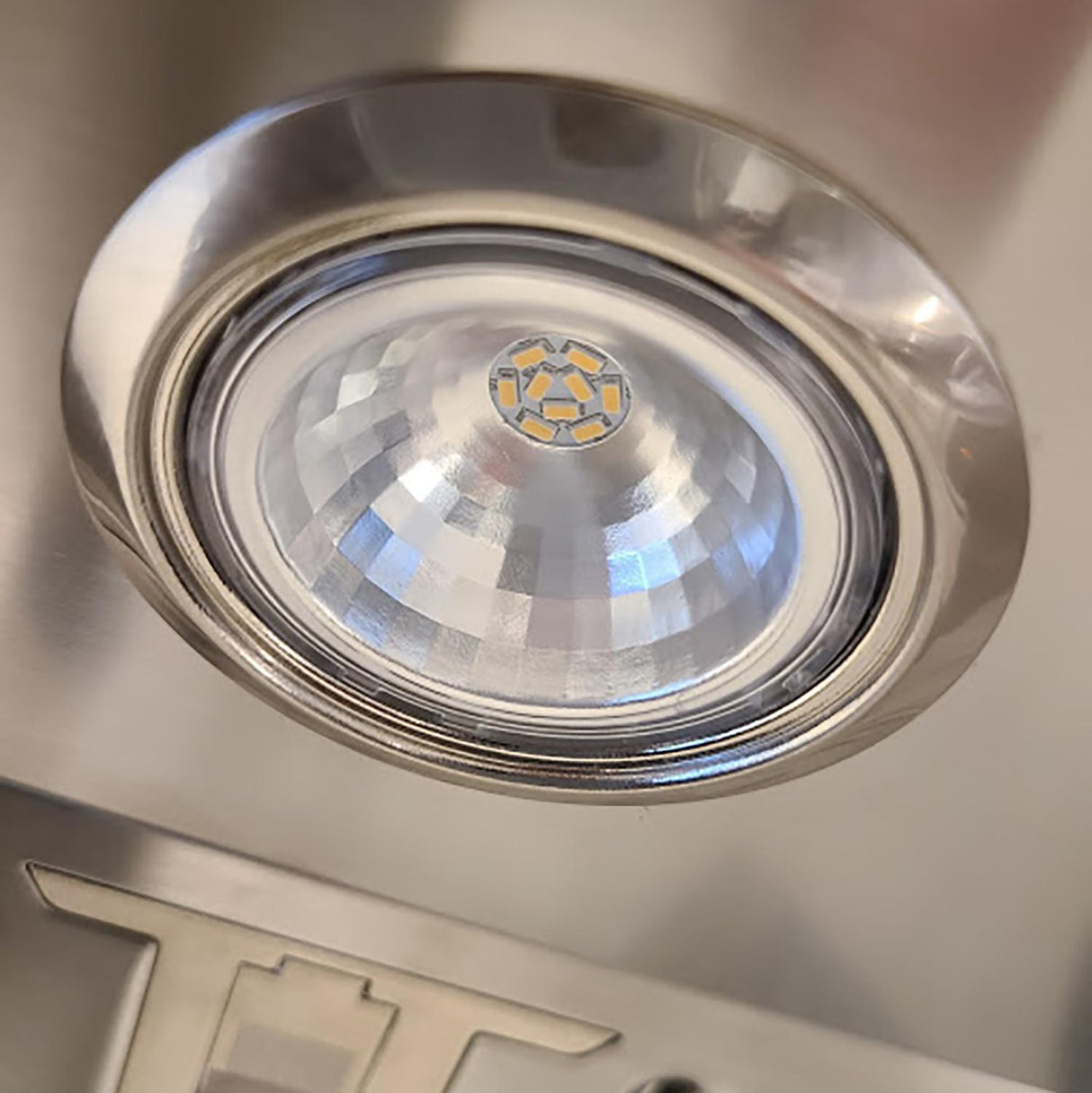

- High Efficiency 3000K LED lights brightly illuminate the cooktop

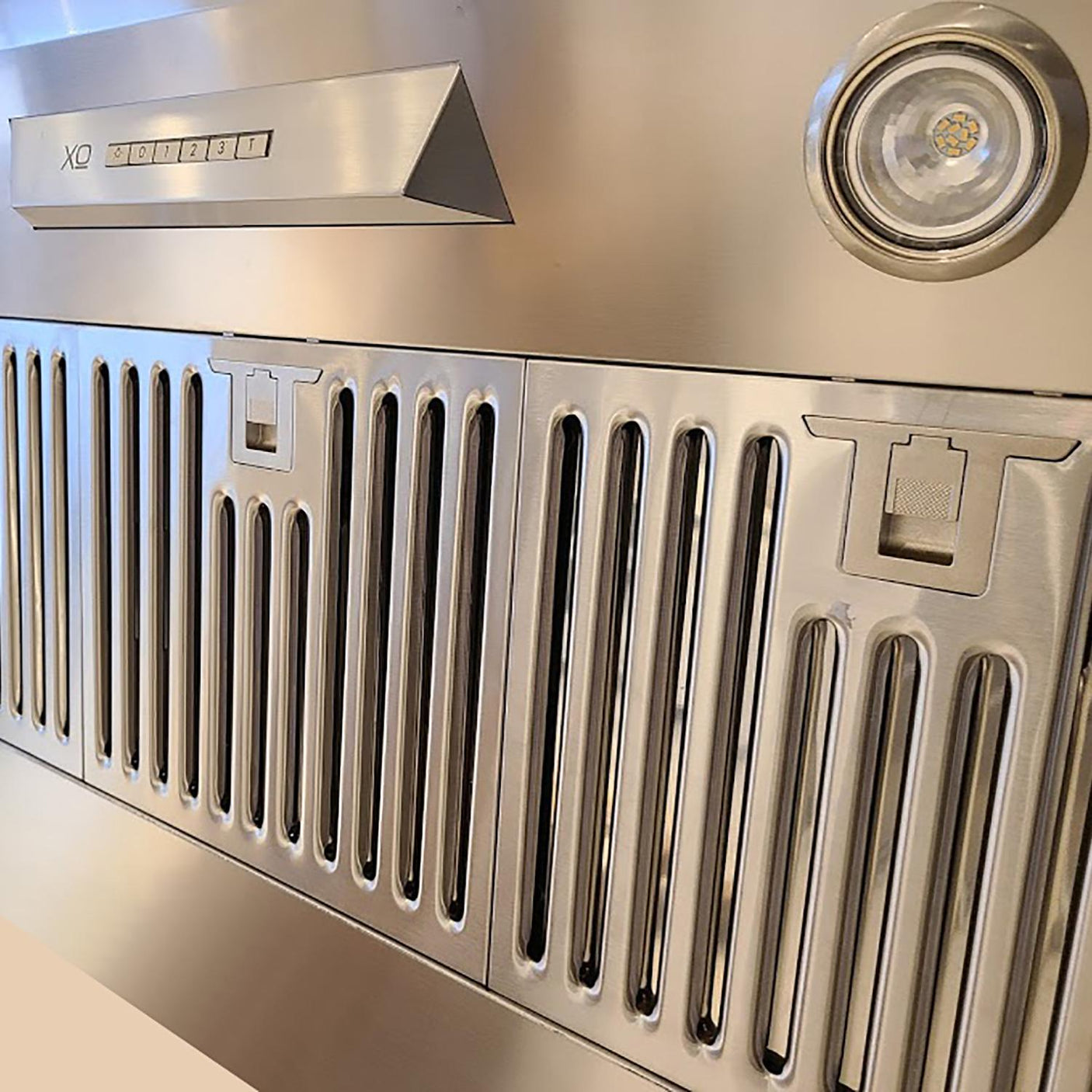

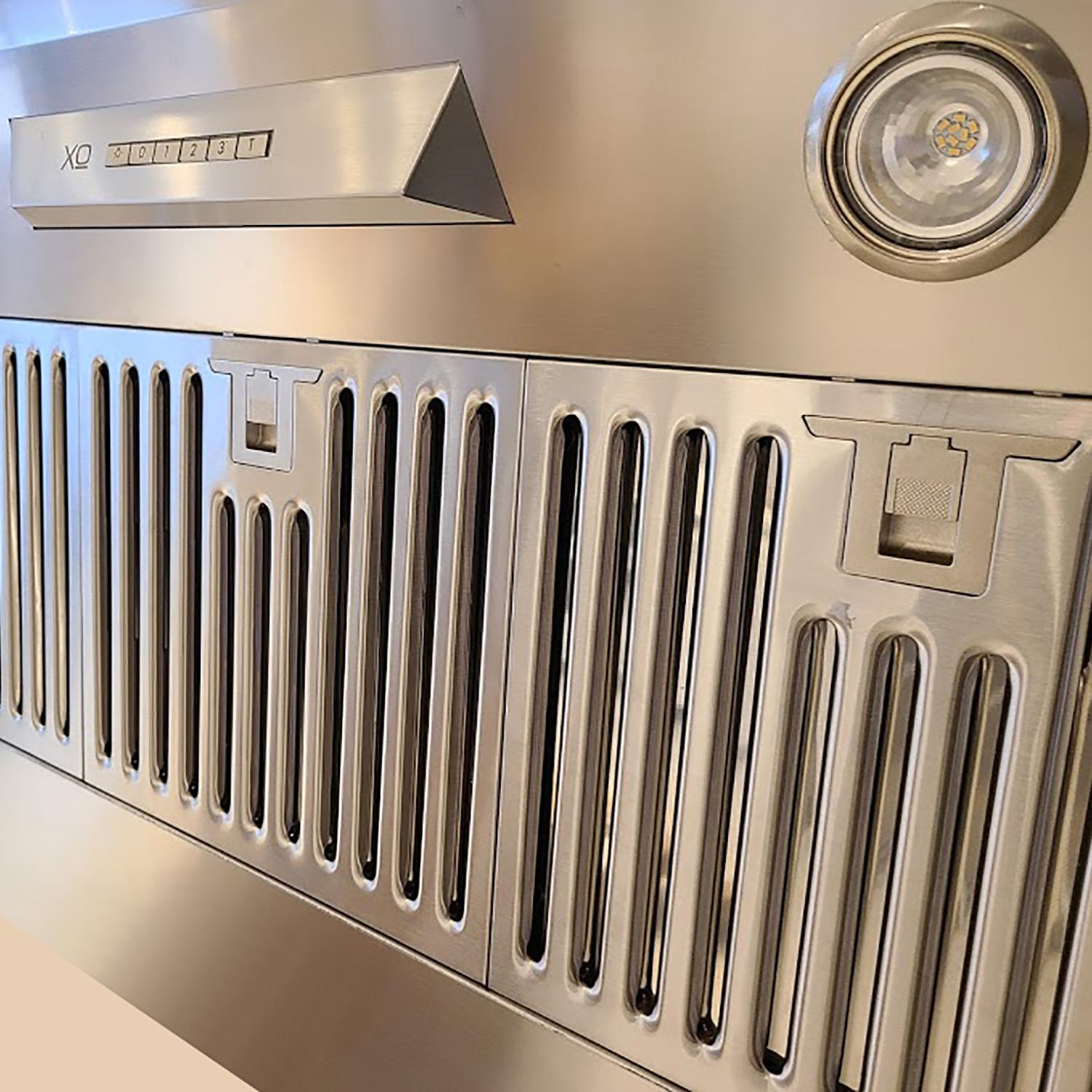

- Dishwasher Safe Pro Style Stainless Baffle Filters for efficient filtration
- 5 Minute Delay Shutoff Timer
- 8" Vertical Duct Exhaust
- XO quality and performance for your custom built-ins
- Made In Italy
- 2 year limited parts and labor warranty for the original owner
- Combination blower and liner saves time and money
The XOIL series integrates a powerful XO Blower with a factory prefabricated liner for quick easy assembly. Made in Italy, these units employ electronic controls, multi-level LED lighting and have an optional remote.
| Collection | Fabriano Collection |
| Origin | Italy |
| UPC | 814830012849 |
| Height | 12" |
| Width | 46-3/8" |
| Depth | 19-1/4" |
| Cut-Out Depth (in.) | 19-7/16" |
| Cut-Out Height (in.) | 12" |
| Cut-Out Width (in.) | 46-1/2" |
| Dimensions D x W x H | 19-1/4" x 46-3/8" x 12" |
| Product Weight | 68.2 |
| Warranty 1 Explained | 90 Day Love It Or Leave It |
| Warranty 2 Explained | 2 Year Limited Material And Workmanship for the original owner |
| ADA Compatible | No |
| Certification | UL |
| Prop 65 | Yes |
| Freight Class | 85 |
| Shipping Weight | 88 |
| Carton Height | 18" |
| Carton Width | 51" |
| Carton Depth | 24" |
| Shipping Method | LTL |
| Amperage | 6.2 Amps |
| Electrical | 120V - 60Hz - 6.2 Amps |
| Frequency (Hz) | 60 Hz |
| Voltage (volts) | 120 VAC |
| Wattage (watts) | 744 watts |
| Appliance Type | Range Hoods |
| CCC Code Compliance Control | No |
| CFM @ Speed 1 | 200 |
| CFM @ Speed 2 | 590 |
| CFM @ Speed 3 | 1000 |
| Color/Finish | Stainless |
| Commerical/Residential | Residential |
| Control Type | Backlit LED |
| Cooktop Lights | Four LED Lights |
| Duct Size | 8" Dia. |
| Ductless Convertible | Ducted Only |
| Filter Type | Dishwasher Safe Pro Stainless Steel Baffles |
| Install Type | Insert - Liner combination |
| Installation Type | Insert - Liner combination |
| LIght Colors | White |
| Light Type | Four LED Lights |
| Lighting Features | 3 Level Lighting |
| Maximum Air Flow Capacity CFM) | 1000 |
| Minimum Air Flow Capacity (CFM) | 200 |
| Mounting Height Above Cooktop | 27" - 32" |
| Number of Light Bulbs | 4 |
| Number of Speeds | 3 |
| Returnable | No |
| Sones @ Speed 1 | 2 |
| Sones @ Speed 2 | 6.4 |
| Sones @ Speed 3 | 8 |
| Vent Location | Top |
| Vent Material | Metal |
| Wireless Compatibility | No |
| Control Lighting | none |
| Controls | Electronic Controls |
| Location | Indoor |
| Sound Level | 2.0 -8.0 Sones |
| Assembled Depth (in.) | No |
- Backlit Electronic 3 Speed Control
- Powerful 1000 CFM blower quickly and efficiently removes smoke and fumes
- High Efficiency 3000K LED lights brightly illuminate the cooktop
- Dishwasher Safe Pro Style Stainless Baffle Filters for efficient filtration
- 5 Minute Delay Shutoff Timer
- 8" Vertical Duct Exhaust
- XO quality and performance for your custom built-ins
- Made In Italy
- 2 year limited parts and labor warranty for the original owner
- Combination blower and liner saves time and money
 | |
|---|---|
