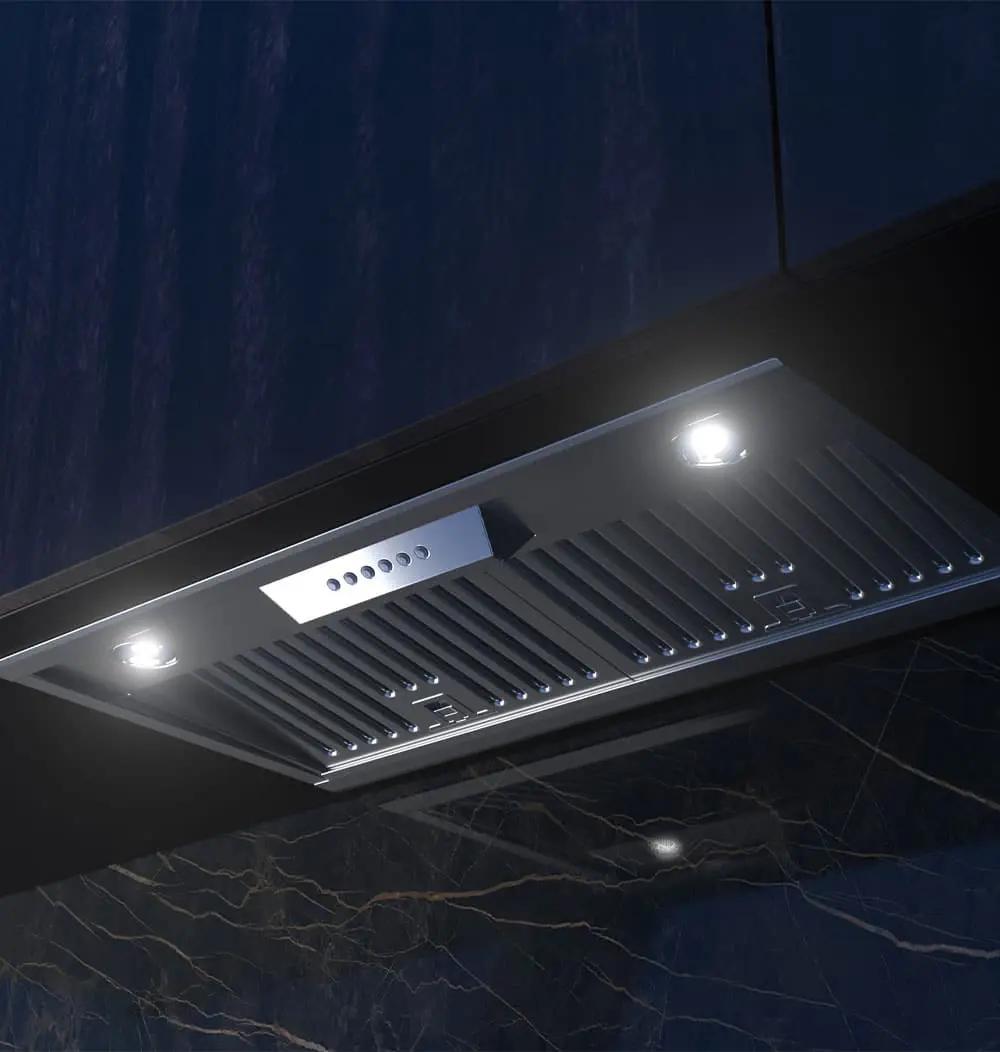

45" W 18" D 600/395 CFM SS insert
Model: XOI45SC
Authorized Dealer
1
of
6
Loading...
Authorized Dealer
45" W 18" D 600/395 CFM SS insert
Model: XOI45SCQuick Specs
Width
45.75"
Depth
18 1/2"
Height
11 1/2"
Energy
NO
45" W 18" D 600/395 CFM SS insert is backordered and will ship as soon as it is back in stock.
Estimated to ship in 4 weeks
Available to Order
Sale Price
Sale price
$889.00
Regular price
$1,315.00
Unit price
/
Unavailable
You save 32%
SERVICES AVAILABLE
Selection will add
$0.00
to the price
Couldn't load pickup availability
Quick Specs
Width
45.75"
Depth
18 1/2"
Height
11 1/2"
Energy Star Rated
NO
- Backlit Electronic 4 Speed Control with Power Boost
- CCC Code Compliance Control - permanently set blower to 395 or 600 CFM to meet local codes
- High Efficiency 3000K LED lights brightly illuminate the cooktop
- Dishwasher Safe Pro Style Stainless Baffle Filters for efficient filtration
- 5 Minute Delay Shutoff Timer
- 6" Vertical Duct Exhaust
- XO quality and performance for your custom built-ins
- Made In Italy
- 2 year limited parts and labor warranty for the original owner

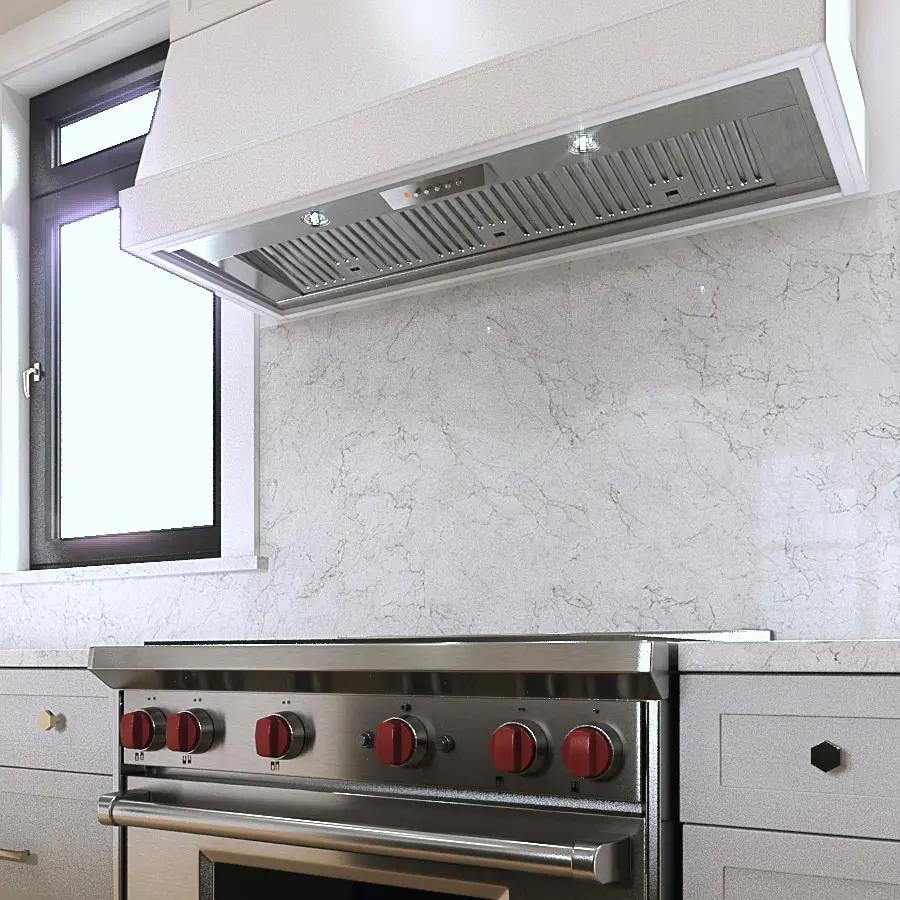

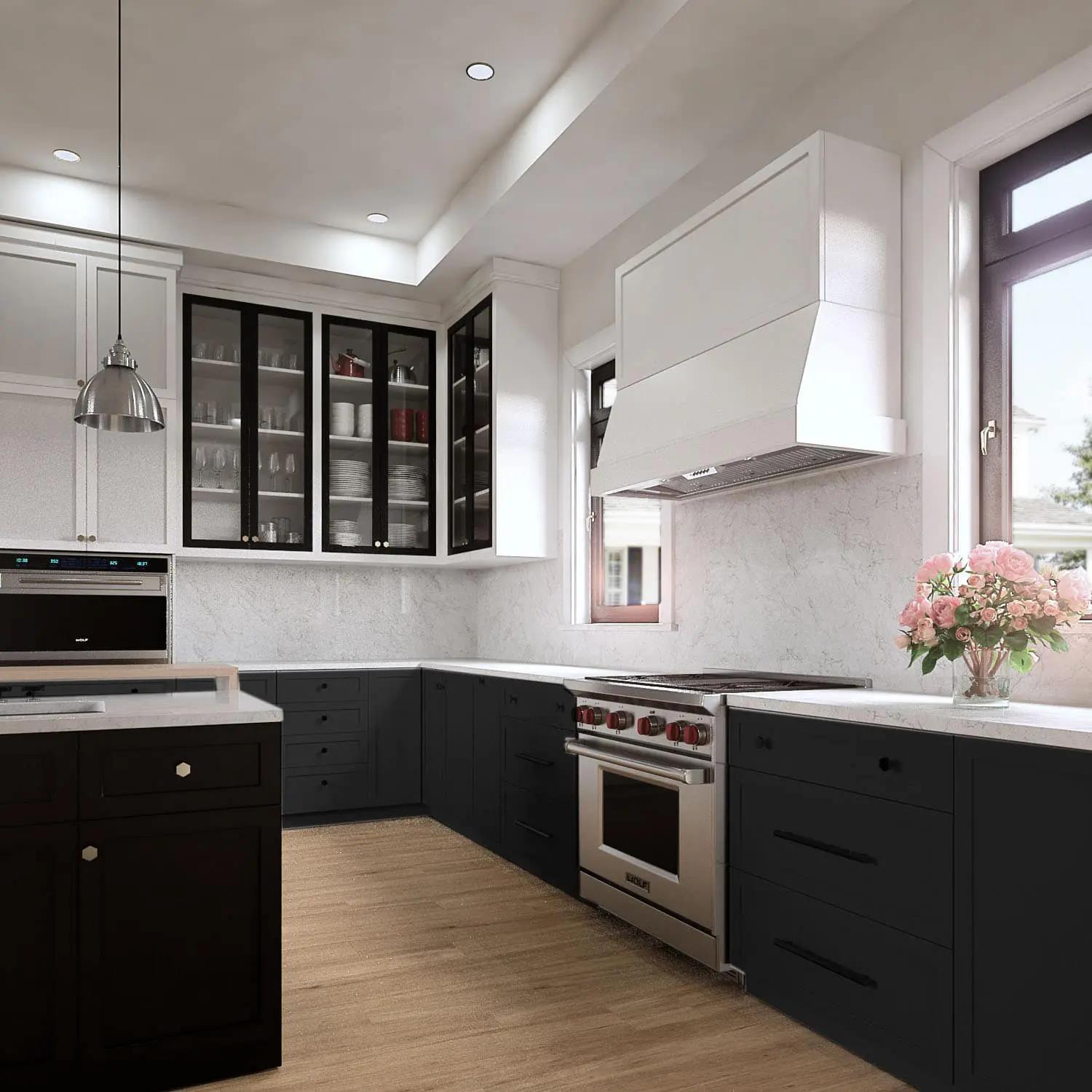

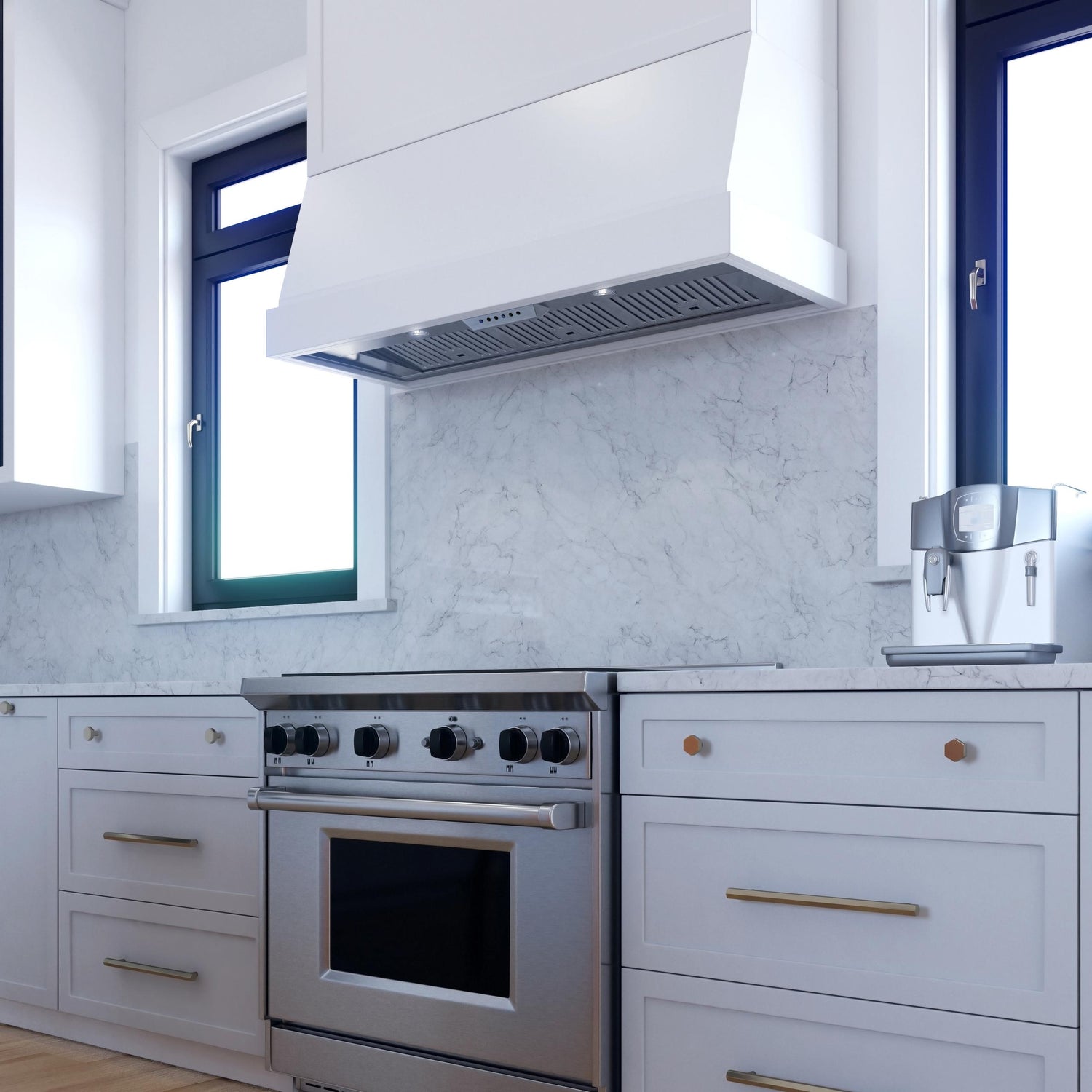

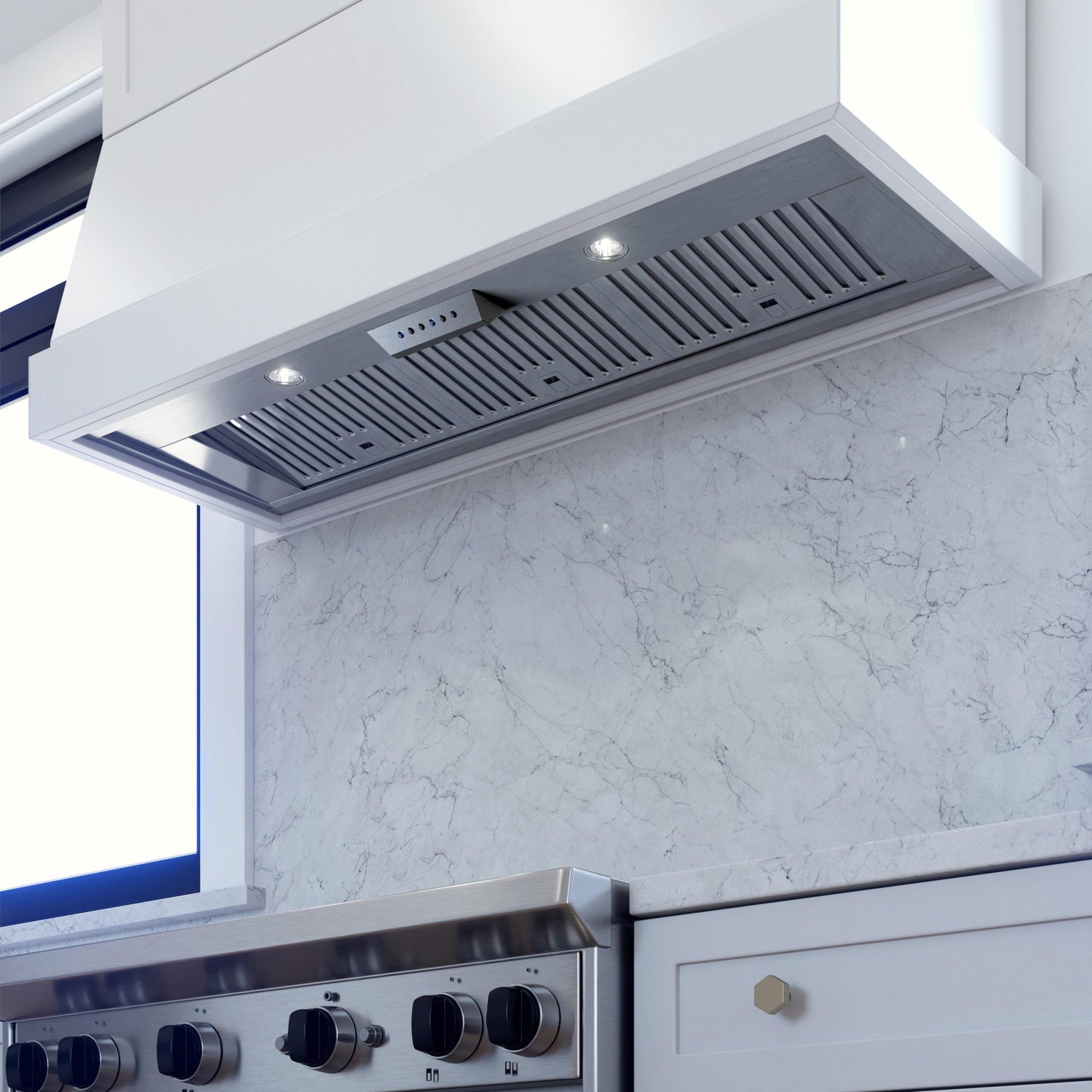

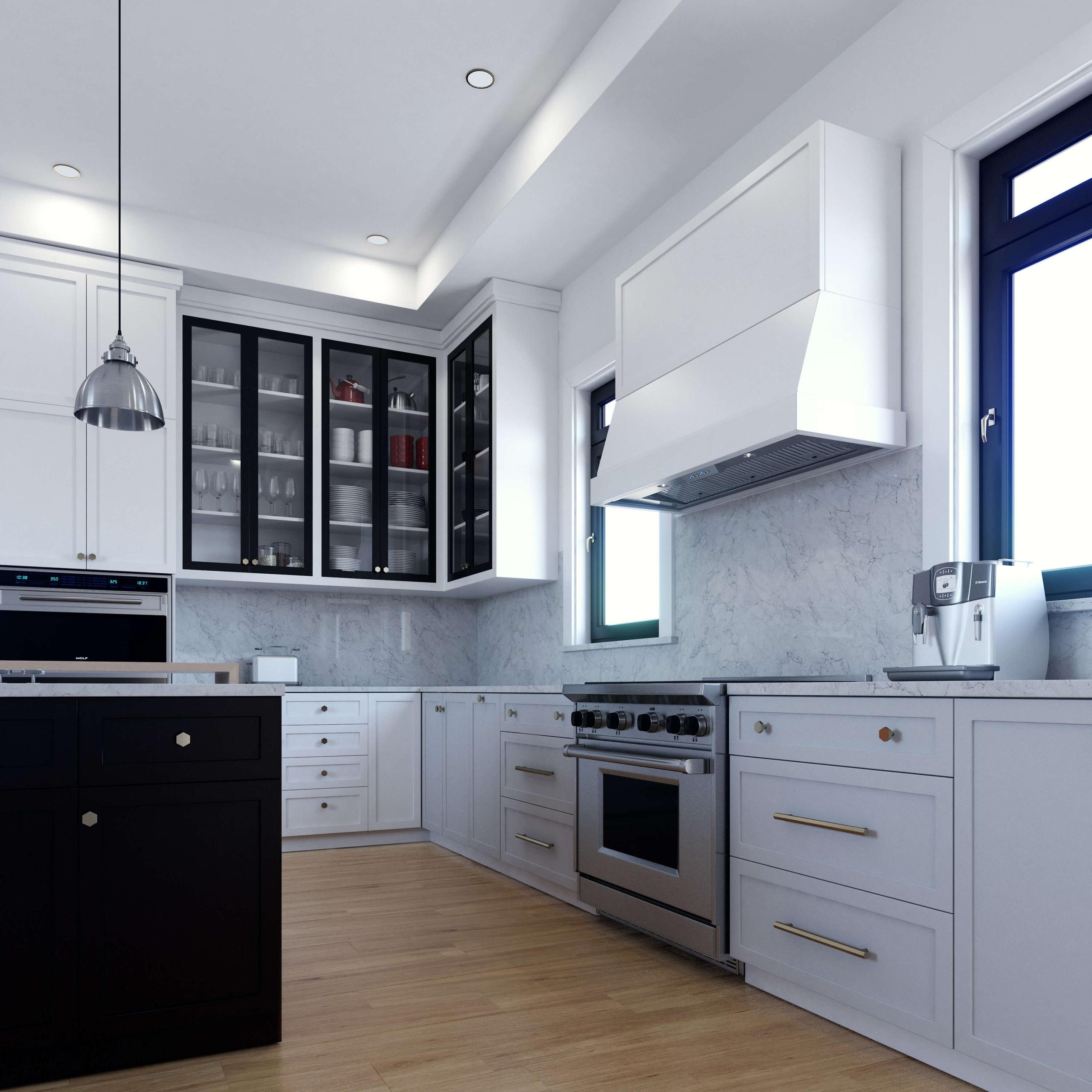

The XOI45 insert model is available in two different depths to better satisfy your design needs. His high powered integrated blower which allows you to match your custom hood to your kitchen is simple, affordable and easy to install. Peerless fit and finish, designed and crafted in Italy.
| Collection | Fabriano Collection |
| Origin | Italy |
| UPC | 814830011385 |
| Height | 11 1/2" |
| Width | 45 3/4" |
| Depth | 18 1/2" |
| Cut-Out Depth (in.) | 16 3/8" |
| Cut-Out Height (in.) | 16 9/16" |
| Cut-Out Width (in.) | 44 1/2" |
| Dimensions D x W x H | 18 1/2" x 45 3/4" x 11 1/2" |
| Product Weight | 35.2 |
| Warranty 1 Explained | 90 Day Love It Or Leave It |
| Warranty 2 Explained | 2 Year Limited Material And Workmanship for the original owner |
| ADA Compatible | No |
| Certification | UL |
| Prop 65 | Yes |
| Freight Class | 85 |
| Shipping Weight | 50.6 |
| Carton Height | 12" |
| Carton Width | 49" |
| Carton Depth | 18" |
| Shipping Method | LTL |
| Amperage | 3.6 Amps |
| Electrical | 120V - 60Hz - 3.6 Amps |
| Frequency (Hz) | 60 Hz |
| Voltage (volts) | 120 VAC |
| Wattage (watts) | 430 watts |
| Appliance Type | Range Hoods |
| CCC Code Compliance Control | No |
| CFM @ Speed 1 | 160 |
| CFM @ Speed 2 | 250 |
| CFM @ Speed 3 | 395 |
| CFM @ Speed 4 | 600 |
| Color/Finish | Stainless |
| Commerical/Residential | Residential |
| Control Type | Backlit LED |
| Cooktop Lights | Twin LED Lights |
| Duct Size | 6" Dia. |
| Ductless Convertible | Ducted |
| Filter Type | Dishwasher Safe Pro Stainless Steel Baffles |
| Install Type | Insert |
| Installation Type | Insert |
| LIght Colors | White |
| Light Type | Twin LED Lights |
| Lighting Features | 3000K LED |
| Maximum Air Flow Capacity CFM) | 600/395 |
| Minimum Air Flow Capacity (CFM) | 160 |
| Mounting Height Above Cooktop | 27" - 32" |
| Number of Light Bulbs | 2 |
| Number of Speeds | 4 |
| Returnable | No |
| Sones @ Speed 1 | 1 |
| Sones @ Speed 2 | 2.5 |
| Sones @ Speed 3 | 4 |
| Sones @ Speed 4 | 6.5 |
| Vent Location | Top |
| Vent Material | Metal |
| Wireless Compatibility | No |
| Control Lighting | Blue Backlit |
| Controls | Code Compliance Electronic Controls |
| Location | Indoor |
| Sound Level | 1.0-6.5 Sones |
| Assembled Depth (in.) | No |
| Force Multiples | 1 |
- Backlit Electronic 4 Speed Control with Power Boost
- CCC Code Compliance Control - permanently set blower to 395 or 600 CFM to meet local codes
- High Efficiency 3000K LED lights brightly illuminate the cooktop
- Dishwasher Safe Pro Style Stainless Baffle Filters for efficient filtration
- 5 Minute Delay Shutoff Timer
- 6" Vertical Duct Exhaust
- XO quality and performance for your custom built-ins
- Made In Italy
- 2 year limited parts and labor warranty for the original owner
 | |
|---|---|
