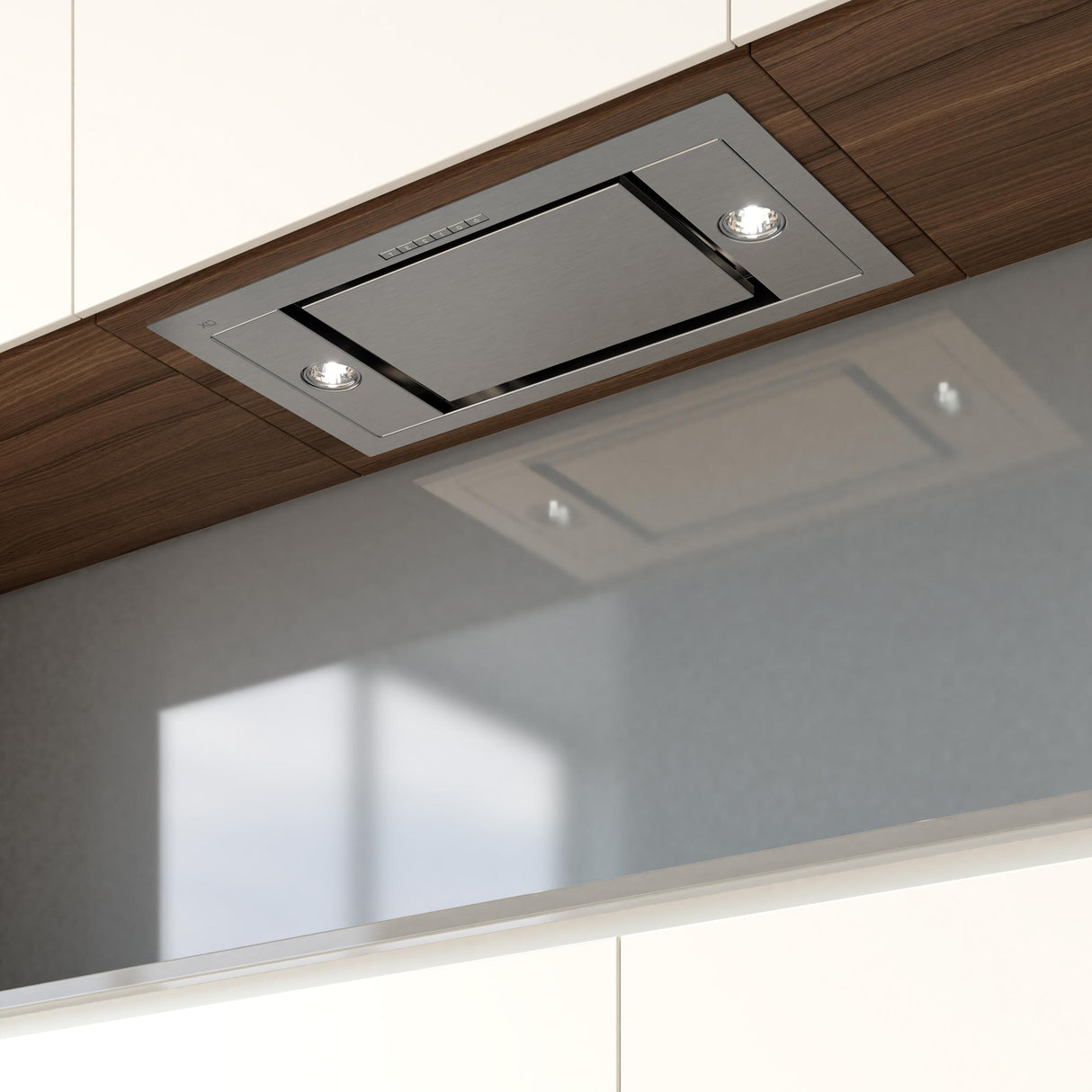

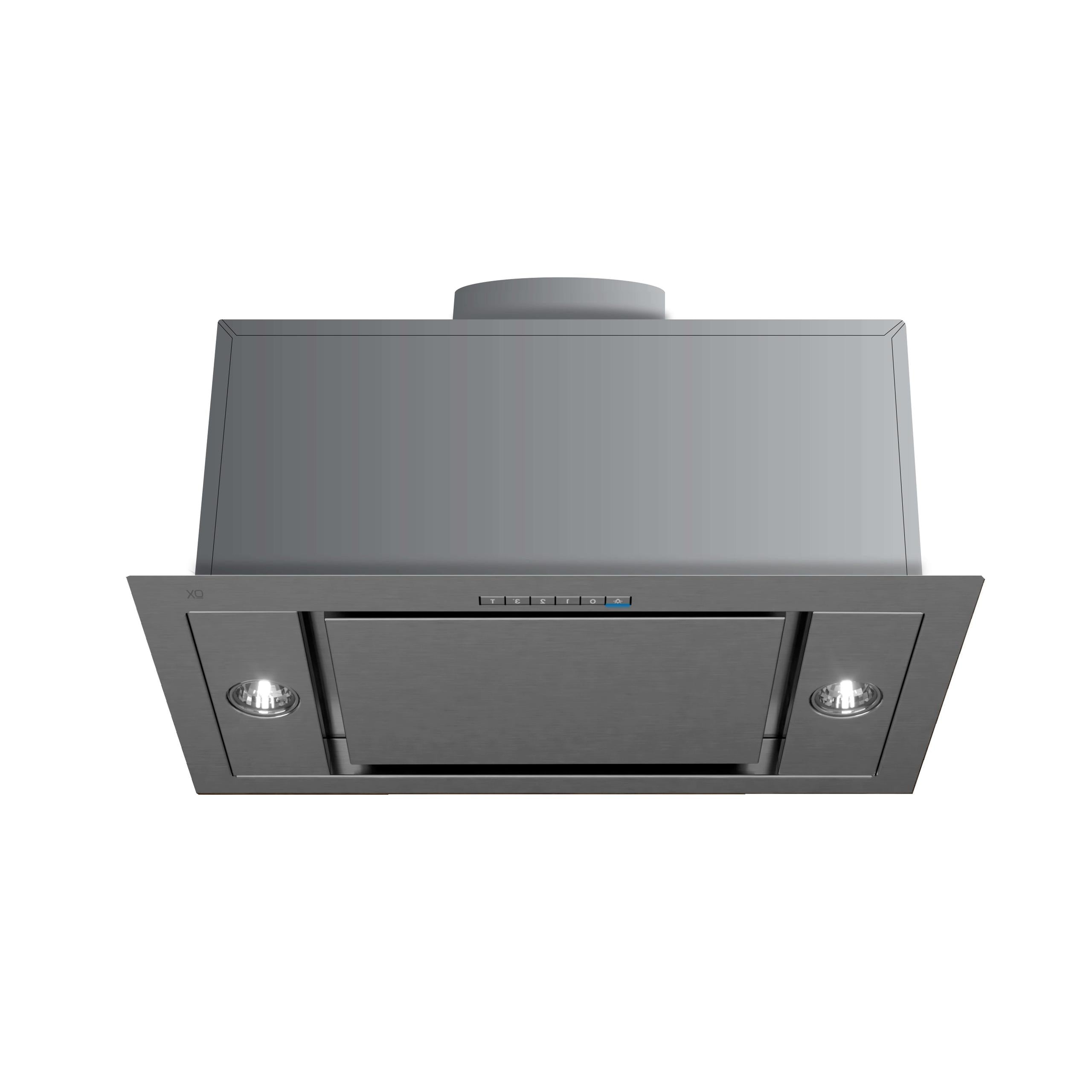

28" CCC 600/395 CFM Insert For Custom Built Hood Italian Made, Stainless
Model XOI28SC
Authorized Dealer
1
of
4
Loading...
Authorized Dealer
28" CCC 600/395 CFM Insert For Custom Built Hood Italian Made, Stainless
Model XOI28SCQuick Specs
Depth
11 1/8
Height
11 1/4
Energy
NO
28" CCC 600/395 CFM Insert For Custom Built Hood Italian Made, Stainless is backordered and will ship as soon as it is back in stock.
Ships Out Within: 2 - 4 Business Days
Shipping Date By: 06/29/2026
Sale Price
Sale price
$772.33
Regular price
$1,065.00
Unit price
/
Unavailable
You save 27%
SERVICES AVAILABLE
Selection will add
$0.00
to the price
Couldn't load pickup availability
Quick Specs
Depth
11 1/8
Height
11 1/4
Energy Star Rated
NO
- Backlit Electronic 4 Speed Control with Power Boost
- CCC Code Compliance Control - permanently set blower to 395 or 600 CFM to meet local codes
- NOTE *When CCC(TM) is enabled the number of fan speeds will be reduced to maximum 3 speeds
- High Efficiency 3000K LED lights brightly illuminate the cooktop
- Dishwasher Safe Aluminum Mesh Filter for efficient filtration
- 5 Minute Delay Shutoff Timer
- Convertible 6" Vertical Duct or Ductless Recirculating (Kit Sold Separately)
- XO quality and performance for your custom built-ins
- Made In Italy
- 2 year limited parts and labor warranty for the original owner
- Perimeter aspiration reduces sound and improves capture
The XOI28SC insert model is equipped with our advanced Code Compliance Control, created to expand your design options. This quiet and powerful integrated blower uses perimeter aspiration to minimize sound level and can be used with our optional ADA compliant remote control.
| Collection | Fabriano Collection |
| Origin | Italy |
| UPC | 814830012733 |
| Height | 12 1/16" |
| Width | 28 5/16" |
| Depth | 11 1/8" |
| Cut-Out Depth (in.) | 10 3/8" |
| Cut-Out Height (in.) | 12 1/4" |
| Cut-Out Width (in.) | 26 3/4" |
| Product Weight | 22 |
| Warranty 1 Explained | 90 Day Love It Or Leave It |
| Warranty 2 Explained | 2 Year Limited Material And Workmanship for the original owner |
| ADA Compatible | Yes |
| Certification | UL |
| Prop 65 | Yes |
| Freight Class | 85 |
| Shipping Weight | 25.3 |
| Carton Height | 12" |
| Carton Width | 31" |
| Carton Depth | 15" |
| Shipping Method | LTL |
| Amperage | 3.6 Amps |
| Electrical | 120V - 60Hz - 3.6 Amps |
| Frequency (Hz) | 60 Hz |
| Voltage (volts) | 120 VAC |
| Wattage (watts) | 430 watts |
| Appliance Type | Range Hoods |
| CCC Code Compliance Control | Yes |
| CFM @ Speed 1 | 160 |
| CFM @ Speed 2 | 250 |
| CFM @ Speed 3 | 395 |
| CFM @ Speed 4 | 600 |
| Color/Finish | Stainless |
| Commerical/Residential | Residential |
| Control Type | Backlit LED |
| Cooktop Lights | Twin LED Lights |
| Duct Size | 6" Dia. |
| Ductless Convertible | Ducted or Convertible |
| Filter Type | Dishwasher Safe Mesh Filters |
| Install Type | Insert |
| Installation Type | Insert |
| LIght Colors | White |
| Light Type | Twin LED Lights |
| Lighting Features | 3 Level Lighting |
| Maximum Air Flow Capacity CFM) | 600/395 |
| Minimum Air Flow Capacity (CFM) | 160 |
| Mounting Height Above Cooktop | 27" - 32" |
| Number of Light Bulbs | 2 |
| Number of Speeds | 4 |
| Returnable | No |
| Sones @ Speed 1 | 1 |
| Sones @ Speed 2 | 2.5 |
| Sones @ Speed 3 | 4 |
| Sones @ Speed 4 | 6.5 |
| Vent Location | Top |
| Vent Material | Metal |
| Wireless Compatibility | No |
| Control Lighting | Blue Backlit |
| Controls | Code Compliance Electronic Controls |
| Location | Indoor |
| Sound Level | 1.0-6.5 Sones |
| Assembled Depth (in.) | No |
- Backlit Electronic 4 Speed Control with Power Boost
- CCC Code Compliance Control - permanently set blower to 395 or 600 CFM to meet local codes
- NOTE *When CCC(TM) is enabled the number of fan speeds will be reduced to maximum 3 speeds
- High Efficiency 3000K LED lights brightly illuminate the cooktop
- Dishwasher Safe Aluminum Mesh Filter for efficient filtration
- 5 Minute Delay Shutoff Timer
- Convertible 6" Vertical Duct or Ductless Recirculating (Kit Sold Separately)
- XO quality and performance for your custom built-ins
- Made In Italy
- 2 year limited parts and labor warranty for the original owner
- Perimeter aspiration reduces sound and improves capture
 | |
|---|---|
