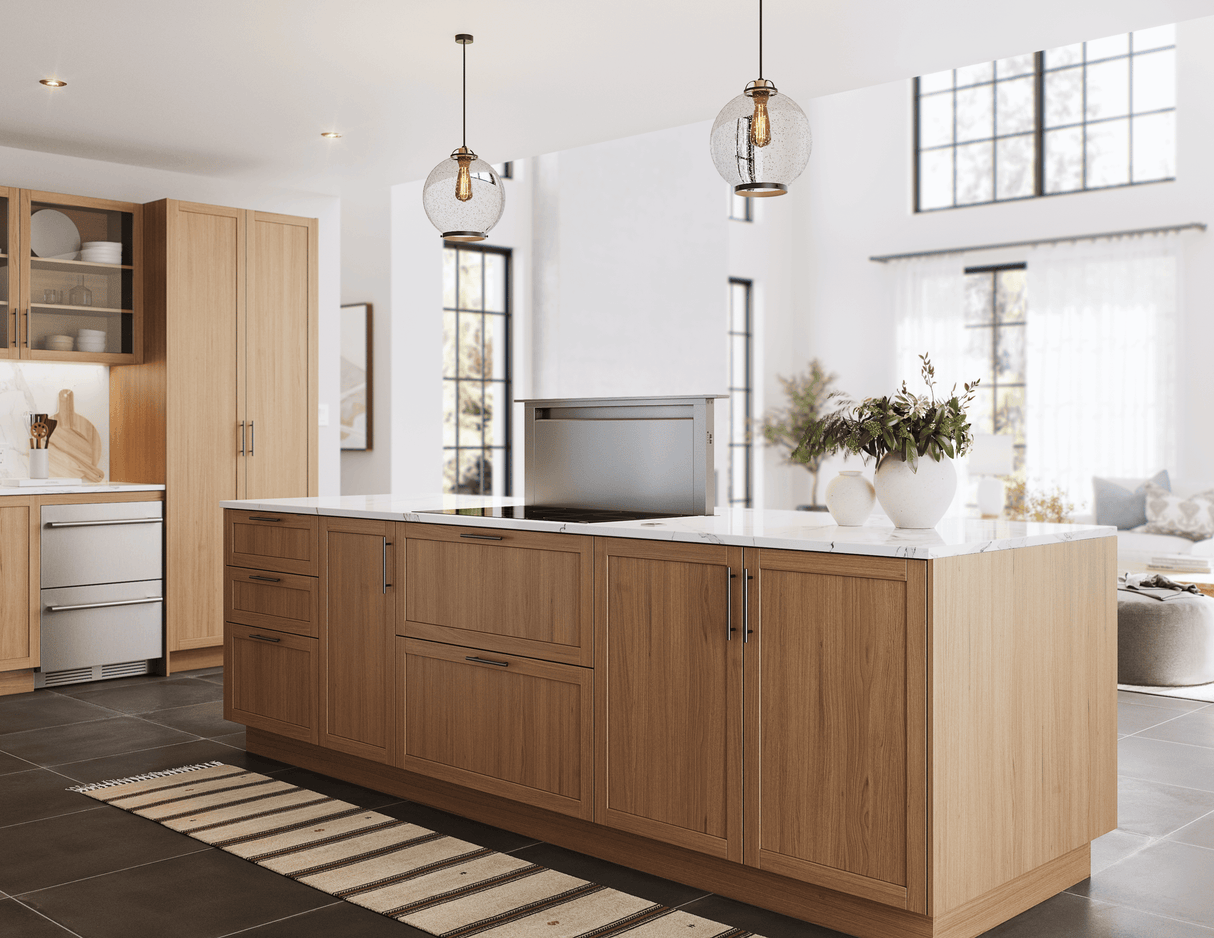

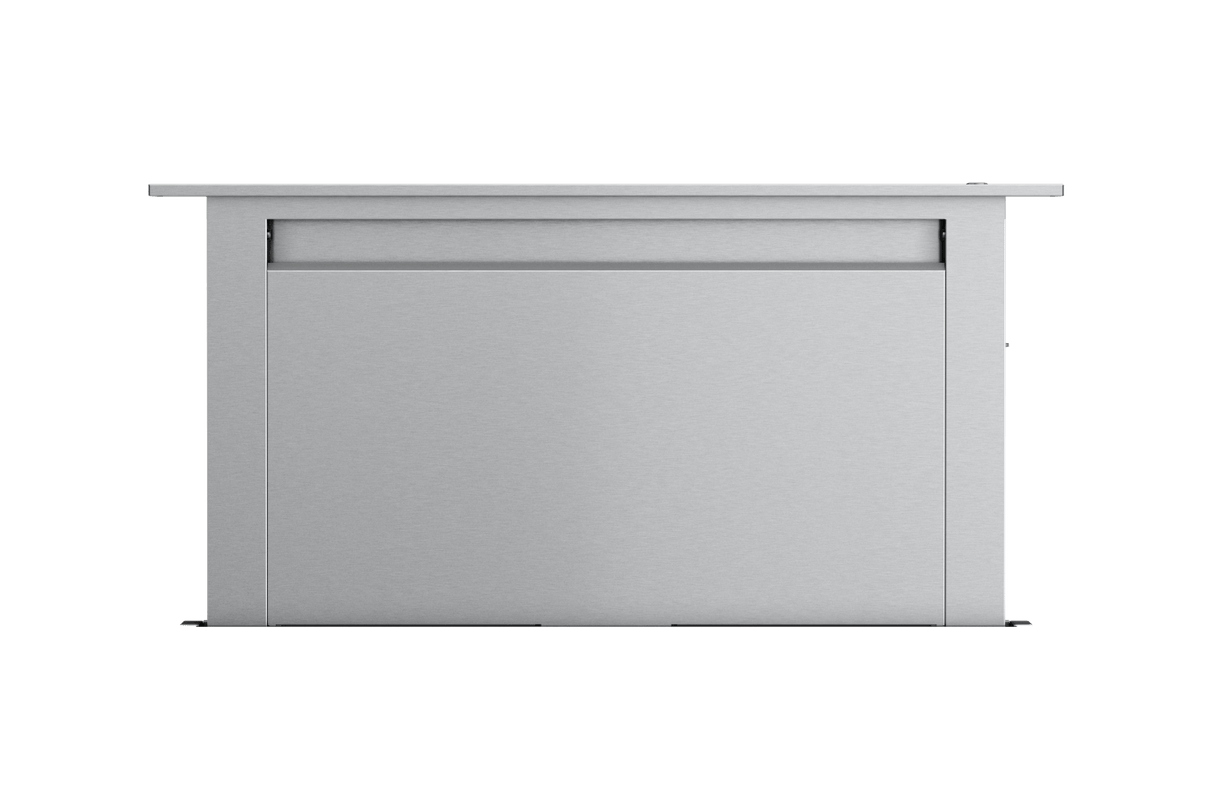

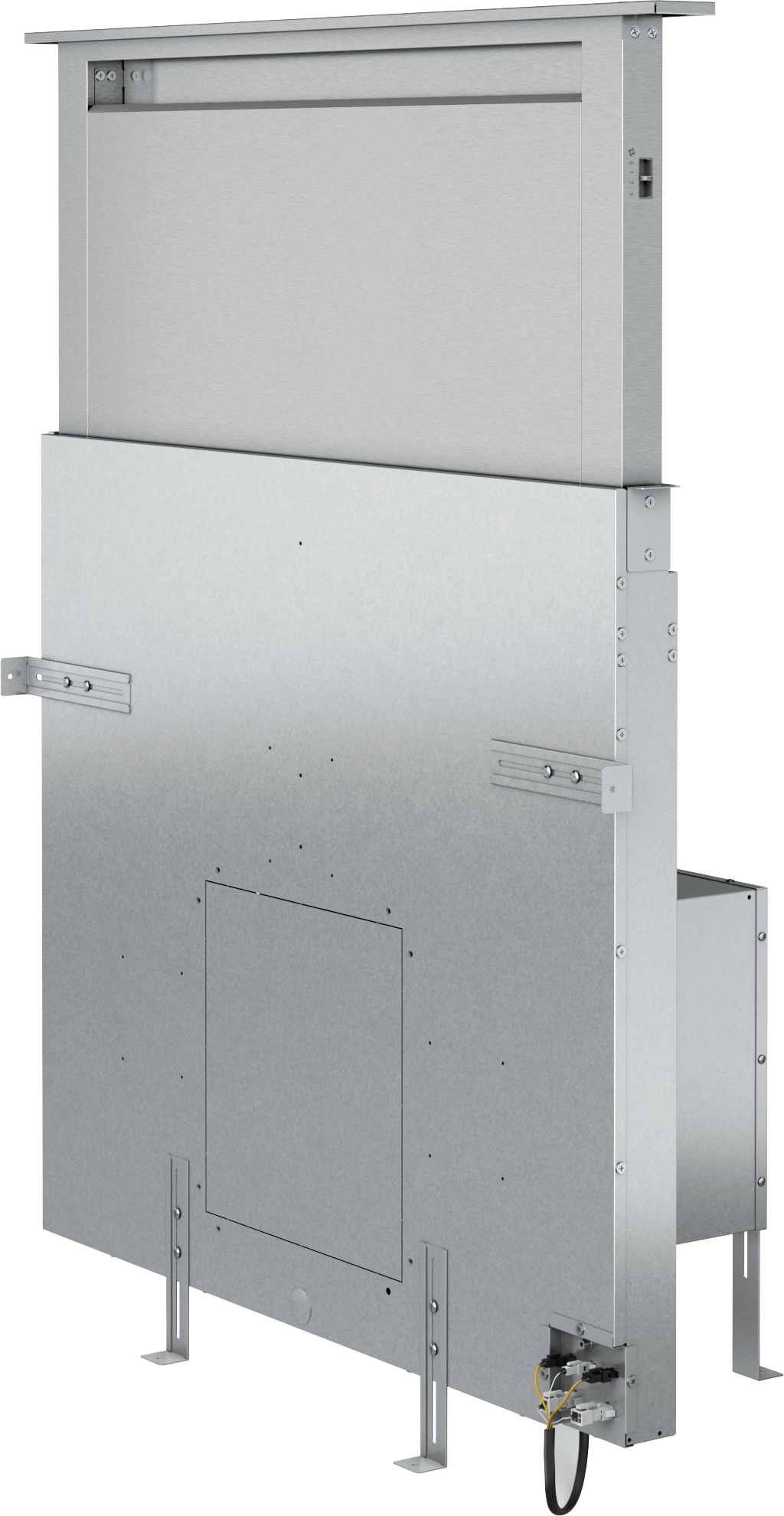

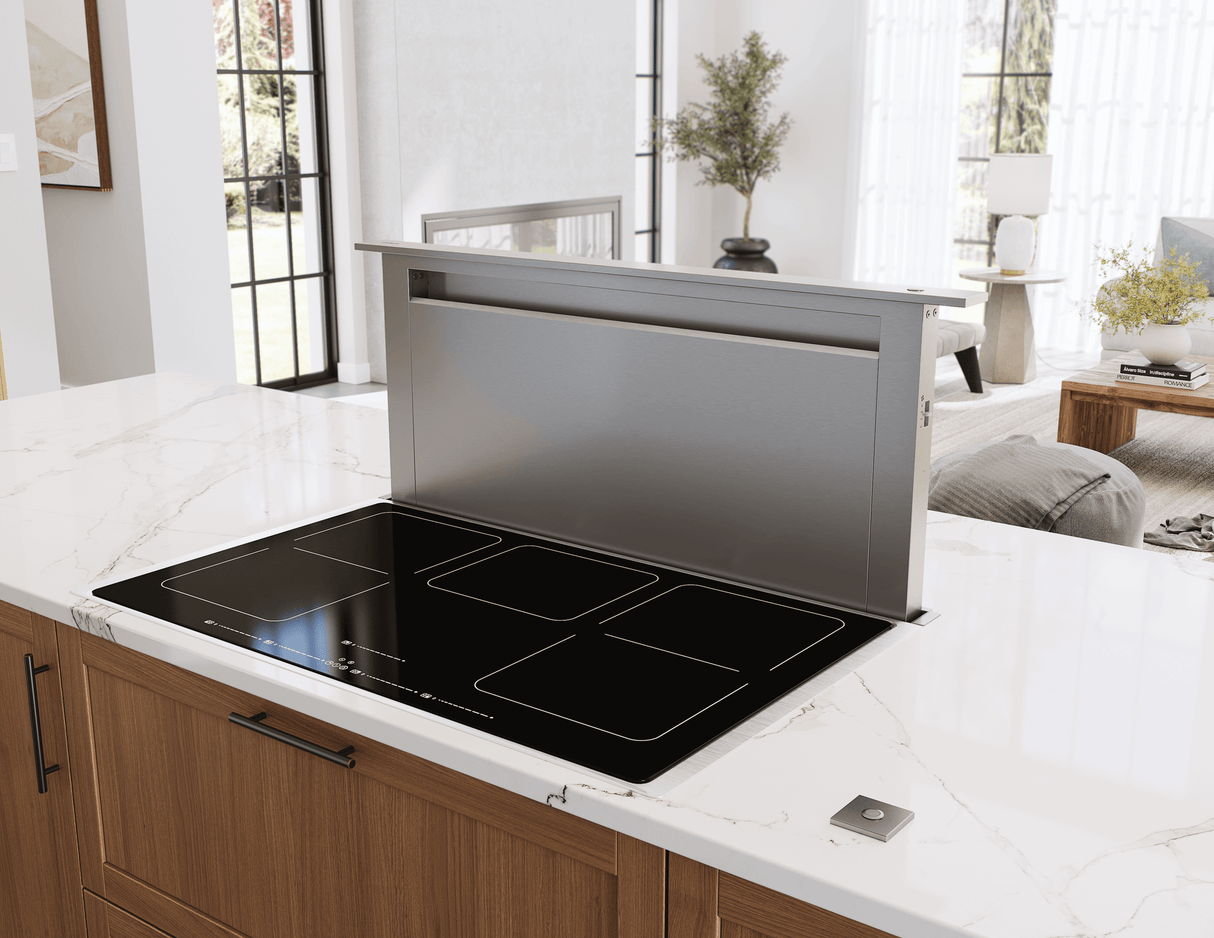

Treviso Downdraft, 14" rise, 30" Width, SS, 600 CFM
Model ZTVE30AS
Authorized Dealer
1
of
20
Loading...
Authorized Dealer
Treviso Downdraft, 14" rise, 30" Width, SS, 600 CFM
Model ZTVE30ASQuick Specs
Depth
2.5"
Height
14"
Energy
NO
Treviso Downdraft, 14" rise, 30" Width, SS, 600 CFM is backordered and will ship as soon as it is back in stock.
This item qualifies for free delivery
Ships Out Within: 2 - 4 Business Days
Shipping Date By: 06/29/2026
Sale Price
$1,499.00
$1,649.00
You save 9%
SERVICES AVAILABLE
Selection will add
$0.00
to the price
Couldn't load pickup availability
Quick Specs
Depth
2.5"
Height
14"
Energy Star Rated
NO

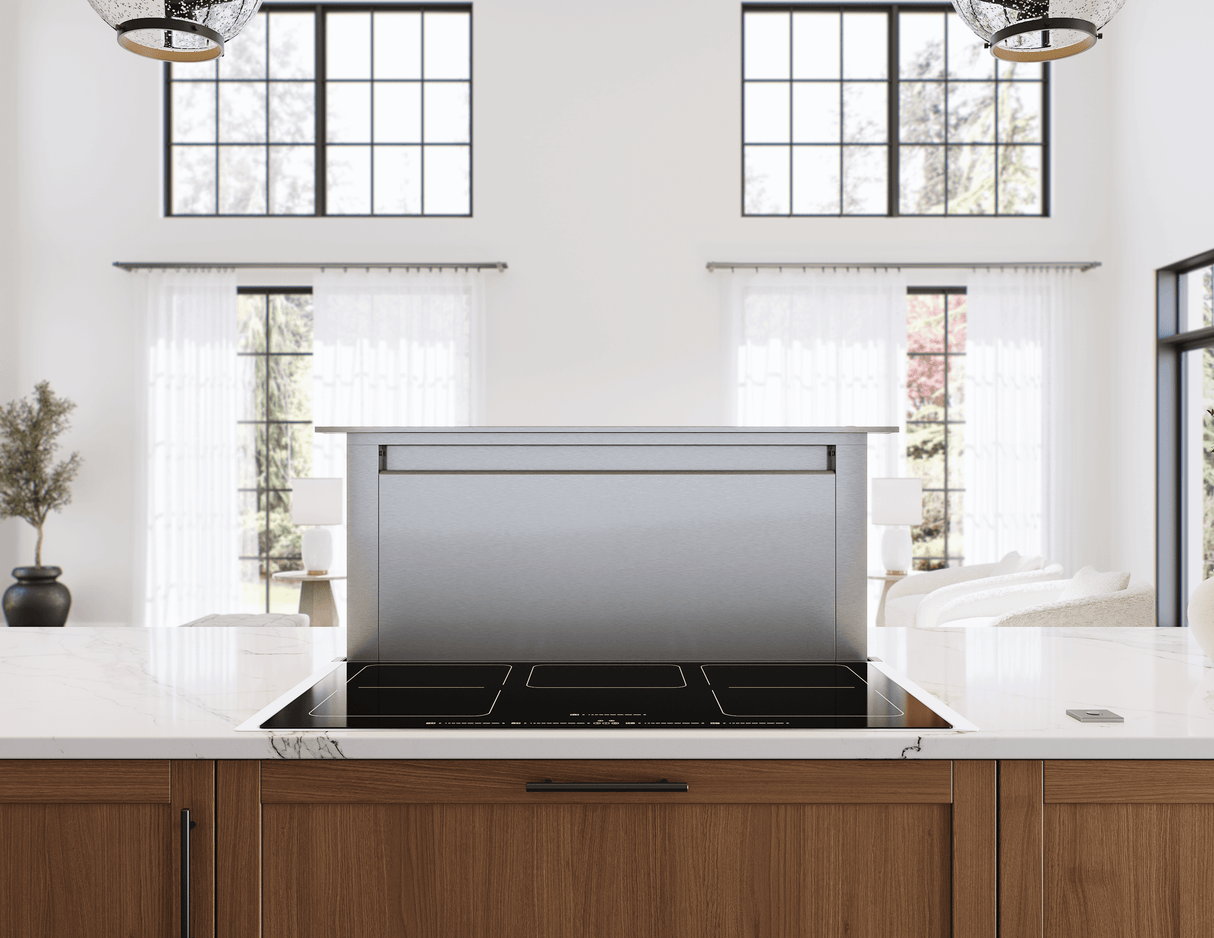

- 14" Chimney Rise
- Sleek and unobtrusive 14-inch chimney rise with stainless steel body.

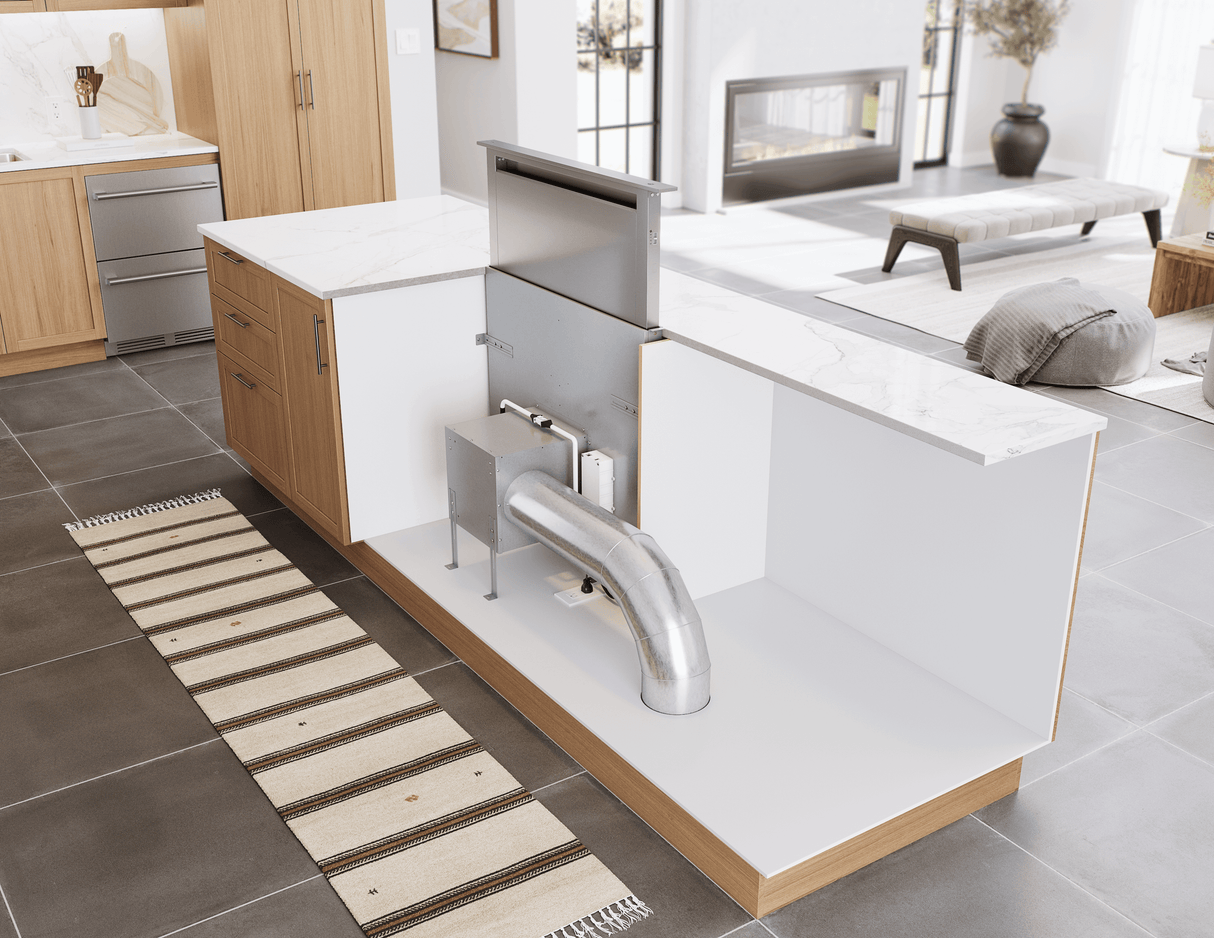

- 3-Way Ducting
- Gives you the flexibility to vent left, right, and down to accommodate your ducting needs.

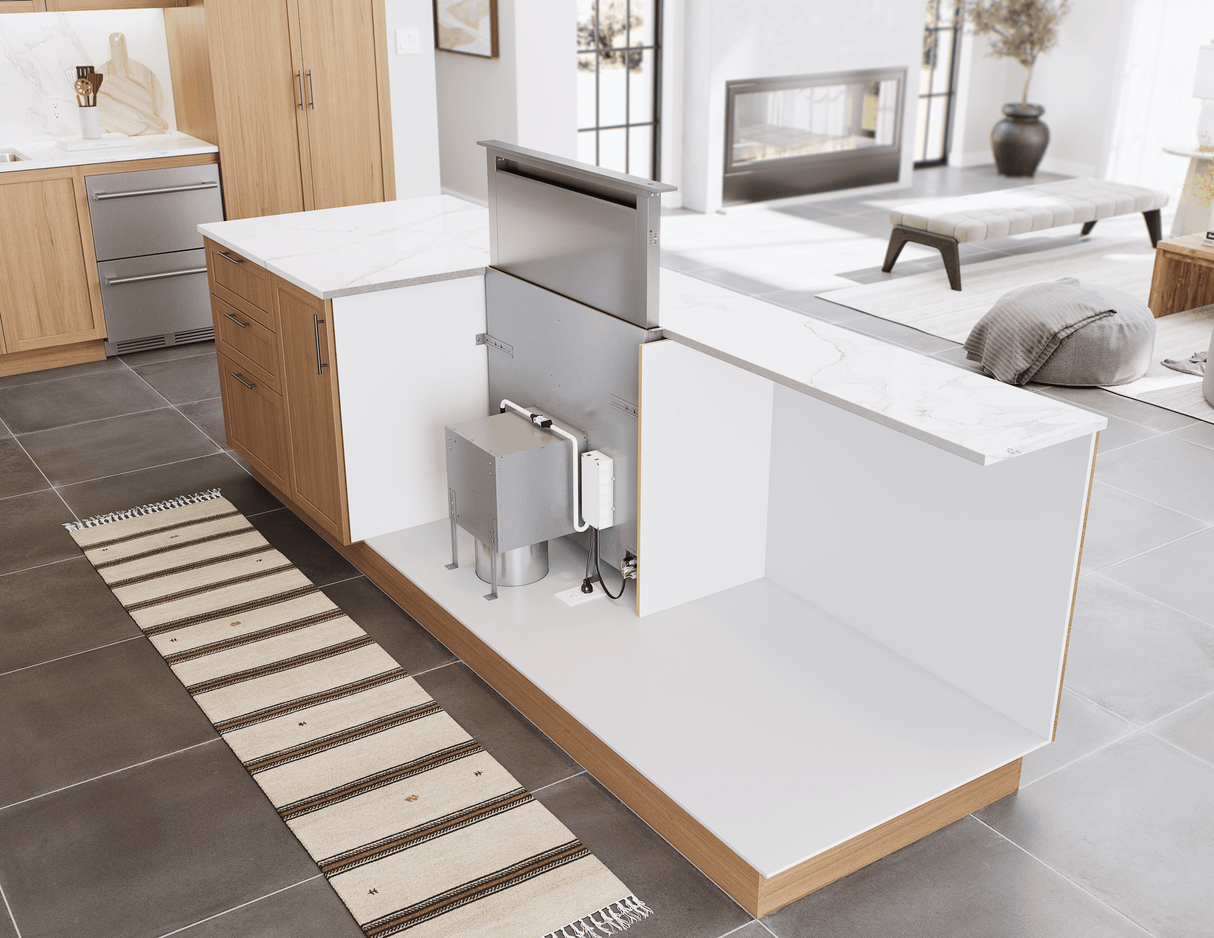

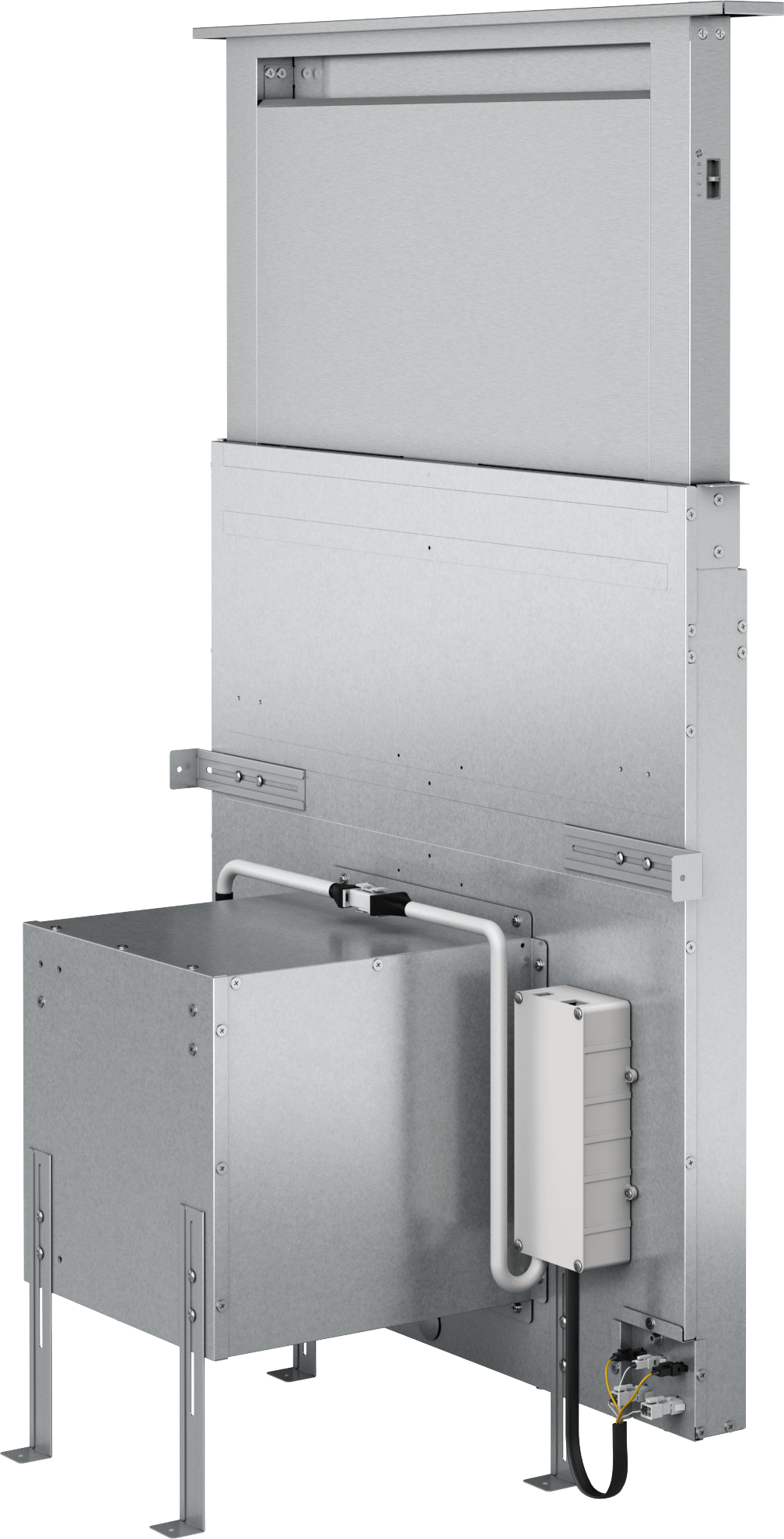

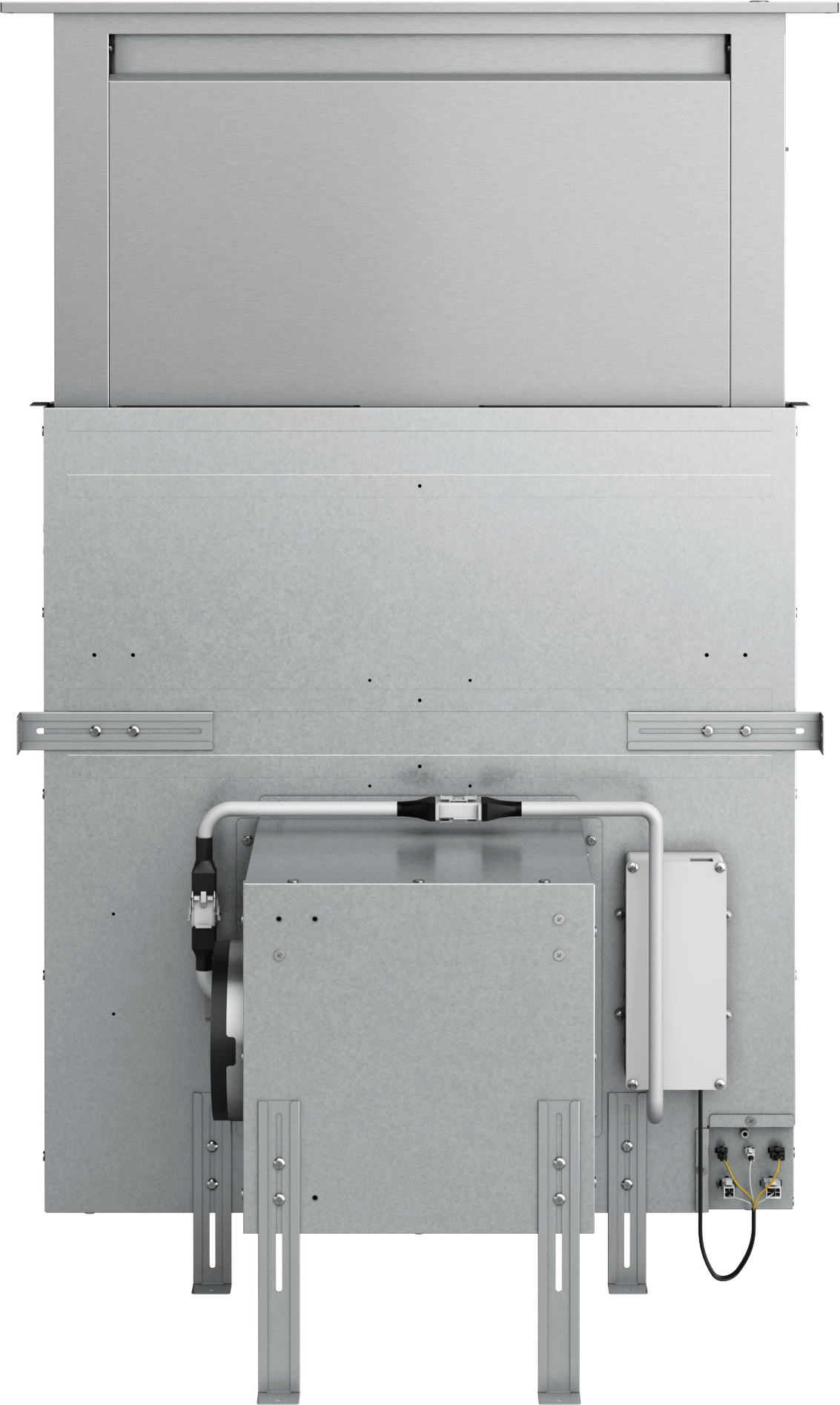

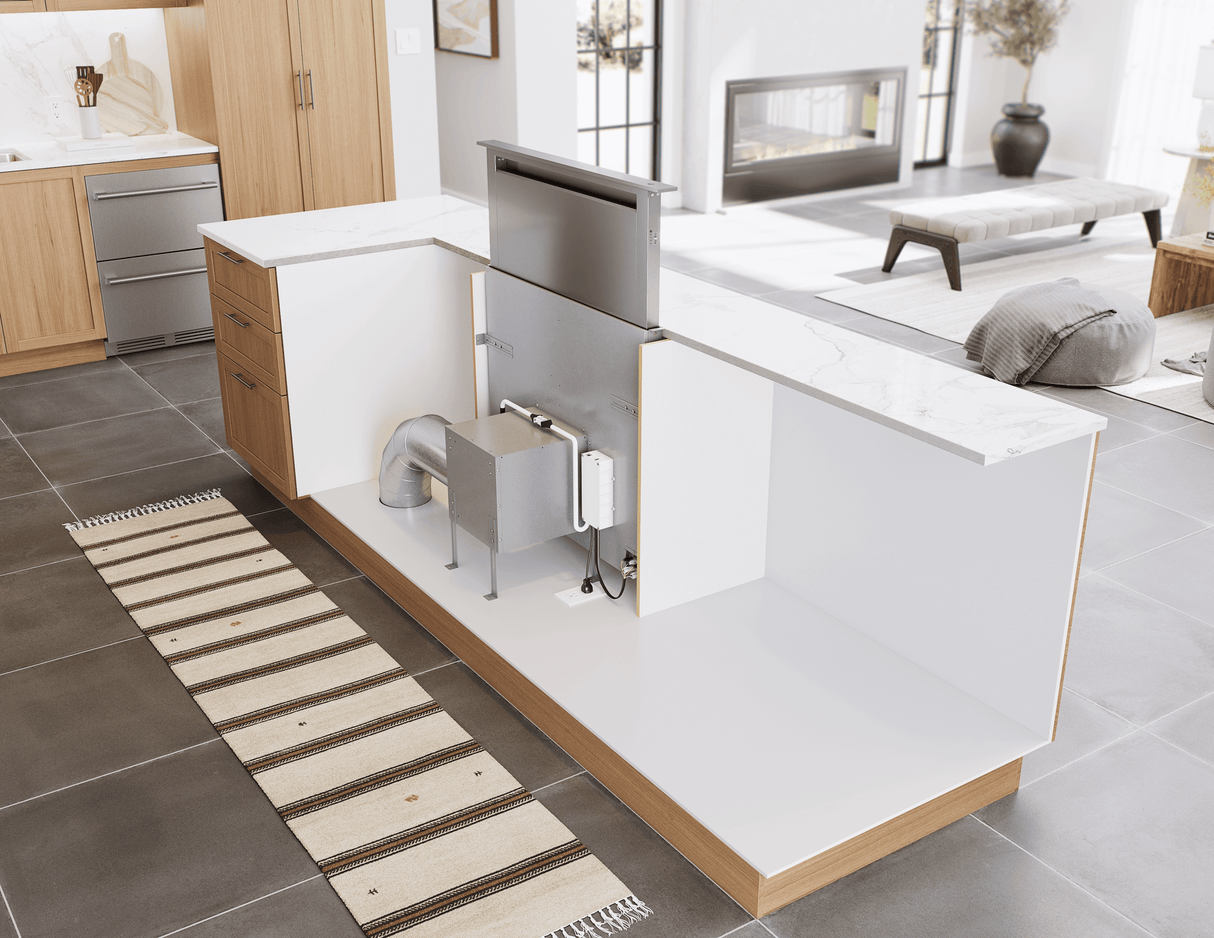

- Reversible Blower Housing

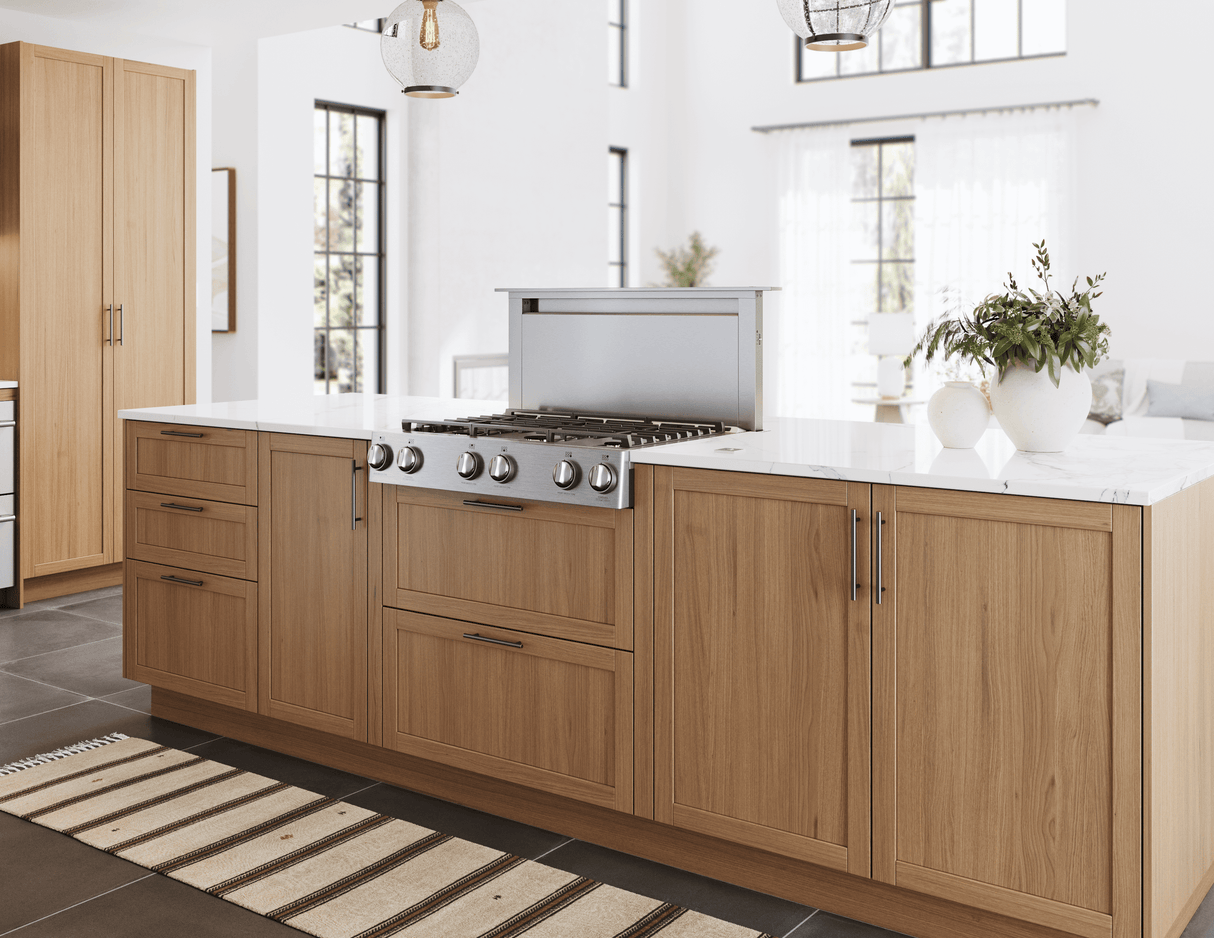

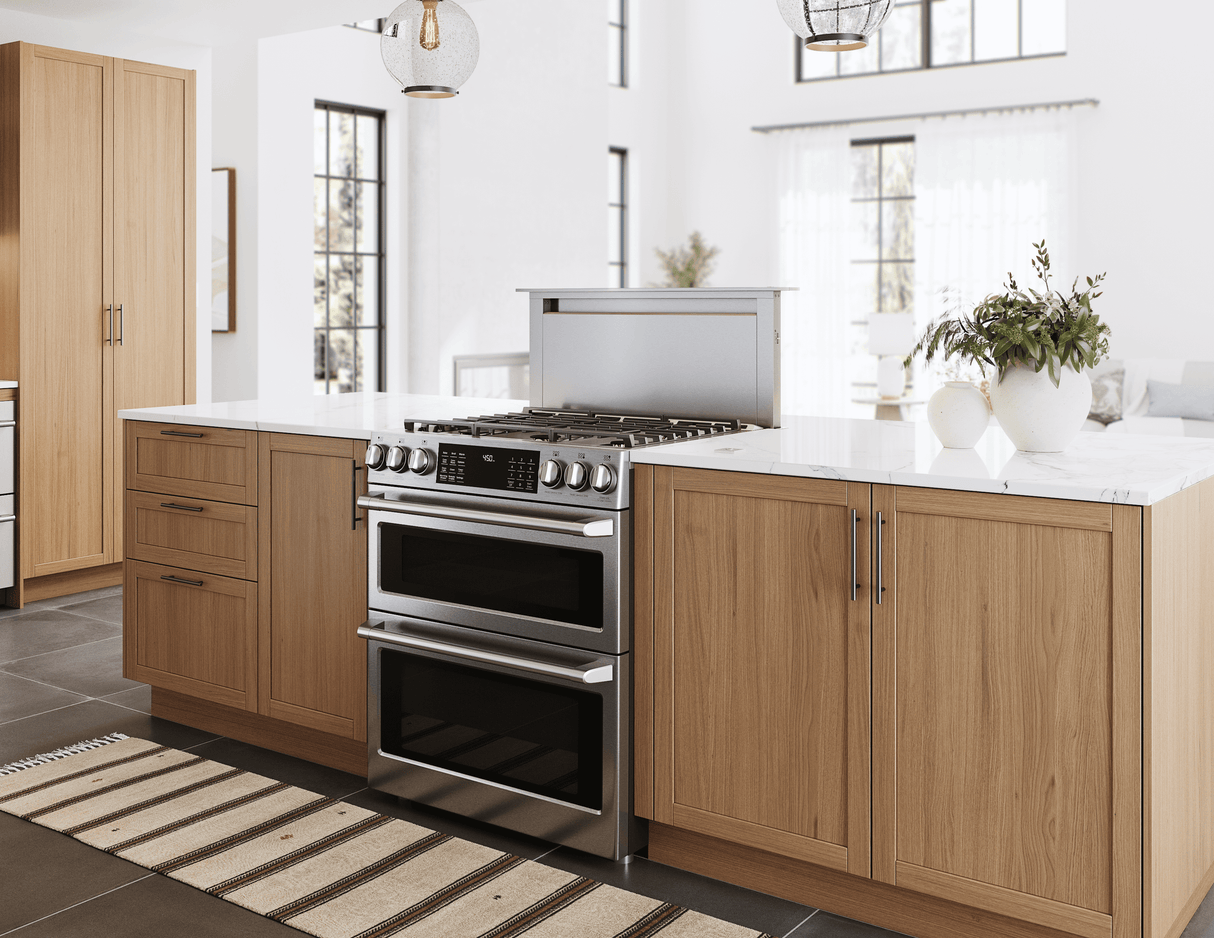

- Enables blower installation on the back of the downdraft to accommodate multiple cooking appliance configurations.
- Mechanical Slide Controls
- 3-speed mechanical slide controls move along a track to adjust the range hood blower and dual-level LED lighting.

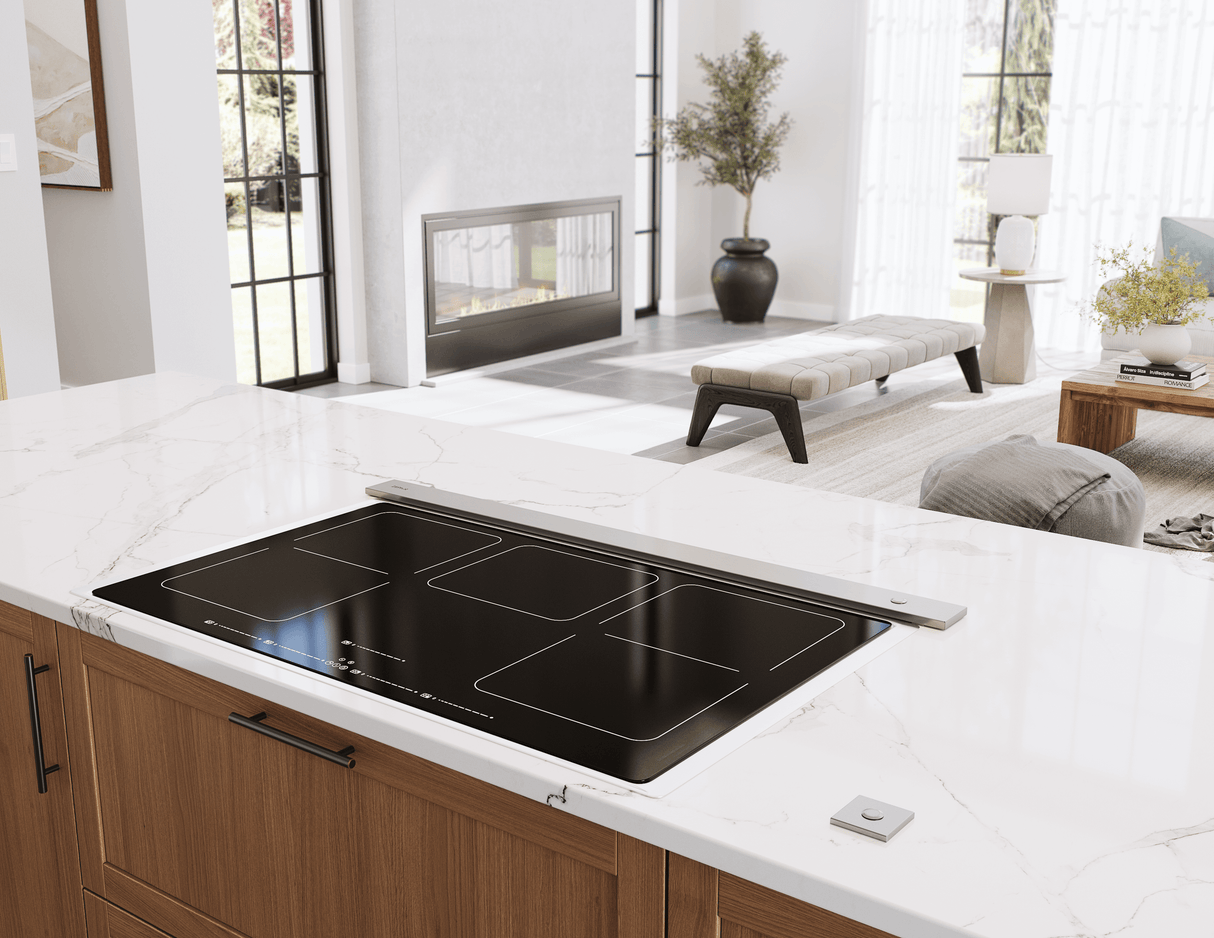

- Auto On/Off Feature
- Automatically turns on or off when raising or lowering the air vent if control knob is turned on.
- Airflow Control Technology™ (ACT™)
- Airflow Control Technology or ACT is an exclusive technology that gives installers the ability to set the maximum CFM levels to meet local code requirements.

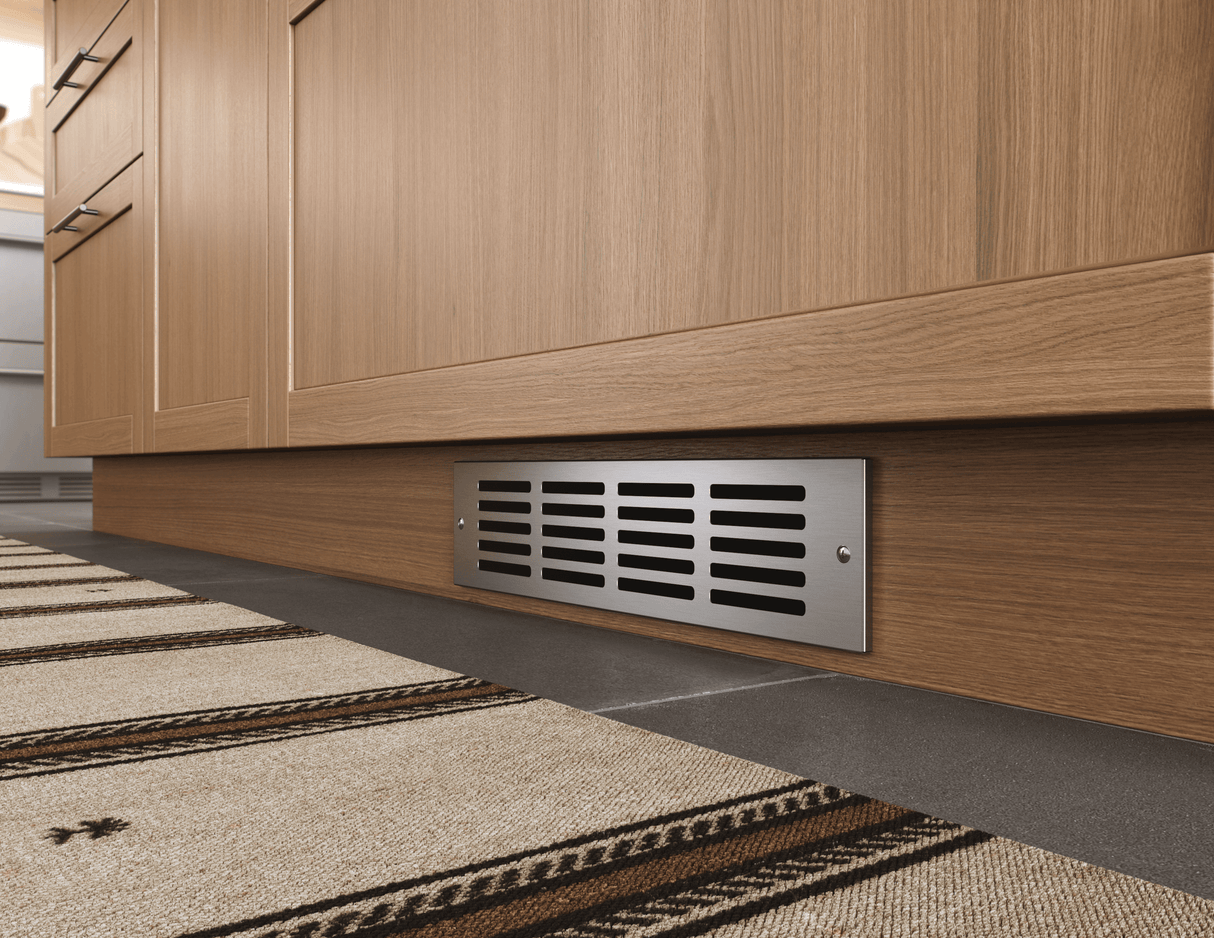

- Optional Ductless Recirculating Kit
- Ductless recirculating kit used when venting air outside your home is not possible. Smoke and odors pass through charcoal filters allowing purified air to be reintroduced into the kitchen.
- 14" Chimney Rise
- 3-Way Ducting
- Reversible Blower Housing
- Mechanical Slide Controls
- Auto On/Off Feature
- Airflow Control Technology(TM) (ACT(TM))
- Optional Ductless Recirculating Kit
Treviso Downdraft, 14" rise, 30" Width, SS, 600 CFM
| Brand | Zephyr |
| Manufacturer | Zephyr |
| Category | Range Hood |
| Sub-Category | Downdraft |
| Vent Type | Convertible |
| UPC | 646328012693 |
| GTIN | 00646328012693 |
| Country of Origin | Taiwan |
| Model Group | ZTV-A |
| Model Name | Treviso Downdraft |
| Collection | Core Collection |
| Blower Included | Yes |
| Blower CFM w/ACT | 200, 390 |
| Internal Blower 1 CFM | 600 |
| Internal Blower 1 Min. Sones | 2 |
| Internal Blower 1 Max Sones | 6 |
| Minimum CFM | 200 |
| Installation Type | Downdraft |
| Installation Type | Downdraft |
| For Outdoor Use | No |
| Color | Stainless Steel |
| Controls Type | Mechanical Slide |
| Blower Speeds | 3 |
| Automatic Delay-Off | No |
| Clean Air Function | No |
| Lighting Type | None |
| Lights Quantity | 0 |
| Grease Filter Type | Mesh |
| Duct Discharge | Horizontal |
| Duct Size; Horizontal; IN | 6 |
| Voltage | 120 |
| Maximum Amperage | 3.2 |
| ADA Compliant | Yes, with optional remote |
| Warranty Parts / Labor | 2 / 1 |
| Compatible Appliances | DDA-0003, DDT-0130, ZRC-00TV, Z0F-C006, MUA006A |
| Bluetooth Connected | No |
| Remote Included | No |
| Remote Optional | Yes |
| Energy Star Certified | No |
| Alexa & Google Home Compatible | No |
| CEC Title 20 Compliant | Yes |
| Primary Material | Stainless Steel |
| Wattage | 384 |
| Certification | UL |
| Nominal Width; IN | 30 |
| Net Width; IN | 30 |
| Net Depth; IN | 2.5 |
| Net Height; IN | 14 |
| Weight; LBS | 54.7 |
| Ceiling Height Minimum | 8 ft. |
| Ceiling Height Maximum | 12 ft. |
| Shipping Length; IN | 48 |
| Shipping Width; IN | 45 |
| Shipping Height; IN | 38 |
| Shipping Weight; LBS | 111 |
| Shipping Method | LTL |
| Freight Class | 250 |
| Certification # | E109171 |
| Clean Filter Alert | No |
| Duct Type | Horizontal |
| Duct Type | Horizontal |
- 14" Chimney Rise
- 3-Way Ducting
- Reversible Blower Housing
- Mechanical Slide Controls
- Auto On/Off Feature
- Airflow Control Technology(TM) (ACT(TM))
- Optional Ductless Recirculating Kit
 | |
|---|---|
