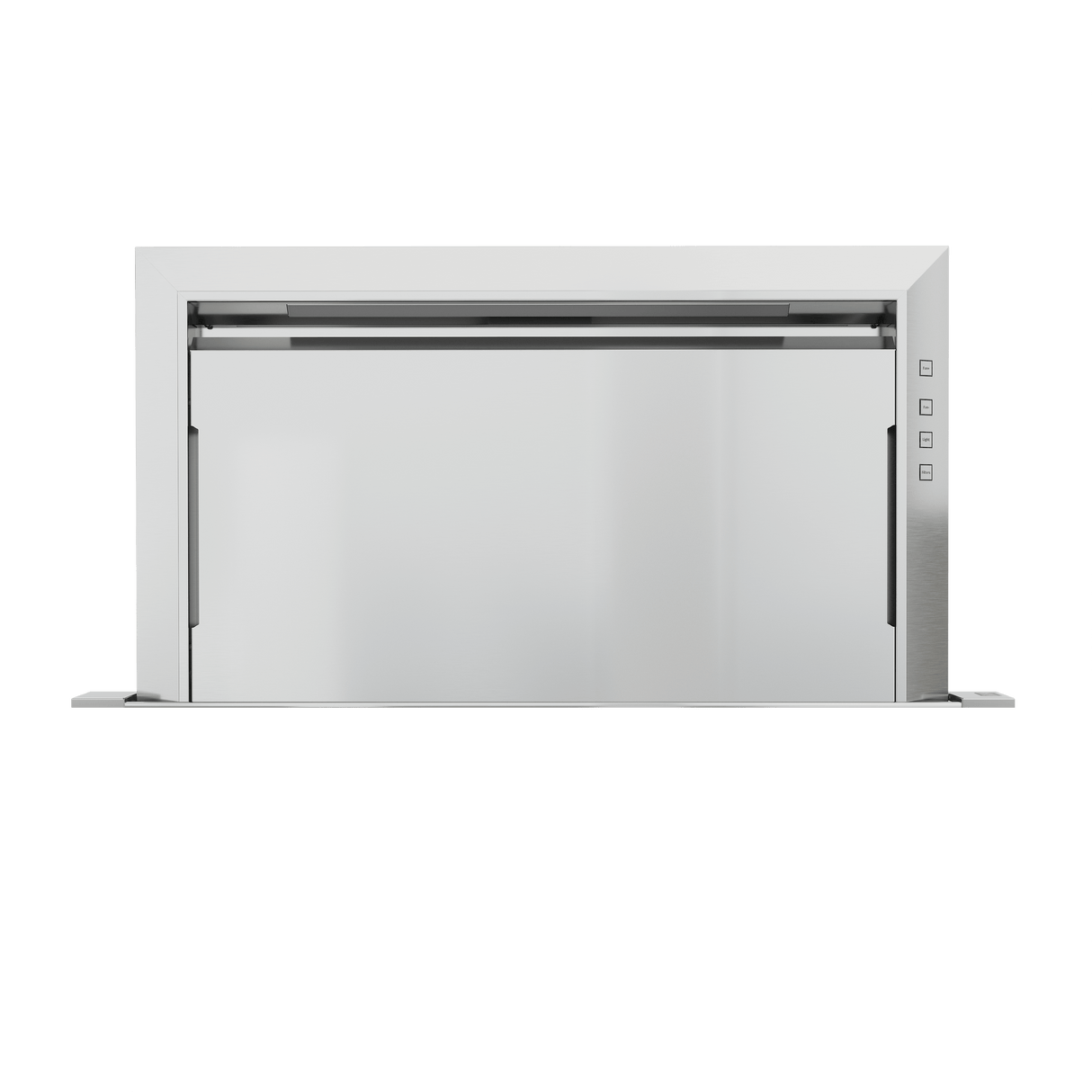

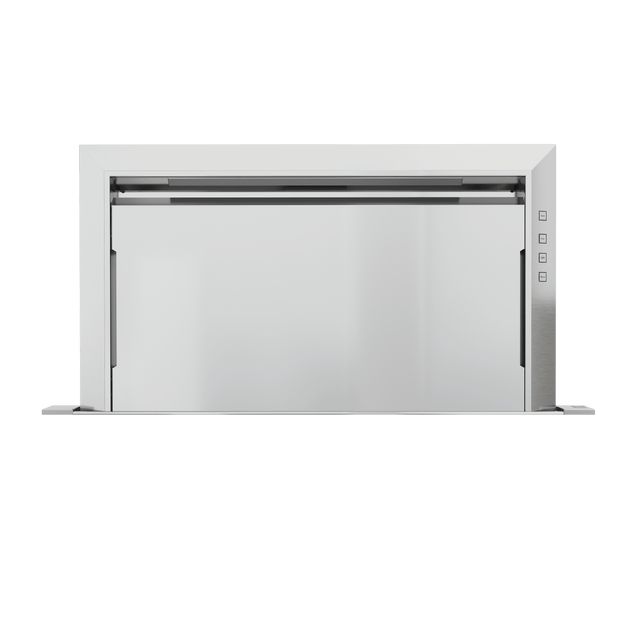

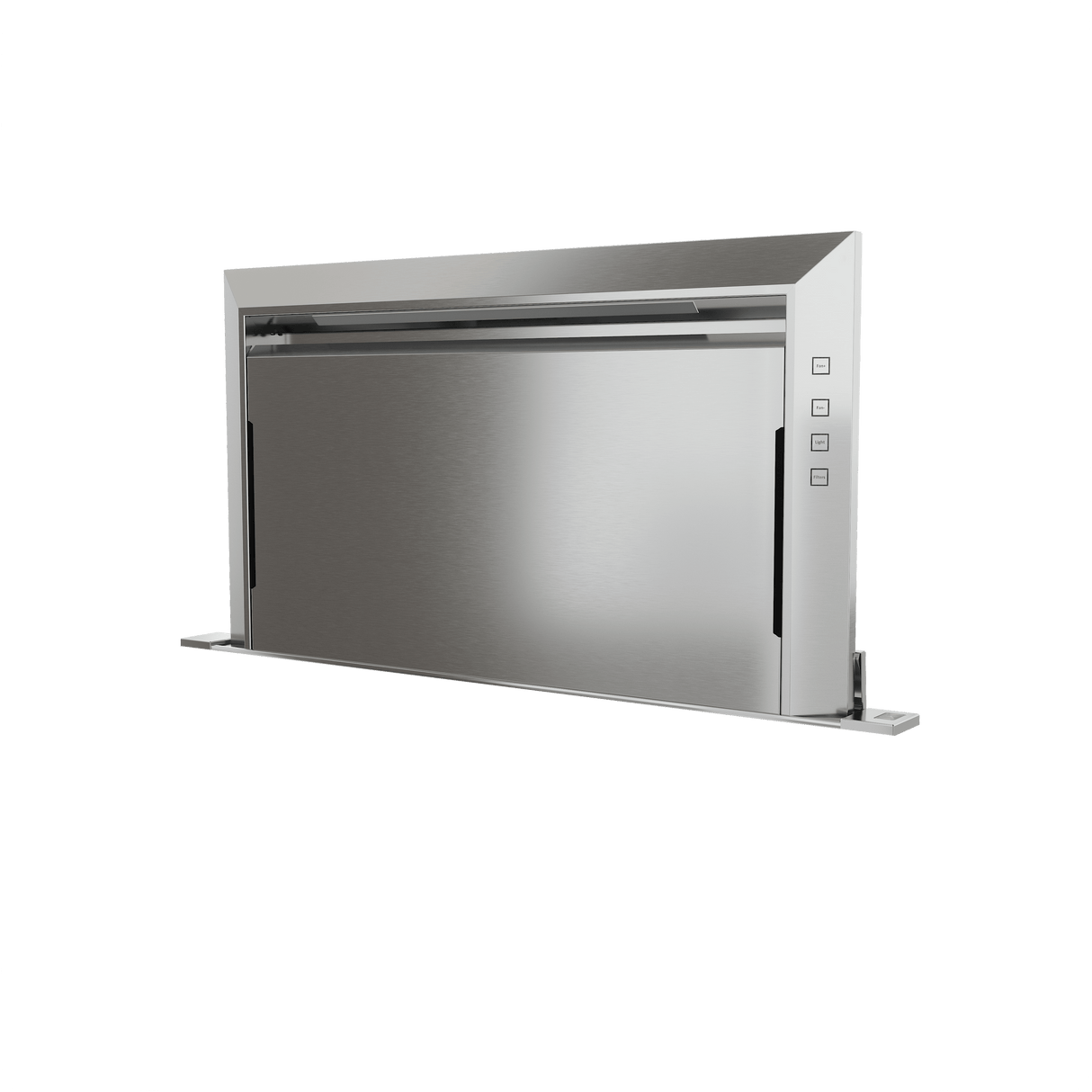

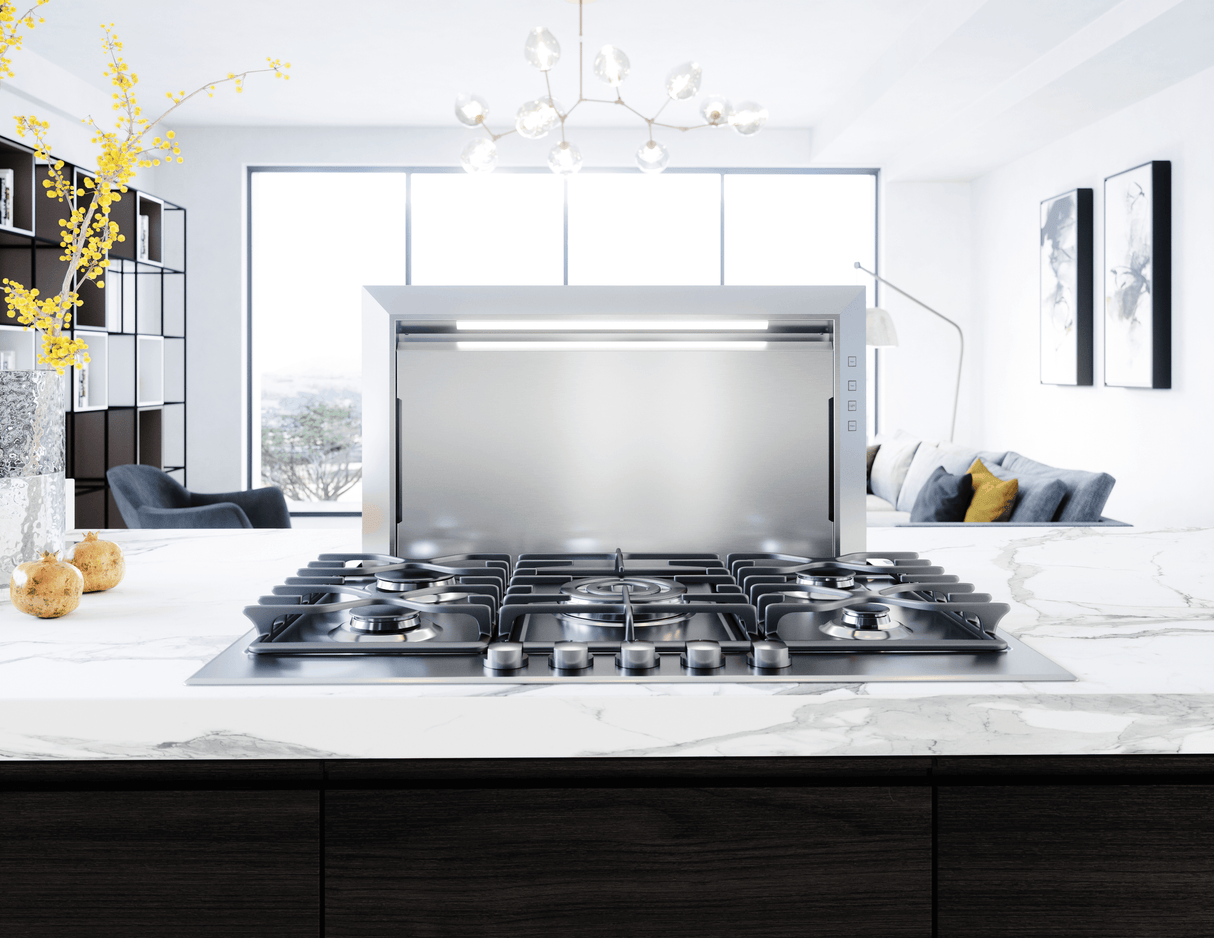

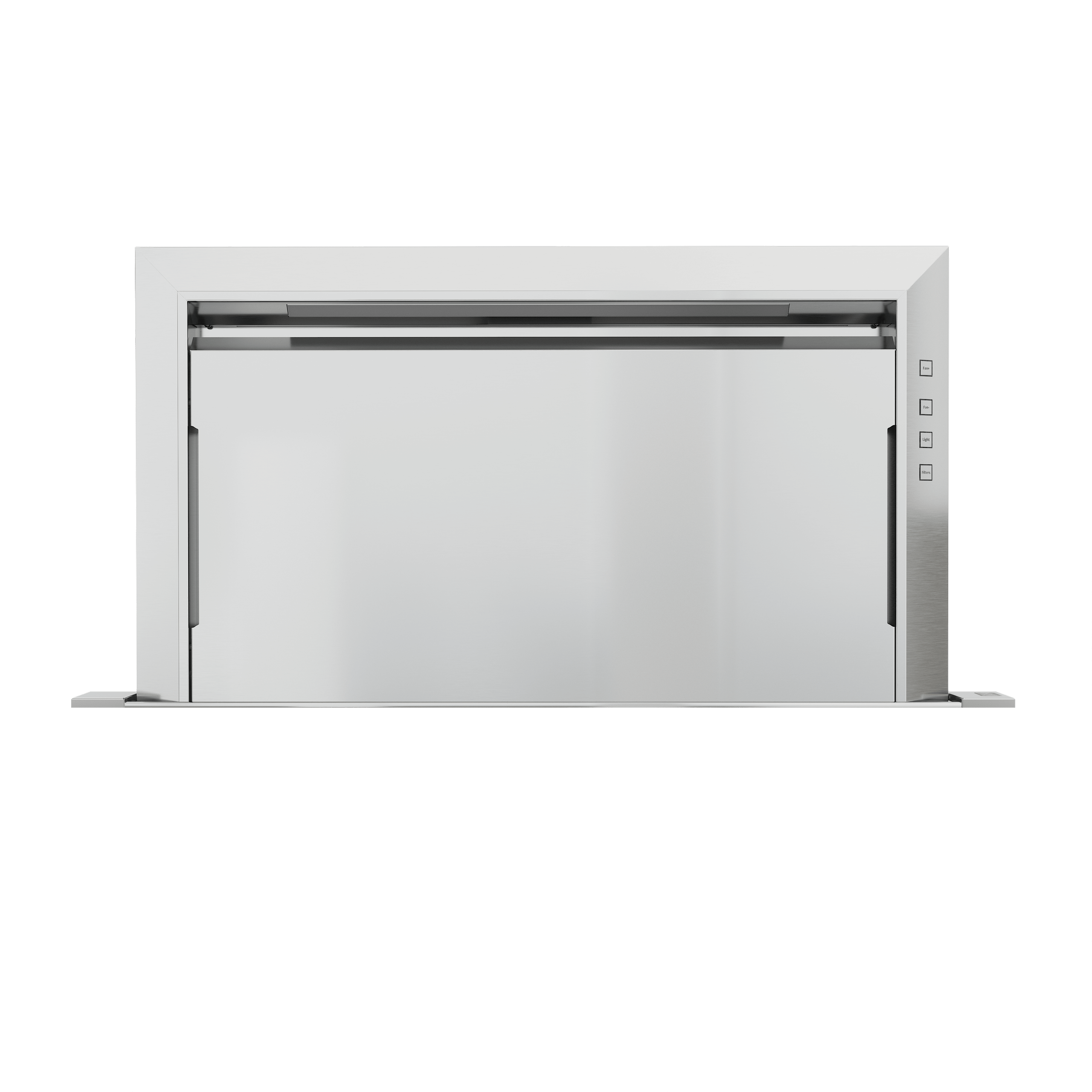

Lift Downdraft, 18" rise, 36" width, Stainless Steel
Model: DLIE36ASX
Authorized Dealer
1
of
10
Loading...
Authorized Dealer
Lift Downdraft, 18" rise, 36" width, Stainless Steel
Model: DLIE36ASXQuick Specs
Width
36"
Depth
2.5"
Height
29.375"
ADA
NO
Wifi
NO
Energy
NO
Lift Downdraft, 18" rise, 36" width, Stainless Steel is backordered and will ship as soon as it is back in stock.
Estimated to ship in 1-2 weeks
Available to Order
Sale Price
Sale price
$2,399.00
Regular price
$2,599.00
Unit price
/
Unavailable
You save 7%
SERVICES AVAILABLE
Selection will add
$0.00
to the price
Couldn't load pickup availability
Quick Specs
Width
36"
Depth
2.5"
Height
29.375"
ADA
NO
Wifi Connected
NO
Energy Star Rated
NO
- BriteStrip™ LED Lighting
- The future just got brighter. BriteStrip LED lighting includes key features such as being dimmable, lasts 25,000 hours, has a 3,000K warm white color and evenly distributes light over your cooking surface.
- Capacitive Touch Controls
- Capacitive touch controls utilize the same touch technology as your smart phone for a more integrated user interface.
- Dual capture zones
- Cooking contaminates are pulled in through two entry points to improve capture performance.
- Multiple Blower Options
- Multiple blower options are available to fit your application.
- Dual-Level Lighting
- The dual-level dimmable LEDs require less energy than traditional halogen lights, are cool to the touch, and provide uniform light distribution.
- Welded and polished body
- A welded and polished body ensures a high quality, seamless appearance.

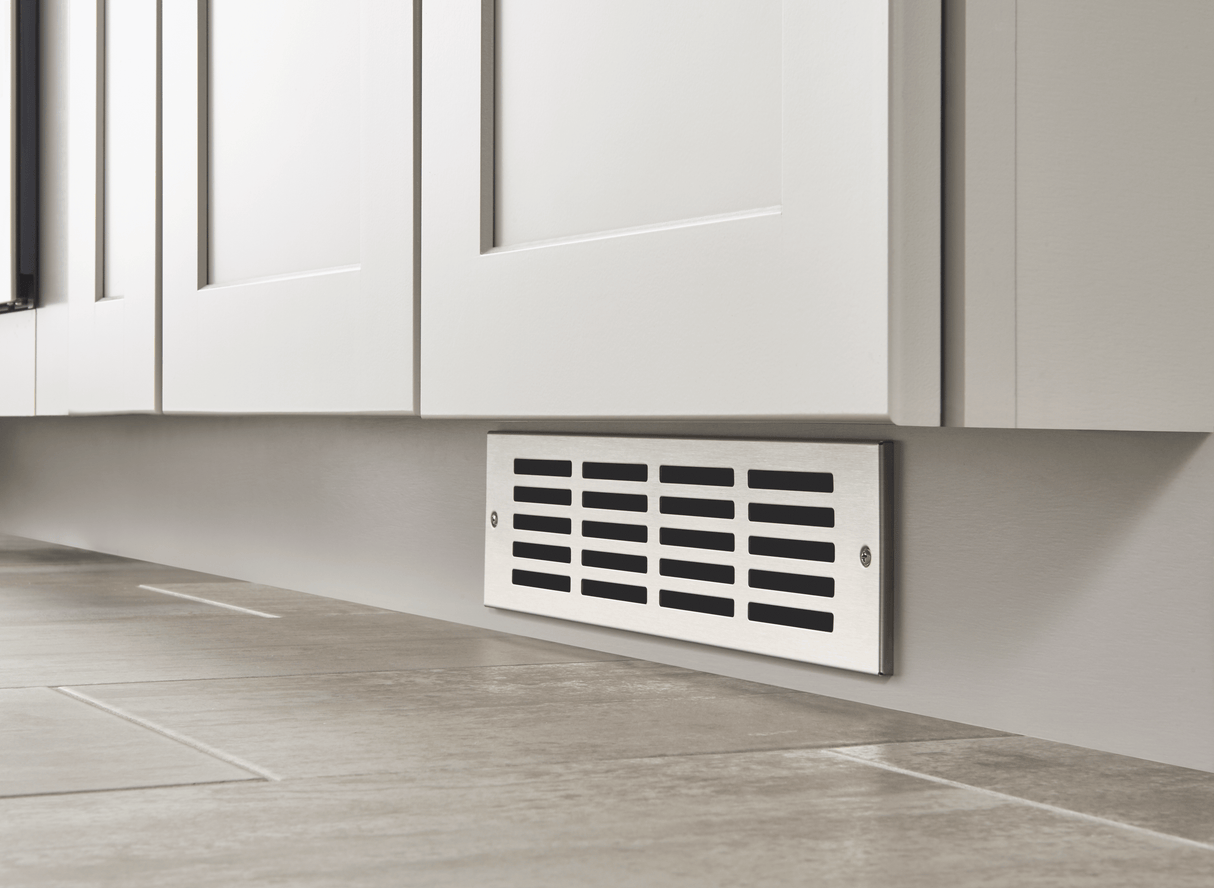

- Optional Ductless Recirculating Kit
- Ductless recirculating kit used when venting air outside your home is not possible. Smoke and odors pass through charcoal filters allowing purified air to be reintroduced into the kitchen.
- BriteStrip(TM) LED Lighting
- Capacitive Touch Controls
- Dual capture zones
- Multiple Blower Options
- Dual-Level Lighting
- Welded and polished body
- Optional Ductless Recirculating Kit
Lift Downdraft, 18" rise, 36" width, Stainless Steel
| Brand | Zephyr |
| Manufacturer | Zephyr |
| Category | Range Hood |
| Sub-Category | Downdraft |
| Vent Type | Convertible |
| UPC | 646328007330 |
| GTIN | 00646328007330 |
| Country of Origin | Mexico |
| Model Group | DLI-A |
| Model Name | Lift Downdraft |
| Collection | Designer Collection |
| Blower Included | No |
| Internal Blower 1 CFM | 600 |
| Internal Blower 1 Min. Sones | 1 |
| Internal Blower 1 Max Sones | 6 |
| In-Line Blower CFM | 1000 |
| External Blower CFM | 1000 |
| Minimum CFM | 200 |
| Installation Type | Downdraft |
| Installation Type | Downdraft |
| For Outdoor Use | No |
| Color | Stainless Steel |
| Controls Type | Capacitive Touch |
| Blower Speeds | 3 |
| Automatic Delay-Off | No |
| Clean Air Function | No |
| Lighting Type | LED |
| Lights Quantity | 1 |
| Watts Per Bulb | 14 |
| Lights Levels | 2 |
| Grease Filter Type | Mesh |
| Compatible Mesh or Baffle Filter Part Number | 50200062 |
| Duct Discharge | Horizontal |
| Duct Size; Horizontal; IN | 2 x 20 |
| Duct Size; Vertical; IN | N/A |
| Voltage | 120 |
| Maximum Amperage | 4.4 |
| ADA Compliant | Yes, with optional remote |
| Warranty Parts / Labor | 2 / 1 |
| Compatible Appliances | DBI-600A, PBN-1000A, CBE-1000, ZRC-00LF, DDA-0002, DDS-0030, DDT-0030, 11030132, DDE-0001, 54190053, 54190054, AK00071, AK00072, AK00080, MUA006A, MUA008A, Z0F-C006 |
| Bluetooth Connected | No |
| Wi-Fi Connected | No |
| Remote Included | No |
| Remote Optional | Yes |
| Energy Star Certified | No |
| Alexa & Google Home Compatible | No |
| CEC Title 20 Compliant | Yes |
| Primary Material | Stainless Steel |
| Wattage | 360 |
| Certification | UL |
| Nominal Width; IN | 36 |
| Net Width; IN | 36 |
| Net Depth; IN | 2.25 |
| Net Height; IN | 18 |
| Weight; LBS | 77 |
| Ceiling Height Minimum | 8 ft. |
| Ceiling Height Maximum | 12 ft. |
| Shipping Length; IN | 39 |
| Shipping Width; IN | 34.5 |
| Shipping Height; IN | 9 |
| Shipping Weight; LBS | 85 |
| Shipping Method | LTL |
| Freight Class | 300 |
| Certification # | E109171 |
| Clean Filter Alert | Yes |
| Duct Type | Horizontal |
| Duct Type | Horizontal |
- BriteStrip(TM) LED Lighting
- Capacitive Touch Controls
- Dual capture zones
- Multiple Blower Options
- Dual-Level Lighting
- Welded and polished body
- Optional Ductless Recirculating Kit
 | |
|---|---|
