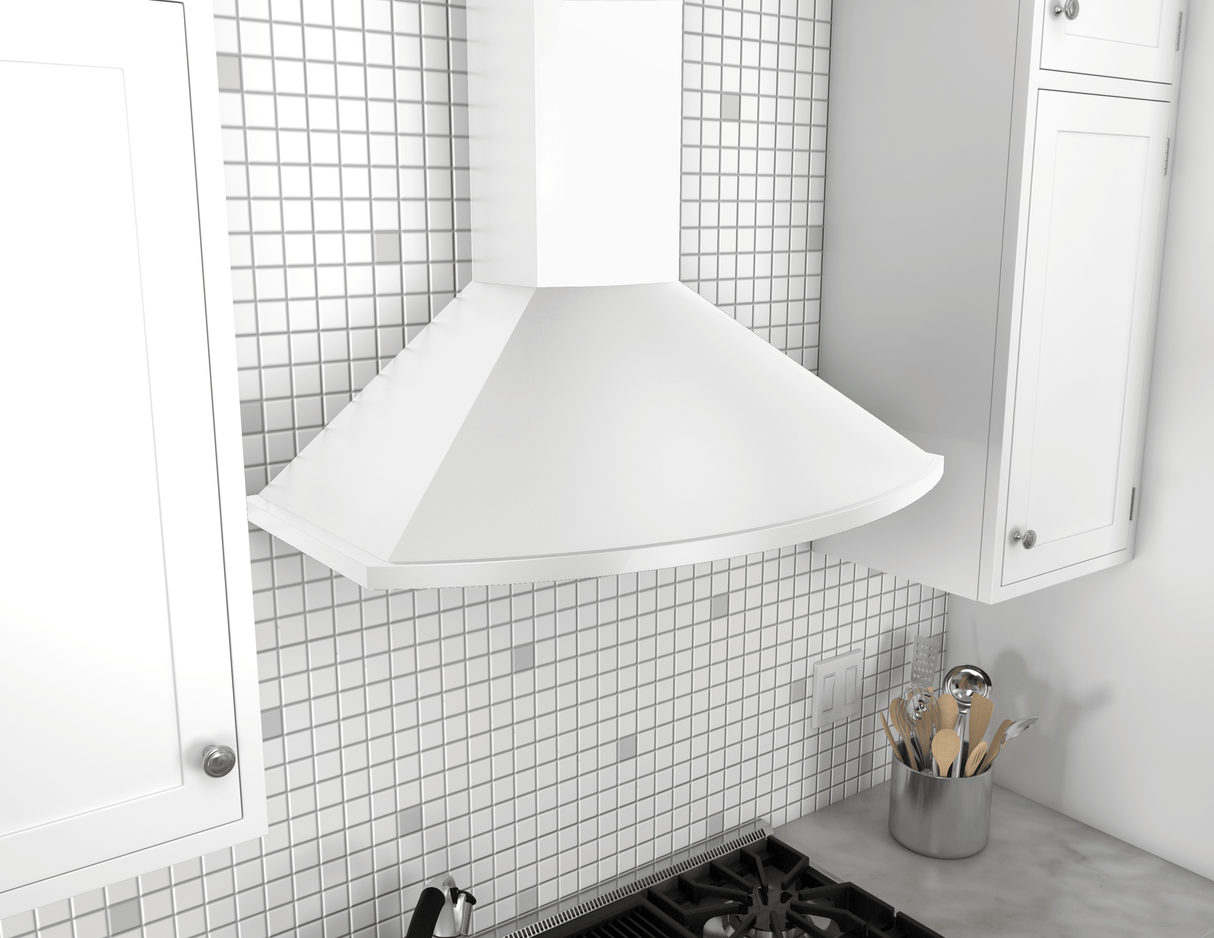

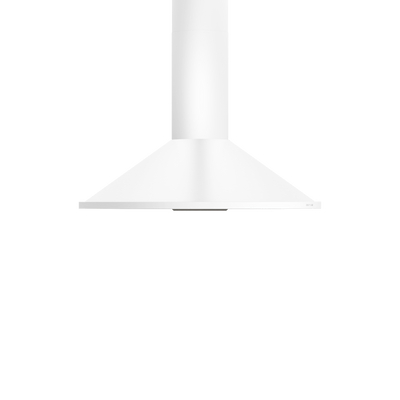

Savona, Wall, 90cm, Wht, 685CFM, ACT, LED
Model ZSAM90DW
Authorized Dealer
1
of
7
Loading...
Authorized Dealer
Savona, Wall, 90cm, Wht, 685CFM, ACT, LED
Model ZSAM90DWQuick Specs
Depth
19.5
Height
45
Energy
NO
Color
Savona, Wall, 90cm, Wht, 685CFM, ACT, LED is backordered and will ship as soon as it is back in stock.
Ships Out Within: 2 - 4 Business Days
Shipping Date By: 06/29/2026
Regular price
$970.44
Unit price
/
Unavailable
SERVICES AVAILABLE
Selection will add
$0.00
to the price
Couldn't load pickup availability
Quick Specs
Depth
19.5
Height
45
Energy Star Rated
NO
- Airflow Control Technology™ (ACT™)
- Airflow Control Technology or ACT is an exclusive technology that gives installers the ability to set the maximum CFM levels to meet local code requirements.
- ICON Touch® Controls
- ICON Touch Controls seamlessly integrate into the hoods stainless steel canopy, which lets users control functions such as the 5 speeds, delay-off, dual-level lighting, and auto reminders. With its blue LED indicator lights and sleek modern aesthetic, the ICON Touch Controls are the future of ventilation control technology.

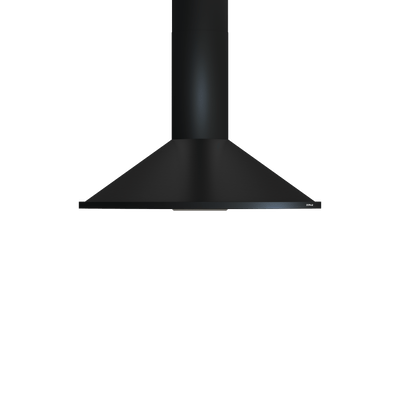

- Multiple Color Options
- BriteStrip™ LED Lighting
- The future just got brighter. BriteStrip LED lighting includes key features such as being dimmable, lasts 25,000 hours, has a 3,000K warm white color and evenly distributes light over your cooking surface.
- Dual-Level Lighting
- The dual-level dimmable LEDs require less energy than traditional halogen lights, are cool to the touch, and provide uniform light distribution.
- Optional Ductless Recirculating Kit
- Ductless recirculating kit used when venting air outside your home is not possible. Smoke and odors pass through charcoal filters allowing purified air to be reintroduced into the kitchen.
- Optional Extension Duct Cover Kit
- Extension duct cover kit to accommodate ceiling heights up to 12 ft see spec sheets for more details.
- Airflow Control Technology(TM) (ACT(TM))
- ICON Touch(R) Controls
- Multiple Color Options
- BriteStrip(TM) LED Lighting
- Dual-Level Lighting
- Optional Ductless Recirculating Kit
- Optional Extension Duct Cover Kit
Savona, Wall, 90cm, Wht, 685CFM, ACT, LED
| Brand | Zephyr |
| Manufacturer | Zephyr |
| Category | Range Hood |
| Sub-Category | Wall |
| Vent Type | Convertible |
| UPC | 646328005695 |
| GTIN | 00646328005695 |
| Country of Origin | Taiwan |
| Model Group | ZSA-D |
| Model Name | Savona Wall |
| Collection | Core Collection |
| Replacement Model | ZSA-M90FW |
| Blower Included | Yes |
| Blower CFM w/ACT | 390, 290 |
| Internal Blower 1 CFM | 685 |
| Internal Blower 1 Min. Sones | 1 |
| Internal Blower 1 Max Sones | 6 |
| Minimum CFM | 200 |
| Installation Type | Wall |
| Installation Type | Wall |
| For Outdoor Use | No |
| Color | White |
| Controls Type | ICON Touch® |
| Blower Speeds | 5 |
| Automatic Delay-Off | Yes |
| Clean Air Function | No |
| Lighting Type | LED |
| Lights Quantity | 1 |
| Watts Per Bulb | 9 |
| Lights Levels | 2 |
| Grease Filter Type | Mesh |
| Compatible Mesh or Baffle Filter Part Number | 50200011 |
| Duct Discharge | Vertical |
| Duct Size; Horizontal; IN | N/A |
| Duct Size; Vertical; IN | 6 |
| Mounting Height Above Cooktop; IN | 26 - 34 |
| Voltage | 120 |
| Maximum Amperage | 5 |
| ADA Compliant | No |
| Warranty Parts / Labor | 3 / 1 |
| Compatible Appliances | ZRC-00SV, Z1C-01SAW, MUA008A, Z0F-C002 |
| Bluetooth Connected | No |
| Wi-Fi Connected | No |
| Remote Included | No |
| Remote Optional | No |
| Energy Star Certified | No |
| Alexa & Google Home Compatible | No |
| CEC Title 20 Compliant | Yes |
| Primary Material | Steel |
| Wattage | 480 |
| Certification | UL |
| Nominal Width; IN | 36 |
| Net Width; IN | 35.4375 |
| Net Depth; IN | 19.5 |
| Net Height; IN | 28 - 45 |
| Weight; LBS | 31.5 |
| Ceiling Height Minimum | 8 ft. |
| Ceiling Height Maximum | 9.5 ft. |
| Chimney Height in. | 18 |
| Chimney Width in. | 9 |
| Chimney Depth in. | 7.5 |
| Shipping Length; IN | 38.39 |
| Shipping Width; IN | 17.32 |
| Shipping Height; IN | 25.59 |
| Shipping Weight; LBS | 45 |
| Shipping Method | Small Parcel |
| Freight Class | 200 |
| Certification # | E127334 |
| Clean Filter Alert | Yes |
| Duct Type | Vertical |
| Duct Type | Vertical |
- Airflow Control Technology(TM) (ACT(TM))
- ICON Touch(R) Controls
- Multiple Color Options
- BriteStrip(TM) LED Lighting
- Dual-Level Lighting
- Optional Ductless Recirculating Kit
- Optional Extension Duct Cover Kit
 | |
|---|---|
