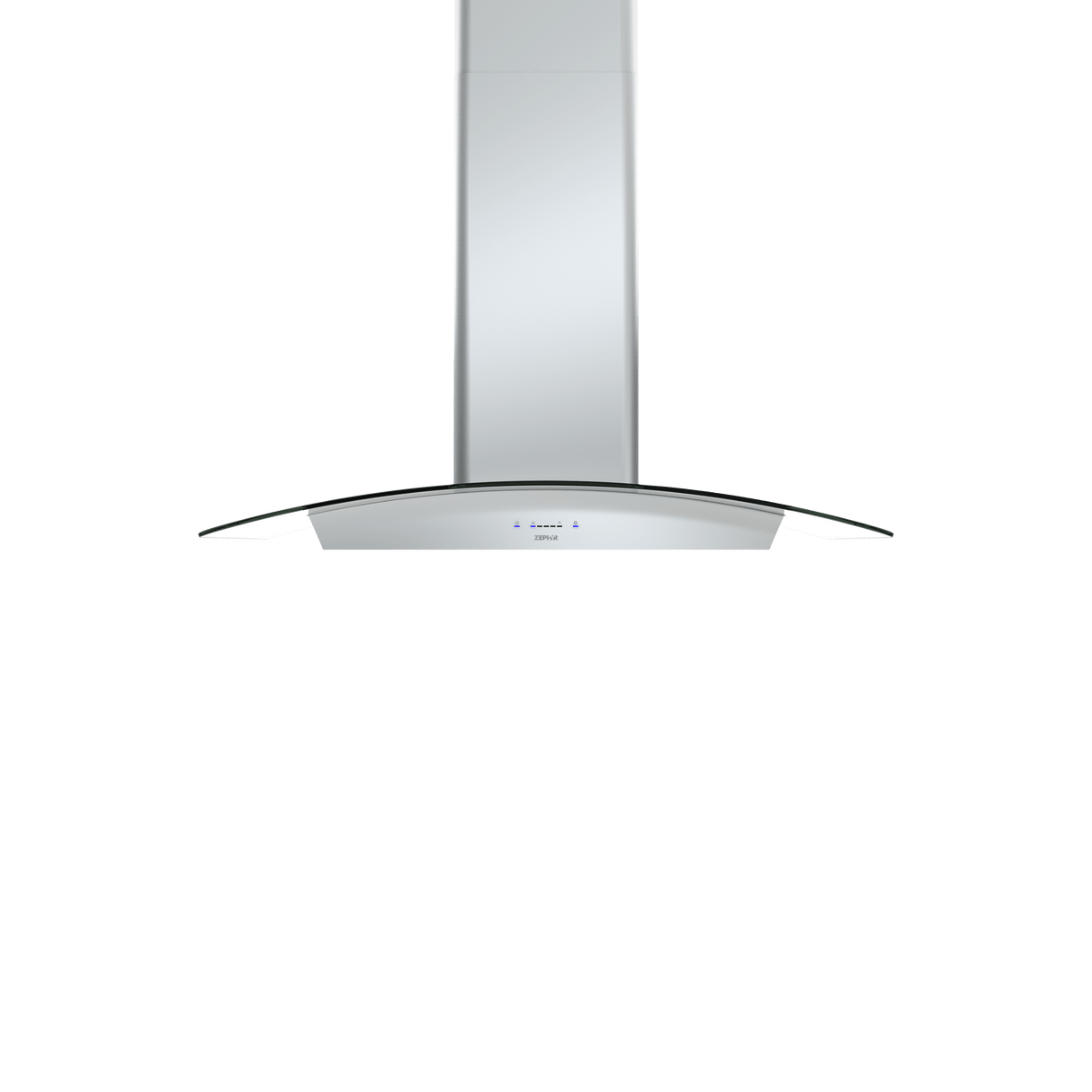

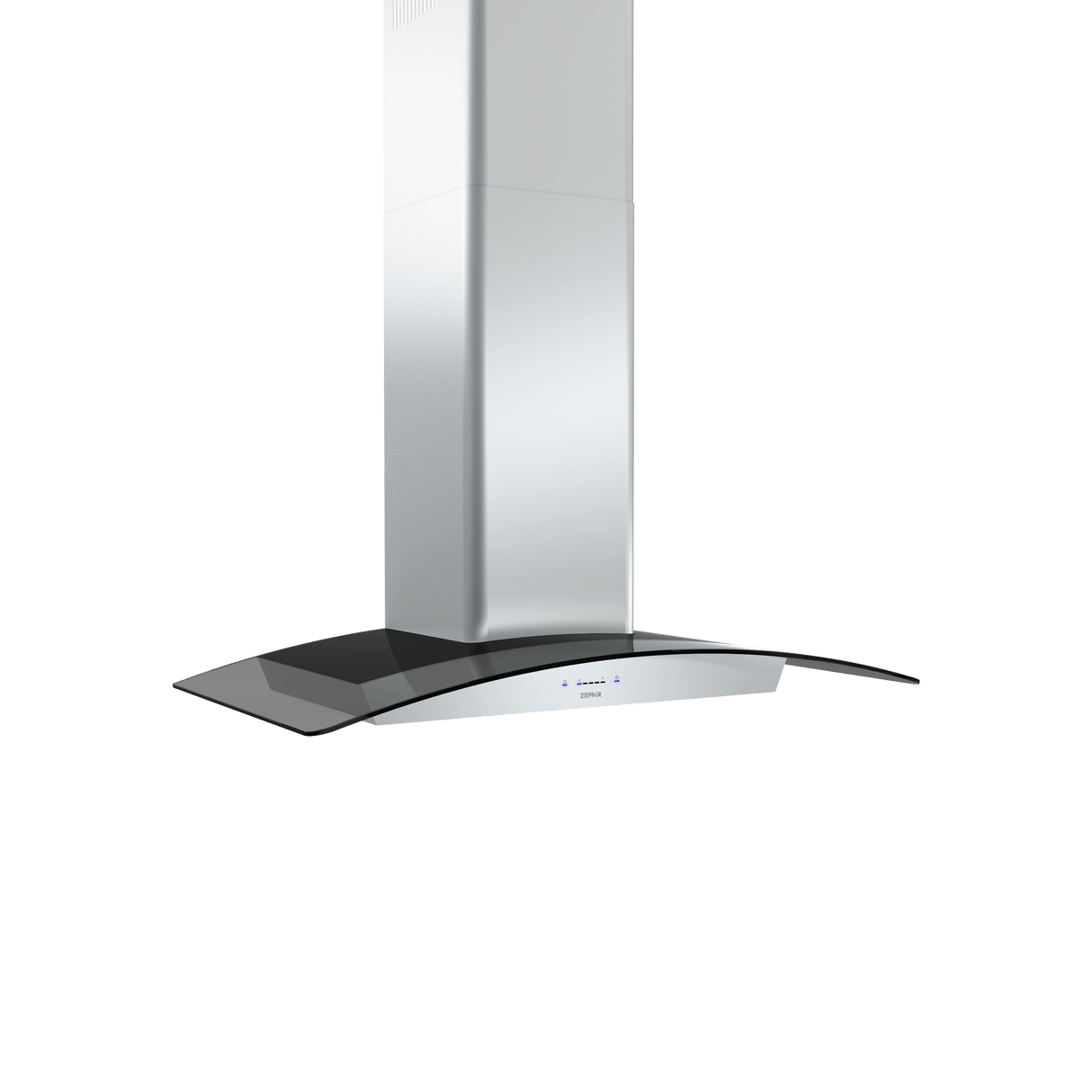

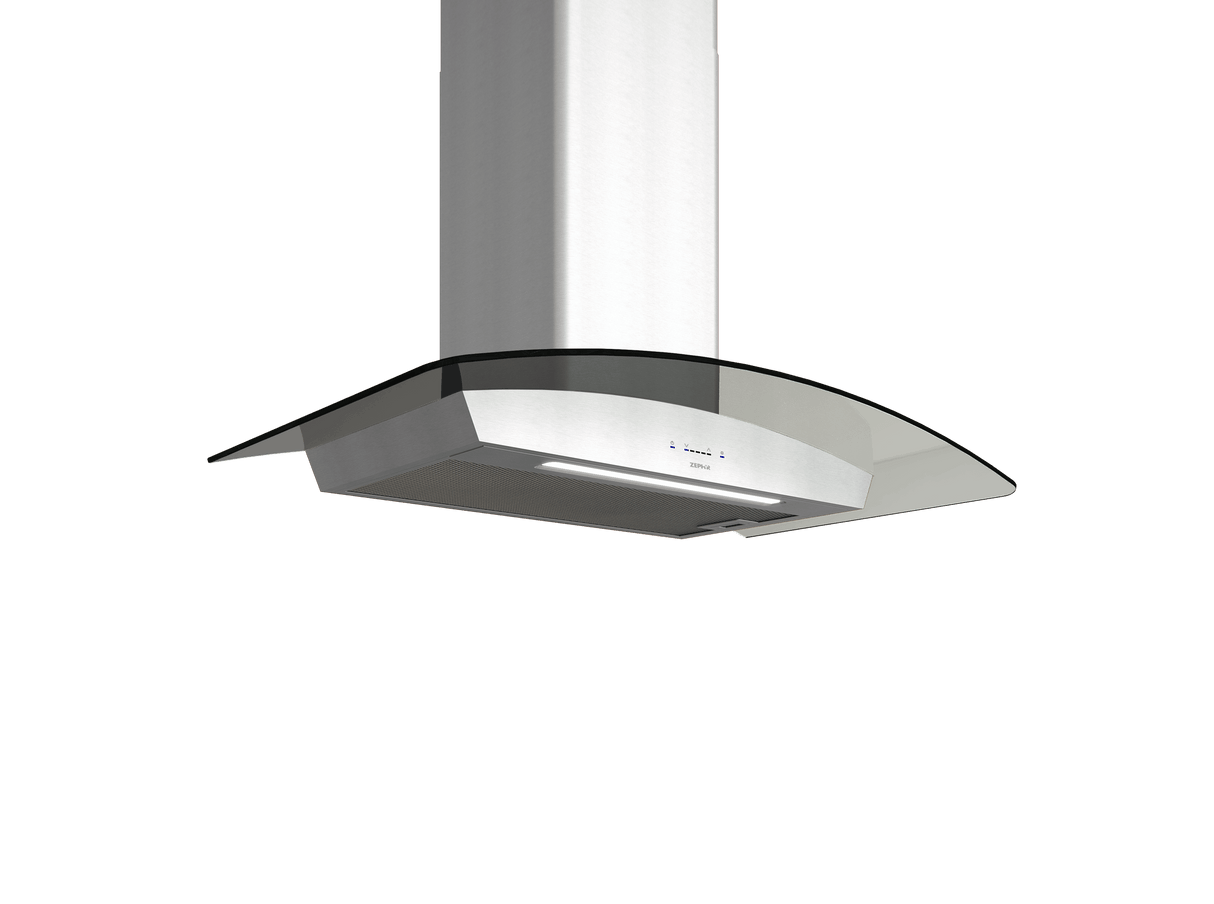

Ravenna, Wall, 90cm, SS+Gray Glass, ACT
Model ZRVM90AGG
Authorized Dealer
1
of
7
Loading...
Authorized Dealer
Ravenna, Wall, 90cm, SS+Gray Glass, ACT
Model ZRVM90AGGQuick Specs
Depth
19.75
Height
16.5625
RPM
-1.0
Energy
NO
Ravenna, Wall, 90cm, SS+Gray Glass, ACT is backordered and will ship as soon as it is back in stock.
Ships Out Within: 2 - 4 Business Days
Shipping Date By: 06/29/2026
Regular price
$719.19
Unit price
/
Unavailable
SERVICES AVAILABLE
Selection will add
$0.00
to the price
Couldn't load pickup availability
Quick Specs
Depth
19.75
Height
16.5625
RPM
-1.0
Energy Star Rated
NO
- Airflow Control Technology™ (ACT™)
- Airflow Control Technology or ACT is an exclusive technology that gives installers the ability to set the maximum CFM levels to meet local code requirements.
- ICON Touch® controls
- Optional Ductless Recirculating Kit
- Ductless recirculating kit used when venting air outside your home is not possible. Smoke and odors pass through charcoal filters allowing purified air to be reintroduced into the kitchen.
- Optional extension duct cover kit
- Airflow Control Technology(TM) (ACT(TM))
- ICON Touch(R) controls
- Optional Ductless Recirculating Kit
- Optional extension duct cover kit
Ravenna, Wall, 90cm, SS+Gray Glass, ACT
| Brand | Zephyr |
| Manufacturer | Zephyr |
| Category | Range Hood |
| Sub-Category | Wall |
| Vent Type | Convertible |
| UPC | 646328003318 |
| GTIN | 00646328003318 |
| Country of Origin | Taiwan |
| Model Group | ZRV-A |
| Model Name | Ravenna |
| Collection | Core Collection |
| Replacement Model | ZRV-M90BGG |
| Blower Included | Yes |
| Blower CFM w/ACT | 390, 290 |
| Internal Blower 1 CFM | 600 |
| Internal Blower 1 Min. Sones | 1 |
| Internal Blower 1 Max Sones | 6 |
| Minimum CFM | 200 |
| Installation Type | Wall |
| Installation Type | Wall |
| For Outdoor Use | No |
| Color | Stainless Steel + Glass |
| Controls Type | ICON Touch® |
| Blower Speeds | 5 |
| Automatic Delay-Off | Yes |
| Clean Air Function | No |
| Lighting Type | Halogen |
| Lights Quantity | 2 |
| Watts Per Bulb | 50 |
| Lights Levels | 2 |
| Grease Filter Type | Mesh |
| Compatible Mesh or Baffle Filter Part Number | 50200044 |
| Duct Discharge | Vertical |
| Duct Size; Horizontal; IN | N/A |
| Duct Size; Vertical; IN | 6 |
| Mounting Height Above Cooktop; IN | 26 - 34 |
| Voltage | 120 |
| Maximum Amperage | 5 |
| ADA Compliant | No |
| Warranty Parts / Labor | 3 / 1 |
| Compatible Appliances | ZRC-00RV, Z1C-00RV, MUA006A, Z0B0040, Z0F-C002 |
| Bluetooth Connected | No |
| Wi-Fi Connected | No |
| Remote Included | No |
| Remote Optional | No |
| Energy Star Certified | No |
| Alexa & Google Home Compatible | No |
| CEC Title 20 Compliant | Yes |
| Primary Material | Stainless Steel |
| Wattage | 480 |
| Certification | UL |
| Nominal Width; IN | 36 |
| Net Width; IN | 35.1875 |
| Net Depth; IN | 19.75 |
| Net Height; IN | 23 - 42.5 |
| Weight; LBS | 43.5 |
| Ceiling Height Minimum | 8 ft. |
| Ceiling Height Maximum | 9 ft. |
| Chimney Height in. | 19 |
| Chimney Width in. | 10.37 |
| Chimney Depth in. | 10.56 |
| Shipping Length; IN | 21.65 |
| Shipping Width; IN | 38.58 |
| Shipping Height; IN | 25.35 |
| Shipping Weight; LBS | 60.1 |
| Shipping Method | LTL |
| Freight Class | 300 |
| Duct Type | Vertical |
| Duct Type | Vertical |
- Airflow Control Technology(TM) (ACT(TM))
- ICON Touch(R) controls
- Optional Ductless Recirculating Kit
- Optional extension duct cover kit
 | |
|---|---|
