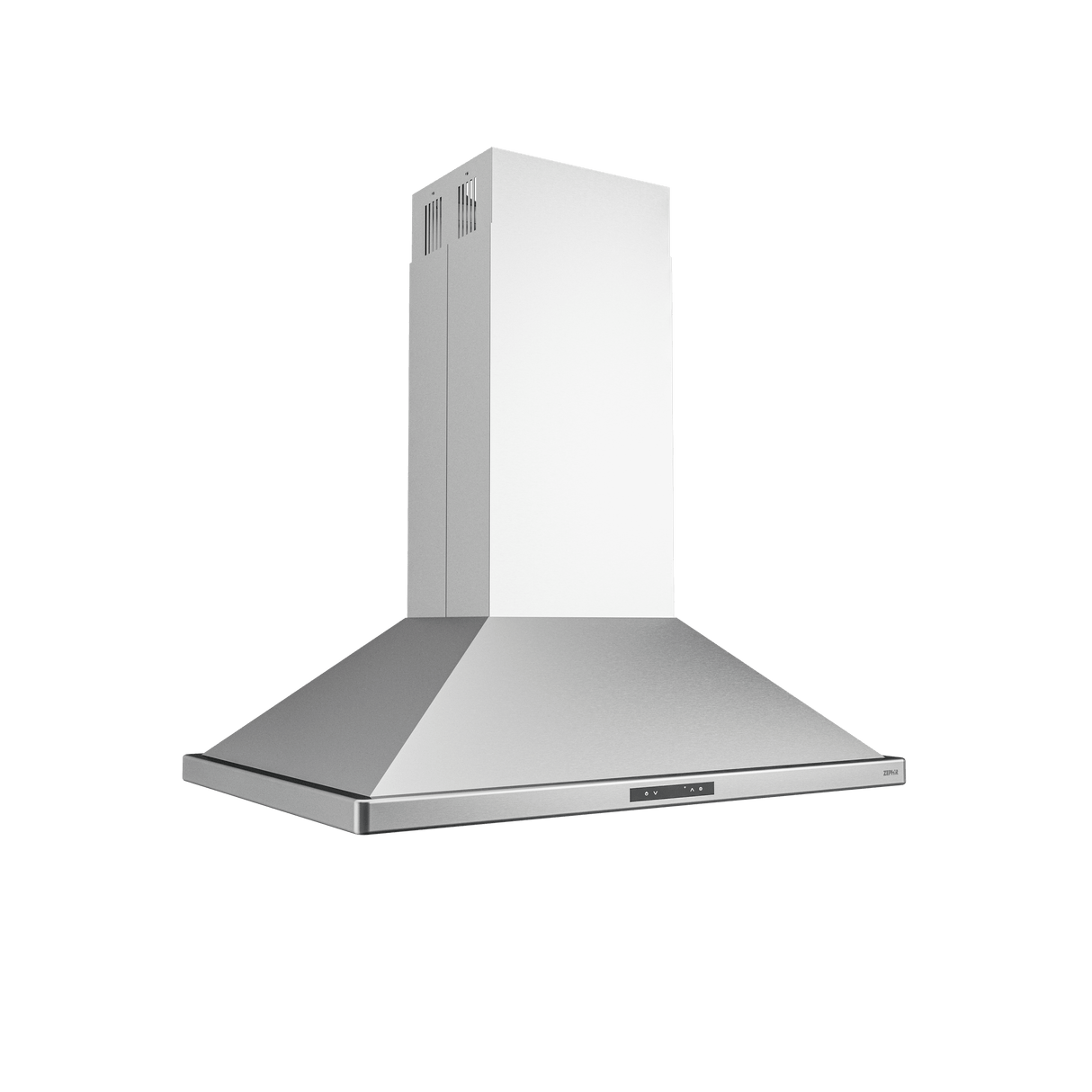

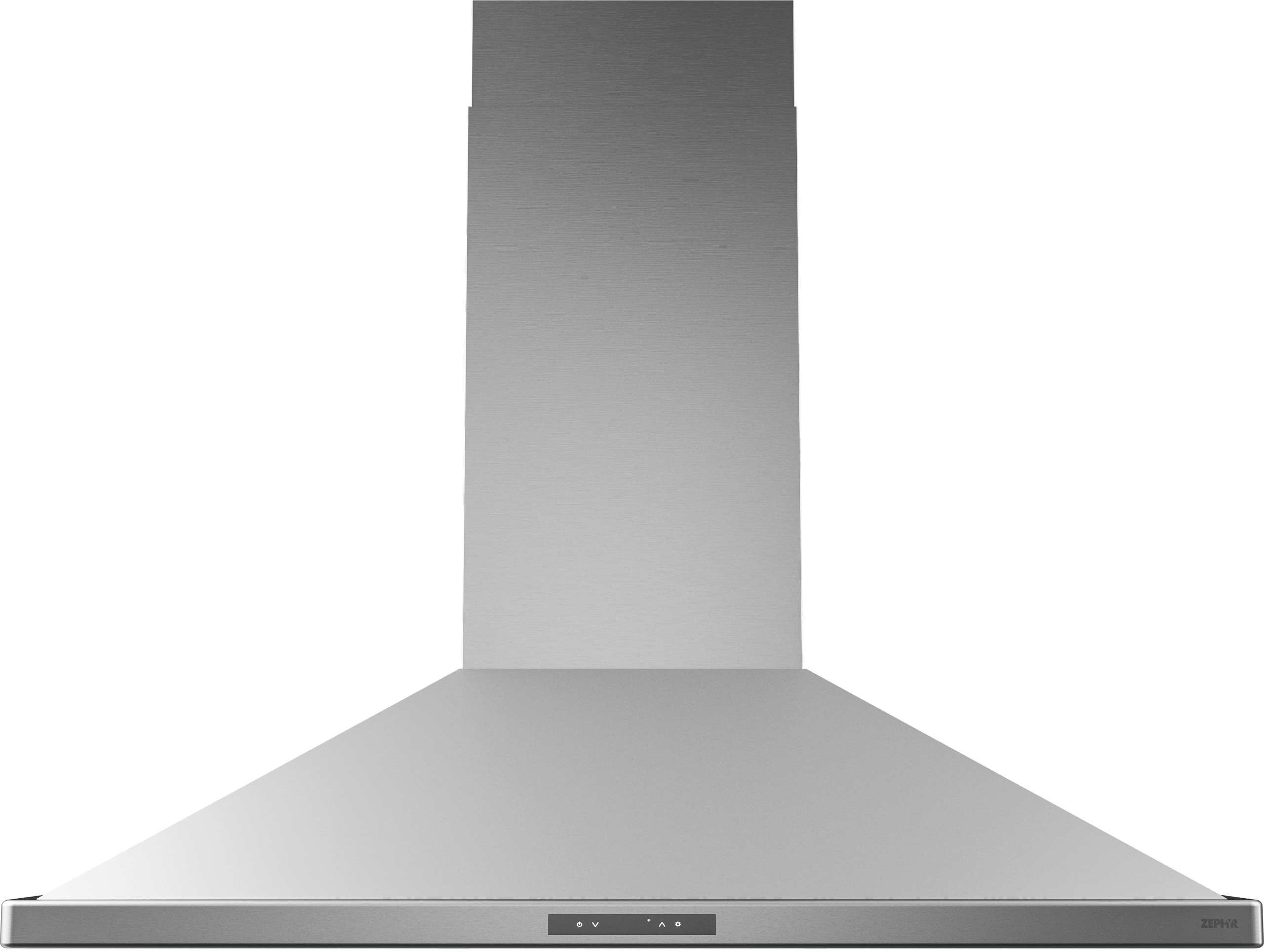

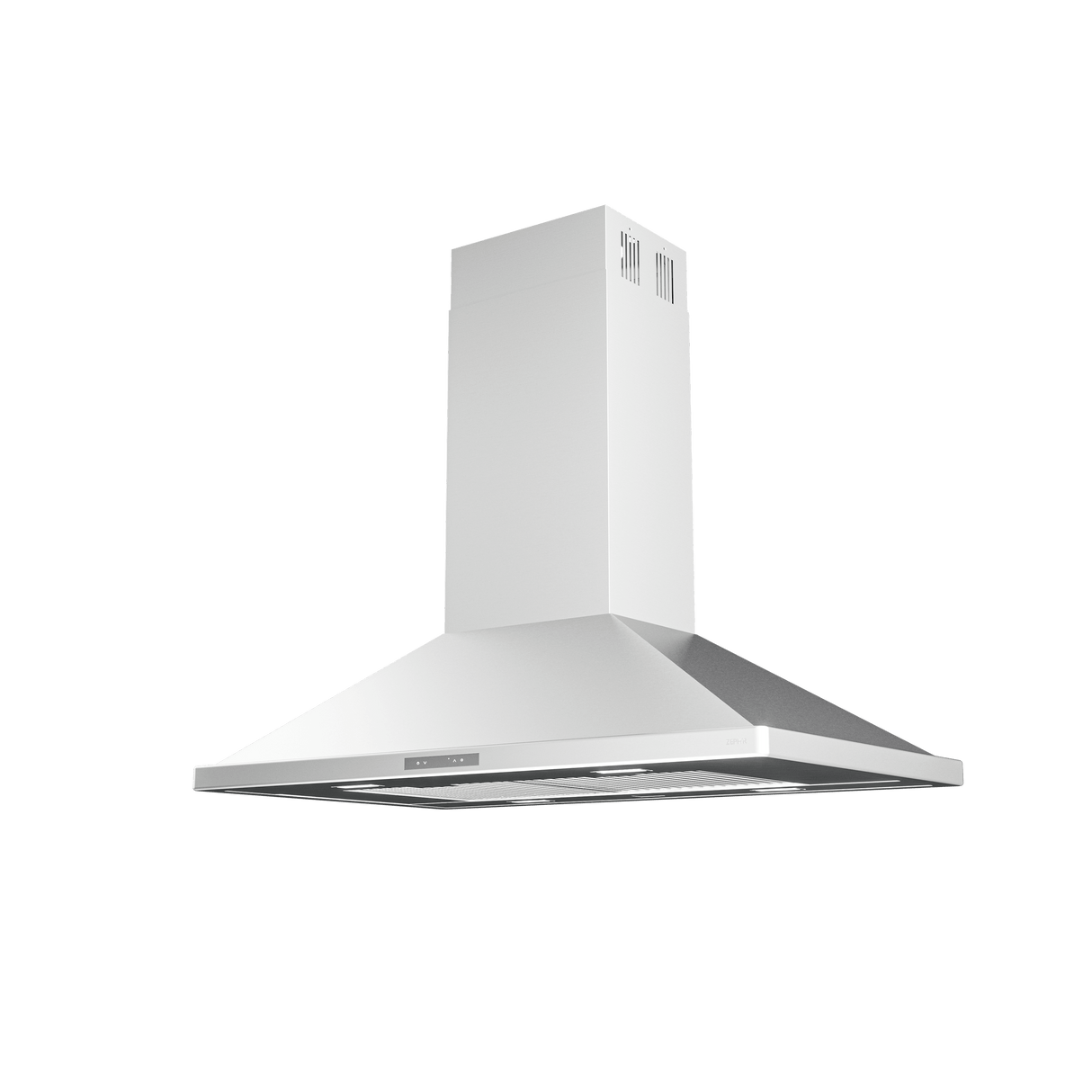

Napoli Connect Island, 42in, SS, LED, ACT
Model ZNAE42DS
Authorized Dealer
1
of
7
Loading...
Authorized Dealer
Napoli Connect Island, 42in, SS, LED, ACT
Model ZNAE42DSQuick Specs
Depth
25.56"
Height
32"
Energy
NO
Napoli Connect Island, 42in, SS, LED, ACT is backordered and will ship as soon as it is back in stock.
This item qualifies for free delivery
Ships Out Within: 2 - 4 Business Days
Shipping Date By: 06/29/2026
Sale Price
$2,599.00
$2,749.00
You save 5%
SERVICES AVAILABLE
Selection will add
$0.00
to the price
Couldn't load pickup availability
Quick Specs
Depth
25.56"
Height
32"
Energy Star Rated
NO
- LumiLight LED Lighting
- LumiLight LED lights are eco-friendly and built to last with a lifetime of more than 25,000 hours.
- Airflow Control Technology™ (ACT™)
- Airflow Control Technology or ACT is an exclusive technology that gives installers the ability to set the maximum CFM levels to meet local code requirements.
- Compatible with Zephyr Connect App
- The Zephyr Connect app allows customers to remotely control their range hoods from anywhere using a mobile device.
- CleanAir Function
- The CleanAir Function powers the hood on every four hours for 10 minutes to refresh the cooking area.
- Optional Ductless Recirculating Kit
- Ductless recirculating kit used when venting air outside your home is not possible. Smoke and odors pass through charcoal filters allowing purified air to be reintroduced into the kitchen.
- Optional Extension Duct Cover Kit
- Extension duct cover kit to accommodate ceiling heights up to 12 ft see spec sheets for more details.
- Optional Wireless Remote Control (14000005)
- ADA-compliant, wireless RF remote control with battery and holder. Equipped with a magnet on the back for easy storage on any magnetic surface. Maximum remote control communication distance is 15 feet from the hood. Please check your Zephyr range hoods specification sheet to ensure compatibility.
- LumiLight LED Lighting
- Airflow Control Technology(TM) (ACT(TM))
- Compatible with Zephyr Connect App
- CleanAir Function
- Optional Ductless Recirculating Kit
- Optional Extension Duct Cover Kit
- Optional Wireless Remote Control (14000005)
Napoli Connect Island, 42in, SS, LED, ACT
| Brand | Zephyr |
| Manufacturer | Zephyr |
| Category | Range Hood |
| Sub-Category | Island |
| Vent Type | Convertible |
| UPC | 646328008450 |
| GTIN | 00646328008450 |
| Country of Origin | Taiwan |
| Model Group | ZNA-D |
| Model Name | Napoli Island |
| Collection | Core Collection |
| Blower Included | Yes |
| Blower CFM w/ACT | 590, 390, 290 |
| Internal Blower 1 CFM | 700 |
| Internal Blower 1 Min. Sones | 0.8 |
| Internal Blower 1 Max Sones | 6 |
| Minimum CFM | 200 |
| Installation Type | Island |
| Installation Type | Island |
| For Outdoor Use | No |
| Color | Stainless Steel |
| Controls Type | Proximity Touch |
| Blower Speeds | 6 |
| Automatic Delay-Off | Yes |
| Clean Air Function | Yes |
| Lighting Type | LED |
| Lights Quantity | 4 |
| Watts Per Bulb | 6 |
| Lights Levels | 3 |
| Grease Filter Type | Hybrid Baffle |
| Compatible Mesh or Baffle Filter Part Number | 50210041 |
| Duct Discharge | Vertical |
| Duct Size; Vertical; IN | 8 |
| Mounting Height Above Cooktop; IN | 24 - 36 |
| Voltage | 120 |
| Maximum Amperage | 5 |
| ADA Compliant | Yes, with optional remote |
| Warranty Parts / Labor | 3 / 1 |
| Compatible Appliances | 14000005, ZRC-03NA, Z1C-02NA, MUA008A, Z0F-C005 |
| Bluetooth Connected | No |
| Wi-Fi Connected | Yes |
| Remote Included | No |
| Remote Optional | Yes |
| Energy Star Certified | No |
| Alexa & Google Home Compatible | Yes |
| CEC Title 20 Compliant | Yes |
| CEC Title 24 Compliant | Yes |
| Primary Material | Stainless Steel |
| Wattage | 600 |
| Certification | UL |
| Nominal Width; IN | 42 |
| Net Width; IN | 41.9 |
| Net Depth; IN | 25.56 |
| Net Height; IN | 32 - 50 |
| Weight; LBS | 75.000 |
| Ceiling Height Minimum | 8 ft. |
| Ceiling Height Maximum | 10 ft. |
| Chimney Height in. | 21.5 |
| Chimney Width in. | 12.81 |
| Chimney Depth in. | 9.81 |
| Shipping Length; IN | 45.6 |
| Shipping Width; IN | 21.4 |
| Shipping Height; IN | 31.8 |
| Shipping Weight; LBS | 87 |
| Shipping Method | LTL |
| Freight Class | 300 |
| Certification # | E127334 |
| Clean Filter Alert | Yes |
| Duct Type | Vertical |
| Duct Type | Vertical |
- LumiLight LED Lighting
- Airflow Control Technology(TM) (ACT(TM))
- Compatible with Zephyr Connect App
- CleanAir Function
- Optional Ductless Recirculating Kit
- Optional Extension Duct Cover Kit
- Optional Wireless Remote Control (14000005)
 | |
|---|---|
