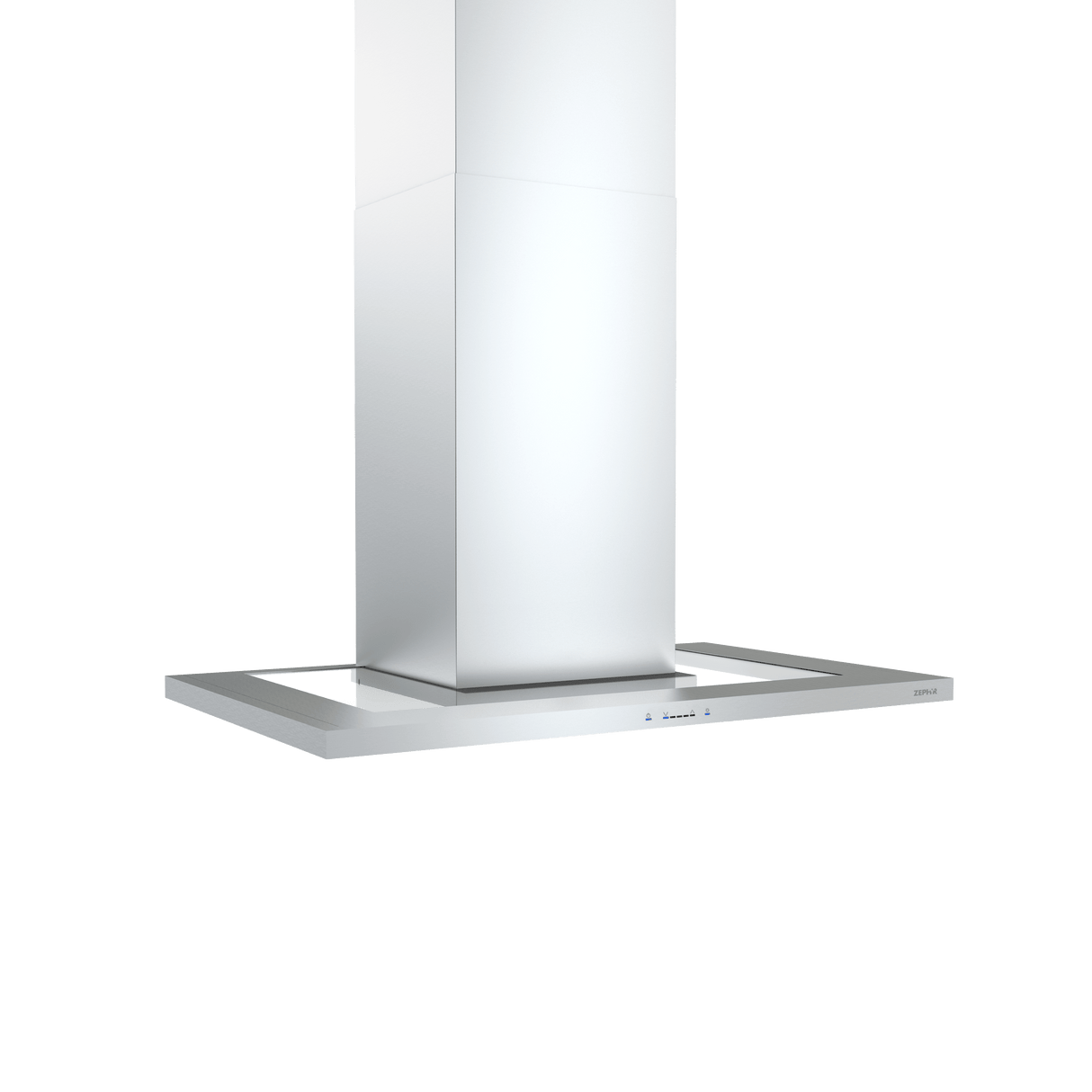

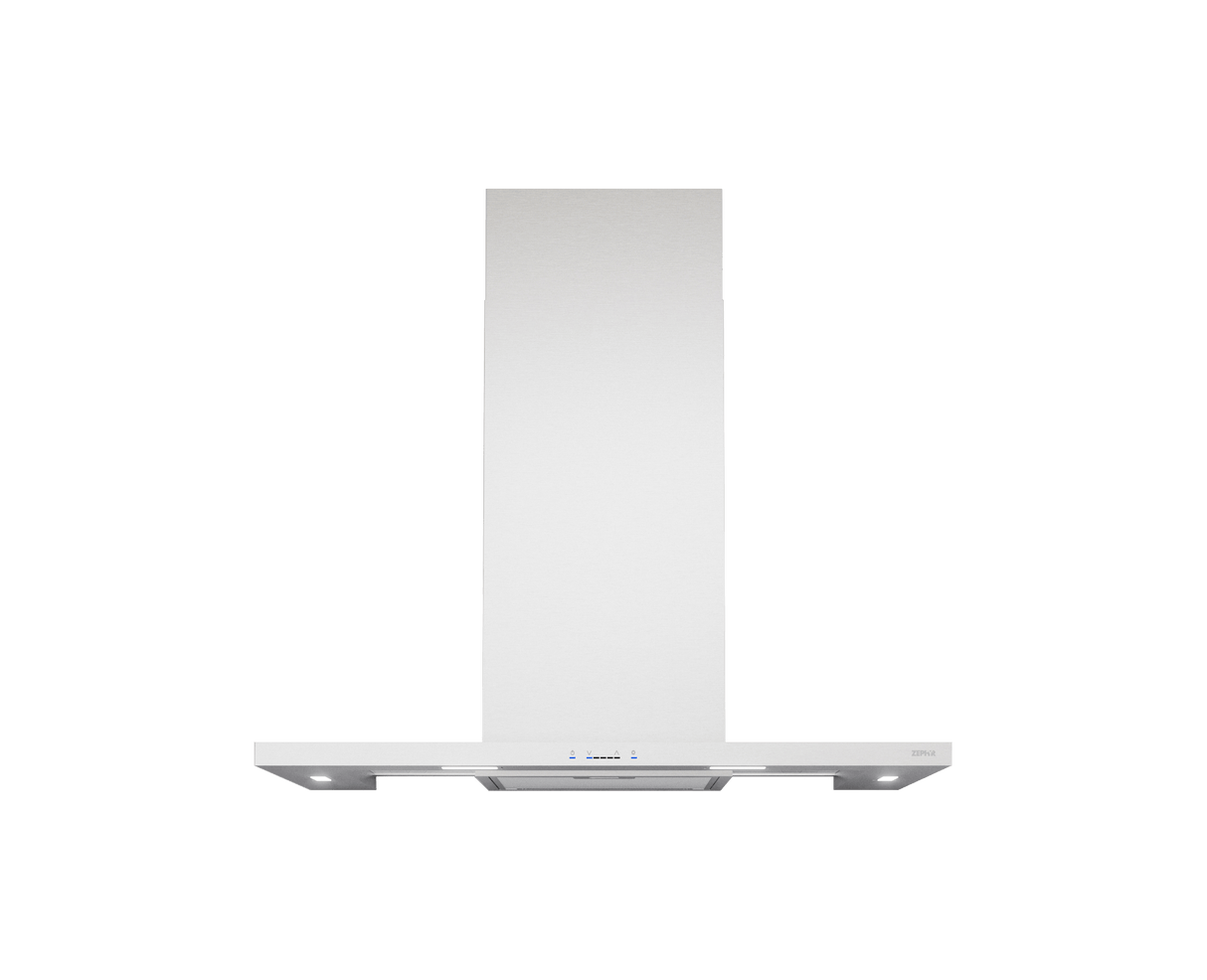

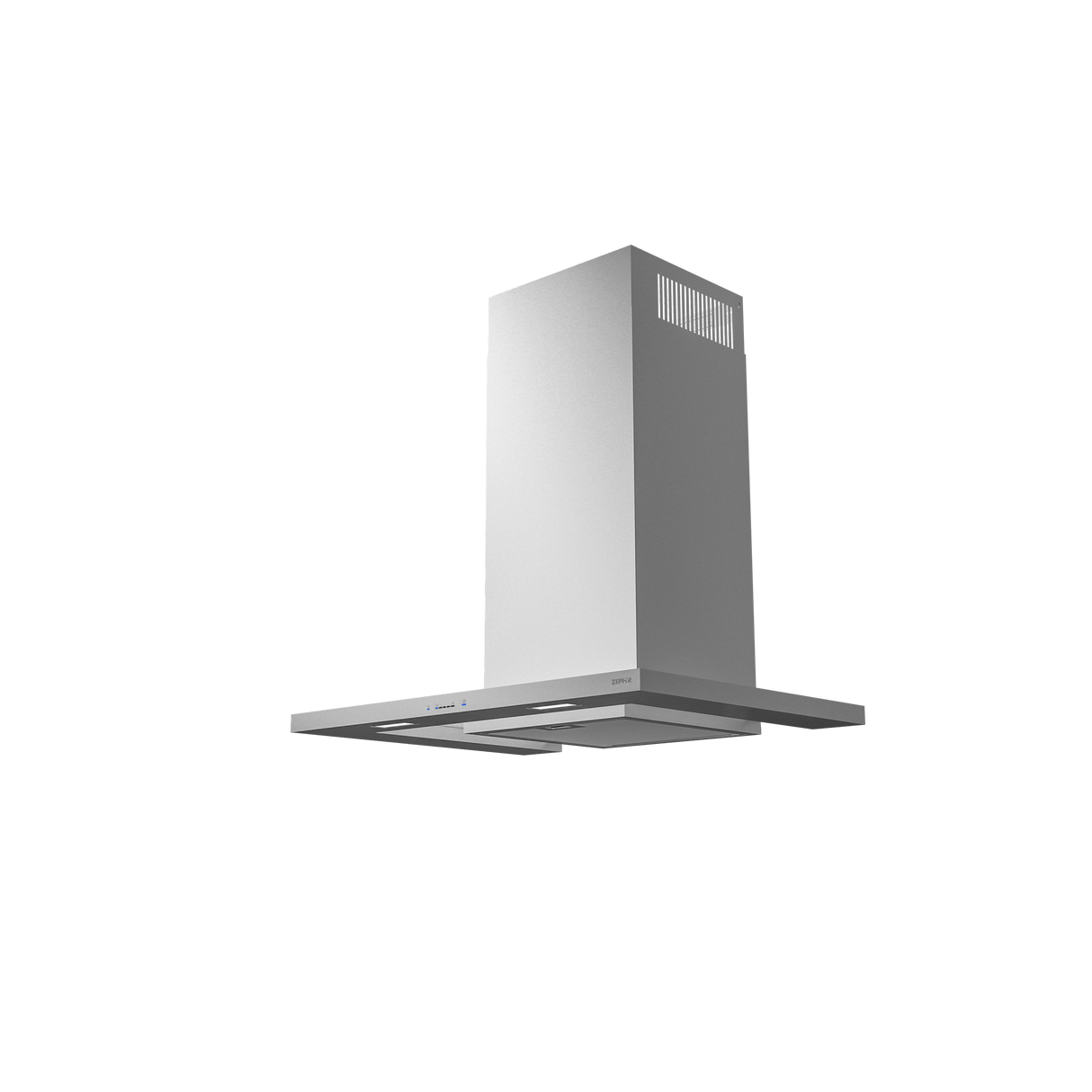

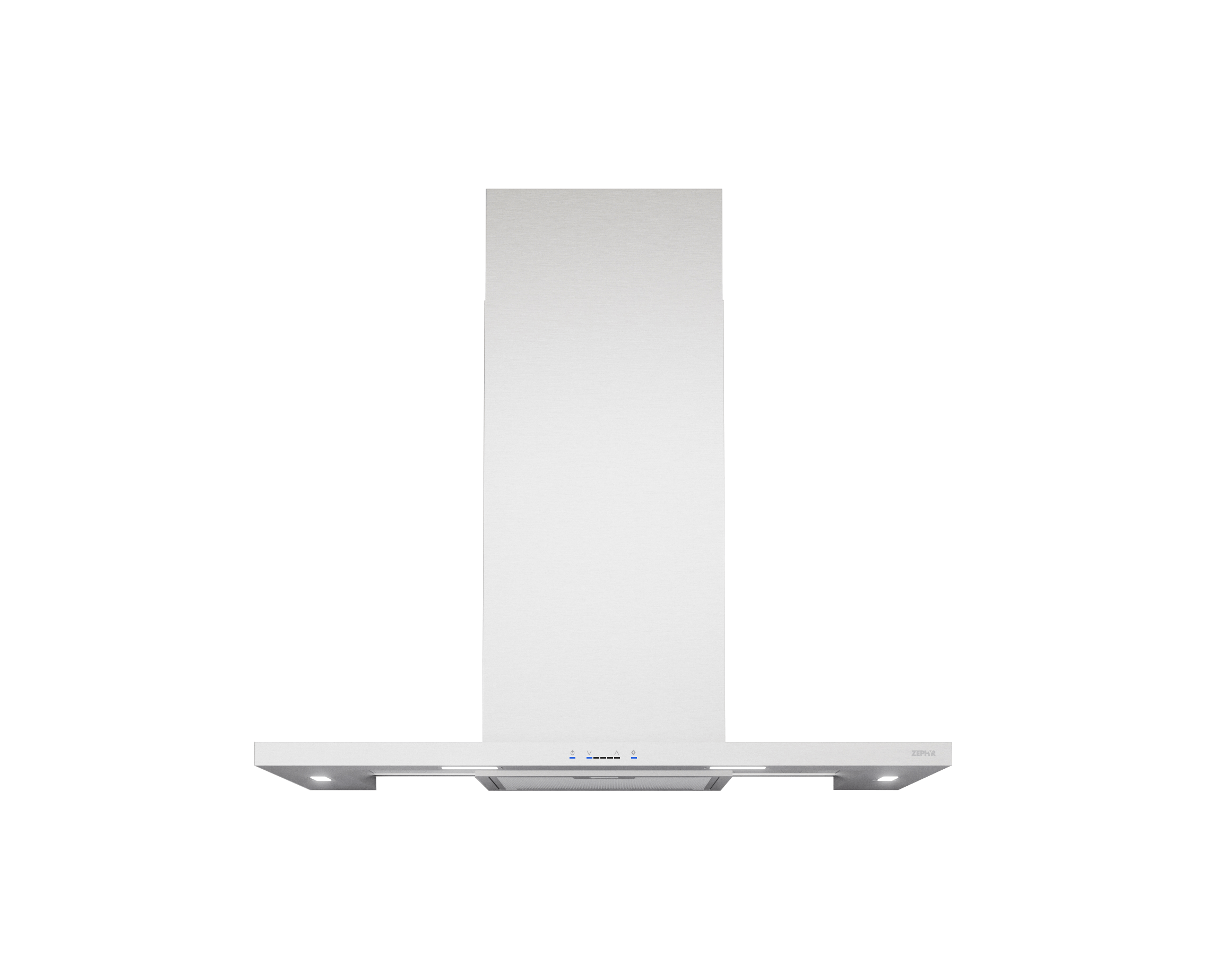

Modena, Wall, 30in, SS+Glass, LED, ACT
Model ZMOE30BS
Authorized Dealer
1
of
7
Loading...
Authorized Dealer
Modena, Wall, 30in, SS+Glass, LED, ACT
Model ZMOE30BSQuick Specs
Depth
22.12"
Height
27"
Energy
NO
Modena, Wall, 30in, SS+Glass, LED, ACT is backordered and will ship as soon as it is back in stock.
This item qualifies for free delivery
Ships Out Within: 2 - 4 Business Days
Shipping Date By: 06/29/2026
Sale Price
Sale price
$1,399.00
Regular price
$1,499.00
Unit price
/
Unavailable
You save 6%
SERVICES AVAILABLE
Selection will add
$0.00
to the price
Couldn't load pickup availability
Quick Specs
Depth
22.12"
Height
27"
Energy Star Rated
NO
- LumiLight LED Lighting
- LumiLight LED lights are eco-friendly and built to last with a lifetime of more than 25,000 hours.
- Airflow Control Technology™ (ACT™)
- Airflow Control Technology or ACT is an exclusive technology that gives installers the ability to set the maximum CFM levels to meet local code requirements.
- ICON Touch® Controls
- ICON Touch Controls seamlessly integrate into the hoods stainless steel canopy, which lets users control functions such as the 5 speeds, delay-off, dual-level lighting, and auto reminders. With its blue LED indicator lights and sleek modern aesthetic, the ICON Touch Controls are the future of ventilation control technology.
- Dishwasher Safe Aluminum Mesh Filters
- High-quality, dishwasher-safe aluminum mesh filters for improved capture and performance.
- Low-profile body
- Low-profile body for a minimalist appearance.
- Optional Ductless Recirculating Kit
- Ductless recirculating kit used when venting air outside your home is not possible. Smoke and odors pass through charcoal filters allowing purified air to be reintroduced into the kitchen.
- Optional Extension Duct Cover Kit
- Extension duct cover kit to accommodate ceiling heights up to 12 ft see spec sheets for more details.
- LumiLight LED Lighting
- Airflow Control Technology(TM) (ACT(TM))
- ICON Touch(R) Controls
- Dishwasher Safe Aluminum Mesh Filters
- Low-profile body
- Optional Ductless Recirculating Kit
- Optional Extension Duct Cover Kit
Modena, Wall, 30in, SS+Glass, LED, ACT
| Brand | Zephyr |
| Manufacturer | Zephyr |
| Category | Range Hood |
| Sub-Category | Wall |
| Vent Type | Convertible |
| UPC | 646328008191 |
| GTIN | 00646328008191 |
| Country of Origin | Taiwan |
| Model Group | ZMO-B |
| Model Name | Modena Wall |
| Collection | Core Collection |
| Blower Included | Yes |
| Blower CFM w/ACT | 390, 290 |
| Internal Blower 1 CFM | 600 |
| Internal Blower 1 Min. Sones | 1 |
| Internal Blower 1 Max Sones | 6 |
| Minimum CFM | 200 |
| Installation Type | Wall |
| Installation Type | Wall |
| For Outdoor Use | No |
| Color | Stainless Steel |
| Controls Type | ICON Touch® |
| Blower Speeds | 5 |
| Automatic Delay-Off | Yes |
| Clean Air Function | No |
| Lighting Type | LED |
| Lights Quantity | 2 |
| Watts Per Bulb | 6 |
| Lights Levels | 2 |
| Grease Filter Type | Mesh |
| Compatible Mesh or Baffle Filter Part Number | 50200042 |
| Duct Discharge | Vertical |
| Duct Size; Vertical; IN | 8 |
| Mounting Height Above Cooktop; IN | 24 - 34 |
| Voltage | 120 |
| Maximum Amperage | 4 |
| ADA Compliant | No |
| Warranty Parts / Labor | 3 / 1 |
| Compatible Appliances | ZRC-00MO, Z1C-00MO, MUA006A, Z0F-C002, AK1710 |
| Bluetooth Connected | No |
| Wi-Fi Connected | No |
| Remote Included | No |
| Remote Optional | No |
| Energy Star Certified | No |
| Alexa & Google Home Compatible | No |
| CEC Title 20 Compliant | Yes |
| CEC Title 24 Compliant | Yes |
| Primary Material | Stainless Steel |
| Wattage | 480 |
| Certification | UL |
| Nominal Width; IN | 30 |
| Net Width; IN | 29.9 |
| Net Depth; IN | 22.125 |
| Net Height; IN | 27 - 50 |
| Weight; LBS | 69.500 |
| Ceiling Height Minimum | 8 ft. |
| Ceiling Height Maximum | 10 ft. |
| Chimney Height in. | 25.5 |
| Chimney Width in. | 13.37 |
| Chimney Depth in. | 12.37 |
| Shipping Length; IN | 26.5 |
| Shipping Width; IN | 36.6 |
| Shipping Height; IN | 29.7 |
| Shipping Weight; LBS | 74.7 |
| Shipping Method | LTL |
| Freight Class | 300 |
| Certification # | E127334 |
| Clean Filter Alert | Yes |
| Duct Type | Vertical |
| Duct Type | Vertical |
- LumiLight LED Lighting
- Airflow Control Technology(TM) (ACT(TM))
- ICON Touch(R) Controls
- Dishwasher Safe Aluminum Mesh Filters
- Low-profile body
- Optional Ductless Recirculating Kit
- Optional Extension Duct Cover Kit
 | |
|---|---|
