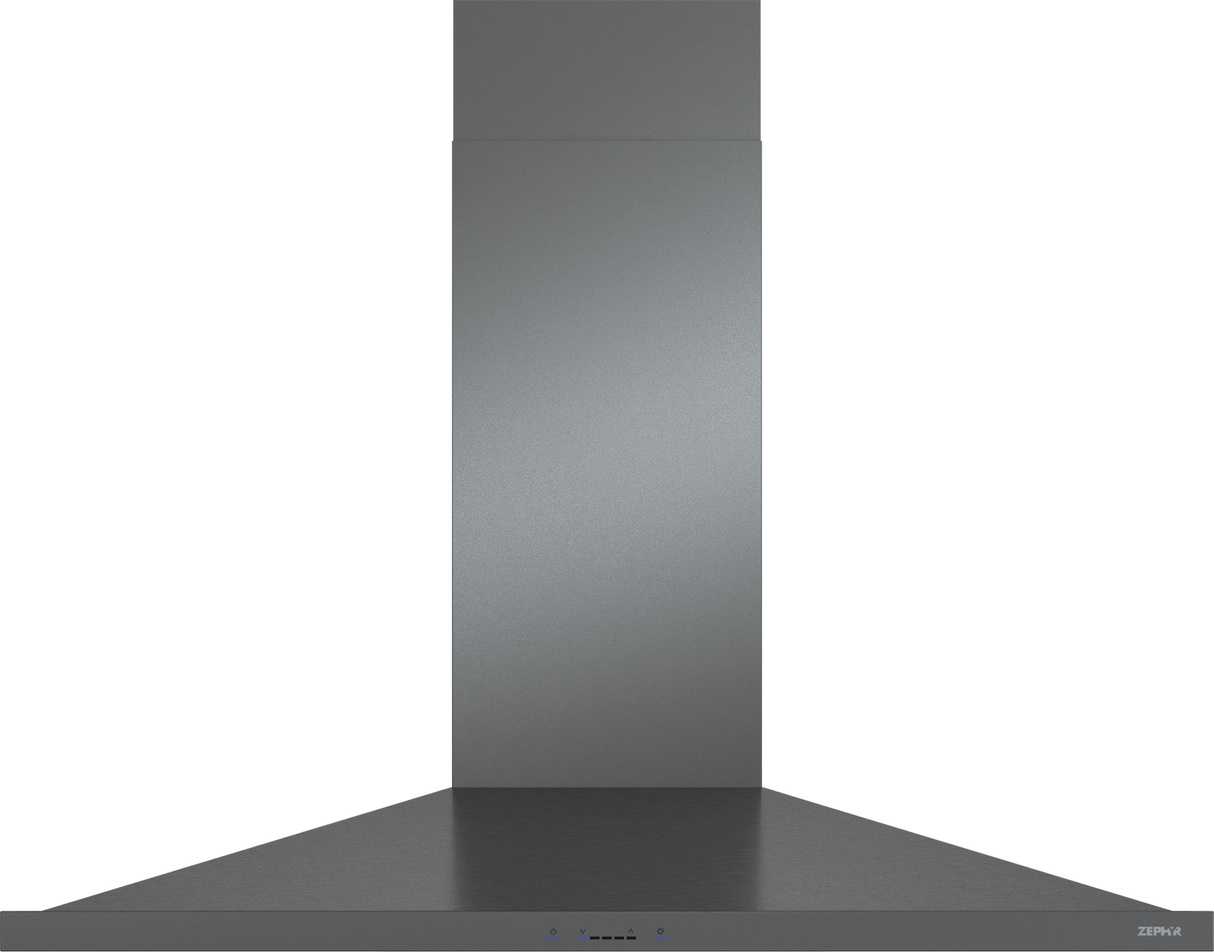

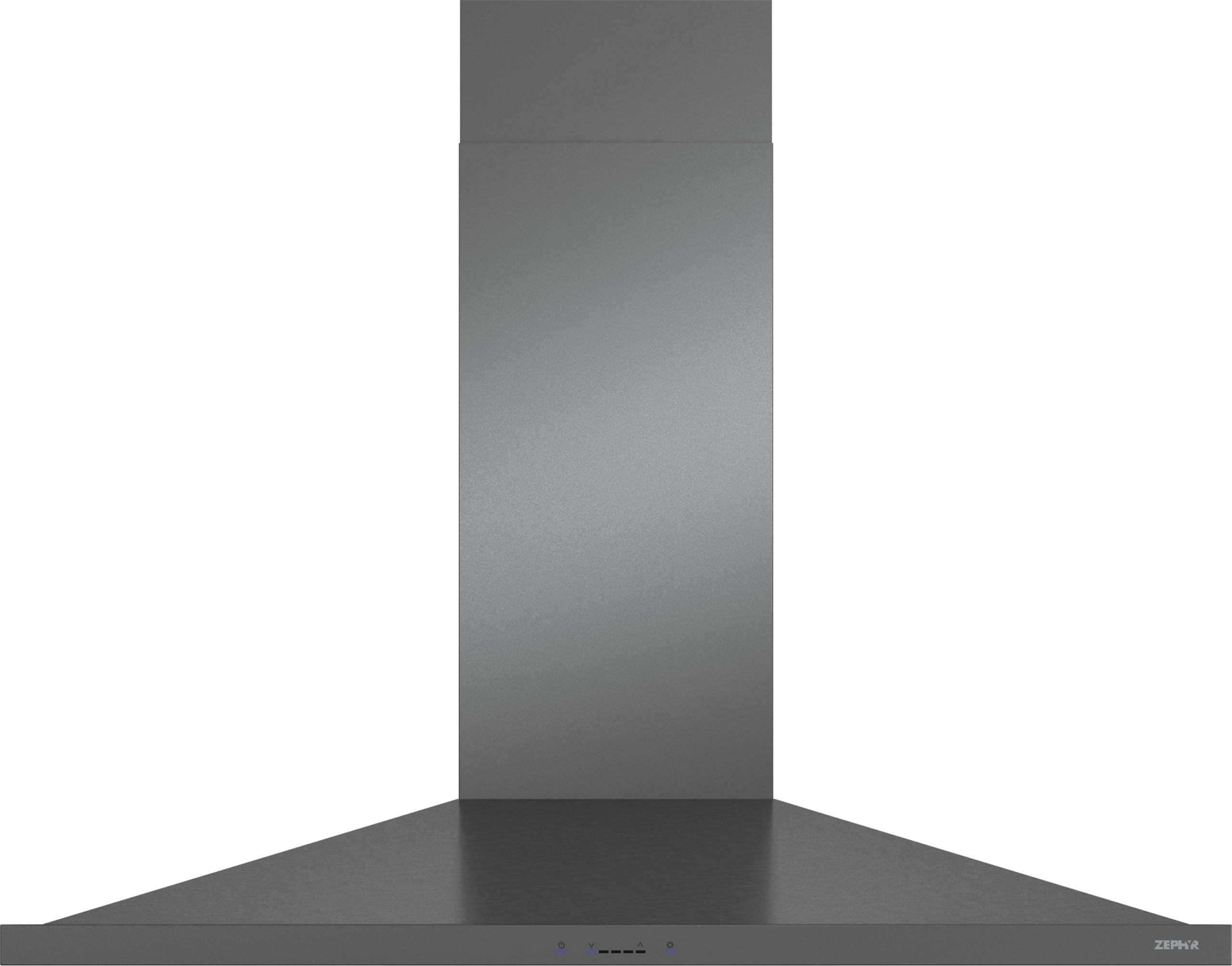

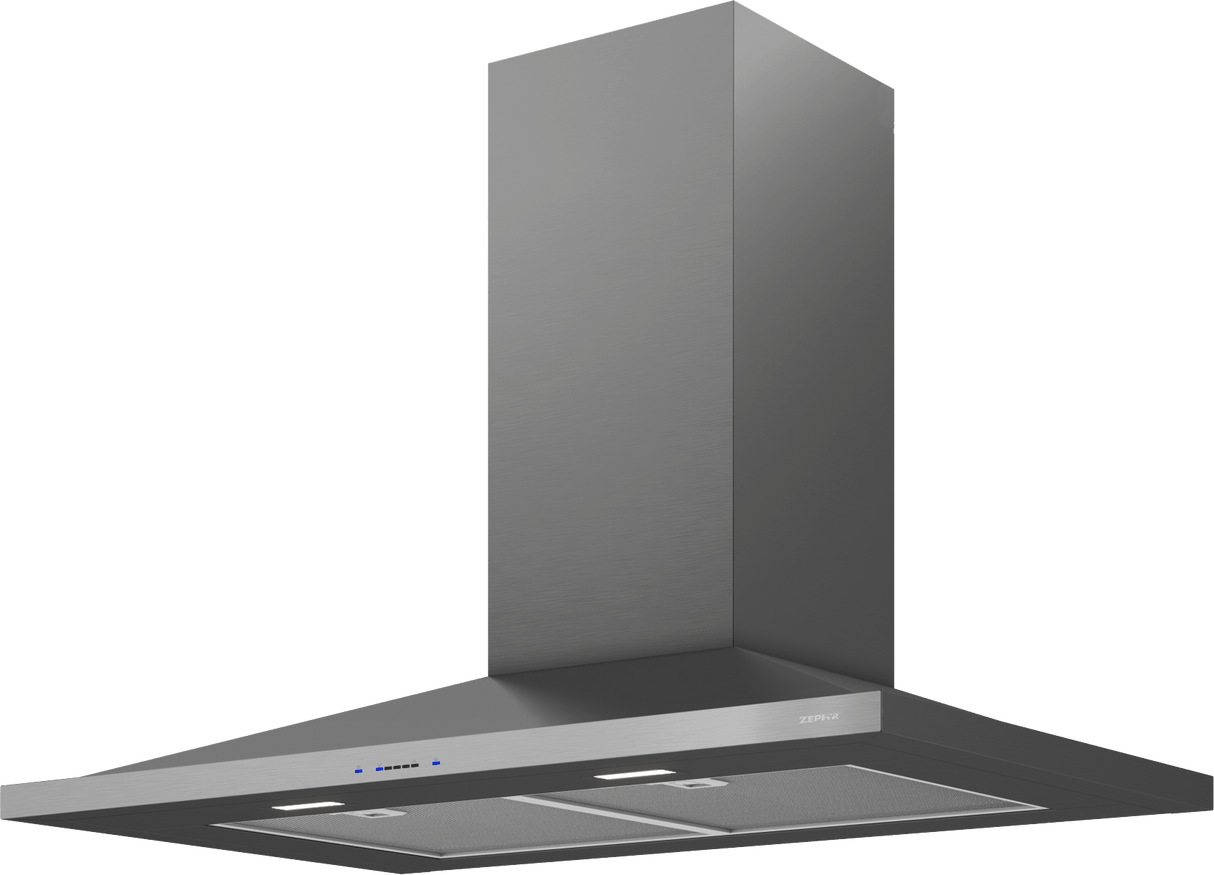

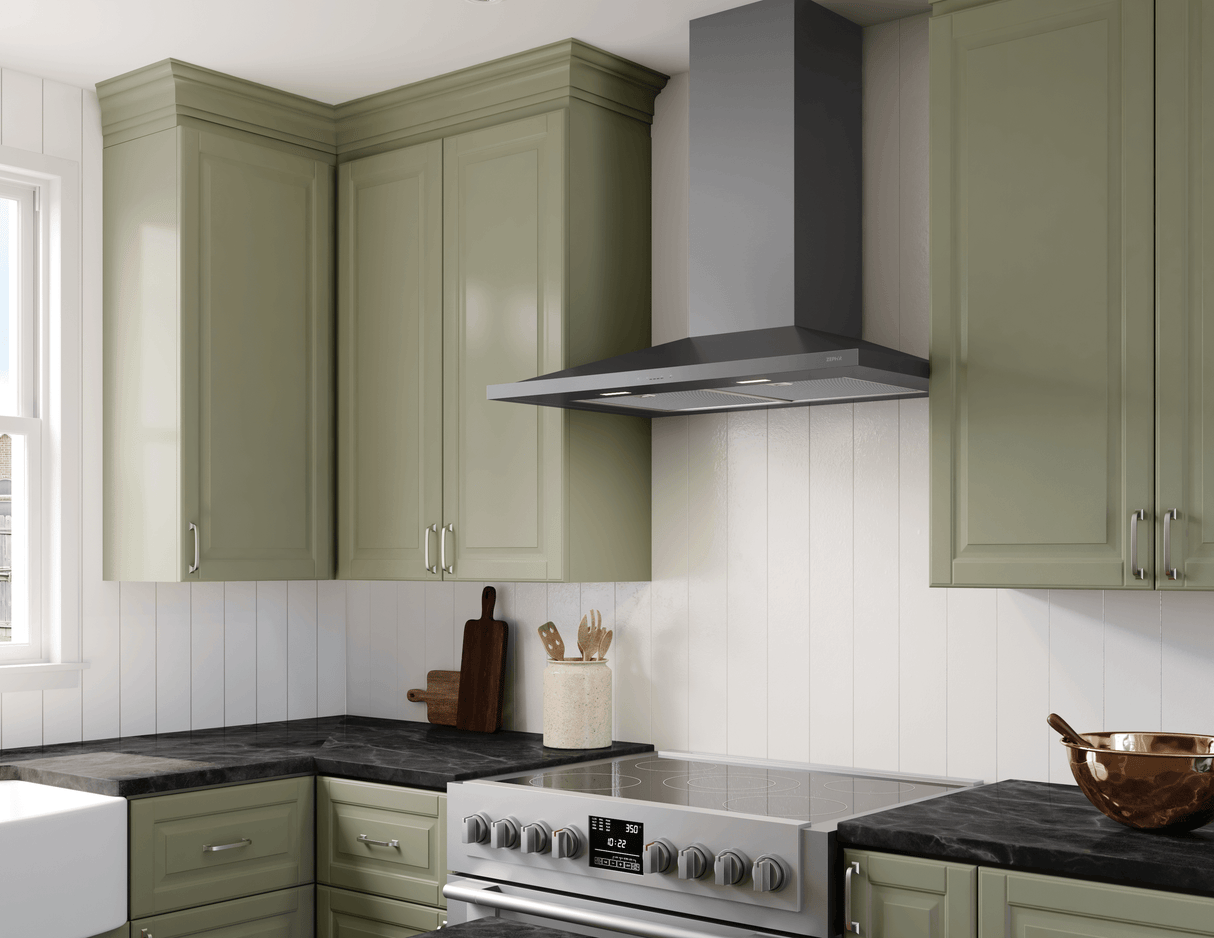

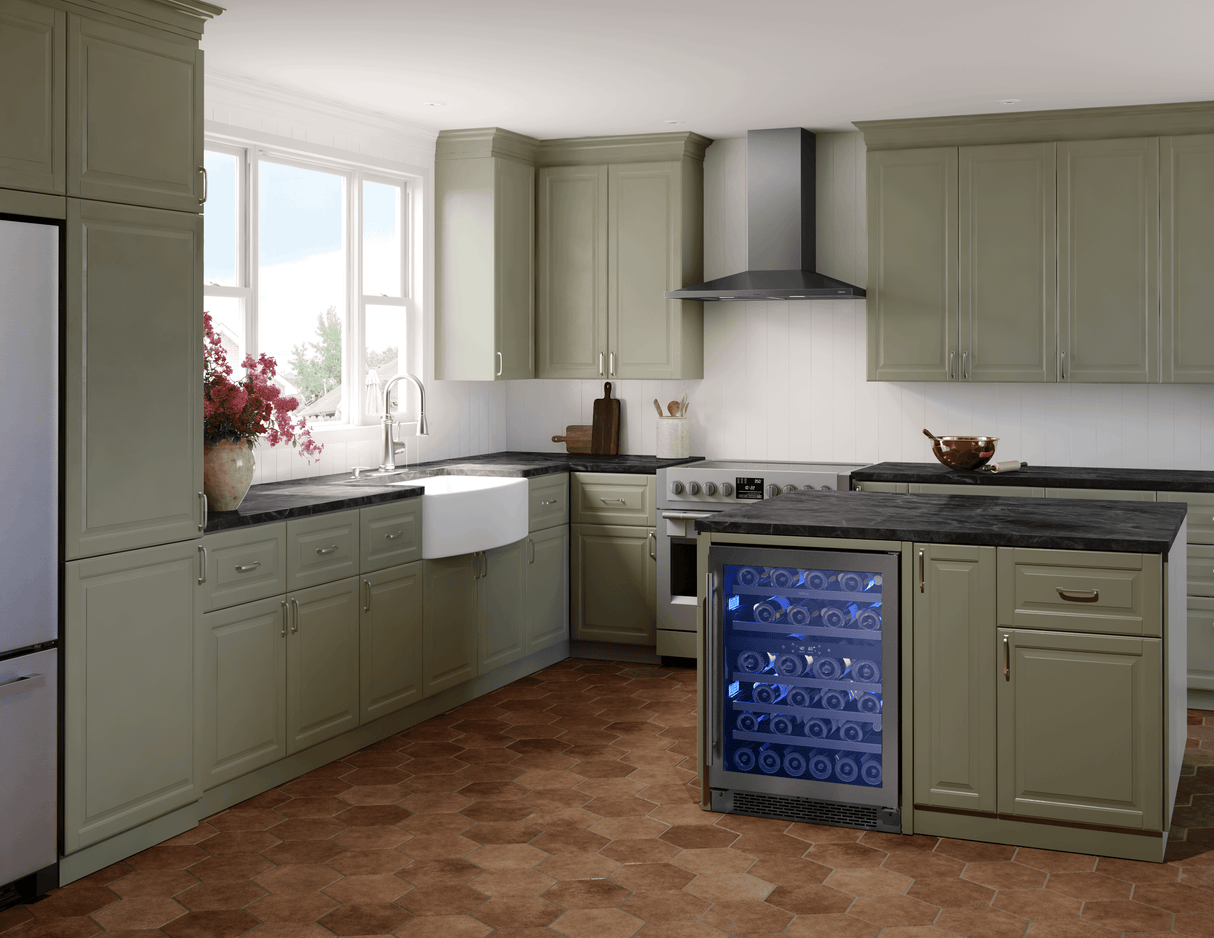

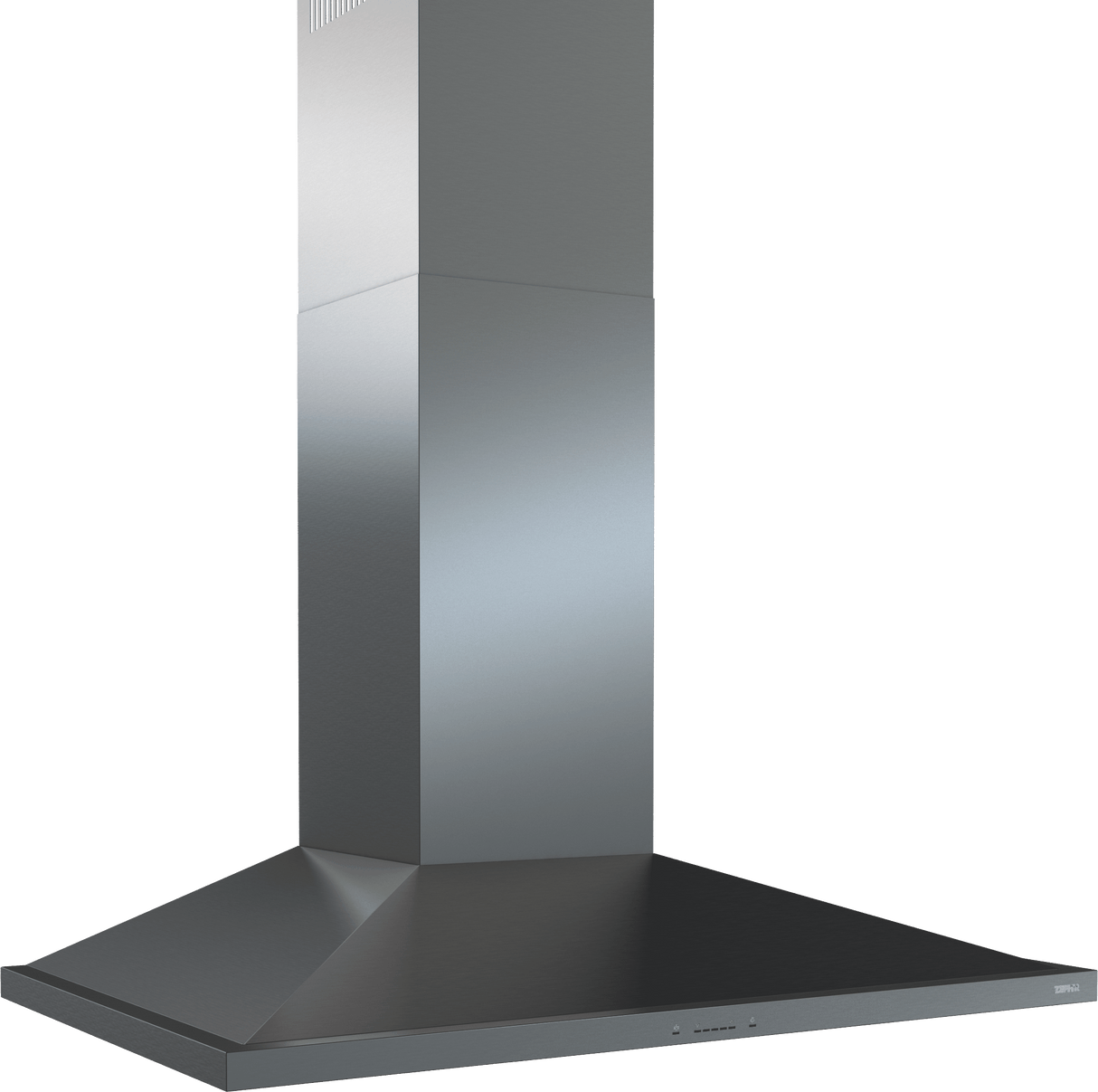

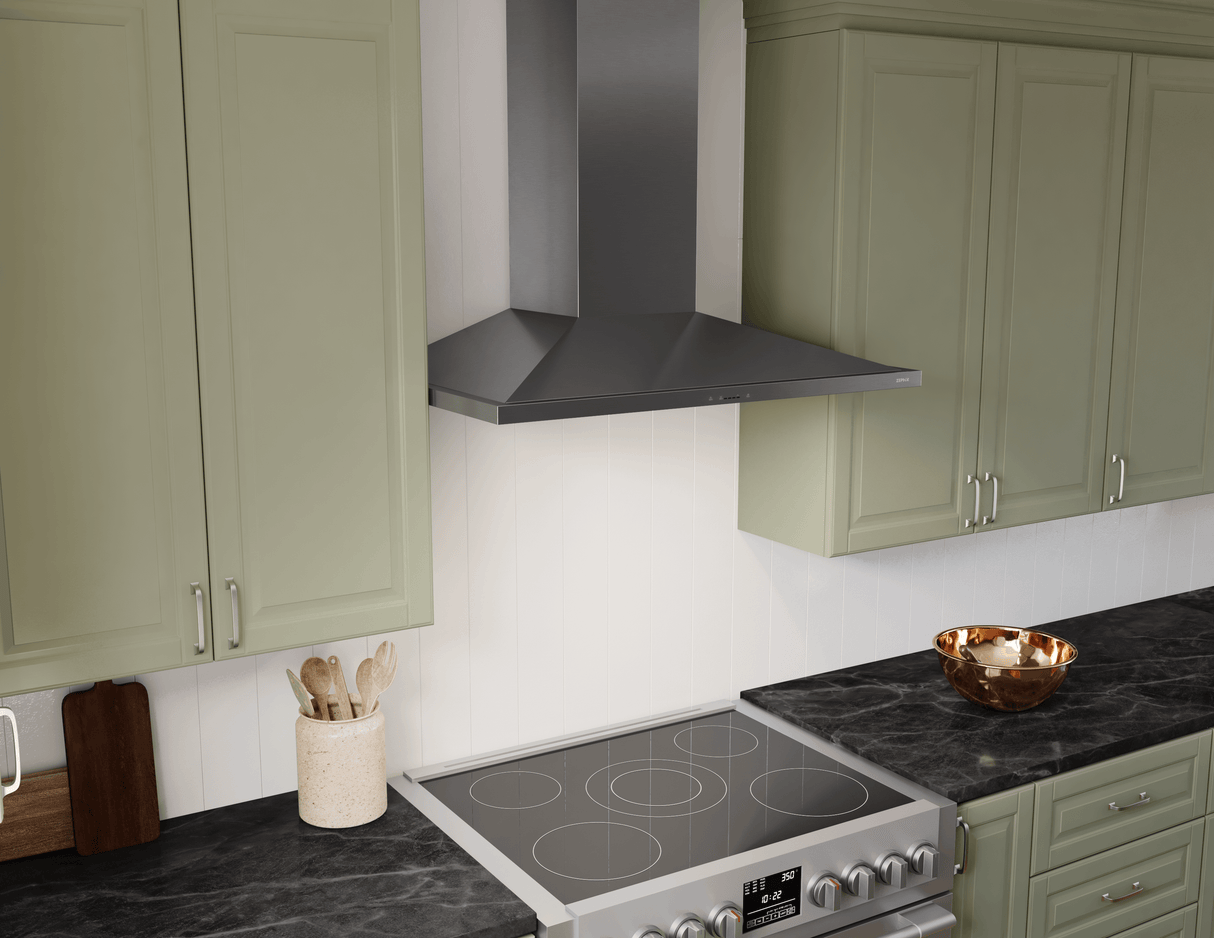

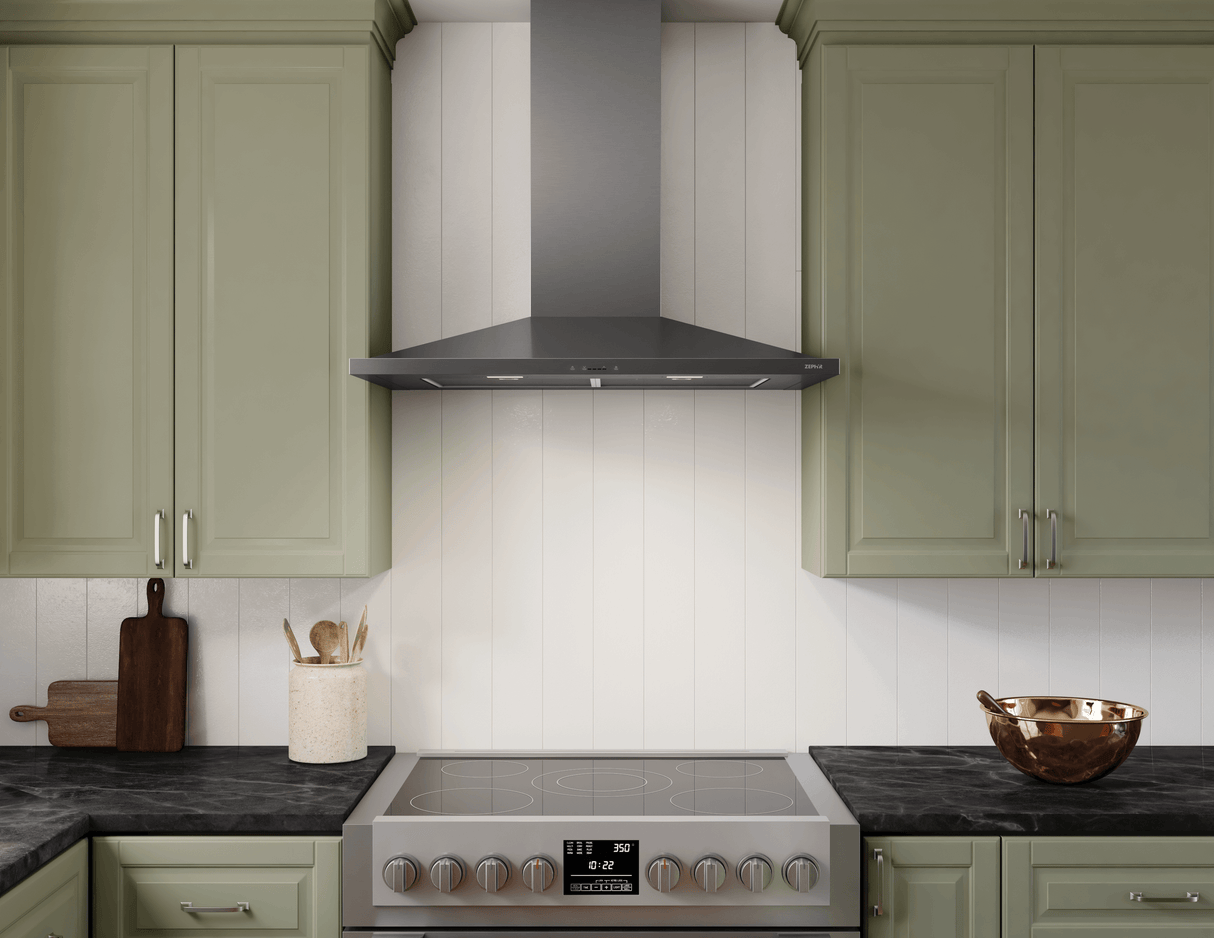

Anzio Wall, 90cm, Black SS, LED, 600 CFM w/ACT
Model: ZANM90DBS
Authorized Dealer
1
of
7
Loading...
Authorized Dealer
Anzio Wall, 90cm, Black SS, LED, 600 CFM w/ACT
Model: ZANM90DBSQuick Specs
Width
35.43"
Depth
22.06"
Height
27"
Energy
NO
Anzio Wall, 90cm, Black SS, LED, 600 CFM w/ACT is backordered and will ship as soon as it is back in stock.
We’ll confirm availability & delivery timing before processing your payment.
Available to Order
Sale Price
Sale price
$1,549.00
Regular price
$1,649.00
Unit price
/
Unavailable
You save 6%
SERVICES AVAILABLE
Selection will add
$0.00
to the price
Couldn't load pickup availability
Quick Specs
Width
35.43"
Depth
22.06"
Height
27"
Energy Star Rated
NO
- Airflow Control Technology™ (ACT™)
- Airflow Control Technology or ACT is an exclusive technology that gives installers the ability to set the maximum CFM levels to meet local code requirements.
- ICON Touch® Controls
- ICON Touch Controls seamlessly integrate into the hoods stainless steel canopy, which lets users control functions such as the 5 speeds, delay-off, dual-level lighting, and auto reminders. With its blue LED indicator lights and sleek modern aesthetic, the ICON Touch Controls are the future of ventilation control technology.
- Low-profile body
- Low-profile body for a minimalist appearance.
- LumiLight LED Lighting
- LumiLight LED lights are eco-friendly and built to last with a lifetime of more than 25,000 hours.
- Dual-Level Lighting
- The dual-level dimmable LEDs require less energy than traditional halogen lights, are cool to the touch, and provide uniform light distribution.
- Optional Ductless Recirculating Kit
- Ductless recirculating kit used when venting air outside your home is not possible. Smoke and odors pass through charcoal filters allowing purified air to be reintroduced into the kitchen.
- Optional Extension Duct Cover Kit
- Extension duct cover kit to accommodate ceiling heights up to 12 ft see spec sheets for more details.
- Airflow Control Technology(TM) (ACT(TM))
- ICON Touch(R) Controls
- Low-profile body
- LumiLight LED Lighting
- Dual-Level Lighting
- Optional Ductless Recirculating Kit
- Optional Extension Duct Cover Kit
Anzio Wall, 90cm, Black SS, LED, 600 CFM w/ACT
| Brand | Zephyr |
| Manufacturer | Zephyr |
| Category | Range Hood |
| Sub-Category | Wall |
| Vent Type | Convertible |
| UPC | 646328010699 |
| GTIN | 00646328010699 |
| Country of Origin | Taiwan |
| Model Group | ZAN-D |
| Model Name | Anzio Wall |
| Collection | Core Collection |
| Blower Included | Yes |
| Blower CFM w/ACT | 390, 290 |
| Internal Blower 1 CFM | 600 |
| Internal Blower 1 Min. Sones | 1 |
| Internal Blower 1 Max Sones | 6 |
| Minimum CFM | 200 |
| Installation Type | Wall |
| Installation Type | Wall |
| For Outdoor Use | No |
| Color | Black Stainless Steel |
| Controls Type | ICON Touch® |
| Blower Speeds | 5 |
| Automatic Delay-Off | Yes |
| Clean Air Function | No |
| Lighting Type | LED |
| Lights Quantity | 2 |
| Watts Per Bulb | 6 |
| Lights Levels | 2 |
| Grease Filter Type | Mesh |
| Compatible Mesh or Baffle Filter Part Number | 50200059 |
| Duct Discharge | Vertical |
| Duct Size; Horizontal; IN | N/A |
| Duct Size; Vertical; IN | 6 |
| Mounting Height Above Cooktop; IN | 24 - 34 |
| Voltage | 120 |
| Maximum Amperage | 4 |
| ADA Compliant | Yes, with optional remote |
| Warranty Parts / Labor | 3 / 1 |
| Compatible Appliances | ZRC-01AN, Z1C-00ANBS, Z0F-B002, MUA006A, Z0F-C091, RC-0002 |
| Bluetooth Connected | No |
| Wi-Fi Connected | No |
| Remote Included | No |
| Remote Optional | Yes |
| Energy Star Certified | No |
| Alexa & Google Home Compatible | No |
| CEC Title 20 Compliant | Yes |
| CEC Title 24 Compliant | Yes |
| Primary Material | Steel |
| Wattage | 480 |
| Certification | UL |
| Nominal Width; IN | 36 |
| Net Width; IN | 35.4375 |
| Net Depth; IN | 22.0625 |
| Net Height; IN | 27 - 48.5 |
| Weight; LBS | 38.1 |
| Ceiling Height Minimum | 8 ft. |
| Ceiling Height Maximum | 9.5 ft. |
| Chimney Height in. | 20.7 |
| Chimney Width in. | 10.37 |
| Chimney Depth in. | 10.62 |
| Shipping Length; IN | 23.62 |
| Shipping Width; IN | 39.5 |
| Shipping Height; IN | 27.36 |
| Shipping Weight; LBS | 55.8 |
| Shipping Method | LTL |
| Freight Class | 300 |
| Certification # | E127334 |
| Duct Type | Vertical |
| Duct Type | Vertical |
