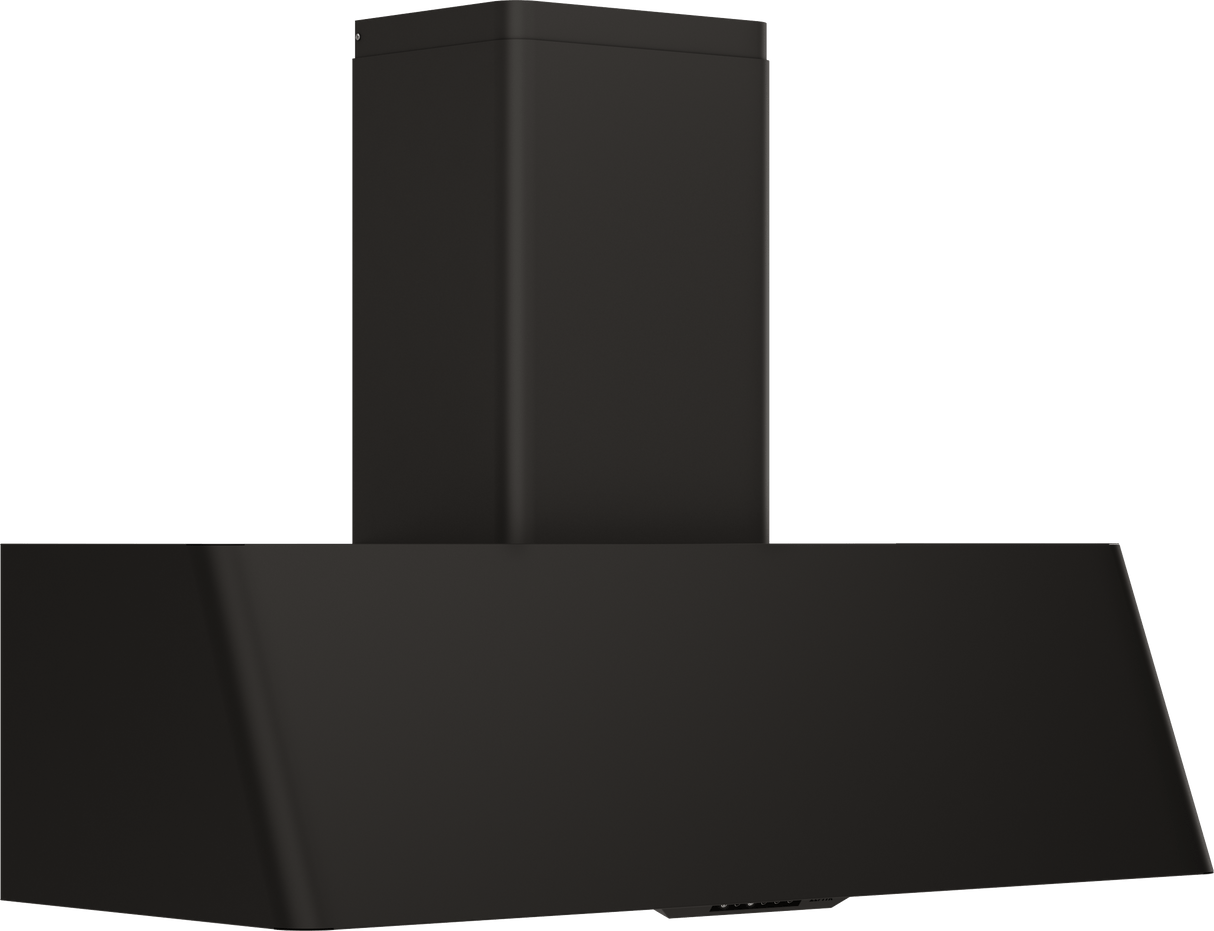

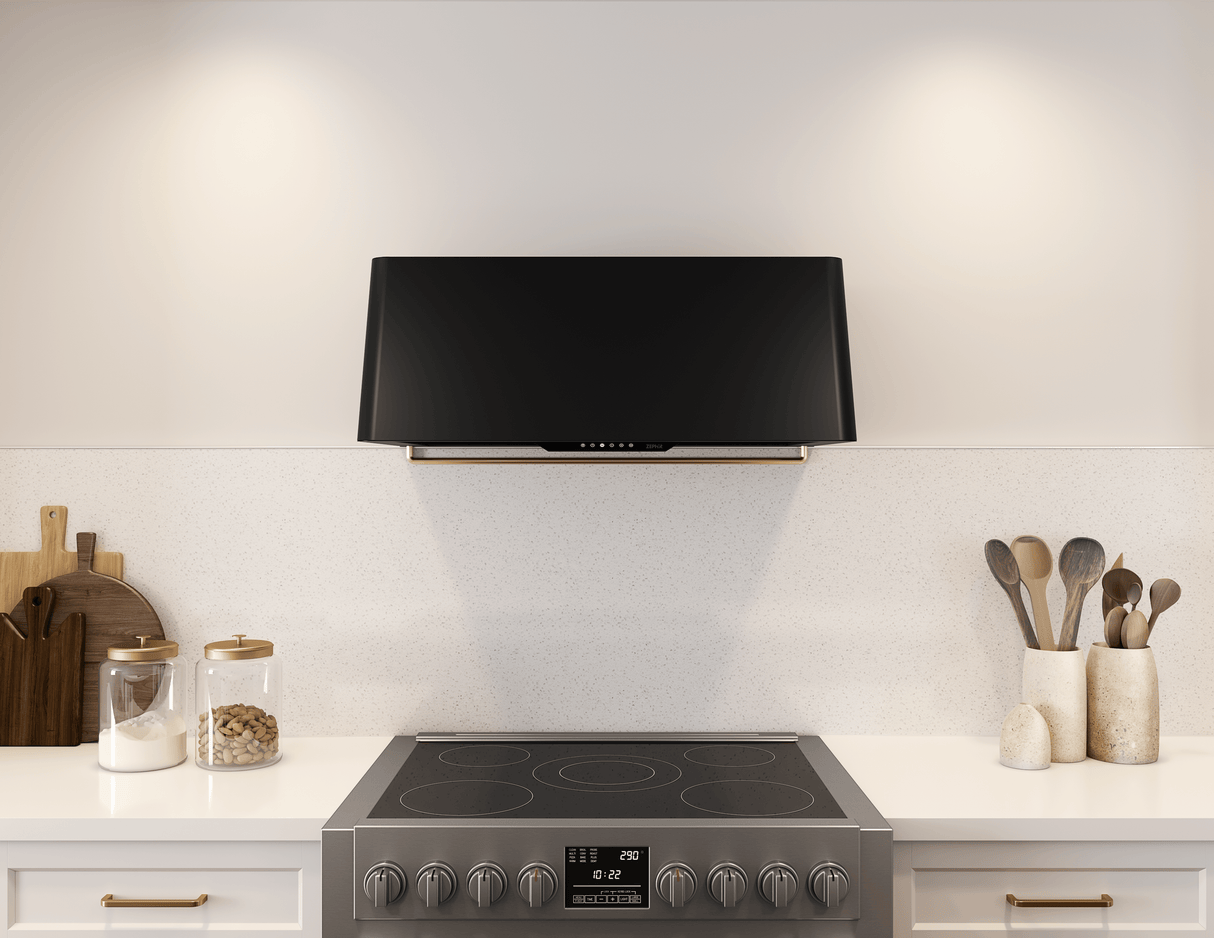

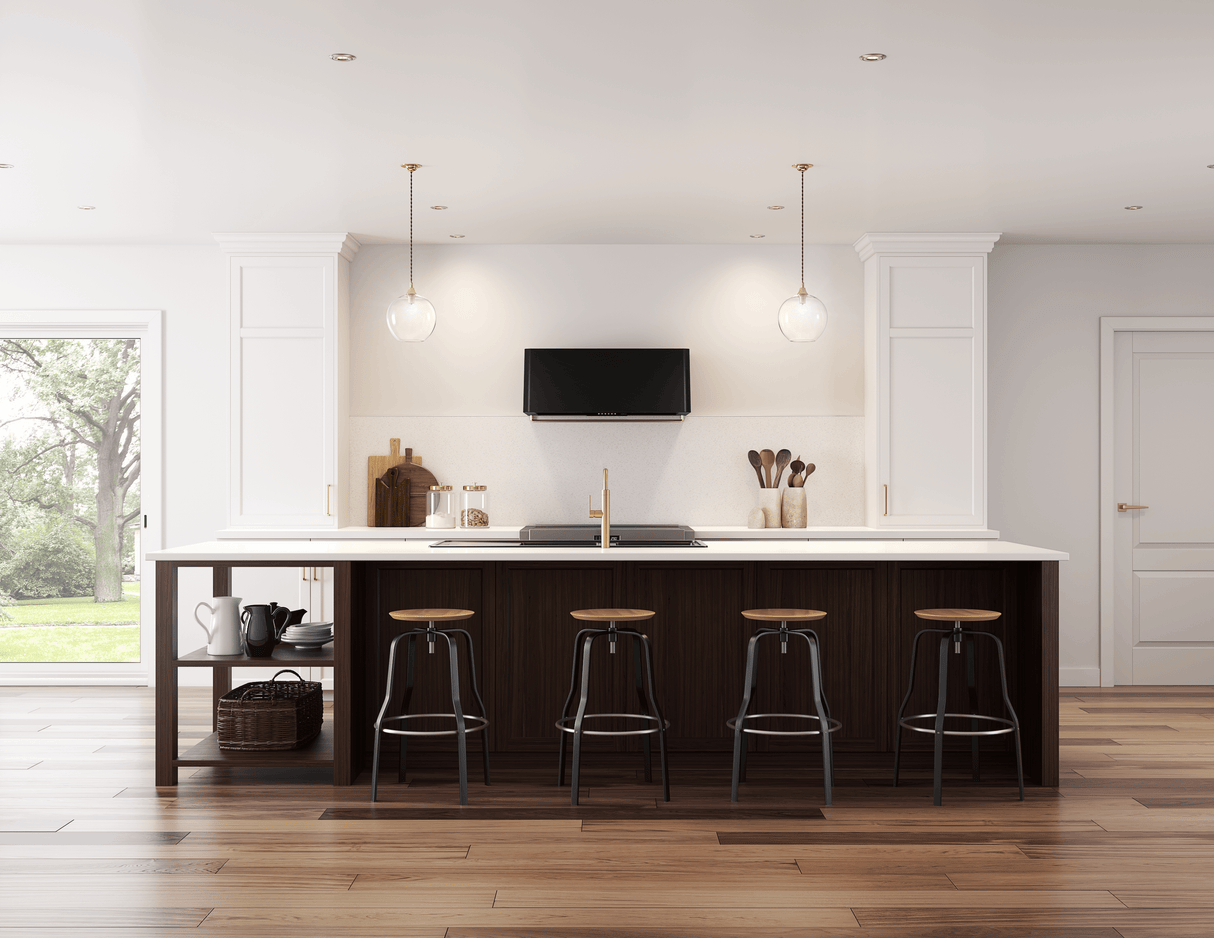

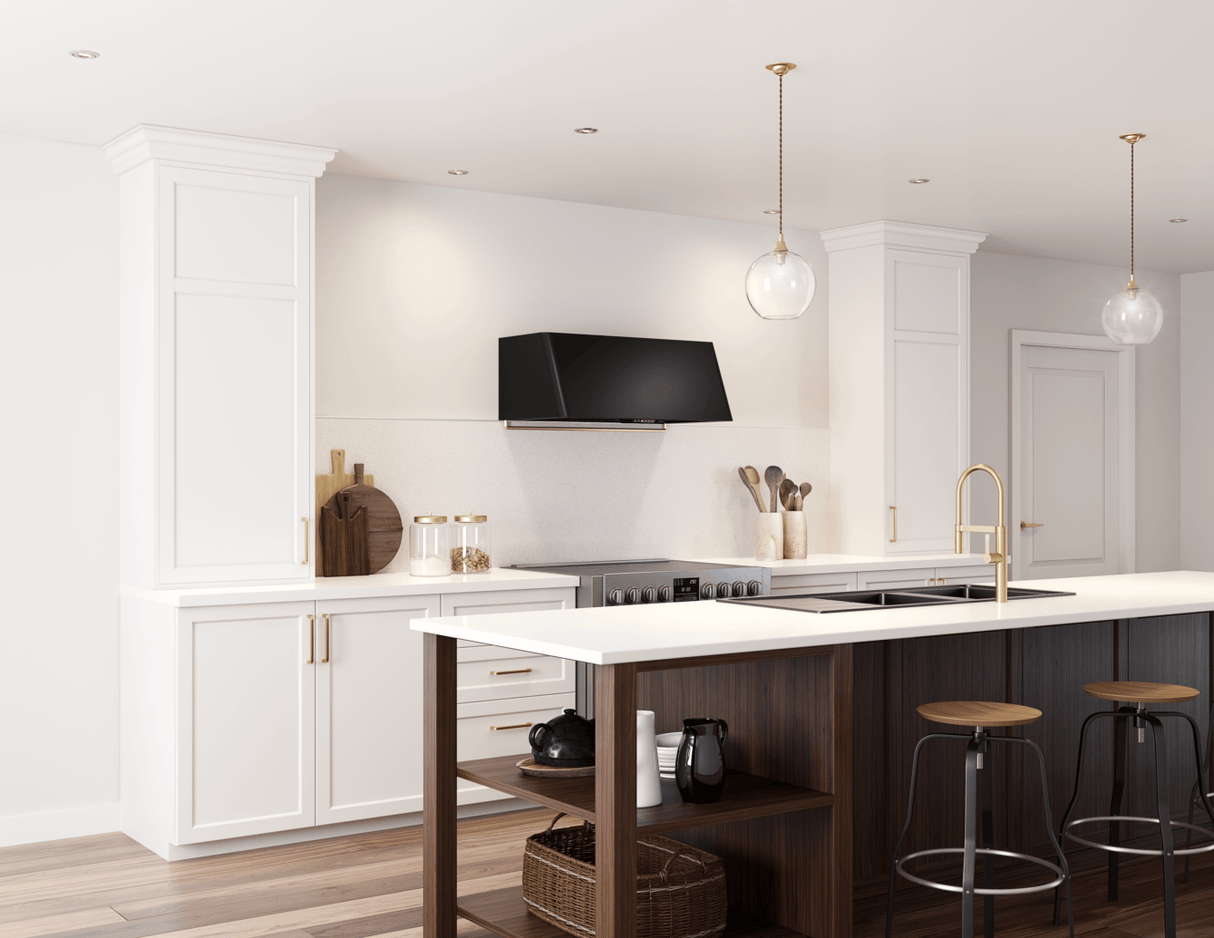

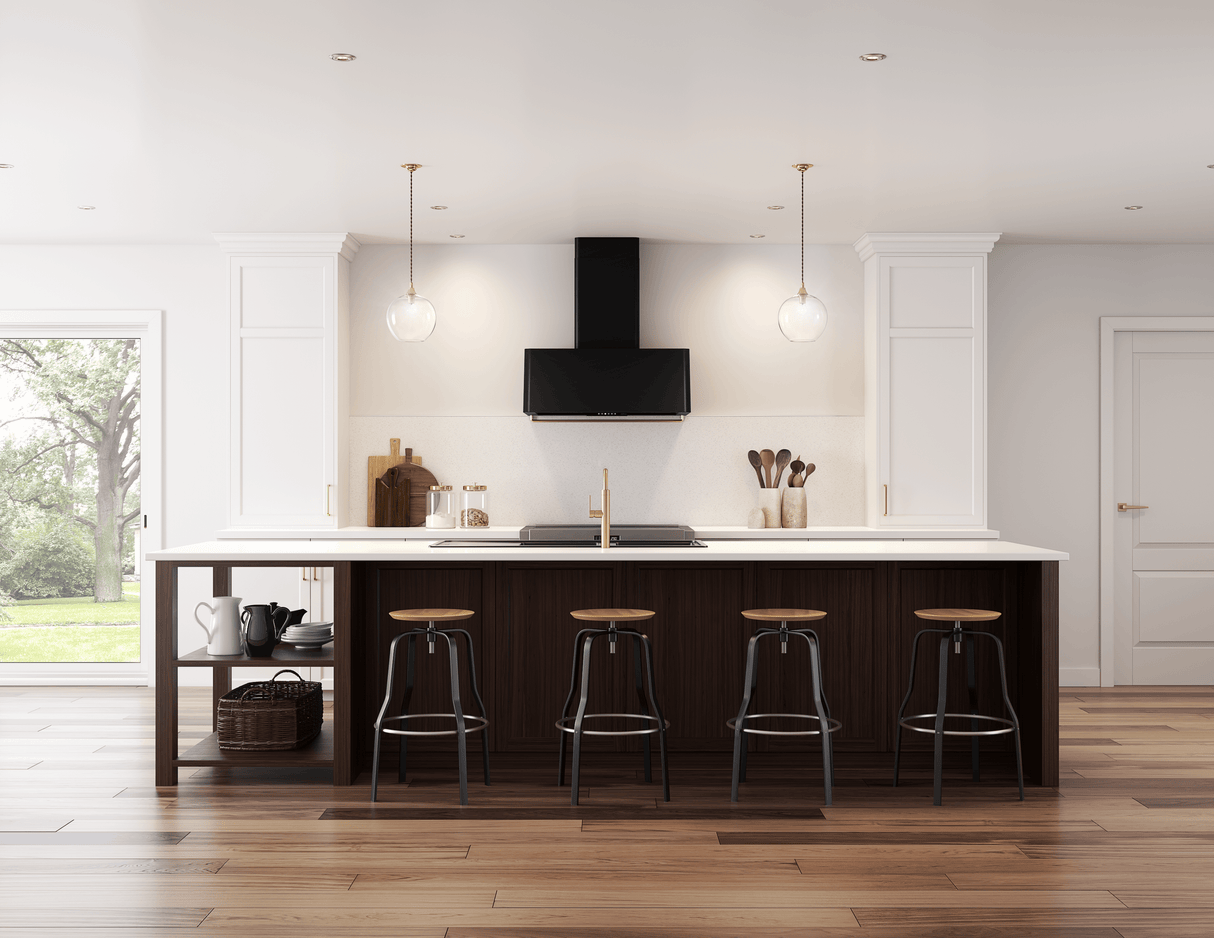

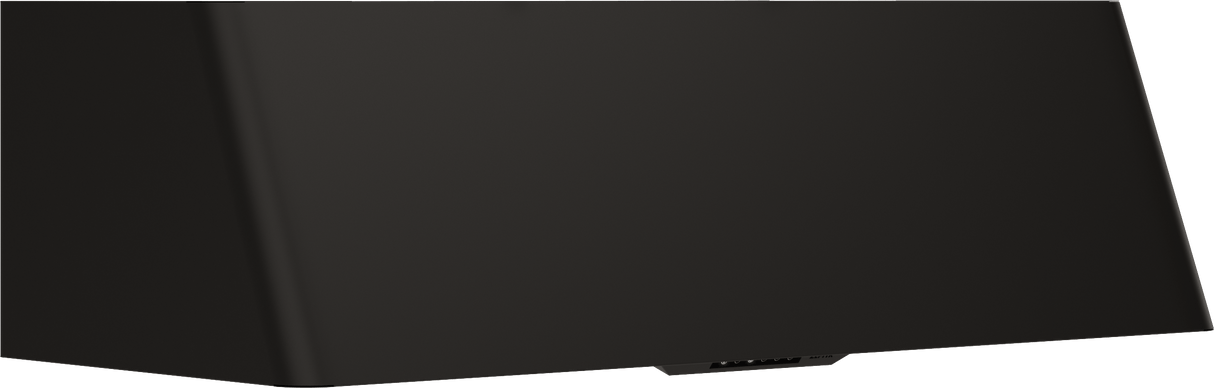

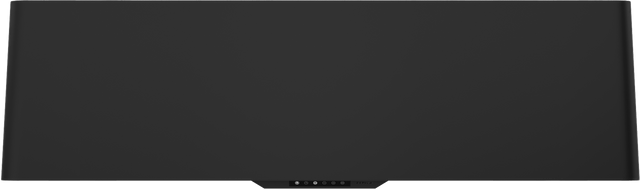

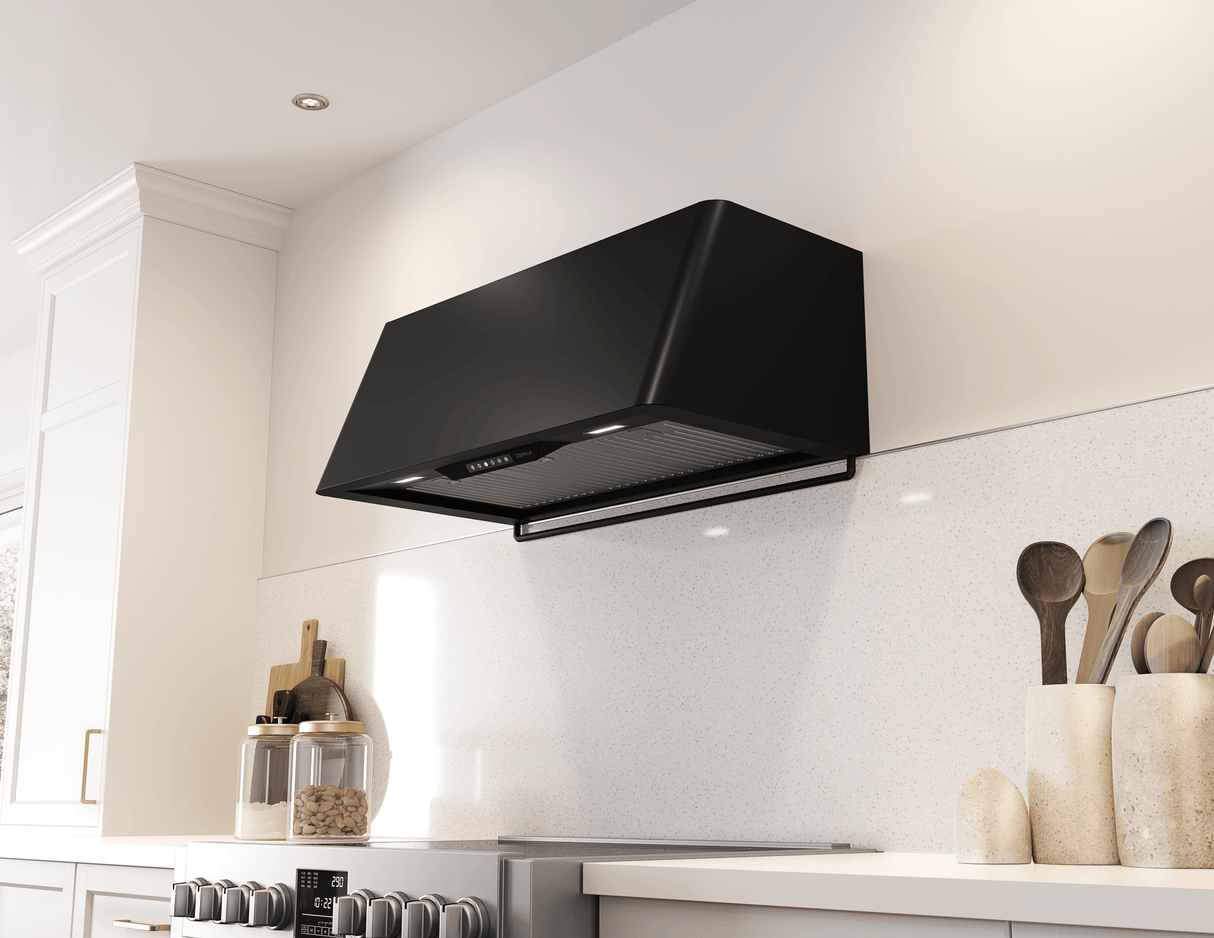

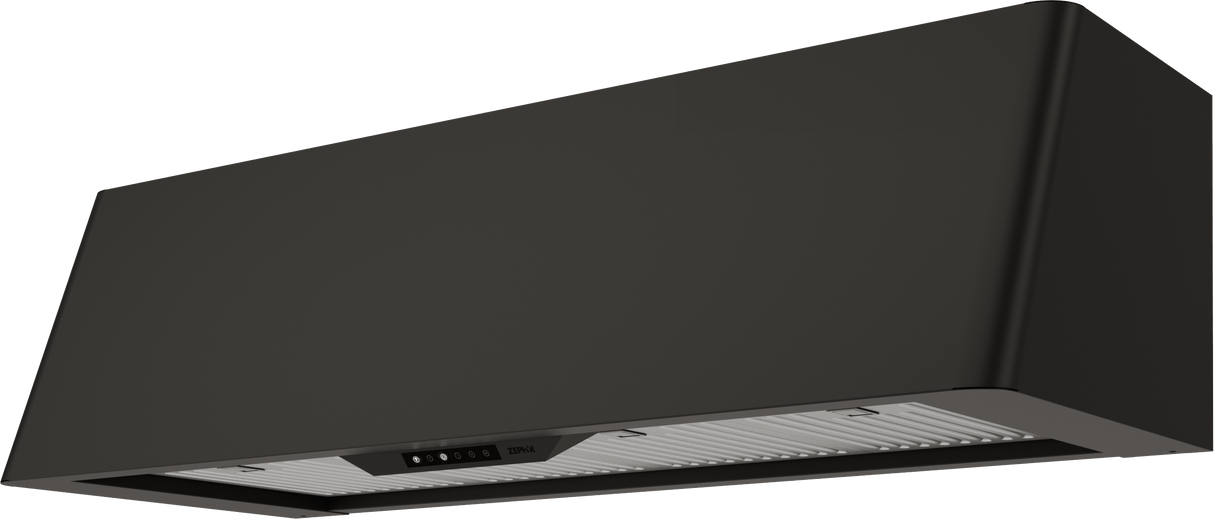

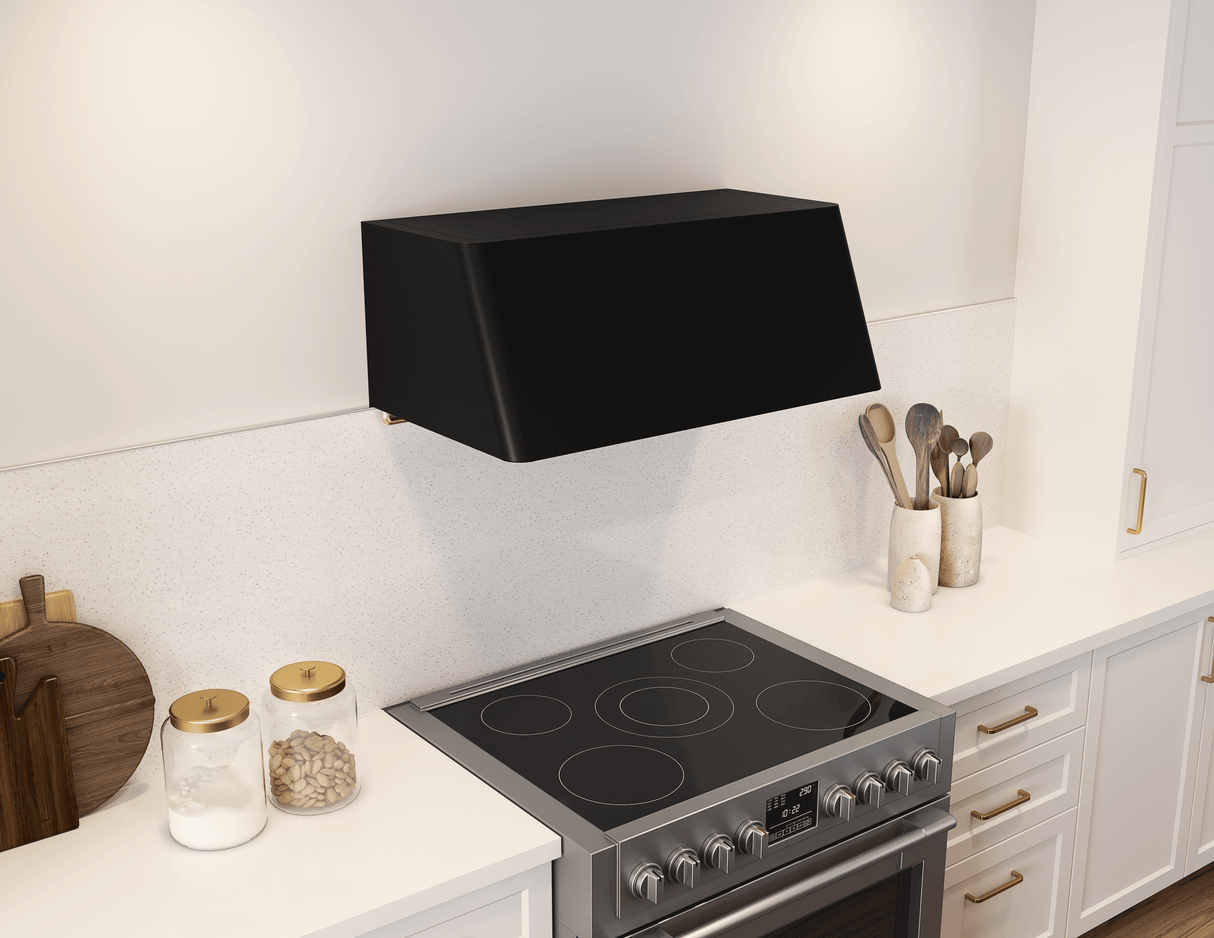

Mesa 48in, Matte Black, BODY ONLY
Model DMEE48AMBX
Authorized Dealer
1
of
10
Loading...
Authorized Dealer
Mesa 48in, Matte Black, BODY ONLY
Model DMEE48AMBXQuick Specs
Depth
19.7"
Height
13.8"
Energy
NO
Mesa 48in, Matte Black, BODY ONLY is backordered and will ship as soon as it is back in stock.
This item qualifies for free delivery
Ships Out Within: 2 - 4 Business Days
Shipping Date By: 06/23/2026
Sale Price
$2,199.00
$2,399.00
You save 8%
SERVICES AVAILABLE
Selection will add
$0.00
to the price
Couldn't load pickup availability
Quick Specs
Depth
19.7"
Height
13.8"
Energy Star Rated
NO
- Multiple Blower Options
- Multiple blower options are available to fit your application.

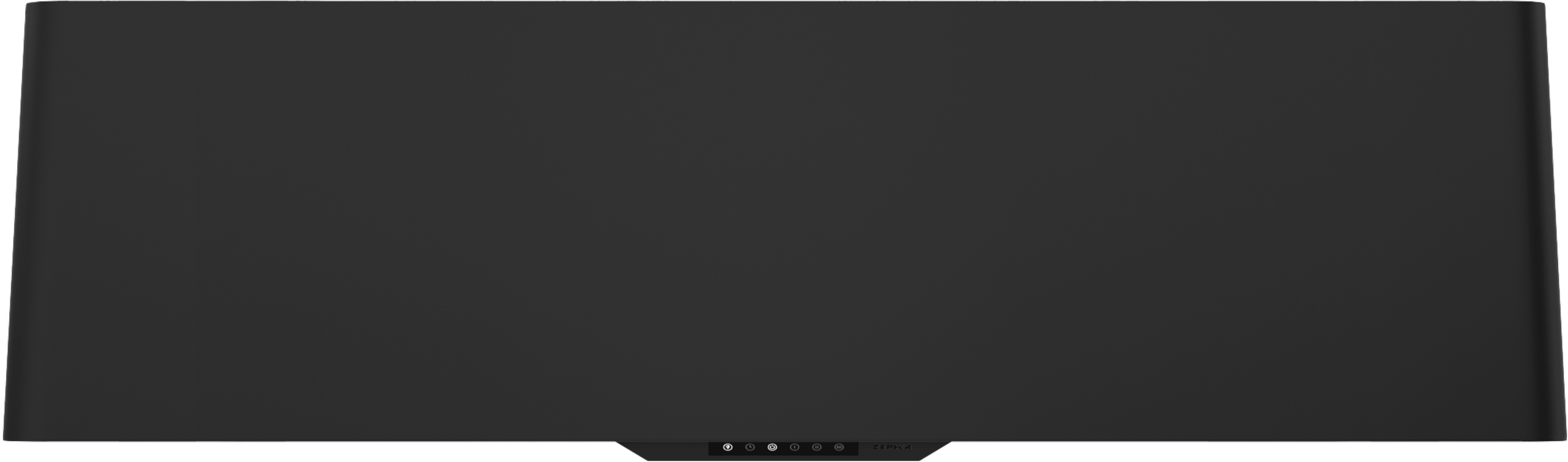

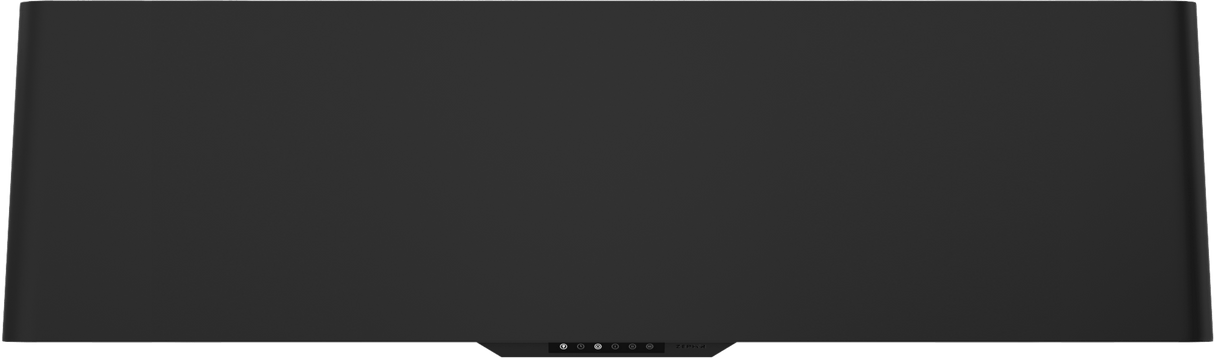

- Invisible Touch Controls
- Invisible touch controls appear when activated and stay hidden when the range hood is not in use.
- Tri-Level Lighting
- The tri-level dimmable LEDs require less energy than traditional halogen lights, are cool to the touch, and provide uniform light distribution.
- Optional Accent Rail Kit
- Elevate your kitchen ambiance with our accent rail optional accessory in matte black, satin gold or stainless steel a striking design element that seamlessly pairs your Zephyr Mesa Wall range hood and also serves a practical purpose.
- Optional Wireless Remote Control (RC-0003)
- ADA-compliant, wireless RF remote control with battery and holder. Equipped with a magnet on the back for easy storage on any magnetic surface. Maximum remote control communication distance is 15 feet from the hood. Please check your Zephyr range hoods specification sheet to ensure compatibility.
- Optional Duct Cover Kit
- This duct cover extends the range hood height and encloses the space from the top of your hood to the ceiling or soffit, and also provides a clean, finished look. Please check your Zephyr range hood specification sheet to ensure compatibility.
- Optional Ductless Recirculating Kit
- Ductless recirculating kit used when venting air outside your home is not possible. Smoke and odors pass through charcoal filters allowing purified air to be reintroduced into the kitchen.
- Multiple Blower Options
- Invisible Touch Controls
- Tri-Level Lighting
- Optional Accent Rail Kit
- Optional Wireless Remote Control (RC-0003)
- Optional Duct Cover Kit
- Optional Ductless Recirculating Kit
Mesa 48in, Matte Black, BODY ONLY
| Brand | Zephyr |
| Manufacturer | Zephyr |
| Category | Range Hood |
| Sub-Category | Wall |
| Vent Type | Ducted |
| UPC | 646328011931 |
| GTIN | 00646328011931 |
| Country of Origin | Italy |
| Model Group | DME-A |
| Model Name | Mesa Wall |
| Collection | Designer Collection |
| Blower Included | No |
| Internal Blower 1 CFM | 600 |
| Internal Blower 1 Min. Sones | 1.4 |
| Internal Blower 1 Max Sones | 6 |
| Internal Blower 2 CFM | 290 |
| Internal Blower 2 Max Sones | 3 |
| In-Line Blower CFM | 1000 |
| External Blower CFM | 1000 |
| Minimum CFM | 200 |
| Installation Type | Wall |
| Installation Type | Wall |
| For Outdoor Use | No |
| Color | Matte Black |
| Controls Type | Invisible Touch |
| Blower Speeds | 3 |
| Automatic Delay-Off | Yes |
| Clean Air Function | Yes |
| Lighting Type | LED |
| Lights Quantity | 4 |
| Watts Per Bulb | 5 |
| Lights Levels | 3 |
| Grease Filter Type | Hybrid Baffle |
| Compatible Mesh or Baffle Filter Part Number | 50210045 |
| Duct Discharge | Vertical or Horizontal |
| Duct Size; Horizontal; IN | 8 |
| Duct Size; Vertical; IN | 6, 8 |
| Mounting Height Above Cooktop; IN | 24 - 36 |
| Voltage | 120 |
| Maximum Amperage | 6.6 |
| ADA Compliant | Yes, with optional remote |
| Warranty Parts / Labor | 2 / 1 |
| Compatible Appliances | CBI-390A, CBE-1000, CBI-290C, CBI-600A, PBI-1100B-DME, PBN-1000A, Z1C-00MEMB, MERAIL-01SG, MERAIL-01MB, MERAIL-01SS, MUA006A, MUA008A, RC-0003 |
| Bluetooth Connected | No |
| Wi-Fi Connected | No |
| Remote Included | No |
| Remote Optional | Yes |
| Energy Star Certified | No |
| Alexa & Google Home Compatible | No |
| CEC Title 20 Compliant | Yes |
| Primary Material | Steel |
| Wattage | 790 |
| Certification | UL |
| Nominal Width; IN | 48 |
| Net Width; IN | 47.9 |
| Net Depth; IN | 19.7 |
| Net Height; IN | 13.8 |
| Weight; LBS | 67 |
| Ceiling Height Minimum | 8 ft. |
| Ceiling Height Maximum | 10.5 ft. |
| Shipping Length; IN | 58 |
| Shipping Width; IN | 45 |
| Shipping Height; IN | 30 |
| Shipping Weight; LBS | 125 |
| Shipping Method | LTL |
| Freight Class | 250 |
| Certification # | E503546 |
| Clean Filter Alert | Yes |
| Duct Type | Vertical |
| Duct Type | Vertical |
