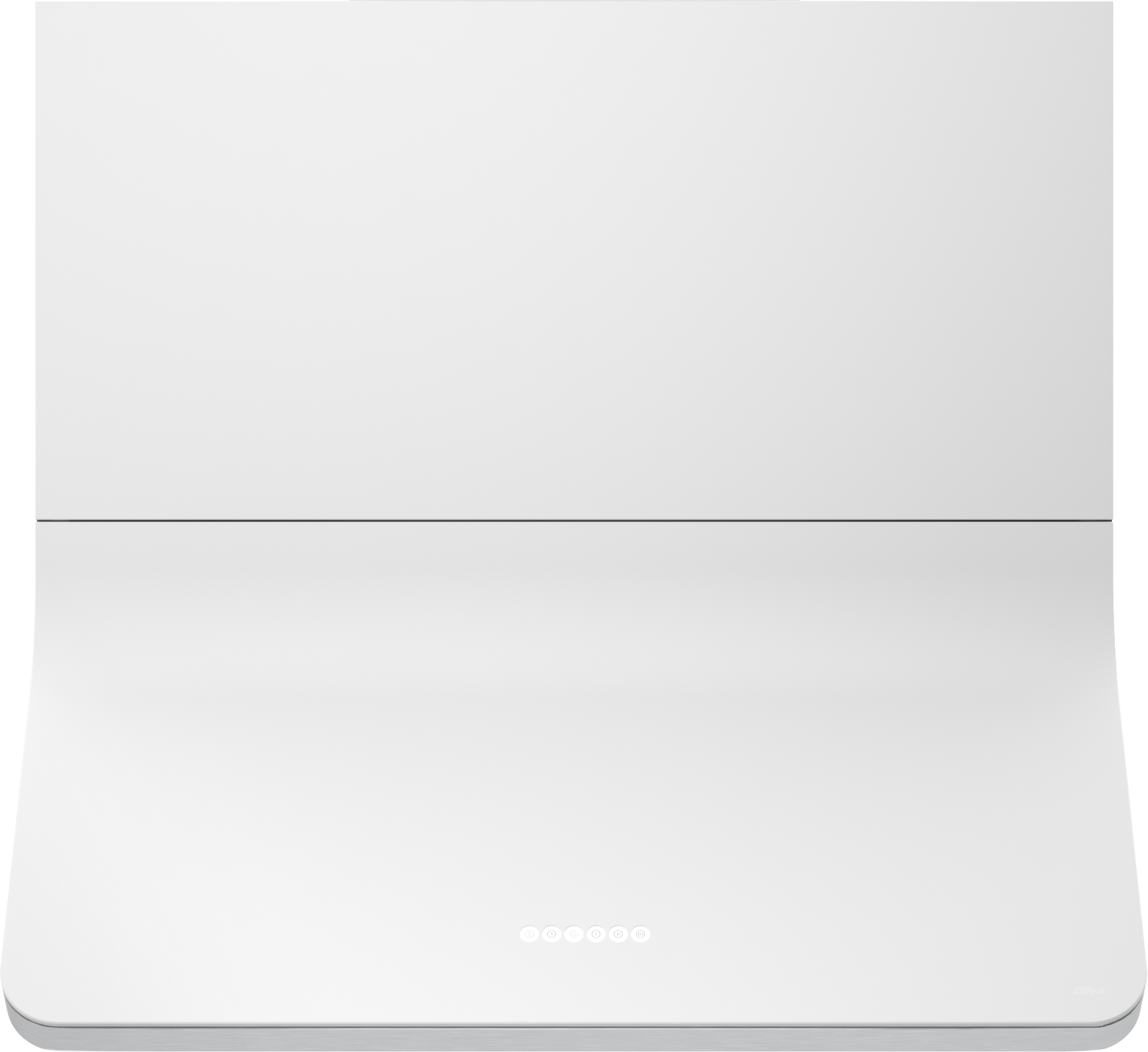

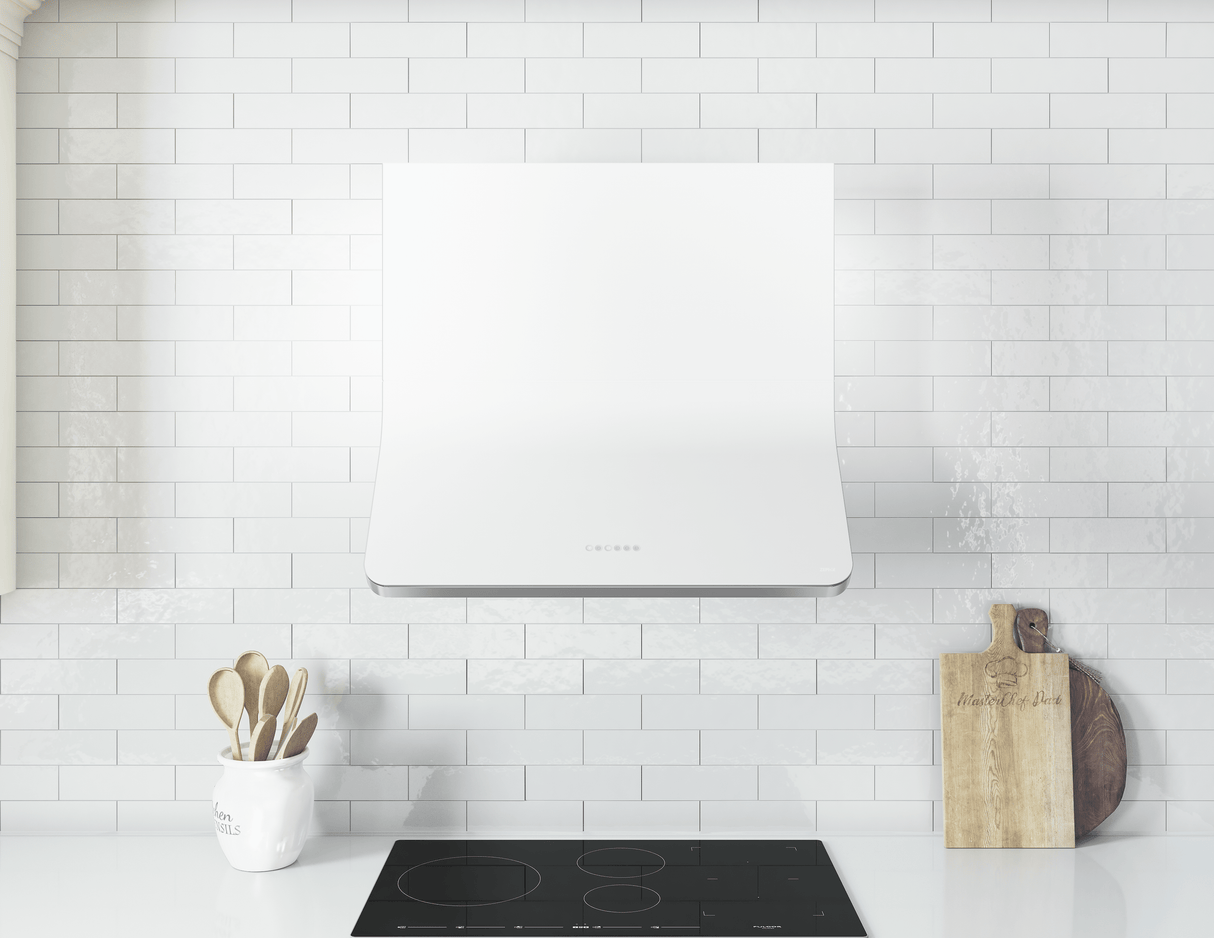

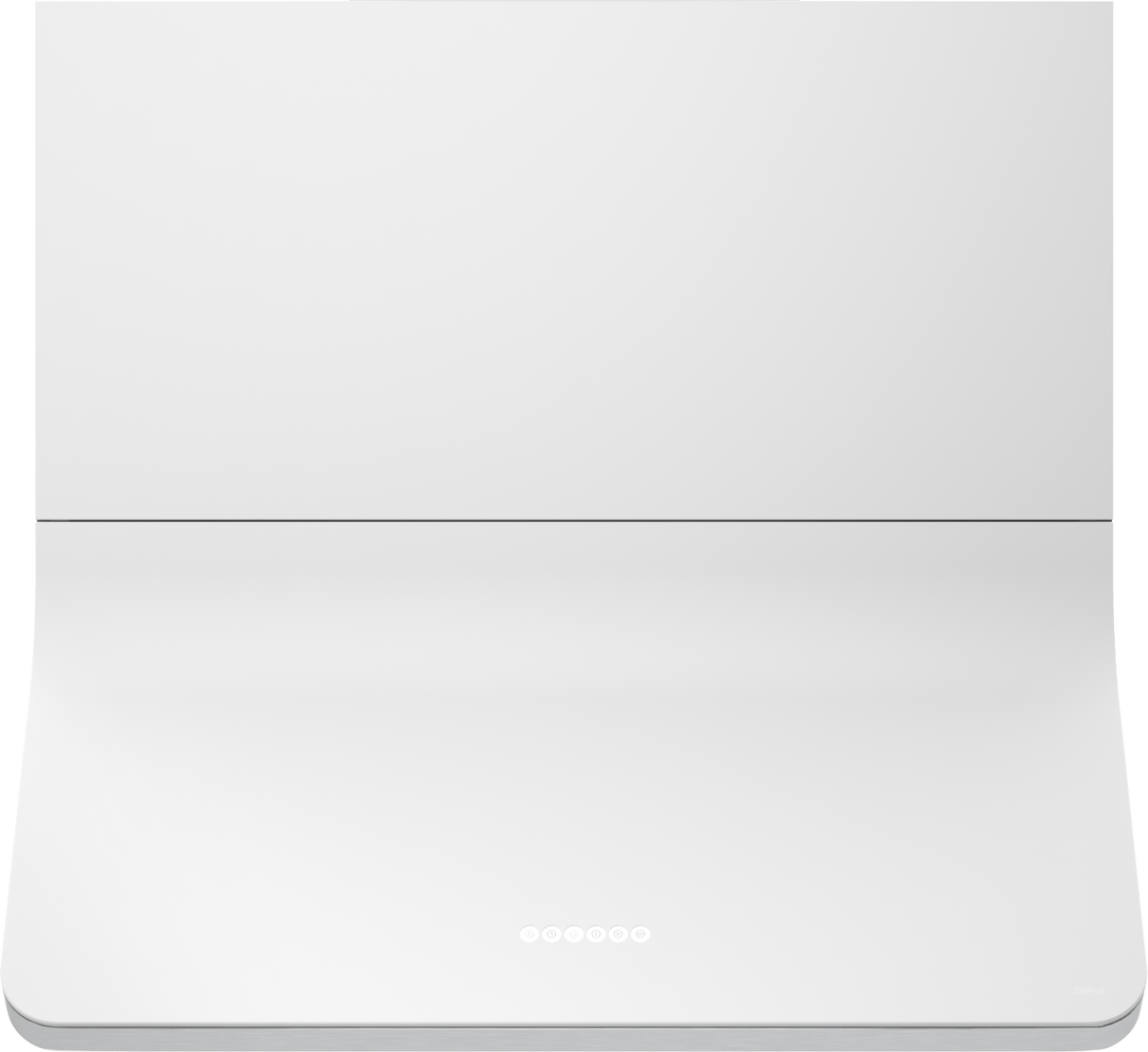

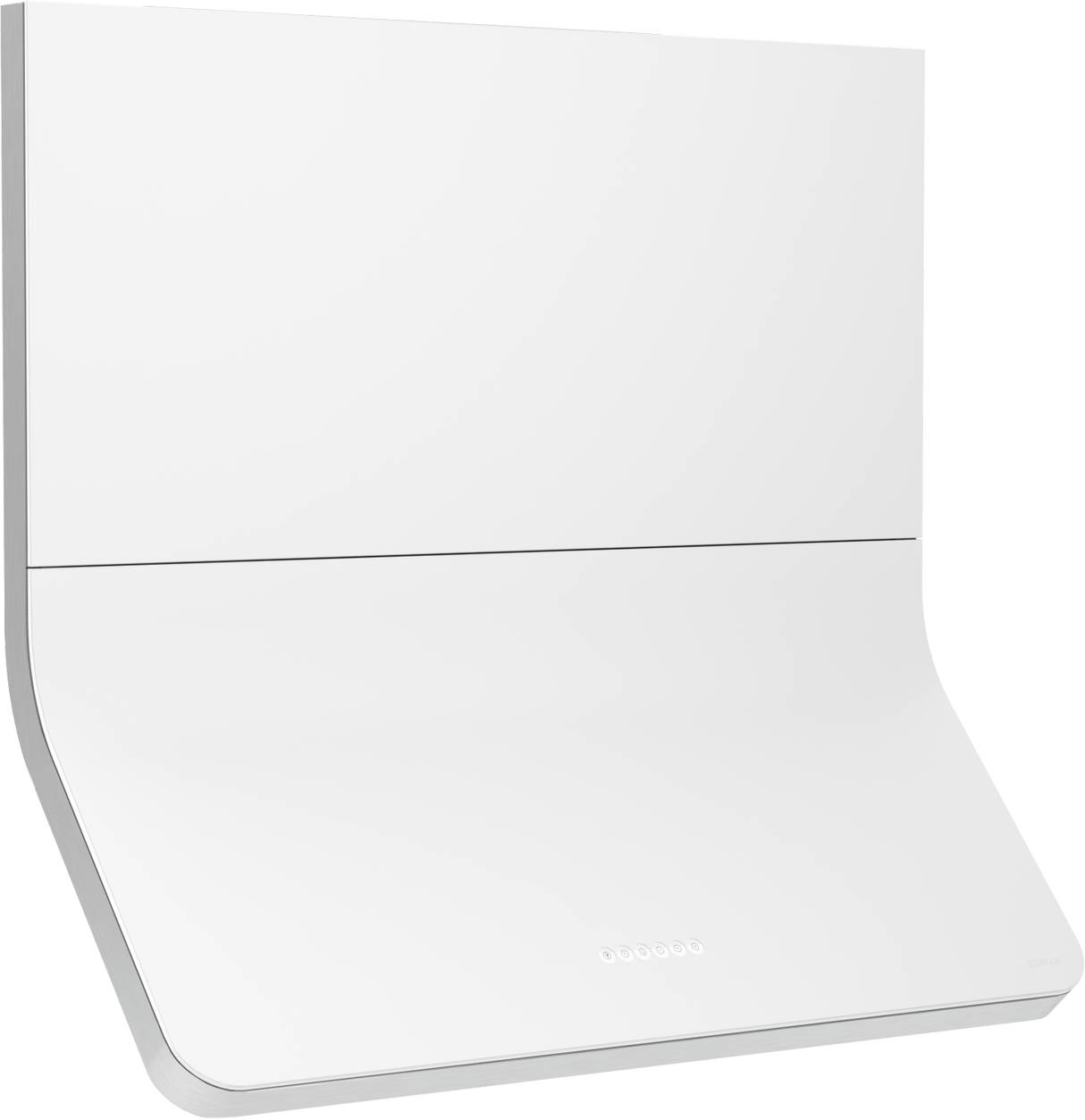

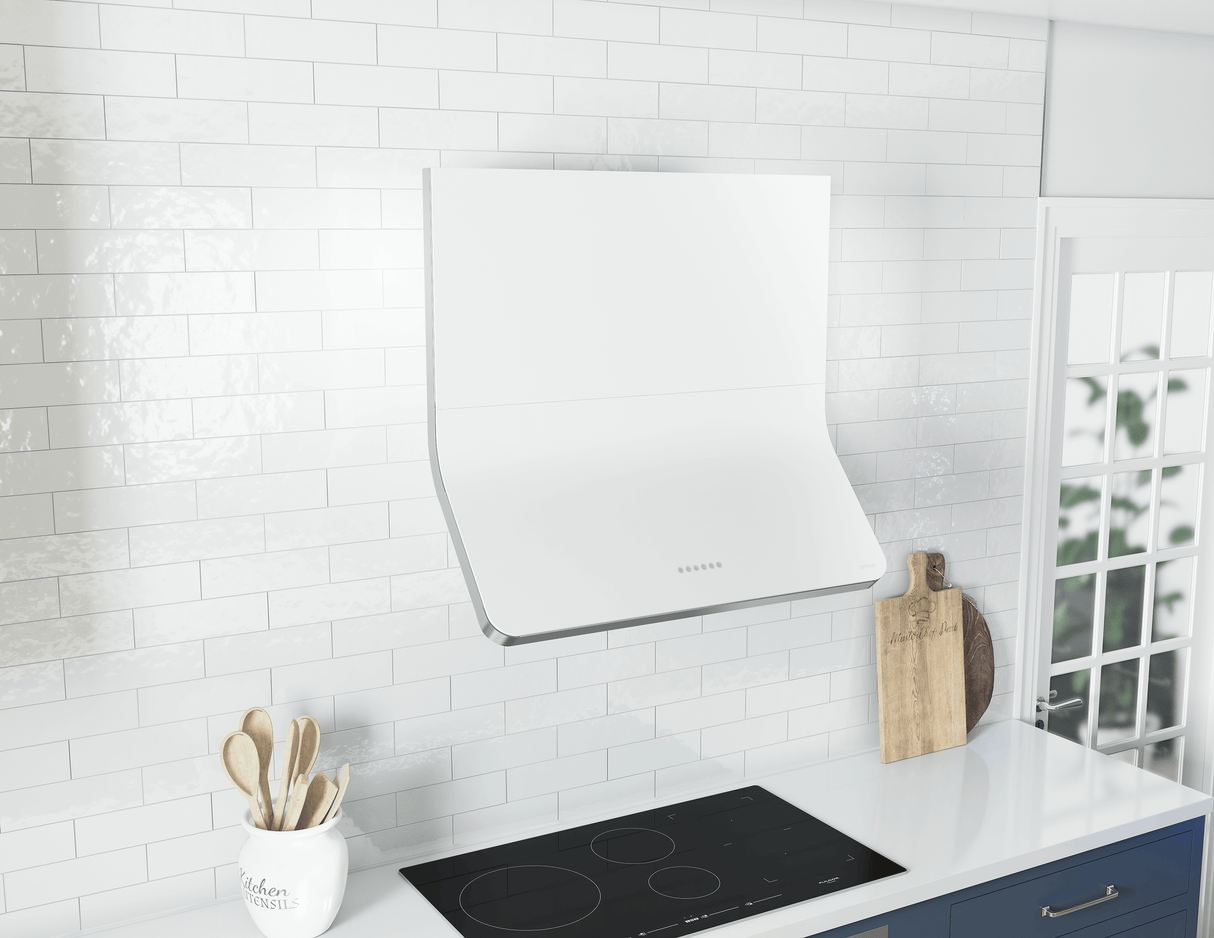

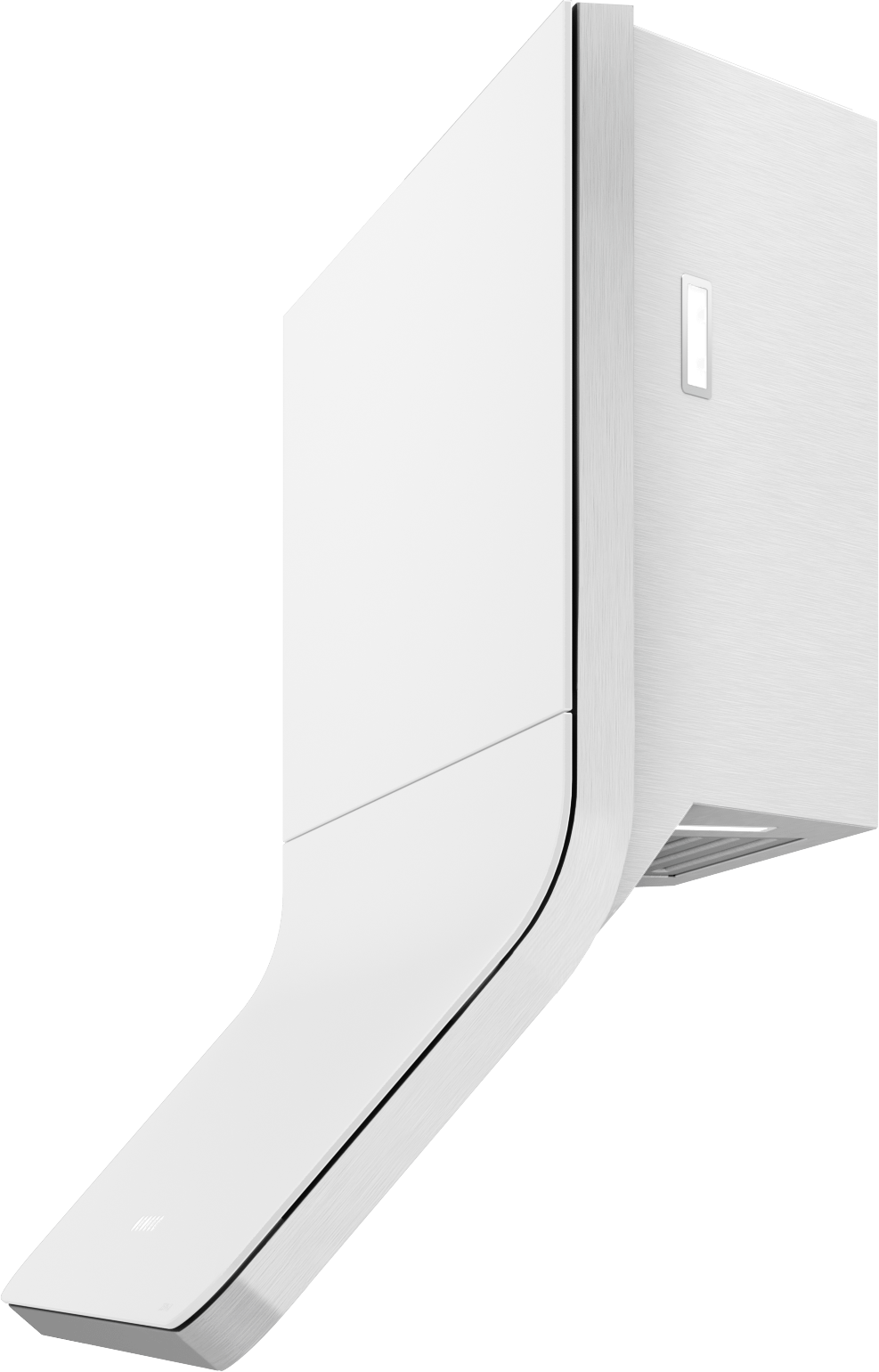

Horizon, 90cm, Matte White, BODY ONLY
Model: DHZM90AMWX
Authorized Dealer
1
of
9
Loading...
Authorized Dealer
Horizon, 90cm, Matte White, BODY ONLY
Model: DHZM90AMWXQuick Specs
Width
35.375"
Depth
20.125"
Height
32.875"
Wifi
NO
Energy
NO
Horizon, 90cm, Matte White, BODY ONLY is backordered and will ship as soon as it is back in stock.
Estimated to ship in 1-2 weeks
Available to Order
Sale Price
Sale price
$2,799.00
Regular price
$2,999.00
Unit price
/
Unavailable
You save 6%
SERVICES AVAILABLE
Selection will add
$0.00
to the price
Couldn't load pickup availability
Quick Specs
Width
35.375"
Depth
20.125"
Height
32.875"
Wifi Connected
NO
Energy Star Rated
NO
- Multiple Blower Options
- Multiple blower options are available to fit your application.
- Capacitive Touch Controls
- Capacitive touch controls utilize the same touch technology as your smart phone for a more integrated user interface.

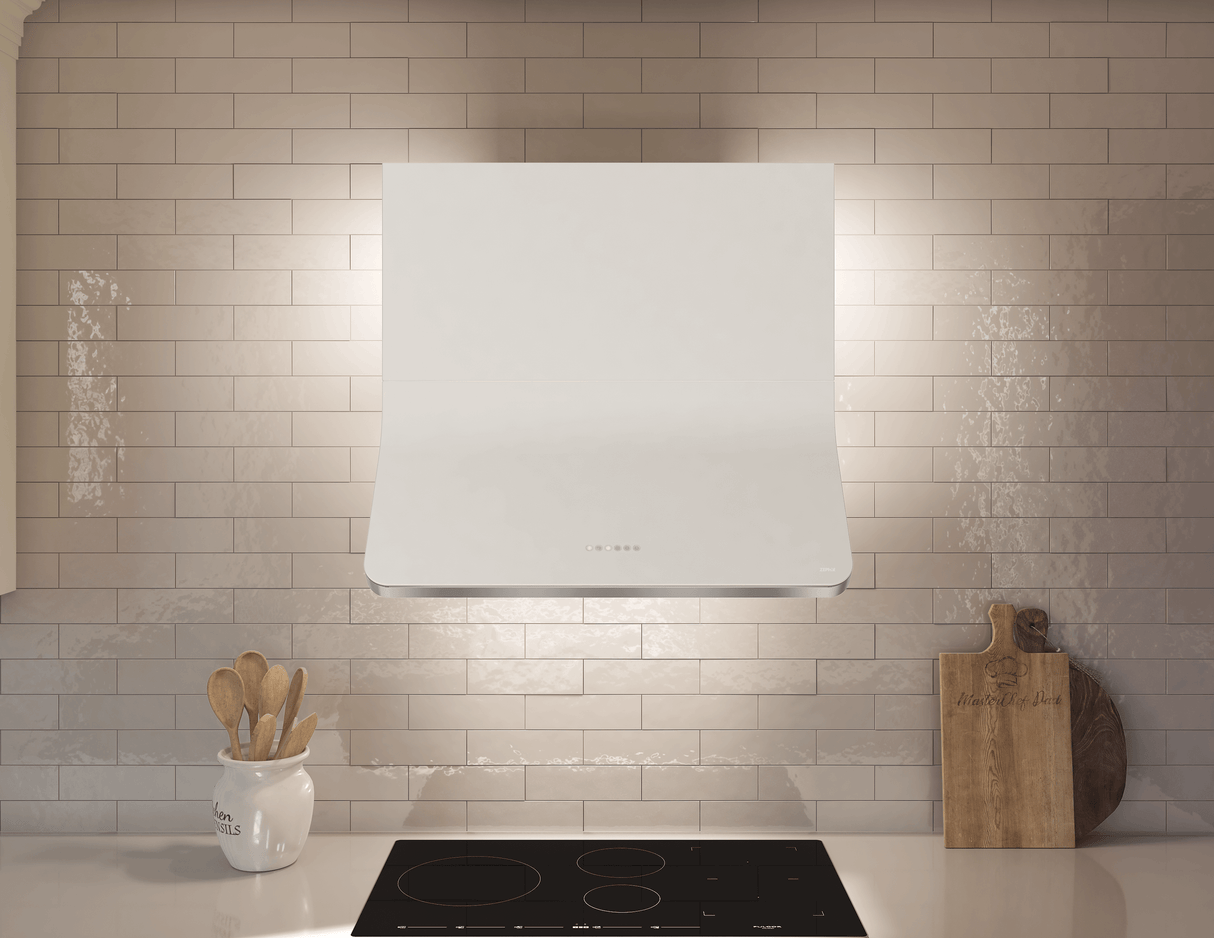

- Tri-Level Lighting
- The tri-level dimmable LEDs require less energy than traditional halogen lights, are cool to the touch, and provide uniform light distribution.

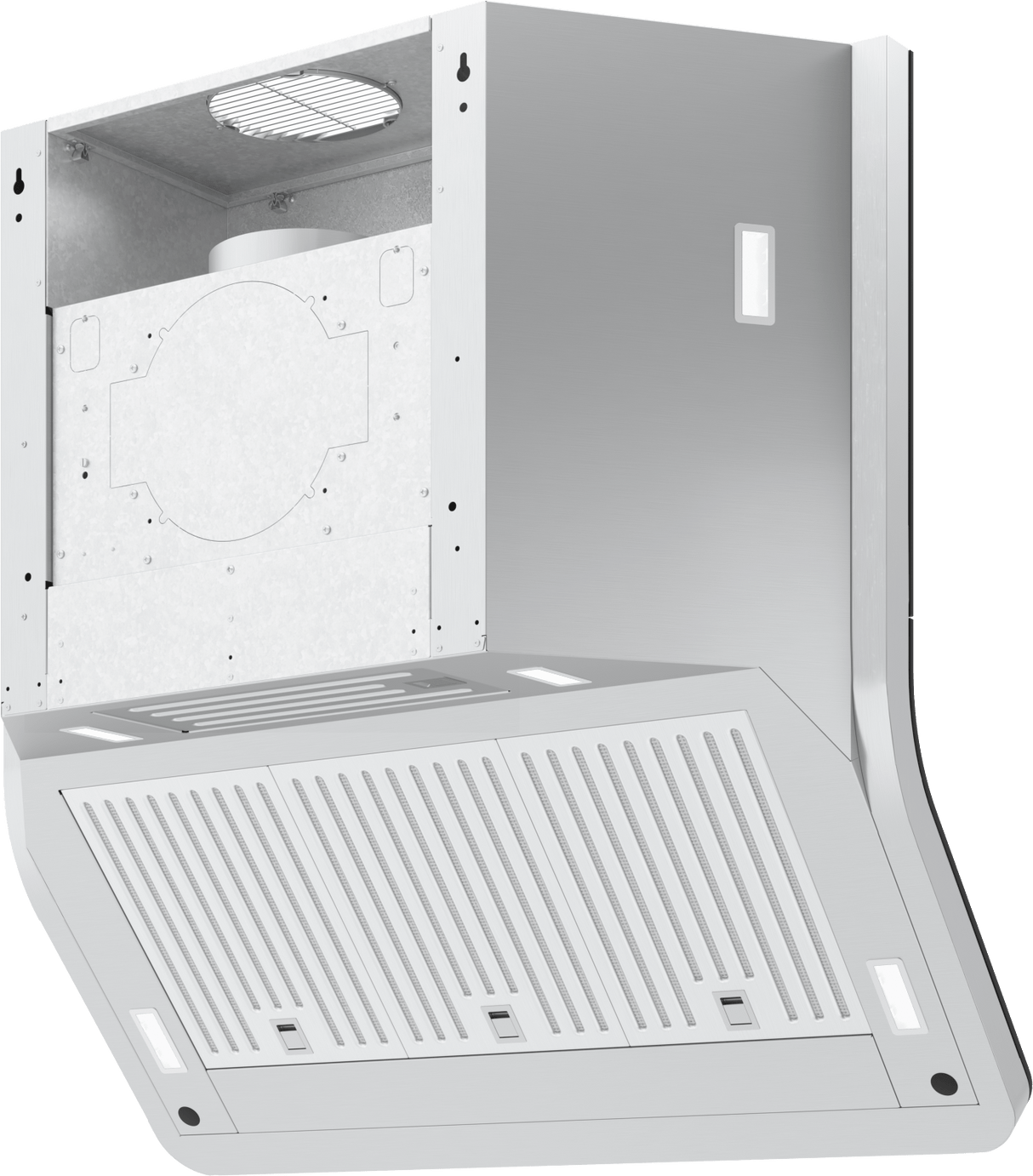

- Hybrid Baffle Filters
- Hybrid baffle filters utilize stainless steel baffles for an improved aesthetic and aluminum mesh for efficient filtration.
- Optional Wireless Remote Control (RC-0003)
- ADA-compliant, wireless RF remote control with battery and holder. Equipped with a magnet on the back for easy storage on any magnetic surface. Maximum remote control communication distance is 15 feet from the hood. Please check your Zephyr range hoods specification sheet to ensure compatibility.
- Optional Duct Cover Kit
- This duct cover extends the range hood height and encloses the space from the top of your hood to the ceiling or soffit, and also provides a clean, finished look. Please check your Zephyr range hood specification sheet to ensure compatibility.
- Optional Ductless Recirculating Kit
- Ductless recirculating kit used when venting air outside your home is not possible. Smoke and odors pass through charcoal filters allowing purified air to be reintroduced into the kitchen.
- Multiple Blower Options
- Capacitive Touch Controls
- Tri-Level Lighting
- Hybrid Baffle Filters
- Optional Wireless Remote Control (RC-0003)
- Optional Duct Cover Kit
- Optional Ductless Recirculating Kit
Horizon, 90cm, Matte White, BODY ONLY
| Brand | Zephyr |
| Manufacturer | Zephyr |
| Category | Range Hood |
| Sub-Category | Wall |
| Vent Type | Convertible |
| UPC | 646328008832 |
| GTIN | 00646328008832 |
| Country of Origin | Italy |
| Model Group | DHZ-A |
| Model Name | Horizon Wall |
| Collection | Designer Collection |
| Blower Included | No |
| Internal Blower 1 CFM | 600 |
| Internal Blower 1 Min. Sones | 1.4 |
| Internal Blower 1 Max Sones | 6 |
| Internal Blower 2 CFM | 290 |
| Internal Blower 2 Max Sones | 3 |
| In-Line Blower CFM | 1000 |
| External Blower CFM | 1000 |
| Minimum CFM | 200 |
| Installation Type | Wall |
| Installation Type | Wall |
| For Outdoor Use | No |
| Color | Matte White |
| Controls Type | Capacitive Touch |
| Blower Speeds | 3 |
| Automatic Delay-Off | Yes |
| Clean Air Function | Yes |
| Lighting Type | LED |
| Lights Quantity | 6 |
| Watts Per Bulb | 5 |
| Lights Levels | 3 |
| Grease Filter Type | Hybrid Baffle |
| Compatible Mesh or Baffle Filter Part Number | 50210043 |
| Duct Discharge | Vertical or Horizontal |
| Duct Size; Horizontal; IN | 8 |
| Duct Size; Vertical; IN | 6, 8 |
| Mounting Height Above Cooktop; IN | 24 - 36 |
| Voltage | 120 |
| Maximum Amperage | 6.85 |
| ADA Compliant | Yes, with optional remote |
| Warranty Parts / Labor | 2 / 1 |
| Compatible Appliances | CBI-390A, CBI-290C, CBE-1000, CBI-290A, CBI-600A, PBN-1000A, Z0F-C010, Z1C-01HZ, MUA006A, MUA008A, RC-0003 |
| Bluetooth Connected | No |
| Wi-Fi Connected | No |
| Remote Included | No |
| Remote Optional | Yes |
| Energy Star Certified | No |
| Alexa & Google Home Compatible | No |
| CEC Title 20 Compliant | Yes |
| Primary Material | Steel |
| Wattage | 822 |
| Certification | UL |
| Nominal Width; IN | 36 |
| Net Width; IN | 35.375 |
| Net Depth; IN | 20.125 |
| Net Height; IN | 32.875 |
| Weight; LBS | 90 |
| Ceiling Height Minimum | 9 ft. |
| Ceiling Height Maximum | 10.5 ft. |
| Shipping Length; IN | 37.9 |
| Shipping Width; IN | 37.4 |
| Shipping Height; IN | 23.8 |
| Shipping Weight; LBS | 121.2 |
| Shipping Method | LTL |
| Freight Class | 250 |
| Certification # | E503546 |
| Clean Filter Alert | Yes |
| Duct Type | Vertical |
| Duct Type | Vertical |
