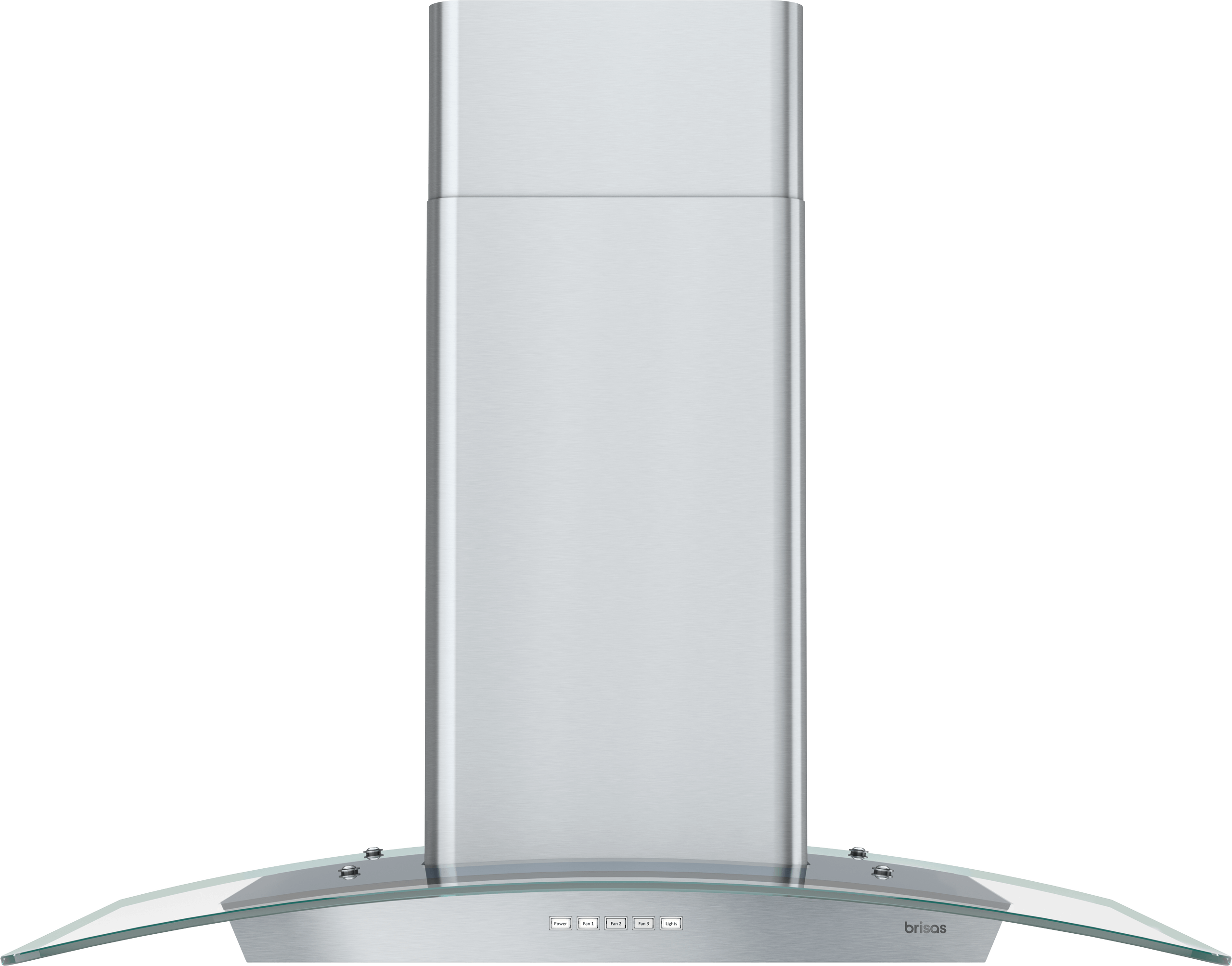

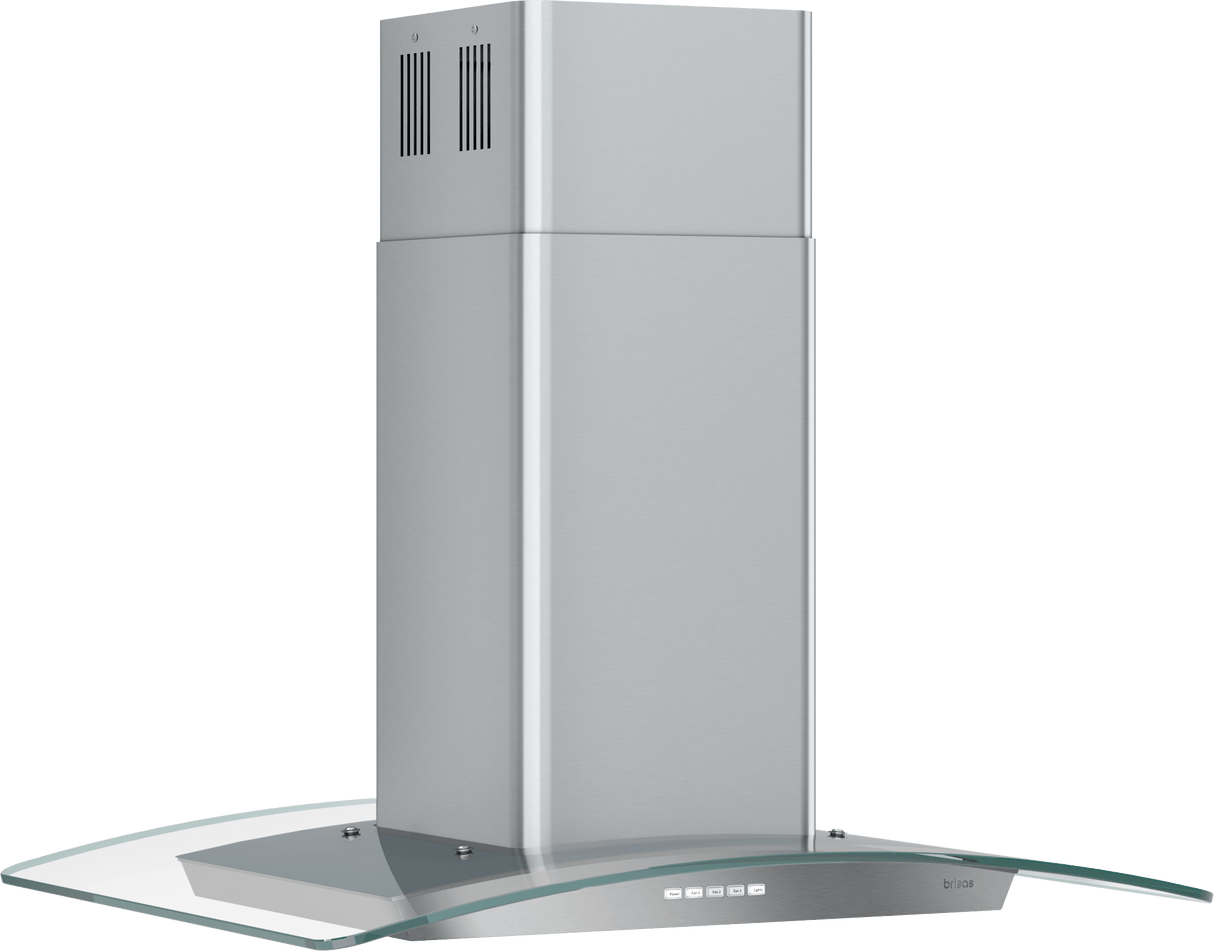

Brisas Curved Glass Island, 30" G, ACT, LED
Model: BMLE30CG
Authorized Dealer
1
of
5
Loading...
Authorized Dealer
Brisas Curved Glass Island, 30" G, ACT, LED
Model: BMLE30CGQuick Specs
Width
29.875"
Depth
25.5625"
Height
28"
Wifi
NO
Energy
NO
Brisas Curved Glass Island, 30" G, ACT, LED is backordered and will ship as soon as it is back in stock.
Message us for availability
Out of Stock
Sale Price
Sale price
$939.00
Regular price
$1,149.00
Unit price
/
Unavailable
You save 18%
SERVICES AVAILABLE
Selection will add
$0.00
to the price
Couldn't load pickup availability
Quick Specs
Width
29.875"
Depth
25.5625"
Height
28"
Wifi Connected
NO
Energy Star Rated
NO

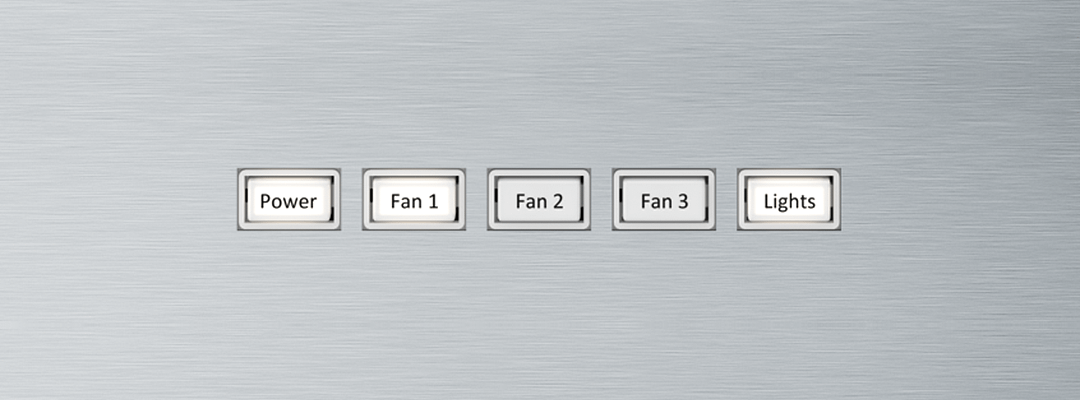

- Electronic Touch Controls
- Electronic touch controls adjust the range hood blower and LED light levels, and enable the auto delay-off function.
- Airflow Control Technology™ (ACT™)
- Airflow Control Technology or ACT is an exclusive technology that gives installers the ability to set the maximum CFM levels to meet local code requirements.
- LumiLight LED Lighting
- LumiLight LED lights are eco-friendly and built to last with a lifetime of more than 25,000 hours.
- Dishwasher Safe Aluminum Mesh Filters
- High-quality, dishwasher-safe aluminum mesh filters for improved capture and performance.
- Quick-Lock Installation System
- Zephyrs Quick-Lock Installation System is an innovative, hassle-free method for installing island range hoods. A quick-lock motion lets the user assemble the frame, lift the hood and lock it into place on the frame and then assemble the 4-piece duct covers. This easy three-step process ensures the island hood is securely installed without additional build-out required. While most island range hood installations require at least three people, Zephyrs Quick-Lock Installation can be completed by one or two people.
- Optional Ductless Recirculating Kit
- Ductless recirculating kit used when venting air outside your home is not possible. Smoke and odors pass through charcoal filters allowing purified air to be reintroduced into the kitchen.
- Optional Extension Duct Cover Kit
- Extension duct cover kit to accommodate ceiling heights up to 12 ft see spec sheets for more details.
- Electronic Touch Controls
- Airflow Control Technology(TM) (ACT(TM))
- LumiLight LED Lighting
- Dishwasher Safe Aluminum Mesh Filters
- Quick-Lock Installation System
- Optional Ductless Recirculating Kit
- Optional Extension Duct Cover Kit
Brisas Curved Glass Island, 30" G, ACT, LED
| Brand | Brisas by Zephyr |
| Manufacturer | Zephyr |
| Category | Range Hood |
| Sub-Category | Island |
| Vent Type | Convertible |
| UPC | 646328012570 |
| GTIN | 00646328012570 |
| Country of Origin | Taiwan |
| Model Group | BML-C |
| Model Name | Brisas BML |
| Collection | Brisas |
| Blower Included | Yes |
| Blower CFM w/ACT | 390, 290 |
| Internal Blower 1 CFM | 600 |
| Internal Blower 1 Max Sones | 6 |
| Minimum CFM | 290 |
| Installation Type | Island |
| Installation Type | Island |
| For Outdoor Use | No |
| Color | Stainless Steel + Glass |
| Controls Type | Electronic |
| Blower Speeds | 3 |
| Automatic Delay-Off | Yes |
| Clean Air Function | No |
| Lighting Type | LED |
| Lights Quantity | 2 |
| Watts Per Bulb | 6 |
| Lights Levels | 2 |
| Grease Filter Type | Mesh |
| Compatible Mesh or Baffle Filter Part Number | 50200071 |
| Duct Discharge | Vertical |
| Duct Size; Vertical; IN | 6 |
| Mounting Height Above Cooktop; IN | 24 - 34 |
| Voltage | 120 |
| Maximum Amperage | 2.7 |
| ADA Compliant | No |
| Warranty Parts / Labor | 1 / 1 |
| Compatible Appliances | BRC-0107, B1C-00ML |
| Bluetooth Connected | No |
| Wi-Fi Connected | No |
| Remote Included | No |
| Remote Optional | No |
| Energy Star Certified | No |
| Alexa & Google Home Compatible | No |
| CEC Title 20 Compliant | Yes |
| Primary Material | Stainless Steel |
| Wattage | 320 |
| Certification | UL |
| Nominal Width; IN | 30 |
| Net Width; IN | 29.875 |
| Net Depth; IN | 25.5625 |
| Net Height; IN | 28 - 37 |
| Weight; LBS | 71 |
| Ceiling Height Minimum | 8 ft. |
| Ceiling Height Maximum | 9 ft. |
| Shipping Length; IN | 48 |
| Shipping Width; IN | 45 |
| Shipping Height; IN | 35 |
| Shipping Weight; LBS | 121 |
| Shipping Method | LTL |
| Freight Class | 250 |
| Certification # | E127334 |
| Clean Filter Alert | Yes |
| Duct Type | Vertical |
| Duct Type | Vertical |
- Electronic Touch Controls
- Airflow Control Technology(TM) (ACT(TM))
- LumiLight LED Lighting
- Dishwasher Safe Aluminum Mesh Filters
- Quick-Lock Installation System
- Optional Ductless Recirculating Kit
- Optional Extension Duct Cover Kit
 | |
|---|---|
