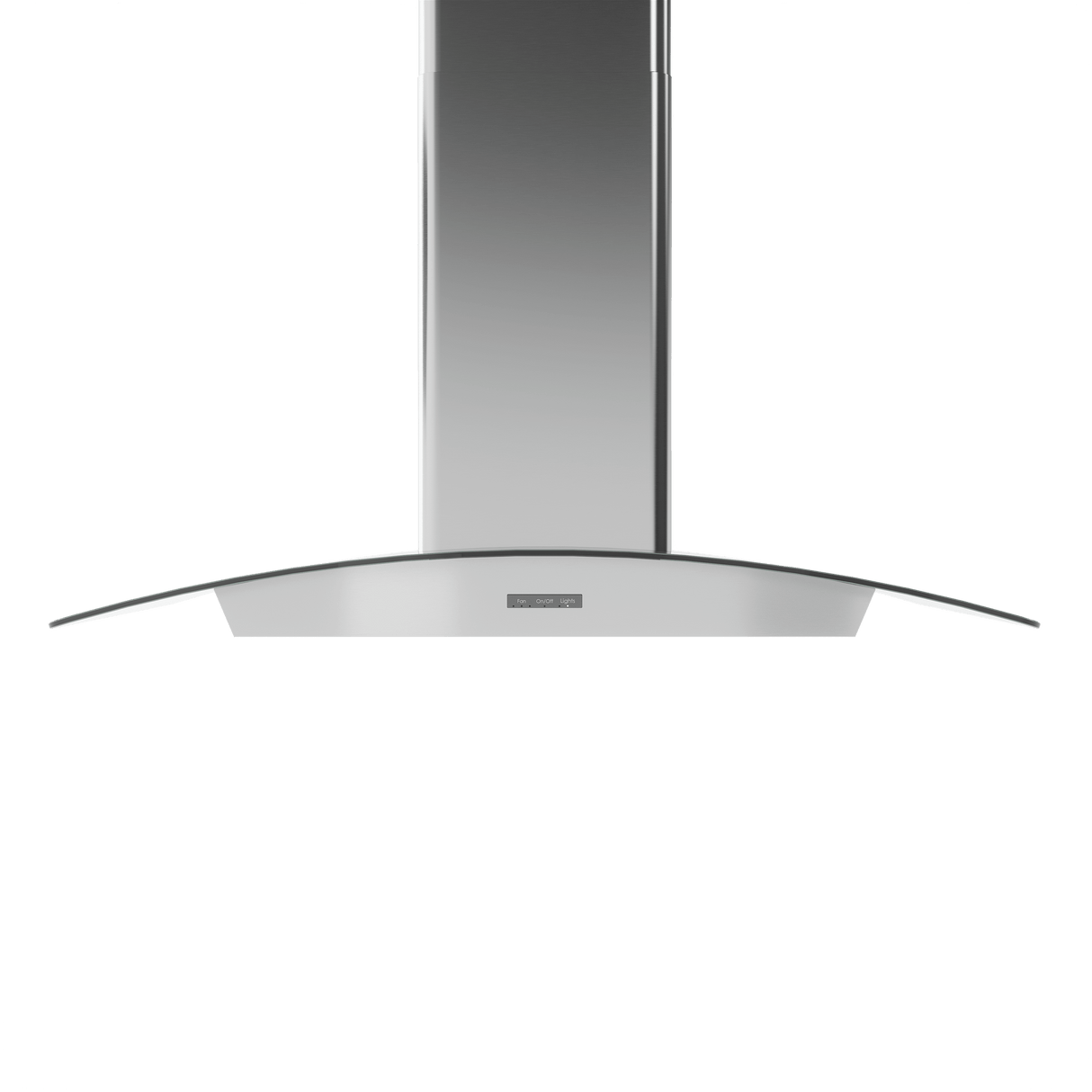

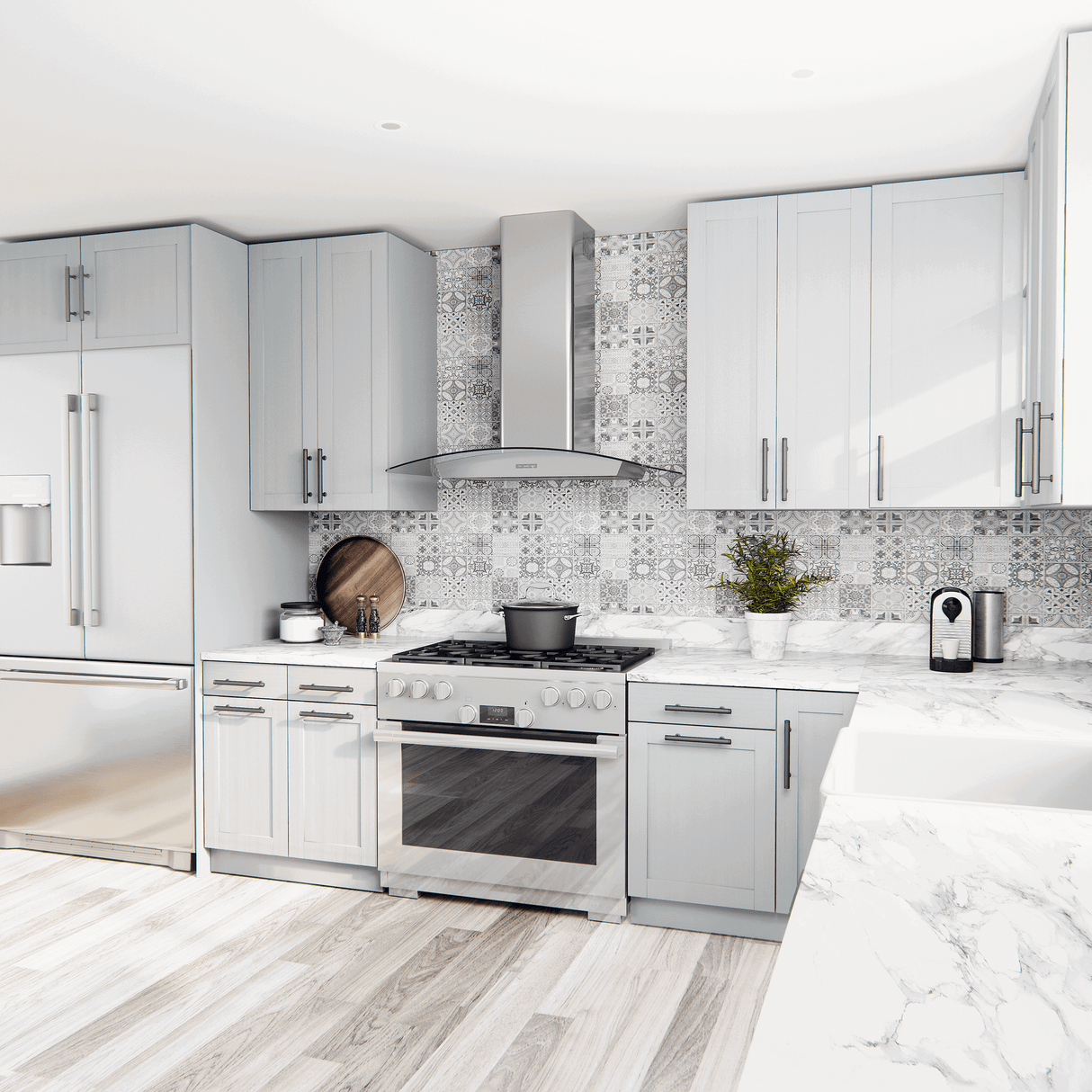

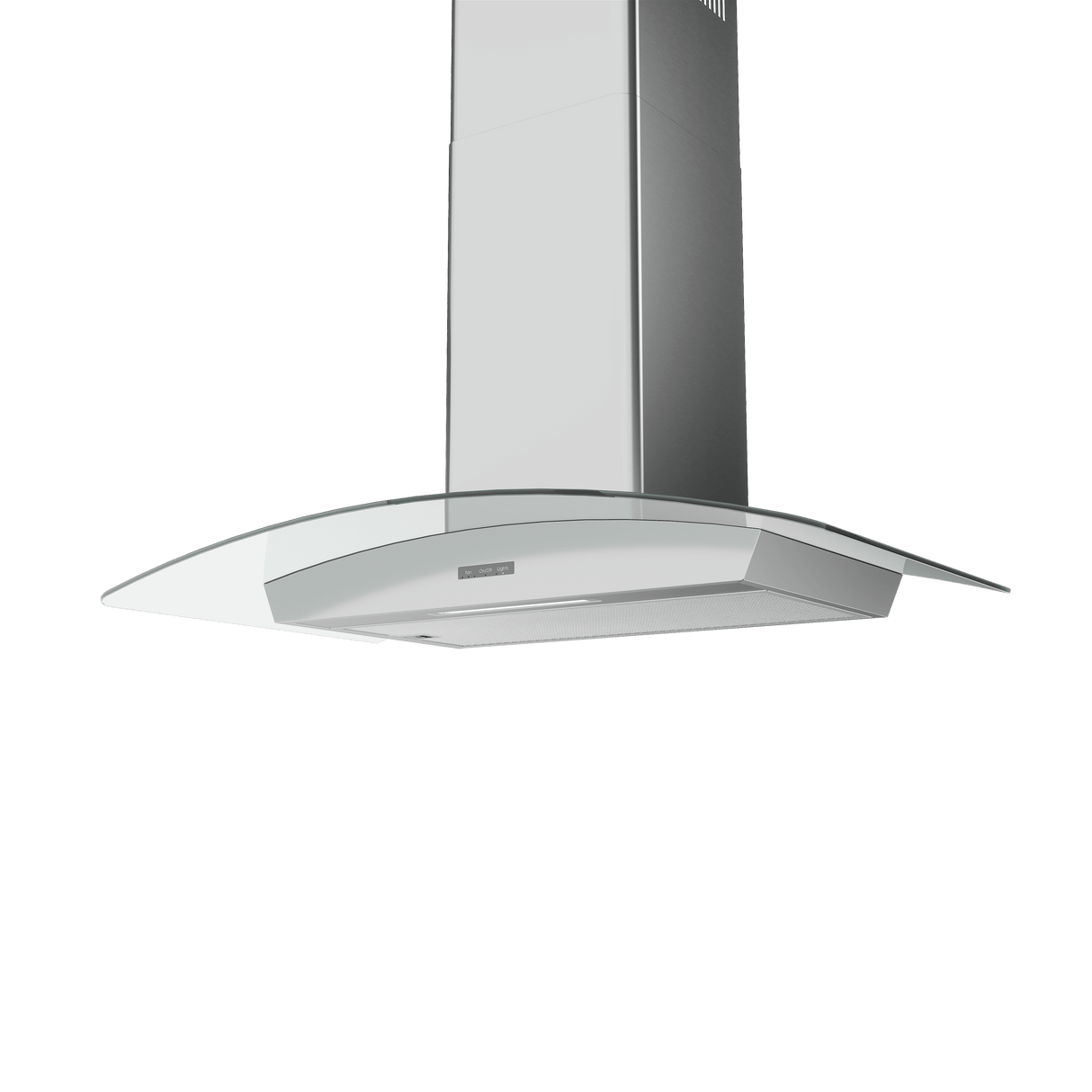

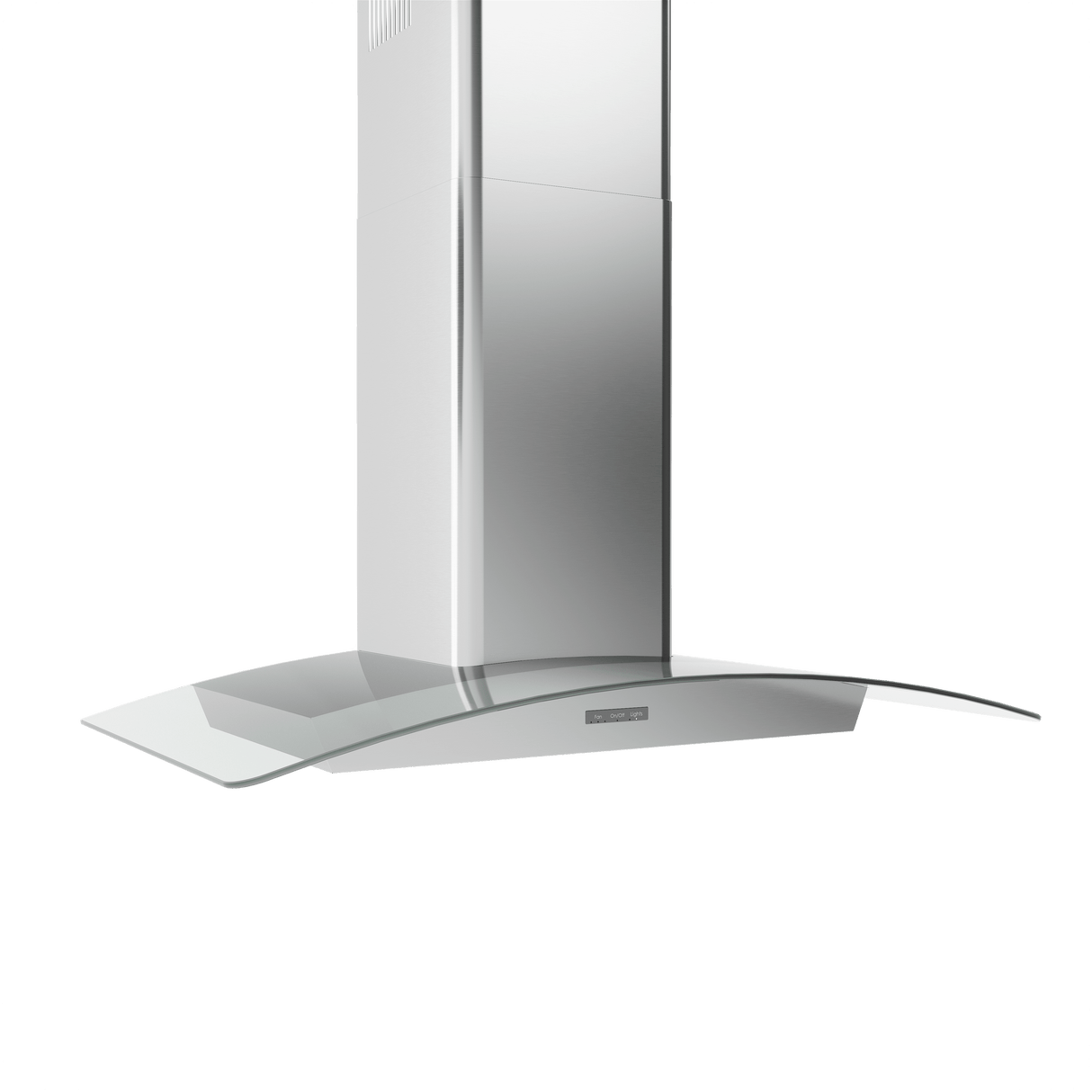

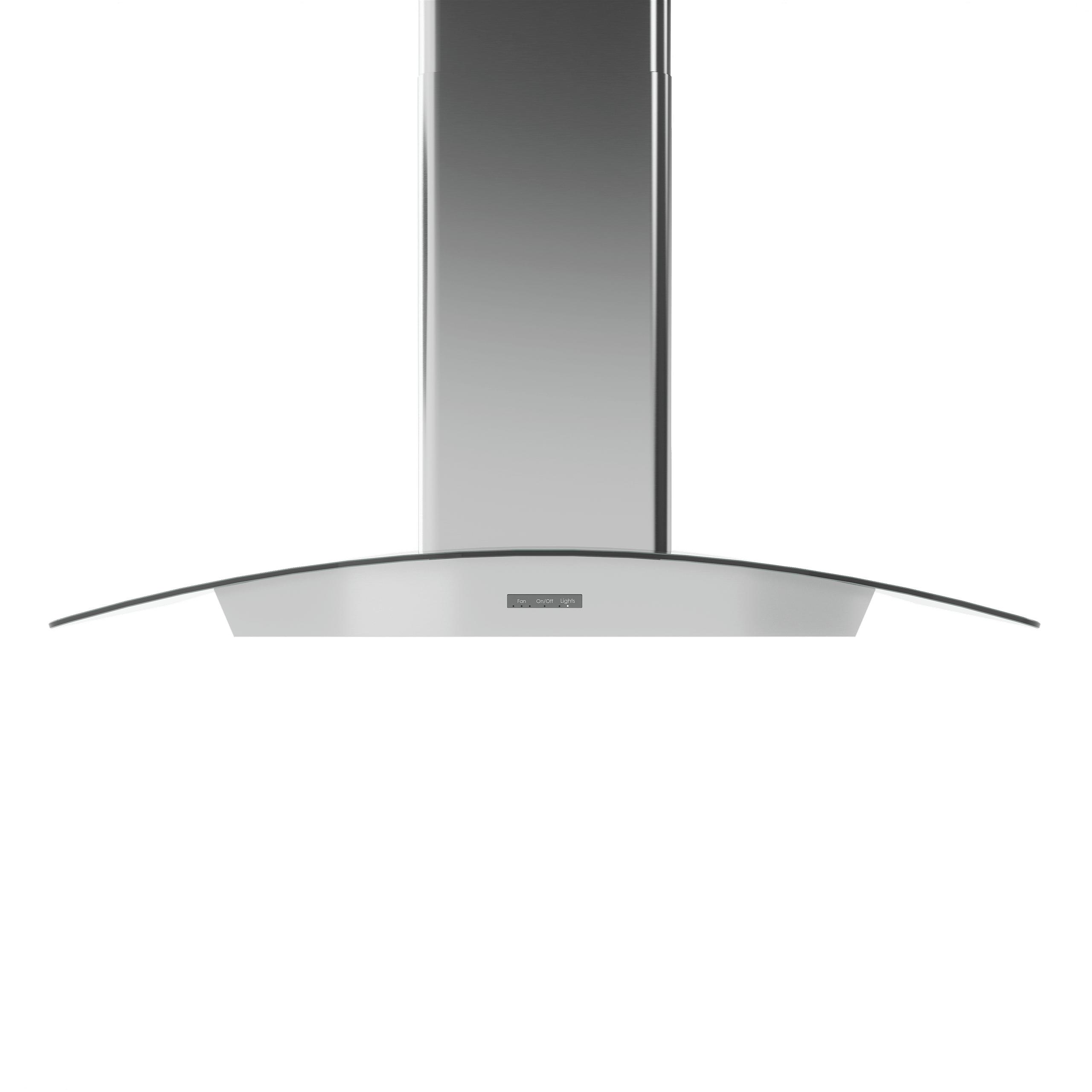

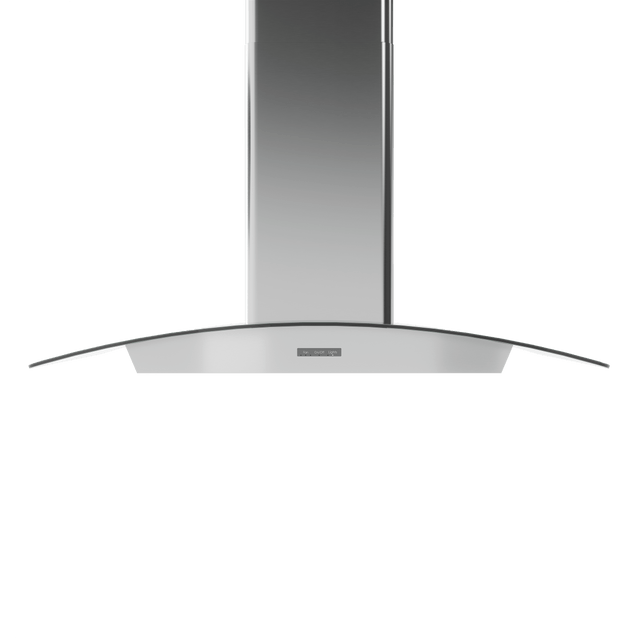

Brisas Curved Glass Chim. Wall, 36" G, 600 CFM, ACT, LED
Model: BMIE36CG
Authorized Dealer
1
of
4
Loading...
Authorized Dealer
Brisas Curved Glass Chim. Wall, 36" G, 600 CFM, ACT, LED
Model: BMIE36CGQuick Specs
Width
35.1875"
Depth
19.75"
Energy
NO
Brisas Curved Glass Chim. Wall, 36" G, 600 CFM, ACT, LED is backordered and will ship as soon as it is back in stock.
Message us for availability
Out of Stock
Regular price
$849.00
Unit price
/
Unavailable
SERVICES AVAILABLE
Selection will add
$0.00
to the price
Couldn't load pickup availability
Quick Specs
Width
35.1875"
Depth
19.75"
Energy Star Rated
NO
- Capacitive Touch Controls
- Capacitive touch controls utilize the same touch technology as your smart phone for a more integrated user interface.
- Airflow Control Technology™ (ACT™)
- Airflow Control Technology or ACT is an exclusive technology that gives installers the ability to set the maximum CFM levels to meet local code requirements.
- LED light strip
- This multi-level LED light strip ensures even, warm white lighting while fully illuminating the cooking area.
- Dishwasher Safe Aluminum Mesh Filters
- High-quality, dishwasher-safe aluminum mesh filters for improved capture and performance.
- Dual-Level Lighting
- The dual-level dimmable LEDs require less energy than traditional halogen lights, are cool to the touch, and provide uniform light distribution.
- Optional Ductless Recirculating Kit
- Ductless recirculating kit used when venting air outside your home is not possible. Smoke and odors pass through charcoal filters allowing purified air to be reintroduced into the kitchen.
- Optional Extension Duct Cover Kit
- Extension duct cover kit to accommodate ceiling heights up to 12 ft see spec sheets for more details.
- Capacitive Touch Controls
- Airflow Control Technology(TM) (ACT(TM))
- LED light strip
- Dishwasher Safe Aluminum Mesh Filters
- Dual-Level Lighting
- Optional Ductless Recirculating Kit
- Optional Extension Duct Cover Kit
Brisas Curved Glass Chim. Wall, 36" G, 600 CFM, ACT, LED
| Brand | Brisas by Zephyr |
| Manufacturer | Zephyr |
| Category | Range Hood |
| Sub-Category | Wall |
| Vent Type | Convertible |
| UPC | 646328007385 |
| GTIN | 00646328007385 |
| Country of Origin | Taiwan |
| Model Group | BMI-C |
| Model Name | Brisas BMI Wall |
| Collection | Brisas |
| Replacement Model | BMI-E36DG |
| Blower Included | Yes |
| Blower CFM w/ACT | 390, 290 |
| Internal Blower 1 CFM | 600 |
| Internal Blower 1 Max Sones | 6 |
| Minimum CFM | 290 |
| Installation Type | Wall |
| Installation Type | Wall |
| For Outdoor Use | No |
| Color | Stainless Steel + Glass |
| Controls Type | Capacitive Touch |
| Blower Speeds | 3 |
| Automatic Delay-Off | Yes |
| Clean Air Function | No |
| Lighting Type | LED |
| Lights Quantity | 1 |
| Watts Per Bulb | 5 |
| Lights Levels | 2 |
| Grease Filter Type | Mesh |
| Compatible Mesh or Baffle Filter Part Number | 50200044 |
| Duct Discharge | Vertical |
| Duct Size; Vertical; IN | 6 |
| Mounting Height Above Cooktop; IN | 24 - 34 |
| Voltage | 120 |
| Maximum Amperage | 2.6 |
| ADA Compliant | No |
| Warranty Parts / Labor | 1 / 1 |
| Compatible Appliances | BRC-0006, B1C-00MI |
| Bluetooth Connected | No |
| Wi-Fi Connected | No |
| Remote Included | No |
| Remote Optional | No |
| Energy Star Certified | No |
| Alexa & Google Home Compatible | No |
| CEC Title 20 Compliant | Yes |
| Primary Material | Stainless Steel |
| Wattage | 320 |
| Certification | UL |
| Nominal Width; IN | 36 |
| Net Width; IN | 35.1875 |
| Net Depth; IN | 19.75 |
| Net Height; IN | 23 - 42 |
| Weight; LBS | 53 |
| Shipping Length; IN | 38.7 |
| Shipping Width; IN | 21.9 |
| Shipping Height; IN | 25.5 |
| Shipping Weight; LBS | 59.4 |
| Shipping Method | LTL |
| Freight Class | 300 |
| Certification # | E127334 |
| Clean Filter Alert | Yes |
| Duct Type | Vertical |
| Duct Type | Vertical |
- Capacitive Touch Controls
- Airflow Control Technology(TM) (ACT(TM))
- LED light strip
- Dishwasher Safe Aluminum Mesh Filters
- Dual-Level Lighting
- Optional Ductless Recirculating Kit
- Optional Extension Duct Cover Kit
 | |
|---|---|
