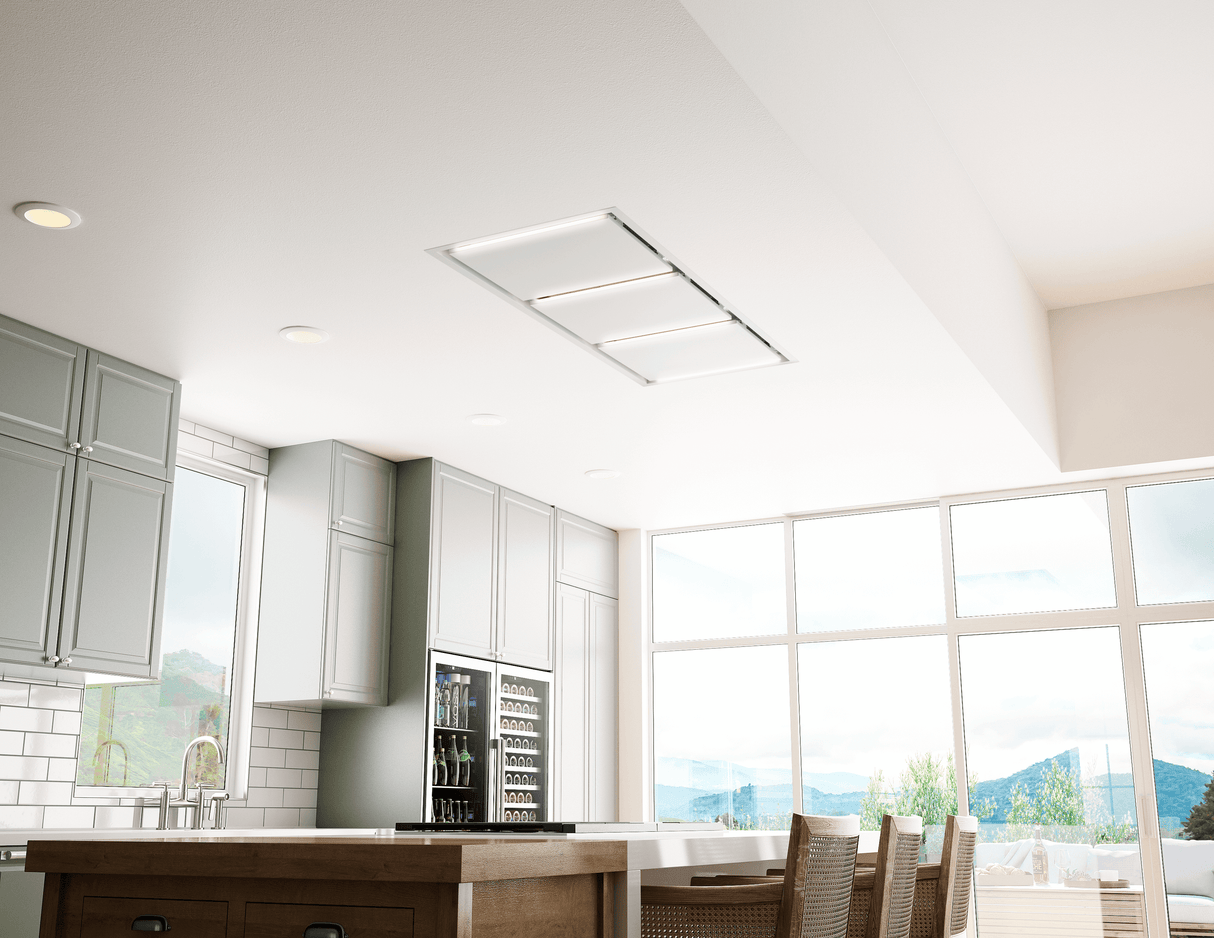

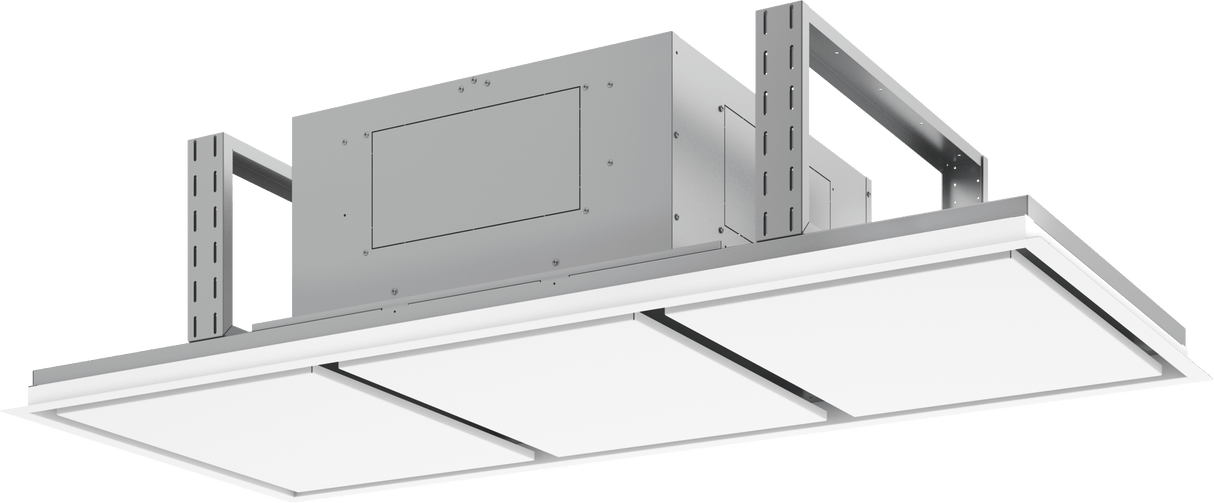

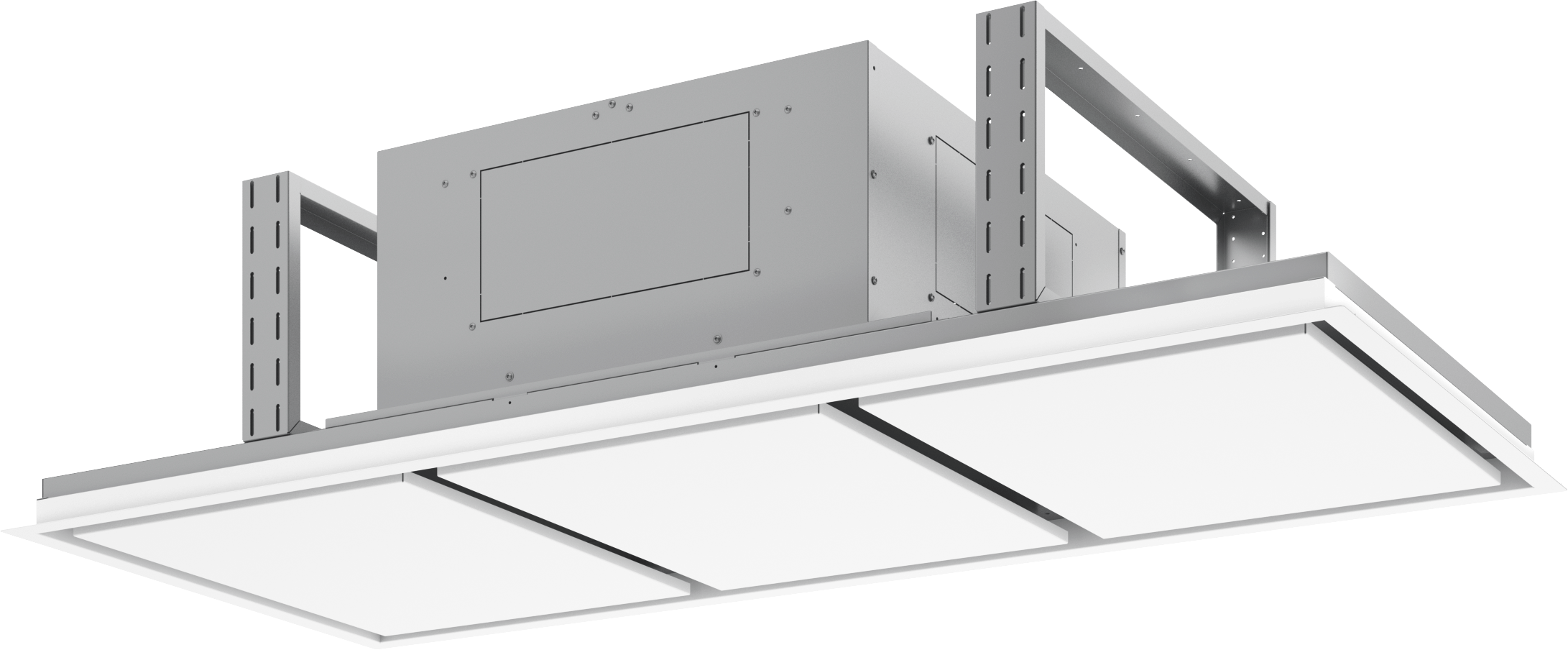

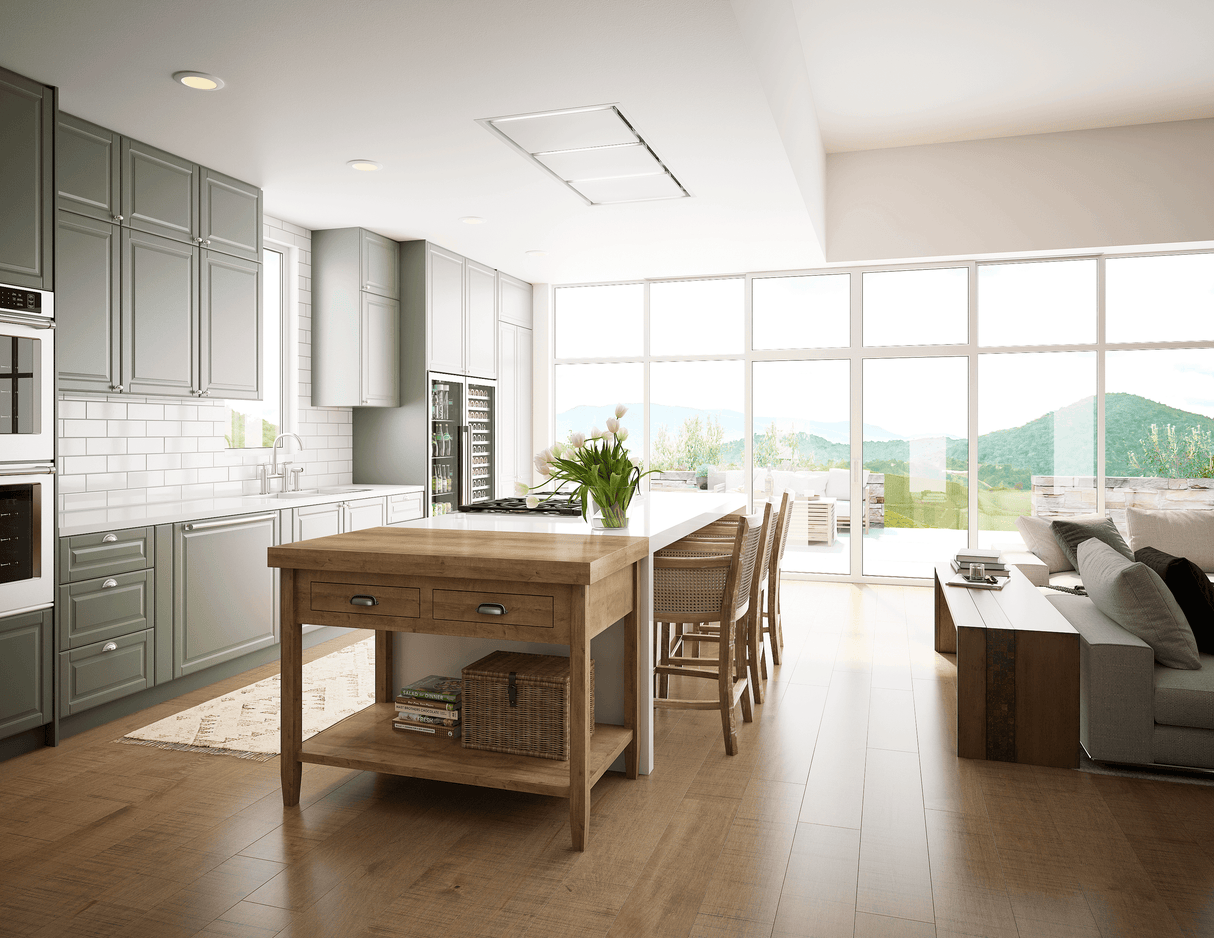

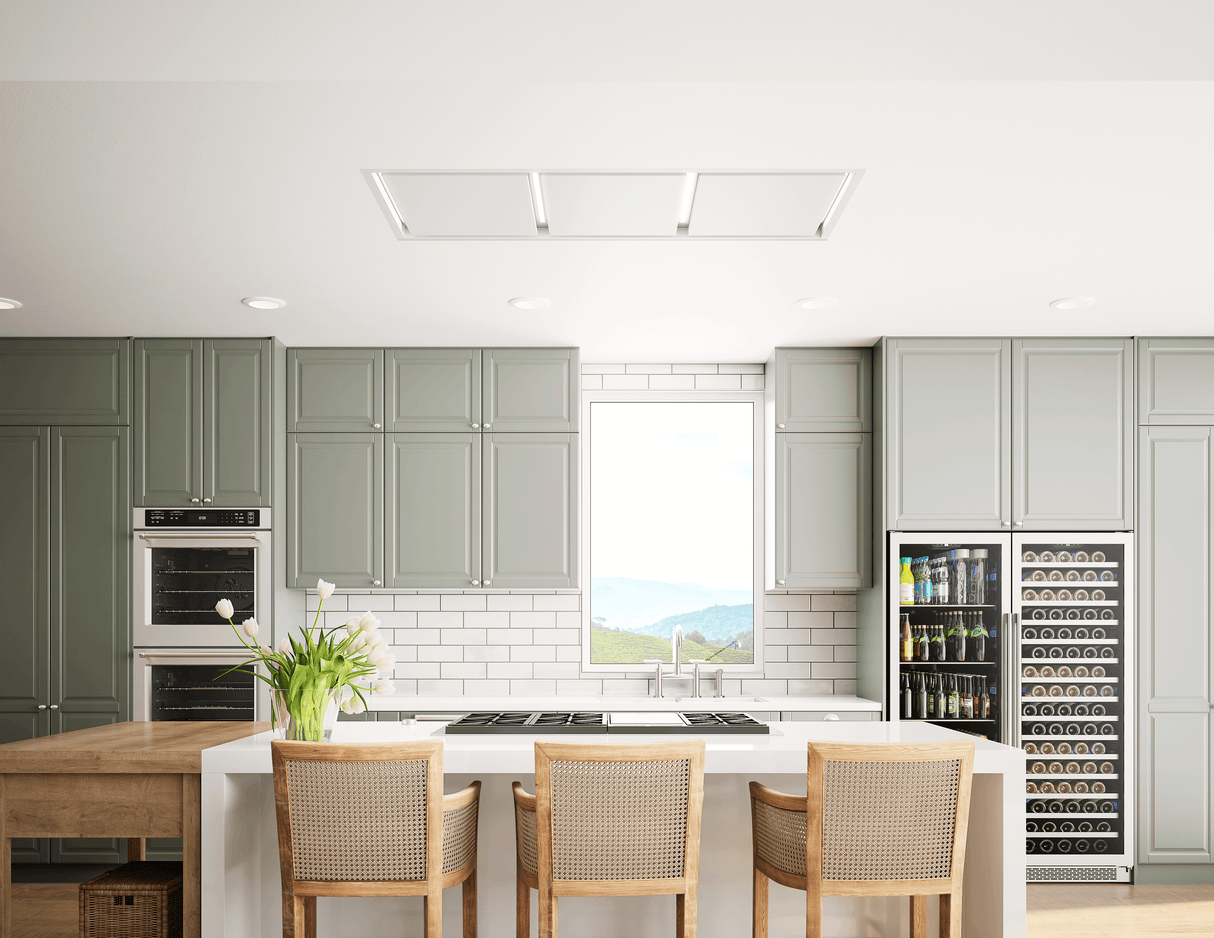

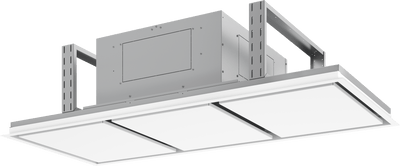

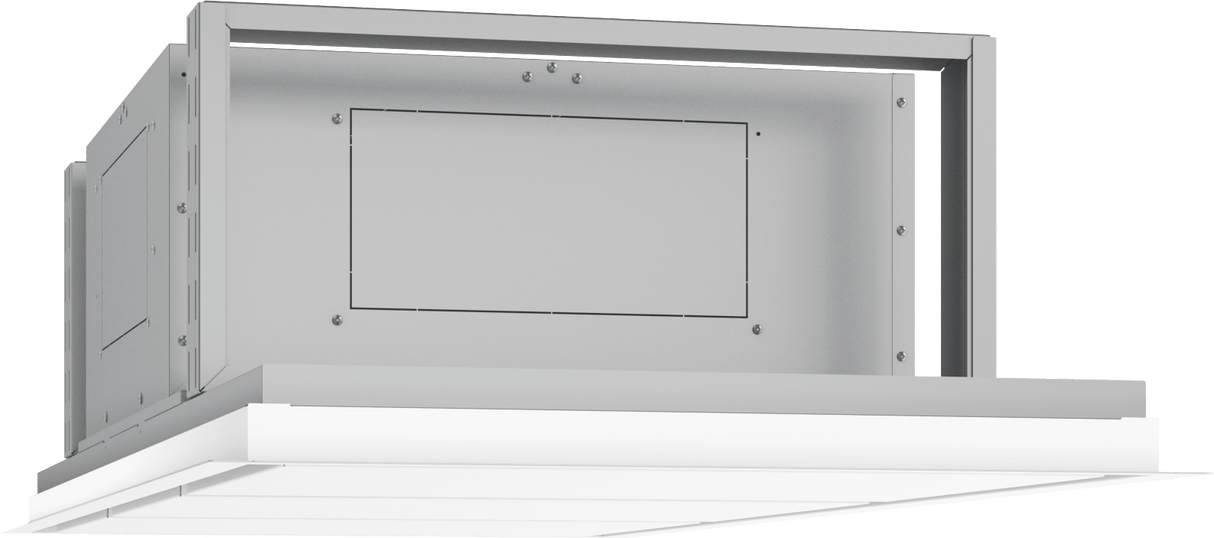

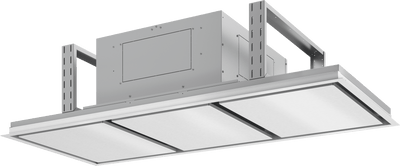

Lux Connect, 63in, White, LED, BODY ONLY
Model ALUE63CWX
Authorized Dealer
1
of
6
Loading...
Authorized Dealer
Lux Connect, 63in, White, LED, BODY ONLY
Model ALUE63CWXQuick Specs
Depth
23.62"
Height
27.56"
Energy
NO
Lux Connect, 63in, White, LED, BODY ONLY is backordered and will ship as soon as it is back in stock.
This item qualifies for free delivery
Ships Out Within: 2 - 4 Business Days
Shipping Date By: 06/29/2026
Sale Price
$3,099.00
$3,299.00
You save 6%
SERVICES AVAILABLE
Selection will add
$0.00
to the price
Couldn't load pickup availability
Quick Specs
Depth
23.62"
Height
27.56"
Energy Star Rated
NO
- Compatible with Zephyr Connect App
- The Zephyr Connect app allows customers to remotely control their range hoods from anywhere using a mobile device.
- Includes wireless remote control
- Our wireless remote control places the hoods operations at your fingertips from anywhere in the kitchen.
- LED light strip
- This multi-level LED light strip ensures even, warm white lighting while fully illuminating the cooking area.
- Perimeter Aspiration System
- This form of ventilation moves airflow away from the central area and evenly distributes it around the perimeter of the hood. This technique increases air velocity and improves the capture of cooking contaminates.
- Multiple Blower Options
- Multiple blower options are available to fit your application.
- CleanAir Function
- The CleanAir Function powers the hood on every four hours for 10 minutes to refresh the cooking area.
- Optional Ductless Recirculating Kit
- Ductless recirculating kit used when venting air outside your home is not possible. Smoke and odors pass through charcoal filters allowing purified air to be reintroduced into the kitchen.
- Compatible with Zephyr Connect App
- Includes wireless remote control
- LED light strip
- Perimeter Aspiration System
- Multiple Blower Options
- CleanAir Function
- Optional Ductless Recirculating Kit
Lux Connect, 63in, White, LED, BODY ONLY
| Brand | Zephyr |
| Manufacturer | Zephyr |
| Category | Range Hood |
| Sub-Category | Island |
| Vent Type | Convertible |
| UPC | 646328010484 |
| GTIN | 00646328010484 |
| Country of Origin | Taiwan |
| Model Group | ALU-C |
| Model Name | Lux Connect Island |
| Collection | Designer Collection |
| Blower Included | No |
| Internal Blower 1 CFM | 290 |
| Internal Blower 1 Min. Sones | 1.4 |
| Internal Blower 1 Max Sones | 3 |
| Internal Blower 2 CFM | 600 |
| Internal Blower 2 Max Sones | 6 |
| Internal Blower 3 CFM | 1100 |
| Internal Blower 3 Max Sones | 8 |
| In-Line Blower CFM | 1000 |
| External Blower CFM | 1000 |
| Minimum CFM | 200 |
| Installation Type | Island |
| Installation Type | Island |
| For Outdoor Use | No |
| Color | White |
| Controls Type | Capacitive Touch |
| Blower Speeds | 3 |
| Automatic Delay-Off | Yes |
| Clean Air Function | Yes |
| Lighting Type | LED |
| Lights Quantity | 4 |
| Watts Per Bulb | 6 |
| Lights Levels | 3 |
| Grease Filter Type | Mesh |
| Compatible Mesh or Baffle Filter Part Number | 50200046 |
| Duct Discharge | Vertical or Horizontal |
| Duct Size; Horizontal; IN | 6, 10 |
| Duct Size; Vertical; IN | 6, 10 |
| Mounting Height Above Cooktop; IN | 30 - 72 |
| Voltage | 120 |
| Maximum Amperage | 6.5 |
| ADA Compliant | Yes |
| Warranty Parts / Labor | 3 / 1 |
| Compatible Appliances | CBI-290C, CBI-600A, PBI-1100B, PBN-1000A, CBE-1000, CBI-390A, ZRC-01LX, MUA006A, MUA008A, Z0F-C002, 14000005 |
| Bluetooth Connected | No |
| Wi-Fi Connected | Yes |
| Remote Included | Yes |
| Remote Optional | No |
| Energy Star Certified | No |
| Alexa & Google Home Compatible | Yes |
| CEC Title 20 Compliant | Yes |
| Primary Material | Steel |
| Wattage | 780 |
| Certification | UL |
| Nominal Width; IN | 63 |
| Net Width; IN | 63.5 |
| Net Depth; IN | 27.5 |
| Net Height; IN | 14.375 - 23.875 |
| Weight; LBS | 92 |
| Ceiling Height Minimum | 6 ft. |
| Ceiling Height Maximum | 9 ft. |
| Shipping Length; IN | 30.8 |
| Shipping Width; IN | 66.5 |
| Shipping Height; IN | 16.6 |
| Shipping Weight; LBS | 122.2 |
| Shipping Method | LTL |
| Freight Class | 250 |
| Certification # | E127334 |
| Duct Type | Vertical |
| Duct Type | Vertical |
