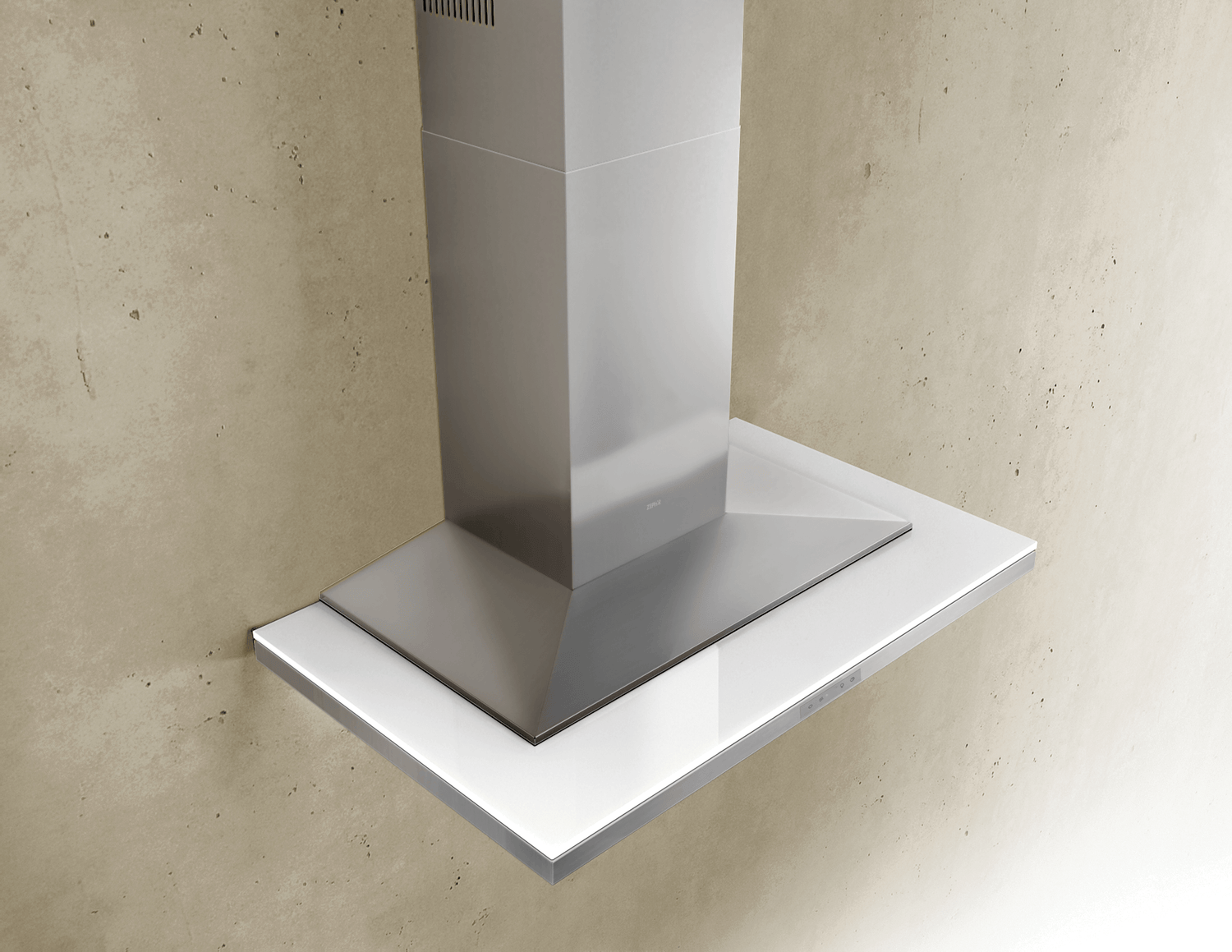

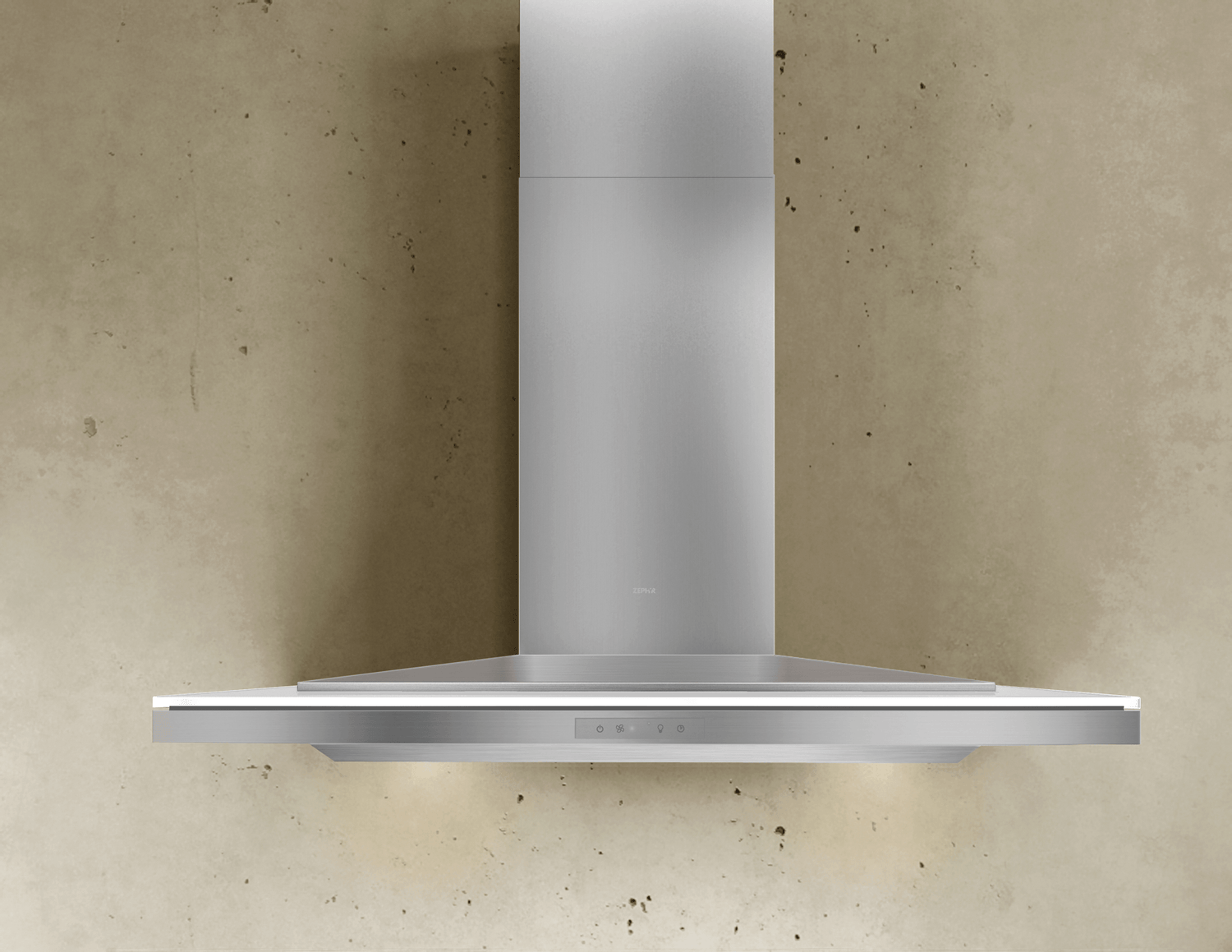

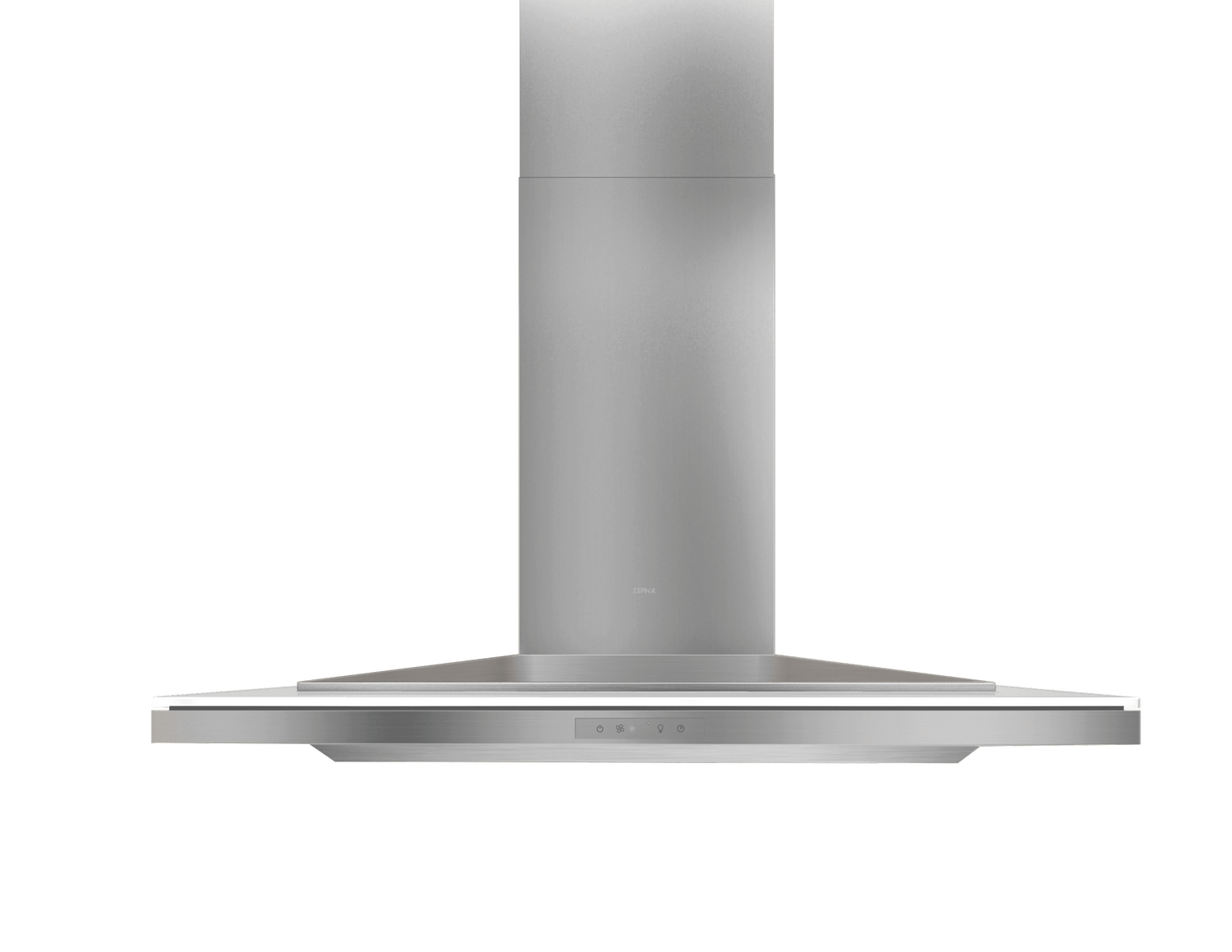

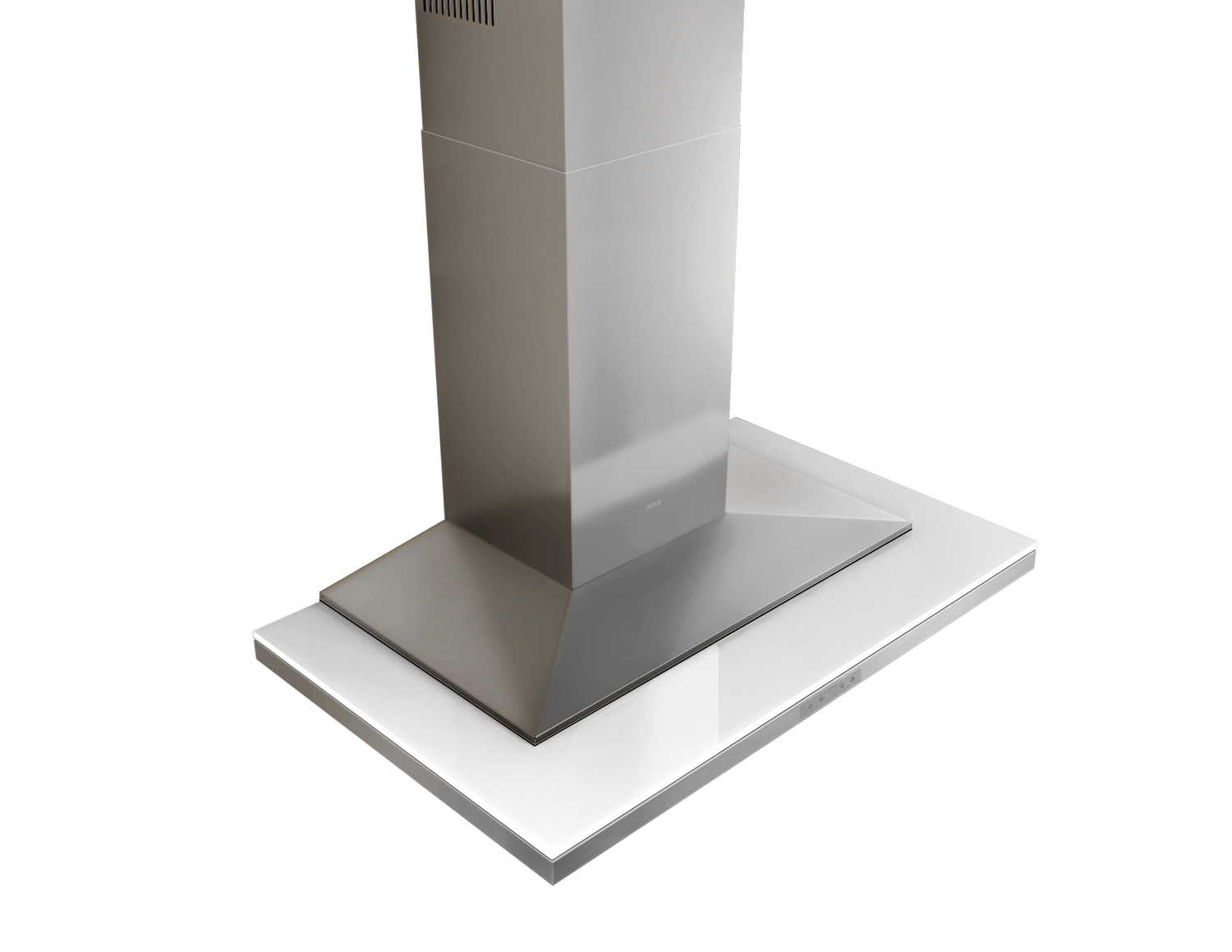

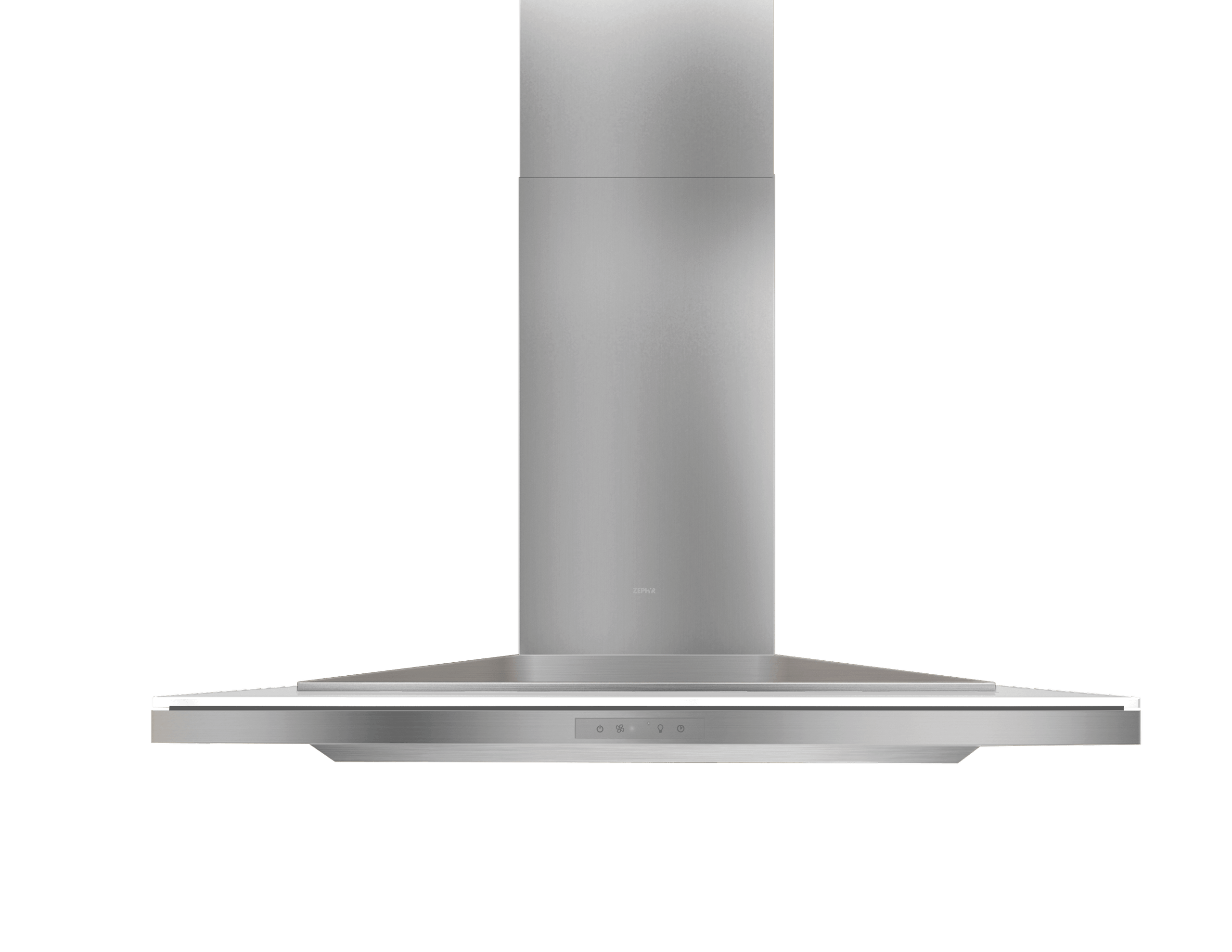

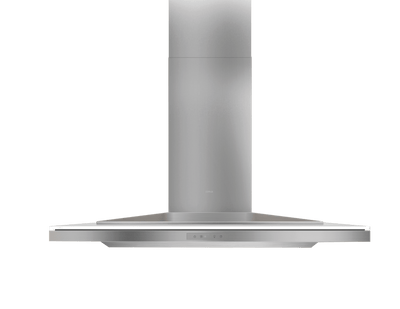

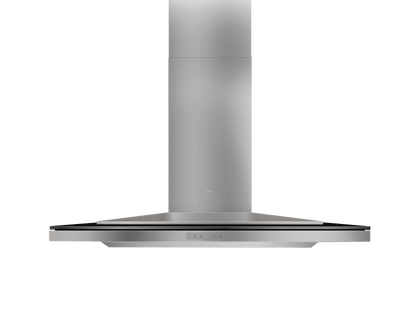

Layers, Wall, 42", SS/Wht Glass, LED, BODY ONLY
Model: ALAE42BWX
Authorized Dealer
1
of
4
Loading...
Authorized Dealer
Layers, Wall, 42", SS/Wht Glass, LED, BODY ONLY
Model: ALAE42BWXQuick Specs
Width
41.9375"
Depth
22"
RPM
-1.0
Energy
NO
Layers, Wall, 42", SS/Wht Glass, LED, BODY ONLY is backordered and will ship as soon as it is back in stock.
We’ll confirm availability & delivery timing before processing your payment.
Available to Order
Regular price
$2,522.00
Unit price
/
Unavailable
SERVICES AVAILABLE
Selection will add
$0.00
to the price
Couldn't load pickup availability
Quick Specs
Width
41.9375"
Depth
22"
RPM
-1.0
Energy Star Rated
NO
- Includes wireless remote control
- Our wireless remote control places the hoods operations at your fingertips from anywhere in the kitchen.
- Invisible Touch Controls
- Invisible touch controls appear when activated and stay hidden when the range hood is not in use.
- Low-profile body
- Low-profile body for a minimalist appearance.
- CleanAir Function
- The CleanAir Function powers the hood on every four hours for 10 minutes to refresh the cooking area.
- Tri-Level Lighting
- The tri-level dimmable LEDs require less energy than traditional halogen lights, are cool to the touch, and provide uniform light distribution.
- Optional extension duct cover kit
- Optional Ductless Recirculating Kit
- Ductless recirculating kit used when venting air outside your home is not possible. Smoke and odors pass through charcoal filters allowing purified air to be reintroduced into the kitchen.
- Includes wireless remote control
- Invisible Touch Controls
- Low-profile body
- CleanAir Function
- Tri-Level Lighting
- Optional extension duct cover kit
- Optional Ductless Recirculating Kit
Layers, Wall, 42", SS/Wht Glass, LED, BODY ONLY
| Brand | Zephyr |
| Manufacturer | Zephyr |
| Category | Range Hood |
| Sub-Category | Wall |
| Vent Type | Convertible |
| UPC | 646328004254 |
| GTIN | 00646328004254 |
| Country of Origin | Italy |
| Model Group | ALA-B |
| Model Name | Layers |
| Collection | Designer Collection |
| Blower Included | No |
| Internal Blower 1 CFM | 290 |
| Internal Blower 1 Min. Sones | 1.4 |
| Internal Blower 1 Max Sones | 3 |
| Internal Blower 2 CFM | 600 |
| Internal Blower 2 Max Sones | 6 |
| In-Line Blower CFM | 1000 |
| External Blower CFM | 1000 |
| Minimum CFM | 180 |
| Installation Type | Wall |
| Installation Type | Wall |
| For Outdoor Use | No |
| Color | Stainless Steel + White |
| Controls Type | Invisible Touch |
| Blower Speeds | 3 |
| Automatic Delay-Off | Yes |
| Clean Air Function | Yes |
| Lighting Type | LED |
| Lights Quantity | 2 |
| Watts Per Bulb | 6 |
| Lights Levels | 3 |
| Grease Filter Type | Decorative Mesh |
| Compatible Mesh or Baffle Filter Part Number | 50200033 |
| Duct Discharge | Vertical |
| Duct Size; Horizontal; IN | N/A |
| Duct Size; Vertical; IN | 6, 8 |
| Mounting Height Above Cooktop; IN | 24 - 36 |
| Voltage | 120 |
| Maximum Amperage | 6.45 |
| ADA Compliant | Yes |
| Warranty Parts / Labor | 1 / 1 |
| Compatible Appliances | ZRC-01LA, Z1C-00LA, MUA006A, MUA008A, Z0F-01AC |
| Bluetooth Connected | No |
| Wi-Fi Connected | No |
| Remote Included | Yes |
| Remote Optional | No |
| Energy Star Certified | No |
| Alexa & Google Home Compatible | No |
| CEC Title 20 Compliant | Yes |
| Primary Material | Stainless Steel |
| Wattage | 138 |
| Certification | UL |
| Nominal Width; IN | 42 |
| Net Width; IN | 41.9375 |
| Net Depth; IN | 22 |
| Net Height; IN | 28 - 50 |
| Weight; LBS | 116 |
| Ceiling Height Minimum | 8 ft. |
| Ceiling Height Maximum | 10 ft. |
| Shipping Length; IN | 25.59 |
| Shipping Width; IN | 46.5 |
| Shipping Height; IN | 24.4 |
| Shipping Weight; LBS | 121.25 |
| Shipping Method | LTL |
| Freight Class | 200 |
| Duct Type | Vertical |
| Duct Type | Vertical |
- Includes wireless remote control
- Invisible Touch Controls
- Low-profile body
- CleanAir Function
- Tri-Level Lighting
- Optional extension duct cover kit
- Optional Ductless Recirculating Kit
 | |
|---|---|
