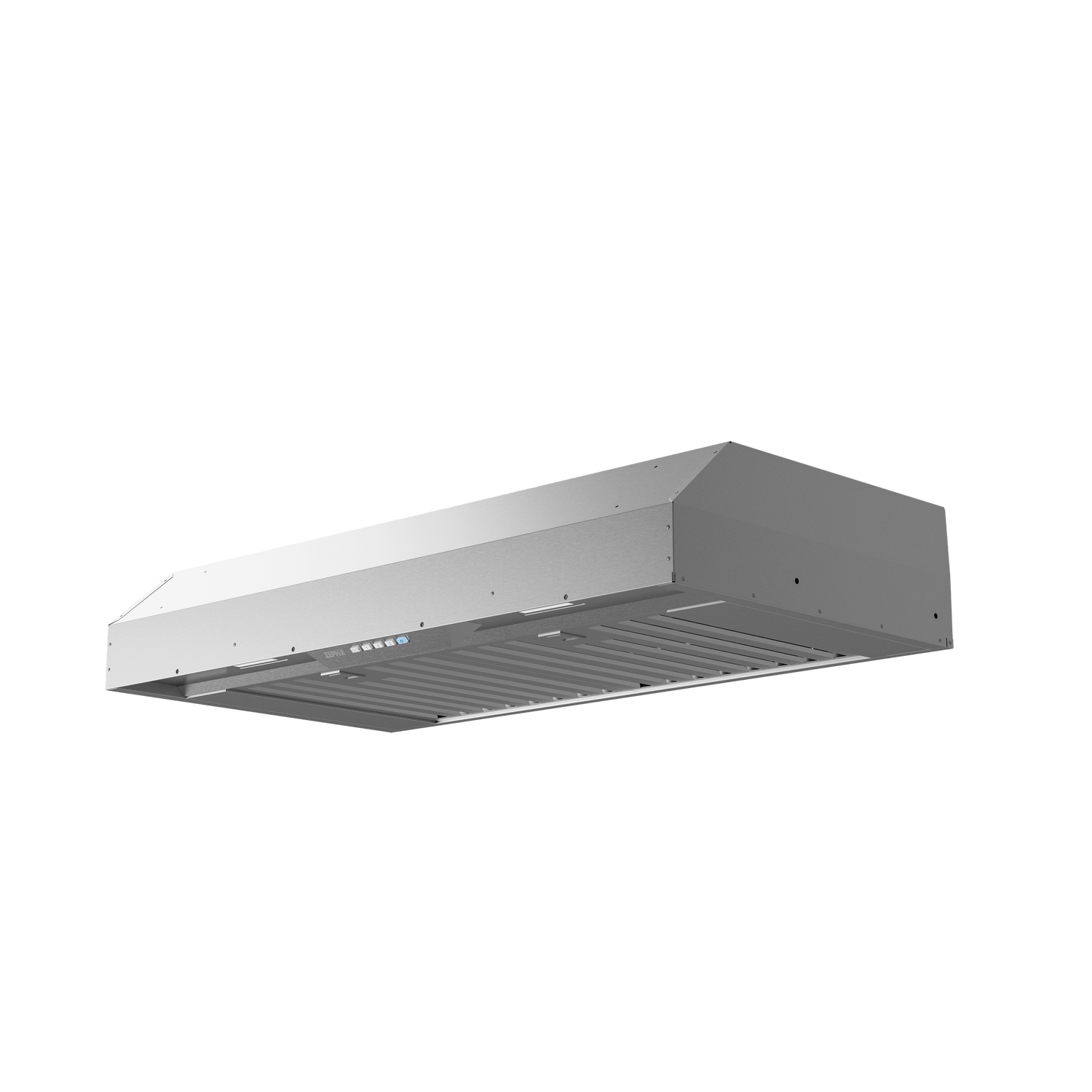

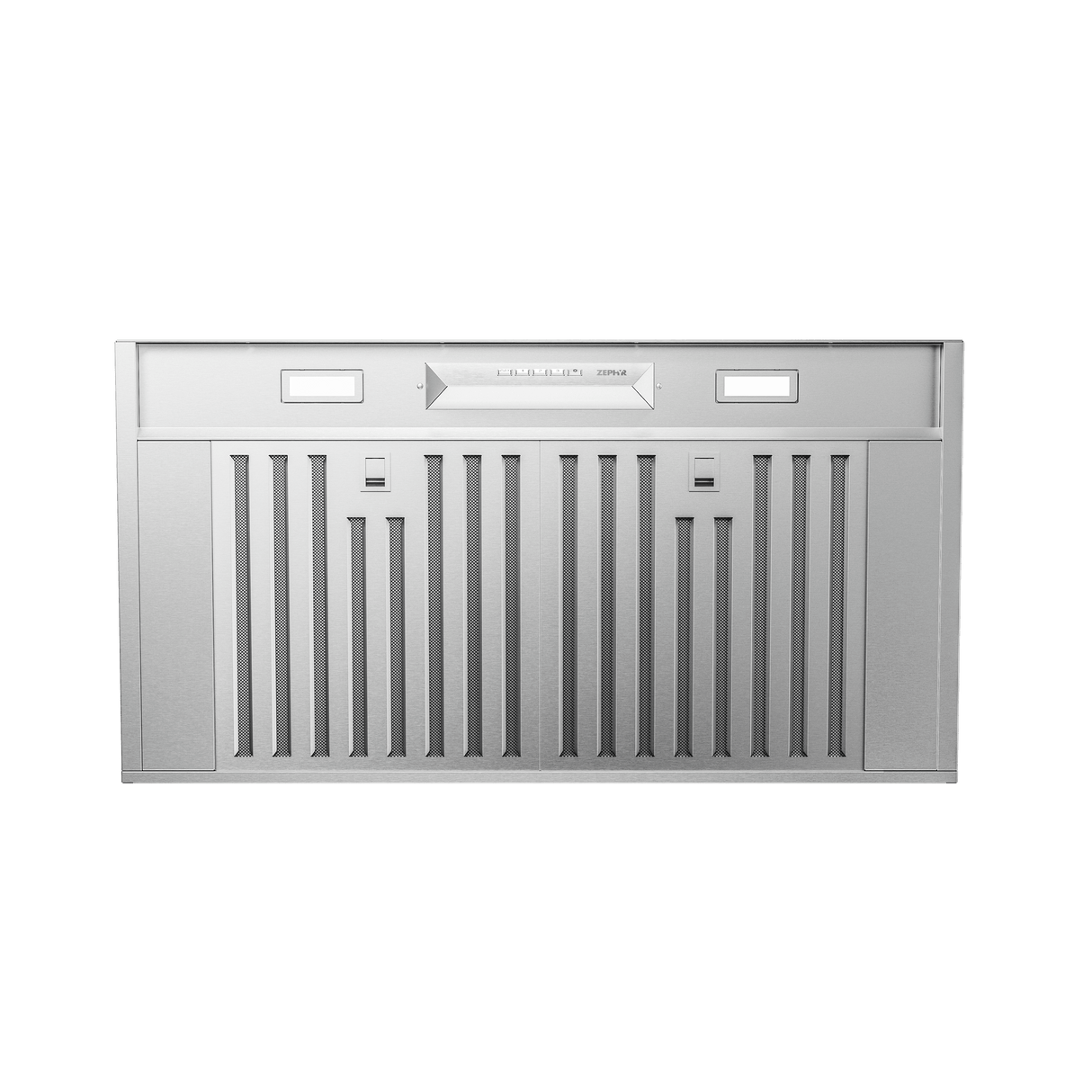

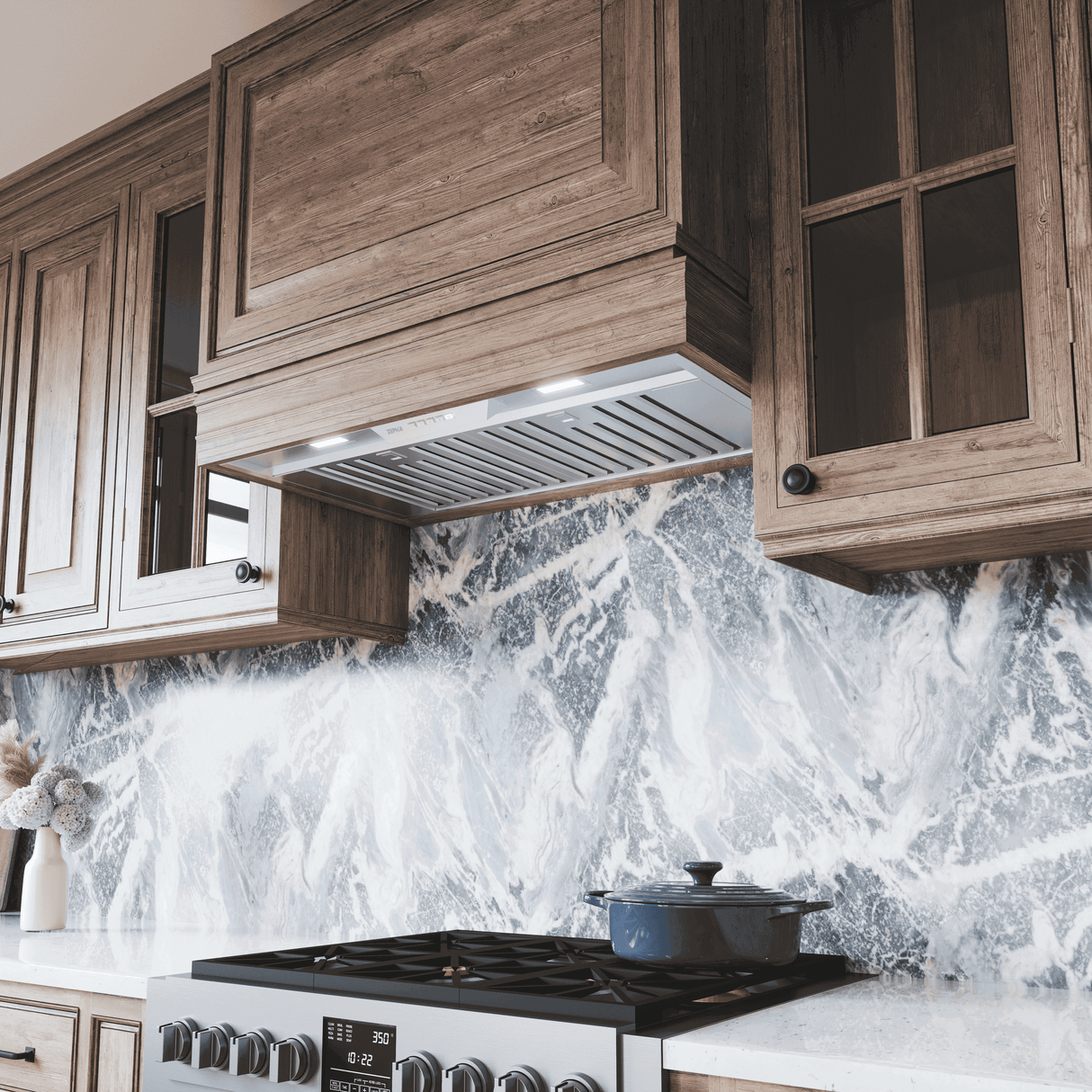

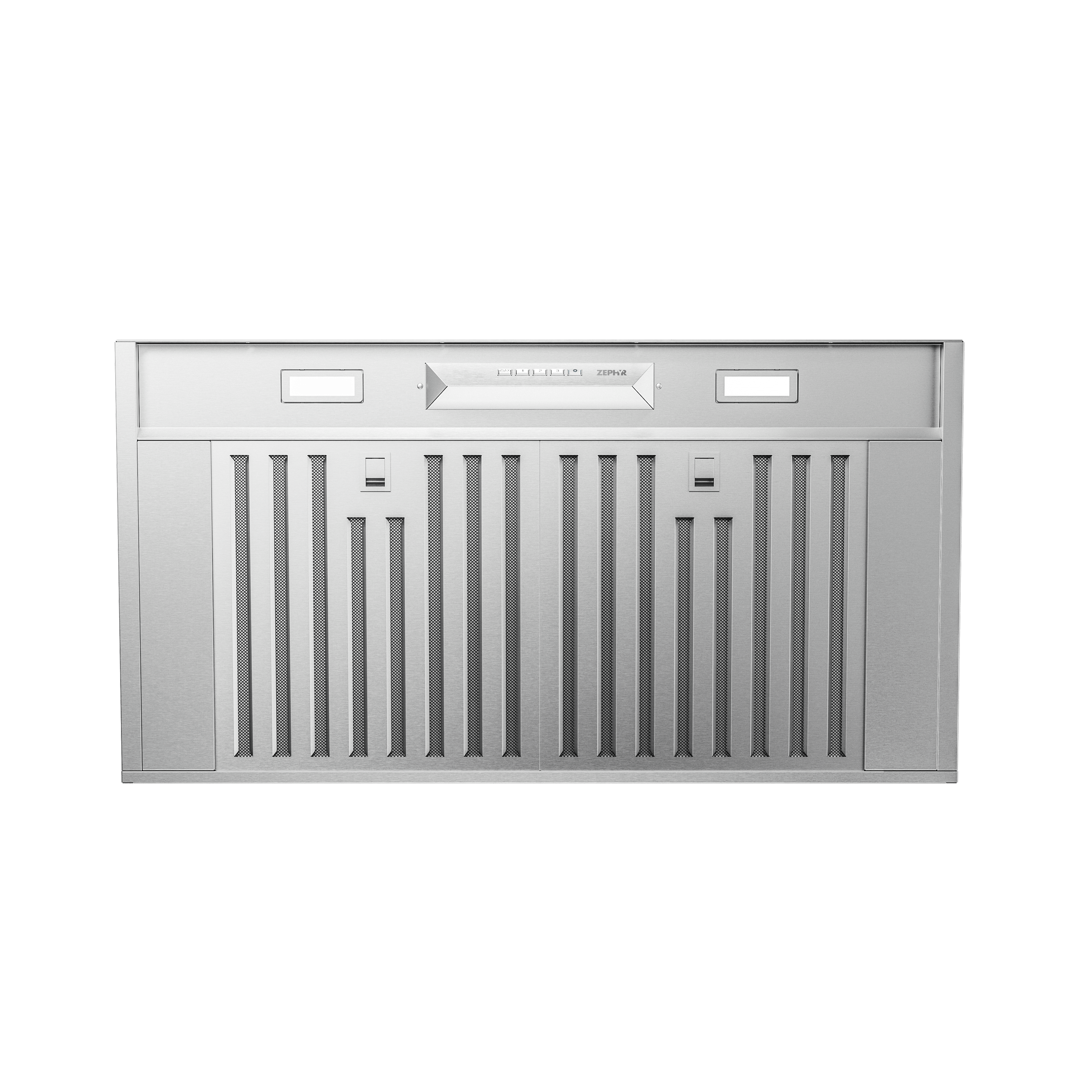

Monsoon Mini II, 36in, SS, LED, ACT
Model AK9534AS
Authorized Dealer
1
of
4
Loading...
Authorized Dealer
Monsoon Mini II, 36in, SS, LED, ACT
Model AK9534ASQuick Specs
Depth
18.06"
Height
6.12"
Energy
NO
Monsoon Mini II, 36in, SS, LED, ACT is backordered and will ship as soon as it is back in stock.
Ships Out Within: 2 - 4 Business Days
Shipping Date By: 06/29/2026
Sale Price
Sale price
$958.73
Regular price
$1,099.00
Unit price
/
Unavailable
You save 12%
SERVICES AVAILABLE
Selection will add
$0.00
to the price
Couldn't load pickup availability
Quick Specs
Depth
18.06"
Height
6.12"
Energy Star Rated
NO
- Electronic Touch Controls
- Electronic touch controls adjust the range hood blower and LED light levels, and enable the auto delay-off function.
- 3 Speed Levels
- Quiet and efficient, three speed levels allow you to control proper airflow depending on your cooking needs.
- LumiLight LED Lighting
- LumiLight LED lights are eco-friendly and built to last with a lifetime of more than 25,000 hours.
- Dual-Level Lighting
- The dual-level dimmable LEDs require less energy than traditional halogen lights, are cool to the touch, and provide uniform light distribution.
- Hybrid Baffle Filters
- Hybrid baffle filters utilize stainless steel baffles for an improved aesthetic and aluminum mesh for efficient filtration.
- Vertical or horizontal ducting
- This hood has the ability to vent either out the top or out the back.
- Optional Ductless Recirculating Kit
- Ductless recirculating kit used when venting air outside your home is not possible. Smoke and odors pass through charcoal filters allowing purified air to be reintroduced into the kitchen.
- Electronic Touch Controls
- 3 Speed Levels
- LumiLight LED Lighting
- Dual-Level Lighting
- Hybrid Baffle Filters
- Vertical or horizontal ducting
- Optional Ductless Recirculating Kit
Monsoon Mini II, 36in, SS, LED, ACT
| Brand | Zephyr |
| Manufacturer | Zephyr |
| Category | Range Hood |
| Sub-Category | Insert |
| Vent Type | Convertible |
| UPC | 646328009914 |
| GTIN | 00646328009914 |
| Country of Origin | Taiwan |
| Model Group | AK95-A |
| Model Name | Monsoon Mini II Insert |
| Collection | Core Collection |
| Blower Included | Yes |
| Blower CFM w/ACT | 390, 290 |
| Internal Blower 1 CFM | 600 |
| Internal Blower 1 Min. Sones | 1.4 |
| Internal Blower 1 Max Sones | 6 |
| Minimum CFM | 200 |
| Installation Type | Insert |
| Installation Type | Insert |
| For Outdoor Use | No |
| Color | Stainless Steel |
| Controls Type | Electronic |
| Blower Speeds | 3 |
| Automatic Delay-Off | Yes |
| Clean Air Function | No |
| Lighting Type | LED |
| Lights Quantity | 2 |
| Watts Per Bulb | 6 |
| Lights Levels | 2 |
| Grease Filter Type | Hybrid Baffle |
| Compatible Mesh or Baffle Filter Part Number | 50210041 |
| Duct Discharge | Vertical or Horizontal |
| Duct Size; Horizontal; IN | 3.25 x 10 |
| Duct Size; Vertical; IN | 7, 3.25 x 10 |
| Mounting Height Above Cooktop; IN | 24 - 34 |
| Voltage | 120 |
| Maximum Amperage | 2 |
| ADA Compliant | No |
| Warranty Parts / Labor | 3 / 1 |
| Compatible Appliances | ZRC-9100A, Z0F-C091, AK00067, MUA006A |
| Bluetooth Connected | No |
| Wi-Fi Connected | No |
| Remote Included | No |
| Remote Optional | No |
| Energy Star Certified | No |
| Alexa & Google Home Compatible | No |
| CEC Title 20 Compliant | Yes |
| CEC Title 24 Compliant | Yes |
| Primary Material | Stainless Steel |
| Wattage | 240 |
| Certification | UL |
| Nominal Width; IN | 36 |
| Net Width; IN | 34.375 |
| Net Depth; IN | 17.875 |
| Net Height; IN | 6.125 |
| Weight; LBS | 33.5 |
| Ceiling Height Minimum | 8 ft. |
| Ceiling Height Maximum | 12 ft. |
| Shipping Length; IN | 39 |
| Shipping Width; IN | 9 |
| Shipping Height; IN | 23 |
| Shipping Weight; LBS | 39 |
| Shipping Method | Small Parcel |
| Freight Class | 100 |
| Certification # | E127334 |
| Clean Filter Alert | Yes |
| Cutout Depth in. | 18 |
| Cutout Width in. | 34.5 |
| Duct Type | Vertical |
| Duct Type | Vertical |
