Monsoon I, Insert, 30in, SS, TruHue
Model: AK9228CS
Authorized Dealer
1
of
5
Loading...
Authorized Dealer

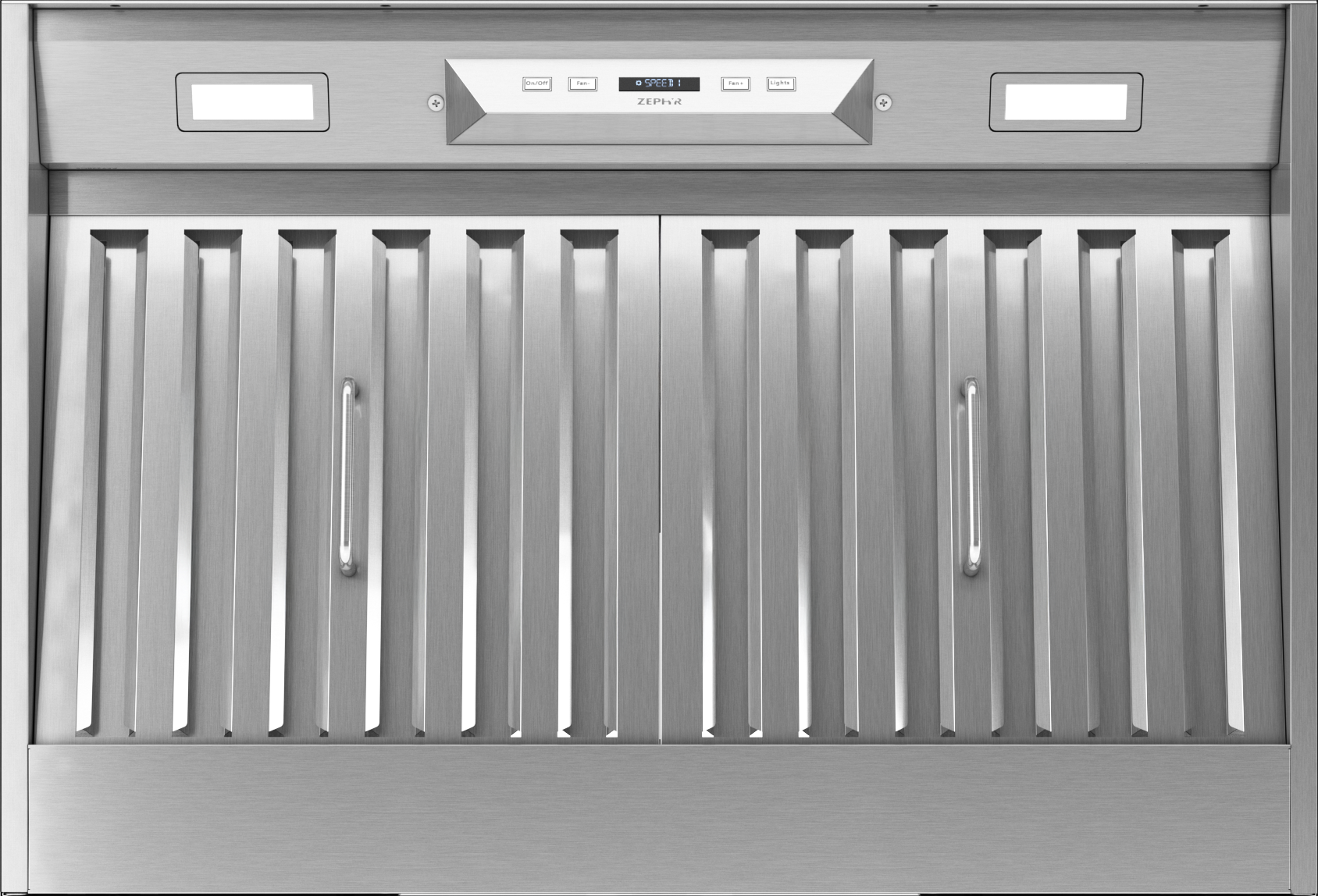

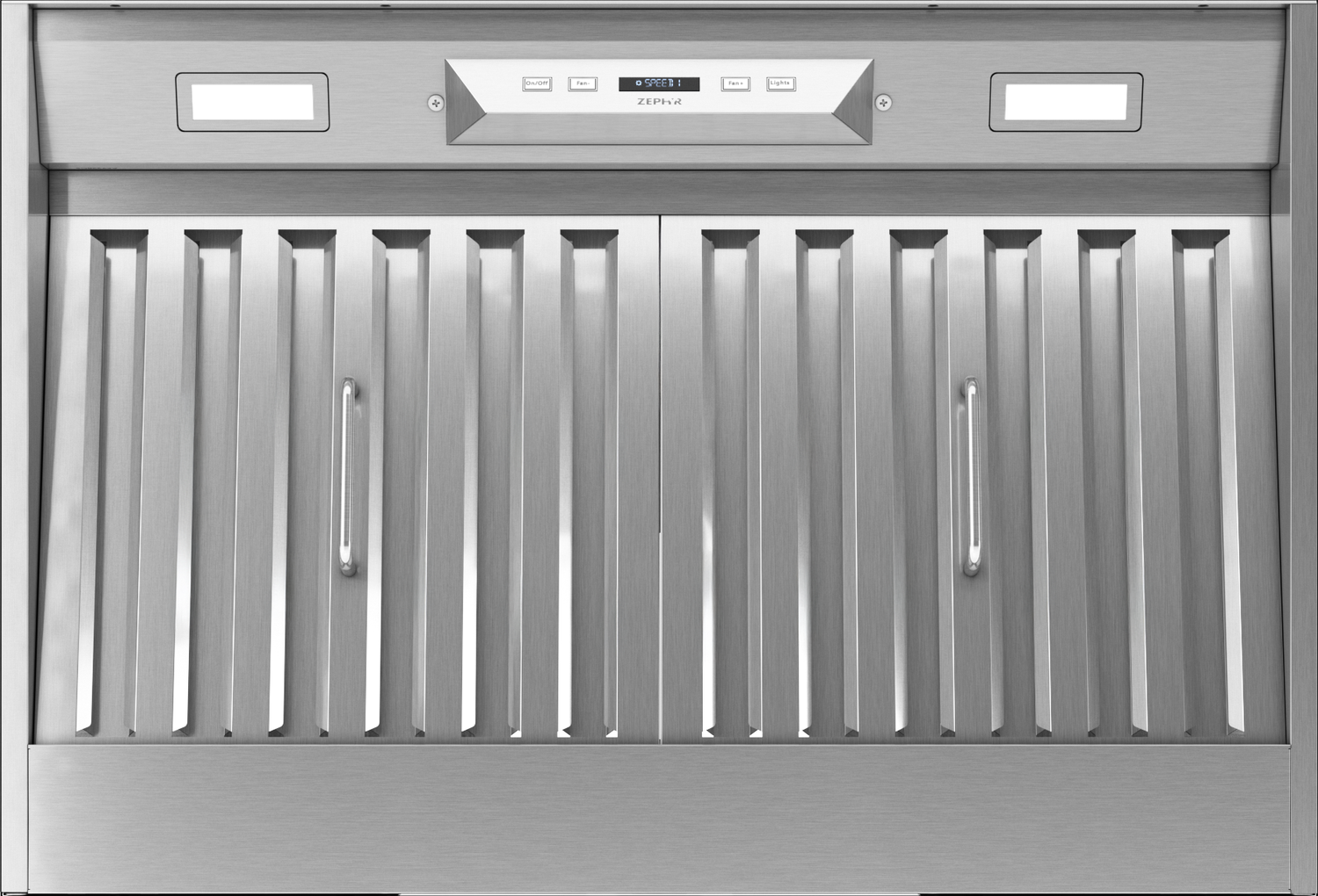

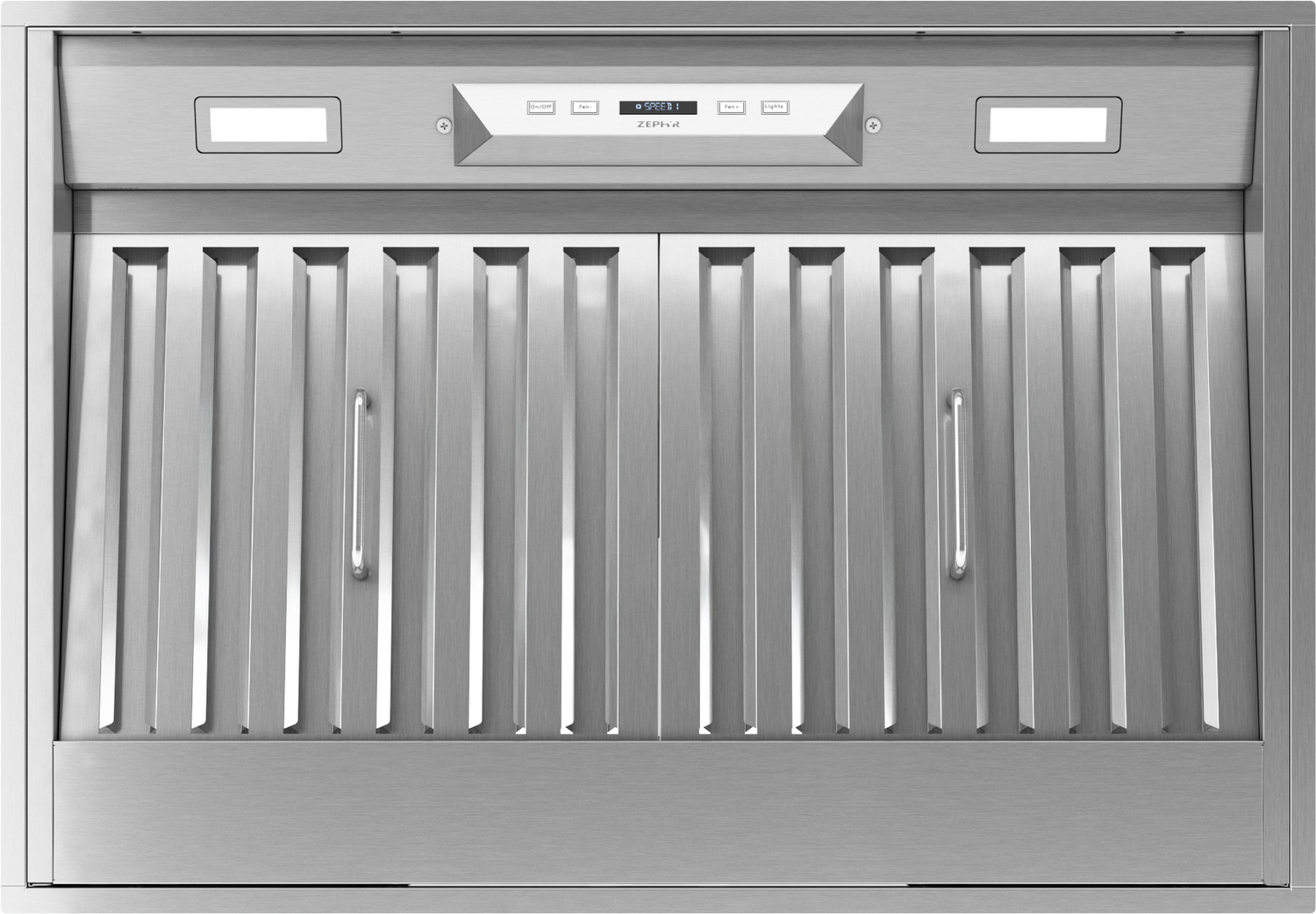

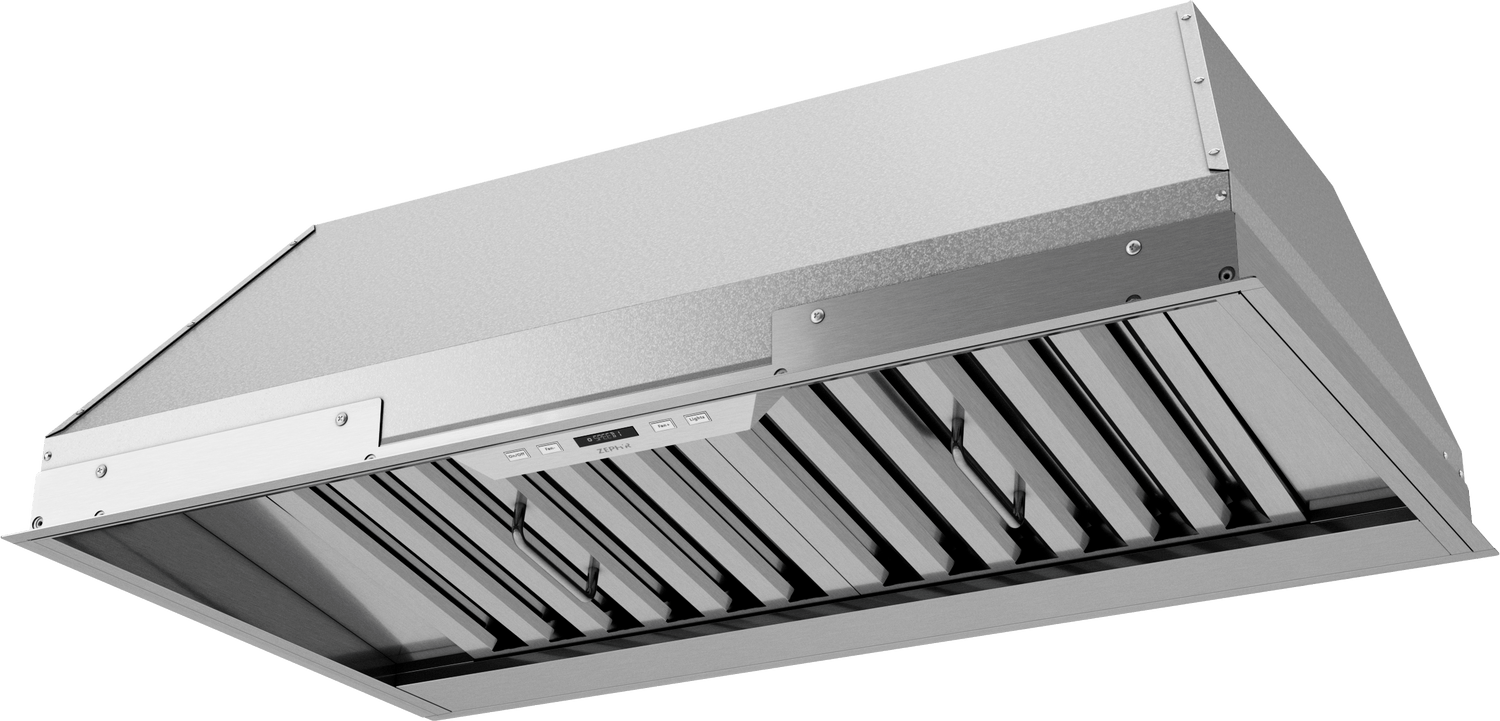

Monsoon I, Insert, 30in, SS, TruHue
Model: AK9228CSQuick Specs
Width
28.375"
Depth
19.3125"
Height
12"
Monsoon I, Insert, 30in, SS, TruHue is backordered and will ship as soon as it is back in stock.
Estimated to ship in 1-2 weeks
Available to Order
Sale Price
Sale price
$1,321.00
Regular price
$1,399.00
Unit price
/
Unavailable
You save 5%
SERVICES AVAILABLE
Selection will add
$0.00
to the price
Couldn't load pickup availability
Quick Specs
Width
28.375"
Depth
19.3125"
Height
12"
- Airflow Control Technology™ (ACT™)
- Airflow Control Technology or ACT is an exclusive technology that gives installers the ability to set the maximum CFM levels to meet local code requirements.
- LumiLight LED Lighting with TruHue™
- A bright idea: customize your hoods light to harmonize with the rest of your kitchens lighting at the touch of a button with TruHue anywhere from 2700K to 5000K.
- Vertical or horizontal ducting
- This hood has the ability to vent either out the top or out the back.
- Electronic Touch Controls
- Electronic touch controls adjust the range hood blower and LED light levels, and enable the auto delay-off function.
- Professional Baffle Filters
- High-airflow baffle filters that are dishwasher safe and ensure a lifetime of exceptional performance.
- Optional Wireless Remote Control (RC-0002)
- ADA-compliant, wireless RF remote control with battery and holder. Equipped with a magnet on the back for easy storage on any magnetic surface. Maximum remote control communication distance is 15 feet from the hood. Please check your Zephyr range hoods specification sheet to ensure compatibility.
- Dual-Level Lighting
- The dual-level dimmable LEDs require less energy than traditional halogen lights, are cool to the touch, and provide uniform light distribution.
- Airflow Control Technology(TM) (ACT(TM))
- LumiLight LED Lighting with TruHue(TM)
- Vertical or horizontal ducting
- Electronic Touch Controls
- Professional Baffle Filters
- Optional Wireless Remote Control (RC-0002)
- Dual-Level Lighting
Monsoon I, Insert, 30in, SS, TruHue
| Brand | Zephyr |
| Manufacturer | Zephyr |
| Category | Range Hood |
| Sub-Category | Insert |
| Vent Type | Ducted |
| UPC | 646328013539 |
| GTIN | 00646328013539 |
| Country of Origin | Taiwan |
| Model Group | AK92-C |
| Model Name | Monsoon I Insert |
| Collection | Core Collection |
| Blower Included | Yes |
| Blower CFM w/ACT | 390, 290 |
| Internal Blower 1 CFM | 650 |
| Internal Blower 1 Min. Sones | 1 |
| Internal Blower 1 Max Sones | 7 |
| Internal Blower 2 Max Sones | 11 |
| Minimum CFM | 200 |
| Installation Type | Insert |
| Installation Type | Insert |
| For Outdoor Use | No |
| Color | Stainless Steel |
| Controls Type | Electronic |
| Blower Speeds | 5 |
| Automatic Delay-Off | Yes |
| Clean Air Function | Yes |
| Lighting Type | LED |
| Lights Quantity | 2 |
| Watts Per Bulb | 6 |
| Lights Levels | 2 |
| Grease Filter Type | Pro baffle |
| Compatible Mesh or Baffle Filter Part Number | 50210039 |
| Duct Discharge | Vertical or Horizontal |
| Duct Size; Horizontal; IN | 8 |
| Duct Size; Vertical; IN | 8 |
| Mounting Height Above Cooktop; IN | 24 - 36 |
| Voltage | 120 |
| Maximum Amperage | 5 |
| ADA Compliant | No |
| Warranty Parts / Labor | 3 / 1 |
| Compatible Appliances | MUA008A, MUA010A, RC-0002 |
| Bluetooth Connected | No |
| Wi-Fi Connected | No |
| Remote Included | No |
| Remote Optional | Yes |
| Energy Star Certified | No |
| Alexa & Google Home Compatible | No |
| CEC Title 20 Compliant | Yes |
| CEC Title 24 Compliant | Yes |
| Primary Material | Stainless Steel |
| Wattage | 600 |
| Certification | UL |
| Nominal Width; IN | 30 |
| Net Width; IN | 28.375 |
| Net Depth; IN | 19.3125 |
| Net Height; IN | 12 |
| Weight; LBS | 36.2 |
| Ceiling Height Minimum | 8 ft. |
| Ceiling Height Maximum | 12 ft. |
| Shipping Length; IN | 31.5 |
| Shipping Width; IN | 16.5 |
| Shipping Height; IN | 24.6 |
| Shipping Weight; LBS | 47.8 |
| Shipping Method | Small Parcel |
| Freight Class | 150 |
| Certification # | E127334 |
| Clean Filter Alert | Yes |
| Cutout Depth in. | 19.5 |
| Cutout Width in. | 28.625 |
| Duct Type | Vertical |
| Duct Type | Vertical |
