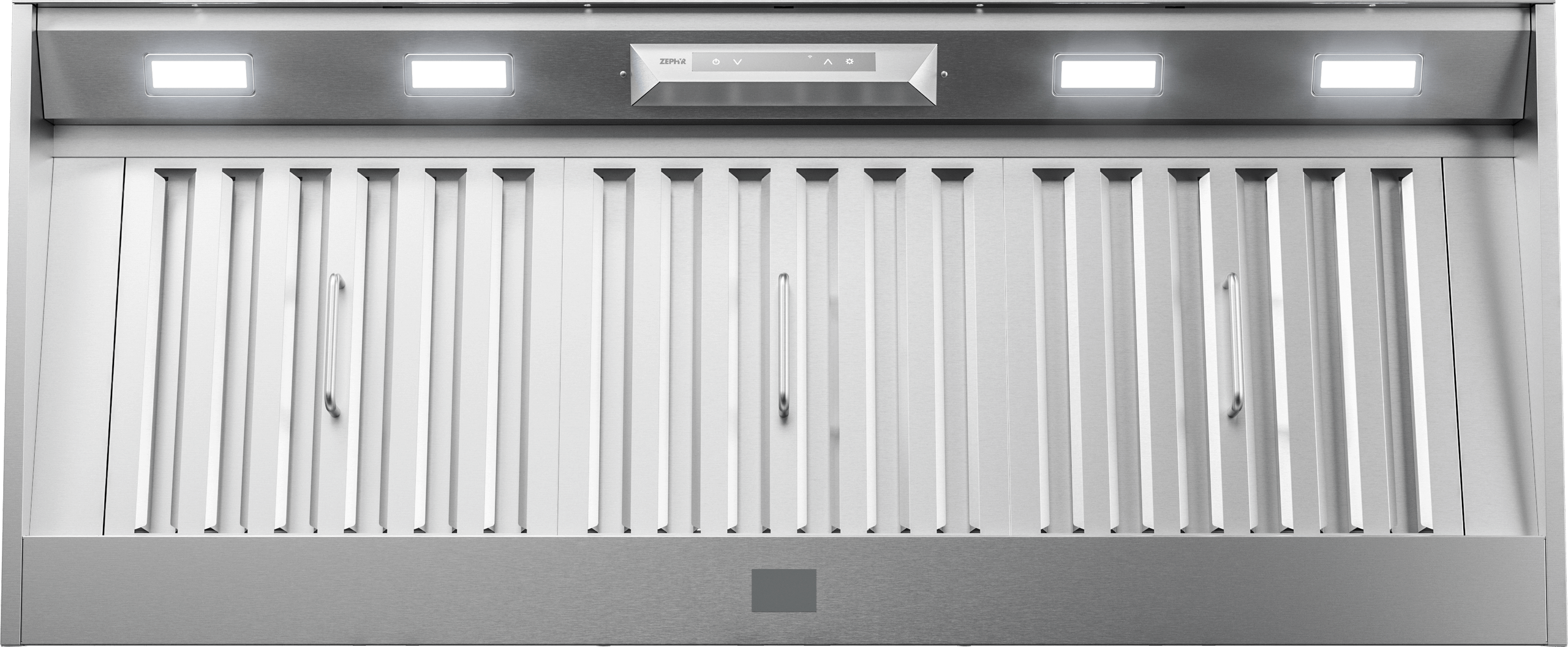

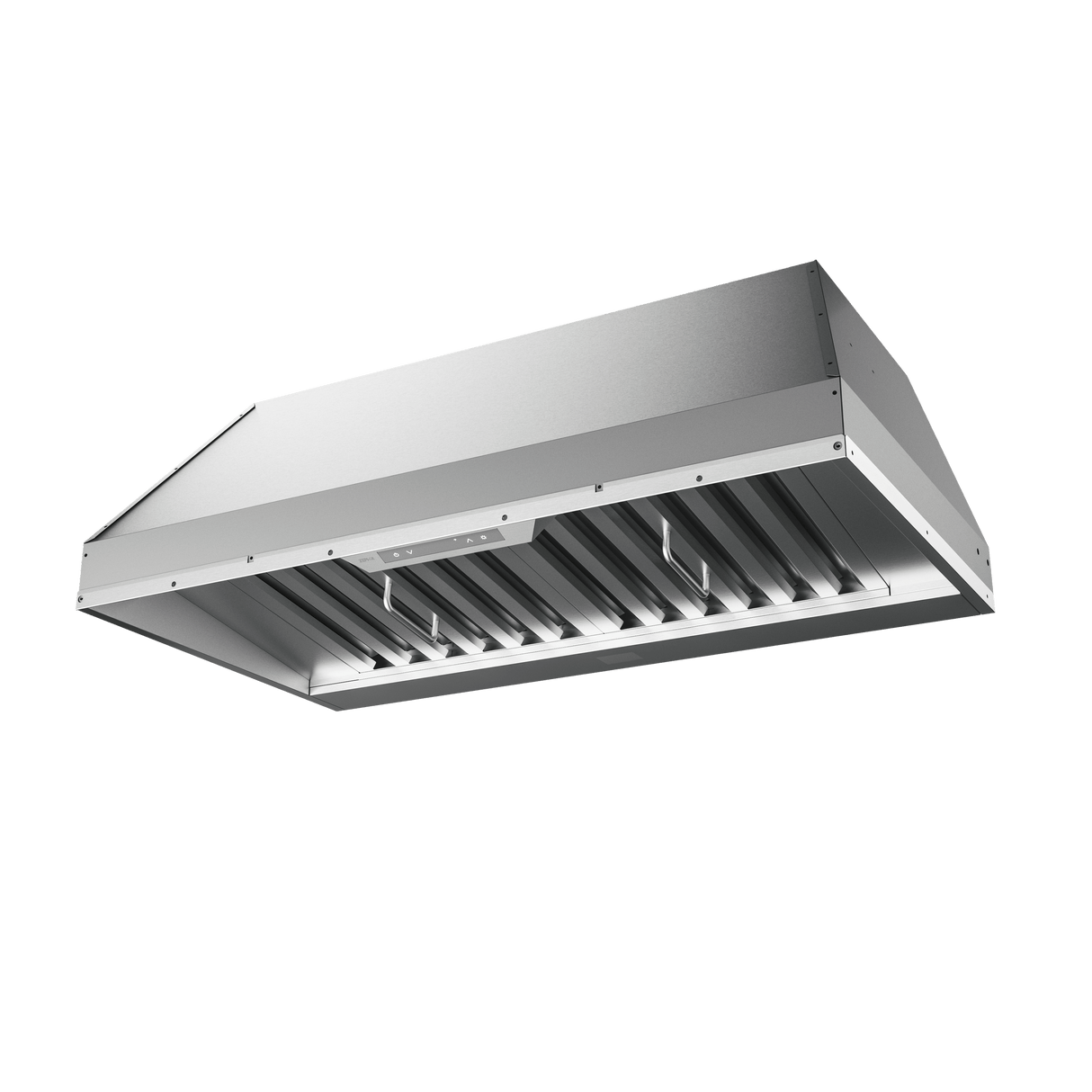

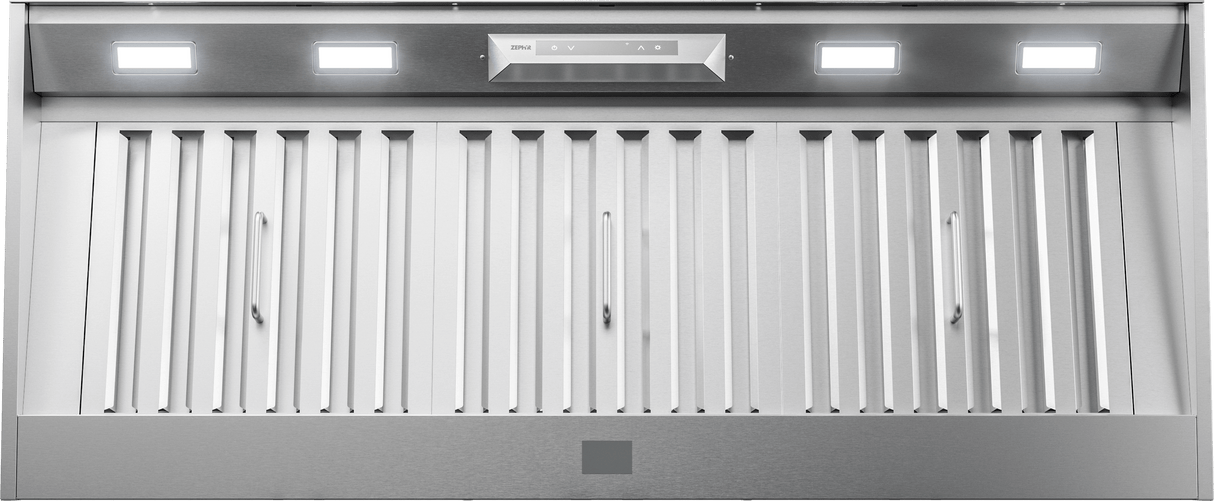

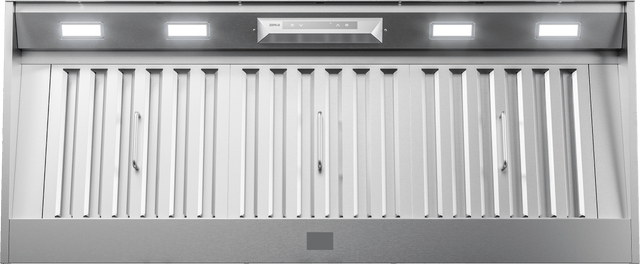

Monsoon Connect, 48in, SS, LED, ACT
Quick Specifications
Quick Specifications
- Type : HOODS
- Style : HOOD INSERTS
- Height : 12"
- Depth : 19.25"
- Energy Star Rated : NO
Delivery
Delivery
Professional delivery and installation is available for every product we sell. We would be happy to coordinate delivery and installation for you.
Warranty
Warranty
Extended warranties are usually very inexpensive and can save you thousands in the future. Some can even cover extra costs that result, such as cost of food that spoils when your fridge dies. It's simple and inexpensive to purchase extended warranties and one of the smartest ways to protect your investment.
Appliances can be large, heavy and expensive. You probably don't have the special tools or expertise needed to fix them in a crisis. If you can spare a few thousand dollars without batting an eyelash for new appliances should they break tomorrow, don't buy a warranty. But if you're like most of us, protect yourself by purchasing inexpensive extended warranties when you buy a new product and save yourself big money in the long run.
- Compatible with Zephyr Connect App
- The Zephyr Connect app allows customers to remotely control their range hoods from anywhere using a mobile device.
- LumiLight LED Lighting
- LumiLight LED lights are eco-friendly and built to last with a lifetime of more than 25,000 hours.
- Airflow Control Technology™ (ACT™)
- Airflow Control Technology or ACT is an exclusive technology that gives installers the ability to set the maximum CFM levels to meet local code requirements.
- CleanAir Function
- The CleanAir Function powers the hood on every four hours for 10 minutes to refresh the cooking area.
- Professional Baffle Filters
- High-airflow baffle filters that are dishwasher safe and ensure a lifetime of exceptional performance.
- Vertical or horizontal ducting
- This hood has the ability to vent either out the top or out the back.
- Optional wireless remote control
- Our wireless remote control places the hoods operations at your fingertips from anywhere in the kitchen.
- Compatible with Zephyr Connect App
- LumiLight LED Lighting
- Airflow Control Technology(TM) (ACT(TM))
- CleanAir Function
- Professional Baffle Filters
- Vertical or horizontal ducting
- Optional wireless remote control
| Brand | Zephyr |
| Manufacturer | Zephyr |
| Category | Range Hood |
| Sub-Category | Insert |
| Vent Type | Ducted |
| UPC | 646328008382 |
| GTIN | 00646328008382 |
| Country of Origin | Taiwan |
| Model Group | AK94-B |
| Model Name | Monsoon Connect Insert |
| Collection | Core Collection |
| Blower Included | Yes |
| Blower CFM w/ACT | 590, 390, 290 |
| Internal Blower 1 CFM | 700 |
| Internal Blower 1 Min. Sones | 0.8 |
| Internal Blower 1 Max Sones | 6 |
| Internal Blower 2 CFM | 1300 |
| Minimum CFM | 200 |
| Installation Type | Insert |
| Installation Type | Insert |
| For Outdoor Use | No |
| Color | Stainless Steel |
| Controls Type | Proximity Touch |
| Blower Speeds | 6 |
| Automatic Delay-Off | Yes |
| Clean Air Function | Yes |
| Lighting Type | LED |
| Lights Quantity | 4 |
| Watts Per Bulb | 6 |
| Lights Levels | 3 |
| Grease Filter Type | Pro baffle |
| Compatible Mesh or Baffle Filter Part Number | 50210039 |
| Duct Discharge | Vertical or Horizontal |
| Duct Size; Horizontal; IN | 8 |
| Duct Size; Vertical; IN | 8 |
| Mounting Height Above Cooktop; IN | 24 - 36 |
| Voltage | 120 |
| Maximum Amperage | 5 |
| ADA Compliant | Yes, with optional remote |
| Warranty Parts / Labor | 3 / 1 |
| Compatible Appliances | 14000005, PBD-1300B, MUA008A, MUA010A |
| Bluetooth Connected | No |
| Wi-Fi Connected | Yes |
| Remote Included | Yes |
| Remote Optional | No |
| Energy Star Certified | No |
| Alexa & Google Home Compatible | Yes |
| CEC Title 20 Compliant | Yes |
| CEC Title 24 Compliant | Yes |
| Primary Material | Stainless Steel |
| Wattage | 600 |
| Certification | UL |
| Nominal Width; IN | 48 |
| Net Width; IN | 46.375 |
| Net Depth; IN | 19.25 |
| Net Height; IN | 12 |
| Weight; LBS | 57 |
| Ceiling Height Minimum | 8 ft. |
| Ceiling Height Maximum | 12 ft. |
| Shipping Length; IN | 49.5 |
| Shipping Width; IN | 16.5 |
| Shipping Height; IN | 25.4 |
| Shipping Weight; LBS | 64.3 |
| Shipping Method | LTL |
| Freight Class | 300 |
| Certification # | E127334 |
| Clean Filter Alert | Yes |
| Cutout Depth in. | 19.625 |
| Cutout Width in. | 46.5 |
| Duct Type | Vertical |
| Duct Type | Vertical |
