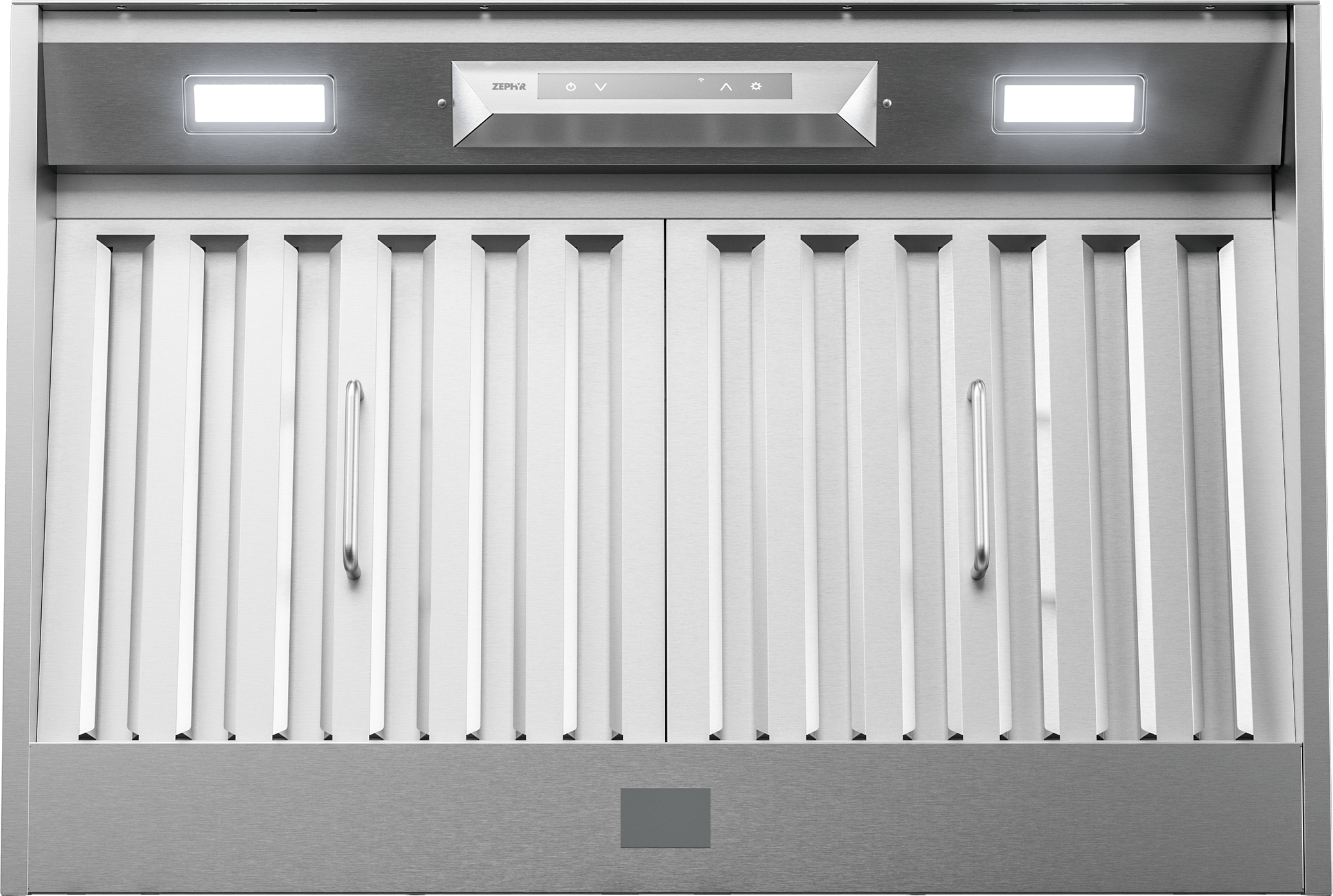

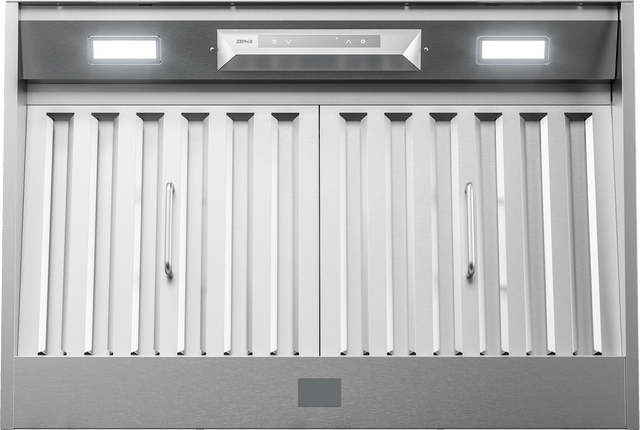

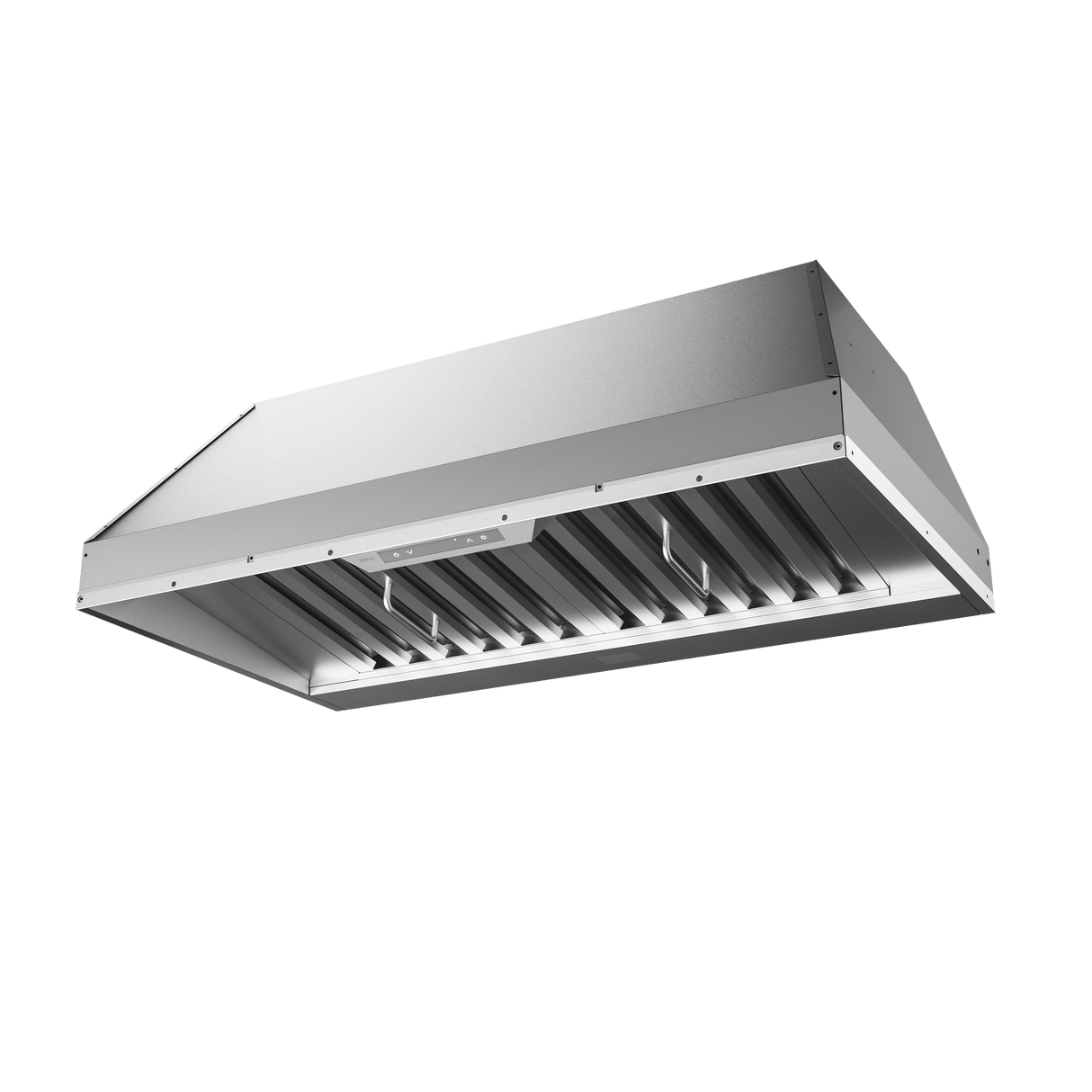

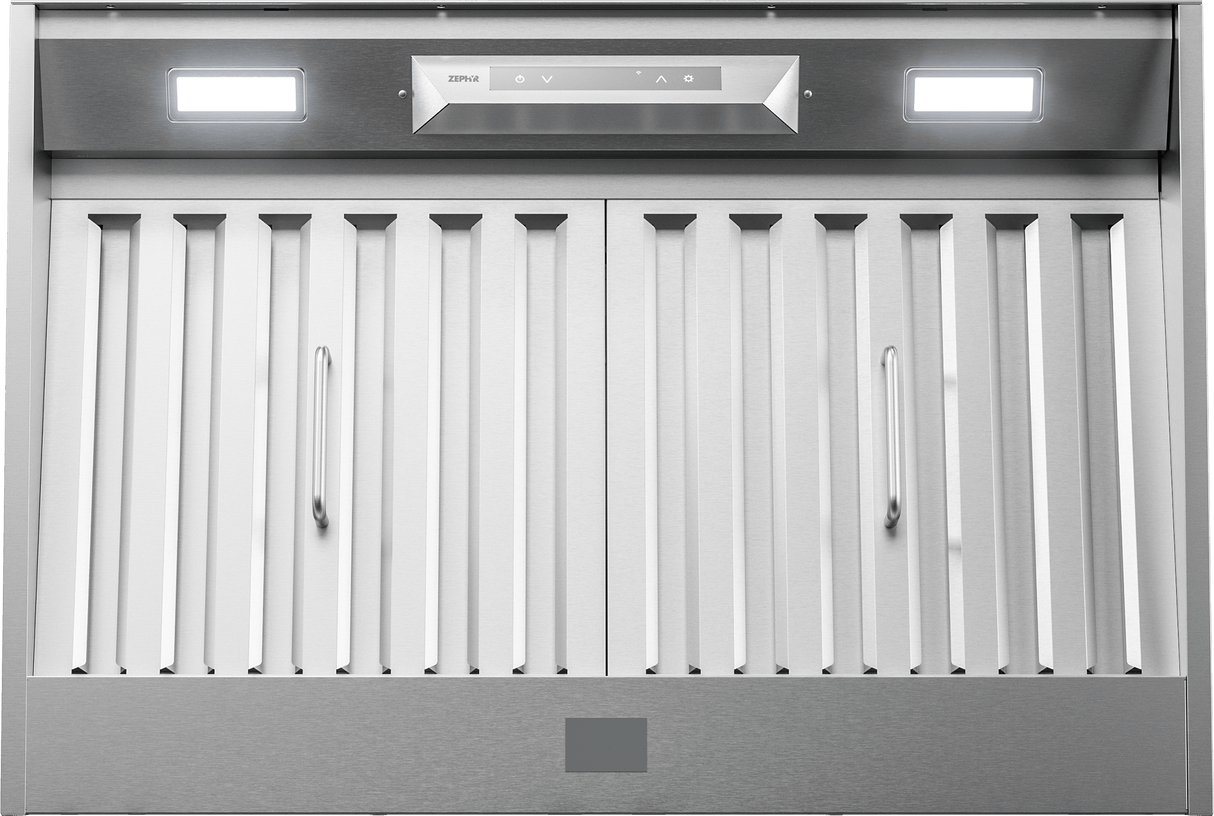

Monsoon Connect, 30in, SS, LED, ACT
Model AK9428BS
Authorized Dealer
1
of
4
Loading...
Authorized Dealer
Monsoon Connect, 30in, SS, LED, ACT
Model AK9428BSQuick Specs
Depth
19.25"
Height
12"
Energy
NO
Monsoon Connect, 30in, SS, LED, ACT is backordered and will ship as soon as it is back in stock.
This item qualifies for free delivery
Ships Out Within: 2 - 4 Business Days
Shipping Date By: 06/29/2026
Sale Price
Sale price
$1,599.00
Regular price
$1,699.00
Unit price
/
Unavailable
You save 5%
SERVICES AVAILABLE
Selection will add
$0.00
to the price
Couldn't load pickup availability
Quick Specs
Depth
19.25"
Height
12"
Energy Star Rated
NO
- Compatible with Zephyr Connect App
- The Zephyr Connect app allows customers to remotely control their range hoods from anywhere using a mobile device.
- LumiLight LED Lighting
- LumiLight LED lights are eco-friendly and built to last with a lifetime of more than 25,000 hours.
- Airflow Control Technology™ (ACT™)
- Airflow Control Technology or ACT is an exclusive technology that gives installers the ability to set the maximum CFM levels to meet local code requirements.
- CleanAir Function
- The CleanAir Function powers the hood on every four hours for 10 minutes to refresh the cooking area.
- Professional Baffle Filters
- High-airflow baffle filters that are dishwasher safe and ensure a lifetime of exceptional performance.
- Vertical or horizontal ducting
- This hood has the ability to vent either out the top or out the back.
- Optional Wireless Remote Control (14000005)
- ADA-compliant, wireless RF remote control with battery and holder. Equipped with a magnet on the back for easy storage on any magnetic surface. Maximum remote control communication distance is 15 feet from the hood. Please check your Zephyr range hoods specification sheet to ensure compatibility.
- Compatible with Zephyr Connect App
- LumiLight LED Lighting
- Airflow Control Technology(TM) (ACT(TM))
- CleanAir Function
- Professional Baffle Filters
- Vertical or horizontal ducting
- Optional Wireless Remote Control (14000005)
Monsoon Connect, 30in, SS, LED, ACT
| Brand | Zephyr |
| Manufacturer | Zephyr |
| Category | Range Hood |
| Sub-Category | Insert |
| Vent Type | Ducted |
| UPC | 646328008351 |
| GTIN | 00646328008351 |
| Country of Origin | Taiwan |
| Model Group | AK94-B |
| Model Name | Monsoon Connect Insert |
| Collection | Core Collection |
| Blower Included | Yes |
| Blower CFM w/ACT | 590, 390, 290 |
| Internal Blower 1 CFM | 700 |
| Internal Blower 1 Min. Sones | 0.8 |
| Internal Blower 1 Max Sones | 6 |
| Minimum CFM | 200 |
| Installation Type | Insert |
| Installation Type | Insert |
| For Outdoor Use | No |
| Color | Stainless Steel |
| Controls Type | Proximity Touch |
| Blower Speeds | 6 |
| Automatic Delay-Off | Yes |
| Clean Air Function | Yes |
| Lighting Type | LED |
| Lights Quantity | 2 |
| Watts Per Bulb | 6 |
| Lights Levels | 3 |
| Grease Filter Type | Pro baffle |
| Compatible Mesh or Baffle Filter Part Number | 50210039 |
| Duct Discharge | Vertical or Horizontal |
| Duct Size; Horizontal; IN | 8 |
| Duct Size; Vertical; IN | 8 |
| Mounting Height Above Cooktop; IN | 24 - 36 |
| Voltage | 120 |
| Maximum Amperage | 5 |
| ADA Compliant | Yes, with optional remote |
| Warranty Parts / Labor | 3 / 1 |
| Compatible Appliances | 14000005, MUA008A, MUA010A |
| Bluetooth Connected | No |
| Wi-Fi Connected | Yes |
| Remote Included | No |
| Remote Optional | Yes |
| Energy Star Certified | No |
| Alexa & Google Home Compatible | Yes |
| CEC Title 20 Compliant | Yes |
| CEC Title 24 Compliant | Yes |
| Primary Material | Stainless Steel |
| Wattage | 600 |
| Certification | UL |
| Nominal Width; IN | 30 |
| Net Width; IN | 28.375 |
| Net Depth; IN | 19.25 |
| Net Height; IN | 12 |
| Weight; LBS | 45.000 |
| Ceiling Height Minimum | 8 ft. |
| Ceiling Height Maximum | 12 ft. |
| Shipping Length; IN | 31.4 |
| Shipping Width; IN | 16.5 |
| Shipping Height; IN | 24.5 |
| Shipping Weight; LBS | 45.8 |
| Shipping Method | Small Parcel |
| Freight Class | 300 |
| Certification # | E127334 |
| Clean Filter Alert | Yes |
| Cutout Depth in. | 19.625 |
| Cutout Width in. | 28.625 |
| Duct Type | Vertical |
| Duct Type | Vertical |
- Compatible with Zephyr Connect App
- LumiLight LED Lighting
- Airflow Control Technology(TM) (ACT(TM))
- CleanAir Function
- Professional Baffle Filters
- Vertical or horizontal ducting
- Optional Wireless Remote Control (14000005)
