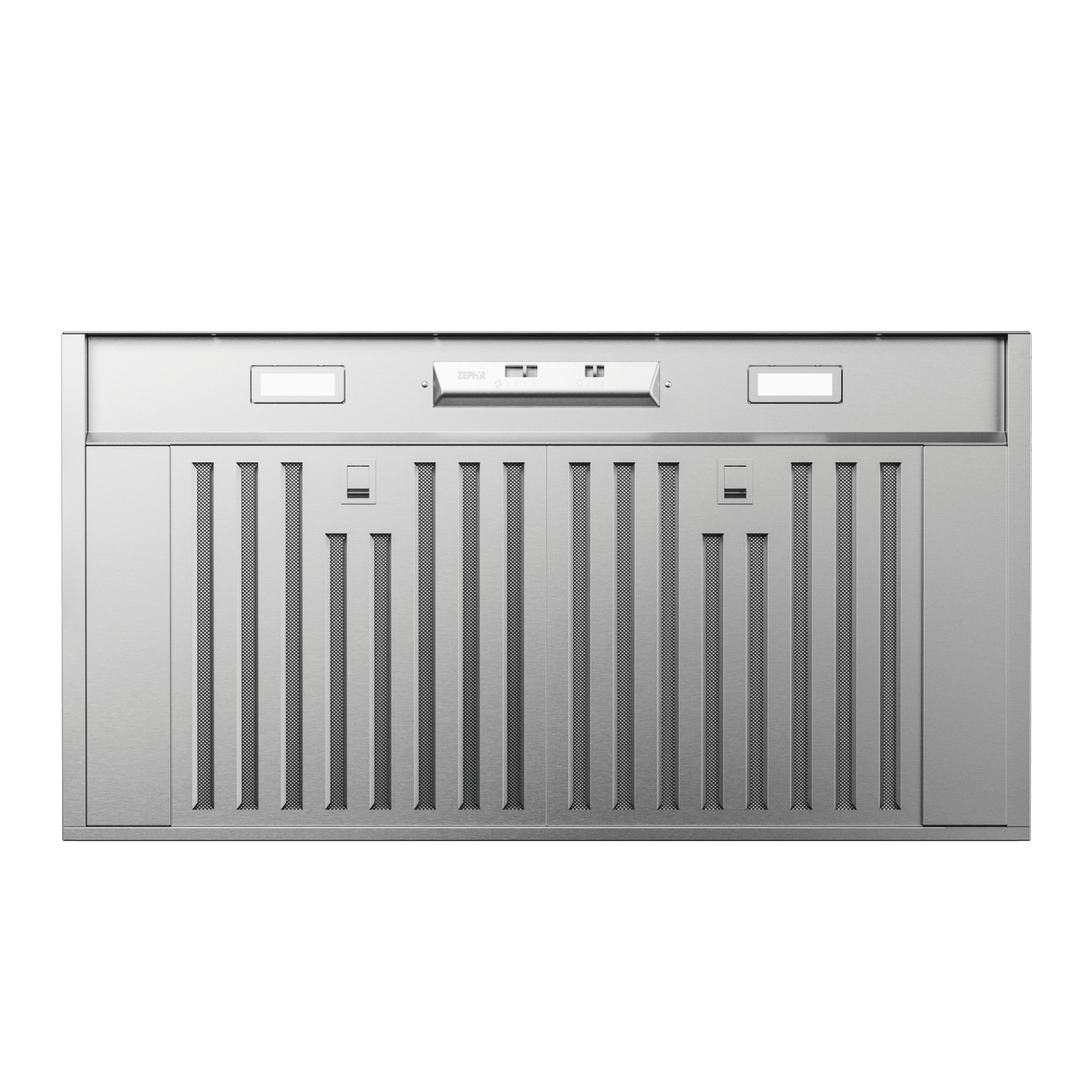

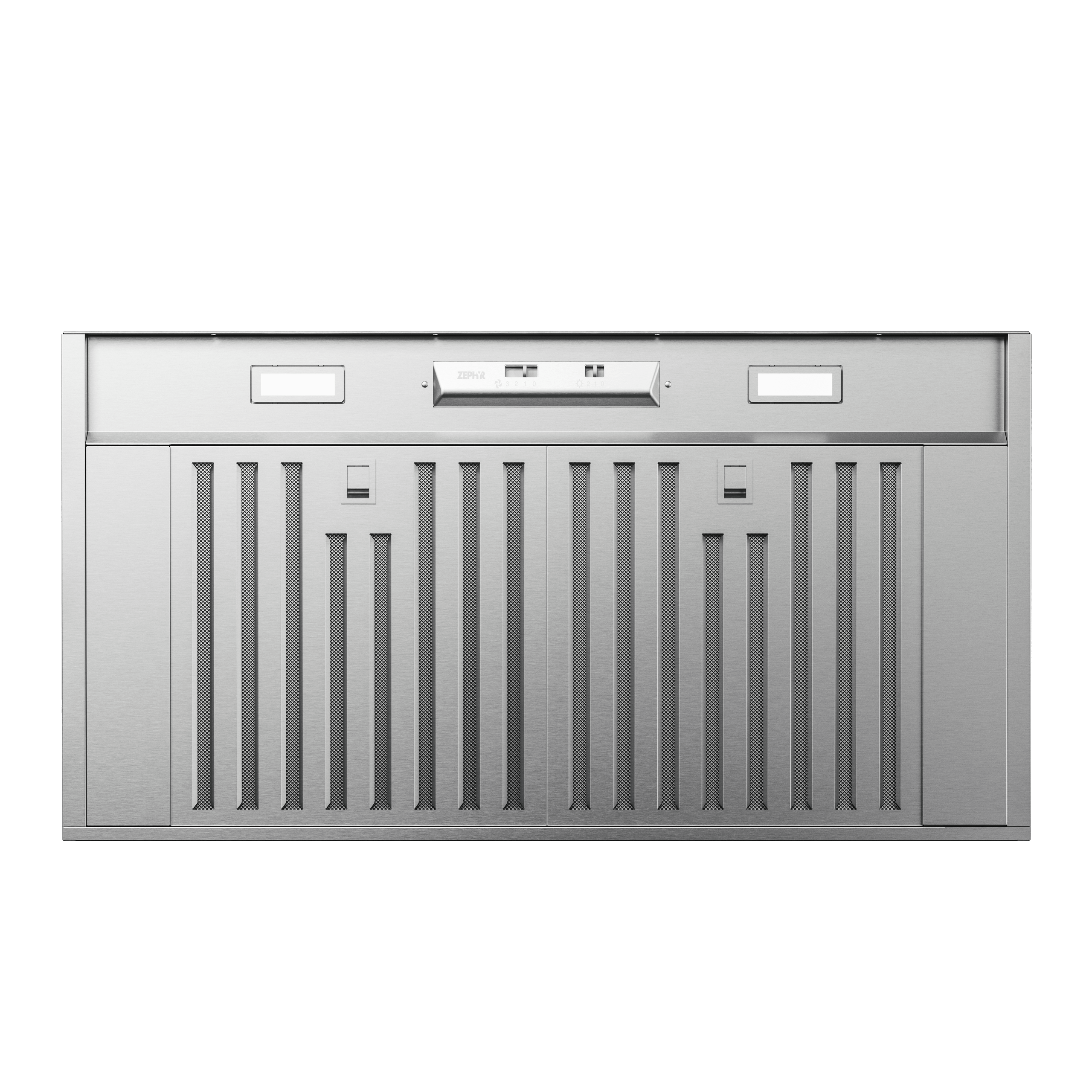

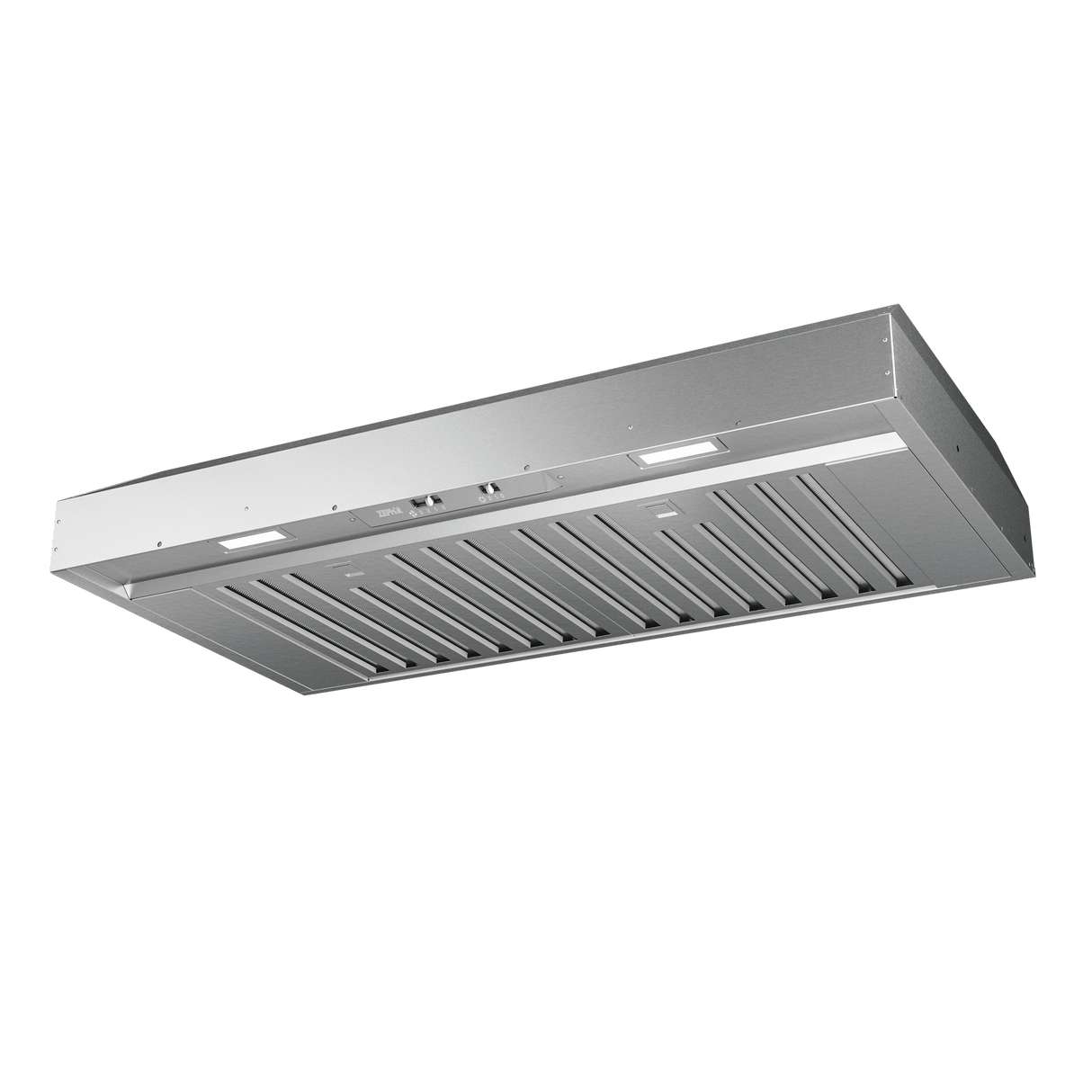

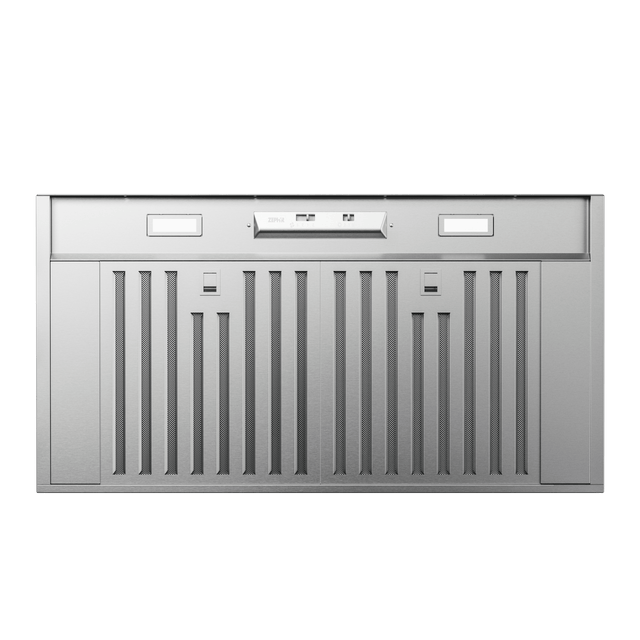

Monsoon Mini, Insert, 36", SS, 300 CFM
Model: AK9134BSQuick Specs
Width
34.375"
Depth
18.0625"
Height
6.125"
ADA
NO
Wifi
NO
CFM
300 CFM
Energy
NO
Monsoon Mini, Insert, 36", SS, 300 CFM is backordered and will ship as soon as it is back in stock.
Estimated to ship in 1-2 weeks
Available to Order
Sale Price
Sale price
$849.00
Regular price
$899.00
Unit price
/
Unavailable
You save 5%
SERVICES AVAILABLE
Selection will add
$0.00
to the price
Couldn't load pickup availability
Quick Specs
Width
34.375"
Depth
18.0625"
Height
6.125"
ADA
NO
Wifi Connected
NO
Vent CFM
300 CFM
Energy Star Rated
NO
- Mechanical Slide Controls
- 3-speed mechanical slide controls move along a track to adjust the range hood blower and dual-level LED lighting.
- 3 Speed Levels
- Quiet and efficient, three speed levels allow you to control proper airflow depending on your cooking needs.
- LumiLight LED Lighting
- LumiLight LED lights are eco-friendly and built to last with a lifetime of more than 25,000 hours.
- Dual-Level Lighting
- The dual-level dimmable LEDs require less energy than traditional halogen lights, are cool to the touch, and provide uniform light distribution.
- Hybrid Baffle Filters
- Hybrid baffle filters utilize stainless steel baffles for an improved aesthetic and aluminum mesh for efficient filtration.
- Vertical or horizontal ducting
- This hood has the ability to vent either out the top or out the back.
- Optional Ductless Recirculating Kit
- Ductless recirculating kit used when venting air outside your home is not possible. Smoke and odors pass through charcoal filters allowing purified air to be reintroduced into the kitchen.
- Mechanical Slide Controls
- 3 Speed Levels
- LumiLight LED Lighting
- Dual-Level Lighting
- Hybrid Baffle Filters
- Vertical or horizontal ducting
- Optional Ductless Recirculating Kit
Monsoon Mini, Insert, 36", SS, 300 CFM
| Brand | Zephyr |
| Manufacturer | Zephyr |
| Category | Range Hood |
| Sub-Category | Insert |
| Vent Type | Convertible |
| UPC | 646328009570 |
| GTIN | 00646328009570 |
| Country of Origin | Taiwan |
| Model Group | AK91-B |
| Model Name | Monsoon Mini Insert |
| Collection | Core Collection |
| Blower Included | Yes |
| Internal Blower 1 CFM | 300 |
| Internal Blower 1 Min. Sones | 1.5 |
| Internal Blower 1 Max Sones | 4 |
| Minimum CFM | 150 |
| Installation Type | Insert |
| Installation Type | Insert |
| For Outdoor Use | No |
| Color | Stainless Steel |
| Controls Type | Mechanical Slide |
| Blower Speeds | 3 |
| Automatic Delay-Off | Yes |
| Clean Air Function | No |
| Lighting Type | LED |
| Lights Quantity | 2 |
| Watts Per Bulb | 6 |
| Lights Levels | 2 |
| Grease Filter Type | Hybrid Baffle |
| Compatible Mesh or Baffle Filter Part Number | Z0F-B002 |
| Duct Discharge | Vertical or Horizontal |
| Duct Size; Horizontal; IN | 3.25 x 10 |
| Duct Size; Vertical; IN | 7, 3.25 x 10 |
| Mounting Height Above Cooktop; IN | 24 - 36 |
| Voltage | 120 |
| Maximum Amperage | 2 |
| ADA Compliant | Yes, with optional wall switch |
| Warranty Parts / Labor | 3 / 1 |
| Compatible Appliances | ZRC-9100A, AK00067, Z0F-C091 |
| Bluetooth Connected | No |
| Wi-Fi Connected | No |
| Remote Included | No |
| Remote Optional | No |
| Energy Star Certified | No |
| Alexa & Google Home Compatible | No |
| CEC Title 20 Compliant | Yes |
| Primary Material | Stainless Steel |
| Wattage | 240 |
| Certification | UL |
| Nominal Width; IN | 36 |
| Net Width; IN | 34.375 |
| Net Depth; IN | 17.875 |
| Net Height; IN | 6.125 |
| Weight; LBS | 26 |
| Ceiling Height Minimum | 8 ft. |
| Ceiling Height Maximum | 12 ft. |
| Shipping Length; IN | 39 |
| Shipping Width; IN | 10 |
| Shipping Height; IN | 23 |
| Shipping Weight; LBS | 30 |
| Shipping Method | Small Parcel |
| Freight Class | 150 |
| Certification # | E127334 |
| Clean Filter Alert | No |
| Cutout Depth in. | 18.5 |
| Cutout Width in. | 34.5 |
| Duct Type | Vertical |
| Duct Type | Vertical |
