Tornado III Insert, 40in x 15in, SS, BODY ONLY
Model: AK8340ASX
Authorized Dealer
1
of
6
Loading...
Authorized Dealer
Tornado III Insert, 40in x 15in, SS, BODY ONLY
Model: AK8340ASXQuick Specs
Width
40.25"
Depth
14.9375"
Height
12"
ADA
YES
Wifi
NO
Energy
NO
Tornado III Insert, 40in x 15in, SS, BODY ONLY is backordered and will ship as soon as it is back in stock.
Estimated to ship in 2-4 days
In Stock
Sale Price
Sale price
$1,099.00
Regular price
$1,249.00
Unit price
/
Unavailable
You save 12%
SERVICES AVAILABLE
Selection will add
$0.00
to the price
Couldn't load pickup availability
Quick Specs
Width
40.25"
Depth
14.9375"
Height
12"
ADA
YES
Wifi Connected
NO
Energy Star Rated
NO
- LumiLight LED Lighting with TruHue™
- A bright idea: customize your hoods light to harmonize with the rest of your kitchens lighting at the touch of a button with TruHue anywhere from 2700K to 5000K.

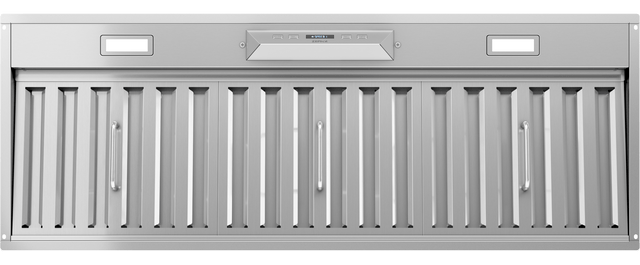

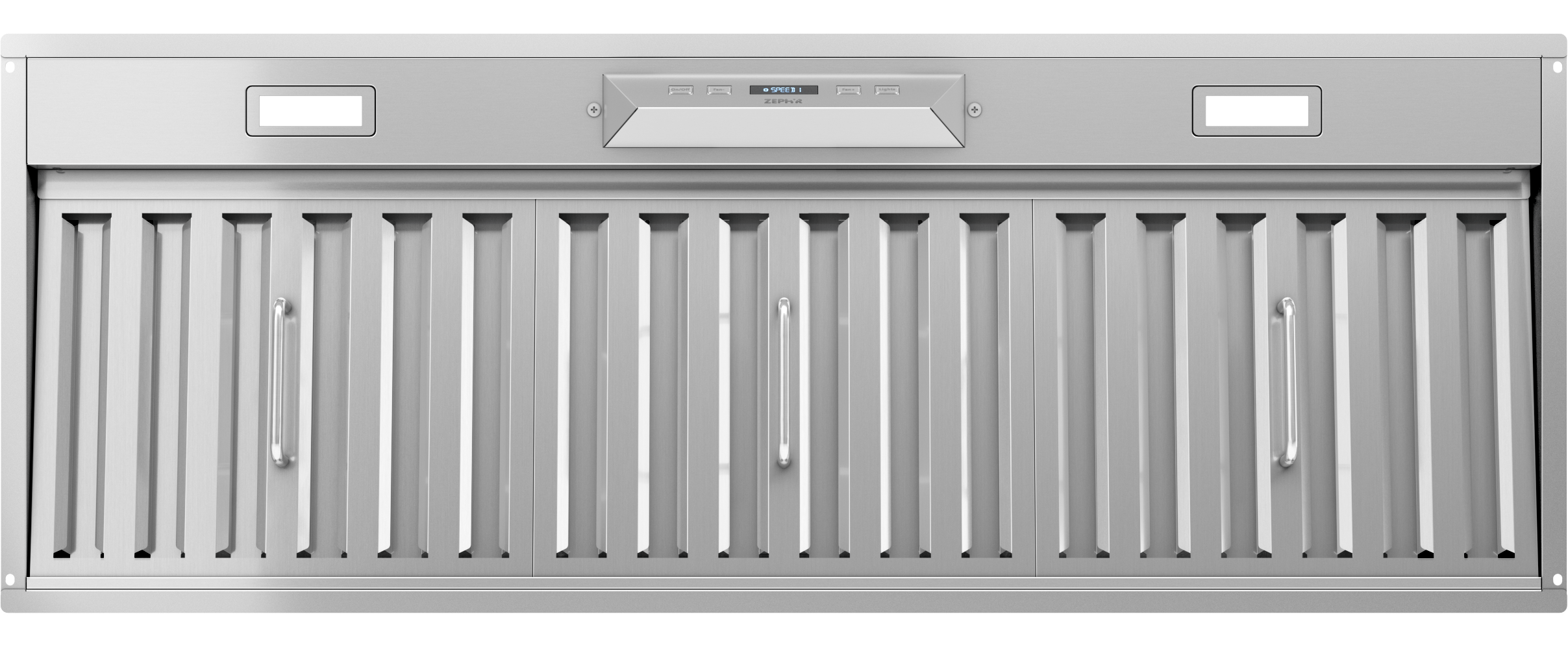

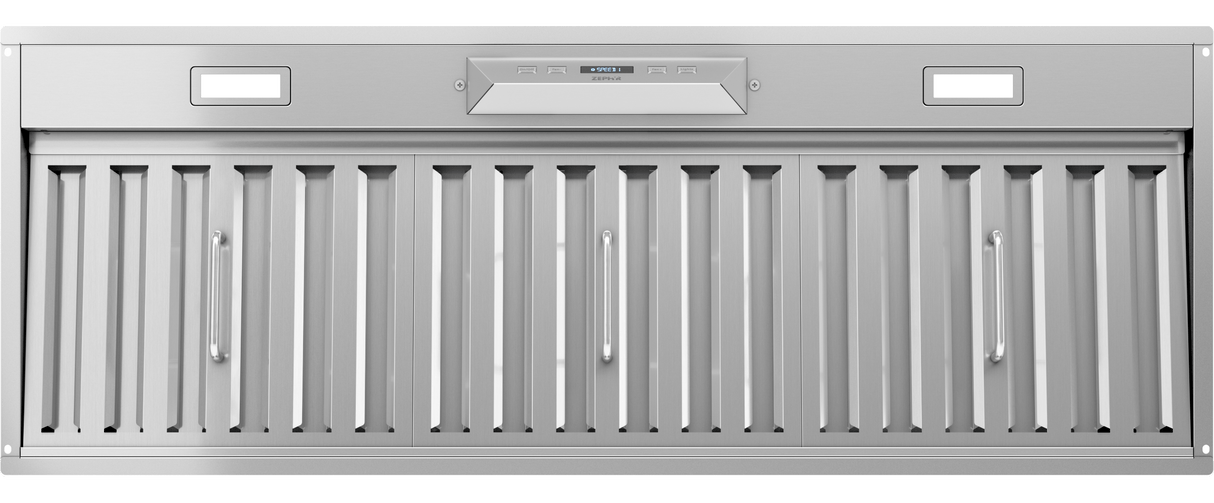

- Professional Baffle Filters
- High-airflow baffle filters that are dishwasher safe and ensure a lifetime of exceptional performance.
- Electronic Touch Controls
- Electronic touch controls adjust the range hood blower and LED light levels, and enable the auto delay-off function.
- Dual-Level Lighting
- The dual-level dimmable LEDs require less energy than traditional halogen lights, are cool to the touch, and provide uniform light distribution.
- Multiple Blower Options
- Multiple blower options are available to fit your application.
- Optional Wireless Remote Control (14000005)
- ADA-compliant, wireless RF remote control with battery and holder. Equipped with a magnet on the back for easy storage on any magnetic surface. Maximum remote control communication distance is 15 feet from the hood. Please check your Zephyr range hoods specification sheet to ensure compatibility.
- Optional Liner Accessories Available
- An optional adjustable-depth, stainless steel liner is available to protect your cabinetry and provide a more finished appearance.
- LumiLight LED Lighting with TruHue(TM)
- Professional Baffle Filters
- Electronic Touch Controls
- Dual-Level Lighting
- Multiple Blower Options
- Optional Wireless Remote Control (14000005)
- Optional Liner Accessories Available
Tornado III Insert, 40in x 15in, SS, BODY ONLY
| Brand | Zephyr |
| Manufacturer | Zephyr |
| Category | Range Hood |
| Sub-Category | Insert |
| Vent Type | Ducted |
| UPC | 646328013171 |
| GTIN | 00646328013171 |
| Country of Origin | Taiwan |
| Model Group | AK83-A |
| Model Name | Tornado III Insert |
| Collection | Pro Collection |
| Blower Included | No |
| Internal Blower 1 CFM | 390 |
| Internal Blower 1 Min. Sones | 1.4 |
| Internal Blower 1 Max Sones | 5 |
| Internal Blower 2 CFM | 600 |
| Internal Blower 3 CFM | 1000 |
| In-Line Blower CFM | 1000 |
| External Blower CFM | 1000 |
| Minimum CFM | 200 |
| Installation Type | Insert |
| Installation Type | Insert |
| For Outdoor Use | No |
| Color | Stainless Steel |
| Controls Type | Electronic |
| Blower Speeds | 3 |
| Automatic Delay-Off | Yes |
| Clean Air Function | No |
| Lighting Type | LED |
| Lights Quantity | 2 |
| Watts Per Bulb | 6 |
| Lights Levels | 2 |
| Grease Filter Type | Pro baffle |
| Compatible Mesh or Baffle Filter Part Number | 50210054 |
| Duct Discharge | Vertical |
| Duct Size; Horizontal; IN | N/A |
| Duct Size; Vertical; IN | 6 |
| Mounting Height Above Cooktop; IN | 24 - 36 |
| Voltage | 120 |
| Maximum Amperage | 5.8 |
| ADA Compliant | Yes, with optional remote |
| Warranty Parts / Labor | 3 / 1 |
| Compatible Appliances | CBI-290C, CBI-390A, CBI-600A, PBI-1000B, CBE-1000, PBN-1000A, AK083480AS, AK083481AS, MUA006A, MUA010A, 14000005 |
| Bluetooth Connected | No |
| Wi-Fi Connected | No |
| Remote Included | No |
| Remote Optional | Yes |
| Energy Star Certified | No |
| Alexa & Google Home Compatible | No |
| CEC Title 20 Compliant | Yes |
| Primary Material | Stainless Steel |
| Wattage | 760 |
| Certification | UL |
| Nominal Width; IN | 40 |
| Net Width; IN | 40.25 |
| Net Depth; IN | 14.9 |
| Net Height; IN | 12 |
| Weight; LBS | 22.7 |
| Ceiling Height Minimum | 8 ft. |
| Ceiling Height Maximum | 12 ft. |
| Shipping Length; IN | 44.6 |
| Shipping Width; IN | 17.4 |
| Shipping Height; IN | 19.6 |
| Shipping Weight; LBS | 39.2 |
| Shipping Method | Small Parcel |
| Freight Class | 175 |
| Certification # | E127334 |
| Clean Filter Alert | Yes |
| Duct Type | Vertical |
| Duct Type | Vertical |
- LumiLight LED Lighting with TruHue(TM)
- Professional Baffle Filters
- Electronic Touch Controls
- Dual-Level Lighting
- Multiple Blower Options
- Optional Wireless Remote Control (14000005)
- Optional Liner Accessories Available
 | |
|---|---|
