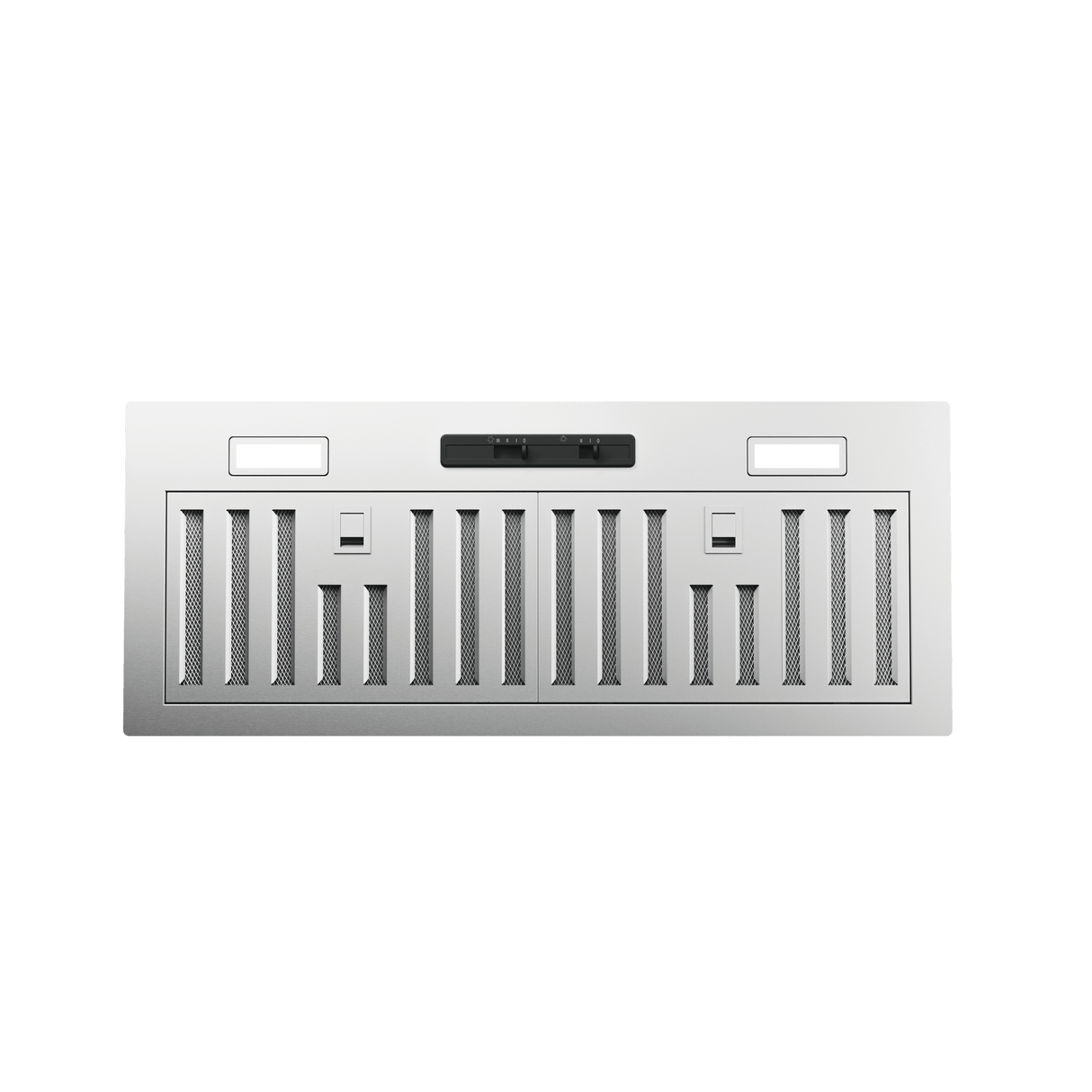

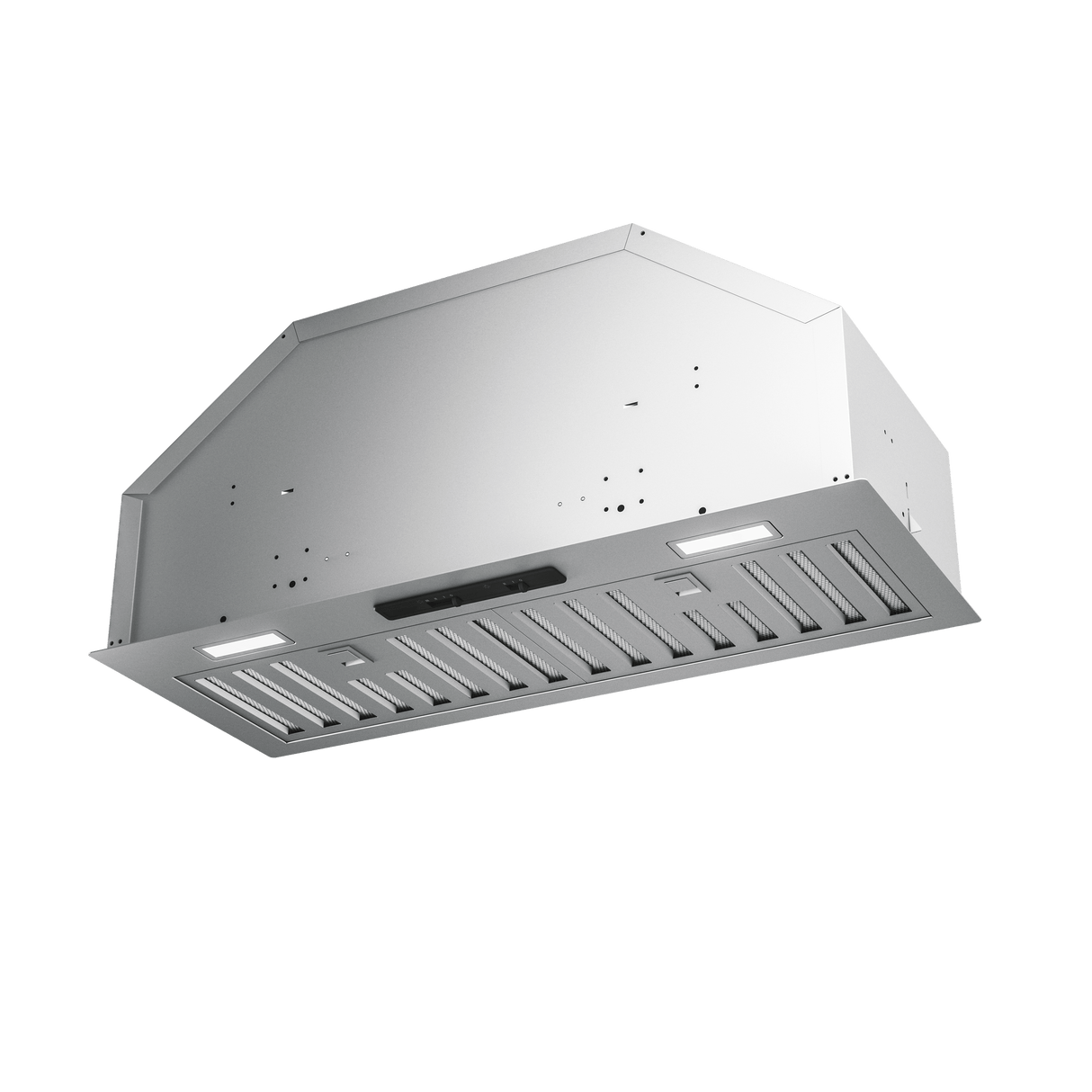

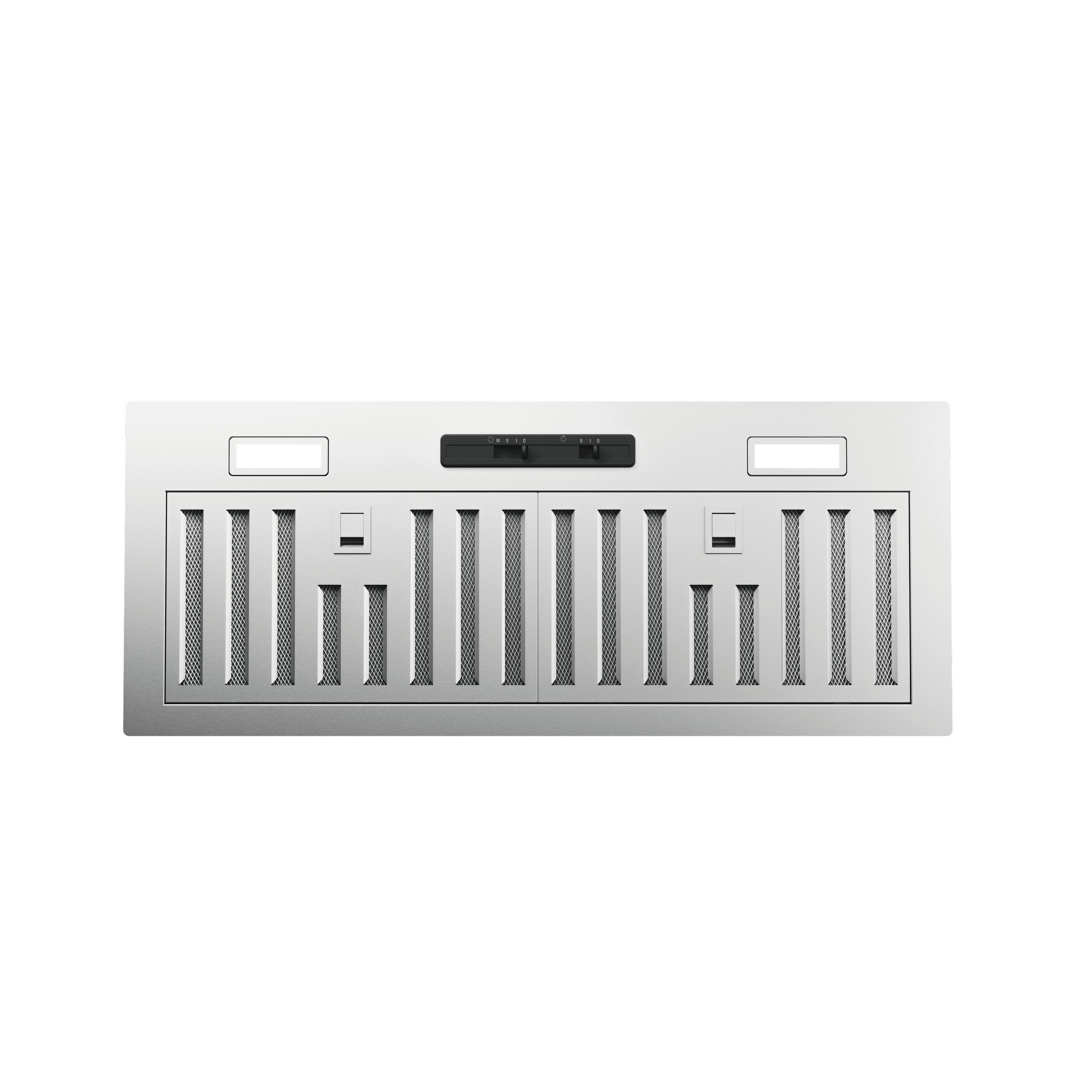

Tornado I, 28in, SS, LED
Model: AK8100BS
Authorized Dealer
1
of
4
Loading...
Authorized Dealer
Tornado I, 28in, SS, LED
Model: AK8100BSQuick Specs
Width
28"
Depth
11.1875"
Height
10.5"
ADA
NO
Wifi
NO
CFM
600 CFM
Energy
NO
Tornado I, 28in, SS, LED is backordered and will ship as soon as it is back in stock.
Estimated to ship in 2-4 days
In Stock
Add to cart to see lower price
Sale Price
$799.00
$899.00
You save 11%
SERVICES AVAILABLE
Selection will add
$0.00
to the price
Couldn't load pickup availability
Quick Specs
Width
28"
Depth
11.1875"
Height
10.5"
ADA
NO
Wifi Connected
NO
Vent CFM
600 CFM
Energy Star Rated
NO
- LumiLight LED Lighting
- LumiLight LED lights are eco-friendly and built to last with a lifetime of more than 25,000 hours.
- Powerful 600-CFM Blower
- The range hood performance is measured in Cubic Feet per Minute (CFM). This is a measure of how much air can be removed from a given space in a single minute.
- Hybrid Baffle Filters
- Hybrid baffle filters utilize stainless steel baffles for an improved aesthetic and aluminum mesh for efficient filtration.
- Mechanical Slide Controls
- 3-speed mechanical slide controls move along a track to adjust the range hood blower and dual-level LED lighting.
- Dual-Level Lighting
- The dual-level dimmable LEDs require less energy than traditional halogen lights, are cool to the touch, and provide uniform light distribution.
- Optional Liner Accessories Available
- An optional adjustable-depth, stainless steel liner is available to protect your cabinetry and provide a more finished appearance.
- Optional Ductless Recirculating Kit
- Ductless recirculating kit used when venting air outside your home is not possible. Smoke and odors pass through charcoal filters allowing purified air to be reintroduced into the kitchen.
- LumiLight LED Lighting
- Powerful 600-CFM Blower
- Hybrid Baffle Filters
- Mechanical Slide Controls
- Dual-Level Lighting
- Optional Liner Accessories Available
- Optional Ductless Recirculating Kit
Tornado I, 28in, SS, LED
| Brand | Zephyr |
| Manufacturer | Zephyr |
| Category | Range Hood |
| Sub-Category | Insert |
| Vent Type | Convertible |
| UPC | 646328009884 |
| GTIN | 00646328009884 |
| Country of Origin | Taiwan |
| Model Group | AK81-B |
| Model Name | Tornado I Insert |
| Collection | Core Collection |
| Blower Included | Yes |
| Internal Blower 1 CFM | 600 |
| Internal Blower 1 Min. Sones | 1.4 |
| Internal Blower 1 Max Sones | 6 |
| Minimum CFM | 200 |
| Installation Type | Insert |
| Installation Type | Insert |
| For Outdoor Use | No |
| Color | Stainless Steel |
| Controls Type | Mechanical Slide |
| Blower Speeds | 3 |
| Automatic Delay-Off | No |
| Clean Air Function | No |
| Lighting Type | LED |
| Lights Quantity | 2 |
| Watts Per Bulb | 6 |
| Lights Levels | 2 |
| Grease Filter Type | Hybrid Baffle |
| Compatible Mesh or Baffle Filter Part Number | Z0F-B002 |
| Duct Discharge | Vertical or Horizontal |
| Duct Size; Horizontal; IN | 6 |
| Duct Size; Vertical; IN | 6 |
| Mounting Height Above Cooktop; IN | 20 - 34 |
| Voltage | 120 |
| Maximum Amperage | 3 |
| ADA Compliant | Yes, with optional wall switch |
| Warranty Parts / Labor | 10 / 1 |
| Compatible Appliances | ZRC-0080, Z0F-C008, AK0800AS, AK0836AS, MUA006A |
| Bluetooth Connected | No |
| Wi-Fi Connected | No |
| Remote Included | No |
| Remote Optional | No |
| Energy Star Certified | No |
| Alexa & Google Home Compatible | No |
| CEC Title 20 Compliant | Yes |
| CEC Title 24 Compliant | Yes |
| Primary Material | Stainless Steel |
| Wattage | 360 |
| Certification | UL |
| Nominal Width; IN | 28 |
| Net Width; IN | 27.5625 |
| Net Depth; IN | 11.1875 |
| Net Height; IN | 10.5 |
| Weight; LBS | 21.6 |
| Ceiling Height Minimum | 8 ft. |
| Ceiling Height Maximum | 12 ft. |
| Shipping Length; IN | 31 |
| Shipping Width; IN | 15 |
| Shipping Height; IN | 17 |
| Shipping Weight; LBS | 26 |
| Shipping Method | Small Parcel |
| Freight Class | 150 |
| Certification # | E127334 |
| Clean Filter Alert | No |
| Cutout Depth in. | 10.625 |
| Cutout Width in. | 26.875 |
| Duct Type | Vertical |
| Duct Type | Vertical |
- LumiLight LED Lighting
- Powerful 600-CFM Blower
- Hybrid Baffle Filters
- Mechanical Slide Controls
- Dual-Level Lighting
- Optional Liner Accessories Available
- Optional Ductless Recirculating Kit
