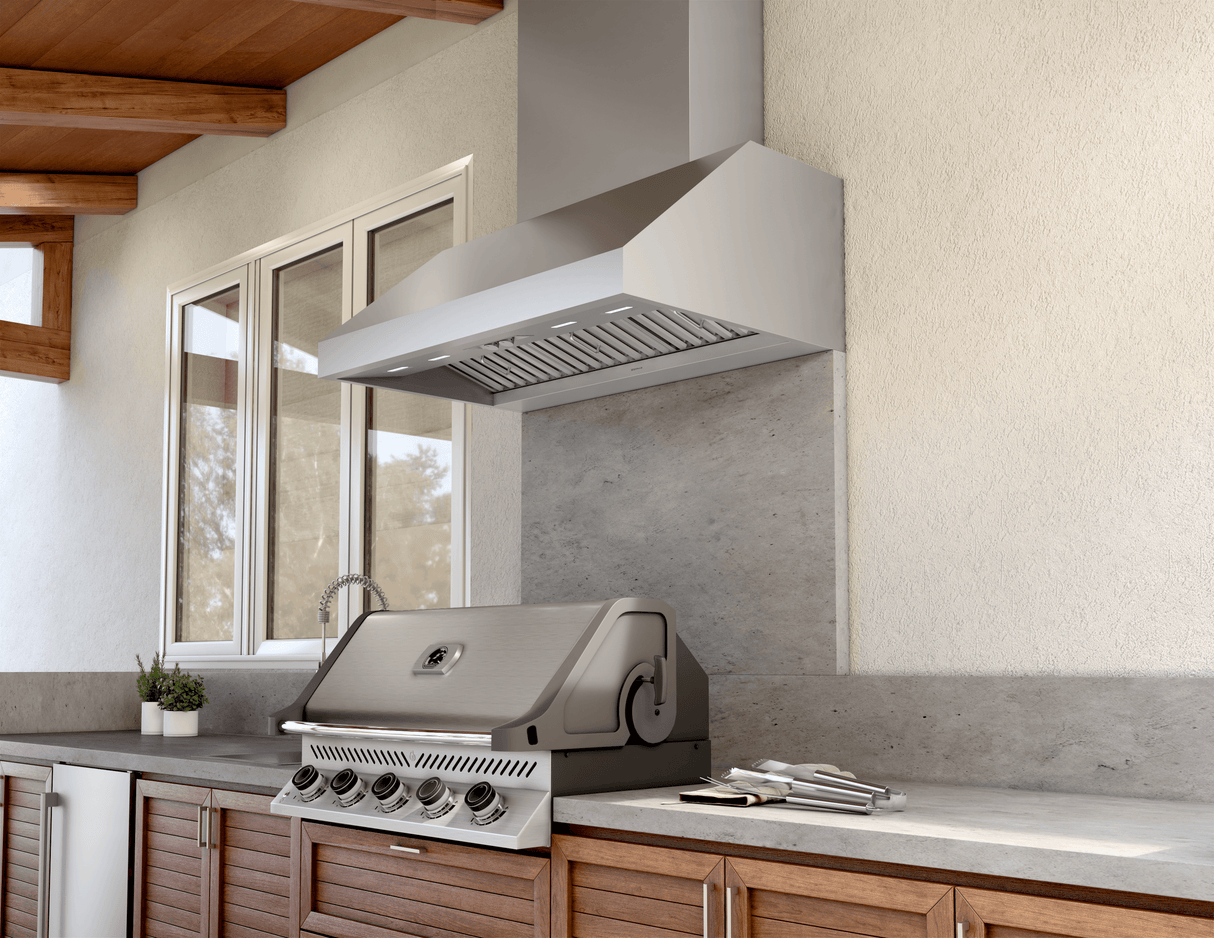

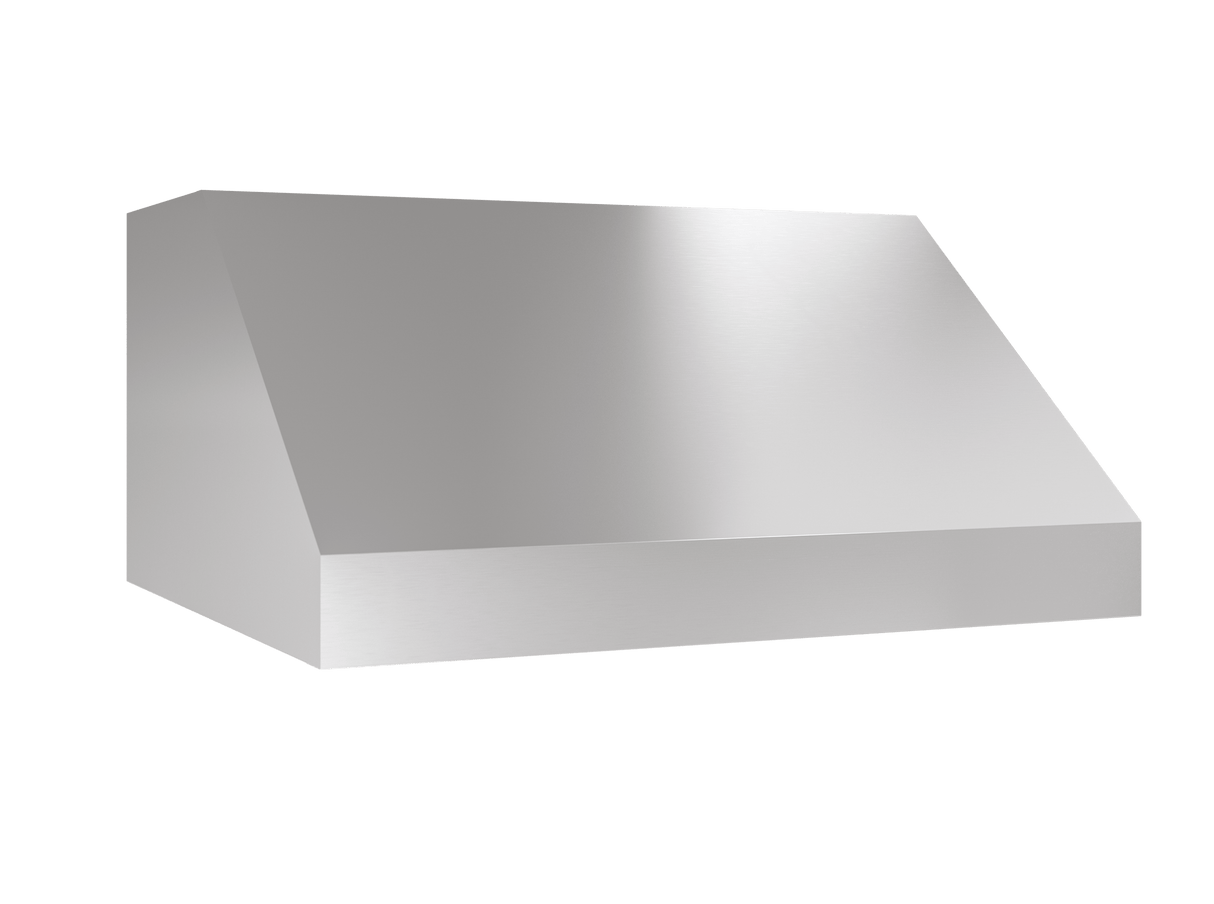

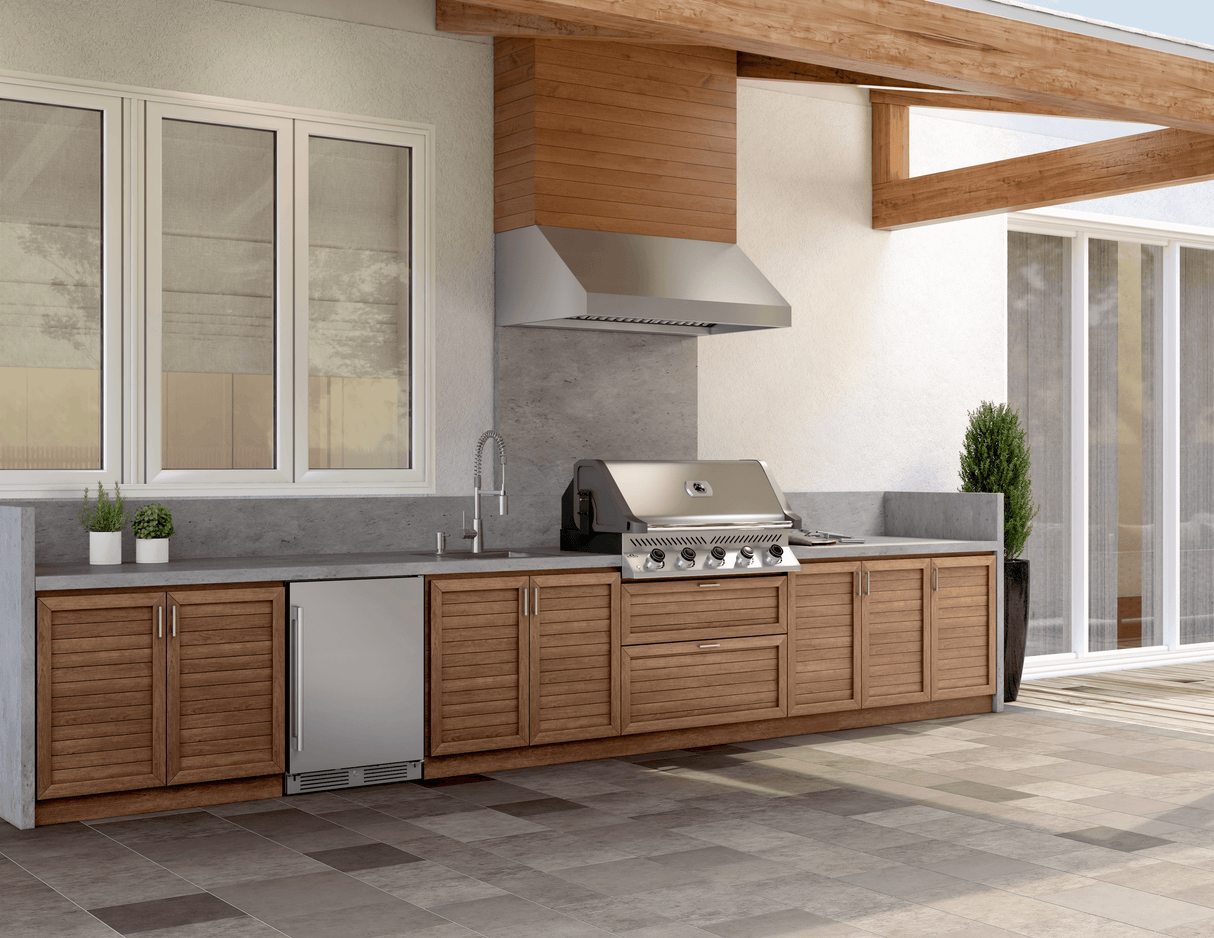

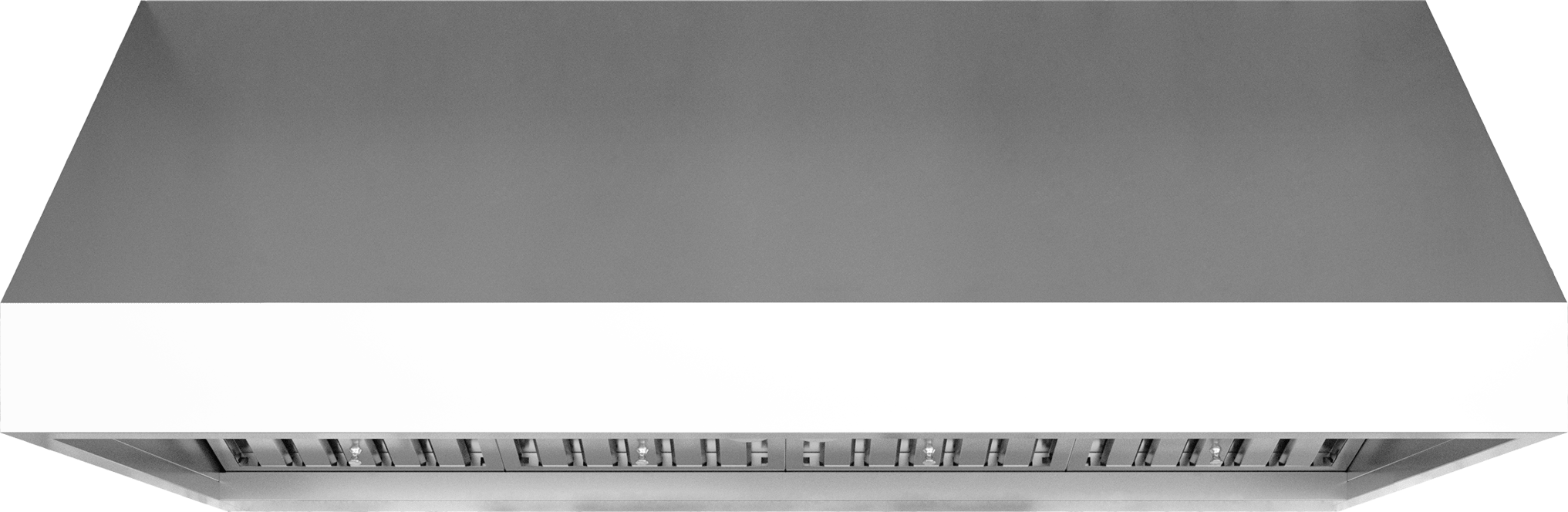

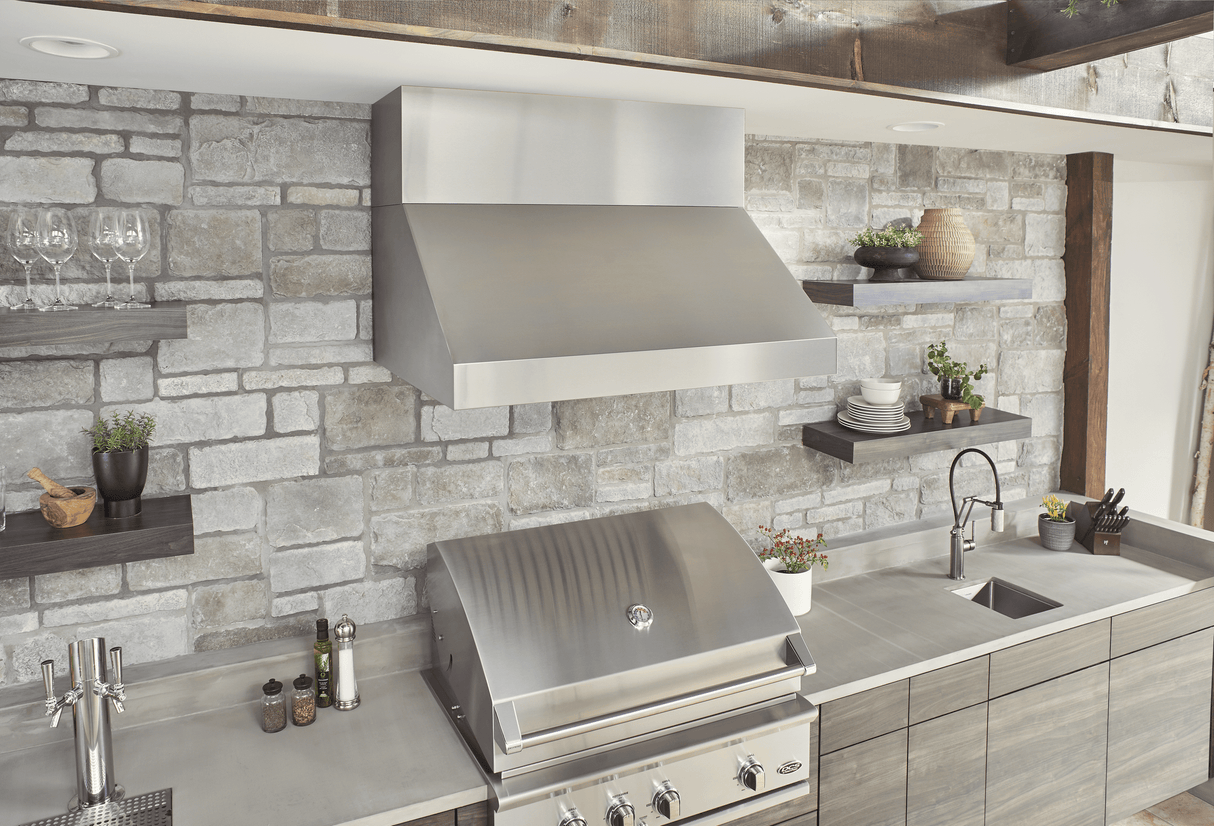

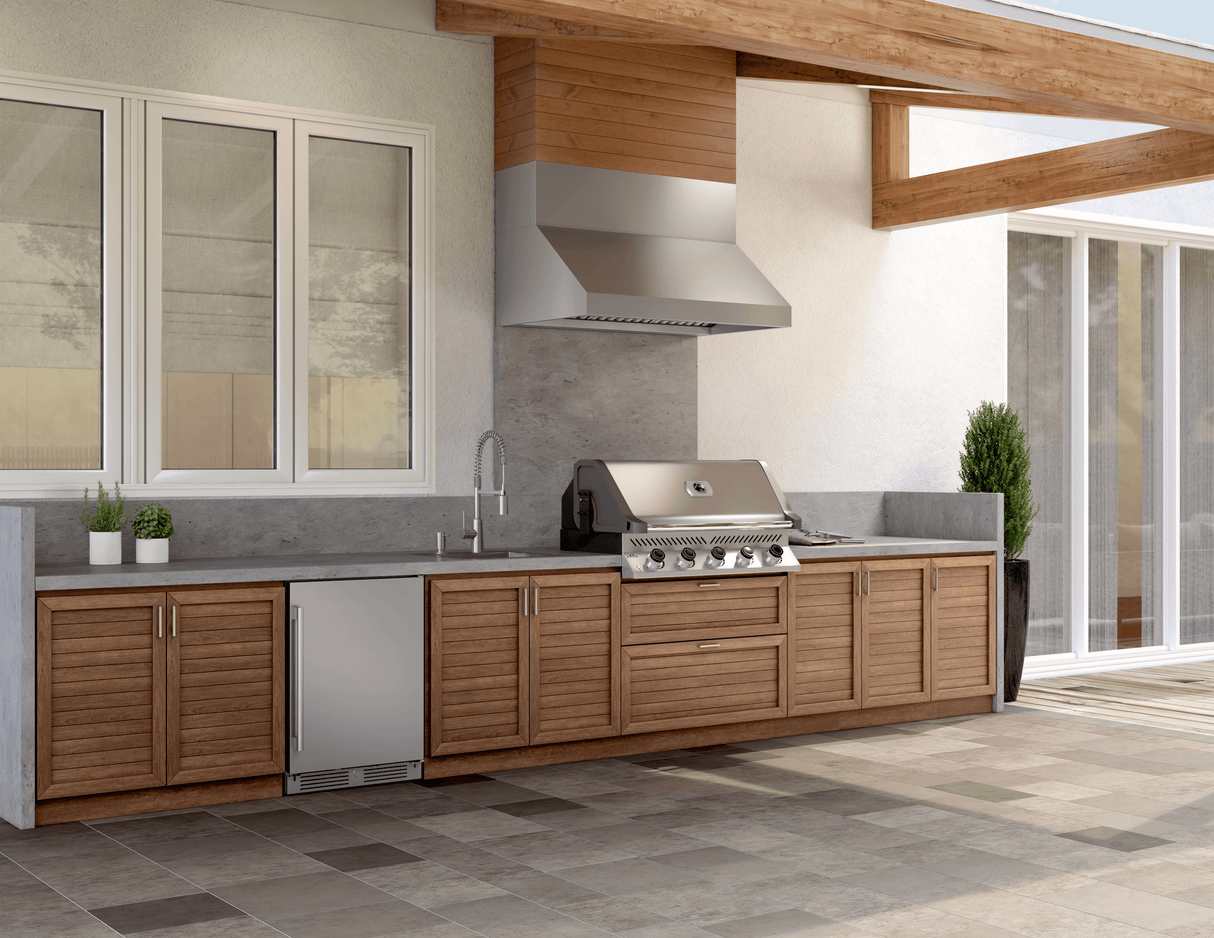

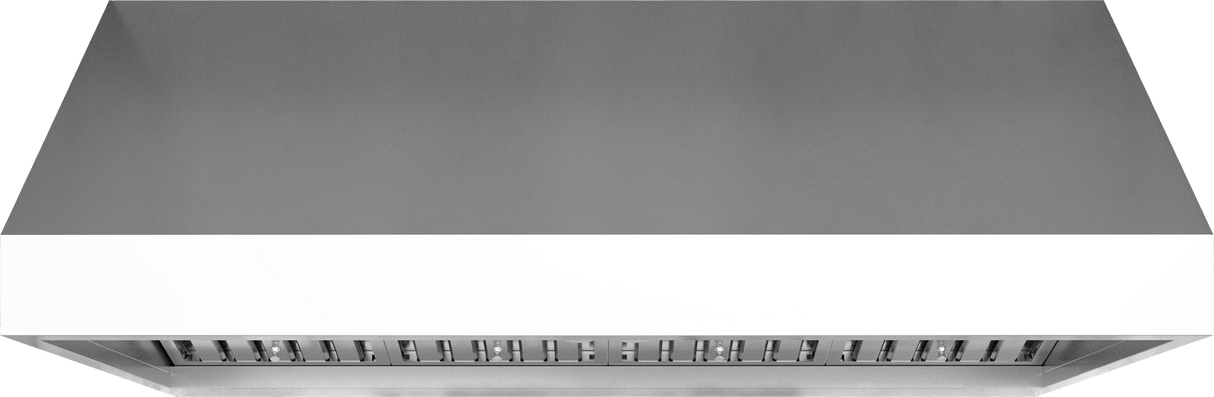

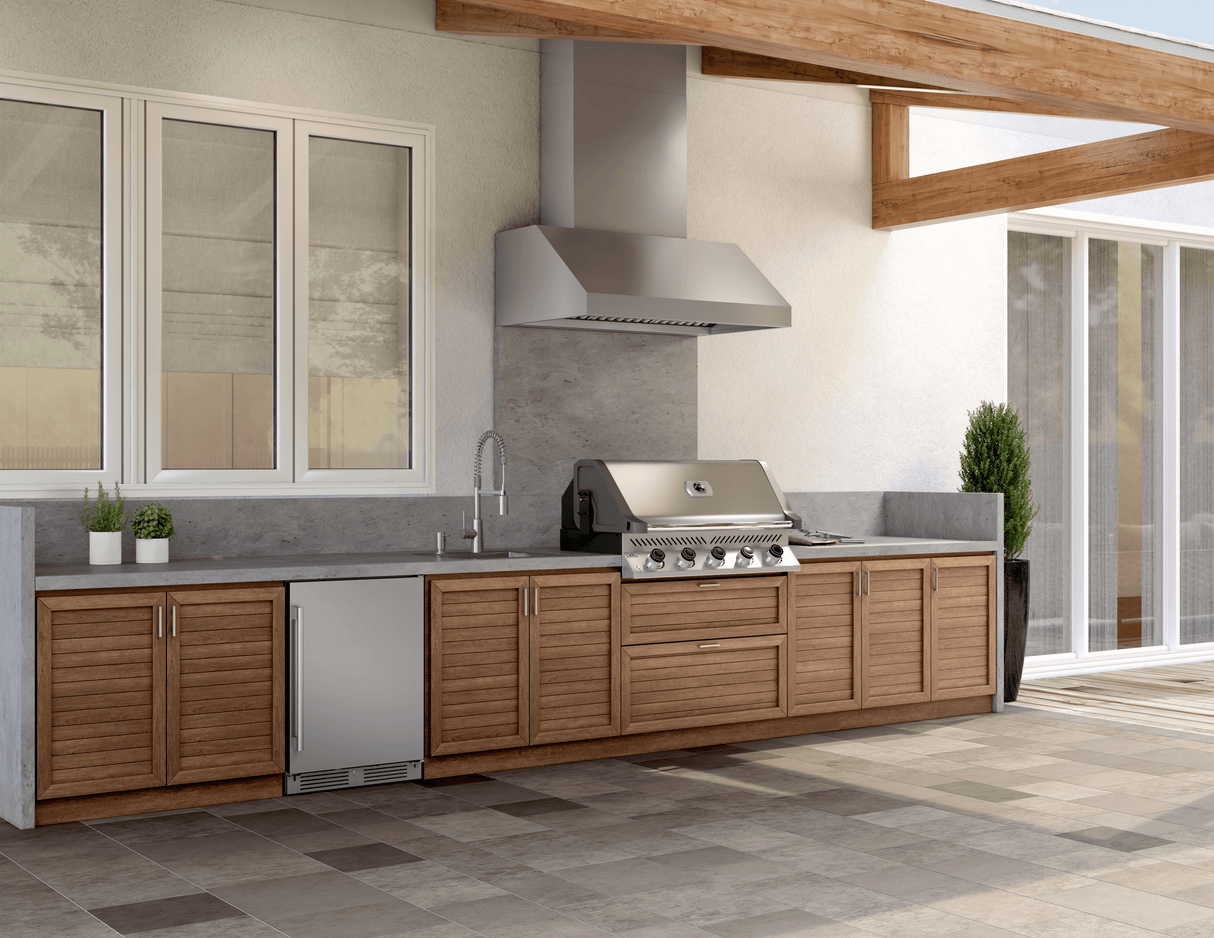

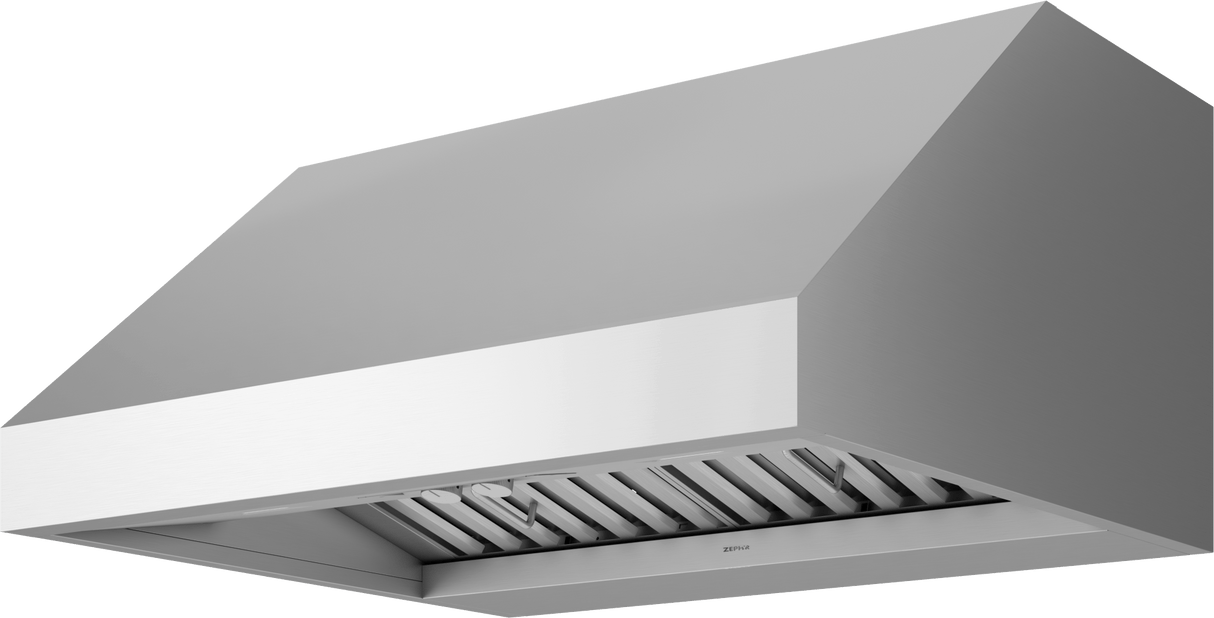

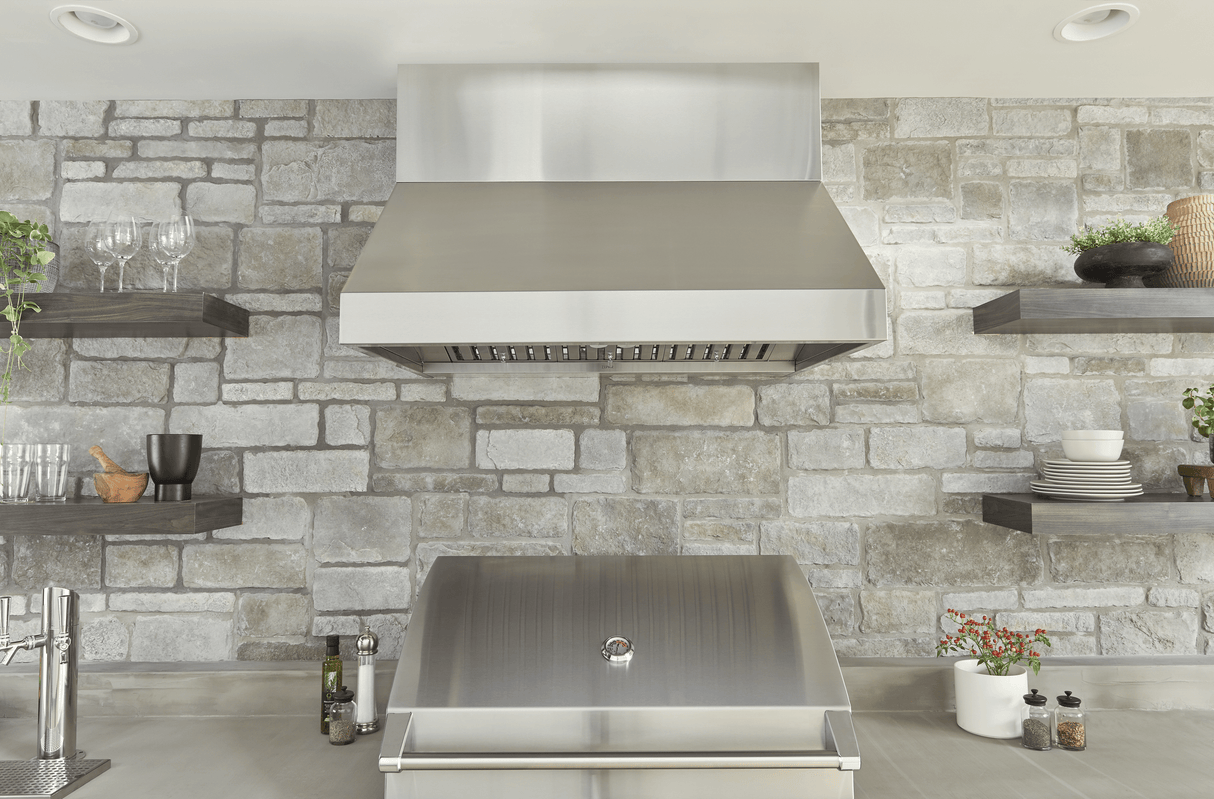

Cypress Wall Outdoor, 36in, LED, SS, 1200 CFM
Model AK7836CS
Authorized Dealer
1
of
9
Loading...
Authorized Dealer
Cypress Wall Outdoor, 36in, LED, SS, 1200 CFM
Model AK7836CSQuick Specs
Depth
32"
Height
18"
Energy
NO
Cypress Wall Outdoor, 36in, LED, SS, 1200 CFM is backordered and will ship as soon as it is back in stock.
This item qualifies for free delivery
Ships Out Within: 2 - 4 Business Days
Shipping Date By: 06/29/2026
Sale Price
$2,699.00
$2,899.00
You save 6%
SERVICES AVAILABLE
Selection will add
$0.00
to the price
Couldn't load pickup availability
Quick Specs
Depth
32"
Height
18"
Energy Star Rated
NO
- High-grade Stainless Steel
- Built with durable high-grade stainless steel.
- Outdoor Rated
- Zephyr range hoods are tested for use in outdoor environments and feature a full corrosion-resistant, 304-grade-stainless-steel exterior.
- Professional Baffle Filters
- High-airflow baffle filters that are dishwasher safe and ensure a lifetime of exceptional performance.
- Welded and polished body
- A welded and polished body ensures a high quality, seamless appearance.
- Vertical or horizontal ducting
- This hood has the ability to vent either out the top or out the back.
- Metallic Knob Controls
- Metallic knob controls are tested for use in outdoor environments and are built with corrosion-resistant, 304-grade stainless steel to withstand extreme heat and moisture.
- Optional Extension Duct Cover Kit
- Extension duct cover kit to accommodate ceiling heights up to 12 ft see spec sheets for more details.
- High-grade Stainless Steel
- Outdoor Rated
- Professional Baffle Filters
- Welded and polished body
- Vertical or horizontal ducting
- Metallic Knob Controls
- Optional Extension Duct Cover Kit
Cypress Wall Outdoor, 36in, LED, SS, 1200 CFM
| Brand | Zephyr |
| Manufacturer | Zephyr |
| Category | Range Hood |
| Sub-Category | Wall |
| Vent Type | Ducted |
| UPC | 646328010583 |
| GTIN | 00646328010583 |
| Country of Origin | Taiwan |
| Model Group | AK78-C |
| Model Name | Cypress |
| Collection | Pro Collection |
| Blower Included | Yes |
| Internal Blower 1 CFM | 1200 |
| Internal Blower 1 Min. Sones | 3.5 |
| Internal Blower 1 Max Sones | 9 |
| Minimum CFM | 450 |
| Installation Type | Wall |
| Installation Type | Wall |
| For Outdoor Use | Yes |
| Color | Stainless Steel |
| Controls Type | Control Knob |
| Blower Speeds | 3 |
| Automatic Delay-Off | No |
| Clean Air Function | No |
| Lighting Type | LED |
| Lights Quantity | 2 |
| Watts Per Bulb | 6 |
| Lights Levels | 2 |
| Grease Filter Type | Pro baffle |
| Compatible Mesh or Baffle Filter Part Number | 50210031 |
| Duct Discharge | Vertical or Horizontal |
| Duct Size; Horizontal; IN | 10 |
| Duct Size; Vertical; IN | 10 |
| Mounting Height Above Cooktop; IN | 32-42 |
| Voltage | 120 |
| Maximum Amperage | 9 |
| ADA Compliant | No |
| Warranty Parts / Labor | 3 / 1 |
| Compatible Appliances | AK0736BS, Z1C-0178 |
| Bluetooth Connected | No |
| Wi-Fi Connected | No |
| Remote Included | No |
| Remote Optional | No |
| Energy Star Certified | No |
| Alexa & Google Home Compatible | No |
| CEC Title 20 Compliant | Yes |
| Primary Material | Stainless Steel |
| Wattage | 1080 |
| Certification | UL |
| Nominal Width; IN | 36 |
| Net Width; IN | 35.875 |
| Net Depth; IN | 32 |
| Net Height; IN | 18 |
| Weight; LBS | 84 |
| Ceiling Height Minimum | 8 ft. |
| Ceiling Height Maximum | 12 ft. |
| Shipping Length; IN | 35.04 |
| Shipping Width; IN | 38.58 |
| Shipping Height; IN | 22.63 |
| Shipping Weight; LBS | 98.32 |
| Shipping Method | LTL |
| Freight Class | 250 |
| Certification # | E127334 |
| Duct Type | Vertical |
| Duct Type | Vertical |
- High-grade Stainless Steel
- Outdoor Rated
- Professional Baffle Filters
- Welded and polished body
- Vertical or horizontal ducting
- Metallic Knob Controls
- Optional Extension Duct Cover Kit
 | |
|---|---|
