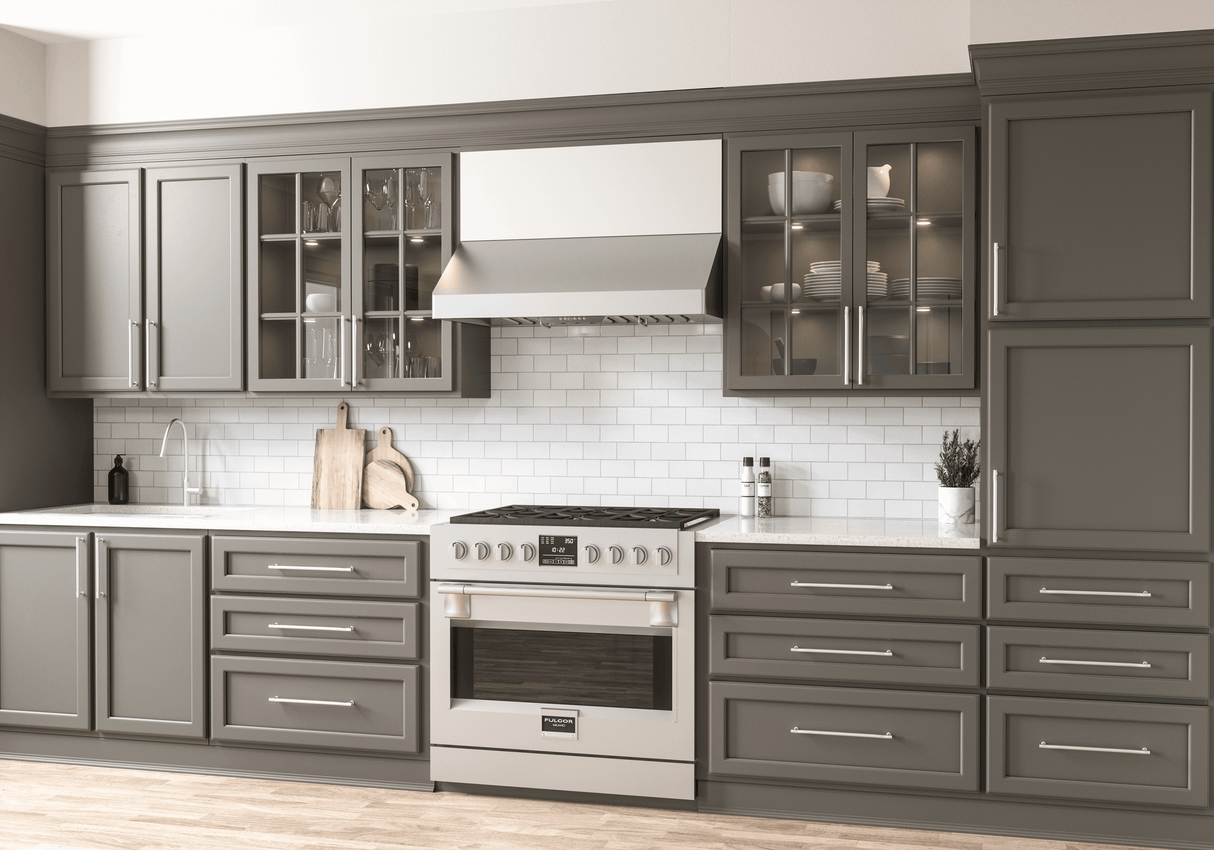

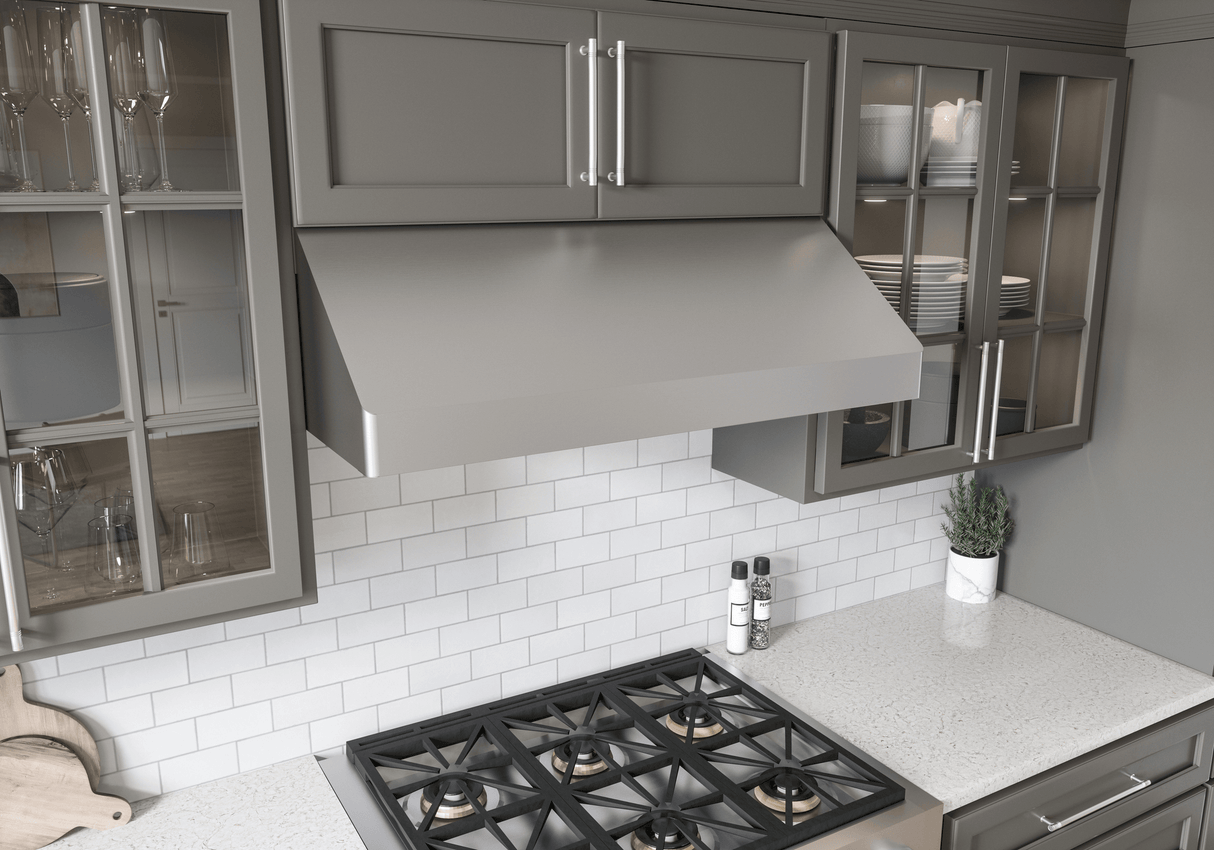

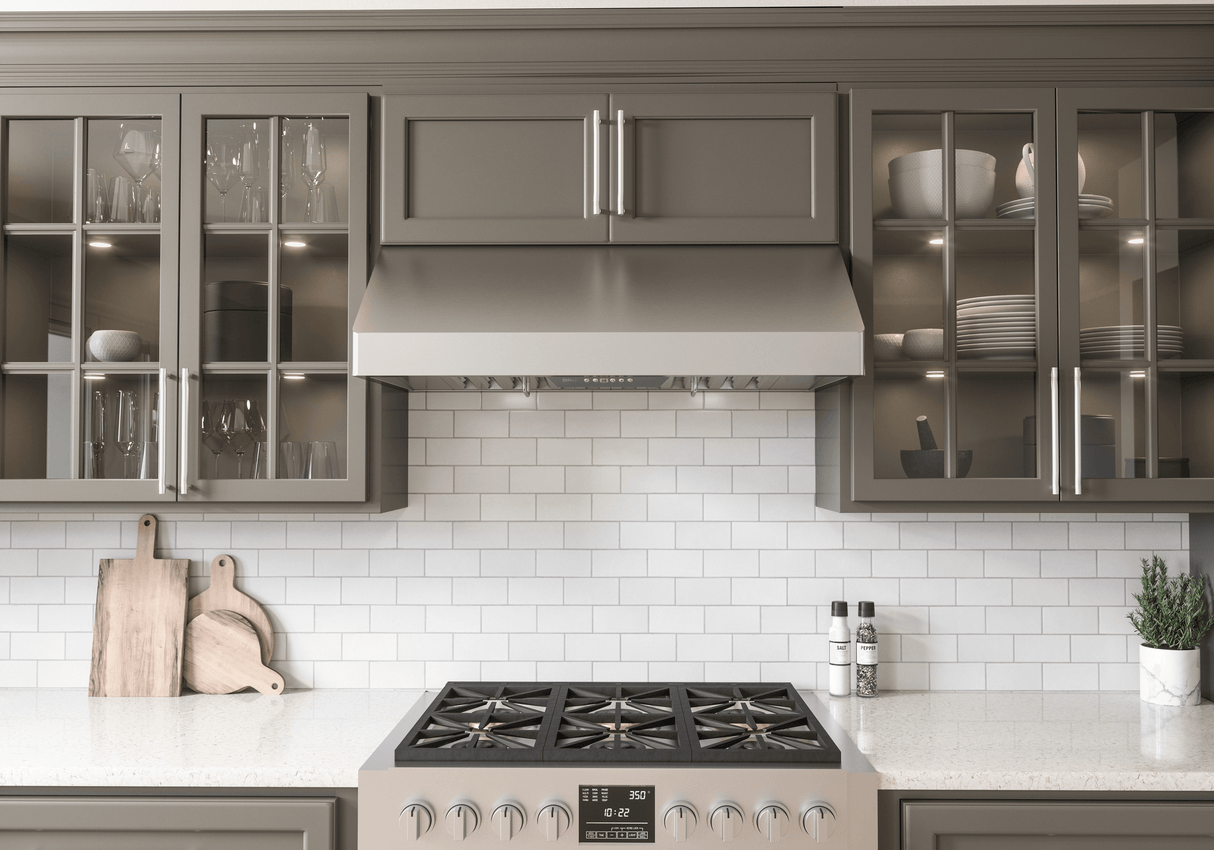

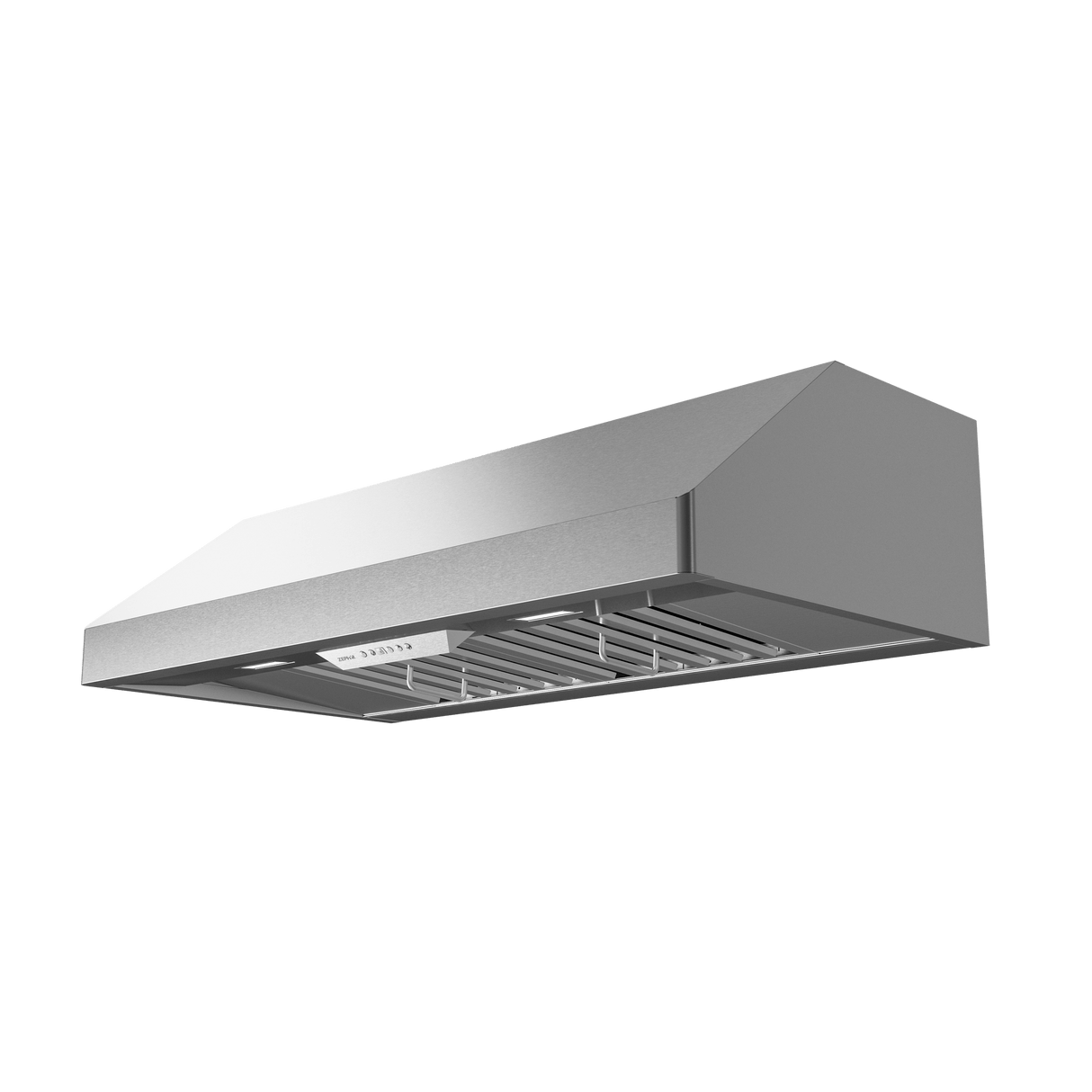

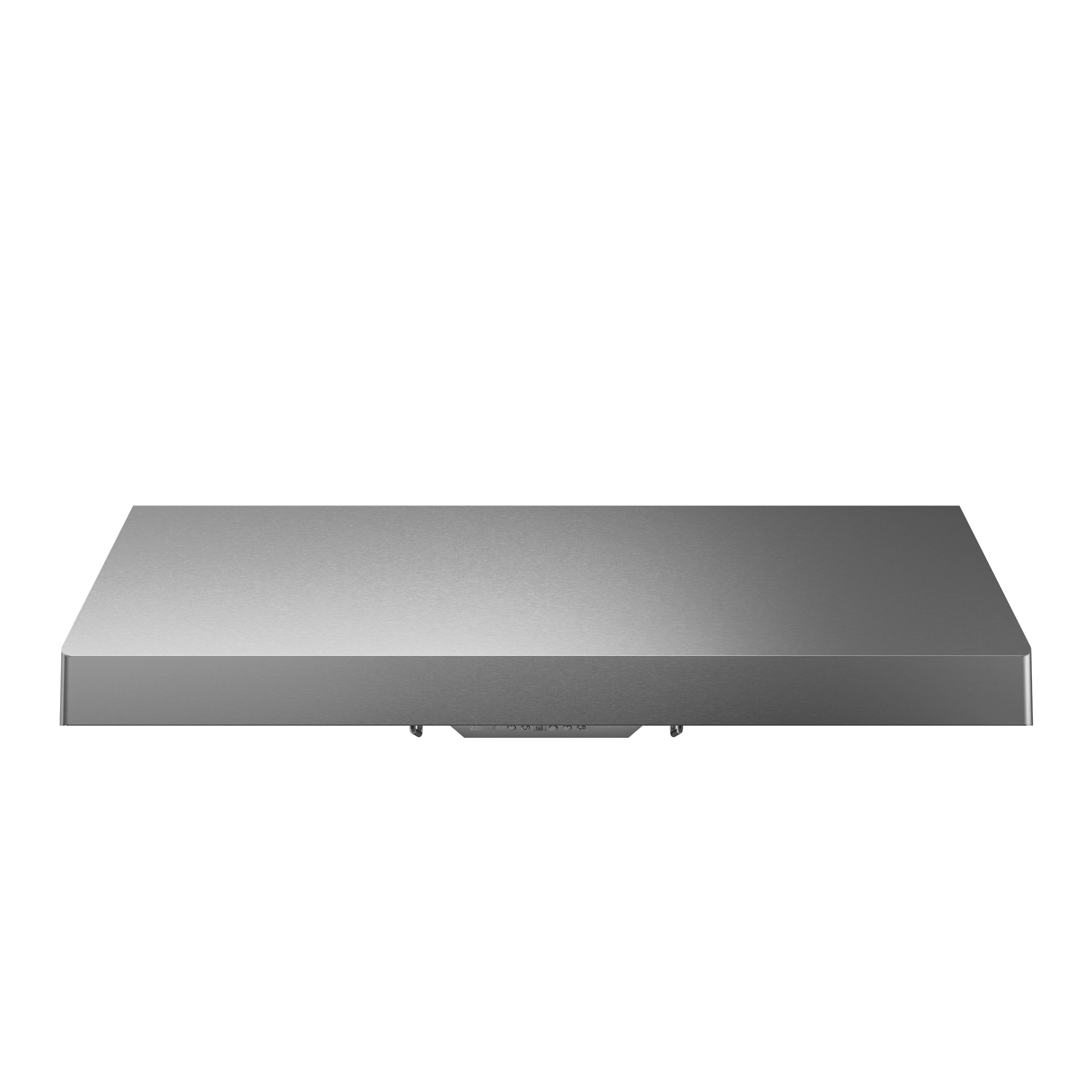

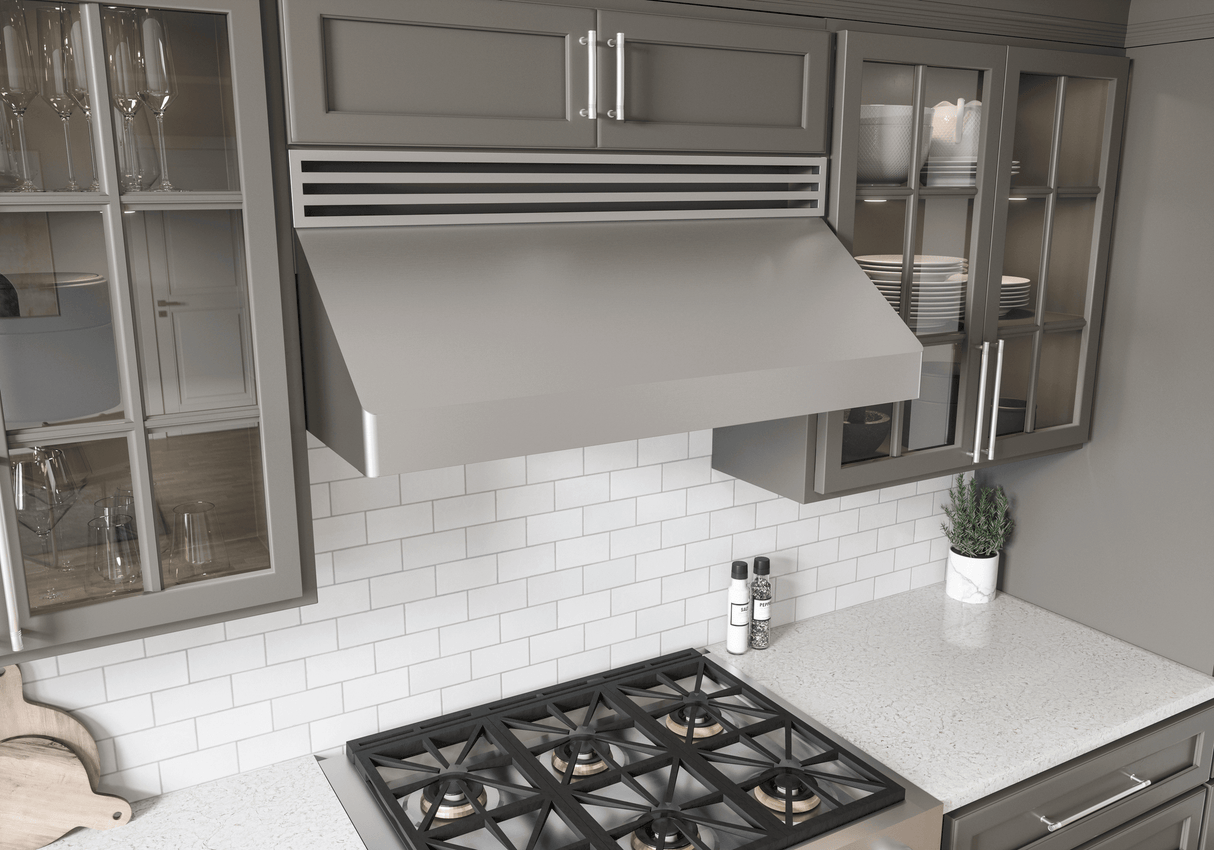

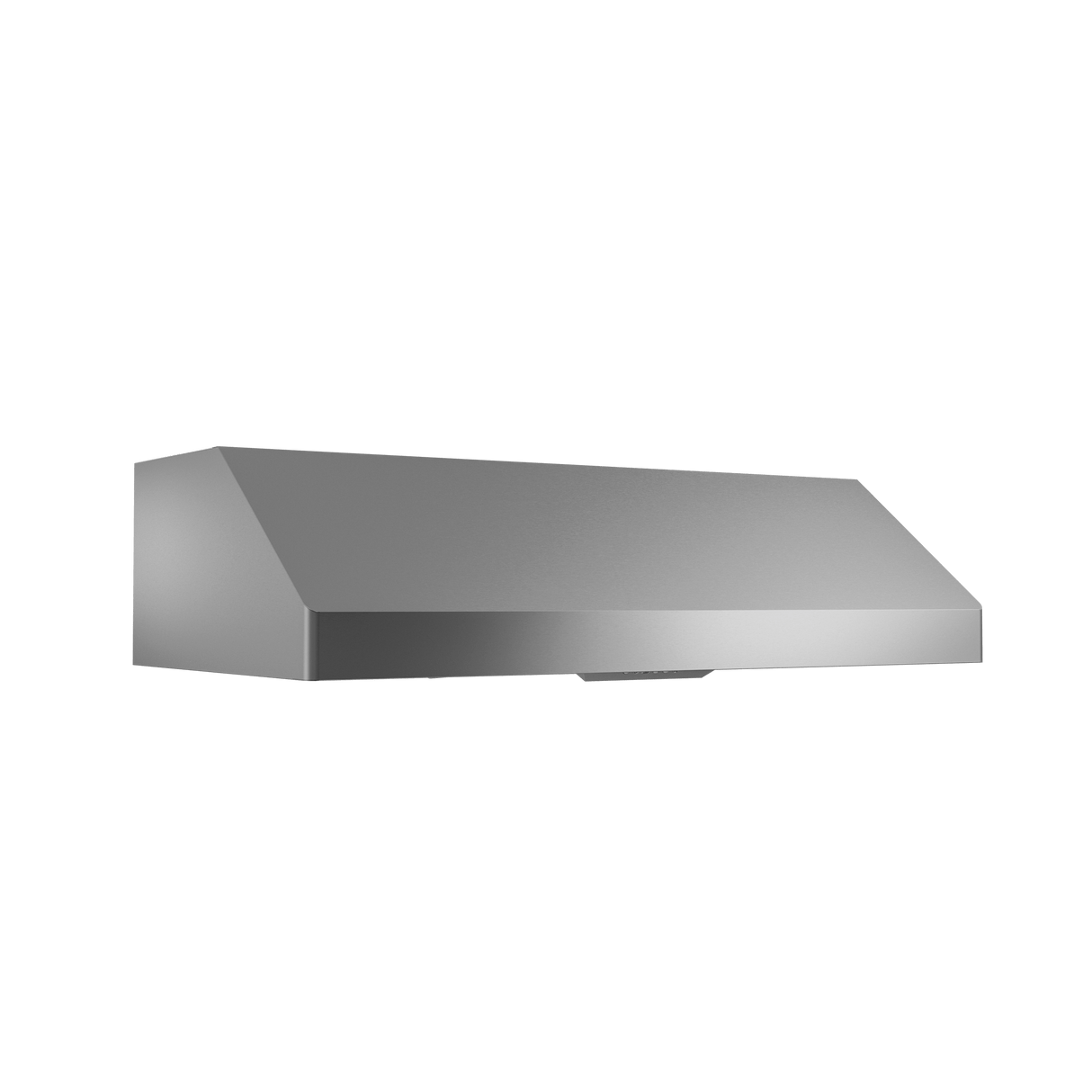

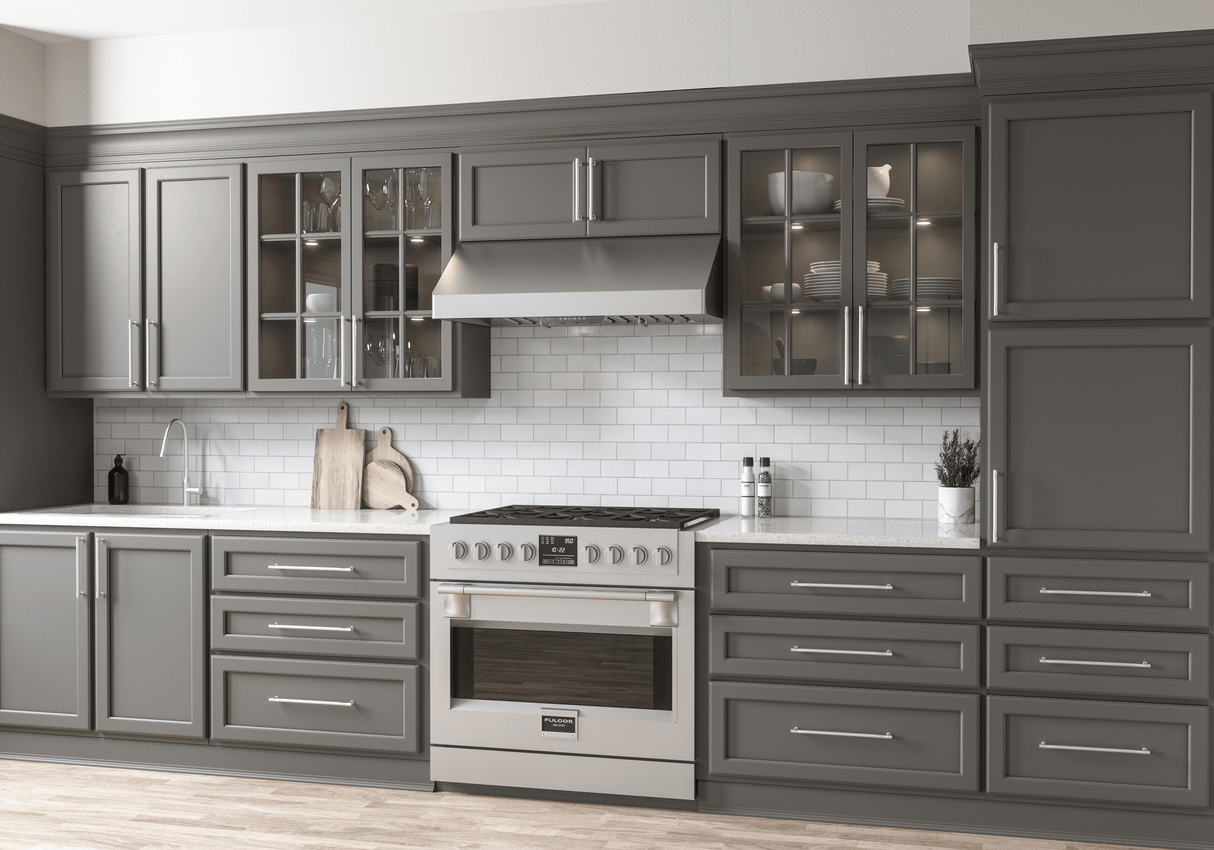

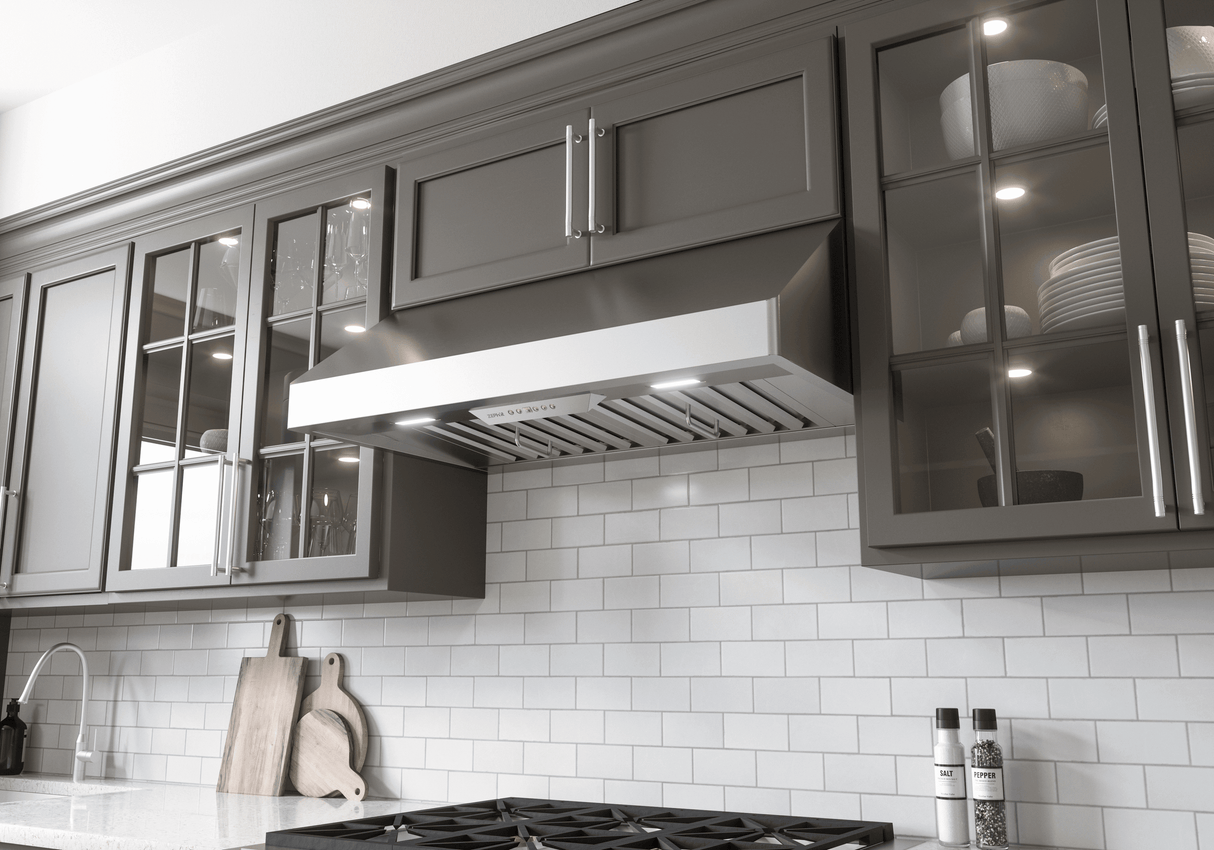

Tempest I, 11in UC, 48in, SS, LED, ACT
Model AK7048CS
Authorized Dealer
1
of
9
Loading...
Authorized Dealer
Tempest I, 11in UC, 48in, SS, LED, ACT
Model AK7048CSQuick Specs
Depth
22.5"
Height
11"
Energy
NO
Tempest I, 11in UC, 48in, SS, LED, ACT is backordered and will ship as soon as it is back in stock.
This item qualifies for free delivery
Ships Out Within: 2 - 4 Business Days
Shipping Date By: 06/29/2026
Sale Price
Sale price
$1,771.00
Regular price
$1,899.00
Unit price
/
Unavailable
You save 6%
SERVICES AVAILABLE
Selection will add
$0.00
to the price
Couldn't load pickup availability
Quick Specs
Depth
22.5"
Height
11"
Energy Star Rated
NO
- Airflow Control Technology™ (ACT™)
- Airflow Control Technology or ACT is an exclusive technology that gives installers the ability to set the maximum CFM levels to meet local code requirements.
- Professional Baffle Filters
- High-airflow baffle filters that are dishwasher safe and ensure a lifetime of exceptional performance.
- Welded and polished body
- A welded and polished body ensures a high quality, seamless appearance.
- CleanAir Function
- The CleanAir Function powers the hood on every four hours for 10 minutes to refresh the cooking area.
- LumiLight LED Lighting
- LumiLight LED lights are eco-friendly and built to last with a lifetime of more than 25,000 hours.
- Optional Ductless Recirculating Kit
- Ductless recirculating kit used when venting air outside your home is not possible. Smoke and odors pass through charcoal filters allowing purified air to be reintroduced into the kitchen.
- Optional Wireless Remote Control (14000005)
- ADA-compliant, wireless RF remote control with battery and holder. Equipped with a magnet on the back for easy storage on any magnetic surface. Maximum remote control communication distance is 15 feet from the hood. Please check your Zephyr range hoods specification sheet to ensure compatibility.
- Airflow Control Technology(TM) (ACT(TM))
- Professional Baffle Filters
- Welded and polished body
- CleanAir Function
- LumiLight LED Lighting
- Optional Ductless Recirculating Kit
- Optional Wireless Remote Control (14000005)
Tempest I, 11in UC, 48in, SS, LED, ACT
| Brand | Zephyr |
| Manufacturer | Zephyr |
| Category | Range Hood |
| Sub-Category | Under Cabinet |
| Vent Type | Convertible |
| UPC | 646328008702 |
| GTIN | 00646328008702 |
| Country of Origin | Taiwan |
| Model Group | AK70-C |
| Model Name | Tempest I Under-Cabinet |
| Collection | Pro Collection |
| Blower Included | Yes |
| Blower CFM w/ACT | 390, 290 |
| Internal Blower 1 CFM | 650 |
| Internal Blower 1 Min. Sones | 1 |
| Internal Blower 1 Max Sones | 6 |
| Minimum CFM | 200 |
| Installation Type | Under Cabinet |
| Installation Type | Under Cabinet |
| For Outdoor Use | No |
| Color | Stainless Steel |
| Controls Type | Electronic |
| Blower Speeds | 6 |
| Automatic Delay-Off | Yes |
| Clean Air Function | Yes |
| Lighting Type | LED |
| Lights Quantity | 2 |
| Watts Per Bulb | 6 |
| Lights Levels | 2 |
| Grease Filter Type | Pro baffle |
| Compatible Mesh or Baffle Filter Part Number | 50210039 |
| Duct Discharge | Vertical or Horizontal |
| Duct Size; Horizontal; IN | 8, 3.25 x 10 |
| Duct Size; Vertical; IN | 8 |
| Mounting Height Above Cooktop; IN | 26 - 36 |
| Voltage | 120 |
| Maximum Amperage | 5 |
| ADA Compliant | Yes, with optional remote |
| Warranty Parts / Labor | 3 / 1 |
| Compatible Appliances | AK0728, AK1728, 14000005, PBD-1200A, ZRC-7048C, AK1718, MUA008A, Z0F-C002, MUA010A |
| Bluetooth Connected | No |
| Wi-Fi Connected | No |
| Remote Included | No |
| Remote Optional | Yes |
| Energy Star Certified | No |
| Alexa & Google Home Compatible | No |
| CEC Title 20 Compliant | Yes |
| CEC Title 24 Compliant | Yes |
| Primary Material | Stainless Steel |
| Wattage | 600 |
| Certification | UL |
| Nominal Width; IN | 48 |
| Net Width; IN | 47.9 |
| Net Depth; IN | 22.5 |
| Net Height; IN | 11 |
| Weight; LBS | 65.500 |
| Ceiling Height Minimum | 8 ft. |
| Ceiling Height Maximum | 12 ft. |
| Shipping Length; IN | 16 |
| Shipping Width; IN | 53 |
| Shipping Height; IN | 30.1 |
| Shipping Weight; LBS | 68.6 |
| Shipping Method | LTL |
| Freight Class | 300 |
| Certification # | E127334 |
| Clean Filter Alert | Yes |
| Duct Type | Vertical |
| Duct Type | Vertical |
- Airflow Control Technology(TM) (ACT(TM))
- Professional Baffle Filters
- Welded and polished body
- CleanAir Function
- LumiLight LED Lighting
- Optional Ductless Recirculating Kit
- Optional Wireless Remote Control (14000005)
 | |
|---|---|
