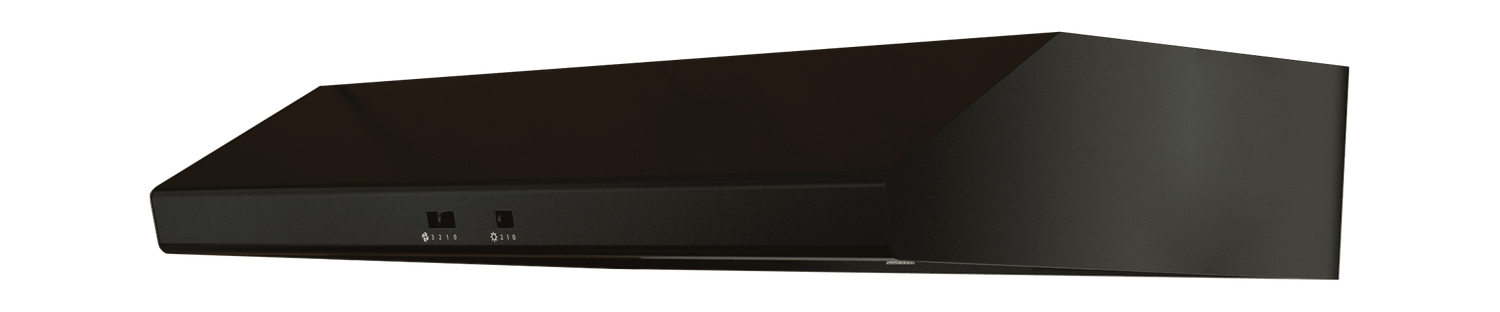

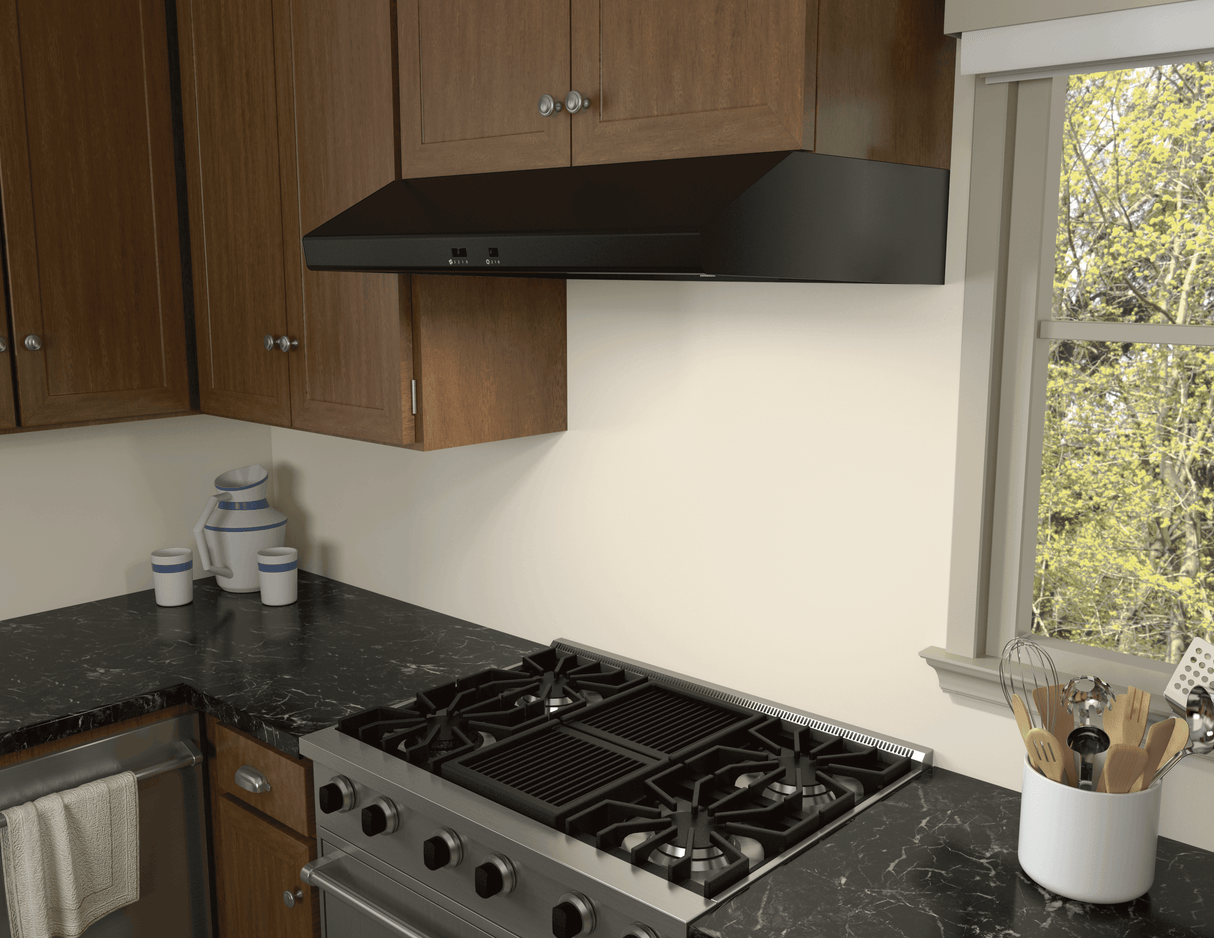

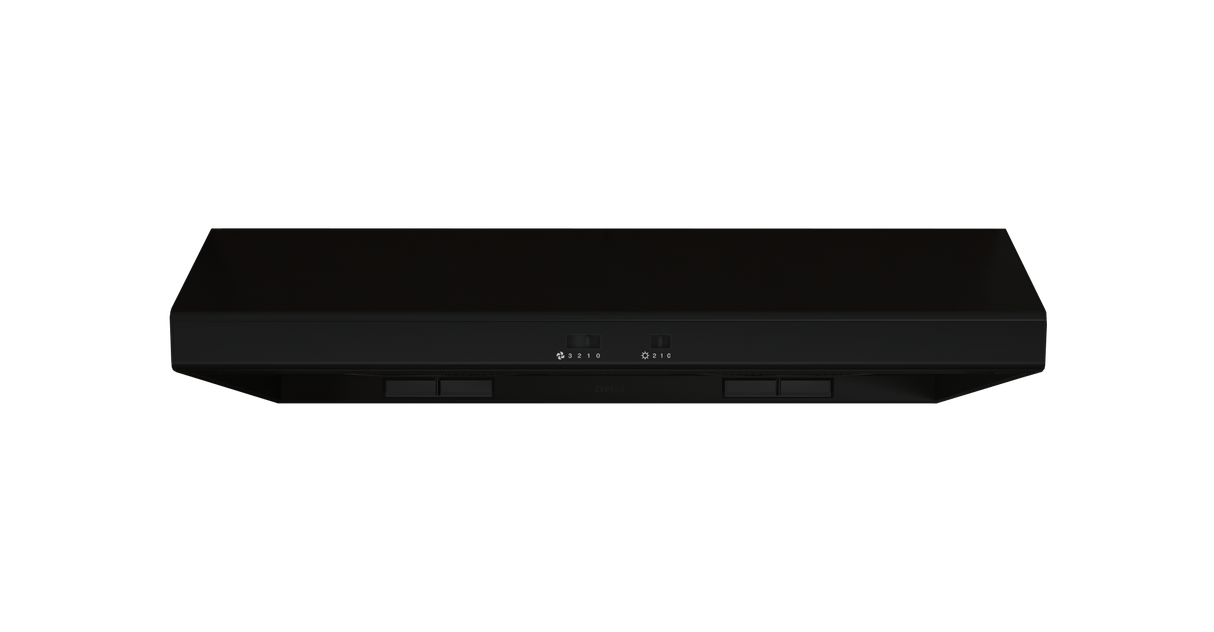

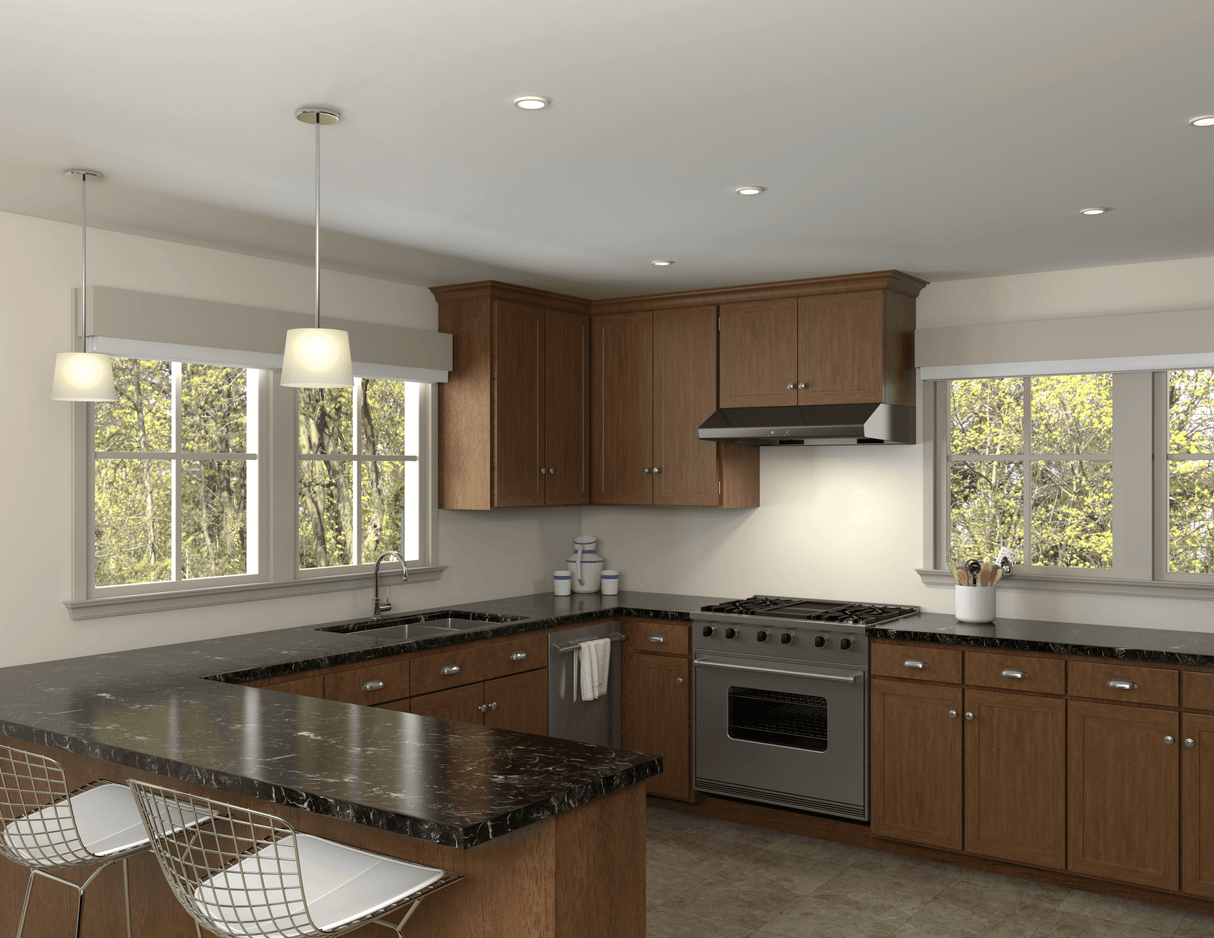

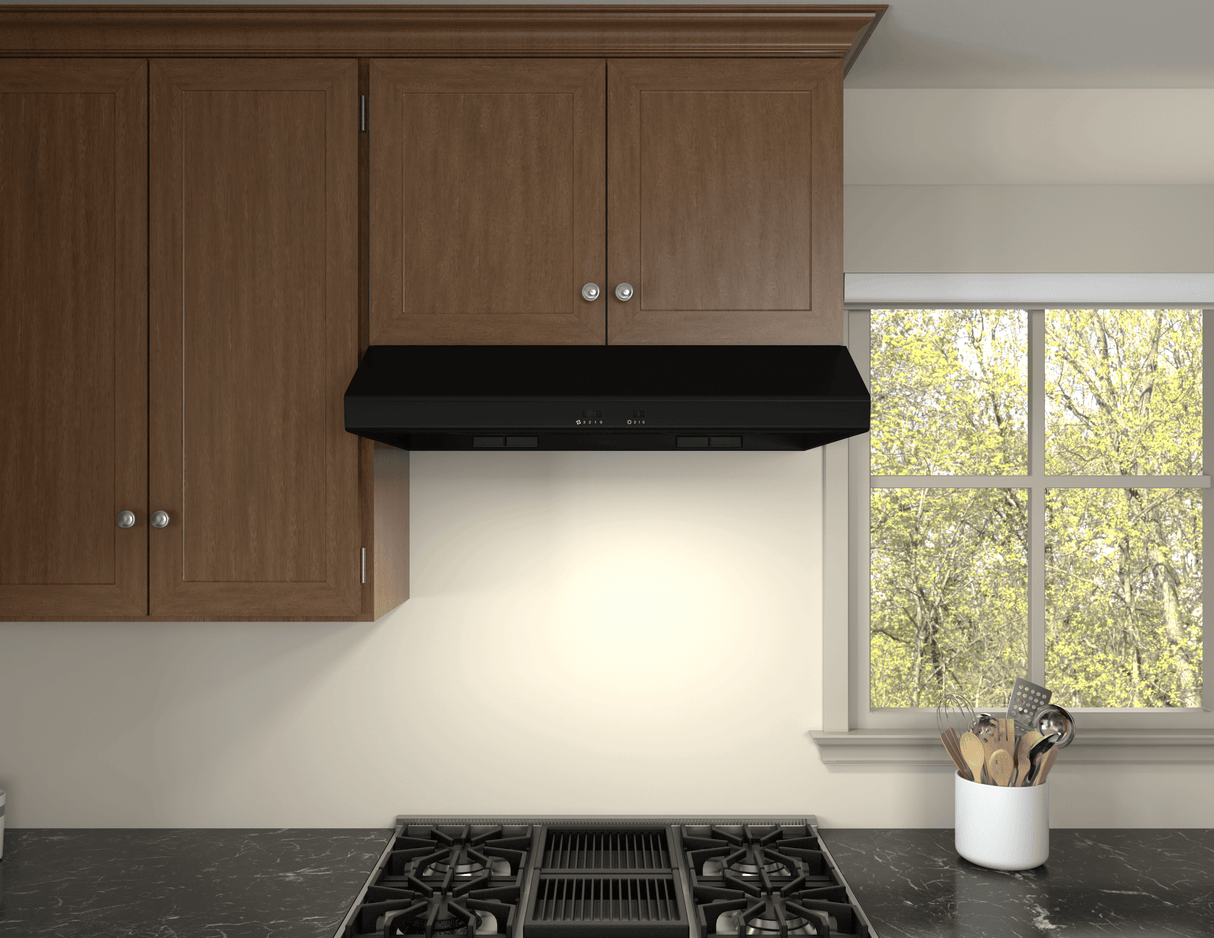

Cyclone, UC, 36", Blk, 600 CFM
Model AK6536BB
Authorized Dealer
1
of
6
Loading...
Authorized Dealer
Cyclone, UC, 36", Blk, 600 CFM
Model AK6536BBQuick Specs
Depth
22.25
Height
6.375
RPM
-1.0
Energy
NO
Color
Cyclone, UC, 36", Blk, 600 CFM is backordered and will ship as soon as it is back in stock.
Ships Out Within: 2 - 4 Business Days
Shipping Date By: 06/29/2026
Regular price
$497.77
Unit price
/
Unavailable
SERVICES AVAILABLE
Selection will add
$0.00
to the price
Couldn't load pickup availability
Out of stock
Quick Specs
Depth
22.25
Height
6.375
RPM
-1.0
Energy Star Rated
NO
- Filter-less self-cleaning system

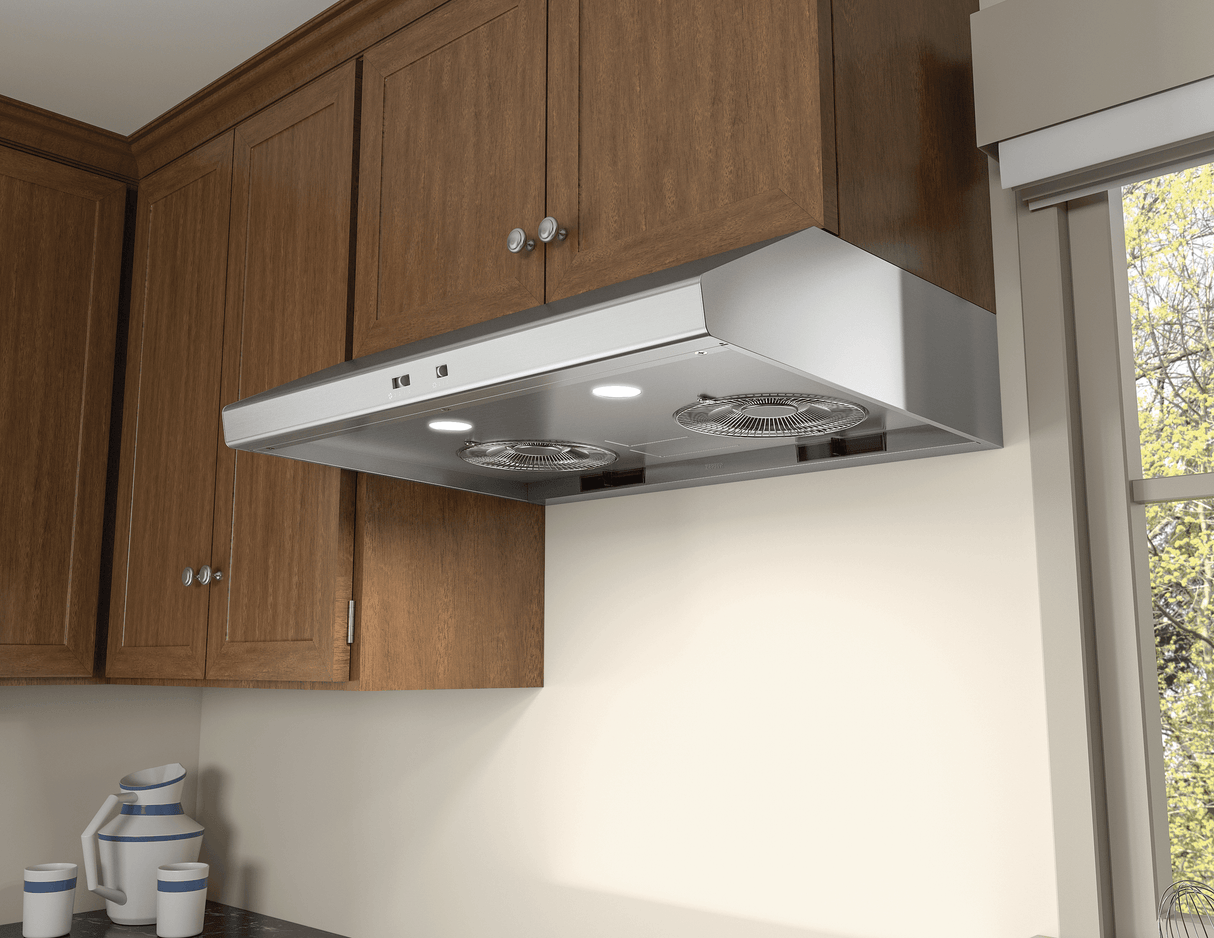

- Designed to work without filters, the centrifugal blower wheel pushes air downwards and away from the center, separating cooking vapors and grease from the air. Remaining cooking contaminates are then trapped in a residue tray which drains into residue cups when cleaned. This blower system ensures that the hood is effective, quiet and easy to use.
- Low-profile body
- Low-profile body for a minimalist appearance.
- Longer warranty than competitors
- We back our products with an unparalleled level of service and a generous multi-year warranty.
- Multiple color options
- Multiple colors available to match your kitchen decor.
- Vertical or horizontal ducting
- This hood has the ability to vent either out the top or out the back.
- Filter-less self-cleaning system
- Low-profile body
- Longer warranty than competitors
- Multiple color options
- Vertical or horizontal ducting
Cyclone, UC, 36", Blk, 600 CFM
| Brand | Zephyr |
| Manufacturer | Zephyr |
| Category | Range Hood |
| Sub-Category | Under Cabinet |
| Vent Type | Ducted |
| UPC | 646328004599 |
| GTIN | 00646328004599 |
| Country of Origin | Taiwan |
| Model Group | AK65-B |
| Model Name | Cyclone |
| Collection | Core Collection |
| Replacement Model | AK6536CB |
| Blower Included | Yes |
| Internal Blower 1 CFM | 600 |
| Internal Blower 1 Min. Sones | 1.5 |
| Internal Blower 1 Max Sones | 5 |
| Minimum CFM | 290 |
| Installation Type | Under Cabinet |
| Installation Type | Under Cabinet |
| For Outdoor Use | No |

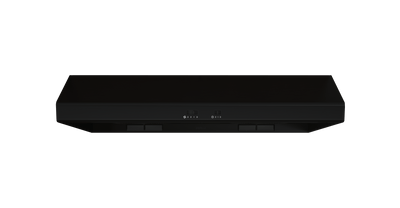

| Color | Black |
| Controls Type | Mechanical Slide |
| Blower Speeds | 3 |
| Automatic Delay-Off | No |
| Clean Air Function | No |
| Lighting Type | Halogen |
| Lights Quantity | 2 |
| Watts Per Bulb | 35 |
| Lights Levels | 2 |
| Grease Filter Type | Filter-less |
| Duct Discharge | Vertical or Horizontal |
| Duct Size; Horizontal; IN | 3.25 x 10 |
| Duct Size; Vertical; IN | 6, 3.25 x 10 |
| Mounting Height Above Cooktop; IN | 24 - 32 |
| Voltage | 120 |
| Maximum Amperage | 2.4 |
| ADA Compliant | No |
| Warranty Parts / Labor | 10 / 1 |
| Compatible Appliances | MUA006A, Z0B0040 |
| Bluetooth Connected | No |
| Wi-Fi Connected | No |
| Remote Included | No |
| Remote Optional | No |
| Energy Star Certified | No |
| Alexa & Google Home Compatible | No |
| CEC Title 20 Compliant | Yes |
| Primary Material | Steel |
| Wattage | 288 |
| Certification | UL |
| Nominal Width; IN | 36 |
| Net Width; IN | 35.75 |
| Net Depth; IN | 22.25 |
| Net Height; IN | 6.375 |
| Weight; LBS | 31.7 |
| Ceiling Height Minimum | 8 ft. |
| Ceiling Height Maximum | 12 ft. |
| Shipping Length; IN | 9.65 |
| Shipping Width; IN | 38.39 |
| Shipping Height; IN | 27.17 |
| Shipping Weight; LBS | 39.2 |
| Shipping Method | Small Parcel |
| Freight Class | 150 |
| Duct Type | Vertical |
| Duct Type | Vertical |
- Filter-less self-cleaning system
- Low-profile body
- Longer warranty than competitors
- Multiple color options
- Vertical or horizontal ducting
 | |
|---|---|
