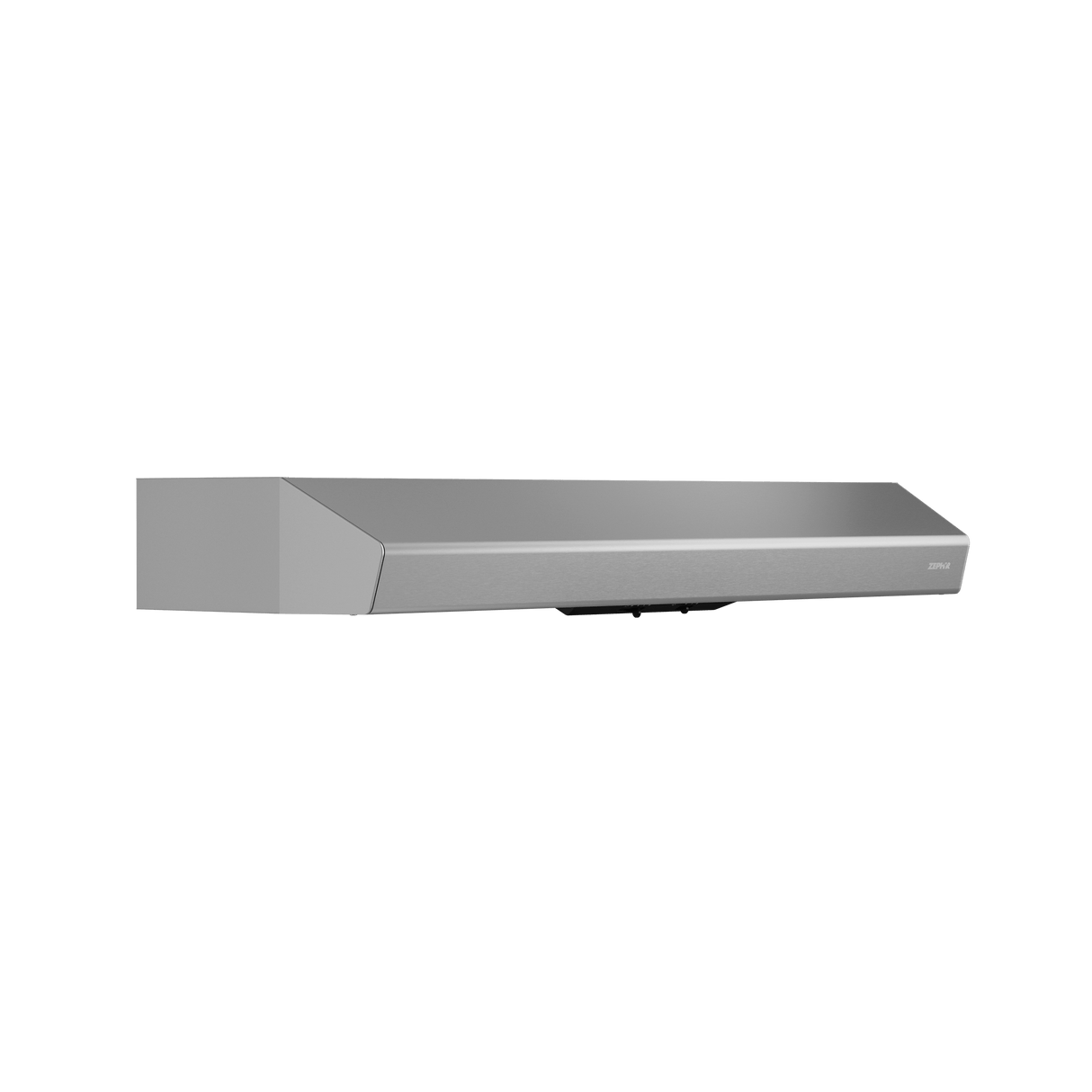

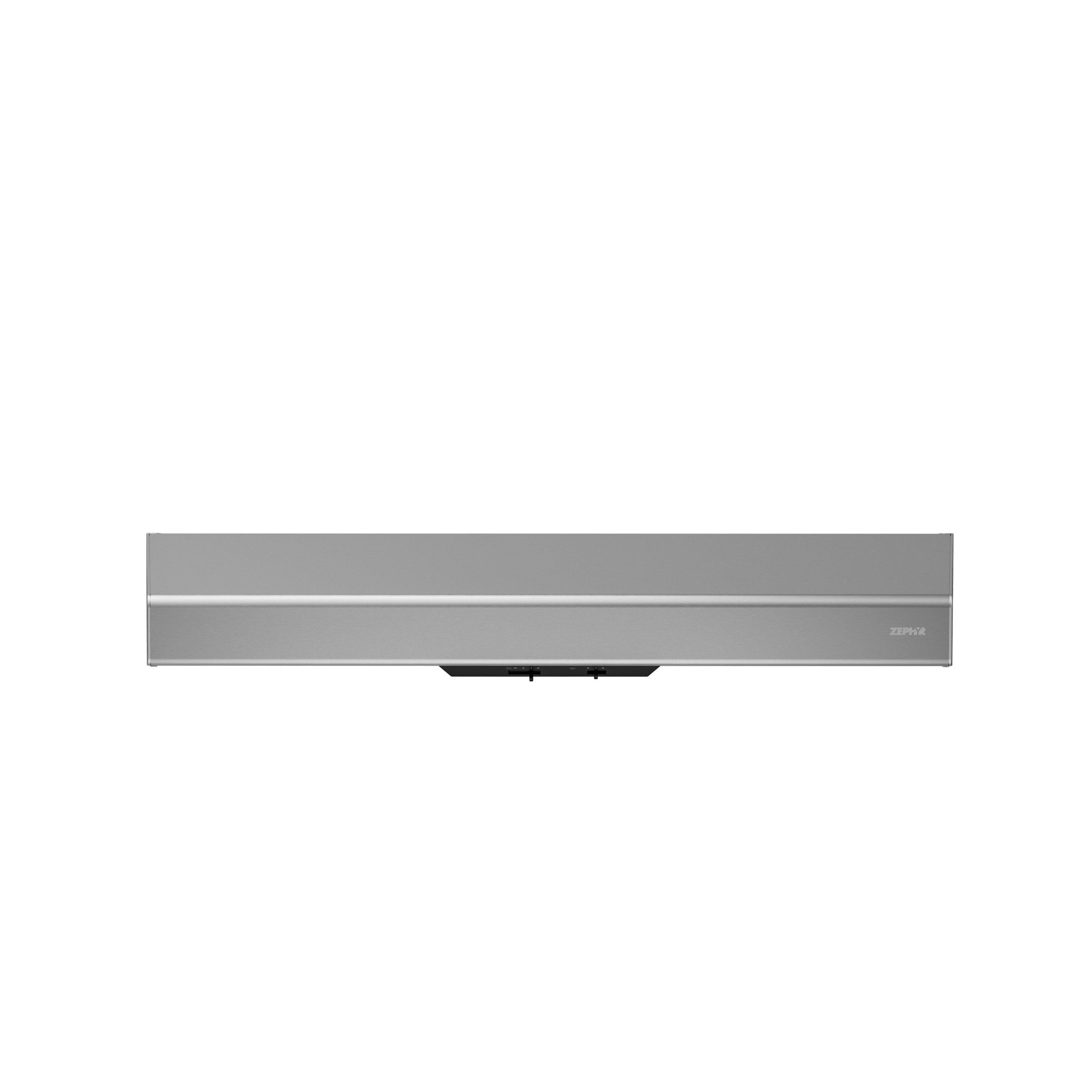

Breeze I, UC, 36in, SS, LED
Model AK1136BS
Authorized Dealer
1
of
7
Loading...
Authorized Dealer
Breeze I, UC, 36in, SS, LED
Model AK1136BSQuick Specs
Depth
20.09"
Height
5.5"
Energy
NO
Breeze I, UC, 36in, SS, LED is backordered and will ship as soon as it is back in stock.
Ships Out Within: 2 - 4 Business Days
Shipping Date By: 06/29/2026
Regular price
$416.22
Unit price
/
Unavailable
SERVICES AVAILABLE
Selection will add
$0.00
to the price
Couldn't load pickup availability
Quick Specs
Depth
20.09"
Height
5.5"
Energy Star Rated
NO

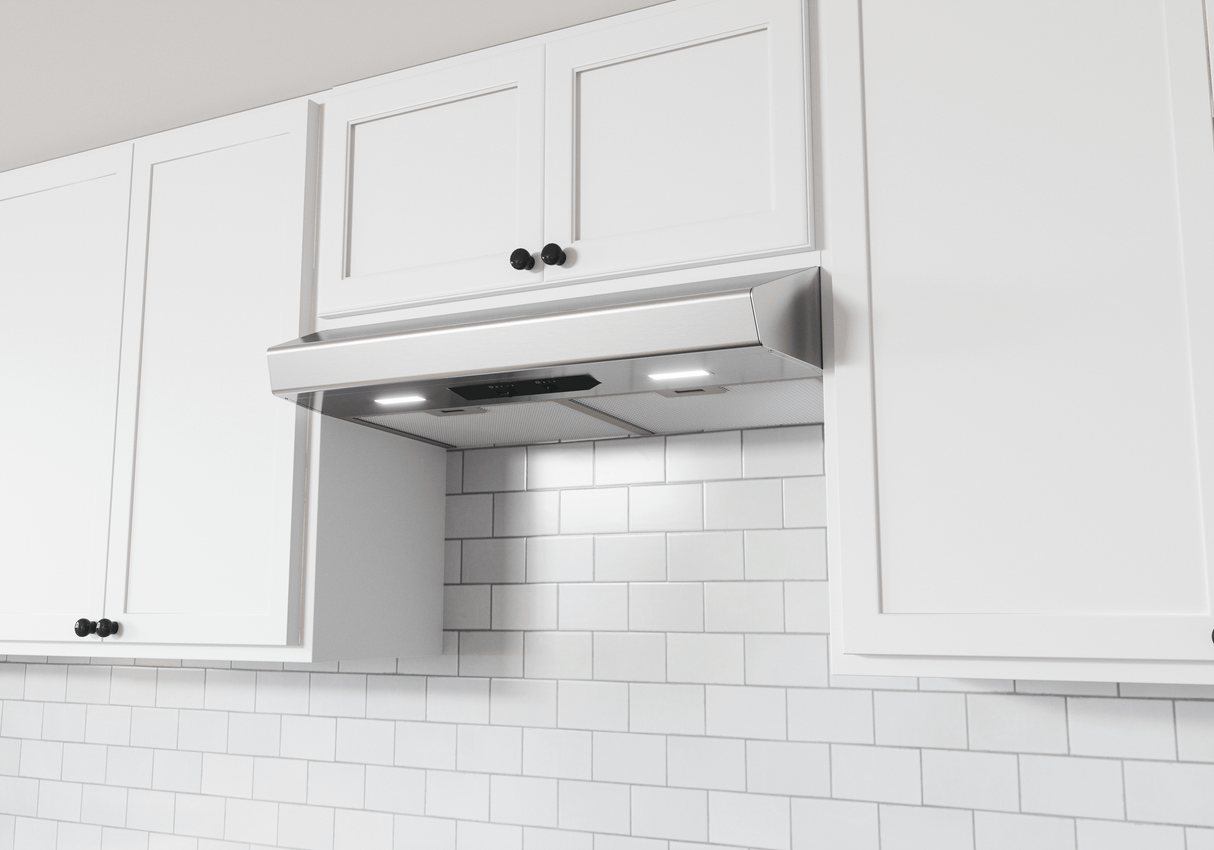

- LumiLight LED Lighting
- LumiLight LED lights are eco-friendly and built to last with a lifetime of more than 25,000 hours.
- Value Driven
- Low-profile body
- Low-profile body for a minimalist appearance.

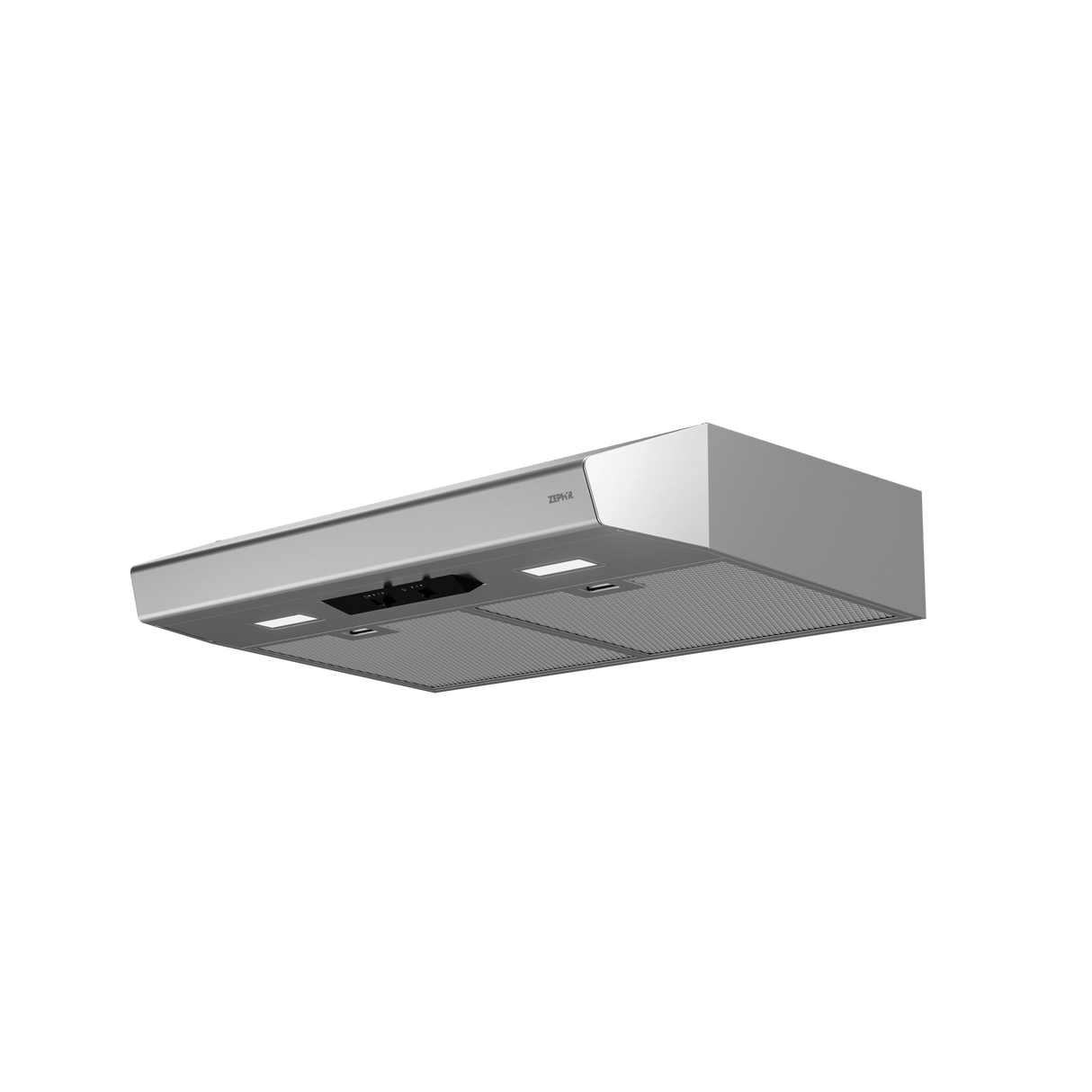

- Extra-wide mesh filters
- High quality mesh filters with an increased width for improved capture and performance.
- Vertical or horizontal ducting
- This hood has the ability to vent either out the top or out the back.

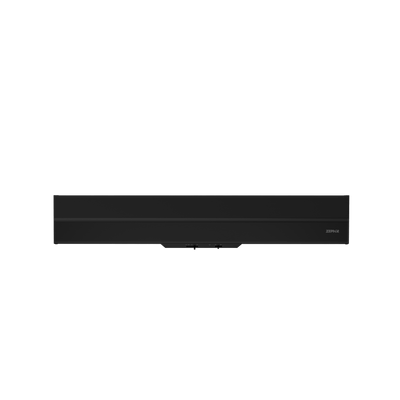

- Multiple color options
- Multiple colors available to match your kitchen decor.
- Optional Ductless Recirculating Kit
- Ductless recirculating kit used when venting air outside your home is not possible. Smoke and odors pass through charcoal filters allowing purified air to be reintroduced into the kitchen.
- LumiLight LED Lighting
- Value Driven
- Low-profile body
- Extra-wide mesh filters
- Vertical or horizontal ducting
- Multiple color options
- Optional Ductless Recirculating Kit
Breeze I, UC, 36in, SS, LED
| Brand | Zephyr |
| Manufacturer | Zephyr |
| Category | Range Hood |
| Sub-Category | Under Cabinet |
| Vent Type | Convertible |
| UPC | 646328008573 |
| GTIN | 00646328008573 |
| Country of Origin | Taiwan |
| Model Group | AK11-B |
| Model Name | Breeze I Under-Cabinet |
| Collection | Core Collection |
| Blower Included | Yes |
| Internal Blower 1 CFM | 250 |
| Internal Blower 1 Min. Sones | 1.8 |
| Internal Blower 1 Max Sones | 3.5 |
| Minimum CFM | 100 |
| Installation Type | Under Cabinet |
| Installation Type | Under Cabinet |
| For Outdoor Use | No |

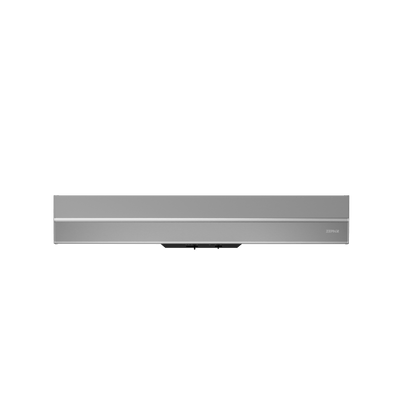

| Color | Stainless Steel |
| Controls Type | Mechanical Slide |
| Blower Speeds | 3 |
| Automatic Delay-Off | No |
| Clean Air Function | No |
| Lighting Type | LED |
| Lights Quantity | 2 |
| Watts Per Bulb | 6 |
| Lights Levels | 2 |
| Grease Filter Type | Mesh |
| Compatible Mesh or Baffle Filter Part Number | Z0F-B002 |
| Duct Discharge | Vertical or Horizontal |
| Duct Size; Horizontal; IN | 3.25 x 10 |
| Duct Size; Vertical; IN | 3.25 x 10 |
| Mounting Height Above Cooktop; IN | 20 - 32 |
| Voltage | 120 |
| Maximum Amperage | 2 |
| ADA Compliant | Yes, with optional wall switch |
| Warranty Parts / Labor | 3 / 1 |
| Compatible Appliances | 0AK11-21001, 0AK11-20001, AK1716 |
| Bluetooth Connected | No |
| Wi-Fi Connected | No |
| Remote Included | No |
| Remote Optional | No |
| Energy Star Certified | No |
| Alexa & Google Home Compatible | No |
| CEC Title 20 Compliant | Yes |
| CEC Title 24 Compliant | Yes |
| Primary Material | Stainless Steel |
| Wattage | 240 |
| Certification | UL |
| Nominal Width; IN | 36 |
| Net Width; IN | 35.9 |
| Net Depth; IN | 20.125 |
| Net Height; IN | 5.5 |
| Weight; LBS | 22.500 |
| Ceiling Height Minimum | 8 ft. |
| Ceiling Height Maximum | 12 ft. |
| Shipping Length; IN | 40 |
| Shipping Width; IN | 9 |
| Shipping Height; IN | 25 |
| Shipping Weight; LBS | 26 |
| Shipping Method | Small Parcel |
| Freight Class | 150 |
| Certification # | E127334 |
| Clean Filter Alert | No |
| Duct Type | Vertical |
| Duct Type | Vertical |
