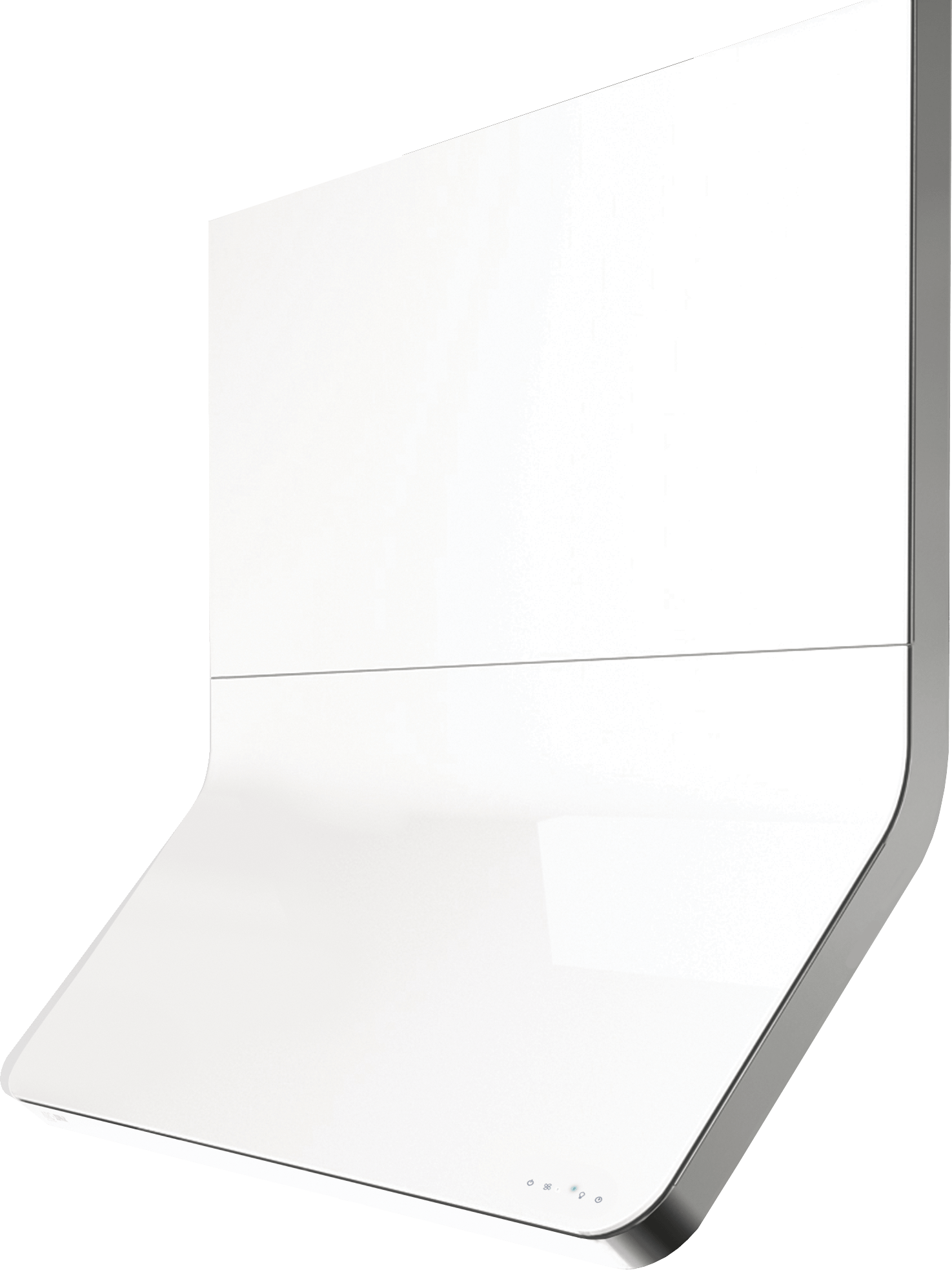

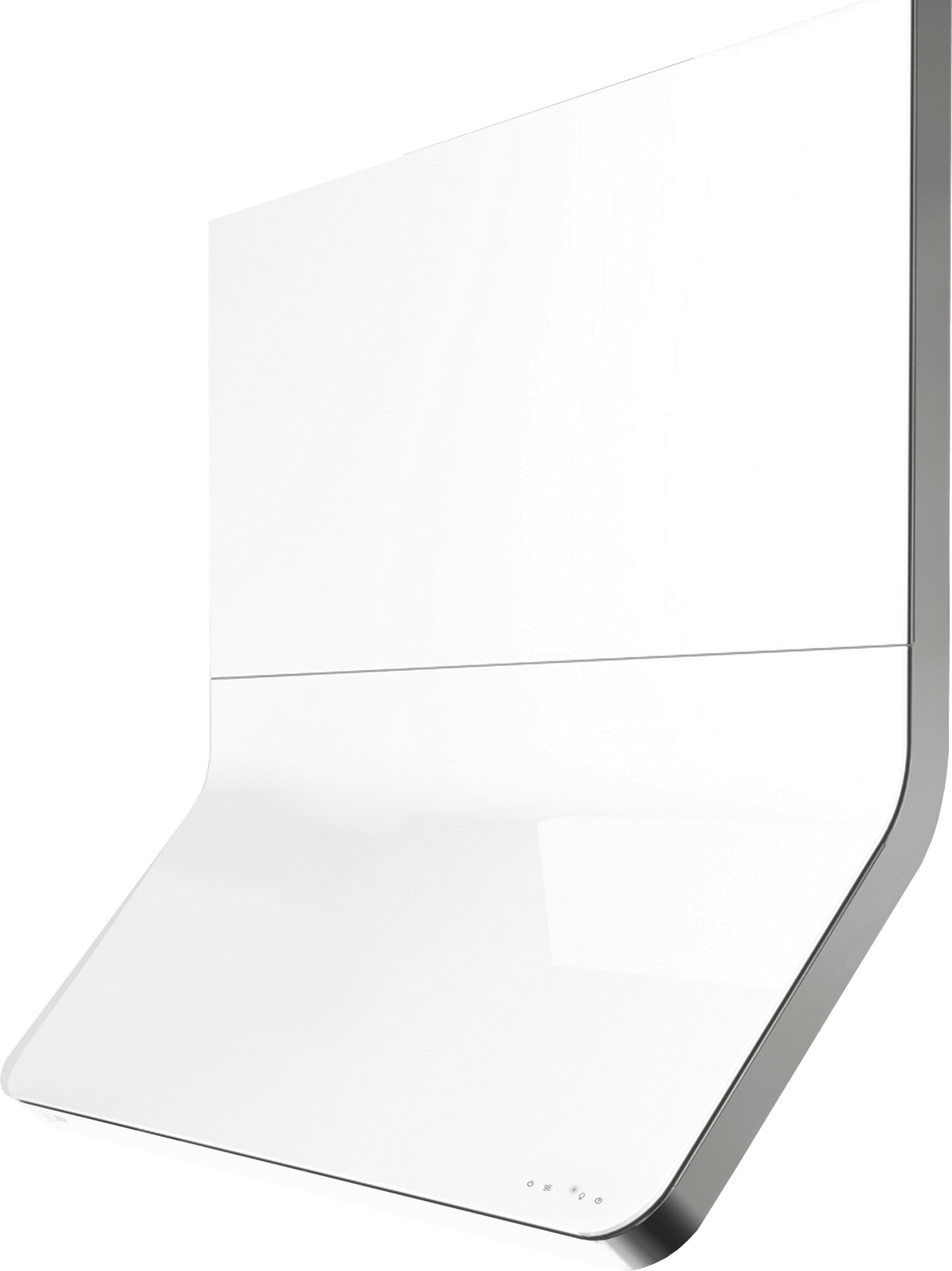

Horizon, Wall, 90cm, SS/White Glass, BODY ONLY
Model AHZM90AWX
Authorized Dealer
Loading...
Authorized Dealer
Horizon, Wall, 90cm, SS/White Glass, BODY ONLY
Model AHZM90AWXQuick Specs
Depth
U_32.9
Height
U_35.4
RPM
-1.0
Energy
NO
Horizon, Wall, 90cm, SS/White Glass, BODY ONLY is backordered and will ship as soon as it is back in stock.
This item qualifies for free delivery
Ships Out Within: 2 - 4 Business Days
Shipping Date By: 06/29/2026
Regular price
$2,498.50
Unit price
/
Unavailable
SERVICES AVAILABLE
Selection will add
$0.00
to the price
Couldn't load pickup availability
Quick Specs
Depth
U_32.9
Height
U_35.4
RPM
-1.0
Energy Star Rated
NO
- Capacitive touch controls
- CleanAir Function
- The CleanAir Function powers the hood on every four hours for 10 minutes to refresh the cooking area.
- Includes wireless remote control
- Our wireless remote control places the hoods operations at your fingertips from anywhere in the kitchen.
- Optional Ductless Recirculating Kit
- Ductless recirculating kit used when venting air outside your home is not possible. Smoke and odors pass through charcoal filters allowing purified air to be reintroduced into the kitchen.
- Optional extension duct cover kit
- Multiple blower options
- Capacitive touch controls
- CleanAir Function
- Includes wireless remote control
- Optional Ductless Recirculating Kit
- Optional extension duct cover kit
- Multiple blower options
Horizon, Wall, 90cm, SS/White Glass, BODY ONLY
| Brand | Zephyr |
| Manufacturer | Zephyr |
| Category | Range Hood |
| Sub-Category | Wall |
| Vent Type | Convertible |
| UPC | 646328000089 |
| GTIN | 00646328000089 |
| Country of Origin | Italy |
| Model Group | AHZ |
| Model Name | Horizon |
| Collection | Designer Collection |
| Blower Included | No |
| Internal Blower 1 CFM | 290 |
| Internal Blower 1 Max Sones | 3.2 |
| Internal Blower 2 CFM | 600 |
| Internal Blower 2 Max Sones | 6 |
| In-Line Blower CFM | 1000 |
| External Blower CFM | 1000 |
| Installation Type | Wall |
| Installation Type | Wall |
| For Outdoor Use | No |
| Color | Stainless Steel + White |
| Controls Type | Capacitive Touch |
| Blower Speeds | 3 |
| Automatic Delay-Off | Yes |
| Clean Air Function | Yes |
| Lighting Type | Halogen |
| Lights Quantity | 2 |
| Watts Per Bulb | 20 |
| Lights Levels | 3 |
| Grease Filter Type | Decorative Mesh |
| Compatible Mesh or Baffle Filter Part Number | 50200032 |
| Duct Discharge | Vertical or Horizontal |
| Duct Size; Horizontal; IN | 6 |
| Duct Size; Vertical; IN | 6, 8 |
| Mounting Height Above Cooktop; IN | 22 - 34 |
| Voltage | 120 |
| Maximum Amperage | 6.5 |
| ADA Compliant | Yes |
| Warranty Parts / Labor | 1 / 1 |
| Compatible Appliances | ZRC-00HZ, Z1C-00HZ, Z1C-01HZ, AHG-00WH, MUA006A, MUA008A |
| Remote Included | Yes |
| Remote Optional | No |
| Energy Star Certified | No |
| CEC Title 20 Compliant | Yes |
| Nominal Width; IN | 36 |
| Net Width; IN | 35.375 |
| Net Depth; IN | 20.125 |
| Net Height; IN | 32.875 |
| Weight; LBS | 77.2 |
| Ceiling Height Minimum | 8 ft. |
| Ceiling Height Maximum | 10 ft. |
| Shipping Length; IN | 37 |
| Shipping Width; IN | 37.6 |
| Shipping Height; IN | 23.4 |
| Shipping Weight; LBS | 99.2 |
| Shipping Method | LTL |
| Freight Class | 300 |
| Duct Type | Vertical |
| Duct Type | Vertical |
- Capacitive touch controls
- CleanAir Function
- Includes wireless remote control
- Optional Ductless Recirculating Kit
- Optional extension duct cover kit
- Multiple blower options
 | |
|---|---|
