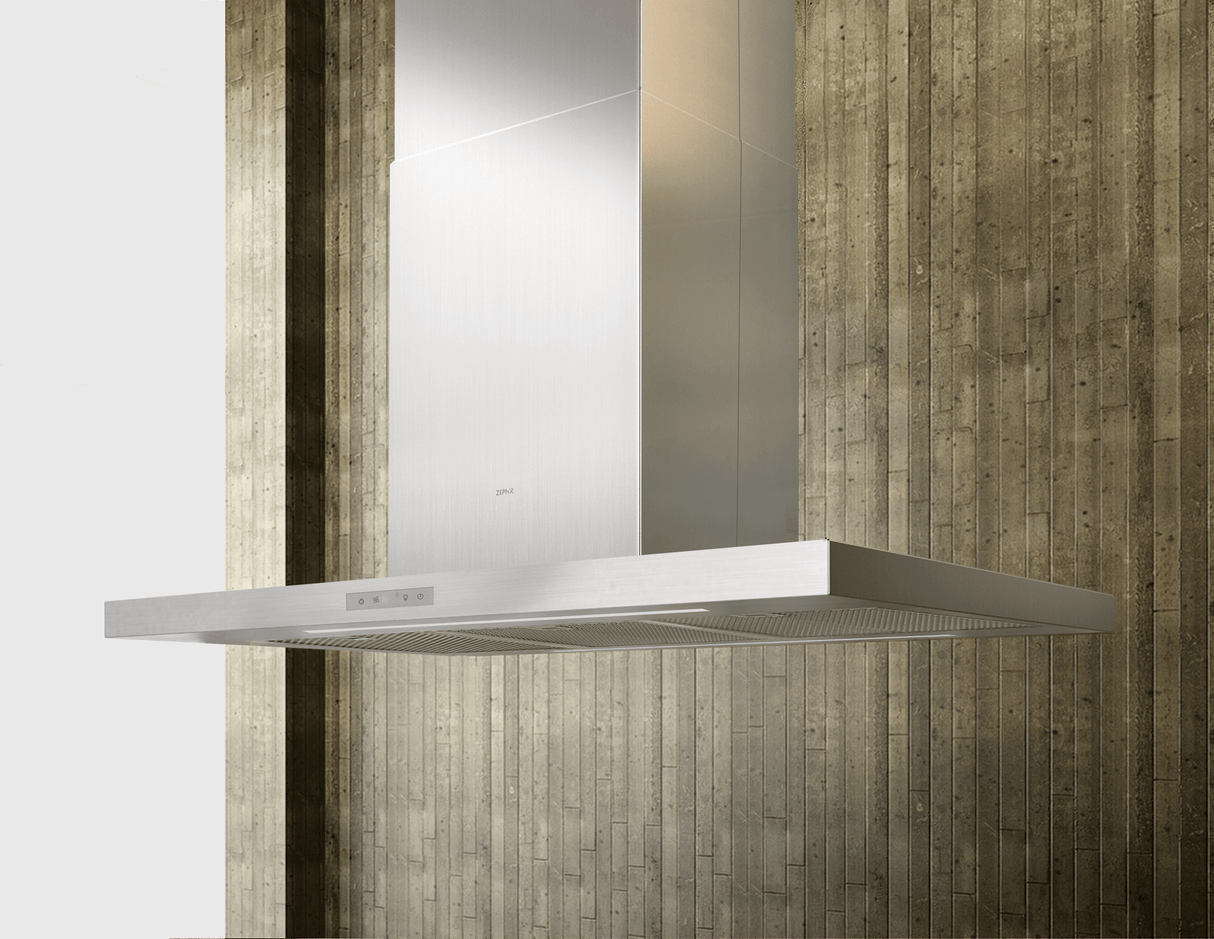

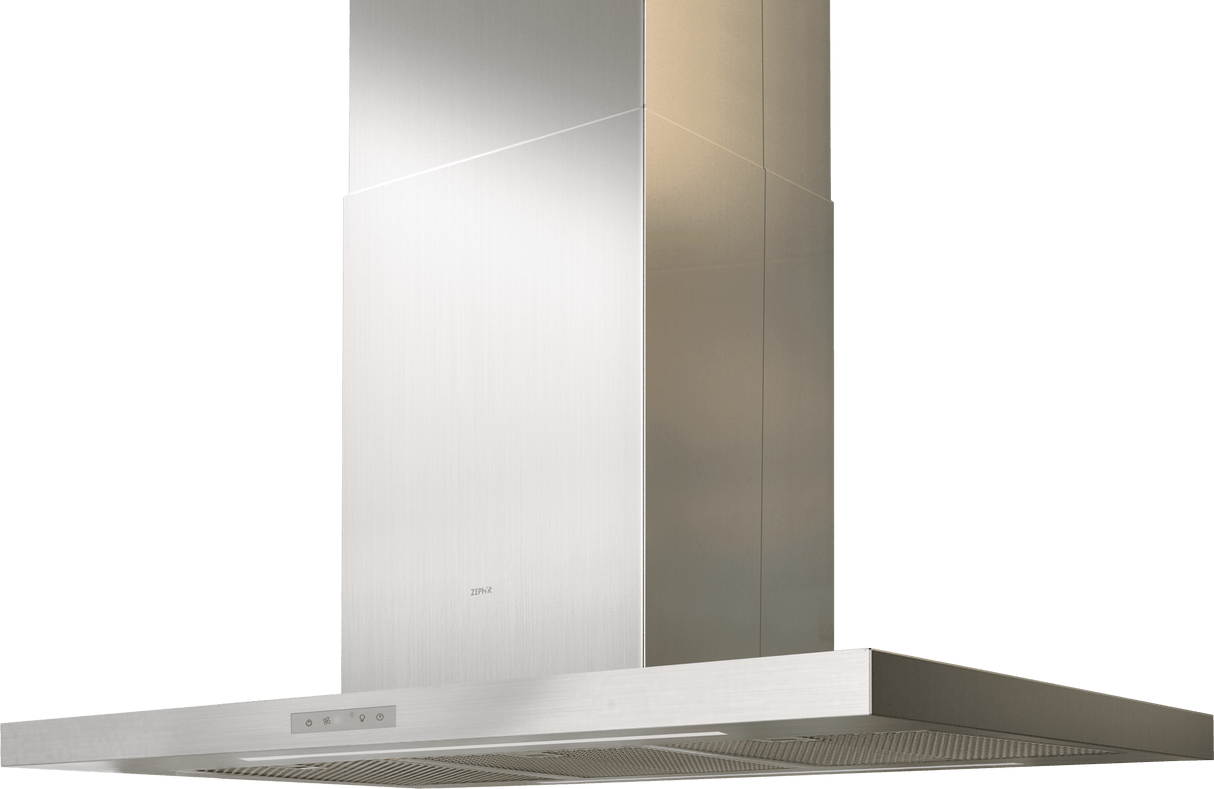

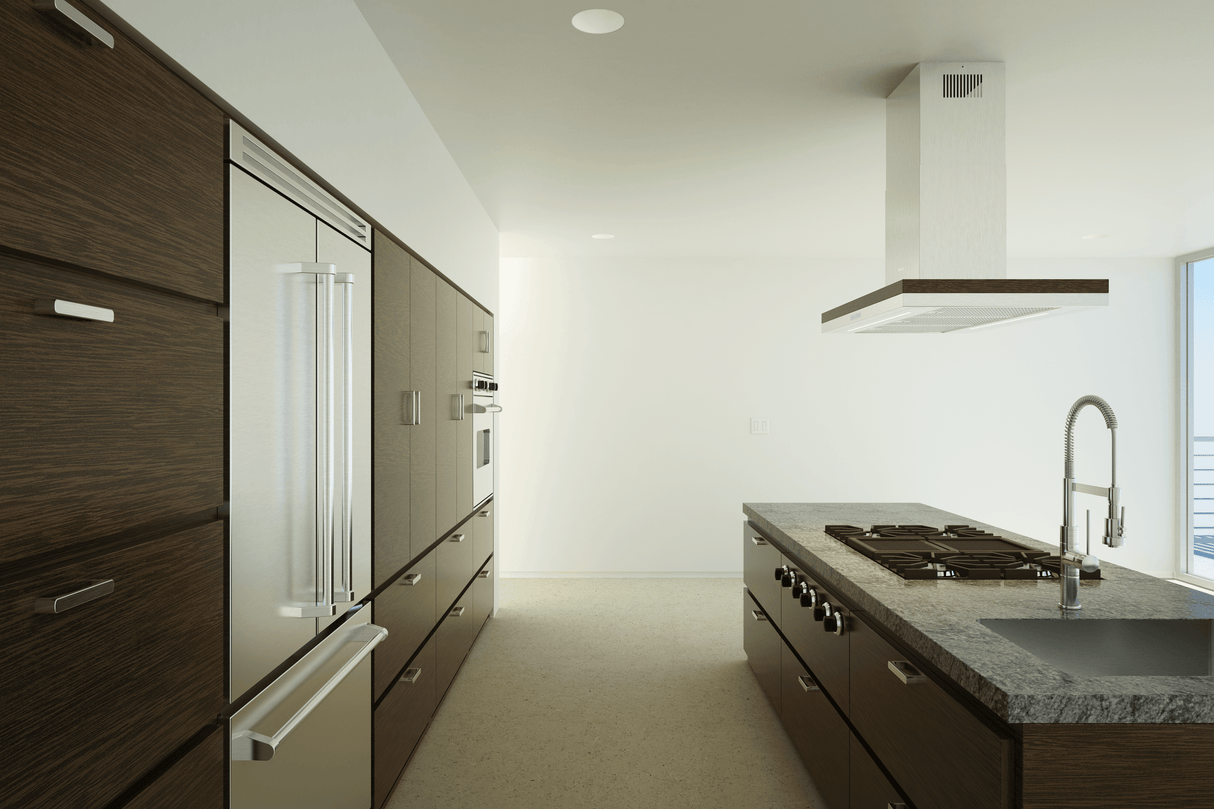

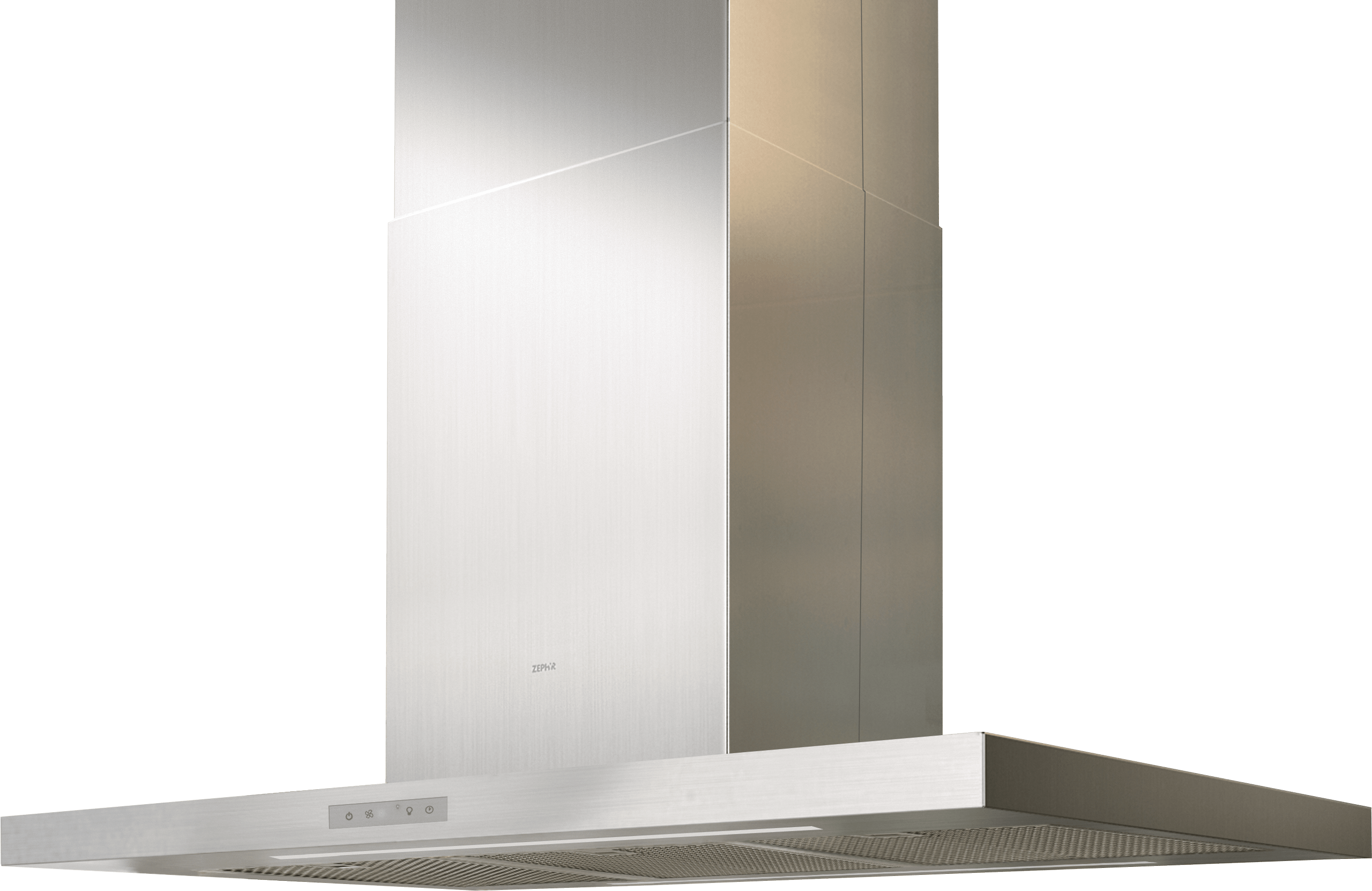

Duo, Island, 90cm, SS, LED, BODY ONLY
Model ADLM90BSX
Authorized Dealer
1
of
3
Loading...
Authorized Dealer
Duo, Island, 90cm, SS, LED, BODY ONLY
Model ADLM90BSXQuick Specs
RPM
-1.0
Energy
NO
Duo, Island, 90cm, SS, LED, BODY ONLY is backordered and will ship as soon as it is back in stock.
This item qualifies for free delivery
Ships Out Within: 2 - 4 Business Days
Shipping Date By: 06/29/2026
Regular price
$1,737.23
Unit price
/
Unavailable
SERVICES AVAILABLE
Selection will add
$0.00
to the price
Couldn't load pickup availability
Quick Specs
RPM
-1.0
Energy Star Rated
NO
- Capacitive touch controls
- CleanAir Function
- The CleanAir Function powers the hood on every four hours for 10 minutes to refresh the cooking area.
- Includes wireless remote control
- Our wireless remote control places the hoods operations at your fingertips from anywhere in the kitchen.
- LED light strip
- This multi-level LED light strip ensures even, warm white lighting while fully illuminating the cooking area.
- Low-profile body
- Low-profile body for a minimalist appearance.
- Quick-Lock installation system
- Capacitive touch controls
- CleanAir Function
- Includes wireless remote control
- LED light strip
- Low-profile body
- Quick-Lock installation system
Duo, Island, 90cm, SS, LED, BODY ONLY
| Brand | Zephyr |
| Manufacturer | Zephyr |
| Category | Range Hood |
| Sub-Category | Island |
| Vent Type | Convertible |
| UPC | 646328004209 |
| GTIN | 00646328004209 |
| Country of Origin | Italy |
| Model Group | ADL-B |
| Model Name | Duo Island |
| Collection | Designer Collection |
| Blower Included | No |
| Internal Blower 1 CFM | 290 |
| Internal Blower 1 Min. Sones | 1.4 |
| Internal Blower 1 Max Sones | 3 |
| Internal Blower 2 CFM | 600 |
| Internal Blower 2 Max Sones | 6 |
| In-Line Blower CFM | 1000 |
| External Blower CFM | 1000 |
| Installation Type | Island |
| Installation Type | Island |
| For Outdoor Use | No |
| Color | Stainless Steel |
| Controls Type | Capacitive Touch |
| Blower Speeds | 3 |
| Automatic Delay-Off | Yes |
| Clean Air Function | Yes |
| Lighting Type | LED |
| Lights Quantity | 2 |
| Watts Per Bulb | 8.5 |
| Lights Levels | 3 |
| Grease Filter Type | Decorative Mesh |
| Compatible Mesh or Baffle Filter Part Number | 50200031 |
| Duct Discharge | Vertical |
| Duct Size; Horizontal; IN | N/A |
| Duct Size; Vertical; IN | 6, 8 |
| Mounting Height Above Cooktop; IN | 24 - 36 |
| Voltage | 120 |
| Maximum Amperage | 6.5 |
| ADA Compliant | Yes |
| Warranty Parts / Labor | 1 / 1 |
| Compatible Appliances | ZRC-01LL, Z1C-02LL, MUA006A, MUA008A, Z0F-01AC |
| Bluetooth Connected | No |
| Wi-Fi Connected | No |
| Remote Included | Yes |
| Remote Optional | No |
| Energy Star Certified | No |
| Alexa & Google Home Compatible | No |
| CEC Title 20 Compliant | Yes |
| Primary Material | Stainless Steel |
| Nominal Width; IN | 36 |
| Net Width; IN | 35.375 |
| Net Depth; IN | 23.625 |
| Net Height; IN | 29.5 - 49 |
| Weight; LBS | 101 |
| Ceiling Height Minimum | 8 ft. |
| Ceiling Height Maximum | 10 ft. |
| Chimney Height in. | 28 |
| Chimney Width in. | 12.93 |
| Chimney Depth in. | 11.25 |
| Shipping Length; IN | 20.87 |
| Shipping Width; IN | 40.55 |
| Shipping Height; IN | 31.5 |
| Shipping Weight; LBS | 110.2 |
| Shipping Method | LTL |
| Freight Class | 300 |
| Duct Type | Vertical |
| Duct Type | Vertical |
- Capacitive touch controls
- CleanAir Function
- Includes wireless remote control
- LED light strip
- Low-profile body
- Quick-Lock installation system
 | |
|---|---|
