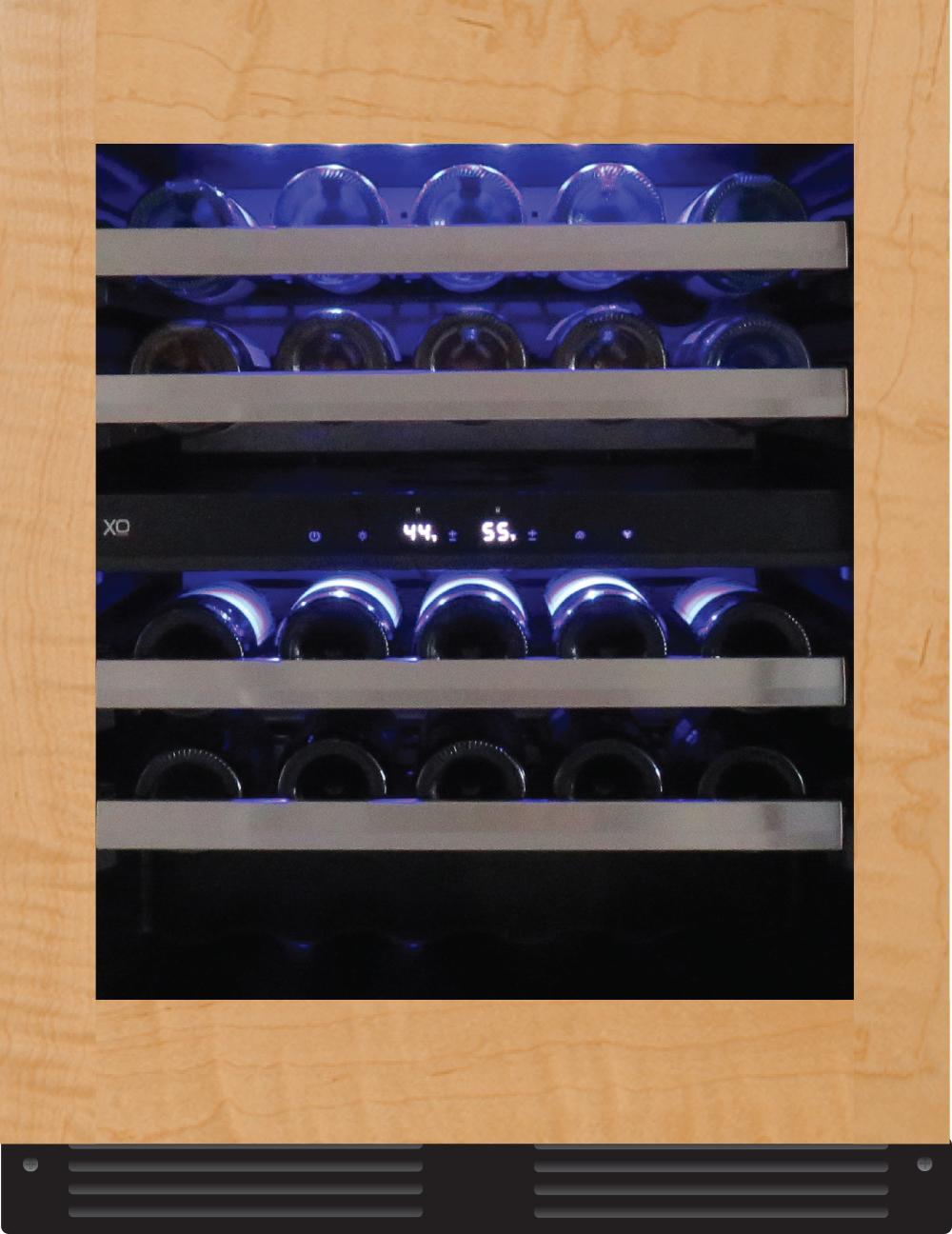

24" Designer Undercounter ADA Wine Storage Dual Zone - Panel Ready
Model XOU24WDZGOA
Authorized Dealer
1
of
10
Loading...
Authorized Dealer
24" Designer Undercounter ADA Wine Storage Dual Zone - Panel Ready
Model XOU24WDZGOAQuick Specs
Depth
21.625"
Height
34.125"
Sabbath
YES
Fresh
3.85
Cu Ft
3.85
Size
3.85
Shelves
5
ADA
NO
24" Designer Undercounter ADA Wine Storage Dual Zone - Panel Ready is backordered and will ship as soon as it is back in stock.
This item qualifies for free delivery
Ships Out Within: 2 - 4 Business Days
Shipping Date By: 06/29/2026
Sale Price
Sale price
$2,054.95
Regular price
$2,625.00
Unit price
/
Unavailable
You save 21%
SERVICES AVAILABLE
Selection will add
$0.00
to the price
Couldn't load pickup availability
Quick Specs
Depth
21.625"
Height
34.125"
Sabbath Mode
YES
Fresh food Capacity
3.85
Capacity (cu ft.)
3.85
Refrigerator Size
3.85
Refrigerator number of Shelves
5
ADA
NO
Dispenser
NO
Icemaker
NO
Wifi Connected
NO
Counter Depth
NO
RPM
-1.0
Energy Star Rated
YES

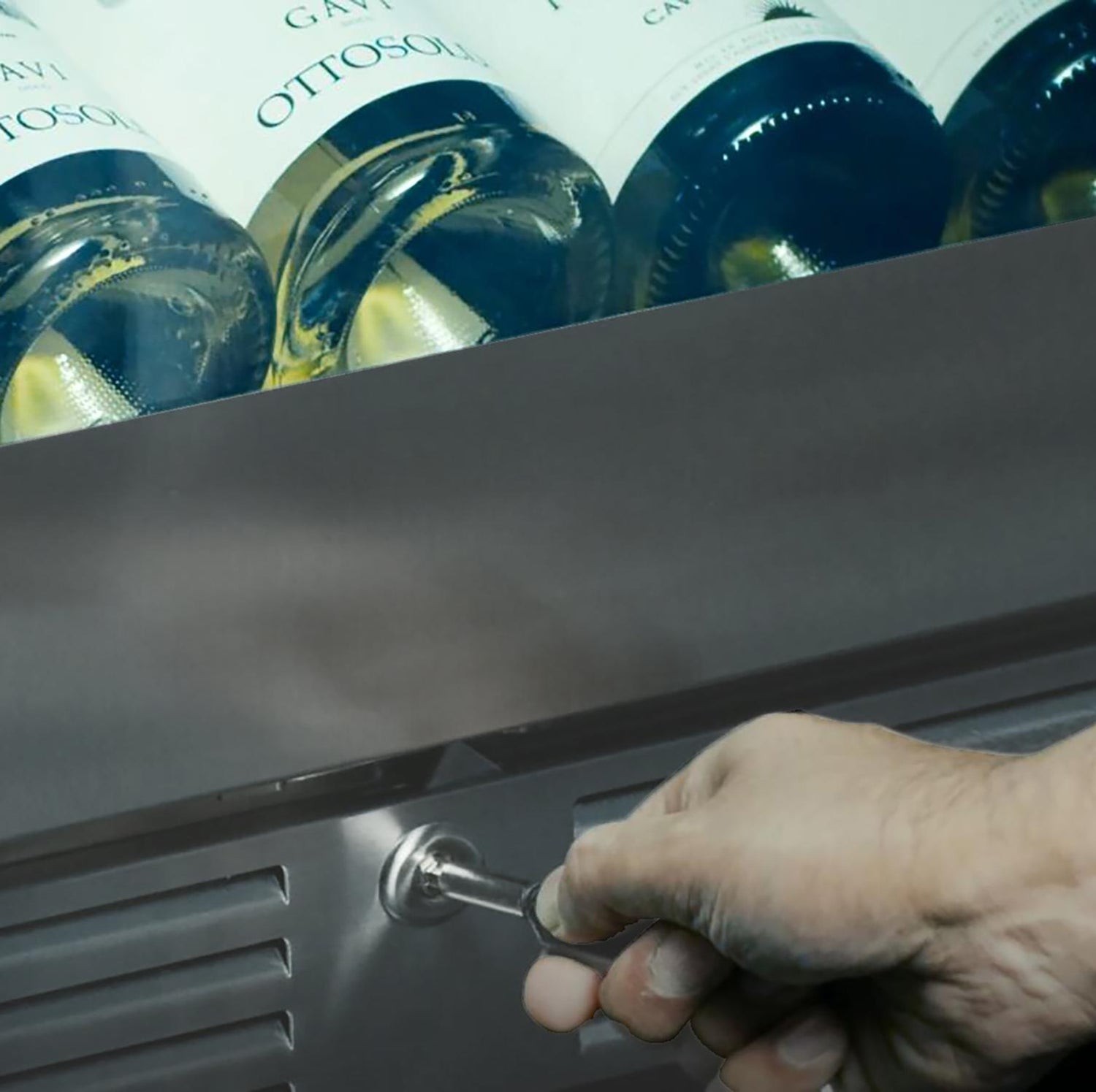

ADAPTS FOR EUROPEAN PLINTH/TOE KICKS
The sturdy leveling legs and foot sliders enable you to raise the unit for Plinth/Toe Kicks up to 6" (150mm).
ARTICULATING HINGE
The articulated hinges ensure a seamless integration with your cabinets and allow use of panels longer than 30".

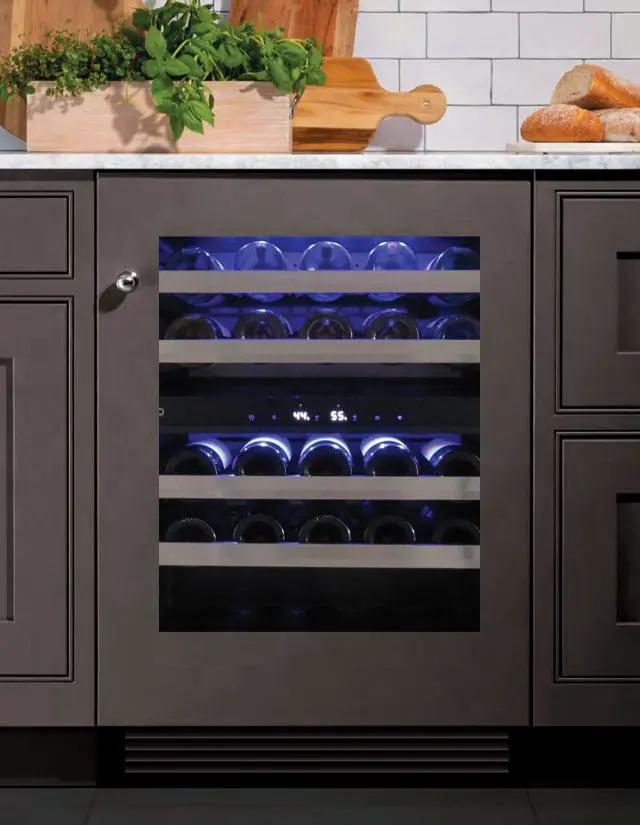

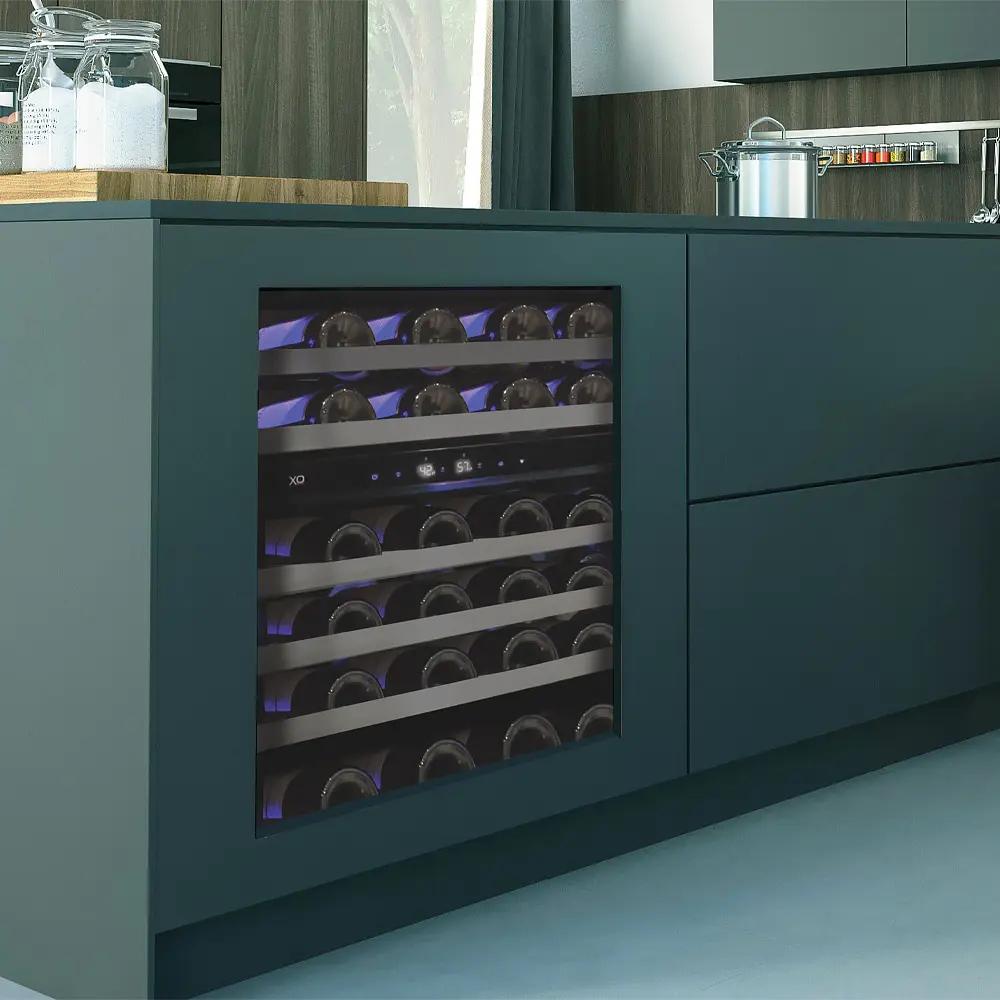

- Seamlessly integrates with US Standard, ADA height and European cabinets

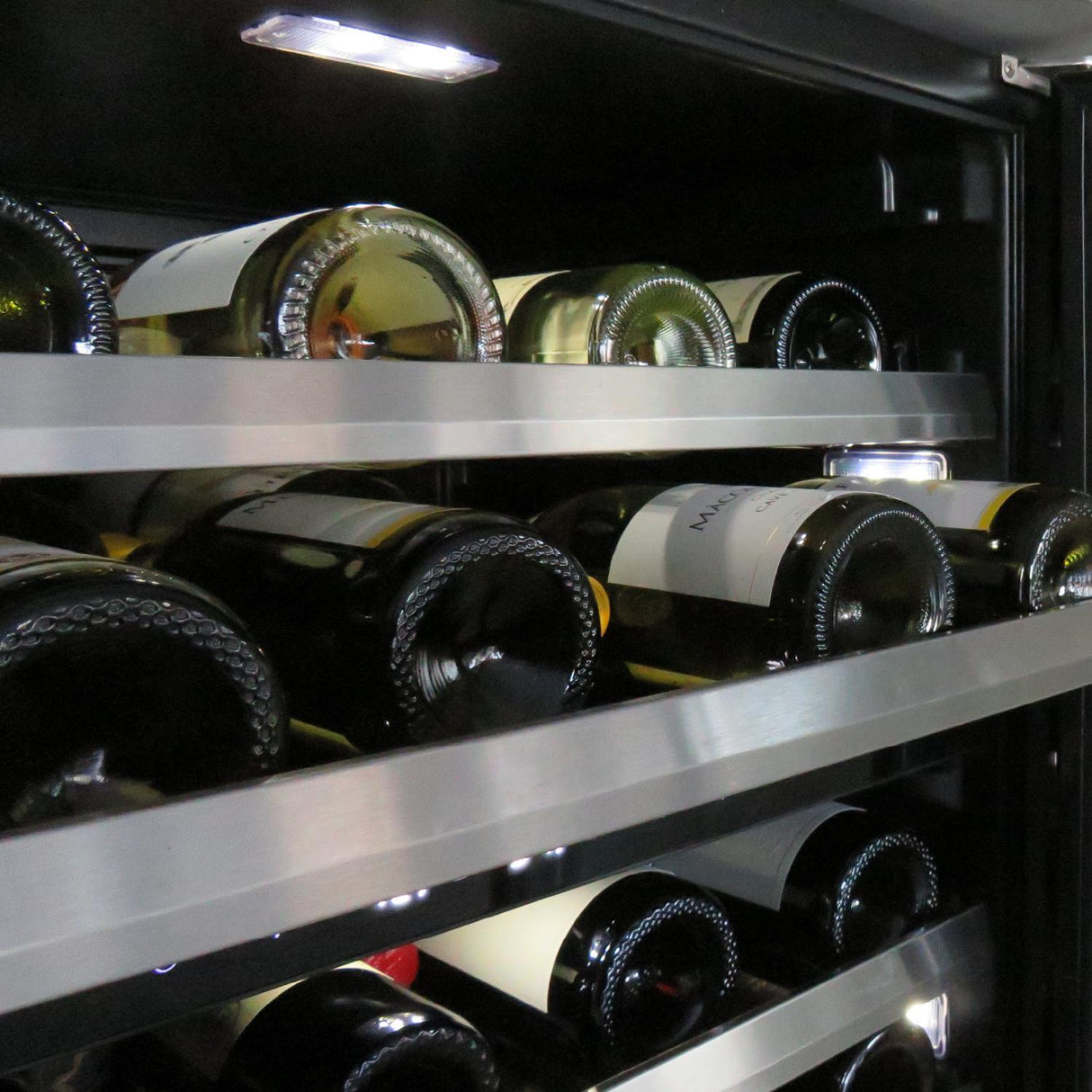

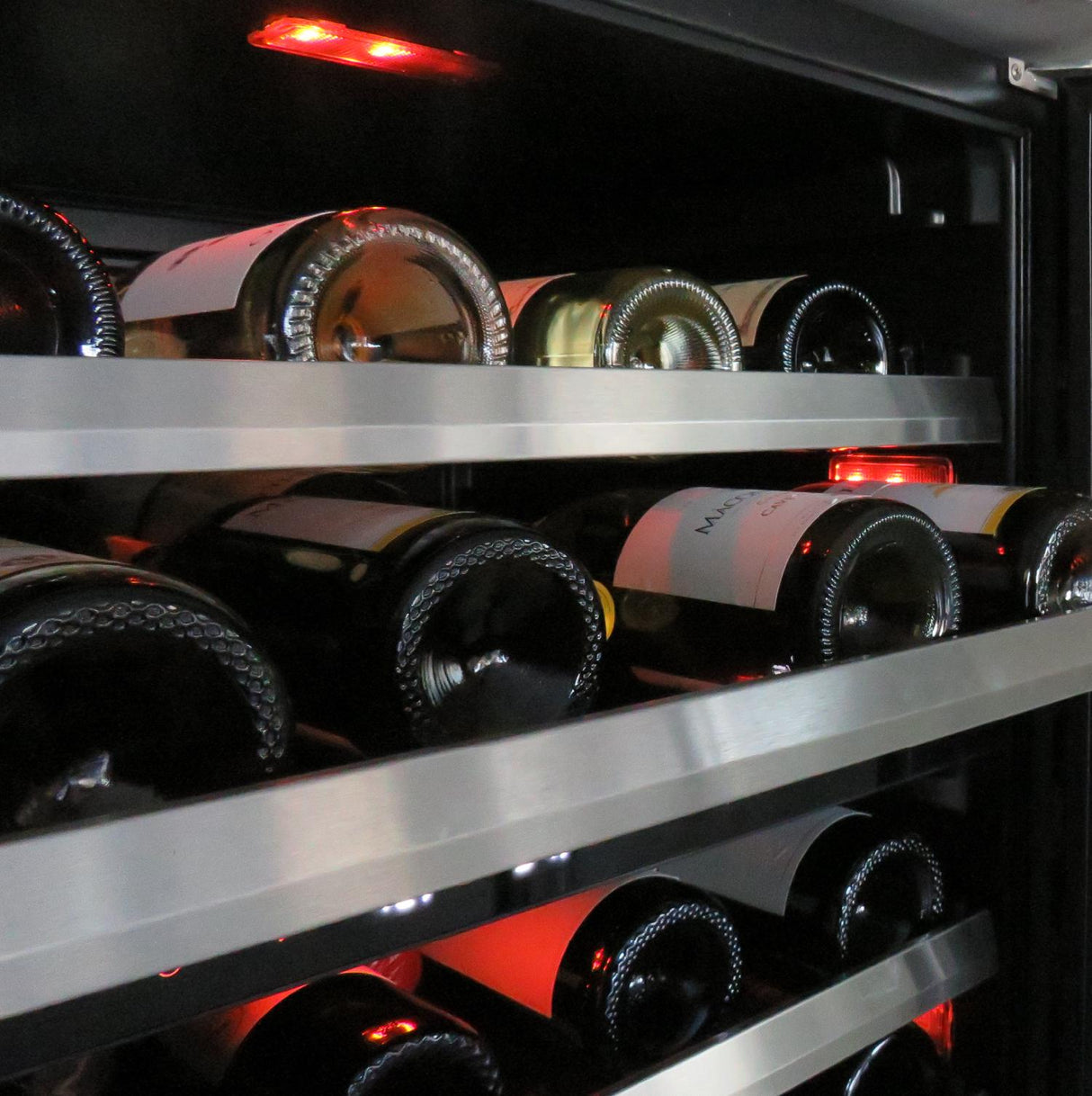

- Full telescoping racks cradle your bottles to help dampen vibration

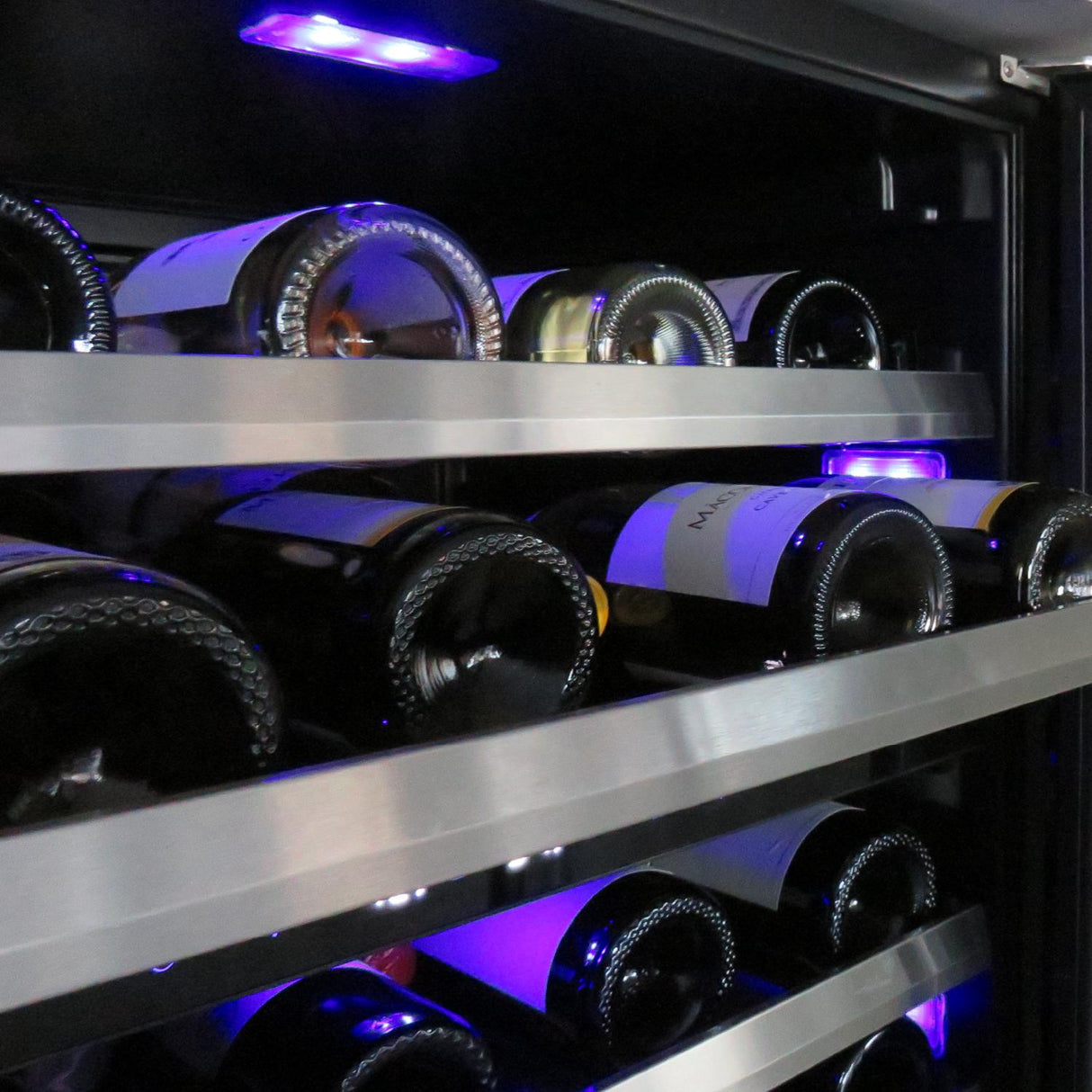

- Cool running interior Tri-Color LEDs dramatically illuminate your bottles while saving energy. Choose Theater White, Midnight Blue, and Honey Amber.
- Articulating hinges enable use of longer panels and handleless doors
- Field Reversible Panel Ready Door with UV Blocking Low-E Glass
- One zone holds (12) 750ml bottles at 41' to 50' F ready to serve while the other zone stores up to (21) 750ml bottles at 50' to 64' F

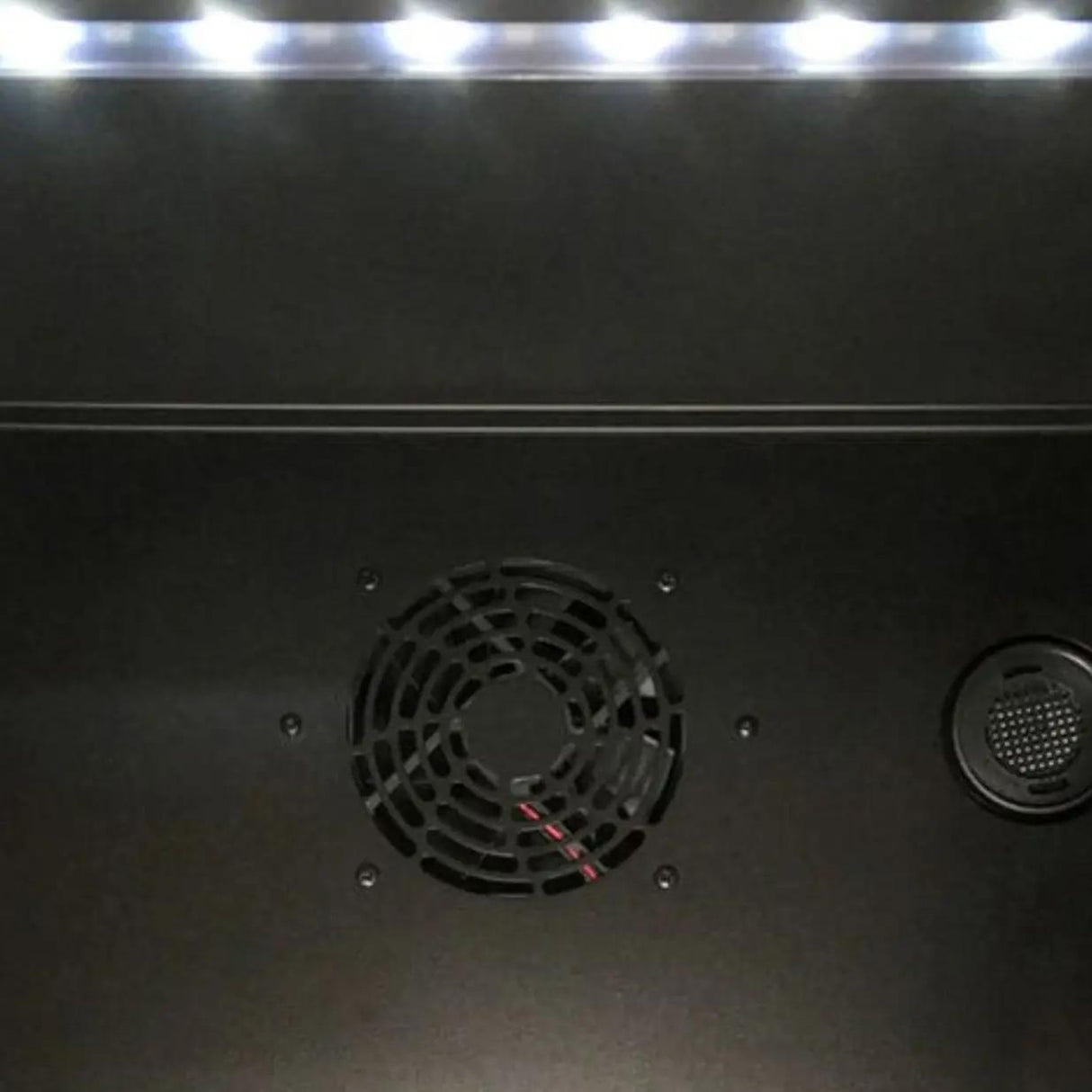

- Filtered, conditioned air is circulated to help ensure a stable, uniform temperature

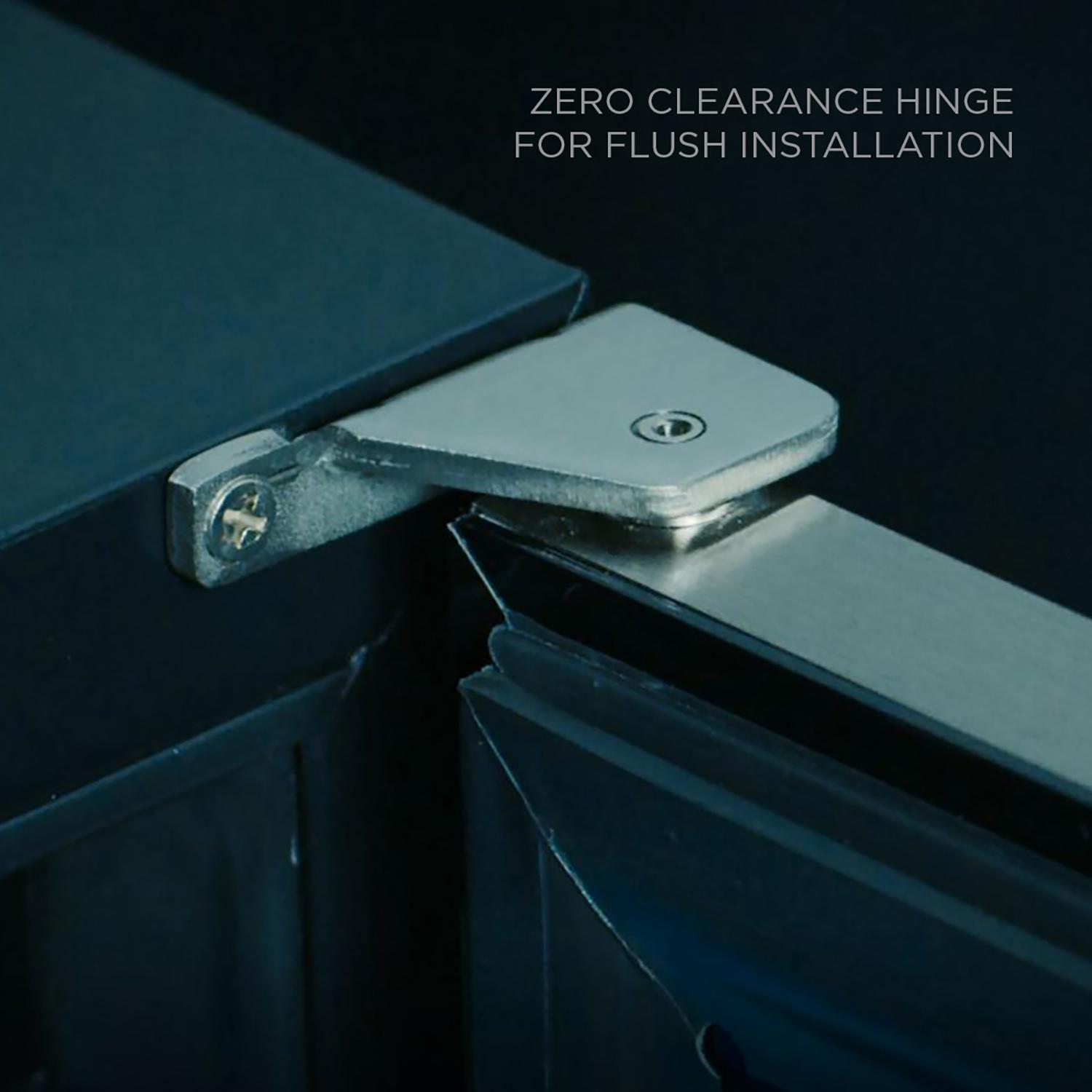

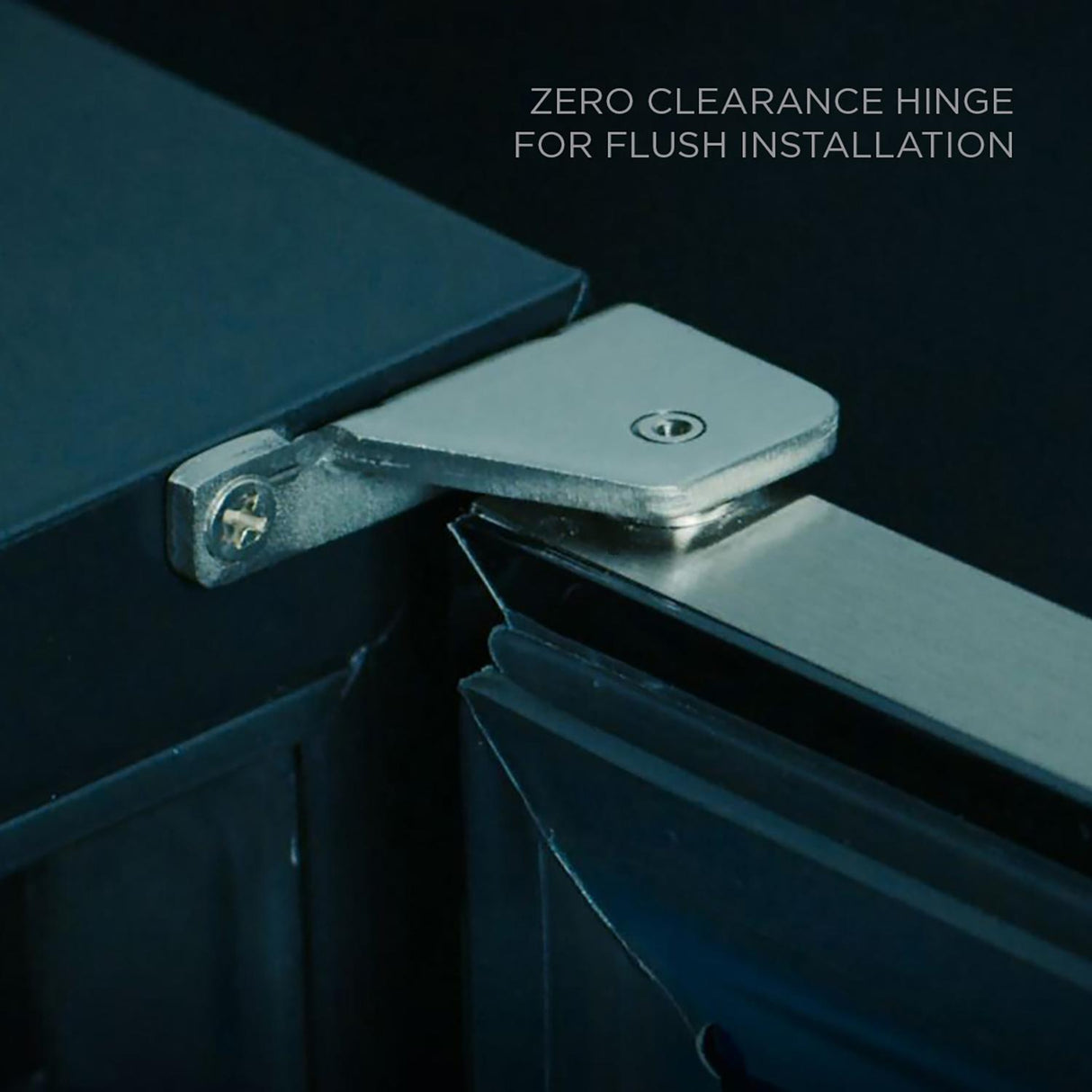

- Zero Clearance hinge and flat plug design ensure flush installation
- Accommodates 4" or 6" toekicks
| Origin | China |
| UPC | 814830012436 |
| Height | 32 1/2 - 34 1/8 |
| Width | 23 7/16" |
| Depth | 21 5/8" |
| Cut-Out Depth (in.) | 24" |
| Cut-Out Height (in.) | 32 1/2" to 34 1/4" |
| Cut-Out Width (in.) | 24" |
| Depth (Excluding Handles) | 22 7/16" includes 3/4" panel |
| Depth (Less Door) | 19 15/16" |
| Depth With Door Open 90 Degrees (In) | 44 11/16" |
| Height to Top of Door Hinge (in.) | 32 1/2 - 34 1/8 |
| Dimensions D x W x H | 21 5/8" x 23 7/8" x 32 1/2 to 34 1/8" |
| Product Weight | 125 |
| Warranty 1 Explained | 90 Day Love It Or Leave It |
| Warranty 2 Explained | 2 year limited parts and labor warranty for the original owner |
| Warranty 3 Explained | 5 year limited compressor parts only warranty for the original owner |
| ADA Compatible | Yes |
| Certification | CSA |
| Prop 65 | Yes |
| Freight Class | 92.5 |
| Shipping Weight | 125 |
| Carton Height | 37" |
| Carton Width | 27" |
| Carton Depth | 29" |
| Shipping Method | LTL |
| Amperage | 1.2 amps |
| Electrical | 115V-60Hz-1.2 Amps |
| Frequency (Hz) | 60 Hz |
| Voltage (volts) | 115V |
| Wattage (watts) | 138 watts |
| Ambient Temperature | 60 to 90 degrees F |
| Appliance Type | Wine Cooler (2 Zone) |
| Bottle Storage Capacity | 33 (750ml) |
| Color/Finish | Panel Ready & Glass |
| Control Type | Intuitive Touch Digital Controls |
| Cooling Unit Type | Air Cooled Compressor |
| Cubic Foot Capacity | 3.85 cu ft |
| Defrost Type | Automatic Defrost |
| Door Features | Panel Ready - UV Blocking Low-E Glass |
| Door Swing | Reversible |
| Filter Type | Activated carbon air filter |
| Install Type | Fully Integrated Undercounter |
| Installation Type | Fully Integrated Undercounter |
| Interior Finish Type | Molded ABS |
| Interior Lighting | Tri-Color LED Interior Illumination |
| Leveling Legs | Included |
| LIght Colors | Midnight Blue, Theater White, Honey Amber |
| Light Type | Tri-Color LED Interior Illumination |
| Lighting Features | Three lighting modes |
| Max Temperature Zone 1 | 50 degrees F |
| Max Temperature Zone 2 | 64 degrees F |
| Min Temperature Zone 1 | 41 degrees F |
| Min Temperature Zone 2 | 50 degrees F |
| Number of Doors | 1 |
| Number of Temperature Zones | 2 |
| Number of Wine Racks | 4 |
| Open Door Alarm | Yes |
| Operational Features | Energy Saver Mode |

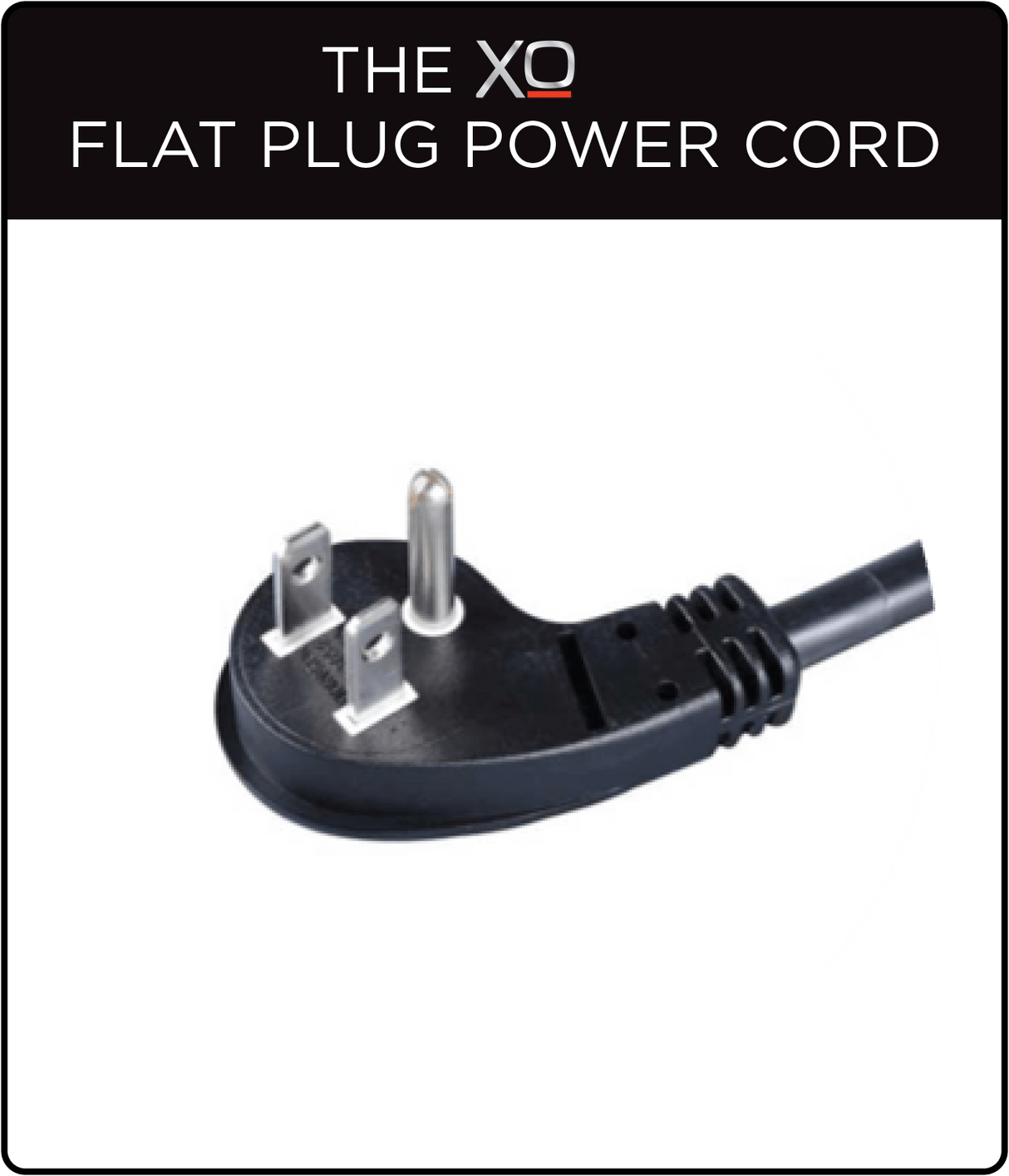

| Power Cord Included | 6' with Flat Plug |
| Programmed Features | Power, Lighting & Alarms |
| Required Plug Type | 5-15P Plug Type |
| Returnable | No |
| Sabbath Mode | Yes |
| Storage Features | Vibration Dampened Full Extension, Fully Loaded |
| Toe Kick Color | Black |
| Vent Location | Bottom Front |
| Wheels/Casters | No |
| Wine Rack Material Type | Steel |
| Wireless Compatibility | No |
| Control Lighting | Backlit LCD |
| Controls | Electronic Touch |
| Location | Indoor |
| Refrigerant | R600a |
| Sound Level | 37 dBA |
| Assembled Depth (in.) | No |
| Force Multiples | 1 |
- Seamlessly integrates with US Standard, ADA height and European cabinets
- Full telescoping racks cradle your bottles to help dampen vibration
- Cool running interior Tri-Color LEDs dramatically illuminate your bottles while saving energy. Choose Theater White, Midnight Blue, and Honey Amber.
- Articulating hinges enable use of longer panels and handleless doors
- Field Reversible Panel Ready Door with UV Blocking Low-E Glass
- One zone holds (12) 750ml bottles at 41' to 50' F ready to serve while the other zone stores up to (21) 750ml bottles at 50' to 64' F
- Filtered, conditioned air is circulated to help ensure a stable, uniform temperature
- Zero Clearance hinge and flat plug design ensure flush installation
- Accommodates 4" or 6" toekicks
