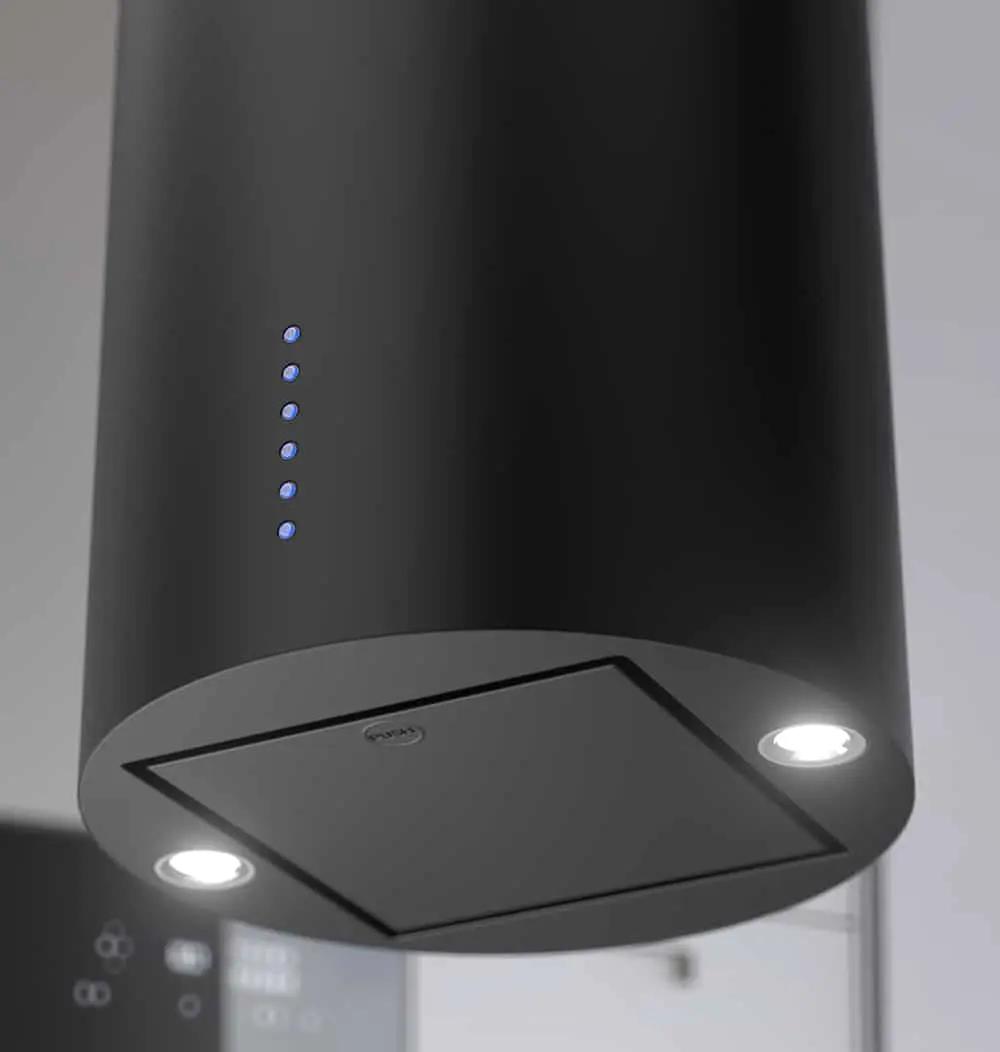

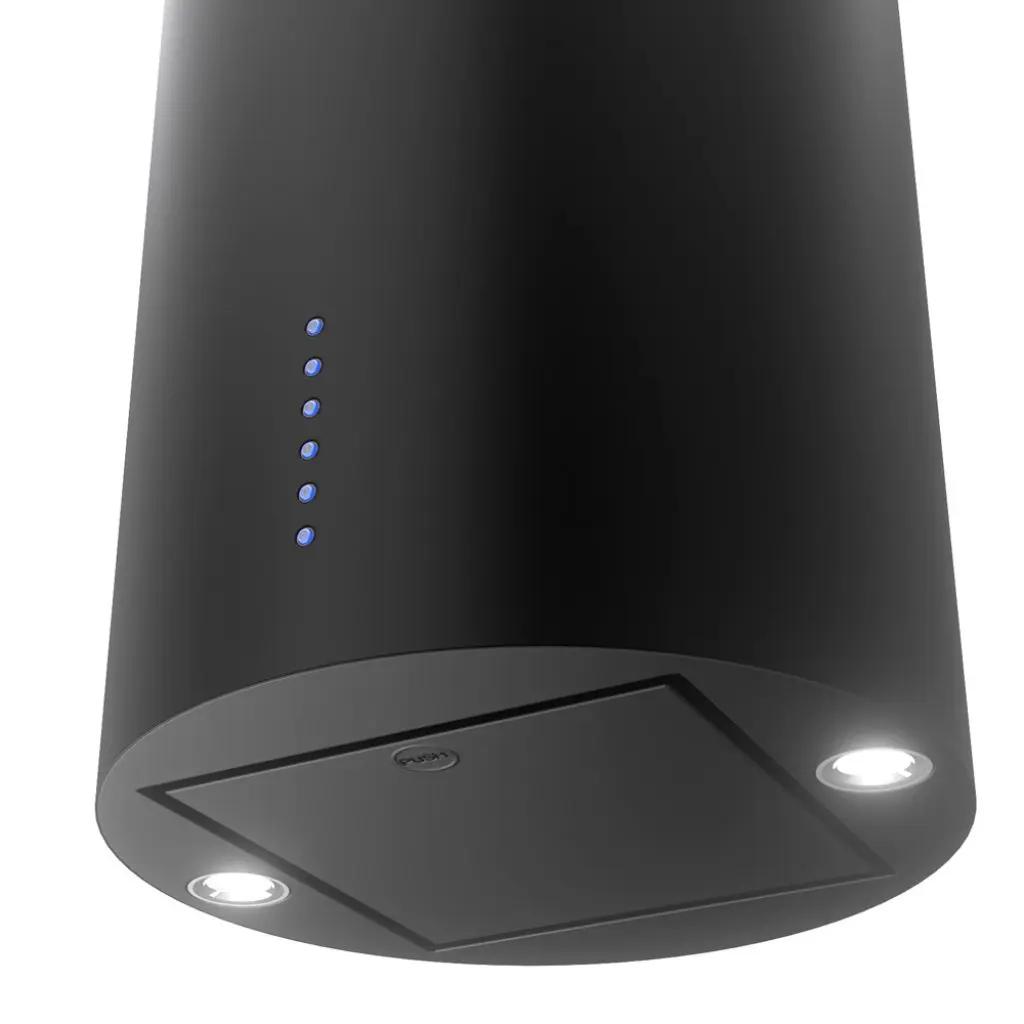

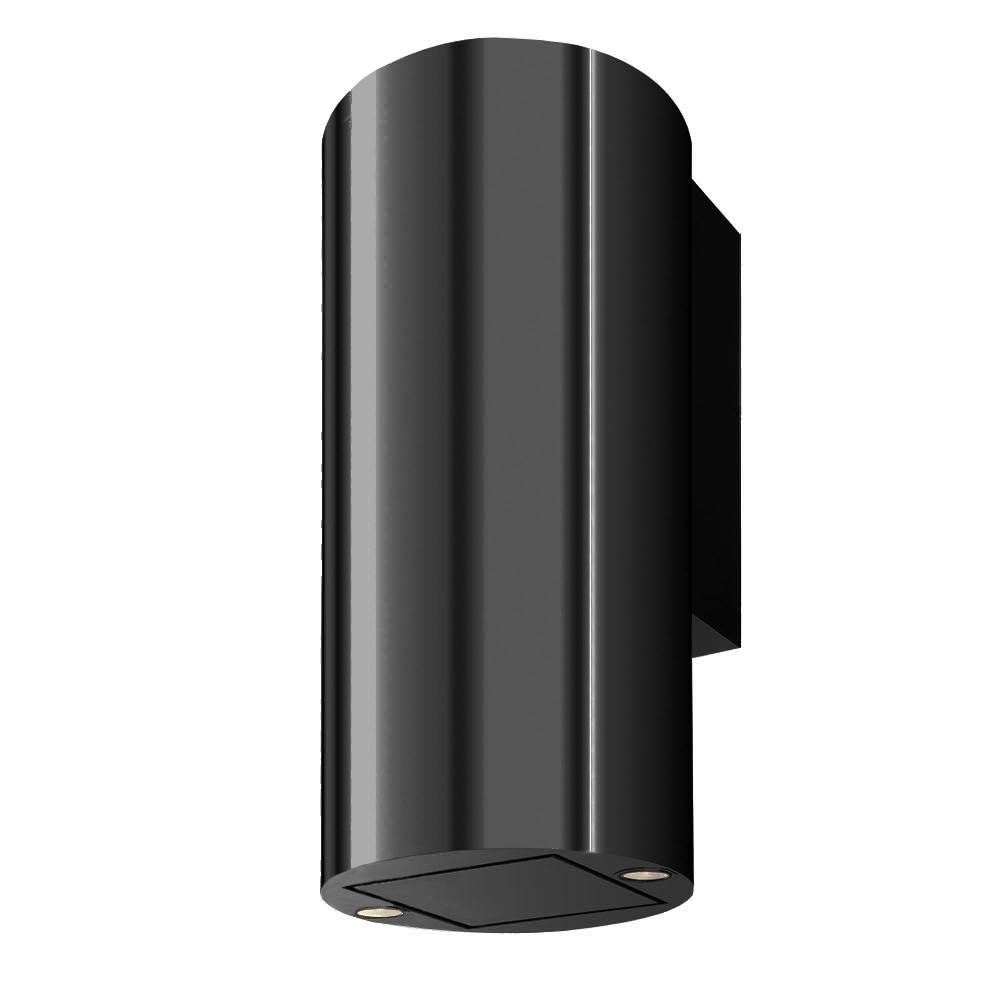

600/395 CFM Designer Cylinder Wall Mount Black
Model XOCYL16BC
Authorized Dealer
1
of
5
Loading...
Authorized Dealer
600/395 CFM Designer Cylinder Wall Mount Black
Model XOCYL16BCQuick Specs
Depth
18 5/16
Height
35 3/16
Energy
NO
600/395 CFM Designer Cylinder Wall Mount Black is backordered and will ship as soon as it is back in stock.
This item qualifies for free delivery
Ships Out Within: 2 - 4 Business Days
Shipping Date By: 06/29/2026
Sale Price
Sale price
$1,688.93
Regular price
$2,315.00
Unit price
/
Unavailable
You save 27%
SERVICES AVAILABLE
Selection will add
$0.00
to the price
Couldn't load pickup availability
Quick Specs
Depth
18 5/16
Height
35 3/16
Energy Star Rated
NO
- Backlit Electronic 4 Speed Control with Power Boost
- CCC Code Compliance Control - permanently set blower to 395 or 600 CFM to meet local codes
- High Efficiency 3000K LED lights brightly illuminate the cooktop
- Dishwasher Safe Aluminum Mesh Filter for efficient filtration
- 5 Minute Delay Shutoff Timer
- Convertible 6" Vertical Duct or Ductless Recirculating (Kit Sold Separately)
- Standard Chimney fits ceilings up to 9' tall (optional 10' duct extension)
- Made In Italy
- 2 year limited parts and labor warranty for the original owner

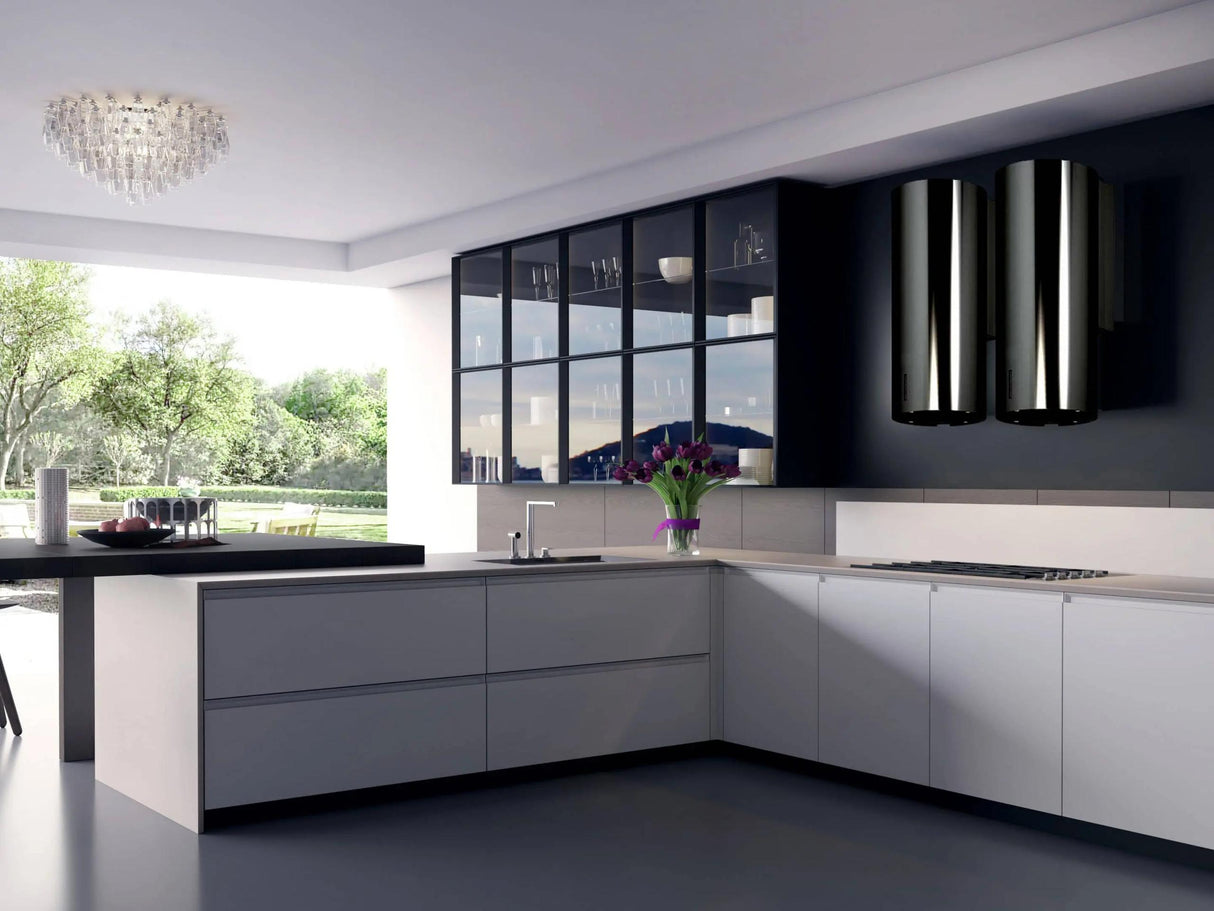

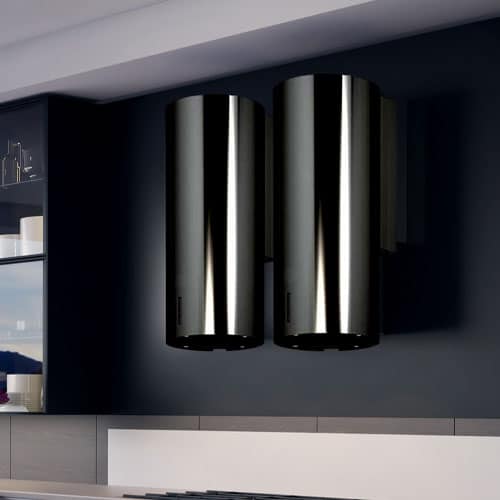

- Use alone or in multiples to handle larger cooking areas
Used alone - or in multiples, The contemporary XOCYL in black, designed and crafted in Italy, performs as beautifully as it looks. With quiet, efficient peripheral aspiration the 600 CFM blower whisks away cooking exhaust, while twin spot lights brilliantly illuminate the work area below.
| Collection | Fabriano Collection |
| Origin | Italy |
| UPC | 814830012665 |
| Height | 35 3/16" |
| Width | 15 3/4" |
| Depth | 18 5/16" |
| Dimensions D x W x H | 18 5/16" x 15 3/4" x 35 3/16" |
| Product Weight | 45.75 |
| Warranty 1 Explained | 90 Day Love It Or Leave It |
| Warranty 2 Explained | 2 Year Limited Material And Workmanship for the original owner |
| ADA Compatible | No |
| Certification | UL |
| Prop 65 | Yes |
| Freight Class | 85 |
| Shipping Weight | 51.96 |
| Carton Height | 24" |
| Carton Width | 40" |
| Carton Depth | 24" |
| Shipping Method | LTL |
| Amperage | 3.6 Amps |
| Electrical | 120V - 60Hz - 3.6 Amps |
| Frequency (Hz) | 60 Hz |
| Voltage (volts) | 120 VAC |
| Wattage (watts) | 430 watts |
| Appliance Type | Range Hoods |
| CCC Code Compliance Control | Yes |
| CFM @ Speed 1 | 160 |
| CFM @ Speed 2 | 250 |
| CFM @ Speed 3 | 395 |
| CFM @ Speed 4 | 600 |
| Color/Finish | Matte Black |
| Commerical/Residential | Residential |
| Control Type | Backlit LED |
| Cooktop Lights | Twin LED Lights |
| Duct Size | 6" Dia. |
| Ductless Convertible | Ducted or Convertible |
| Filter Type | Dishwasher Safe Mesh Filters |
| Install Type | Wall chimney mount |
| Installation Type | Wall chimney mount |
| LIght Colors | White |
| Light Type | Twin LED Lights |
| Lighting Features | 3000K LED |
| Maximum Air Flow Capacity CFM) | 600/395 |
| Minimum Air Flow Capacity (CFM) | 160 |
| Mounting Height Above Cooktop | 27" - 32" |
| Number of Light Bulbs | 2 |
| Number of Speeds | 4 |
| Returnable | No |
| Sones @ Speed 1 | 1 |
| Sones @ Speed 2 | 2.5 |
| Sones @ Speed 3 | 4 |
| Sones @ Speed 4 | 6.5 |
| Vent Location | Top or Rear |
| Vent Material | Metal |
| Wireless Compatibility | No |
| Control Lighting | Blue Backlit |
| Controls | Code Compliance Electronic Controls |
| Location | Indoor |
| Sound Level | 1.0 - 6.5 Sones |
| Assembled Depth (in.) | No |
- Backlit Electronic 4 Speed Control with Power Boost
- CCC Code Compliance Control - permanently set blower to 395 or 600 CFM to meet local codes
- High Efficiency 3000K LED lights brightly illuminate the cooktop
- Dishwasher Safe Aluminum Mesh Filter for efficient filtration
- 5 Minute Delay Shutoff Timer
- Convertible 6" Vertical Duct or Ductless Recirculating (Kit Sold Separately)
- Standard Chimney fits ceilings up to 9' tall (optional 10' duct extension)
- Made In Italy
- 2 year limited parts and labor warranty for the original owner
- Use alone or in multiples to handle larger cooking areas
 | |
|---|---|
