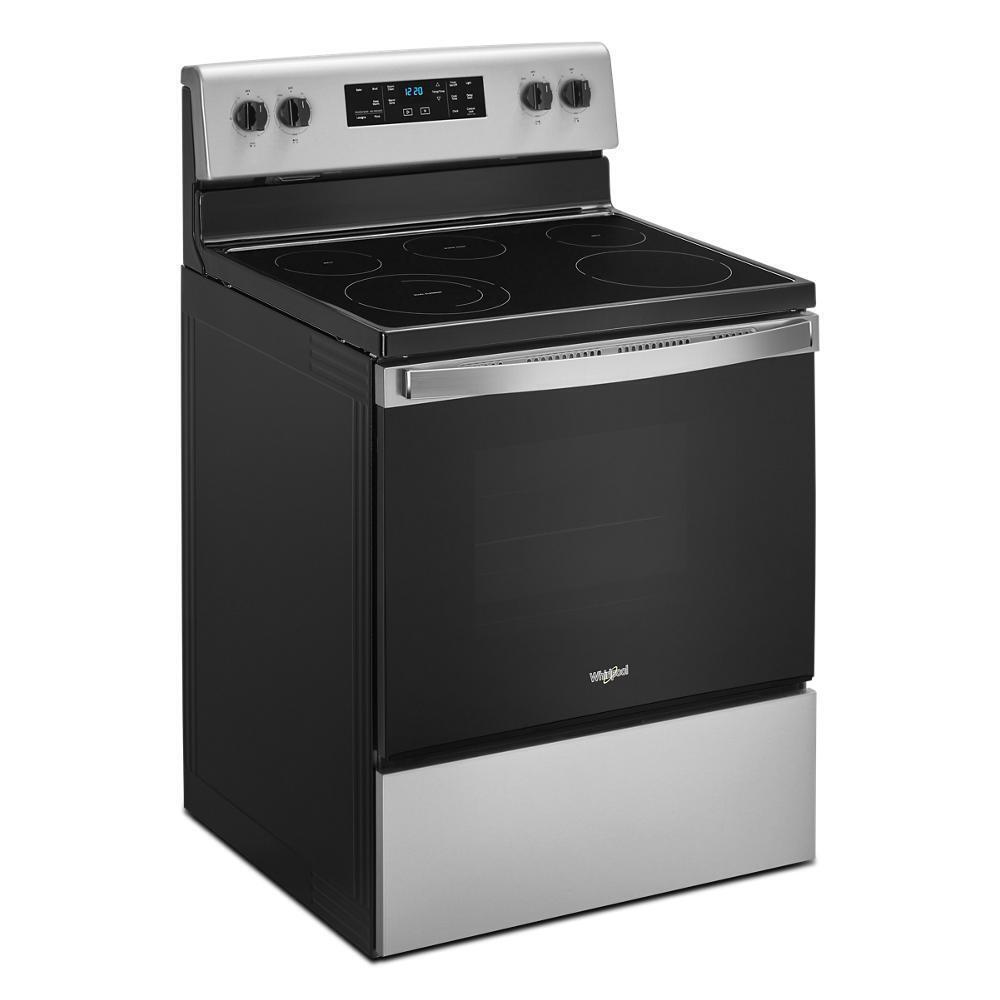

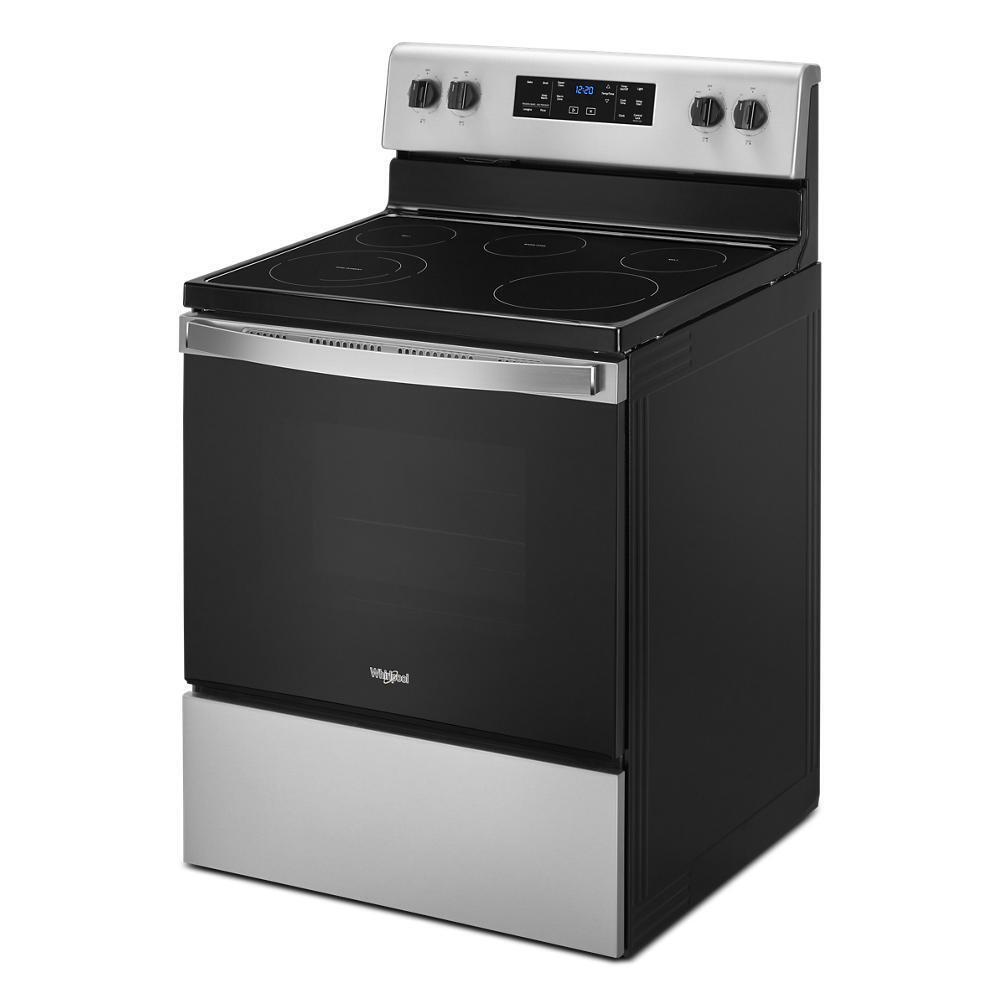

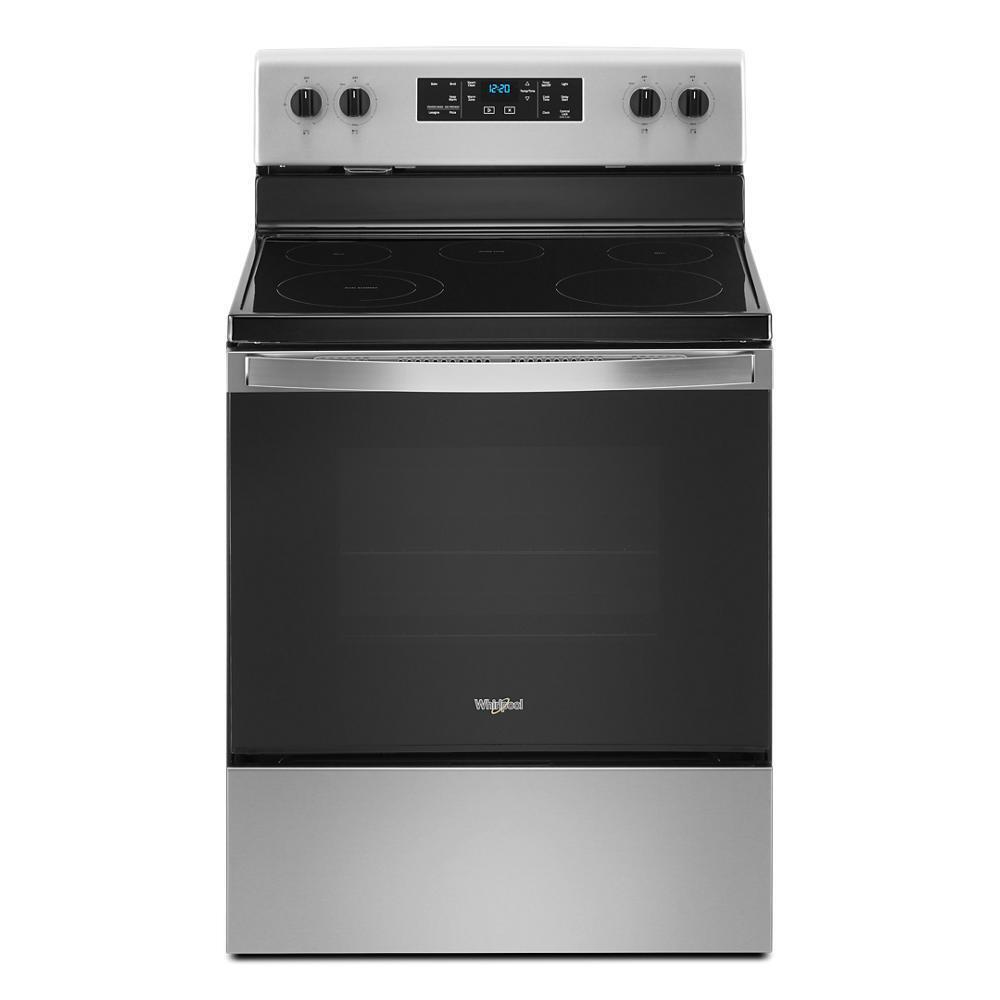

5.3 cu. ft. Whirlpool® electric range with Frozen Bake™ technology
Model WFE505W0JZ
Authorized Dealer
1
of
15
Loading...
Authorized Dealer
5.3 cu. ft. Whirlpool® electric range with Frozen Bake™ technology
Model WFE505W0JZQuick Specs
Width
29.875
Depth
27.75
Height
47.875
Sabbath
YES
ADA
NO
Wifi
NO
Storage
YES
Warming
NO
5.3 cu. ft. Whirlpool® electric range with Frozen Bake™ technology is backordered and will ship as soon as it is back in stock.
Ships Out Within: 2 - 4 Business Days
Shipping Date By: 06/29/2026
Regular price
$1,027.10
Unit price
/
Unavailable
SERVICES AVAILABLE
Selection will add
$0.00
to the price
Couldn't load pickup availability
Out of stock
Quick Specs
Width
29.875
Depth
27.75
Height
47.875
Sabbath Mode
YES
ADA
NO
Wifi Connected
NO
Cooking has Storage Drawer
YES
Cooking has Warning Drawer
NO
Cooking oven number of cooktop element
5
Convection
NO
Self Clean
YES
Oven Rack Type
SLIDING
Downdraft Ventilation
NO
Nominal Width
30.0
Cooking is Induction
NO
RPM
-1.0
Drawer Proof Mode
NO
Energy Star Rated
NO
Keep Warm setting
Keep dishes from getting cold with a setting that delivers low heat to the oven, so your meal is ready when you are.

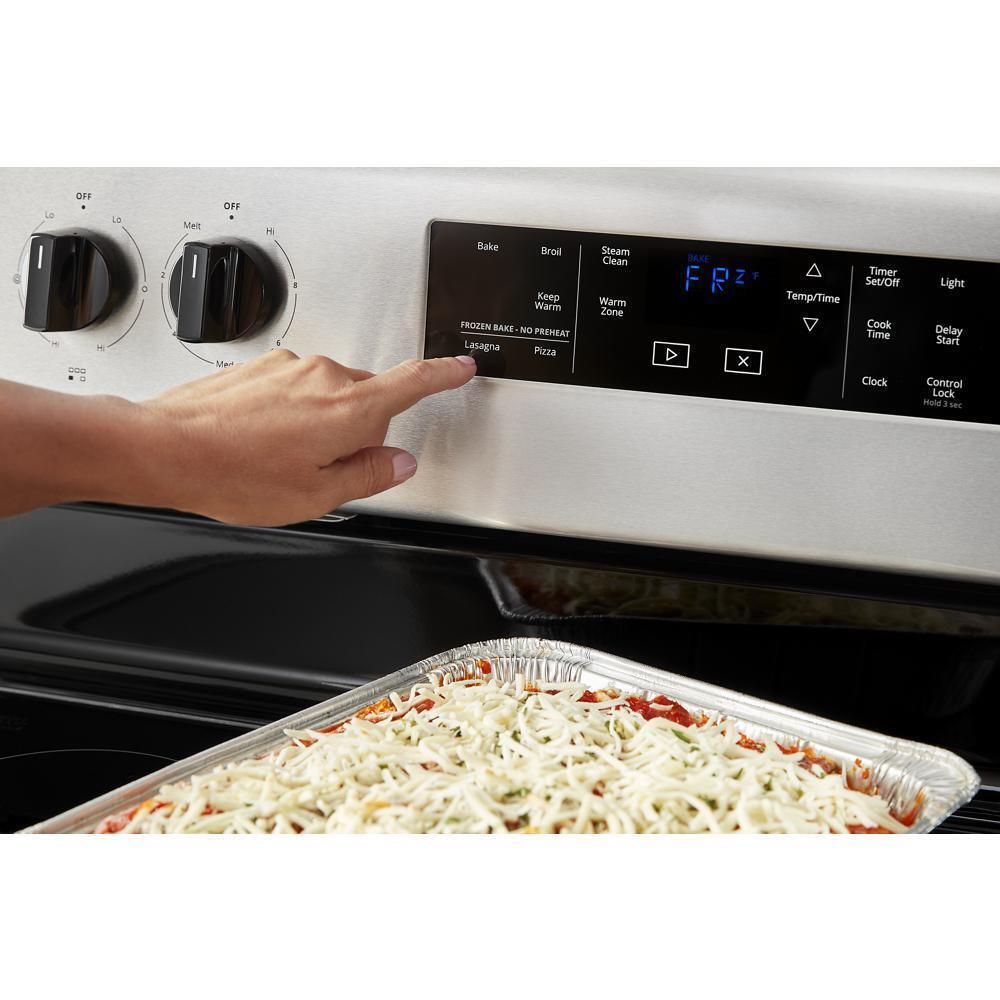

Frozen Bake(TM) technology
Skip preheating and cook frozen favorites like pizza in fewer steps with preprogrammed settings.

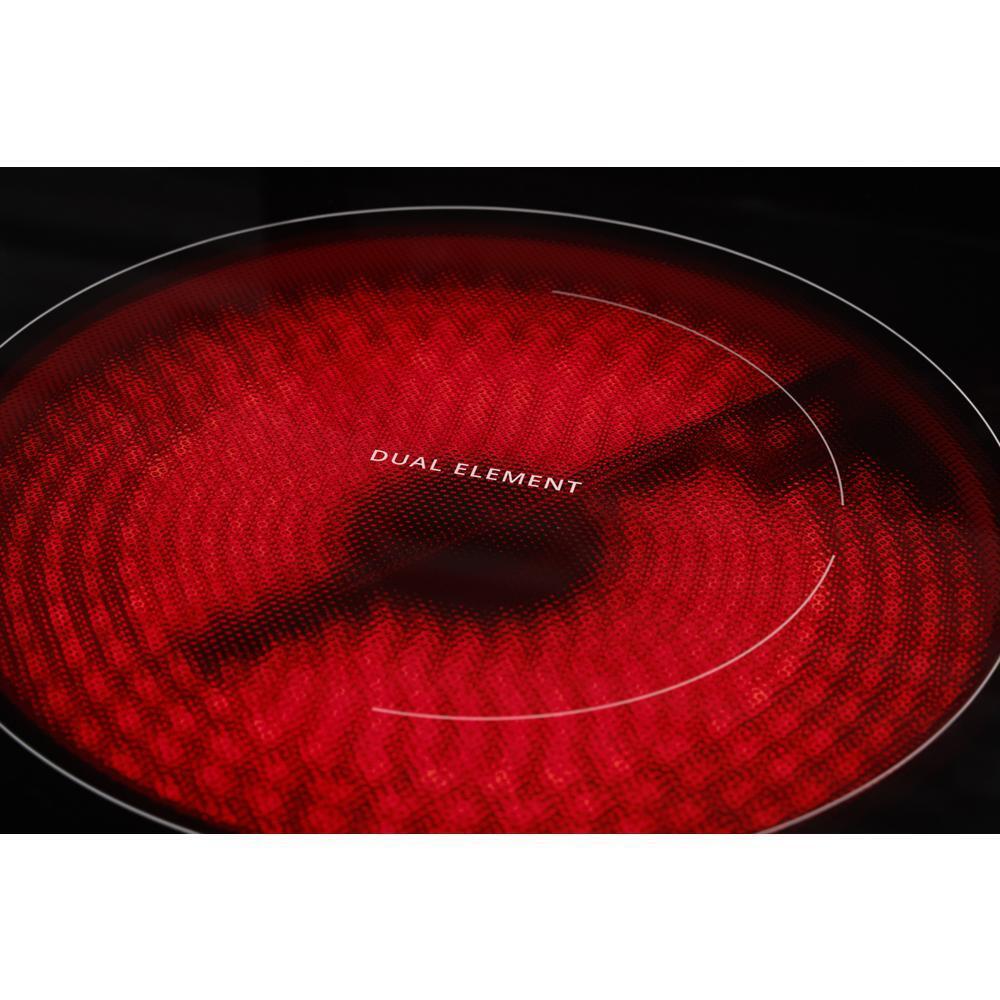

FlexHeat(TM) Dual Radiant Element
Get two elements in one with a 6" inner ring that's great for smaller pots and pans and a 9" expandable outer ring that makes room for larger cookware.
- 5.3 cu. ft. Capacity
- Easily cook large meals with 5.3 cu. ft. capacity
- An American company for over 100 years
- Whirlpool Corporation started in 1911 as a small company in Benton Harbor, Michigan. Today we are a global home appliance business selling products around the world. We are proud of our American heritage and ingenuity that have driven innovation for over 100 years.
- Whirlpool Corporation started in 1911 in Benton Harbor, Michigan. Today we are a global home appliance business selling products around the world. We are proud of our American heritage and ingenuity that have driven innovation for over 100 years.

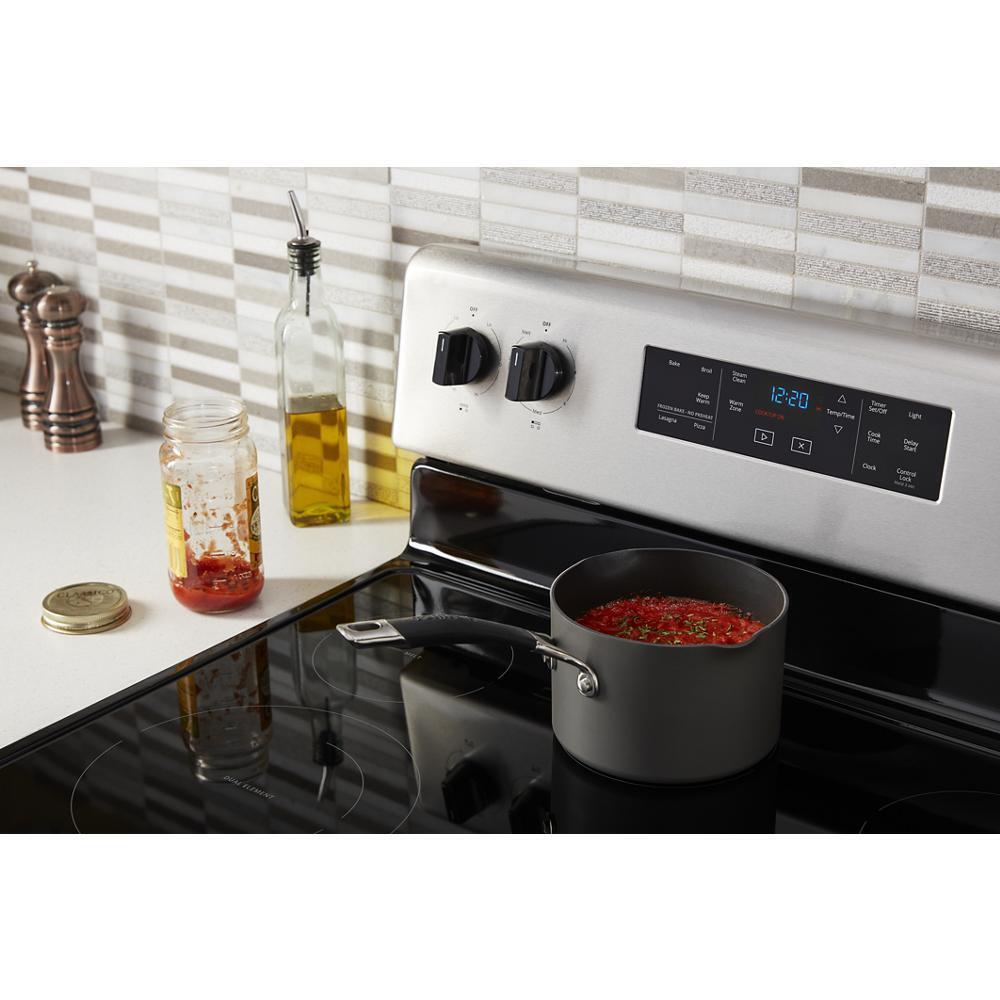

- Ceramic Glass Cooktop
- Wiping up spills is simple with the Ceramic Glass Cooktop. The raised edges help contain spills, so you can easily clean the cooktop.
- Closed Door Broiling
- Maintain the optimal broiling temperature for food while still keeping the kitchen comfortable using this broiling temperature management system.
- Control Lock Mode
- Disable the control panel to avoid unintended use and easily clean controls.
- Fingerprint Resistant
- Available in black stainless and stainless finishes that are easy to clean and resist fingerprints and smudges.
- FlexHeat™ Dual Radiant Element
- Get two elements in one with a 6" inner ring that's great for smaller pots and pans and a 9" expandable outer ring that makes room for larger cookware.
- Frozen Bake™ technology
- Skip preheating and cook frozen favorites like pizza in fewer steps with preprogrammed settings.
- Keep Warm setting
- Keep dishes from getting cold with a setting that delivers low heat to the oven, so your meal is ready when you are.

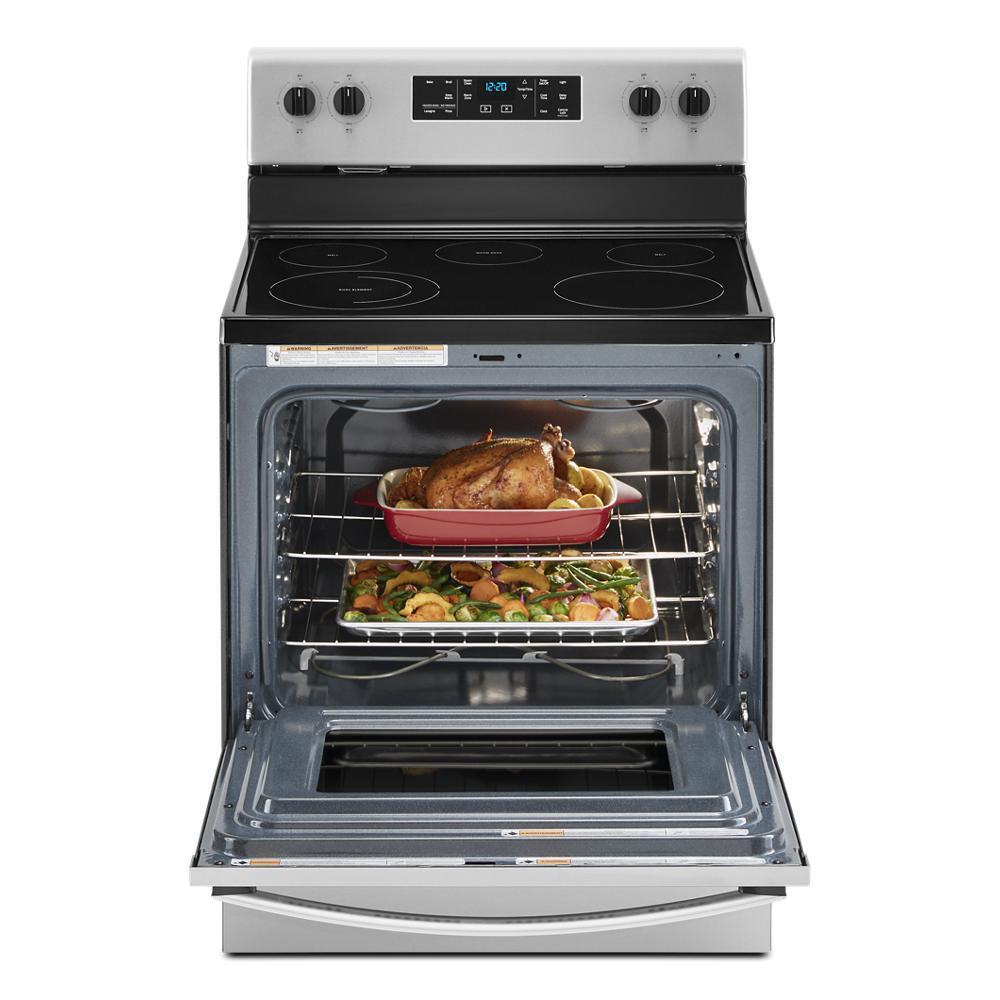

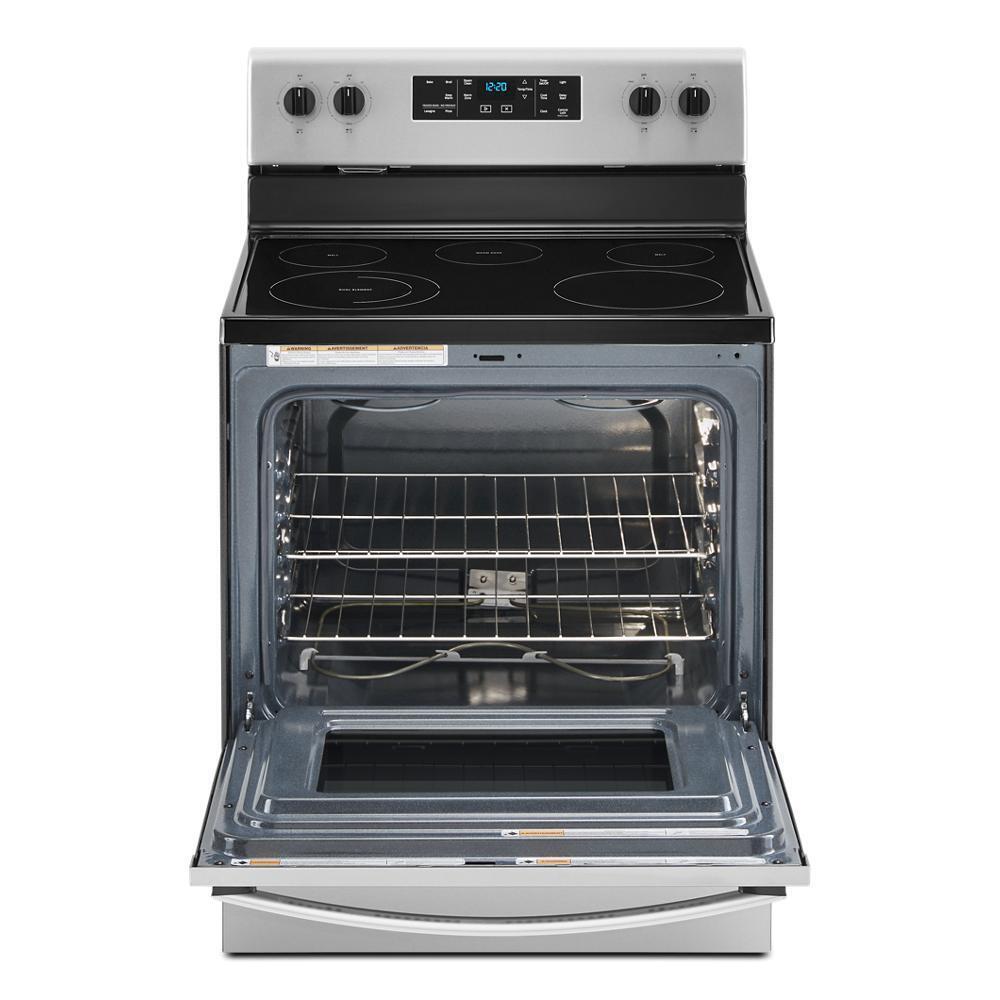

- Large Oven Window
- Keep an eye on your meal and track cooking progress through the Large Oven Window.
- Steam Clean option
- Use the Steam Clean option periodically to clean up after everyday light spills on the bottom of the oven
using only heat and 1-1/4 cups of water-no harsh chemicals or cleaners needed. - Upswept SpillGuard™ Cooktop
- Clean up faster with a cooktop that has raised edges to help contain spills.
- Warm Zone Element
- Keep food warm on the cooktop while you re finishing the rest of the meal using this low-powered center element.
- Cook large meals with 5.3 cu. ft. capacity
- An American company in business since 1911
- Keep an eye on your meal through the Large Oven Window
- Clean up everyday spills with the Steam Clean option
- Clean up faster with the upswept SPILLGUARD cooktop
- Keep food warm with the Warm Zone Element
- An American company for over 100 years
- Wiping up spills is simple with the Ceramic Glass Cooktop
- Maintain optimal broiling temperature with closed door broiling
- Avoid unintended use with Control Lock Mode
- Resists fingerprints and smudges with an easy-to-clean finish
- Get two elements in one with a FLEXHEAT dual radiant element
- Skip preheating with FROZEN BAKE cooking technology
- Dishes stay ready to serve with the Keep Warm Setting
| Certifications | |
| Ada Compliant | No |
| Cul | No |
| Prop65 | Standard |
| Ul | Yes |

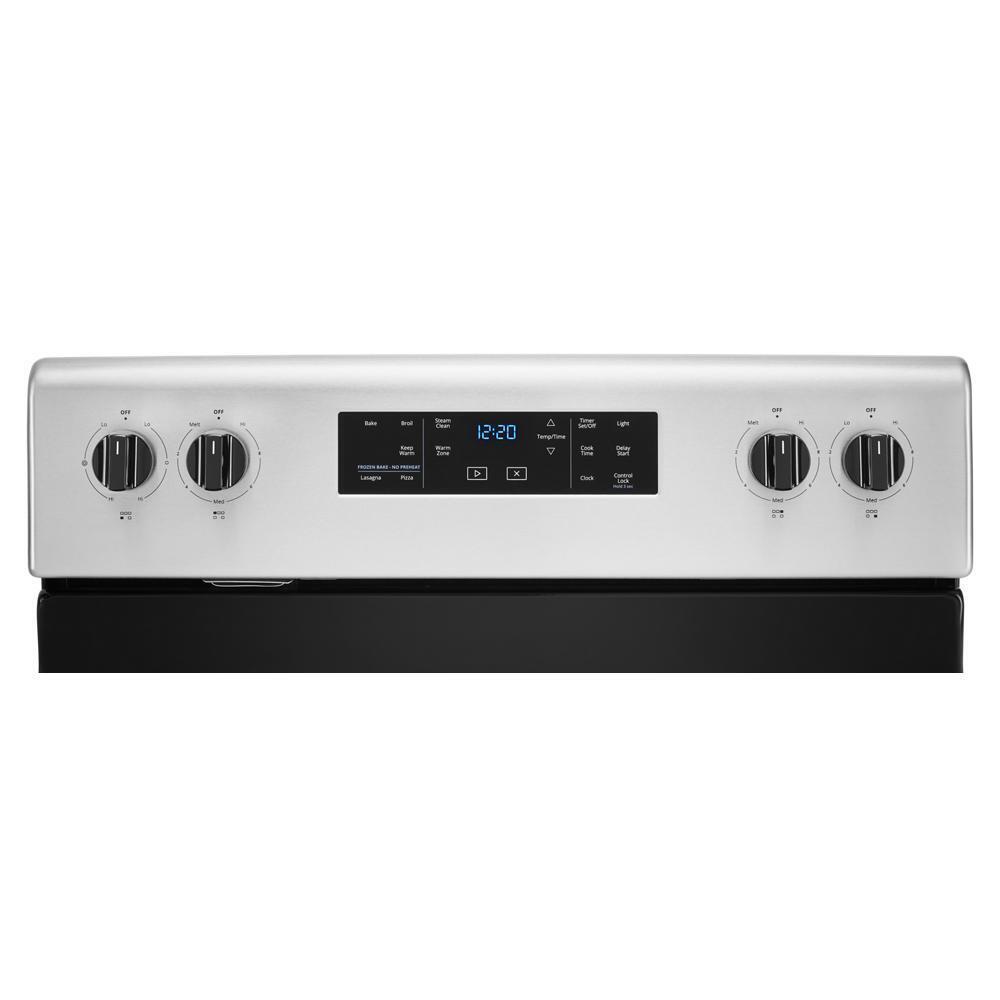

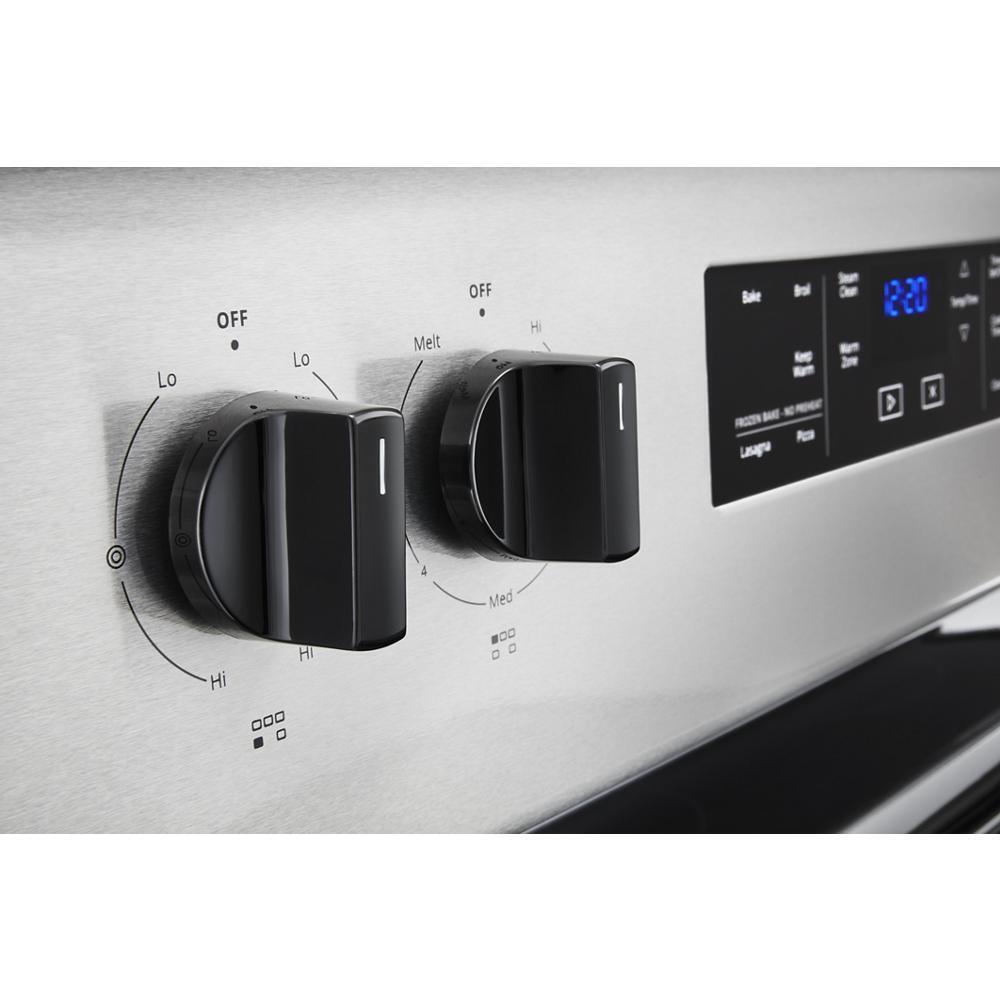

| Controls | |
| Display Color | Blue |
| Electronic Display Type | LED |
| Cooktop Details | |
| Cooktop Control Knob Color | Black |
| Cooktop Control Knob Type | Plastic |
| Cooktop Control Location | Backguard |
| Cooktop Control Type | Knobs |
| Cooktop Surface Color | Black |
| Cooktop Surface Material | Glass |
| Griddle Included | N/A |
| Heating Element On Indicator Light | Yes |
| Hot Surface Indicator Light | Yes |
| Details | |
| Automatic Convection Conversion Temperature Adjust | No |
| Cooktop Configuration | All Burners |
| Fuel Type | Electric |
| Oven Automatic Shut-off | No |
| Oven Configuration | Single Oven |
| Oven Light Switch Location | Oven Control |
| Oven Selections | Audible Signal; Bake; Broil; Cancel/Off; Clock; Control Lock; Cook Time Indicator; Delay Start; Frozen Bake; Keep Warm Setting; Sabbath Mode; Start Time; Stop Time; Timer; Warm Hold |
| Power On Indicator Light | Yes |
| Power Outage Compatible | No |
| Range Configuration | Freestanding |
| Range Drawer Type | Storage Drawer |
| Range Type | Freestanding |

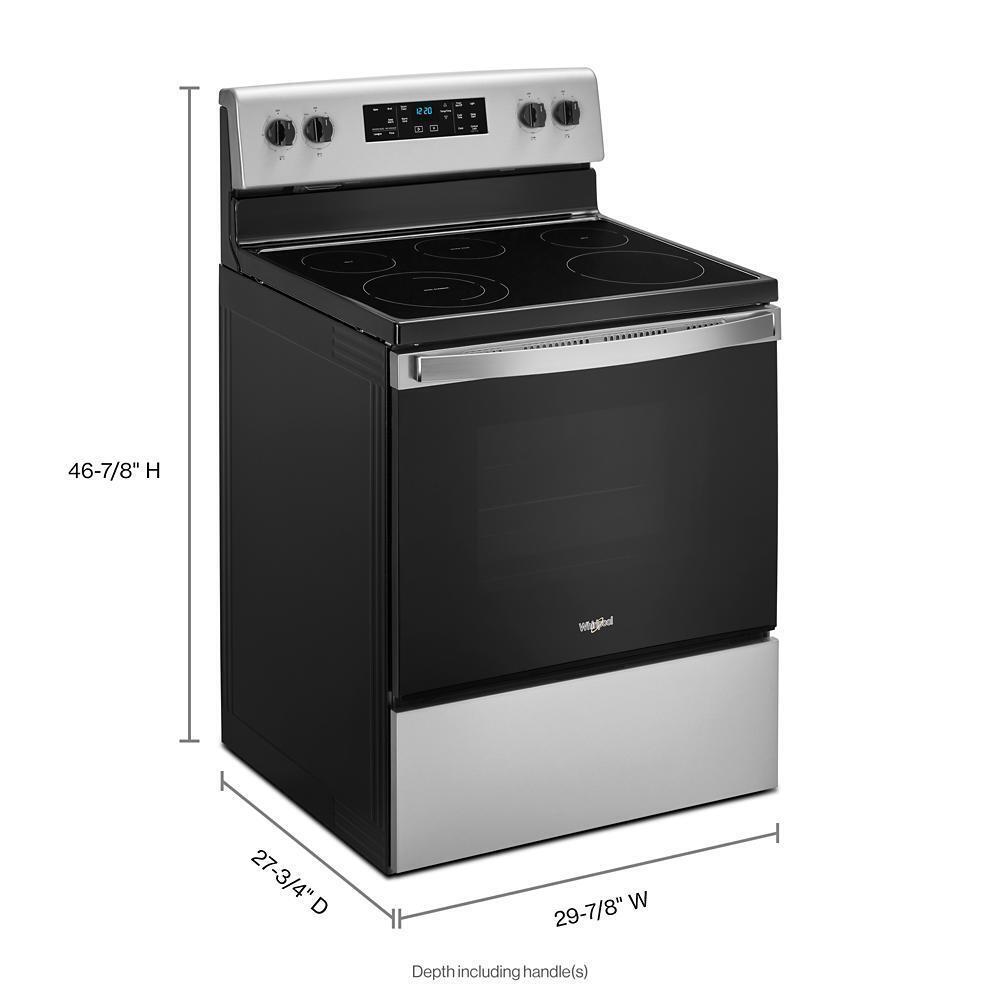

| Dimensions | |
| Product Height | 47.875 |
| Carton Height | 48.75 |
| Gross Weight | 152 |
| Oven Interior Height | 18.125 |
| Carton Width | 32 |
| Product Depth | 27.75 |
| Oven Interior Depth | 18.5 |
| Depth With Door Open 90 Degree | 46.688 |
| Cutout Depth | 24 |
| Cutout Height | 36 |
| Depth Closed Excluding Handles | 25.313 |
| Depth Closed Including Handles | 28 |
| Carton Depth | 29 |
| Cutout Width | 30 |
| Oven Interior Width | 24.5 |
| Net Weight | 137 |
| Product Width | 29.875 |
| Electrical | |
| Power Cord Included | No |

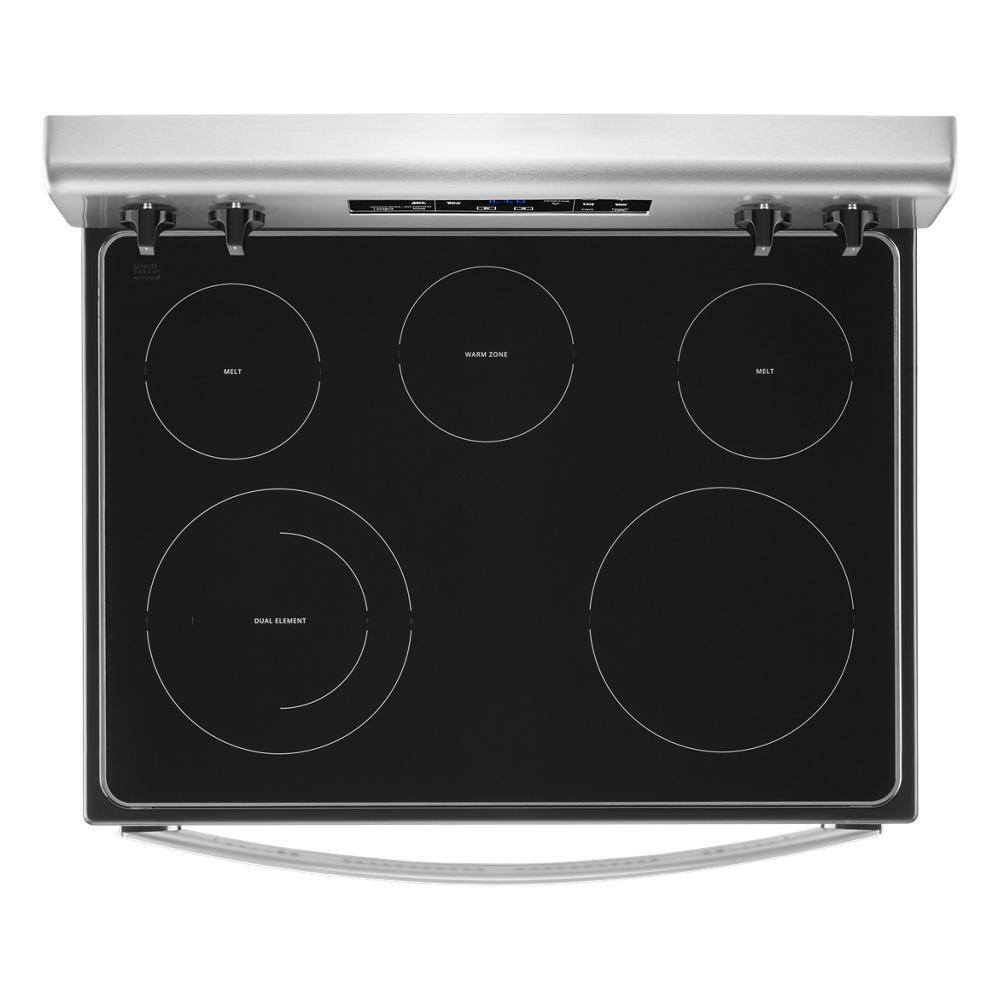

| Element/burner Details | |
| Center Front Element-burner Power | 100W |
| Center Front Element-burner Size | 6in. |
| Center Front Element-burner Type | Simmer |
| Cooktop Element Style | Radiant |
| Left Front Element-burner Power | 3,000W |
| Left Front Element-burner Size | 9in./6in. |
| Left Front Element-burner Type | Dual |
| Left Rear Element-burner Power | 1,200W |
| Left Rear Element-burner Size | 6in. |
| Left Rear Element-burner Type | Standard |
| Number of Cooking Element-burners | 5 |
| Right Front Element-burner Power | 2,500W |
| Right Front Element-burner Size | 9in. |
| Right Front Element-burner Type | Standard |
| Right Rear Element-burner Power | 1,200W |
| Right Rear Element-burner Size | 6in. |
| Right Rear Element-burner Type | Standard |
| Exterior Details | |
| Door Type | Glass Window |
| Handle Color | Stainless Steel |
| Handle Material | Metal |
| Handle Type | Reach Through Handle |
| Oven Control Knob Color | Black |
| Oven Control Knob Type | Plastic |
| Oven Control Location | Backguard |
| Oven Control Type | Electronic Touch |
| Oven Window Size | Extra Large |
| Oven Details | |
| Bake Element Power | 2,400 W |
| Broiler Element Power | 3,400 W |
| Broiler Location | Top Center |
| Door Removable | Yes |
| Hidden Bake Element | No |
| Interior Color | Black |
| Number of Oven Lights | 1 |
| Number of Oven Racks | 2 |
| Number of Rack Guides | 5 |
| Oven Cleaning Type | Steam Clean |
| Oven Cooking System | Thermal |
| Oven Light Type | Incandescent |
| Oven Rack Type | Standard (Both) |
