48" 585 or 1170 CFM Motor Class Custom Hood Liner
Model UVL6048JSS
Authorized Dealer
1
of
7
Loading...
Authorized Dealer
48" 585 or 1170 CFM Motor Class Custom Hood Liner
Model UVL6048JSSQuick Specs
Energy
NO
48" 585 or 1170 CFM Motor Class Custom Hood Liner is backordered and will ship as soon as it is back in stock.
This item qualifies for free delivery
Ships Out Within: 2 - 4 Business Days
Shipping Date By: 06/29/2026
Regular price
$1,488.44
Unit price
/
Unavailable
SERVICES AVAILABLE
Selection will add
$0.00
to the price
Couldn't load pickup availability
Quick Specs
Energy Star Rated
NO
- 105,000 BTU Rating
- pairs with KitchenAid® Commercial-Style Ranges, Rangetops and other models with total burner outputs up to 105,000 BTU.
- Four LED Lights with Night Light Setting
- Provide two levels of brightness, allowing you to illuminate the entire cooking surface below with natural-looking light or subtly accent the kitchen with a soft, inviting glow.
- KitchenAid® Custom Hood Liners
- KitchenAid® Custom Hood Liners allow you to conceal ventilation within custom cabinetry or a decorative hood cover, creating a style all your own.
- Removable Filters
- Use multiple layers of screening to help capture the grease, steam and odors of high-heat cooking. Filters are removable for easy cleaning with soap and water.
- Requires 585 or 1170 CFM Motor Class Blower
- Allowing you to customize a powerful ventilation system with your choice of commercial-style blowers.
- Three-Speed Fan
- Features low, medium and high settings, so you can choose the right fan speed for every cooking adventure, from gentle simmering to high-heat searing.
- 105K BTU Rating pairs with commercial-style range or rangetop with comparable output
- Four LED Lights provide bright, natural-looking light
- Hood Liners can be concealed in cabinetry to create a custom look
- Aluminum Mesh Filters help capture grease and odors
- Requires commercial-style blower: 2 motor options sold separately
- Three-Speed Fan with low, medium and high settings
This 48-inch custom hood liner allows you to conceal ventilation within cabinetry or a decorative hood cover, creating a style all your own. Choose from two compatible blower motor options (sold separately) for complete customization of your ventilation system. A 65,000 BTU rating allows this hood liner to pair with 48-inch rangesor cooktops of comparable output.
| Certifications | |
| Energy Star Qualified | No |
| Prop65 | Standard |
| Star K Certified | No |
| Controls | |
| Control Location | Hidden |
| Control Type | Slide Controls |
| Details | |
| Damper Included | Yes |
| Hood Type | Under Cabinet |
| Lighting Control Type | Slider |
| Number of Night Light Settings | 1 |
| Task Lighting | Yes |

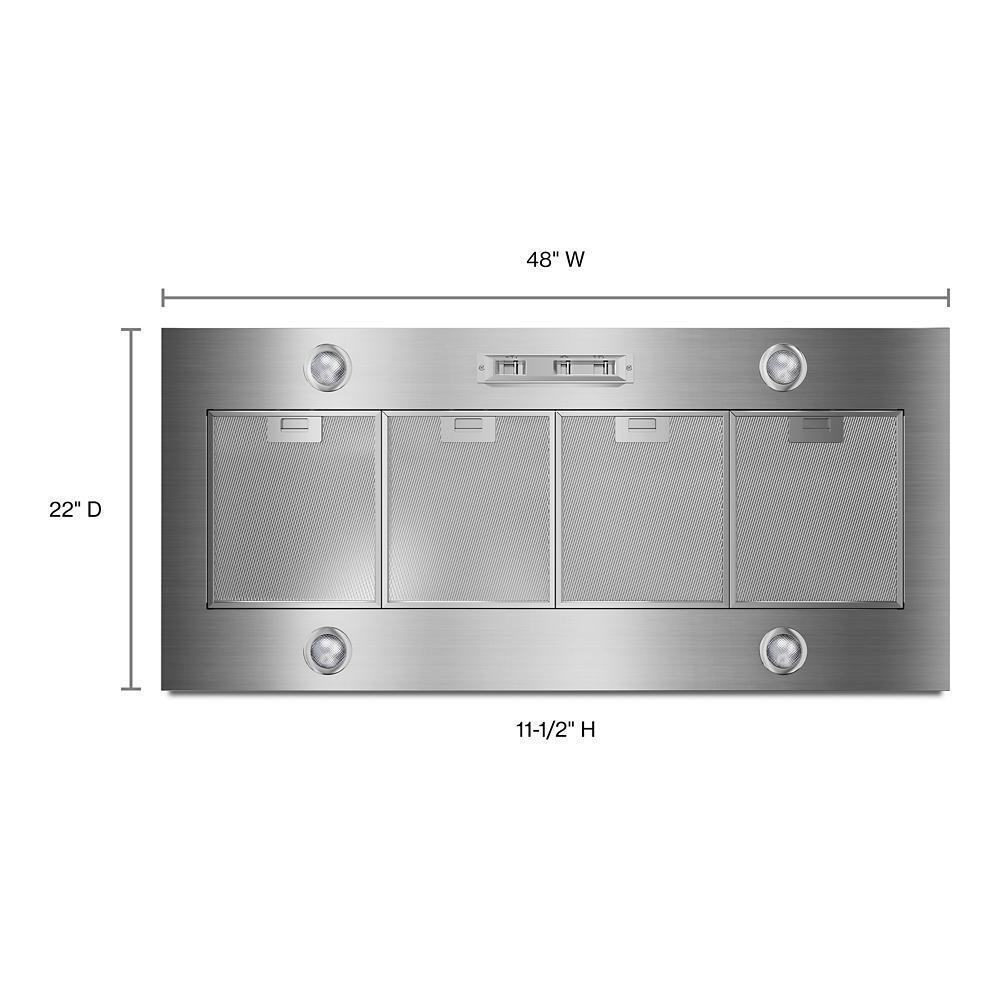

| Dimensions | |
| Canopy Height | 11.5 |
| Carton Depth | 28 |
| Carton Height | 16 |
| Carton Width | 53 |
| Gross Weight | 52.91 |
| Net Weight | 33.51 |
| Electrical | |
| Power Cord Included | No |
| Ventilation Details | |
| Auto Function | No |
| BTU Threshold | 65K/105K |
| Blower Type | Centrifugal |
| Duct Direction | Vertical |
| Duct Length | 13 |
| Duct Outlet Size | 10 |
| Duct Type | Round |
| Exhaust Vent Location | Top |
| Filters | Grease Filters |
| Hvi (cfm Hs Horizontal) | N/A |
| Hvi (cfm Hs Vertical) | 510 |
| Night Light | No |
| Sones High Speed Horizontal | N/A |
| Task Light Type | LED |
| Vent Fan Location | Side |
| Venting | Exterior |
- 105K BTU Rating pairs with commercial-style range or rangetop with comparable output
- Four LED Lights provide bright, natural-looking light
- Hood Liners can be concealed in cabinetry to create a custom look
- Aluminum Mesh Filters help capture grease and odors
- Requires commercial-style blower: 2 motor options sold separately
- Three-Speed Fan with low, medium and high settings
 | |
|---|---|
| Design Features | |
Key Features |
|
Product Type |
|
| Appearance & Specifications | |
Configuration |
|
Color |
|
Energy Star Rated |
|
