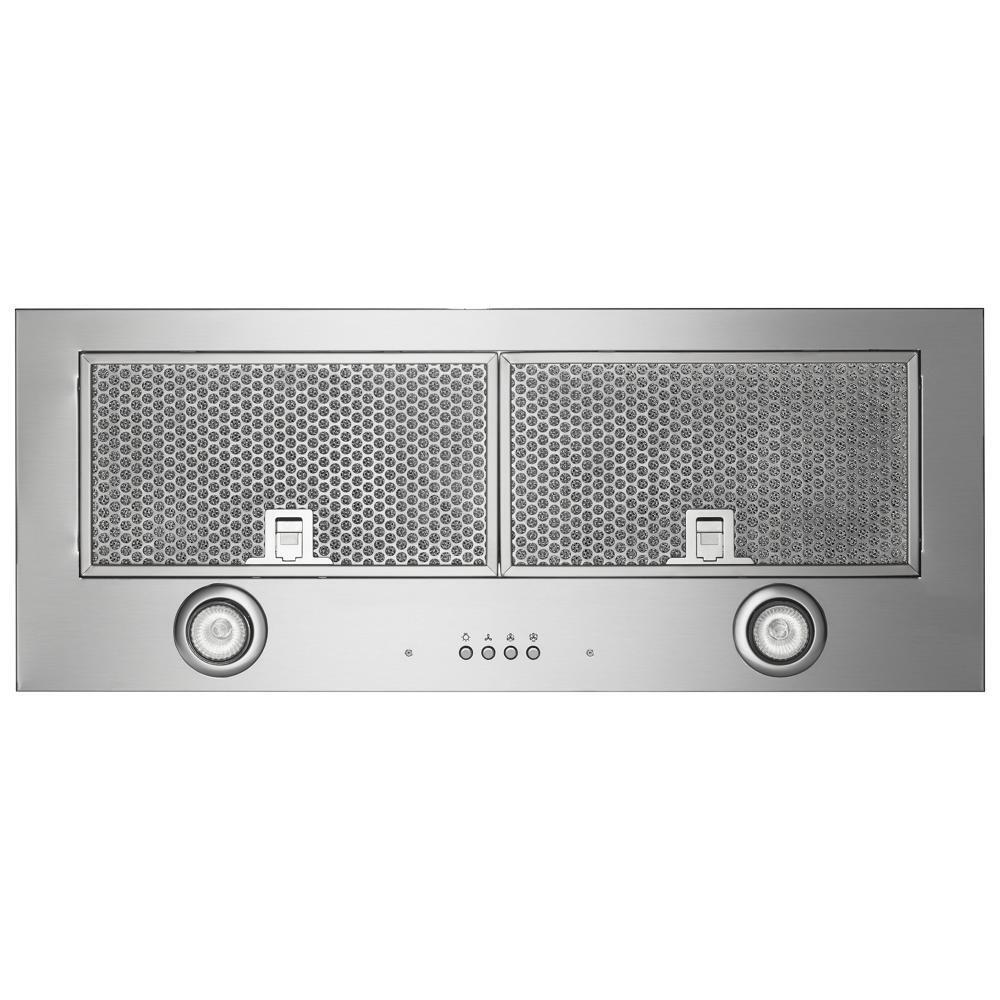

30" 400 CFM Motor Class Custom Hood Liner
Model UVL5430JSS
Authorized Dealer
1
of
2
Loading...
Authorized Dealer
30" 400 CFM Motor Class Custom Hood Liner
Model UVL5430JSSQuick Specs
Energy
NO
30" 400 CFM Motor Class Custom Hood Liner is backordered and will ship as soon as it is back in stock.
Ships Out Within: 2 - 4 Business Days
Shipping Date By: 06/29/2026
Regular price
$808.53
Unit price
/
Unavailable
SERVICES AVAILABLE
Selection will add
$0.00
to the price
Couldn't load pickup availability
Quick Specs
Energy Star Rated
NO
- 400 CFM Motor Class Ventilation System
- Completes your kitchen with ventilation to match the performance of conventional ranges and cooktops.
- KitchenAid® Custom Hood Liners
- KitchenAid® Custom Hood Liners allow you to conceal ventilation within custom cabinetry or a decorative hood cover, creating a style all your own.
- Removable Filters
- help capture the grease, steam and odors of high-heat cooking. Filters are removable for easy cleaning with soap and water.
- Three-Speed Fan
- Features low, medium and high settings, so you can choose the right fan speed for every cooking adventure, from gentle simmering to high-heat searing.
- Two LED Lights with Night Light Setting
- Provide two levels of brightness, allowing you to illuminate the entire cooking surface below with natural-looking light or subtly accent the kitchen with a soft, inviting glow.
- Ventilation system for conventional ranges and cooktops
- Hood Liners can be concealed in cabinetry to create a custom look
- Removable Mesh Filters help capture grease and odors
- Three-Speed Fan with low, medium and high settings
- Two LED Lights provide bright, natural-looking light
Designed to pair with 30-inch KitchenAid® Ranges and Cooktops, this 30-inch 400 CFM motor class custom hood liner allows you to conceal ventilation within cabinetry, creating a style all your own. A 65,000 BTU rating keeps up with high-heat cooking on multiple burners, and three fan speeds let you choose the right setting for every cooking adventure.
| Certifications | |
| Energy Star Qualified | No |
| Prop65 | Standard |
| Star K Certified | No |
| Controls | |
| Control Location | Hidden |
| Control Type | Push Button |
| Details | |
| Damper Included | Yes |
| Hood Type | Under Cabinet |
| Lighting Control Type | Push Button |
| Number of Night Light Settings | 1 |
| Number of Vent Speeds | 3 |
| Task Lighting | Yes |

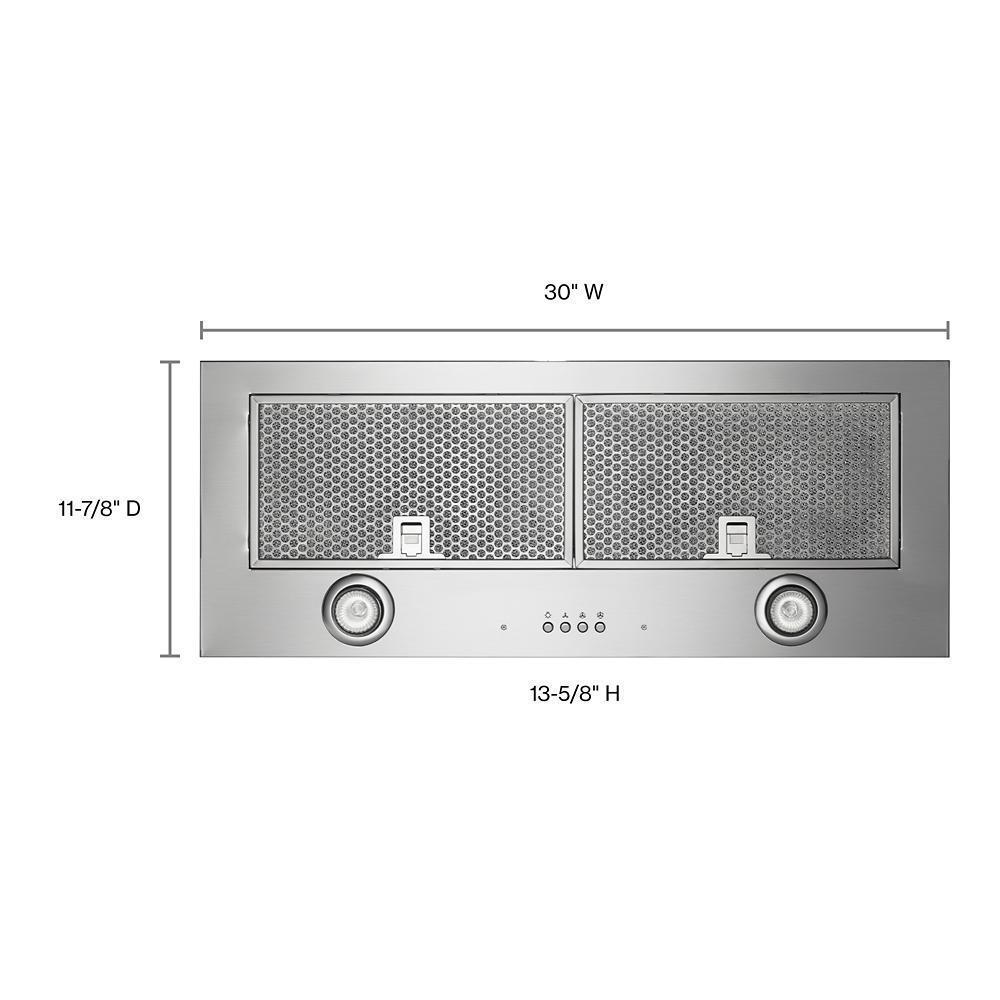

| Dimensions | |
| Canopy Height | 13.625 |
| Carton Depth | 15 |
| Carton Height | 16 |
| Carton Width | 33 |
| Gross Weight | 33.51 |
| Net Weight | 24.25 |
| Electrical | |
| Power Cord Included | Yes |
| Ventilation Details | |
| Auto Function | No |
| Blower Type | Centrifugal |
| Duct Direction | Vertical |
| Duct Length | 14 |
| Duct Outlet Size | 6 |
| Duct Type | Round |
| Exhaust Vent Location | Top |
| Filters | Grease Filters |
| Maximum Motor Cfm | 400 |
| Night Light | No |
| Sound Max Speed | 7.5 |
| Task Light Type | LED |
| Vent Fan Location | Side |
| Venting | Exterior or Recirculating |
- Ventilation system for conventional ranges and cooktops
- Hood Liners can be concealed in cabinetry to create a custom look
- Removable Mesh Filters help capture grease and odors
- Three-Speed Fan with low, medium and high settings
- Two LED Lights provide bright, natural-looking light
 | |
|---|---|
| Design Features | |
Key Features |
|
Product Type |
|
| Appearance & Specifications | |
Configuration |
|
Color |
|
Energy Star Rated |
|
