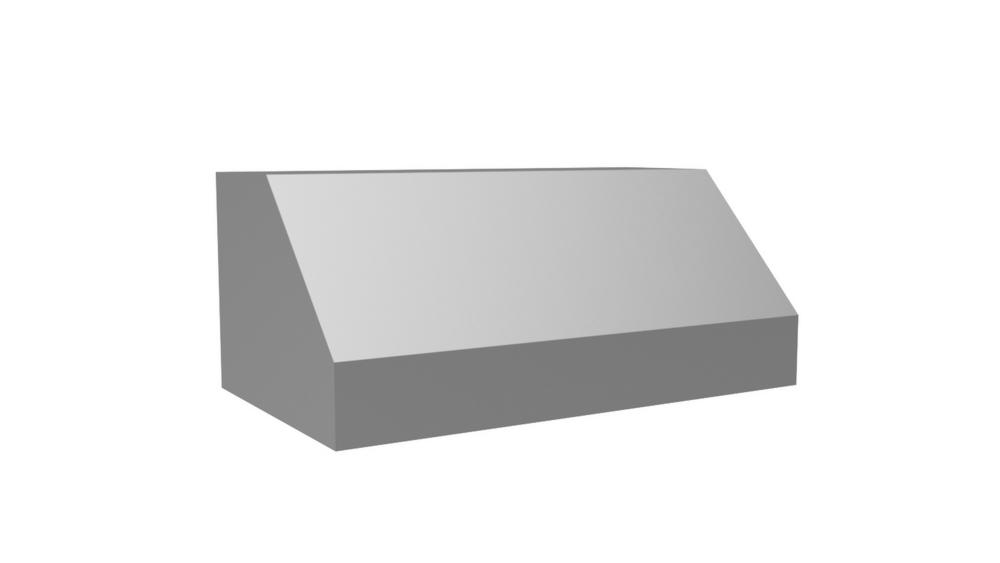

66" 1200 CFM Standard Wall Mount Range Hood Stainless Steel
Model: PRH18466SS
Authorized Dealer
Loading...
Authorized Dealer
66" 1200 CFM Standard Wall Mount Range Hood Stainless Steel
Model: PRH18466SSQuick Specs
Width
66"
Depth
24"
Height
18"
CFM
1,200 CFM
Energy
NO
66" 1200 CFM Standard Wall Mount Range Hood Stainless Steel is backordered and will ship as soon as it is back in stock.
We’ll confirm availability & delivery timing before processing your payment.
Available to Order
Sale Price
Sale price
$4,609.00
Regular price
$5,144.00
Unit price
/
Unavailable
You save 10%
SERVICES AVAILABLE
Selection will add
$0.00
to the price
Couldn't load pickup availability
Quick Specs
Width
66"
Depth
24"
Height
18"
Vent CFM
1,200 CFM
Energy Star Rated
NO
- Quietest at all speeds
- Easiest to Clean
- Patented Filterless Design
- Inherently Fire Safe
- 5 Year Warranty
- SensaSource(R) heat detection
Linear styling perfectly accents the professional-styled kitchen. Includes the Magic Lung® blower system. Lights feature a dual switch for dimming. Equipped with the SensaSource® heat sensor. Available in popular standard or custom paint colors, stainless steel, real brass, real copper or hammered copper. Recommended mounting height is 30" above the cooking surface. Suitable for use in covered outdoor applications when installed in a GFCI protected branch circuit. Also available in custom sizes.(BR)
| WIDTH : | 66" |
| DEPTH : | 24" |
| HEIGHT : | 18" |
| CFM : | 1200 |
| SONES : | 6.6 |
| Amps : | 7.5 |
| Num. Lights : | 4 |
| ELECTRICAL/MECHANICAL SPECIFICATIONS FOR BLOWER UNIT | |
| Model | Two B200 Duals |
| Volts | 115 |
| Amps+ | 7.5 |
| Hz | 60 |
| RPM | 1550 |
| CFM [email protected]" | 1200 |
| Equiv. CFM$ | 1800 |
| CFM [email protected]" | 1062 |
| CFM [email protected]" | 960 |
| CFM [email protected]" | 860 |
| Min. Round Duct Size | 12" (113 sq. in.) |
| Sones# | 6.6 |
- Quietest at all speeds
- Easiest to Clean
- Patented Filterless Design
- Inherently Fire Safe
- 5 Year Warranty
- SensaSource(R) heat detection
- 1200 CFM Double B200 Dual Blowers (Top View) VP563 Transition (Optional) For B400 (Double B200 Dual Blowers) VP563 transition centers outlet over top of hood.
- Back Venting Guide
- Technical Specifications
- Installation Instructions
- Back Venting Guide
- Ducting and Parts
- Dimension Diagram(PRH18 - Premier Magic Lung(R) Professional/Standard Wall Mounted)
- Dimension Diagram(PRH18-466)
 | |
|---|---|
