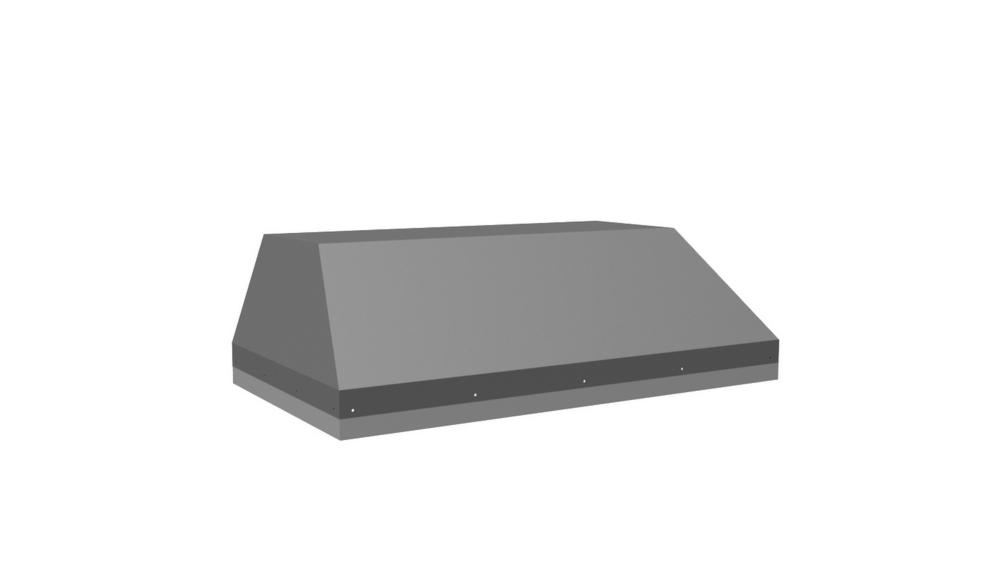

58 3/8" M Series Wall Mount Liner Insert Stainless Steel
Model: M58PSLDSS
Authorized Dealer
Loading...
Authorized Dealer
58 3/8" M Series Wall Mount Liner Insert Stainless Steel
Model: M58PSLDSSQuick Specs
Width
58.37"
Depth
22.5"
Height
12.5"
Energy
NO
58 3/8" M Series Wall Mount Liner Insert Stainless Steel is backordered and will ship as soon as it is back in stock.
We’ll confirm availability & delivery timing before processing your payment.
Available to Order
Sale Price
Sale price
$1,760.00
Regular price
$1,852.00
Unit price
/
Unavailable
You save 4%
SERVICES AVAILABLE
Selection will add
$0.00
to the price
Couldn't load pickup availability
Quick Specs
Width
58.37"
Depth
22.5"
Height
12.5"
Energy Star Rated
NO
- Quietest at all speeds
- Easiest to Clean
- Patented Filterless Design
- Inherently Fire Safe
- 1 Year Warranty
- SensaSource(R) heat detection
The MPSLD model is intended for use over professional-style cooking equipment. Click on the models for a list of our base model numbers for standard sizes. Features a corrosion resistant canopy and a stainless steel fascia and filter assembly. All liners in this series are 22 1/2" deep. Recommended mounting height is 27" - 30" above the cooking surface. PLEASE NOTE, TWO BLOWER OPTIONS ARE AVAILABLE. M600 [630 CFM] AND M1200 [1035 CFM].(BR)
| WIDTH : | 58 3/8" |
| DEPTH : | 22 1/2" |
| HEIGHT : | 12 1/2" |
| CFM : | (Chart A) |
| SONES : | N/A |
| Amps : | (Chart B) |
| Num. Lights : | 4 |
| (Chart A) Electrical/Mechanical Specifications For Blower Unit | |
| Model | M600 Single |
| Volts | 115 |
| Amps* | 5.0 |
| Hz | 60 |
| CFM [email protected]" | 630 |
| CFM [email protected]" | 625 |
| CFM [email protected]" | 615 |
| CFM [email protected]" | 600 |
| CFM [email protected]" | 580 |
| Min. Round Duct Size | 6" (28in.^2) |
| - | |
| Model | M600 w/WHM300 Harness |
| Volts | 115 |
| Amps* | 5.0 |
| Hz | 60 |
| CFM [email protected]" | 302 |
| CFM [email protected]" | 300 |
| CFM [email protected]" | 295 |
| CFM [email protected]" | 288 |
| CFM [email protected]" | 278 |
| Min. Round Duct Size | 6" (28in.^2) |
| - | |
| Model | M1200 Dual |
| Volts | 115 |
| Amps* | 10.0 |
| Hz | 60 |
| CFM [email protected]" | 1035 |
| CFM [email protected]" | 1015 |
| CFM [email protected]" | 1000 |
| CFM [email protected]" | 995 |
| CFM [email protected]" | 915 |
| Min. Round Duct Size | 10" (79in.^2) |
- Quietest at all speeds
- Easiest to Clean
- Patented Filterless Design
- Inherently Fire Safe
- 1 Year Warranty
- SensaSource(R) heat detection
 | |
|---|---|
