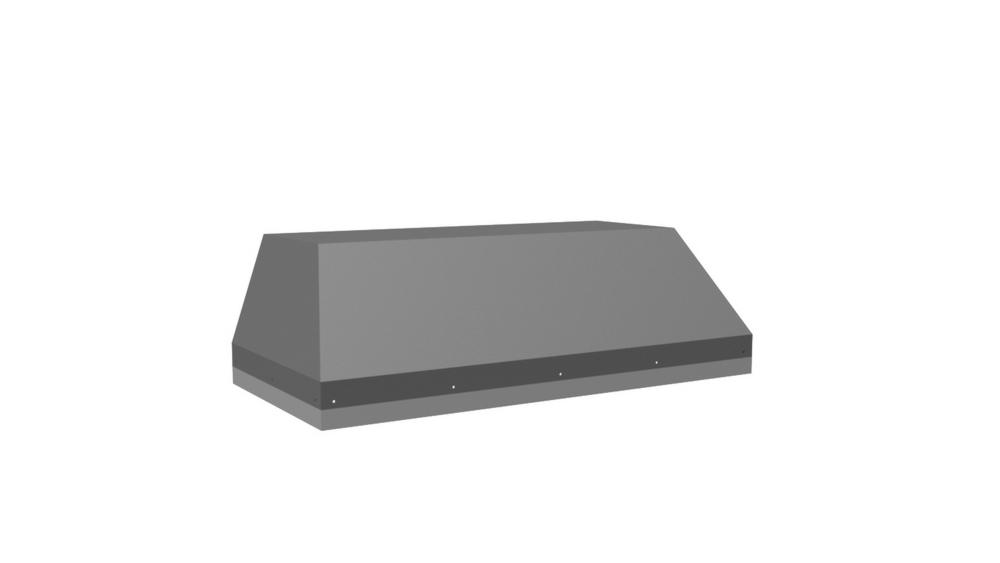

40 3/8" M Series Wall Mount Liner Insert Stainless Steel
Model M40SLDSS
Authorized Dealer
Loading...
Authorized Dealer
40 3/8" M Series Wall Mount Liner Insert Stainless Steel
Model M40SLDSSQuick Specs
Width
40.37"
Depth
19.25"
Height
12.5"
Energy
NO
40 3/8" M Series Wall Mount Liner Insert Stainless Steel is backordered and will ship as soon as it is back in stock.
Ships Out Within: 2 - 4 Business Days
Shipping Date By: 06/29/2026
Sale Price
Sale price
$674.46
Regular price
$813.00
Unit price
/
Unavailable
You save 17%
SERVICES AVAILABLE
Selection will add
$0.00
to the price
Couldn't load pickup availability
Quick Specs
Width
40.37"
Depth
19.25"
Height
12.5"
Energy Star Rated
NO
- Quietest at all speeds
- Easiest to Clean
- Patented Filterless Design
- Inherently Fire Safe
- 1 Year Warranty
- SensaSource(R) heat detection
The MSLD model is intended for use over standard cooking equipment. Click on the models for a list of our base model numbers for standard sizes. Features a corrosion resistant canopy and a stainless steel fascia assembly. All liners in this series are 19 1/4" deep. Recommended mounting height is 24" - 27" above the cooking surface. PLEASE NOTE, TWO BLOWER OPTIONS ARE AVAILABLE. M600 [630 CFM] AND M1200 [1035 CFM].(BR)
| WIDTH : | 40 3/8" |
| DEPTH : | 19 1/4" |
| HEIGHT : | 12 1/2" |
| CFM : | (Chart A) |
| SONES : | N/A |
| Amps : | (Chart B) |
| Num. Lights : | 2 |
| (Chart A) Electrical/Mechanical Specifications For Blower Unit | |
| Model | M600 Single |
| Volts | 115 |
| Amps* | 5.0 |
| Hz | 60 |
| CFM [email protected]" | 630 |
| CFM [email protected]" | 625 |
| CFM [email protected]" | 615 |
| CFM [email protected]" | 600 |
| CFM [email protected]" | 580 |
| Min. Round Duct Size | 6" (28in.^2) |
| - | |
| Model | M600 w/WHM300 Harness |
| Volts | 115 |
| Amps* | 5.0 |
| Hz | 60 |
| CFM [email protected]" | 302 |
| CFM [email protected]" | 300 |
| CFM [email protected]" | 295 |
| CFM [email protected]" | 288 |
| CFM [email protected]" | 278 |
| Min. Round Duct Size | 6" (28in.^2) |
| - | |
| Model | M1200 Dual |
| Volts | 115 |
| Amps* | 10.0 |
| Hz | 60 |
| CFM [email protected]" | 1035 |
| CFM [email protected]" | 1015 |
| CFM [email protected]" | 1000 |
| CFM [email protected]" | 995 |
| CFM [email protected]" | 915 |
| Min. Round Duct Size | 10" (79in.^2) |
- Quietest at all speeds
- Easiest to Clean
- Patented Filterless Design
- Inherently Fire Safe
- 1 Year Warranty
- SensaSource(R) heat detection
 | |
|---|---|
