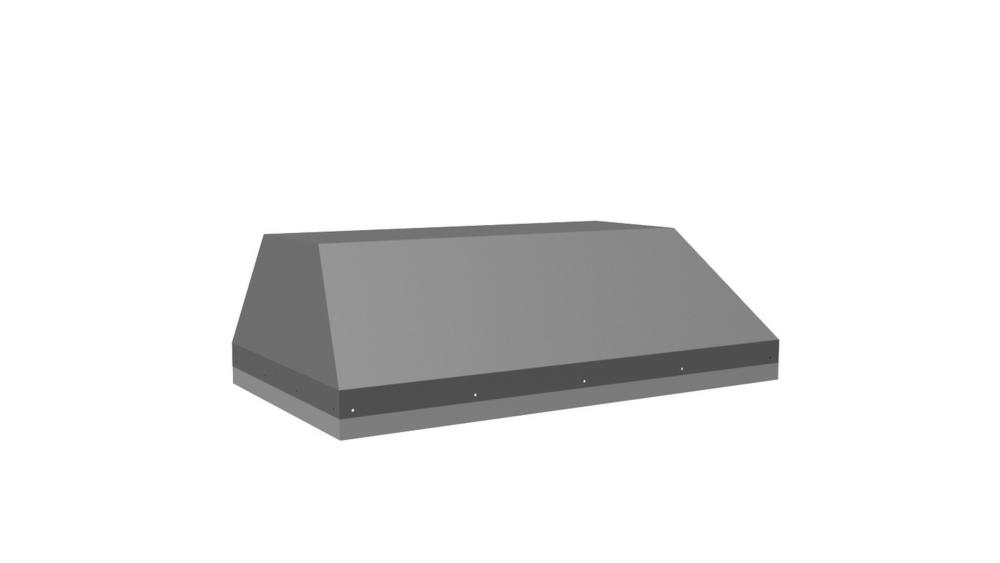

40 3/8" M Series Wall Mount Liner Insert Stainless Steel
Model: M40PSLDSS
Authorized Dealer
Loading...
Authorized Dealer
40 3/8" M Series Wall Mount Liner Insert Stainless Steel
Model: M40PSLDSSQuick Specs
Width
40.37"
Depth
22.5"
Height
12.5"
ADA
YES
Wifi
NO
Energy
NO
40 3/8" M Series Wall Mount Liner Insert Stainless Steel is backordered and will ship as soon as it is back in stock.
Message us for availability
Out of Stock
Sale Price
Sale price
$592.00
Regular price
$813.00
Unit price
/
Unavailable
You save 27%
SERVICES AVAILABLE
Selection will add
$0.00
to the price
Couldn't load pickup availability
Quick Specs
Width
40.37"
Depth
22.5"
Height
12.5"
ADA
YES
Wifi Connected
NO
Energy Star Rated
NO
- Quietest at all speeds
- Easiest to Clean
- Patented Filterless Design
- Inherently Fire Safe
- 1 Year Warranty
- SensaSource(R) heat detection
The MPSLD model is intended for use over professional-style cooking equipment. Click on the models for a list of our base model numbers for standard sizes. Features a corrosion resistant canopy and a stainless steel fascia and filter assembly. All liners in this series are 22 1/2" deep. Recommended mounting height is 27" - 30" above the cooking surface. PLEASE NOTE, TWO BLOWER OPTIONS ARE AVAILABLE. M600 [630 CFM] AND M1200 [1035 CFM].(BR)
| WIDTH : | 40 3/8" |
| DEPTH : | 22 1/2" |
| HEIGHT : | 12 1/2" |
| CFM : | (Chart A) |
| SONES : | N/A |
| Amps : | (Chart B) |
| Num. Lights : | 2 |
| (Chart A) Electrical/Mechanical Specifications For Blower Unit | |
| Model | M600 Single |
| Volts | 115 |
| Amps* | 5.0 |
| Hz | 60 |
| CFM [email protected]" | 630 |
| CFM [email protected]" | 625 |
| CFM [email protected]" | 615 |
| CFM [email protected]" | 600 |
| CFM [email protected]" | 580 |
| Min. Round Duct Size | 6" (28in.^2) |
| - | |
| Model | M600 w/WHM300 Harness |
| Volts | 115 |
| Amps* | 5.0 |
| Hz | 60 |
| CFM [email protected]" | 302 |
| CFM [email protected]" | 300 |
| CFM [email protected]" | 295 |
| CFM [email protected]" | 288 |
| CFM [email protected]" | 278 |
| Min. Round Duct Size | 6" (28in.^2) |
| - | |
| Model | M1200 Dual |
| Volts | 115 |
| Amps* | 10.0 |
| Hz | 60 |
| CFM [email protected]" | 1035 |
| CFM [email protected]" | 1015 |
| CFM [email protected]" | 1000 |
| CFM [email protected]" | 995 |
| CFM [email protected]" | 915 |
| Min. Round Duct Size | 10" (79in.^2) |
- Quietest at all speeds
- Easiest to Clean
- Patented Filterless Design
- Inherently Fire Safe
- 1 Year Warranty
- SensaSource(R) heat detection
 | |
|---|---|
