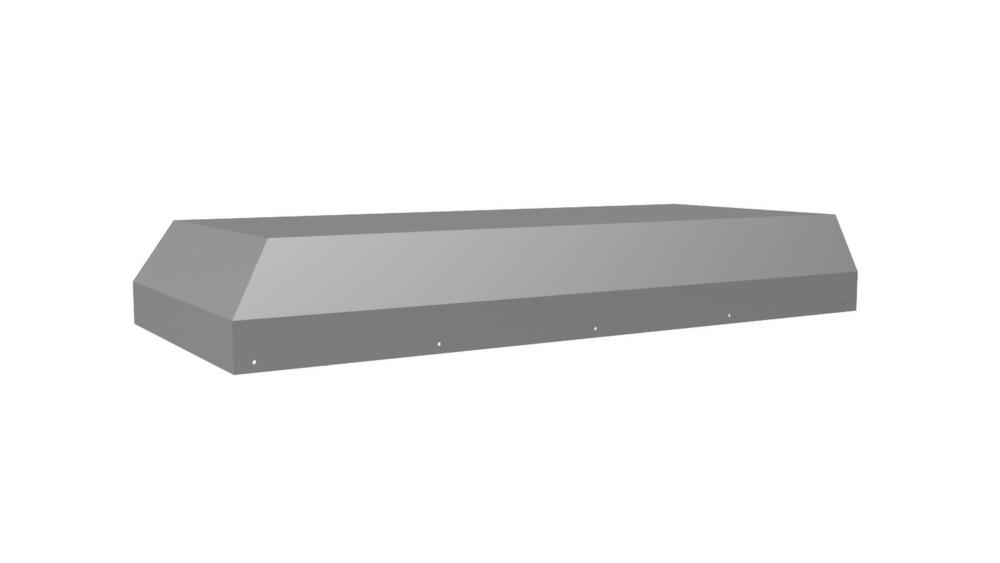

34 3/8" K-Series Wall Mount Liner Insert Stainless Steel
Model: KH34SLDSS
Authorized Dealer
Loading...
Authorized Dealer
34 3/8" K-Series Wall Mount Liner Insert Stainless Steel
Model: KH34SLDSSQuick Specs
Width
34.37"
Depth
18"
Height
6"
Wifi
NO
CFM
250 CFM
Energy
NO
34 3/8" K-Series Wall Mount Liner Insert Stainless Steel is backordered and will ship as soon as it is back in stock.
Estimated to ship in 2-3 weeks
Available to Order
Sale Price
Sale price
$461.00
Regular price
$567.00
Unit price
/
Unavailable
You save 18%
SERVICES AVAILABLE
Selection will add
$0.00
to the price
Couldn't load pickup availability
Quick Specs
Width
34.37"
Depth
18"
Height
6"
Wifi Connected
NO
Vent CFM
250 CFM
Energy Star Rated
NO
- Quietest at all speeds
- Easiest to Clean
- Patented Filterless Design
- Inherently Fire Safe
- 5 Year Warranty
- SensaSource(R) heat detection
Liner insert with a compact design for use in narrow depth applications. Includes the Power Lung K Series blower system, which is perfect for light to moderate cooking [sound rating is 7.4 Sones at high speed]. Lights feature a dual switch for dimming. Available in popular paint colors [biscuit, black, gunsmoke and white only] and stainless steel. Designed for either top vent or back vent installations. Recommended mounting height is 21" - 24" above the cooking surface.(BR)
| WIDTH : | 34 3/8" |
| DEPTH : | 18" |
| HEIGHT : | 6" |
| CFM : | 250 |
| SONES : | 7.4 |
| Amps : | 3.5 |
| Num. Lights : | 2 |
| ELECTRICAL/MECHANICAL SPECIFICATIONS FOR BLOWER UNIT | |
| Model | K250 (Top Vent) |
| Volts | 115 |
| Amps+ | 3.5 |
| Hz | 60 |
| RPM | 1550 |
| CFM [email protected]" | 250 |
| Equiv. CFM$ | 375 |
| CFM [email protected]" | 223 |
| CFM [email protected]" | 220 |
| CFM [email protected]" | 190 |
| Min. Round Duct Size | 7" (38 sq. in.) |
| Sones# | 7.4 |
- Quietest at all speeds
- Easiest to Clean
- Patented Filterless Design
- Inherently Fire Safe
- 5 Year Warranty
- SensaSource(R) heat detection
 | |
|---|---|
| Design Features | |
Key Features |
|
Product Type |
|
| Dimensions & Capacity | |
Width |
|
Depth |
|
Height |
|
| Appearance & Specifications | |
Configuration |
|
Color |
|
Wifi Connected |
|
Vent CFM |
|
Energy Star Rated |
|
