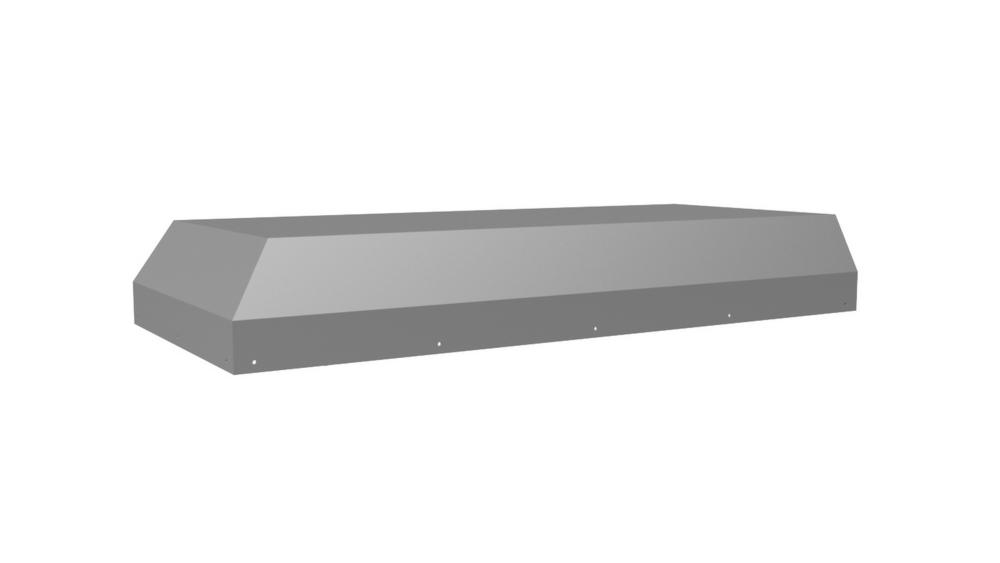

28 3/8" K-Series Wall Mount Liner Insert Stainless Steel
Model: KH28SLDSS
Authorized Dealer
Loading...
Authorized Dealer
28 3/8" K-Series Wall Mount Liner Insert Stainless Steel
Model: KH28SLDSSQuick Specs
Width
28.37"
Depth
18"
Height
6"
ADA
YES
Wifi
NO
CFM
250 CFM
Energy
NO
28 3/8" K-Series Wall Mount Liner Insert Stainless Steel is backordered and will ship as soon as it is back in stock.
Message us for availability
Out of Stock
Sale Price
Sale price
$461.00
Regular price
$567.00
Unit price
/
Unavailable
You save 18%
SERVICES AVAILABLE
Selection will add
$0.00
to the price
Couldn't load pickup availability
Quick Specs
Width
28.37"
Depth
18"
Height
6"
ADA
YES
Wifi Connected
NO
Vent CFM
250 CFM
Energy Star Rated
NO
- Quietest at all speeds
- Easiest to Clean
- Patented Filterless Design
- Inherently Fire Safe
- 5 Year Warranty
- SensaSource(R) heat detection
Liner insert with a compact design for use in narrow depth applications. Includes the Power Lung K Series blower system, which is perfect for light to moderate cooking [sound rating is 7.4 Sones at high speed]. Lights feature a dual switch for dimming. Available in popular paint colors [biscuit, black, gunsmoke and white only] and stainless steel. Designed for either top vent or back vent installations. Recommended mounting height is 21" - 24" above the cooking surface.(BR)
| WIDTH : | 28 3/8" |
| DEPTH : | 18" |
| HEIGHT : | 6" |
| CFM : | 250 |
| SONES : | 7.4 |
| Amps : | 3.5 |
| Num. Lights : | 2 |
| ELECTRICAL/MECHANICAL SPECIFICATIONS FOR BLOWER UNIT | |
| Model | K250 (Top Vent) |
| Volts | 115 |
| Amps+ | 3.5 |
| Hz | 60 |
| RPM | 1550 |
| CFM [email protected]" | 250 |
| Equiv. CFM$ | 375 |
| CFM [email protected]" | 223 |
| CFM [email protected]" | 220 |
| CFM [email protected]" | 190 |
| Min. Round Duct Size | 7" (38 sq. in.) |
| Sones# | 7.4 |
- Quietest at all speeds
- Easiest to Clean
- Patented Filterless Design
- Inherently Fire Safe
- 5 Year Warranty
- SensaSource(R) heat detection
 | |
|---|---|
