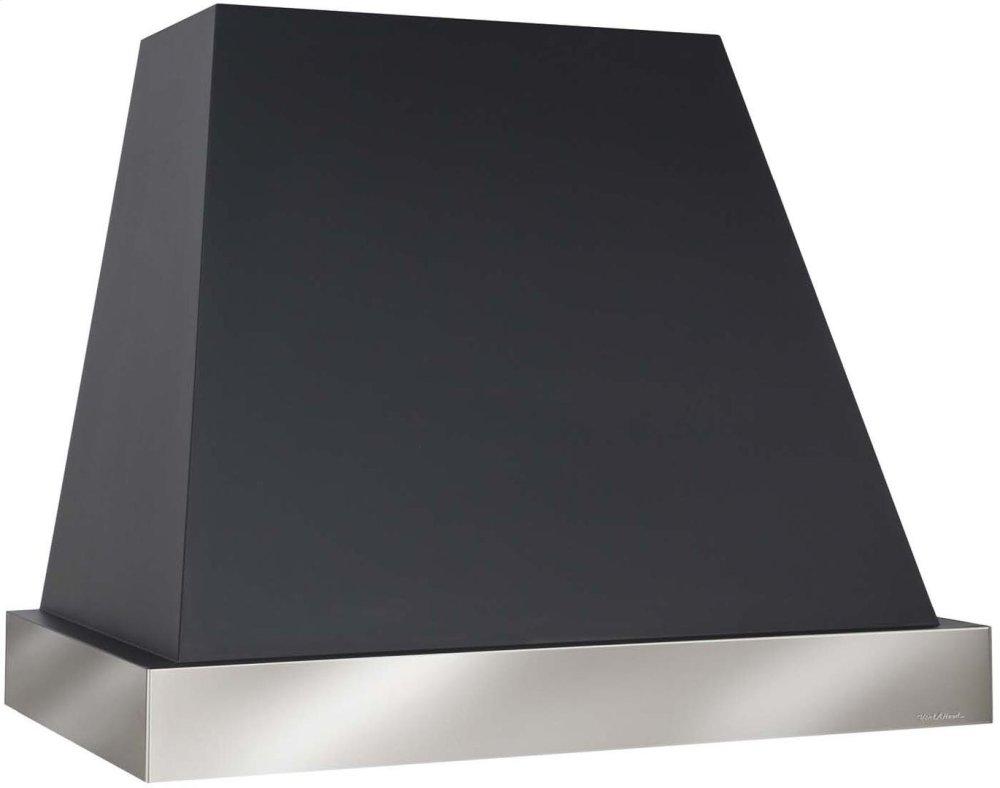

60" 1200 CFM Designer Series Range Hood Black
Model JPH460C2BLAS
Authorized Dealer
Loading...
Authorized Dealer
60" 1200 CFM Designer Series Range Hood Black
Model JPH460C2BLASQuick Specs
Width
60"
Depth
24"
Height
30"
Energy
NO
60" 1200 CFM Designer Series Range Hood Black is backordered and will ship as soon as it is back in stock.
This item qualifies for free delivery
Ships Out Within: 2 - 4 Business Days
Shipping Date By: 06/29/2026
Regular price
$5,501.26
Unit price
/
Unavailable
SERVICES AVAILABLE
Selection will add
$0.00
to the price
Couldn't load pickup availability
Quick Specs
Width
60"
Depth
24"
Height
30"
Energy Star Rated
NO
- Quietest at all speeds
- Easiest to Clean
- Patented Filterless Design
- Inherently Fire Safe
- 5 Year Warranty
- SensaSource(R) heat detection
Pyramid with offset lip styling. Click on the models for a list of our base model numbers for standard sizes; simply select the model you need, and then specify the finish [painted, stainless steel, real brass, real copper, or hammered copper]. All Vent-A-Hood Magic Lung products are suitable for use in damp locations [outdoor applications such as a covered patio] when installed in a GFCI protected branch circuit. Recommended mounting height is 30" above the cooking surface.(BR)
| WIDTH : | 60" |
| DEPTH : | 24" |
| HEIGHT : | 30" |
| CFM : | 1200 |
| SONES : | 6.6 |
| Amps : | 7.5 |
| Num. Lights : | 4 |
| ELECTRICAL/MECHANICAL SPECIFICATIONS FOR BLOWER UNIT | |
| Model | Two B200 Duals |
| Volts | 115 |
| Amps+ | 7.5 |
| Hz | 60 |
| RPM | 1550 |
| CFM [email protected]" | 1200 |
| Equiv. CFM$ | 1800 |
| CFM [email protected]" | 1062 |
| CFM [email protected]" | 960 |
| CFM [email protected]" | 860 |
| Min. Round Duct Size | 12" (113 sq. in.) |
| Sones# | 6.6 |
- Quietest at all speeds
- Easiest to Clean
- Patented Filterless Design
- Inherently Fire Safe
- 5 Year Warranty
- SensaSource(R) heat detection
- 1200 CFM Double B200 Dual Blowers (Top View)
- (Front View)
- Back Venting Guide
- VP563 Transition (Optional) For B400 (Double B200 Dual Blowers)
- Technical Specifications
- Installation Instructions
- Back Venting Guide
- Ducting and Parts
- Dimension Diagram(JPH/C2 - Premier Magic Lung(R) Designer Series Wall Mounted)
- VP563 transition centers outlet over top of hood.
- Dimension Diagram(JPH460/C2)
 | |
|---|---|
