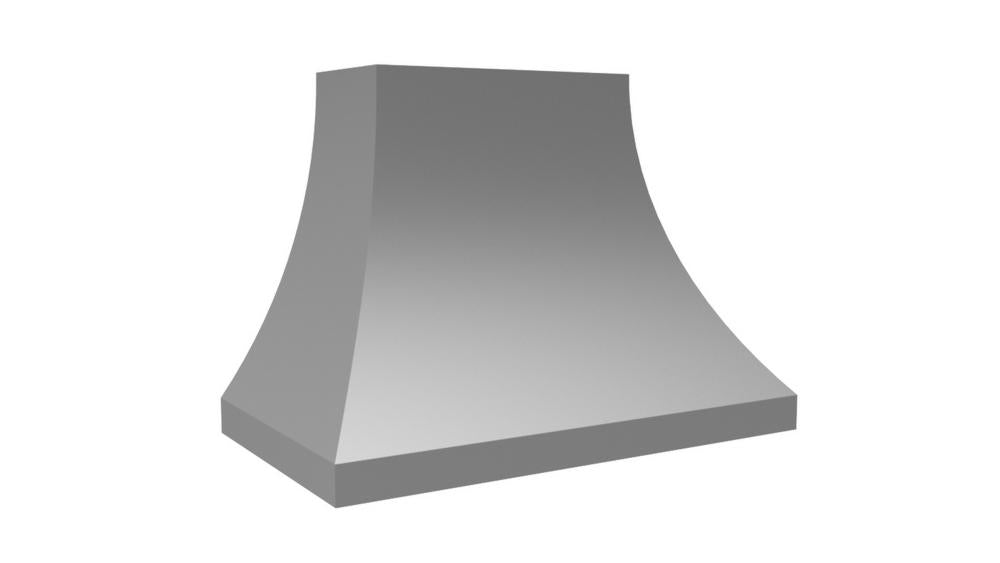

54" 900 CFM Designer Series Range Hood Stainless Steel No Trim
Model JDH354C2SS
Authorized Dealer
Loading...
Authorized Dealer
54" 900 CFM Designer Series Range Hood Stainless Steel No Trim
Model JDH354C2SSQuick Specs
Width
54"
Depth
24"
Height
30"
Energy
NO
54" 900 CFM Designer Series Range Hood Stainless Steel No Trim is backordered and will ship as soon as it is back in stock.
This item qualifies for free delivery
Ships Out Within: 2 - 4 Business Days
Shipping Date By: 06/29/2026
Sale Price
Sale price
$6,084.10
Regular price
$7,413.00
Unit price
/
Unavailable
You save 17%
SERVICES AVAILABLE
Selection will add
$0.00
to the price
Couldn't load pickup availability
Quick Specs
Width
54"
Depth
24"
Height
30"
Energy Star Rated
NO
- Quietest at all speeds
- Easiest to Clean
- Patented Filterless Design
- Inherently Fire Safe
- 5 Year Warranty
- SensaSource(R) heat detection
Concave with slim lip styling. Click on the models for a list of our base model numbers for standard sizes; simply select the model you need, and then specify the finish [painted, stainless steel, real brass, real copper, or hammered copper]. All Vent-A-Hood Magic Lung products are suitable for use in damp locations [outdoor applications such as a covered patio] when installed in a GFCI protected branch circuit. Recommended mounting height is 30" above the cooking surface.(BR)
| WIDTH : | 54" |
| DEPTH : | 24" |
| HEIGHT : | 30" |
| CFM : | 900 |
| SONES : | 6.3 |
| Amps : | 6.0 |
| Num. Lights : | 4 |
| ELECTRICAL/MECHANICAL SPECIFICATIONS FOR BLOWER UNIT | |
| Model | B200 Dual & B100 Single |
| Volts | 115 |
| Amps+ | 6.0 |
| Hz | 60 |
| RPM | 1550 |
| CFM [email protected]" | 900 |
| Equiv. CFM$ | 1350 |
| CFM [email protected]" | 804 |
| CFM [email protected]" | 725 |
| CFM [email protected]" | 655 |
| Min. Round Duct Size | 10" (79 sq. in.) |
| Sones# | 6.3 |
- Quietest at all speeds
- Easiest to Clean
- Patented Filterless Design
- Inherently Fire Safe
- 5 Year Warranty
- SensaSource(R) heat detection
- 900 CFM B200 Dual & B100 Single Blower (Top View) VP562 Standard Transition Installed (Front View) A VP562 transition is included. It is installed in the hood at the factory when crating permits. It will be located in the exact center of the duct cover (left to right & front to rear).
- Back Venting Guide
- Technical Specifications
- Installation Instructions
- Back Venting Guide
- Ducting and Parts
- Dimension Diagram(JDH/C2 - Premier Magic Lung(R) Designer Series Wall Mounted)
- Dimension Diagram(JDH354/C2)
 | |
|---|---|
