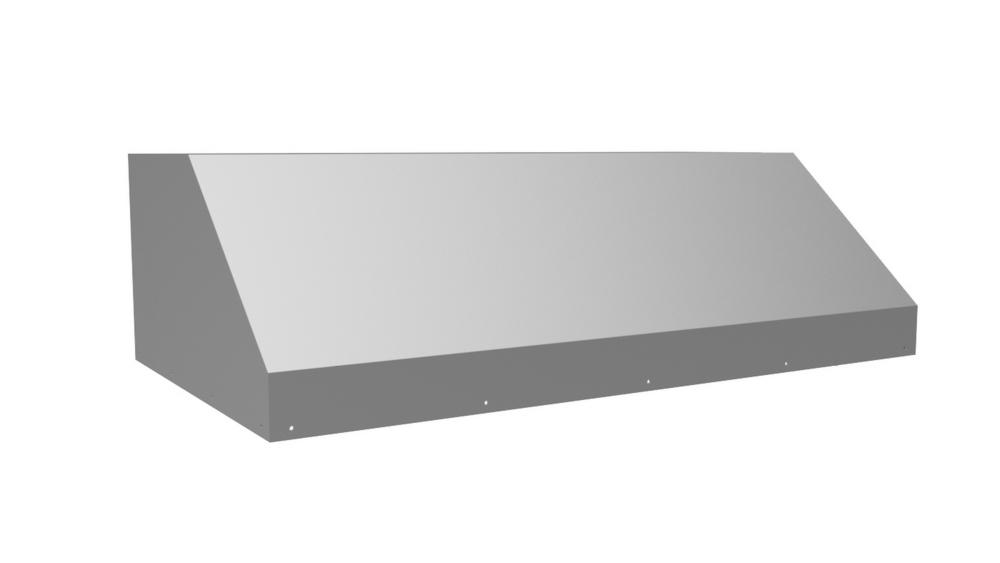

46 3/8" 1200 CFM Wall Mount Liner Insert Stainless Steel
Model: BH446PSLBSS
Authorized Dealer
Loading...
Authorized Dealer
46 3/8" 1200 CFM Wall Mount Liner Insert Stainless Steel
Model: BH446PSLBSSQuick Specs
Width
46.37"
Depth
22.5"
Height
12"
ADA
YES
Wifi
NO
CFM
1,200 CFM
Energy
NO
46 3/8" 1200 CFM Wall Mount Liner Insert Stainless Steel is backordered and will ship as soon as it is back in stock.
Estimated to ship in 2-3 weeks
Available to Order
Sale Price
Sale price
$3,223.00
Regular price
$3,565.00
Unit price
/
Unavailable
You save 9%
SERVICES AVAILABLE
Selection will add
$0.00
to the price
Couldn't load pickup availability
Quick Specs
Width
46.37"
Depth
22.5"
Height
12"
ADA
YES
Wifi Connected
NO
Vent CFM
1,200 CFM
Energy Star Rated
NO
- Quietest at all speeds
- Easiest to Clean
- Patented Filterless Design
- Inherently Fire Safe
- 5 Year Warranty
- SensaSource(R) heat detection
When you need the largest Magic Lung blower capacity but have a limited width, the BHPSLB model is the right choice. Click on the models for a list of our base model numbers for standard sizes; simply select the model you need, and then specify the finish [painted or stainless steel]. All liners in this series are 22 1/2" deep. Recommended mounting height is 27" - 30" above the cooking surface. All Vent-A-Hood products are suitable for use in damp locations [outdoor applications such as a covered patio] when installed in a GFCI protected branch circuit.(BR)
| WIDTH : | 46 3/8" |
| DEPTH : | 22 1/2" |
| HEIGHT : | 12" |
| CFM : | 1200 |
| SONES : | 6.6 |
| Amps : | 7.5 |
| Num. Lights : | 3 |
| ELECTRICAL/MECHANICAL SPECIFICATIONS FOR BLOWER UNIT | |
| Model | Two B200 Duals |
| Volts | 115 |
| Amps+ | 7.5 |
| Hz | 60 |
| RPM | 1550 |
| CFM [email protected]" | 1200 |
| Equiv. CFM$ | 1800 |
| CFM [email protected]" | 1062 |
| CFM [email protected]" | 960 |
| CFM [email protected]" | 860 |
| Min. Round Duct Size | 12" (113 sq. in.) |
| Sones# | 6.6 |
- Quietest at all speeds
- Easiest to Clean
- Patented Filterless Design
- Inherently Fire Safe
- 5 Year Warranty
- SensaSource(R) heat detection
- 1200 CFM Double B200 Dual Blowers (Top View) VP563 Transition (Optional) For B400 (Double B200 Dual Blowers) VP563 transition centers outlet over top of hood.
- Back Venting Guide
- Technical Specifications
- Installation Instructions
- Back Venting Guide
- Ducting and Parts
- Dimension Diagram(BHPSLB - Premier Magic Lung(R) Wall Mounted Liner Inserts)
- Dimension Diagram(BH446PSLB)
 | |
|---|---|
