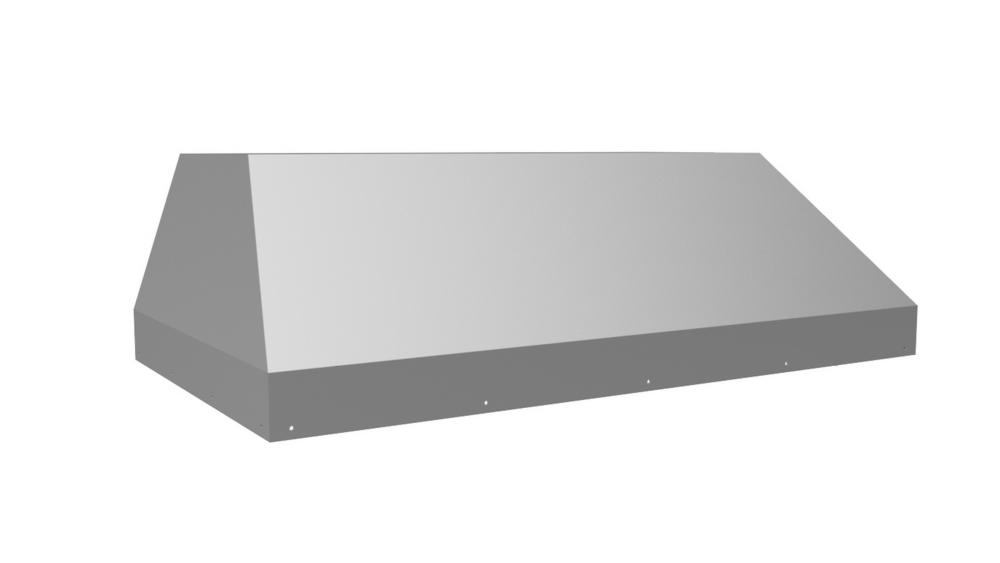

46 3/8" 900 CFM Wall Mount Liner Insert Stainless Steel
Model: BH346PSLDSS
Authorized Dealer
Loading...
Authorized Dealer
46 3/8" 900 CFM Wall Mount Liner Insert Stainless Steel
Model: BH346PSLDSSQuick Specs
Width
46.37"
Depth
22.5"
Height
12"
ADA
YES
Wifi
NO
CFM
900 CFM
Energy
NO
46 3/8" 900 CFM Wall Mount Liner Insert Stainless Steel is backordered and will ship as soon as it is back in stock.
Estimated to ship in 2-4 days
In Stock
Sale Price
Sale price
$2,664.00
Regular price
$2,916.00
Unit price
/
Unavailable
You save 8%
SERVICES AVAILABLE
Selection will add
$0.00
to the price
Couldn't load pickup availability
Quick Specs
Width
46.37"
Depth
22.5"
Height
12"
ADA
YES
Wifi Connected
NO
Vent CFM
900 CFM
Energy Star Rated
NO
- Quietest at all speeds
- Easiest to Clean
- Patented Filterless Design
- Inherently Fire Safe
- 5 Year Warranty
- SensaSource(R) heat detection
The extra size and blower capacity of the BHPSLD model can be used above professional-style cooking equipment. Click on the models for a list of our base model numbers for standard sizes; simply select the model you need, and then specify the finish [painted or stainless steel]. All liners in this series are 22 1/2" deep. Recommended mounting height is 27" - 30" above the cooking surface. All Vent-A-Hood products are suitable for use in damp locations [outdoor applications such as a covered patio] when installed in a GFCI protected branch circuit.(BR)
| WIDTH : | 46 3/8" |
| DEPTH : | 22 1/2" |
| HEIGHT : | 12" |
| CFM : | 900 |
| SONES : | 6.3 |
| Amps : | 6.0 |
| Num. Lights : | 3 |
| ELECTRICAL/MECHANICAL SPECIFICATIONS FOR BLOWER UNIT | |
| Model | B200 Dual & B100 Single |
| Volts | 115 |
| Amps+ | 6.0 |
| Hz | 60 |
| RPM | 1550 |
| CFM [email protected]" | 900 |
| Equiv. CFM$ | 1350 |
| CFM [email protected]" | 804 |
| CFM [email protected]" | 725 |
| CFM [email protected]" | 655 |
| Min. Round Duct Size | 10" (79 sq. in.) |
| Sones# | 6.3 |
- Quietest at all speeds
- Easiest to Clean
- Patented Filterless Design
- Inherently Fire Safe
- 5 Year Warranty
- SensaSource(R) heat detection
- 900 CFM B200 Dual & B100 Single Blower (Top View) VP562 Transition (Optional) For B300 (B200 Dual Blower & B100 Single Blower) VP562 transition centers outlet over top of hood.
- Back Venting Guide
- Technical Specifications
- Installation Instructions
- Back Venting Guide
- Ducting and Parts
- Dimension Diagram(BHPSLD - Premier Magic Lung(R) Wall Mounted Liner Inserts)
- Dimension Diagram(BH346PSLD)
 | |
|---|---|
