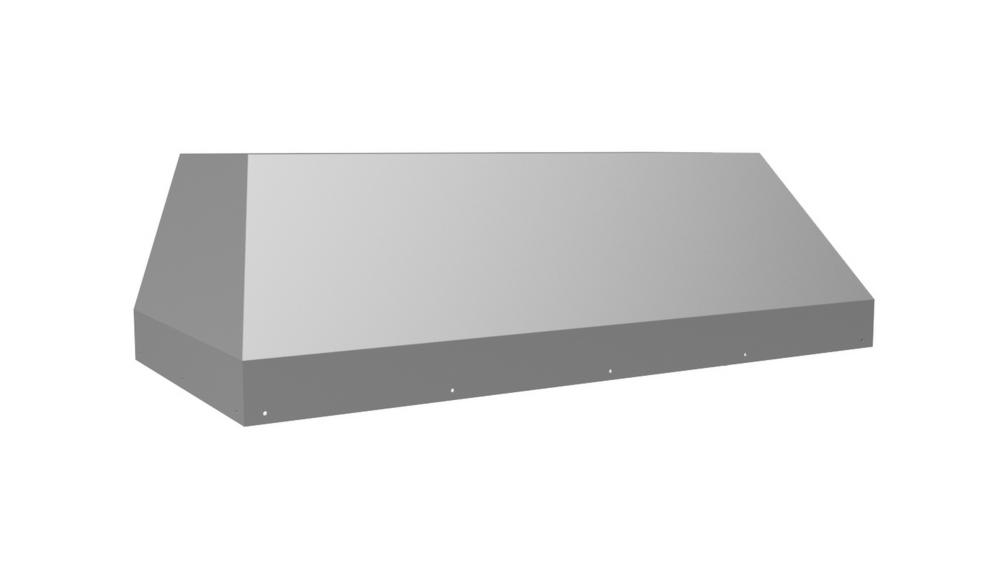

40 3/8" 300 CFM Wall Mount Liner Insert Stainless Steel
Model: BH140SLDSS
Authorized Dealer
Loading...
Authorized Dealer
40 3/8" 300 CFM Wall Mount Liner Insert Stainless Steel
Model: BH140SLDSSQuick Specs
Width
40.37"
Depth
19.25"
Height
12"
Wifi
NO
CFM
300 CFM
Energy
NO
40 3/8" 300 CFM Wall Mount Liner Insert Stainless Steel is backordered and will ship as soon as it is back in stock.
Estimated to ship in 2-3 weeks
Available to Order
Sale Price
Sale price
$1,417.00
Regular price
$1,624.00
Unit price
/
Unavailable
You save 12%
SERVICES AVAILABLE
Selection will add
$0.00
to the price
Couldn't load pickup availability
Quick Specs
Width
40.37"
Depth
19.25"
Height
12"
Wifi Connected
NO
Vent CFM
300 CFM
Energy Star Rated
NO
- Quietest at all speeds
- Easiest to Clean
- Patented Filterless Design
- Inherently Fire Safe
- 5 Year Warranty
- SensaSource(R) heat detection
The standard ventilation of the BHSLD model is intended for use over standard cooking equipment. Click on the models for a list of our base model numbers for standard sizes; simply select the model you need, and then specify the finish [painted or stainless steel]. All liners in this series are 19 1/4" deep. Recommended mounting height is 24" - 27" above the cooking surface. All Vent-A-Hood products are suitable for use in damp locations [outdoor applications such as a covered patio] when installed in a GFCI protected branch circuit.(BR)
| WIDTH : | 40 3/8" |
| DEPTH : | 19 1/4" |
| HEIGHT : | 12" |
| CFM : | 300 |
| SONES : | 5.4 |
| Amps : | 2.5 |
| Num. Lights : | 2 |
| ELECTRICAL/MECHANICAL SPECIFICATIONS FOR BLOWER UNIT | |
| Model | B100 Single |
| Volts | 115 |
| Amps+ | 2.5 |
| Hz | 60 |
| RPM | 1550 |
| CFM [email protected]" | 300 |
| Equiv. CFM$ | 450 |
| CFM [email protected]" | 273 |
| CFM [email protected]" | 245 |
| CFM [email protected]" | 225 |
| Min. Round Duct Size | 6" (28 sq. in.) |
| Sones# | 5.4 |
- Quietest at all speeds
- Easiest to Clean
- Patented Filterless Design
- Inherently Fire Safe
- 5 Year Warranty
- SensaSource(R) heat detection
 | |
|---|---|
