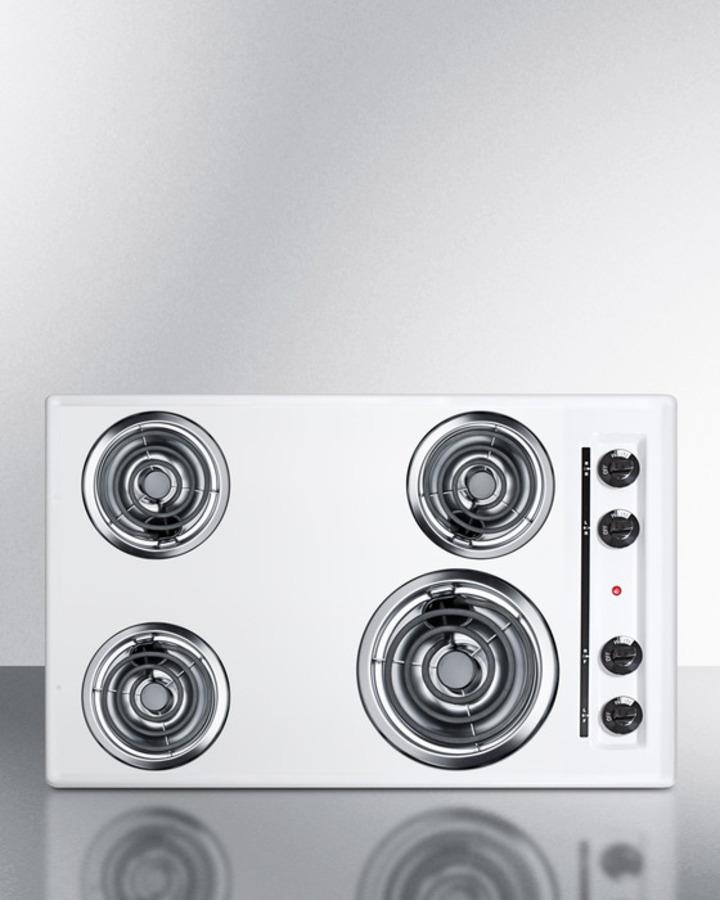

30" Wide 4-burner Coil Cooktop
Model WEL05
30" Wide 4-burner Coil Cooktop
Model WEL05Quick Specs
30" Wide 4-burner Coil Cooktop is backordered and will ship as soon as it is back in stock.
SERVICES AVAILABLE
Couldn't load pickup availability
Quick Specs
- Designed and constructed domestically
- Fits common 28 3/8" W x 18 5/8" D counter cutouts
- Knobs require a small amount of force for added safety
- Professional installation required
- Compatible with standard 40 amp 3 or 4-wire range cords
- Scratch-resistant top in a clean white finish
- Traditional design offers reliable heating and strong durability for everyday use
- Complies with the latest UL safety standards, the elements operate at lower wattage for slower but steadier heating that will not cycle off
- Larger element is ideal for heating wider pots and pans
- Standard burners accommodate most heating needs
- Each coil element includes a removable chrome pan to catch spills for easier cleanup
- Curved design helps to contain spills on the surface
- Cooktop knobs are located on the right side of the cooktop, reducing the risk of accidentally adjusting the heating in busy kitchens
Summit Appliance offers a wide selection of American-made household cooktops built for long-lasting durability in space-challenged kitchens. The WEL05 is a 24" wide 220-240V electric cooktop designed to fit 22 5/8" wide x 18 5/8" deep cutouts. It features a porcelain surface in a white finish for a classic look, with a recessed design that helps to contain spills. Side-located push-to-turn knobs offer easy and safe use, with an indicator lights to show when the cooktop is on. Designed to meet the most current UL safety standards, this unit features one 8" 950W and three 6" 650W coil elements. These operate at lower wattage than standard electric cooktops, allowing for a slow but steady heating process that will not cycle off. Each element includes a removable chrome drip pan for easier cleanup. This is a 220V cooktop and requires professional installation. It is compatible with a standard 40 amp 3 or 4-wire range cord. The WEL05 is designed and constructed in the USA. Additional finishes are available, as well as 24" sizes for larger kitchen spaces and matching wall ovens. Browse our website to explore our complete selection.
| Overview | |
| Height of Cabinet | 3.75" (10 cm) |
| Width | 29.75" (76 cm) |
| Depth | 20.0" (51 cm) |
| Cabinet | White |
| US Electrical Safety | UL |
| Canadian Electrical Safety | ULC |
| Amps | 30.0 |
| Voltage/Frequency | 230 V AC/60 Hz |
| Weight | 28.0 lbs. (13 kg) |
| Shipping Weight | 30.0 lbs. (14 kg) |
| Parts & Labor Warranty | 1 Year |
| UPC | 761101000770 |
| Electric Cooktop | |
| Heating Type | Radiant |
| Surface | Painted |
| Element Type | Coils |
| Number of Elements | 4 |
| Controls | Dial |
| Countertop Cutout Width | 28.38" (72 cm) |
| Countertop Cutout Depth | 18.63" (47 cm) |
| Element #1 Size | 6.0" (15 cm) |
| Element #1 Wattage | 675.0 |
| Element #2 Size | 8.0" (20 cm) |
| Element #2 Wattage | 950.0 |
| Element #3 Size | 6.0" (15 cm) |
| Element #3 Wattage | 675.0 |
| Element #4 Size | 6.0" (15 cm) |
| Element #4 Wattage | 675.0 |
| Power Cord Included | No |
- Designed and constructed domestically
- Fits common 28 3/8" W x 18 5/8" D counter cutouts
- Knobs require a small amount of force for added safety
- Professional installation required
- Compatible with standard 40 amp 3 or 4-wire range cords
- Scratch-resistant top in a clean white finish
- Traditional design offers reliable heating and strong durability for everyday use
- Complies with the latest UL safety standards, the elements operate at lower wattage for slower but steadier heating that will not cycle off
- Larger element is ideal for heating wider pots and pans
- Standard burners accommodate most heating needs
- Each coil element includes a removable chrome pan to catch spills for easier cleanup
- Curved design helps to contain spills on the surface
- Cooktop knobs are located on the right side of the cooktop, reducing the risk of accidentally adjusting the heating in busy kitchens
 | |
|---|---|
